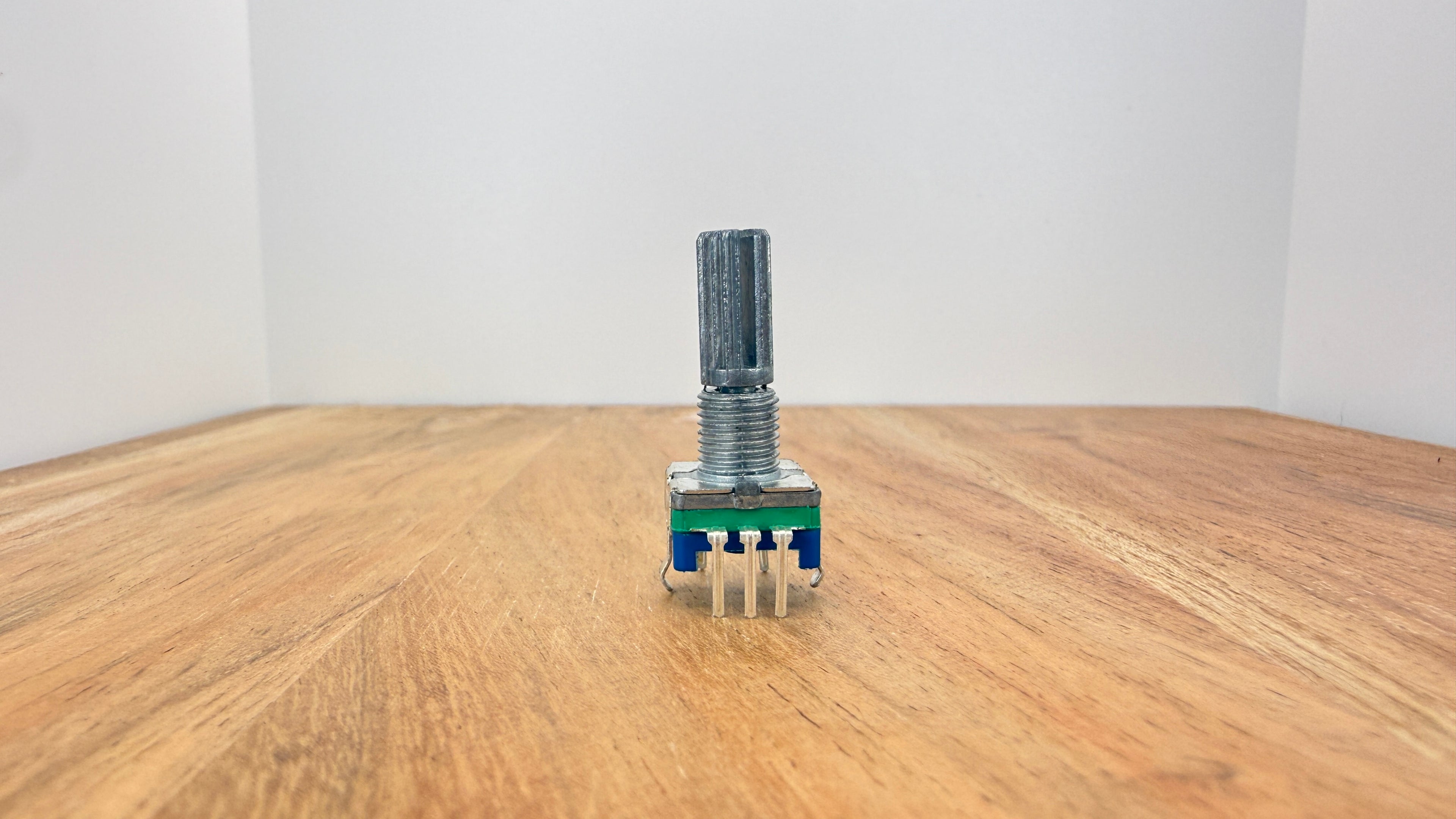

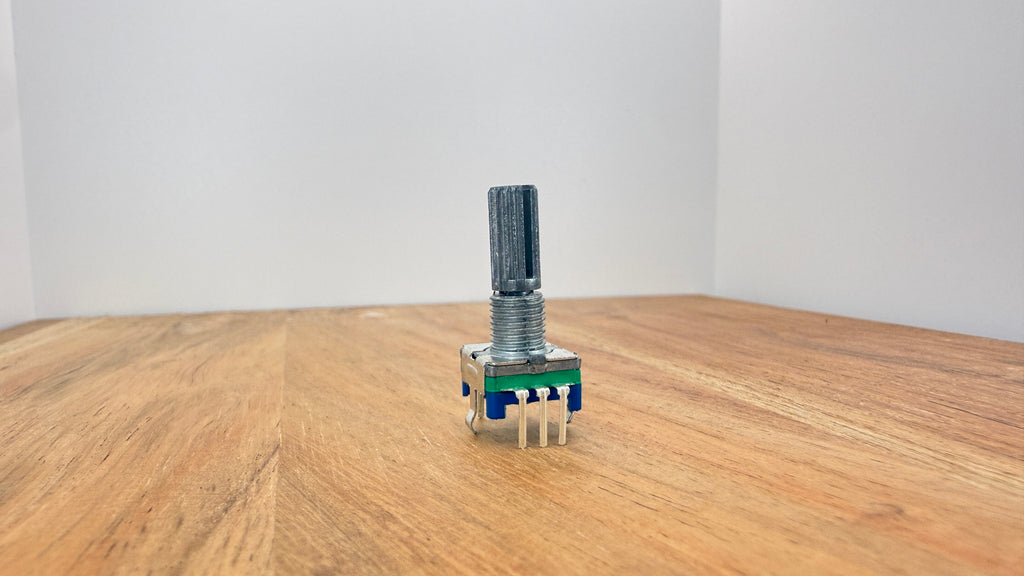

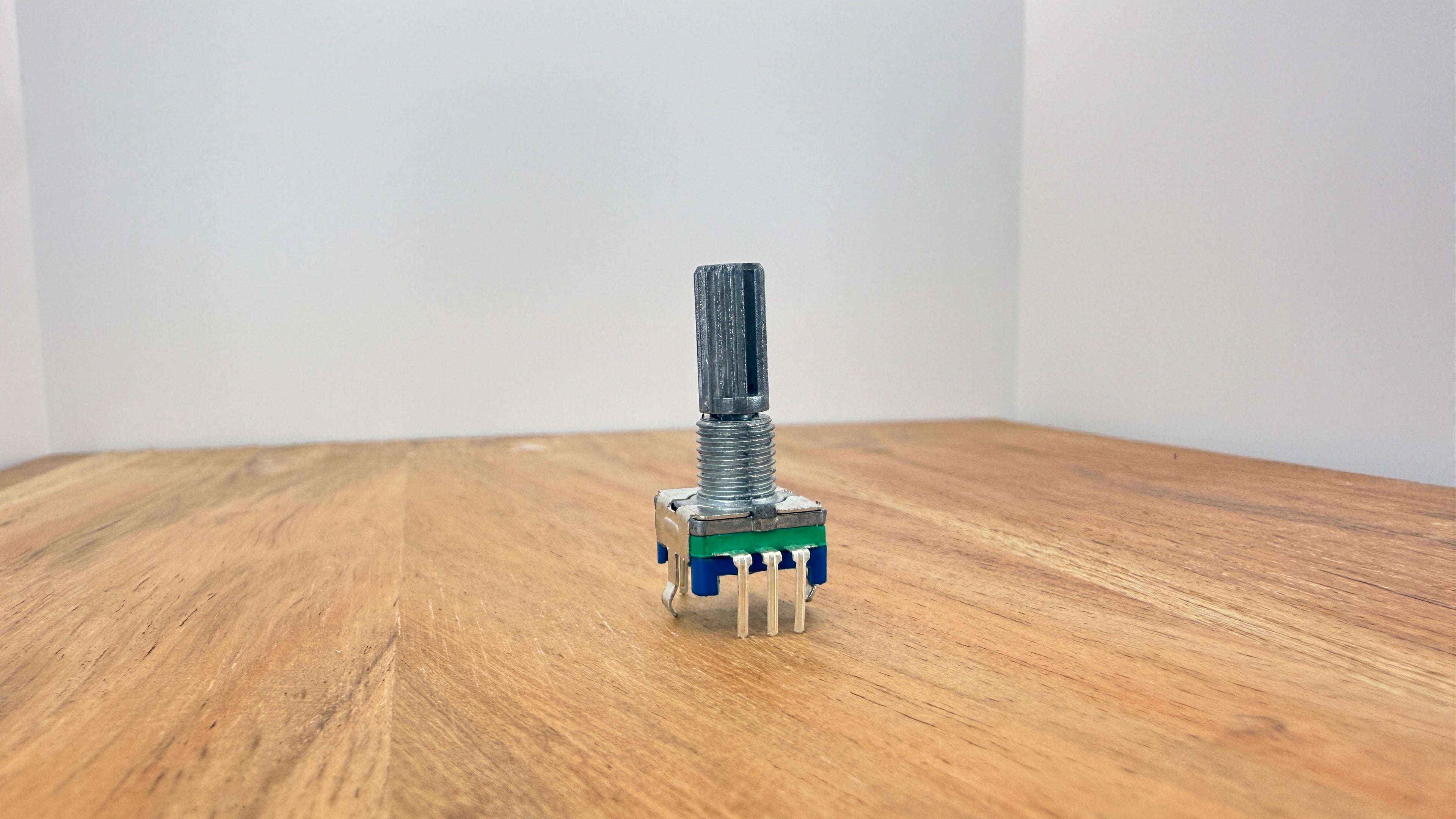

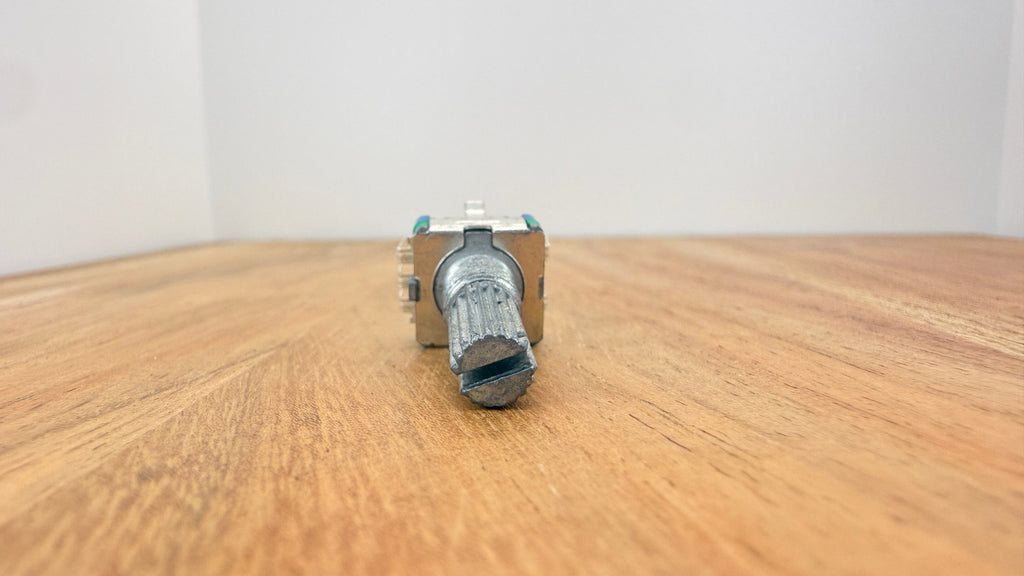

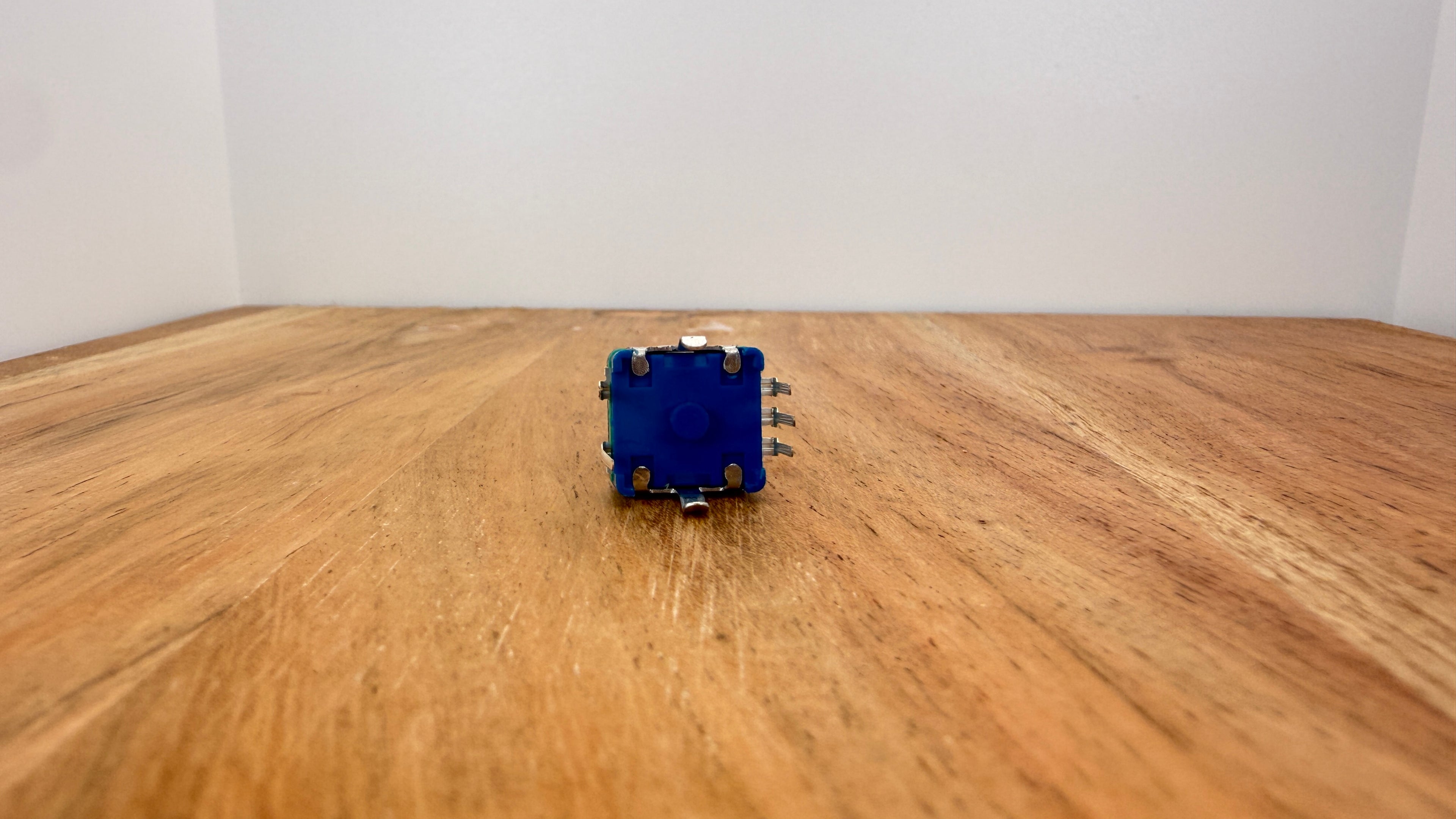

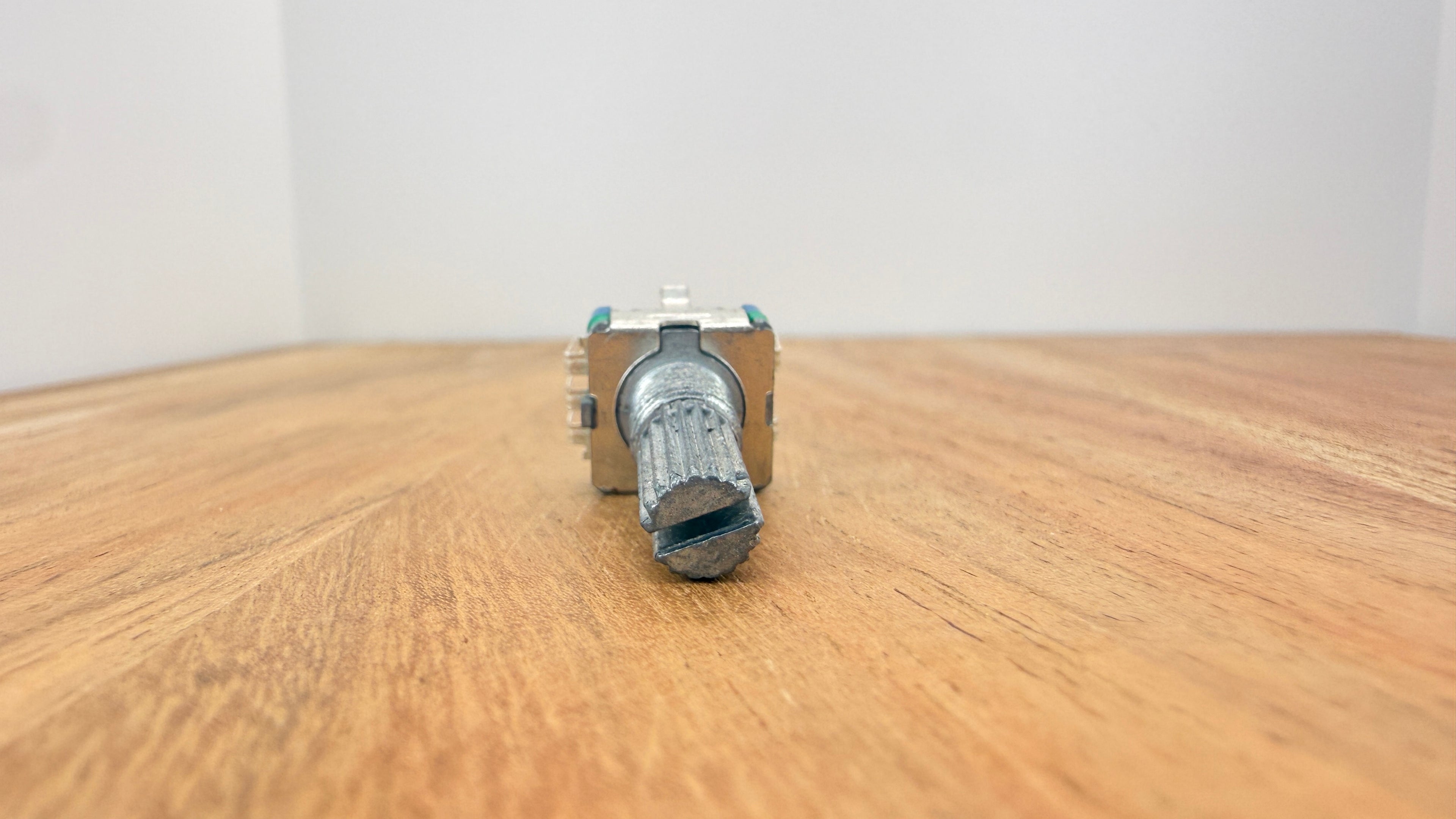

EC11 Rotary Encoder W/ Push Button (Clearance)

This is a clearance item for the following reasons:

• Does Not Contain a Nut & Washer for mounting

Sorry for the inconvenience.

The EC11 is a compact incremental rotary encoder with a built-in momentary push button, making it ideal for DIY electronics projects requiring precise rotational input. It works seamlessly with Arduino, ESP32, and Raspberry Pi for applications like volume control, menu navigation, and parameter adjustment.

General

Encoder Type: Incremental
Rotation: 360° continuous (no mechanical stop)
Detents: 20
Pulses per Revolution: 20 PPR
Push Button: Yes (built-in momentary switch)

Electrical

Rated Voltage: 5V DC
Rated Current: 10 mA
Min. Operating Current: 1 mA
Max. Operating Current: 10 mA (resistive load)
Output Signal: Two-phase quadrature (A & B channels)
Contact Resistance: ≤ 100 mΩ
Insulation Resistance: 100 MΩ or more
Voltage Proof: 300V AC for 1 minute

Mechanical

Body Size: 11 mm
Number of Pins: 5 (A, B, Common, Switch+, Switch−)
Shaft Diameter: ~6 mm
Shaft Length Options: 15 mm / 20 mm
Shaft Shape: Round / D-flat (knob compatible)
Detent Torque: 10 ± 7 mN·m
Push-Pull Strength: 100 N

Push Button Switch

Switch Type: Momentary, Normally Open (SPST)
Travel: 0.5 ± 0.3 mm
Oscillation (Bounce): < 10 ms
Contact Resistance (Initial / After Life): 100 mΩ max. / 200 mΩ max.
Switch Operating Life: 20,000 cycles

Environmental & Durability

Rotary Operating Lifespan: 30,000 ± 200 cycles
Working Temperature: −30°C to +80°C
Storage Conditions: Normal temp & humidity, no direct sunlight or corrosive gas

Compatibility & Applications

• Compatible with Arduino, ESP32, and Raspberry Pi interfaces
• Suitable for volume control, menu navigation, brightness/speed/temperature adjustment
• Designed for low-speed, manual input applications
• Standard potentiometer knobs are compatible with the shaft

📄 Download Datasheet (LCSC Electronics)
