16mm Emergency Stop Switch – Latching Mushroom (IP65)
Stock amount:
Tax included. Shipping is calculated at checkout.
Urban $40
Rural $60

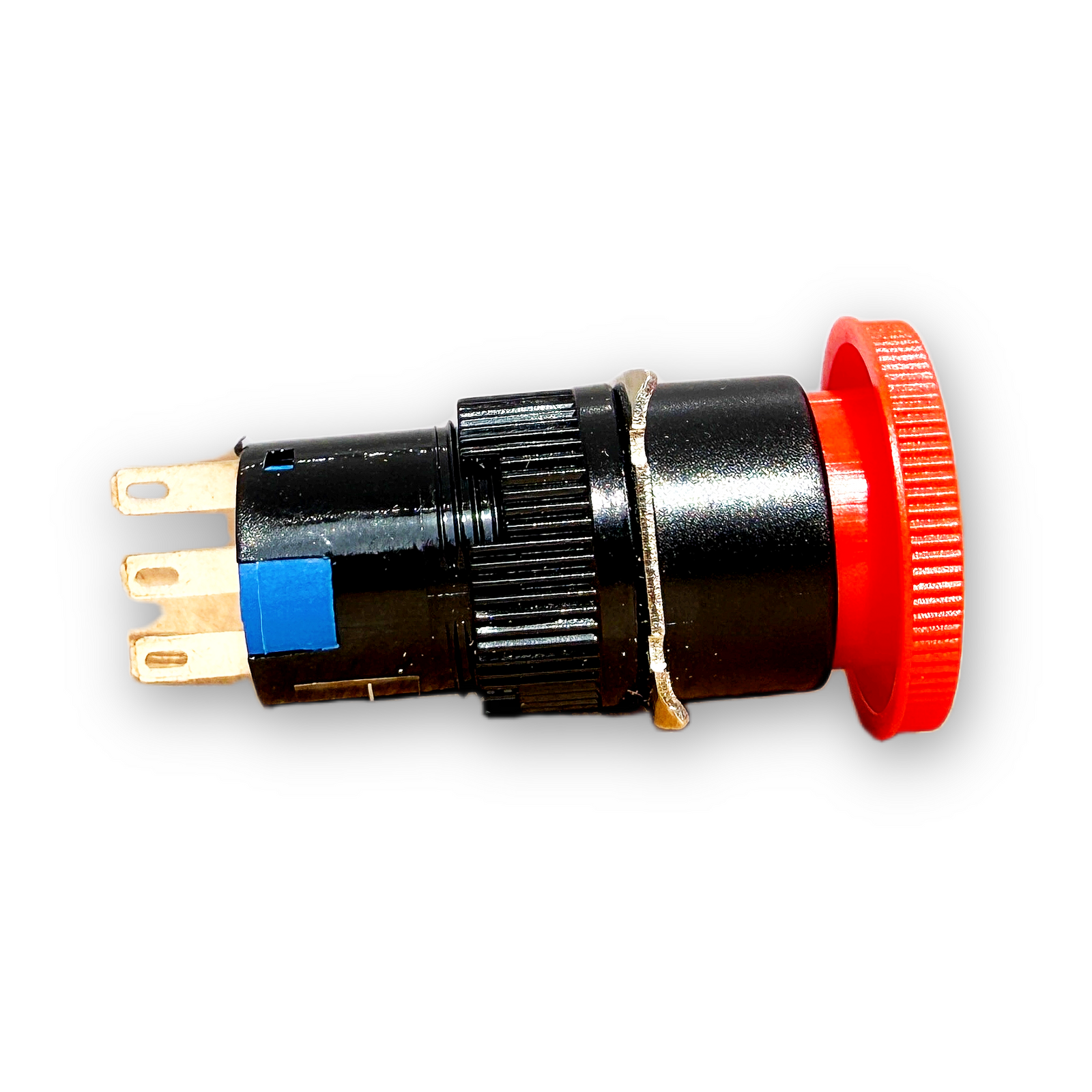

16mm panel-mount emergency stop switch with self-locking red mushroom head. Press to stop — button locks in the depressed position and must be manually twisted to release. 1NO + 1NC contacts, IP65 oil-tight rated. Standard for CNC machines, 3D printers, laser cutters, and industrial control panels.
- Self-locking mushroom head — twist to release
- 1NO + 1NC SPDT contacts

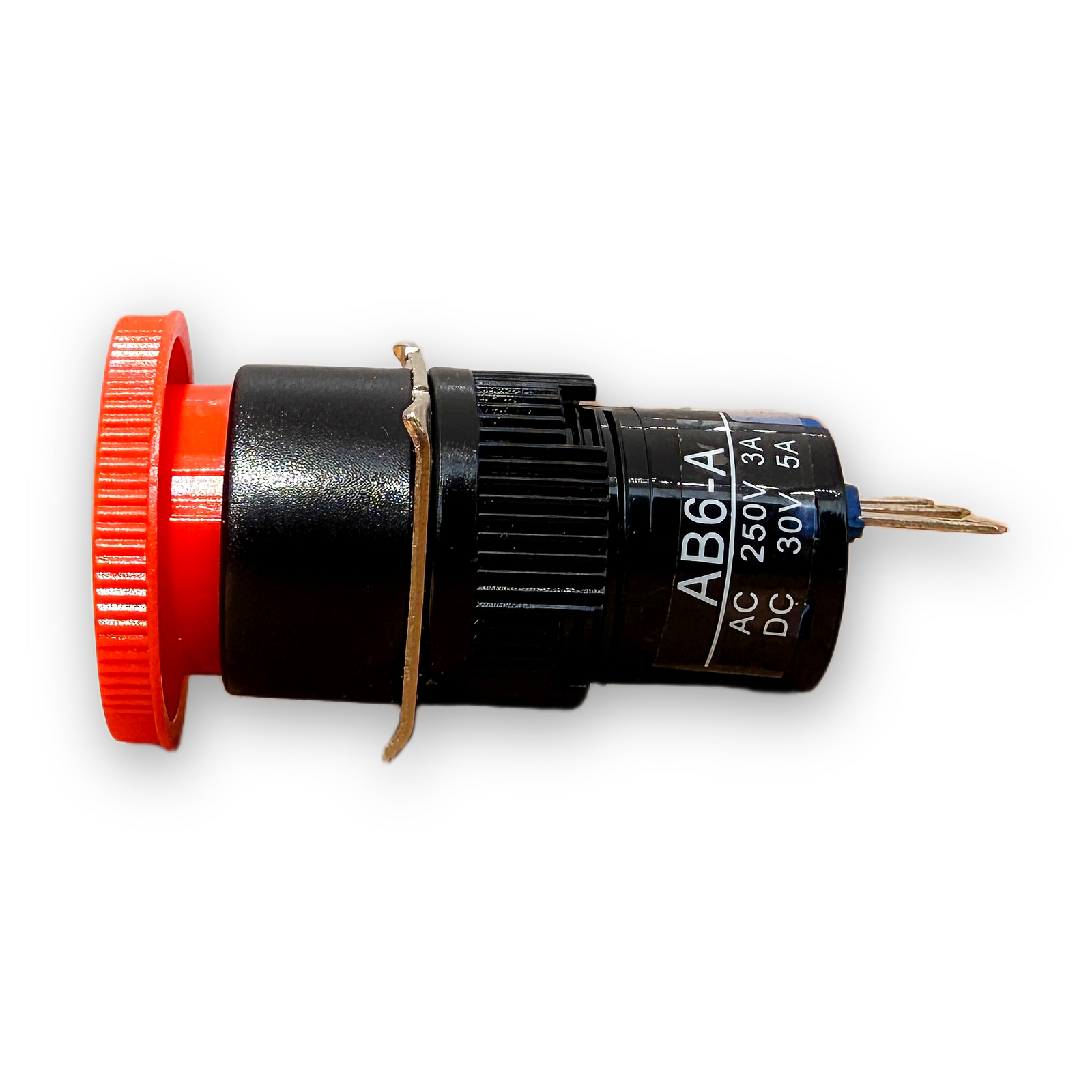

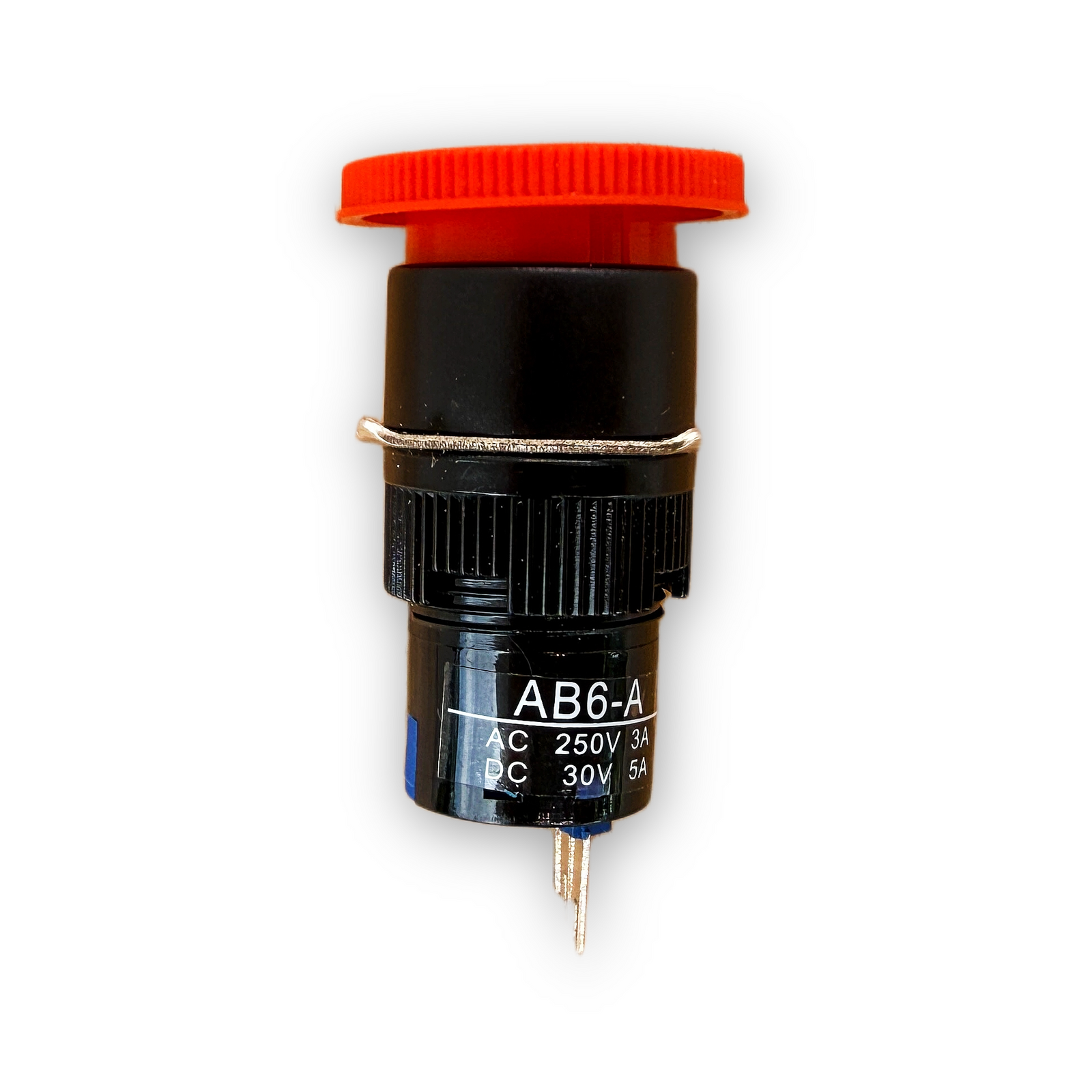

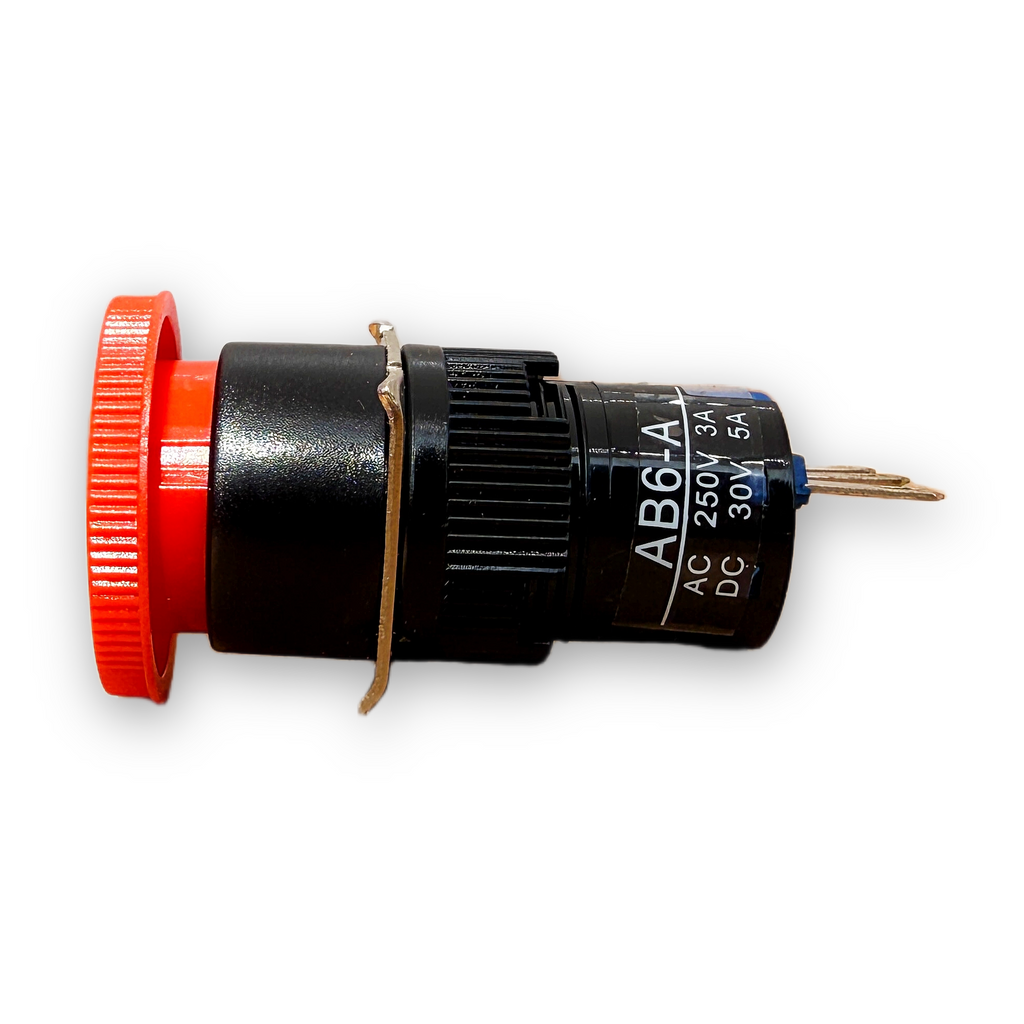

- Rated 3A @ 250VAC / 5A @ 30VDC
- IP65 oil-tight / IP40 dust-proof rated
- 16mm panel cutout
- ≥100,000 mechanical operations
- Operating range −25°C to +55°C
How It Works
1
Press to stop
Pressing the mushroom head activates the switch — NC opens, NO closes. The button locks in the depressed position.
2
Machine stops
If wired via the NC contact (recommended), pressing the button cuts the signal or power to your machine immediately.
3
Twist to release
Rotate the mushroom head clockwise until it clicks and pops back up to its normal position.
4
Reset and resume
Reset or restart your machine's controller after releasing the button before resuming operation.
Please note: Wire in accordance with local electrical safety standards. Verify contact ratings match your application before installation. 16mm panel cutout required.
Specifications
ModelAB6A

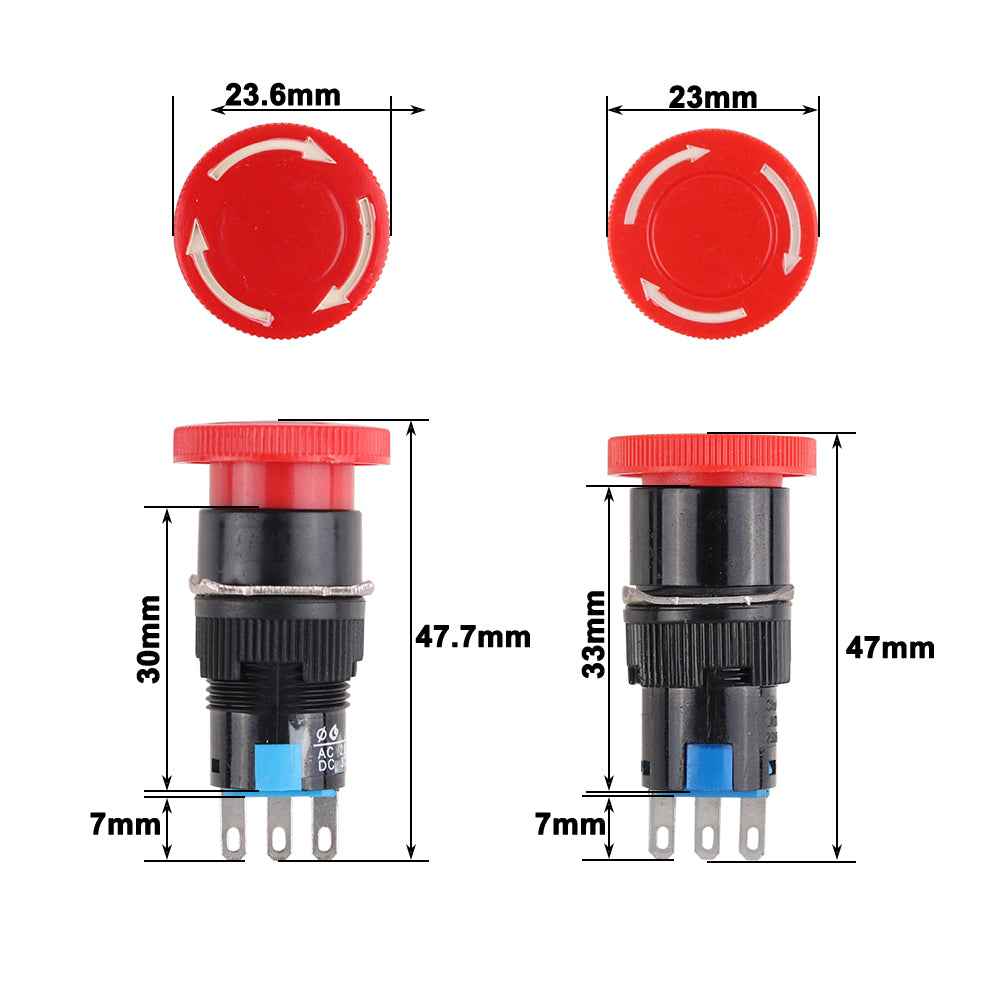

Button Diameter23.6mm (mushroom head)
Panel Cutout16mm diameter
ActionSelf-locking / latching (twist to release)
Contact Configuration1NO + 1NC (SPDT)
Max Voltage250VAC / 30VDC
Max Current3A AC / 5A DC
IP RatingIP65 oil-tight / IP40 dust-proof
Operating Temperature−25°C to +55°C
Mechanical Life≥100,000 operations
Please note: Verify contact ratings match your application before installation. Wire in accordance with local electrical safety standards.

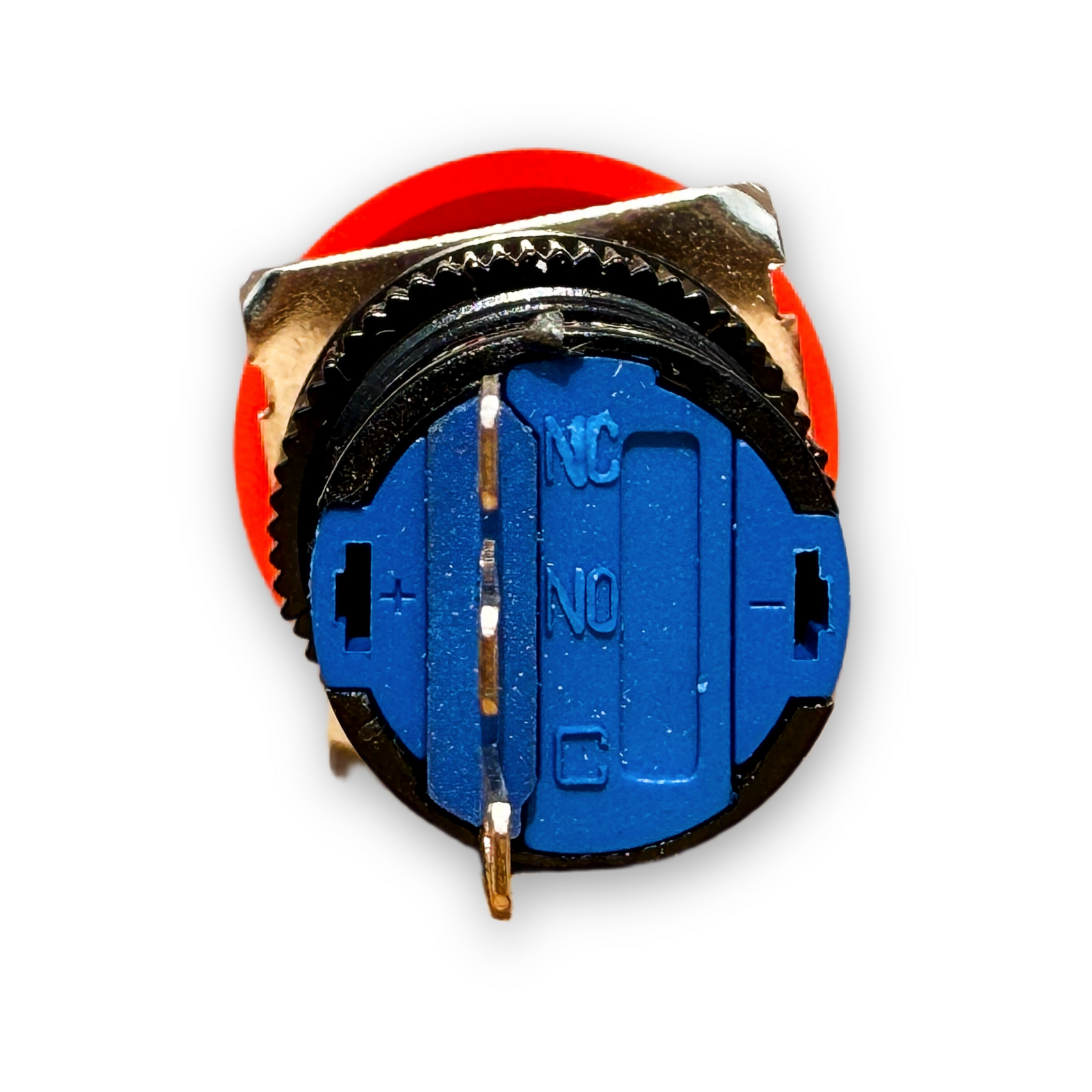

Wiring — 1NO + 1NC Contacts
COM terminalCommon — connect your supply or signal here
NO terminalNormally Open — open at rest, closes when button is pressed & latched
NC terminalNormally Closed — closed at rest, opens when button is pressed & latched
Most e-stop safety circuits use the NC contact. Wire NC in series with your machine's power or enable signal. When the button is pressed, NC opens and cuts power or signal to the machine. This is the fail-safe configuration — a broken wire or loose connection will also trigger a stop.
To release: Twist the mushroom head clockwise until it clicks and pops back up. Then reset your machine's controller before resuming operation. Do not bypass or defeat the e-stop mechanism.
Please note: For mains AC applications, installation must be carried out by a licensed electrician. Wire in accordance with local electrical safety standards.
What's Included
1×
AB6A Emergency Stop Switch

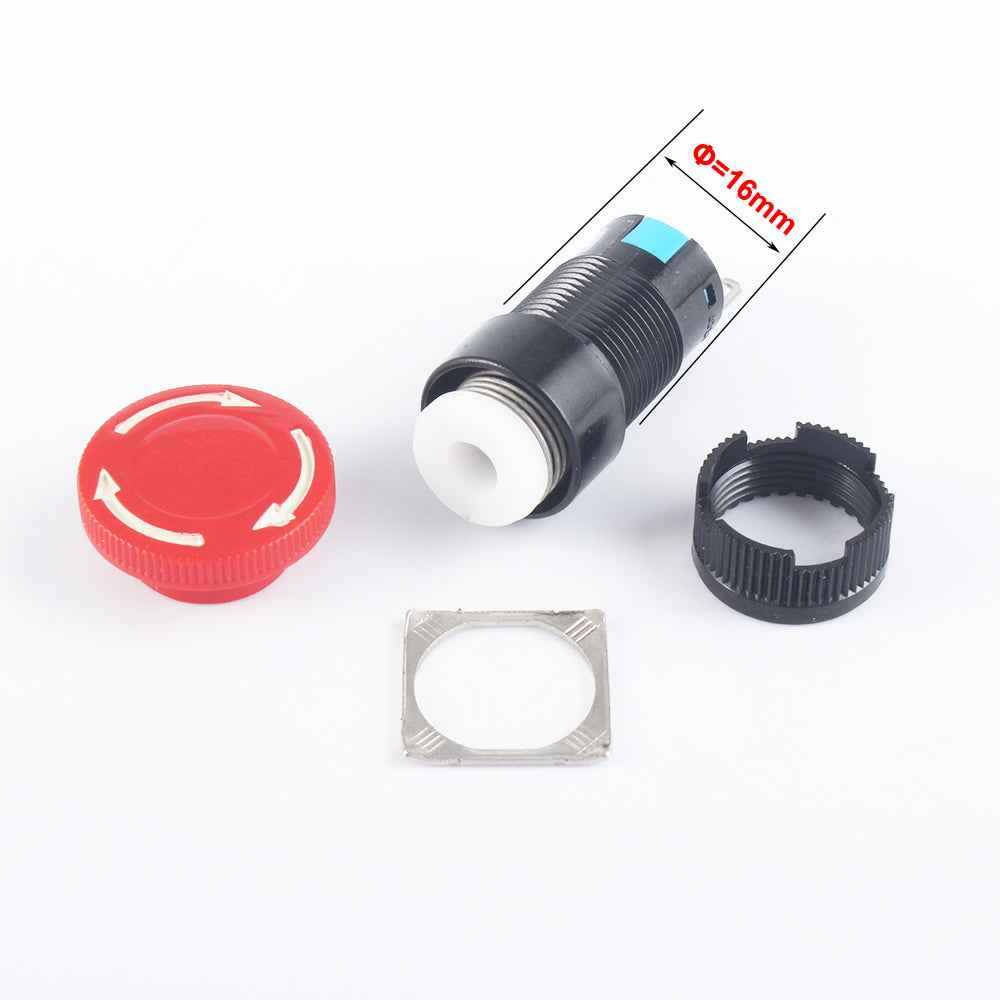

Mushroom head, contact block, and panel mounting hardware included. Ready to install into a 16mm panel cutout.
Please note: Sold individually. 16mm panel cutout required — not included.
Common Uses
CNC machines, 3D printers & laser cutters — emergency safety shutoff
Lifts & elevators — standard panel emergency stop
Industrial automation — hardwired safety interlocks
Workshop equipment — mill, lathe, router & power tool shutoff
Robotics & go-kart builds — emergency stop for autonomous or RC machines
Any panel requiring a positive-action latching stop mechanism
Please note: IP65 rating makes this switch suitable for environments exposed to coolant, oil mist, or light fluid spray.
Common Questions
How do I reset the button after pressing it?
Twist the mushroom head clockwise — it will click and pop back up to its normal position. You'll also need to reset or restart your machine's control system before it will resume operation.
Should I wire the NO or NC contact for my e-stop circuit?
Use the NC contact for safety-critical applications — it's the fail-safe choice. If a wire breaks or comes loose, the NC contact opens and the machine stops. Only use NO if you specifically need the circuit to activate (rather than cut) when the button is pressed.
What size hole do I need to drill?
16mm diameter. The switch mounts through the panel and secures with the included hardware. Panel thickness up to approximately 5mm works well.
Is this suitable for outdoor or wet environments?
The IP65 oil-tight rating makes it suitable for environments with coolant spray, oil mist, or light moisture exposure. It is not rated for full submersion or prolonged direct water exposure.
Please note: Wire in accordance with local electrical safety standards. Verify contact ratings match your application before installation.
