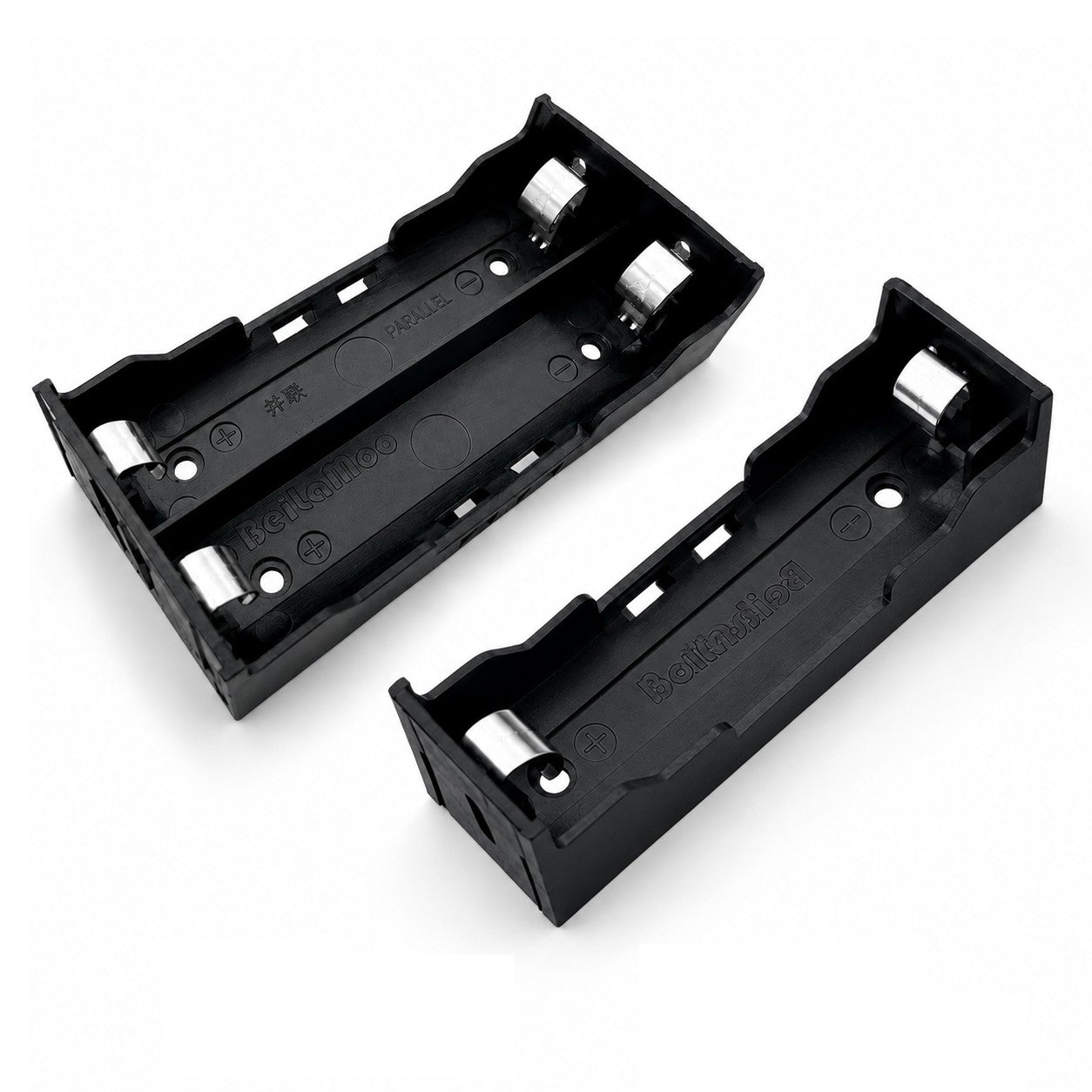

Empty 1 slot 18650 battery holder in black ABS with a contact at each end

18650 Battery Holder Case with Solder Pins - 1 & 2 Slot, PCB Mount (ABS)

1 Slot
$2.99 NZD
Save 6% at 3+
Skip to product information
Empty 1 slot 18650 battery holder in black ABS with a contact at each end
  • Empty 1 slot 18650 battery holder in black ABS with a contact at each end

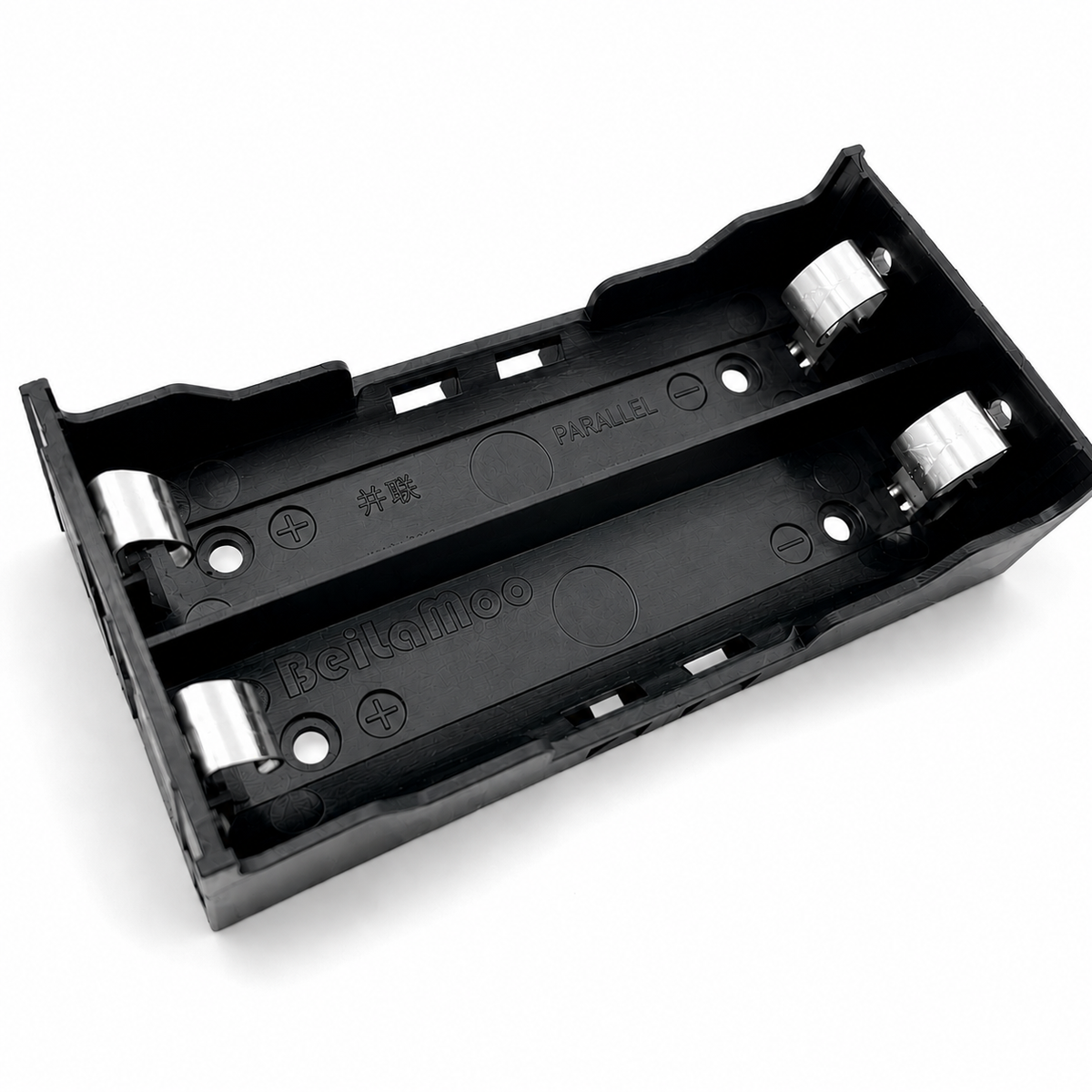

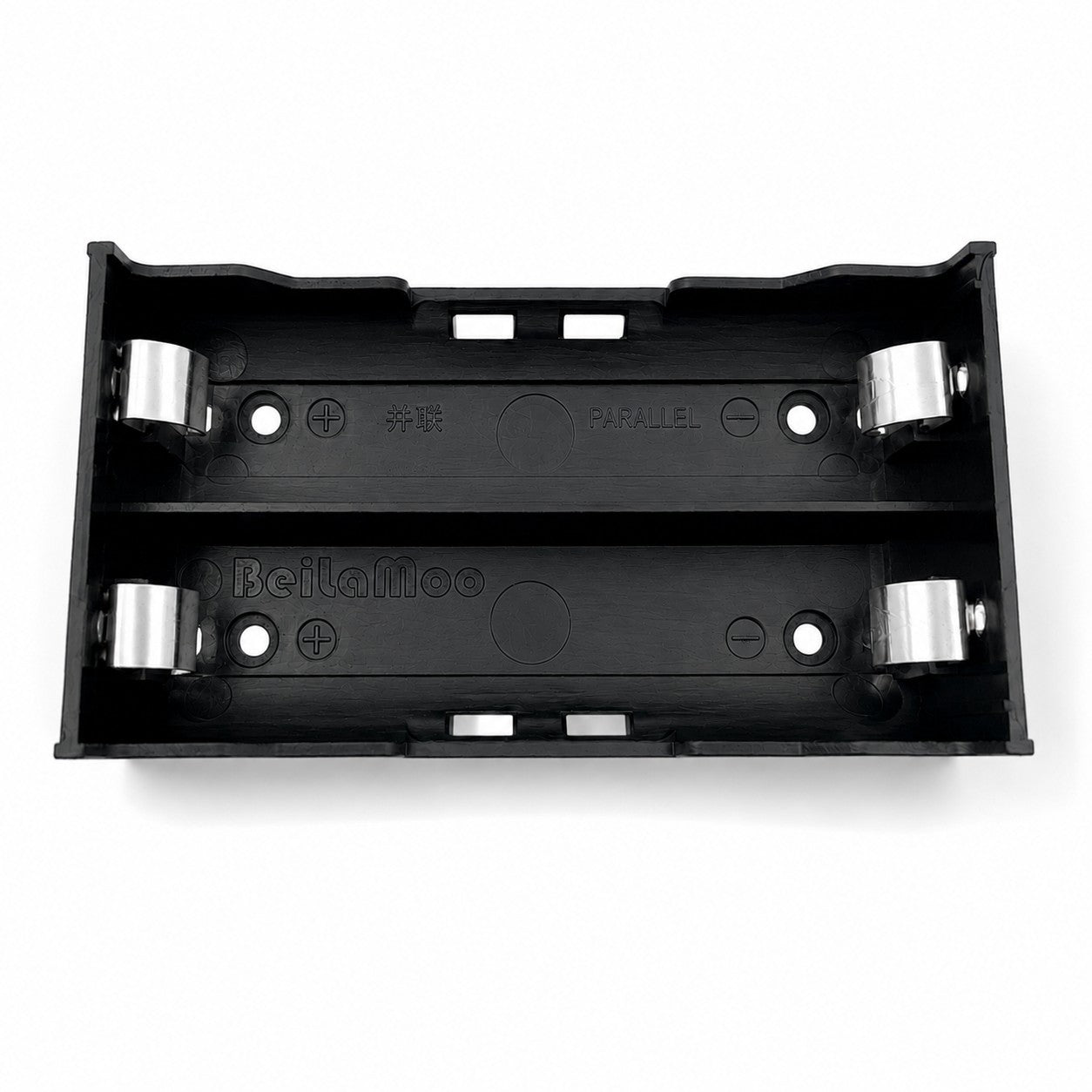

  • Top view of the 2 slot 18650 holder with parallel and series polarity marks

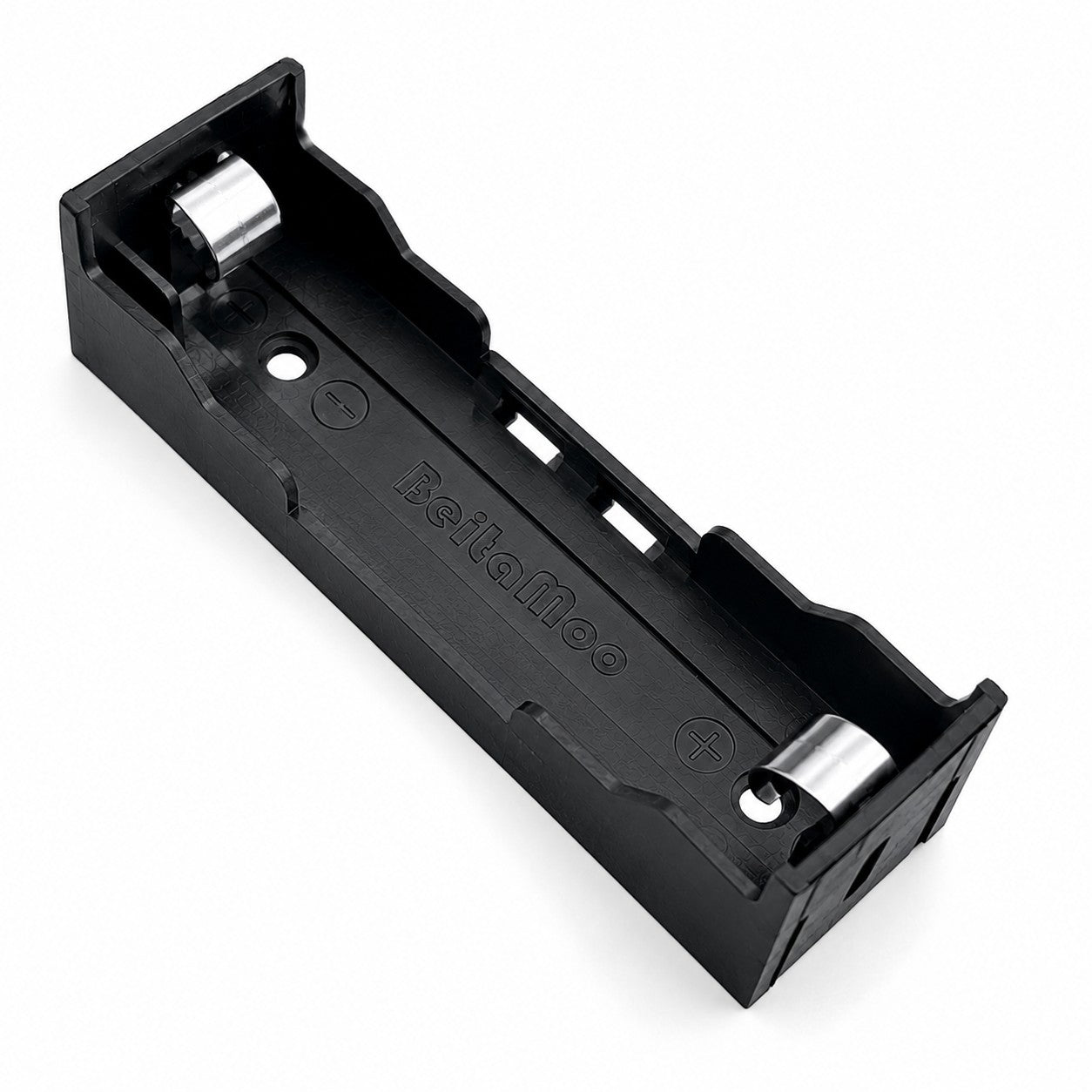

  • Top view of the 1 slot 18650 holder with moulded + and - marks

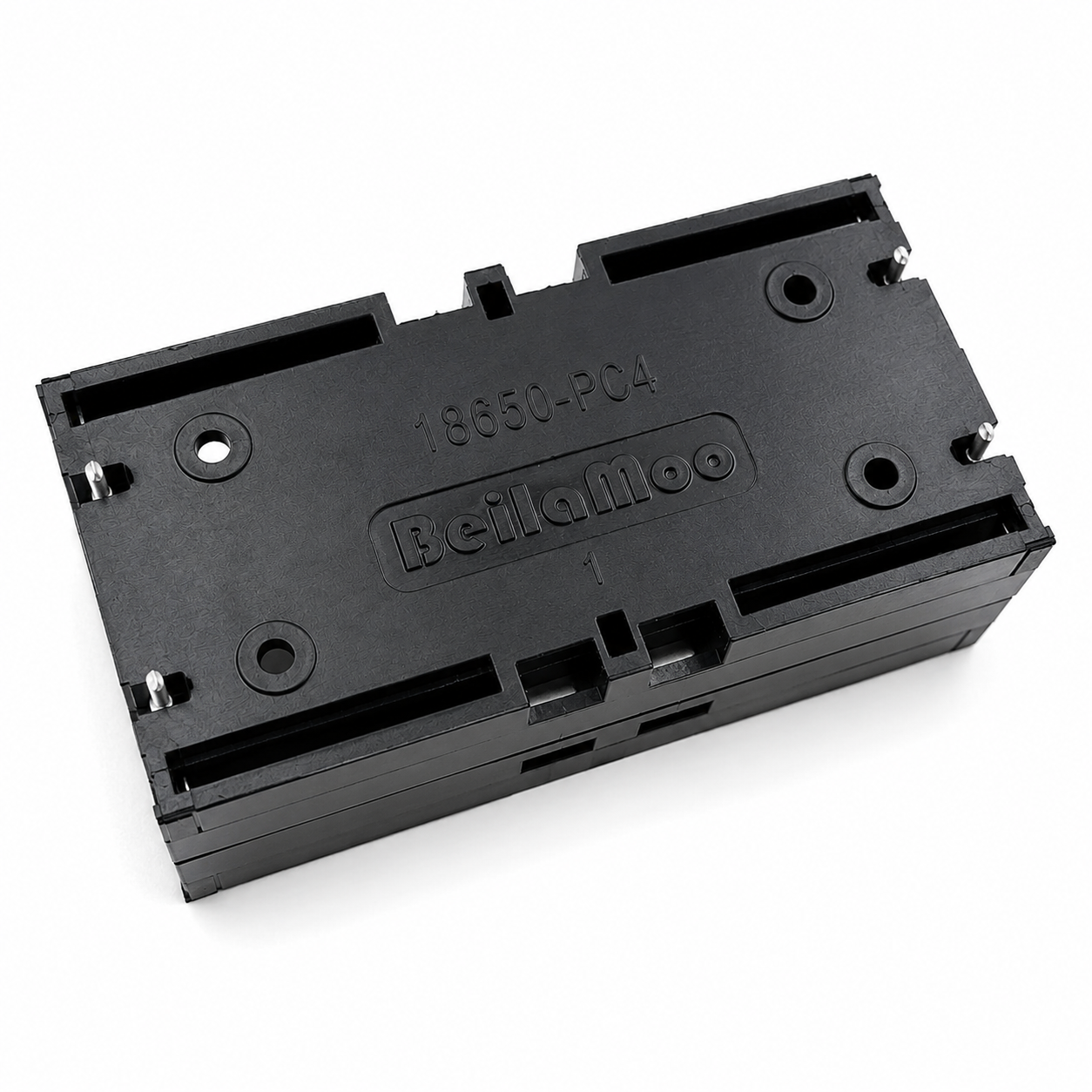

  • Underside of the 2 slot 18650 holder showing mounting holes and four solder pins
  • Underside of the 1 slot 18650 holder showing two solder pins and mounting holes

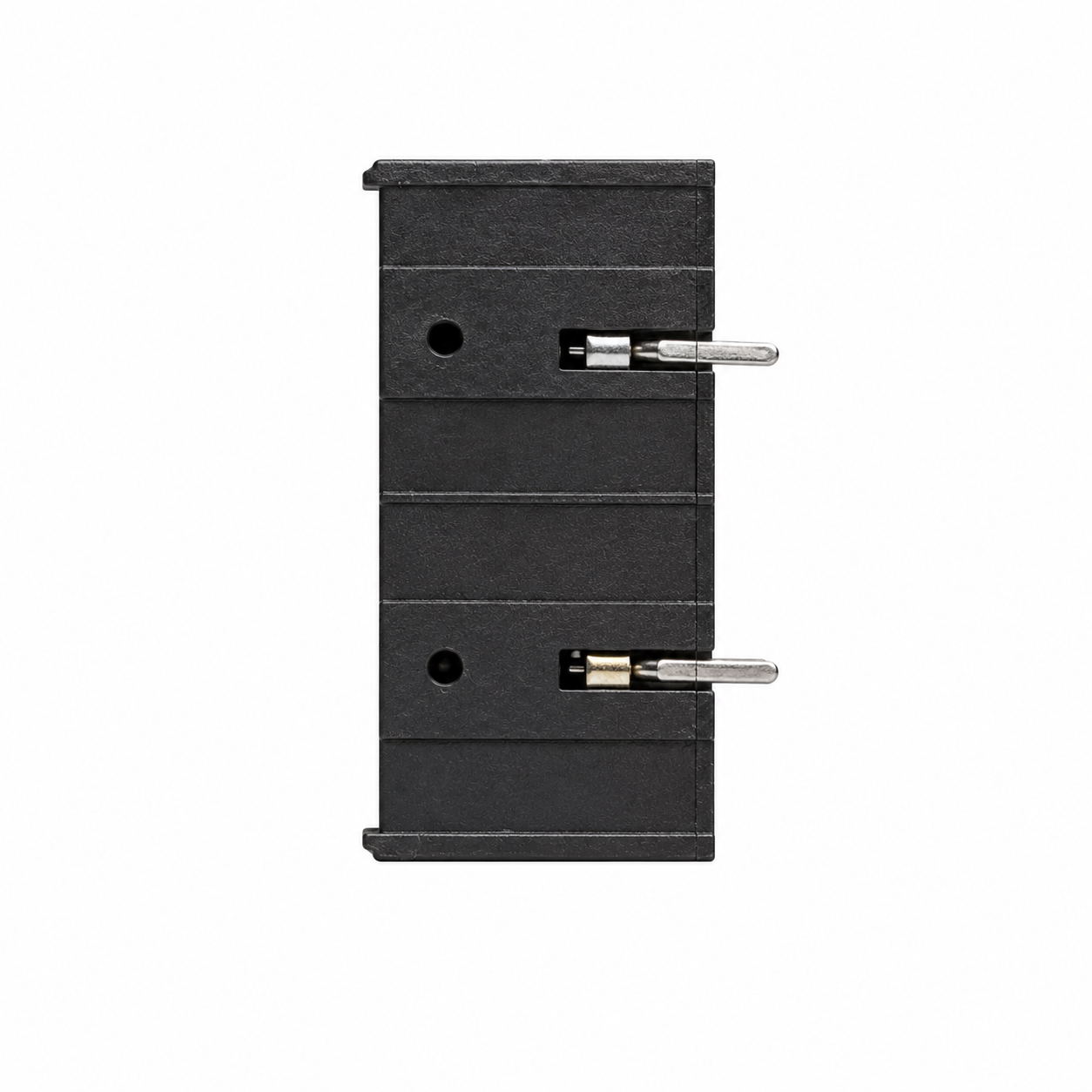

  • 2 slot 18650 holder turned over to show its four solder pins
  • 1 slot 18650 holder turned over to show its two solder pins
  • 2 slot 18650 holder dimensions: 77.7 x 40.2 x 21.5 mm
  • 1 slot 18650 holder dimensions: 77.7 x 20.9 x 21.3 mm
18650 Battery Holder Case with Solder Pins - 1 & 2 Slot, PCB Mount (ABS)
SKU: BH-18650-1S

18650 Battery Holder Case with Solder Pins - 1 & 2 Slot, PCB Mount (ABS)

$2.99 NZD
Slots
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

An 18650 battery holder with bare solder pins that mount straight onto a PCB or perfboard. Choose the 1 slot for a single 3.7V 18650 cell, or the 2 slot for two cells. Each cell in the 2 slot has its own + and - pin, so your board decides the wiring: series for 7.4V, or parallel for 3.7V and longer run time. There are no wire leads, so solder your own to the pins if you want flying leads.

Specifications

Cell size18650 Li-ion, 3.7V nominal
Cell fitFlat top and button top
Pins1 slot: 2 pins. 2 slot: 4 pins, a + and - for each cell
2 slot wiringSeries for 7.4V or parallel for 3.7V, set by your PCB
ConnectionBare solder pins for PCB or perfboard, no leads
BodyBlack ABS
ContactsNickel plated stainless steel spring contacts
1 slot size77.7 x 20.9 x 21.3mm (L x W x H)
2 slot size77.7 x 40.2 x 21.5mm (L x W x H)

What's in the box

1×
18650 battery holder, 1 slot or 2 slot

The holder only. No batteries or wire leads.

Great for

Running an ESP32 or Arduino project from one 18650 cell
A 7.4V supply for a small motor driver from two cells in series
Two cells in parallel for longer run time at 3.7V
A perfboard power bank with a charger and 5V converter
Swappable cells in a portable sensor or logger
A simple jig for checking spare cells

Wiring & getting started

  1. Solder first

    Push the pins through your board and solder underneath, or solder leads to the pins. Do this before any cell goes in.

  2. Choose your wiring (2 slot)

    The two cells are not joined inside the holder. For parallel, join the two + pins together and the two - pins together. For series, link the - pin of one cell to the + pin of the other and take power from the two pins left over.

  3. Add charging and protection

    For one cell, or two in parallel, our TP4056 USB-C charging module charges and protects the cell. Two cells in series need a 2S charger or BMS instead.

  4. Fit the cells

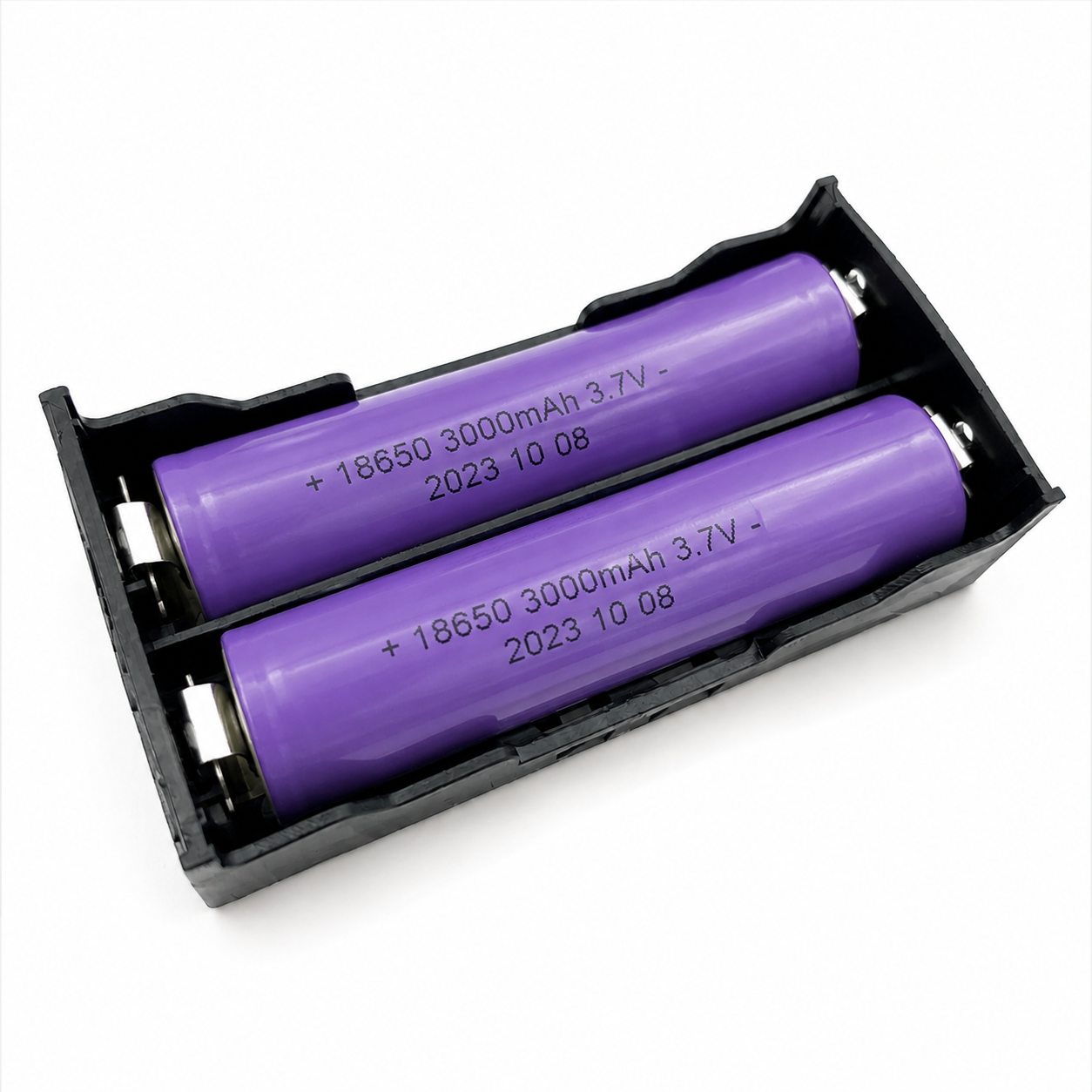

    Put each cell in the way round your board expects. The + and - ends are moulded in each bay, and the 2 slot is marked for both the parallel and the series layout.

  5. Power your build

    Need a steady 5V or 3.3V from one cell? Add our TPS63070 buck-boost module.

Frequently Asked Questions

Answers to the questions buyers ask most.

Do these come with wire leads?
No. They have bare solder pins for mounting on a PCB or perfboard. If you want flying leads, solder your own wires to the pins.
Which one should I choose?
The 1 slot holds one 3.7V 18650 cell and has 2 pins. The 2 slot holds two cells and has 4 pins, so choose it when you want 7.4V (series) or longer run time at 3.7V (parallel).
Can I wire the 2 slot in series or parallel?
Yes. The two cells are not joined inside the holder. Each cell has its own + and - pin, so your PCB sets the wiring. For parallel (3.7V), join the two + pins together and the two - pins together. For series (7.4V), link the - pin of one cell to the + pin of the other and take power from the two pins left over. The base is marked with the + and - ends for both layouts.
How do I charge the cells?
The holder has no charging circuit. For one cell, or two in parallel, add a TP4056 charger with protection, such as our USB-C module. Two cells in series need a 2S charger or BMS.
Are batteries included?
No. The holders are sold on their own so you can use your own 18650 cells.
