150 mm Futaba-style servo Y cable with one plug and two socket branches

150mm Futaba-Style Servo Y Cable - 1 to 2 Splitter

$4.99 NZD
Save 6% at 3+
Skip to product information

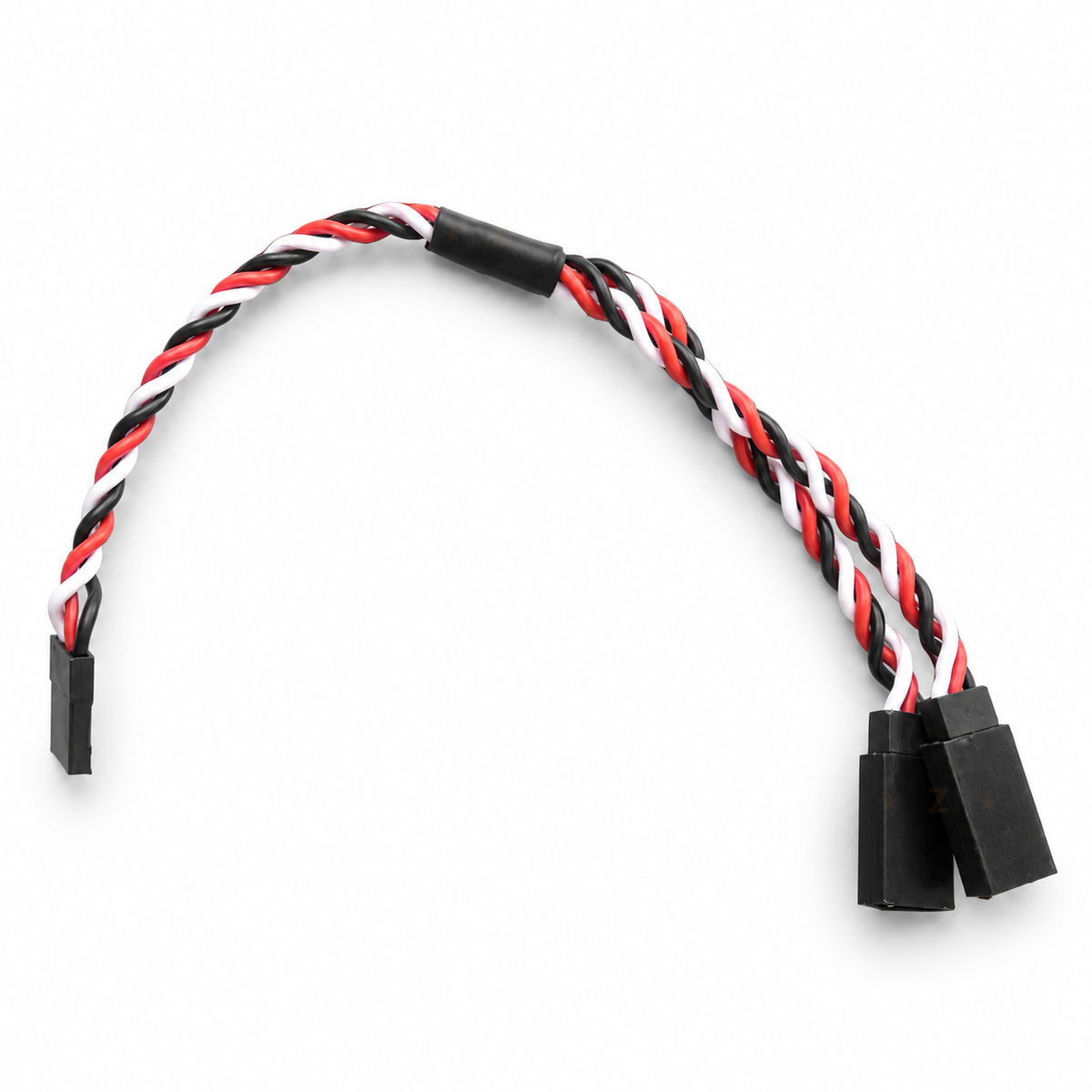

150 mm Futaba-style servo Y cable with one plug and two socket branches
  • 150 mm Futaba-style servo Y cable with one plug and two socket branches

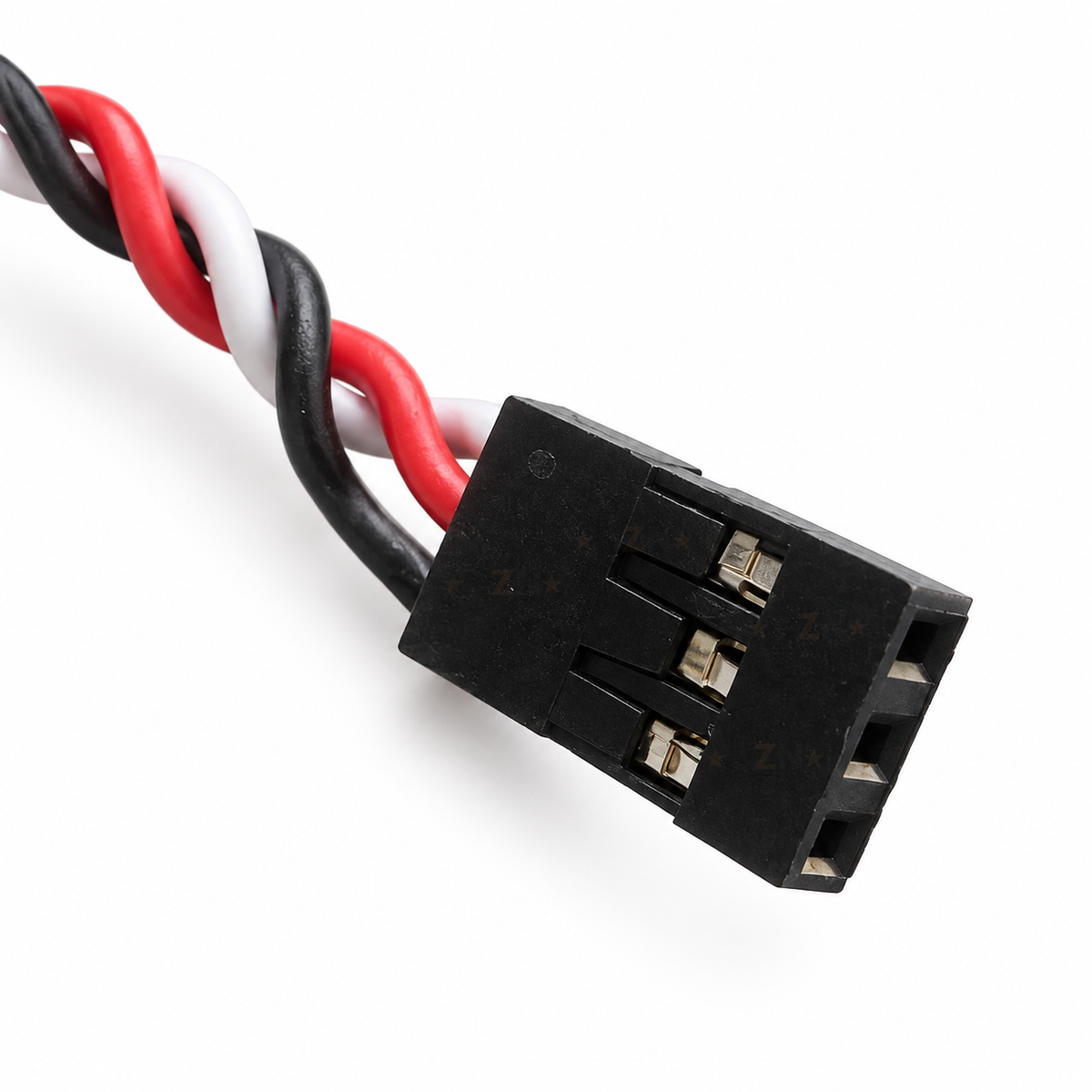

  • Close-up of the three-position Futaba-style plug on the servo Y cable

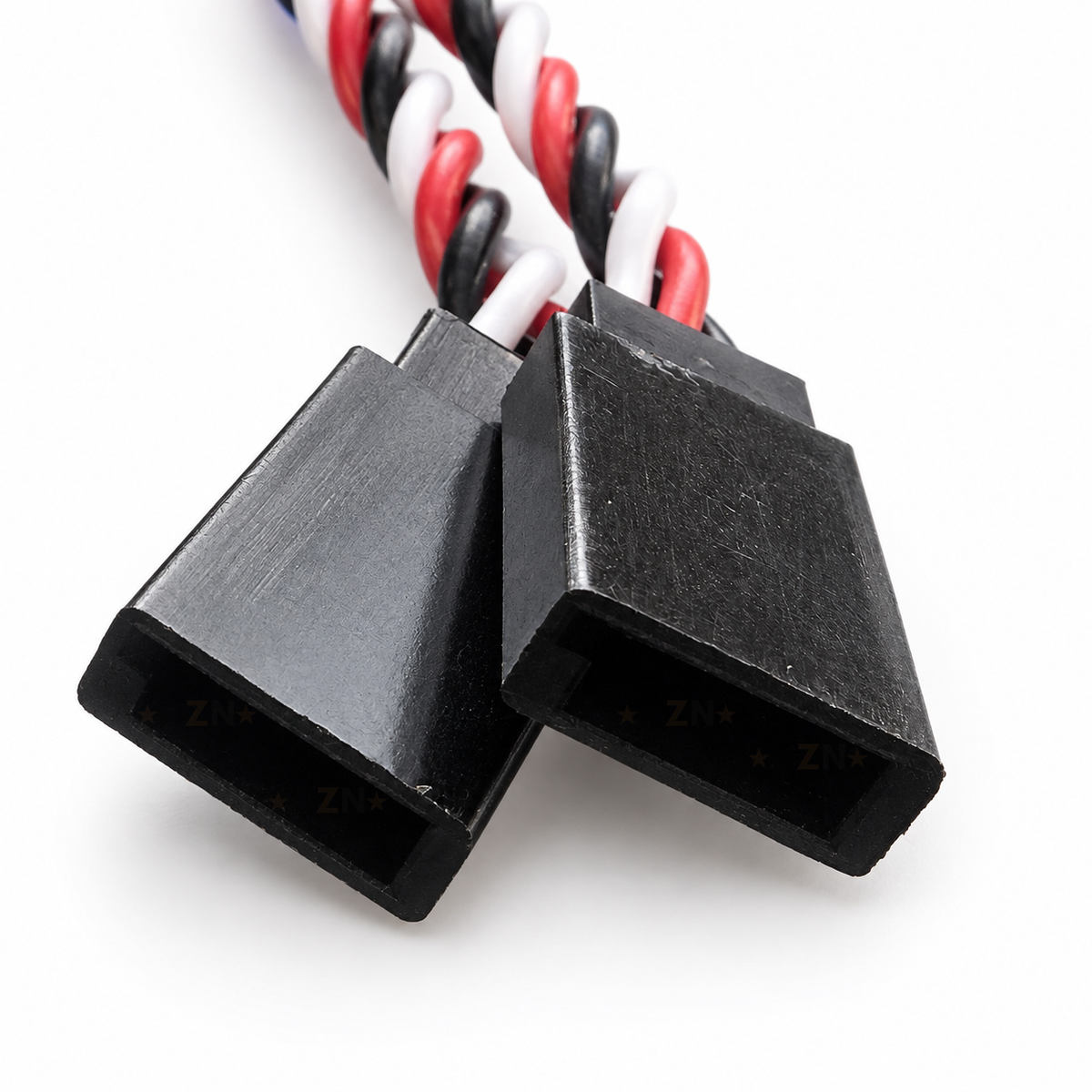

  • Close-up of the two three-position socket ends on the servo Y cable

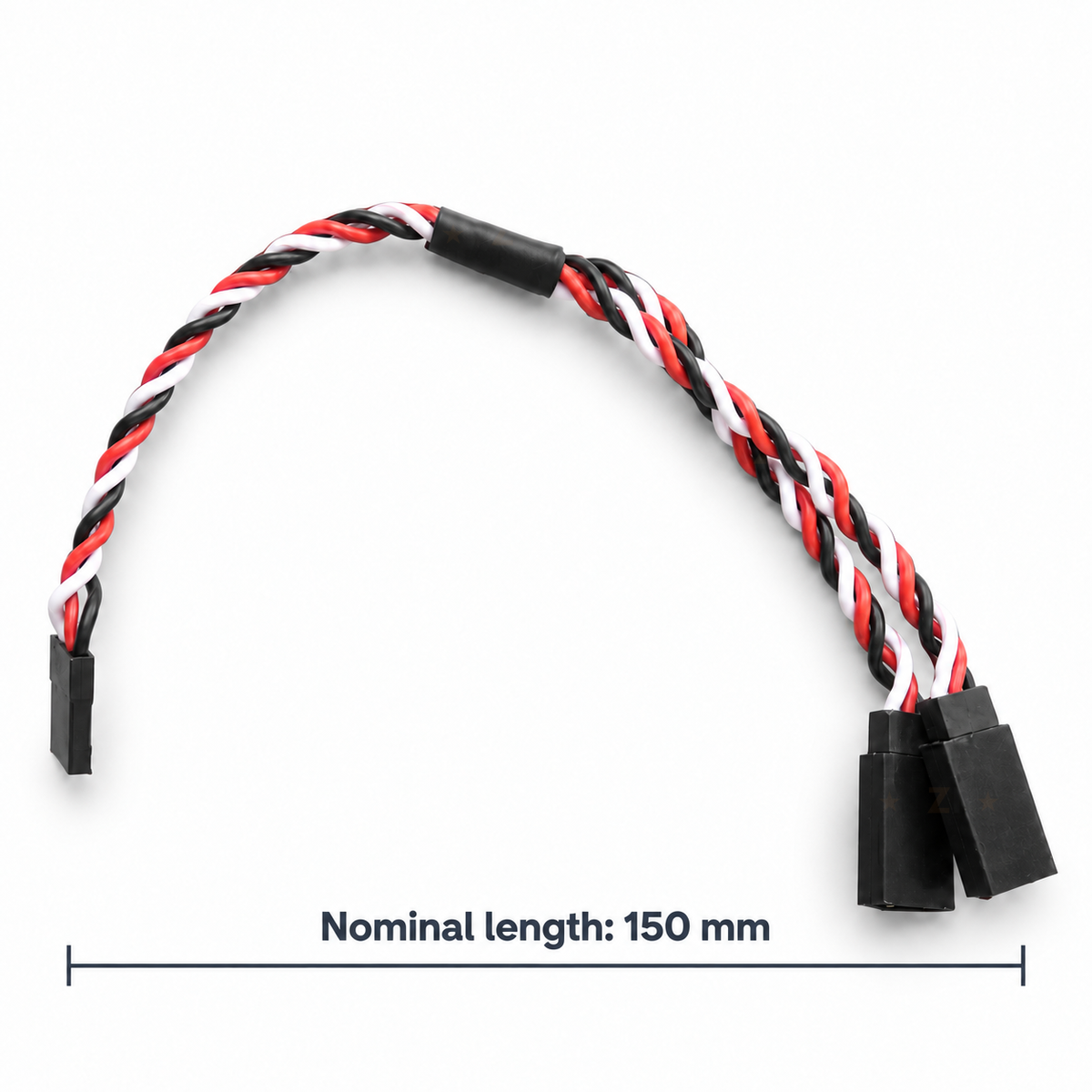

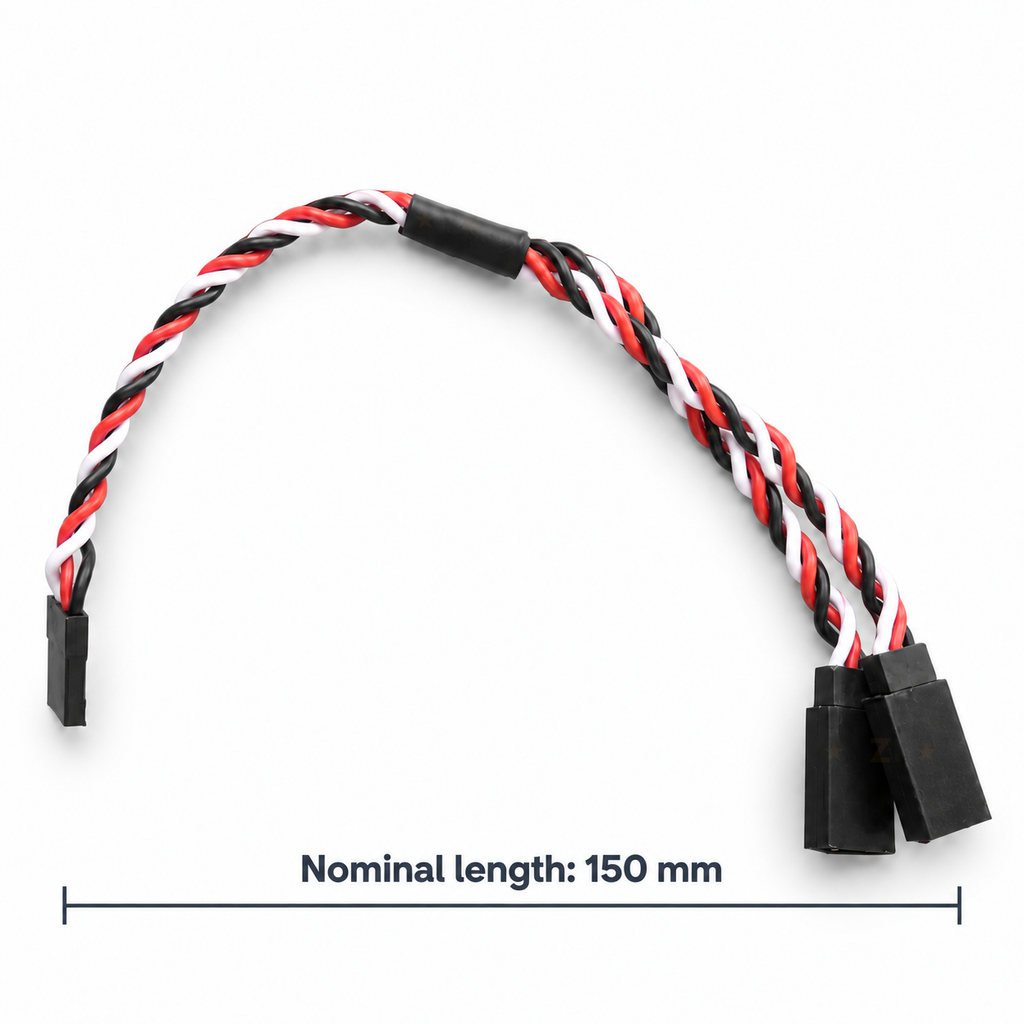

  • 150 mm nominal length shown on the Futaba-style servo Y cable

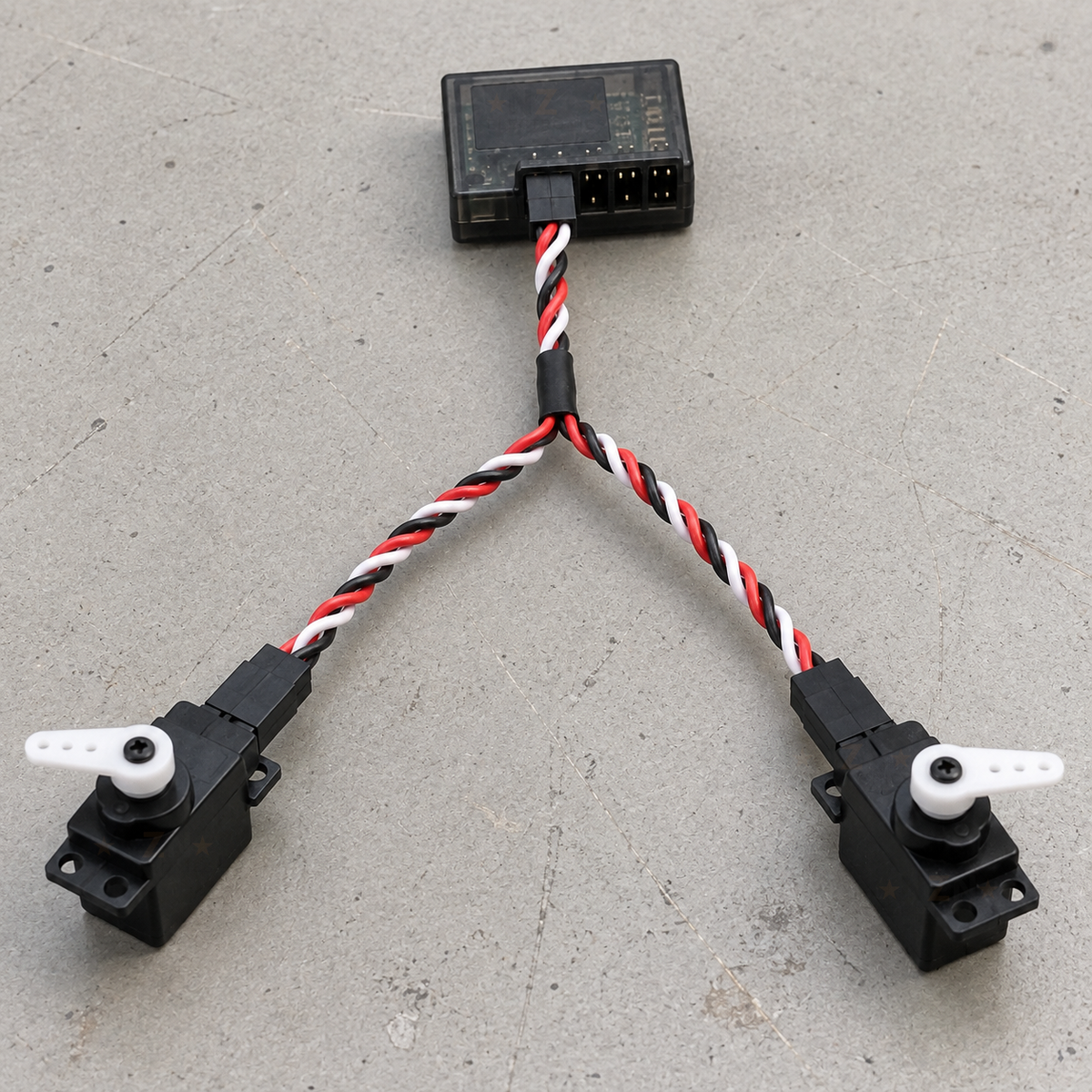

  • Futaba-style Y cable connecting one receiver channel to two RC servos
150mm Futaba-Style Servo Y Cable - 1 to 2 Splitter
SKU: CBL-SERVO-Y-FUT-150

150mm Futaba-Style Servo Y Cable - 1 to 2 Splitter

$4.99 NZD
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

This 150 mm Futaba-style servo Y cable connects two compatible servo leads to one receiver or controller channel. The passive 1-to-2 harness carries the same power, ground and control signal to both branches through 22 AWG, three-conductor wiring.

Specifications

Harness typePassive 1-to-2 servo Y cable
Connector styleFutaba-style, 3-position keyed housings
Connector layout1 plug to 2 sockets
Nominal length150 mm
Conductor size22 AWG, supplier-listed
Strand construction60 x 0.08 mm, supplier-listed
Visible wire coloursWhite, red and black
Cable formTwisted three-conductor branches
Split protectionBlack heat-shrink sleeve

Datasheets

Servo Y cable technical datasheet PDF

What's in the box

1 x
150 mm Futaba-style servo Y cable

One complete 1-to-2 harness with one keyed plug and two keyed sockets.

Great for

Dual aileron or flap servos

Drive two compatible servos from the same receiver command.

RC repairs and rewiring

Replace or tidy a short two-servo harness in an aircraft, car or boat.

Robotics projects

Share one controller signal where two compatible servos should move together.

Wiring & getting started

  1. Switch power off

    Disconnect the receiver or controller supply before fitting or removing the harness.

  2. Match the connector orientation

    Align the keyed housings and confirm the connected leads follow the same signal, positive and ground order.

  3. Connect both servo leads

    Seat each lead fully. Both outputs receive the same control signal, so this cable does not provide independent control or reverse one servo.

  4. Check the combined load

    Add the peak current required by both servos and keep it within the receiver channel, BEC, wiring and power-source limits.

  5. Secure the harness

    Leave enough slack for movement and protect the connectors from vibration, sharp edges and linkage strain.

Frequently Asked Questions

Answers to the questions buyers ask most.

Can this cable control two servos independently?
No. Both branches receive the same power, ground and control signal. Use separate receiver or controller channels for independent movement.
Will it fit JR-style servo plugs?
The stocked cable has keyed Futaba-style housings. Some three-position servo leads share the same contact spacing and electrical order, but check the housing shape and polarity before connection.
Can I power two servos from one receiver channel?
Yes, if the receiver, BEC, wiring and power source can supply the combined peak current of both servos.
Is the cable exactly 150 mm long?
150 mm is the nominal supplier-listed length. Normal manufacturing variation can occur.
