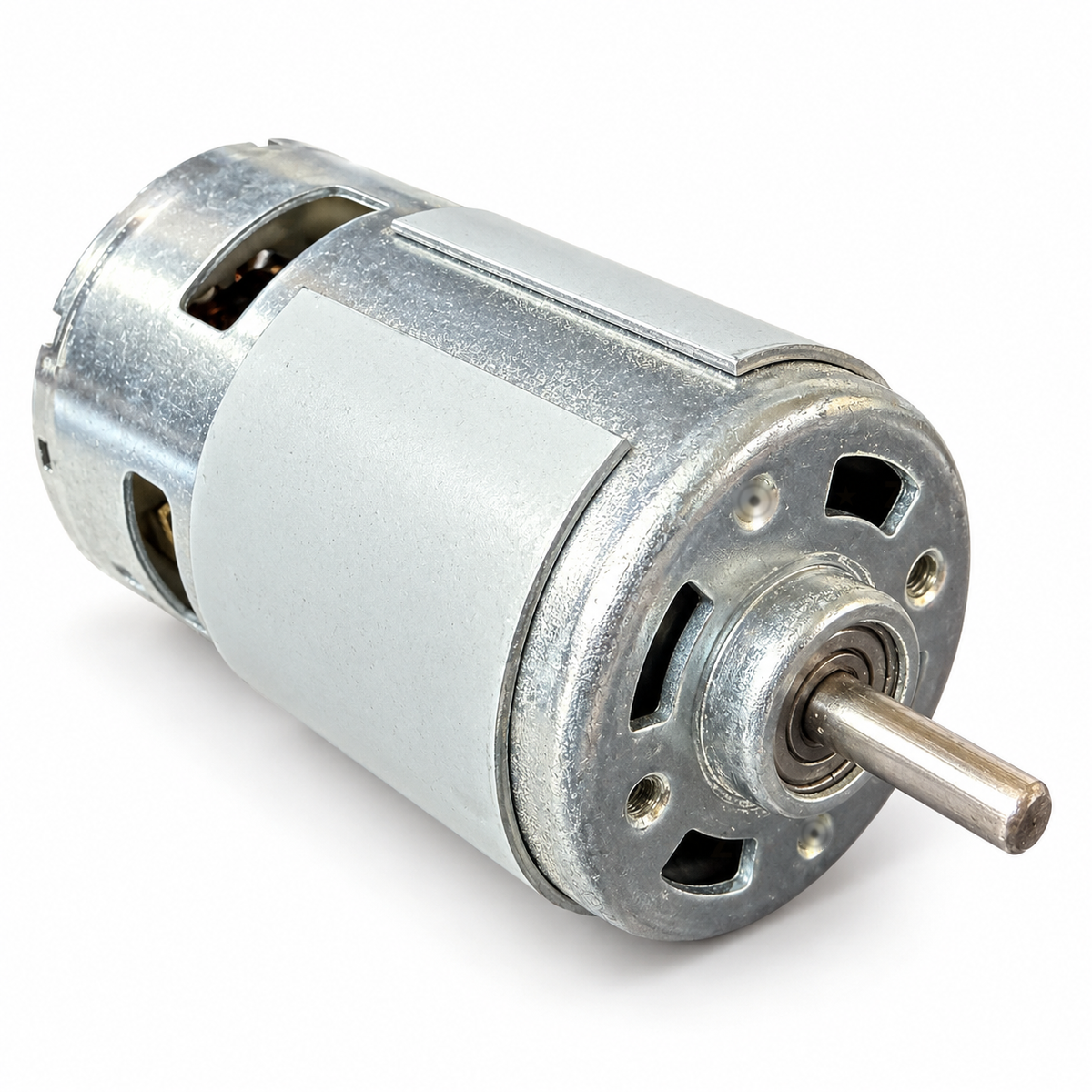

  • 775 DC motor, three-quarter front view showing the 5mm shaft, front ball bearing, vents and threaded mounting holes

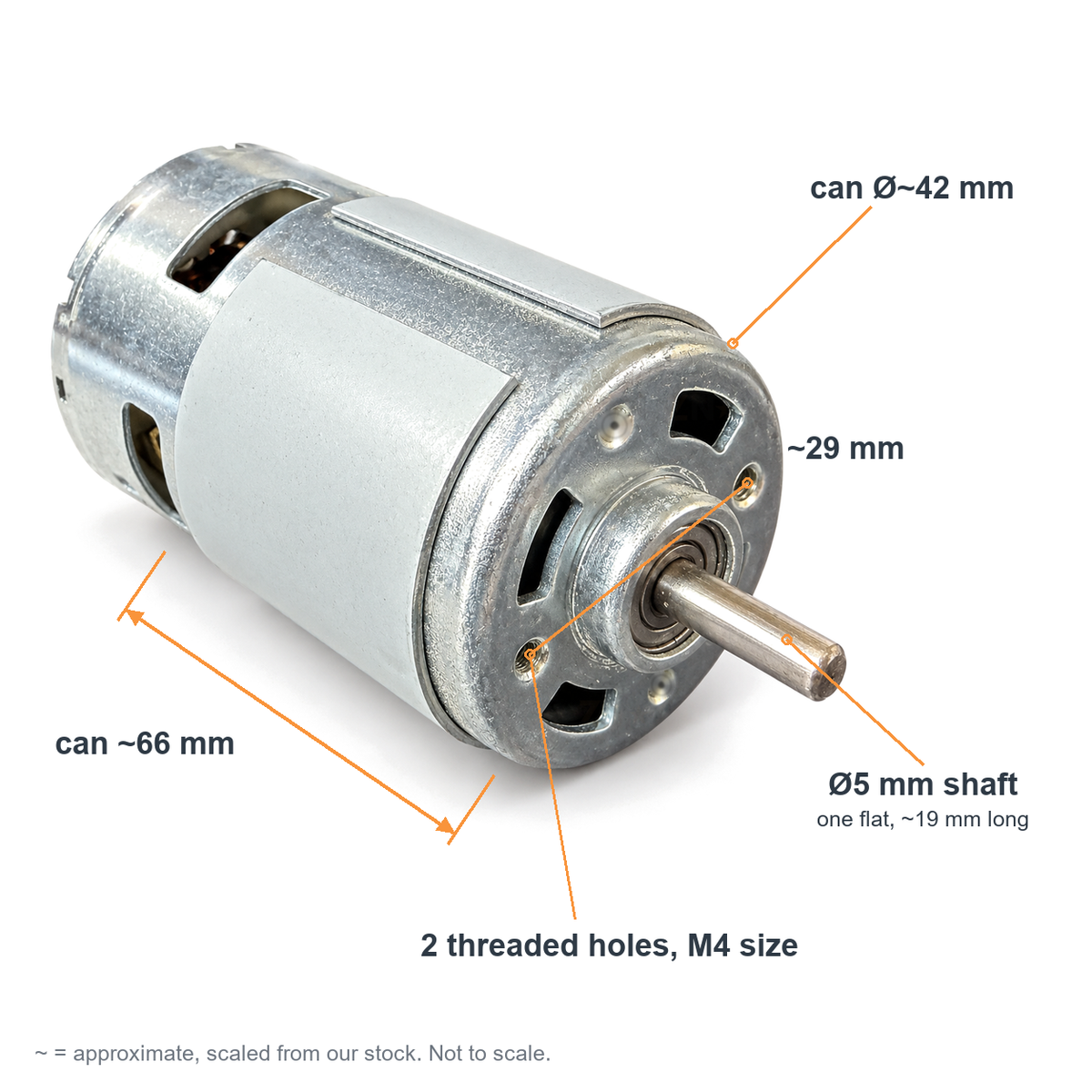

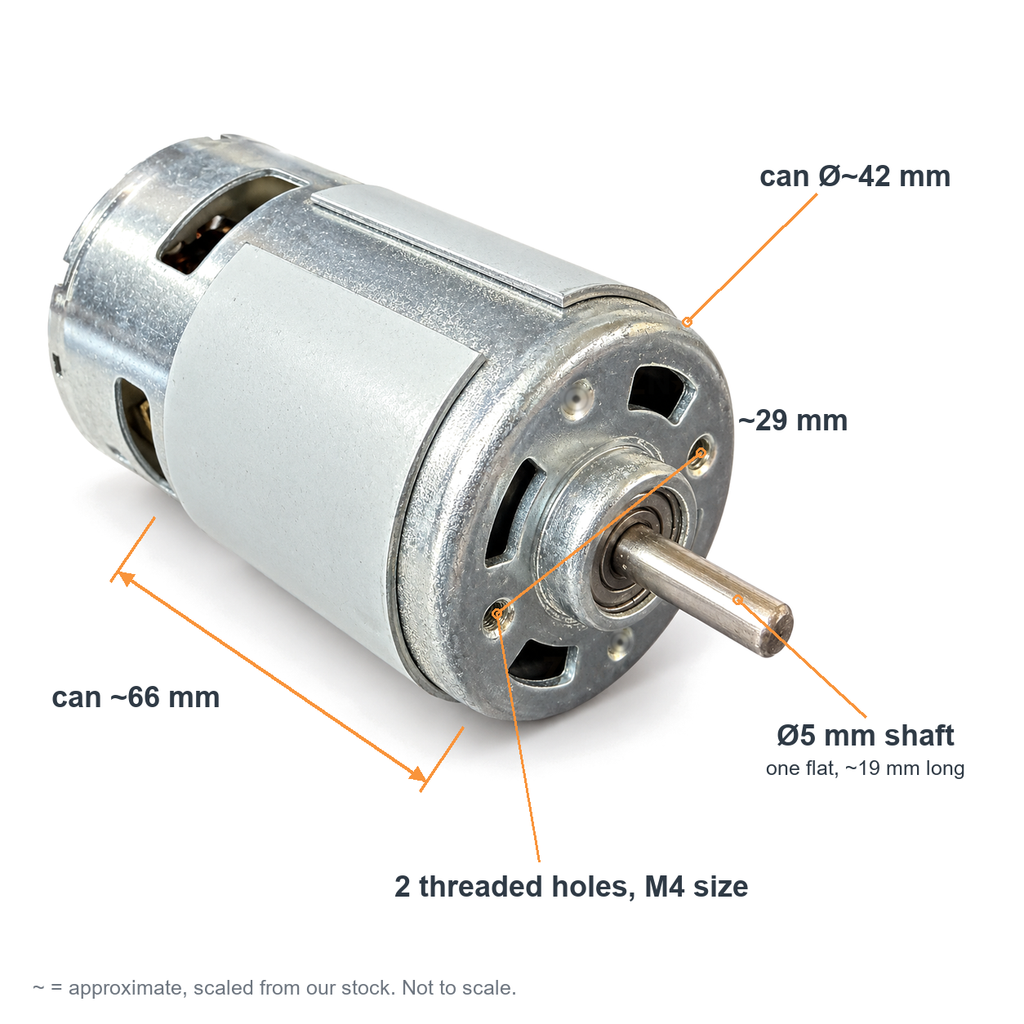

  • 775 DC motor dimensions: can about 42mm across and 66mm long, 5mm shaft about 19mm long, two M4-size holes about 29mm apart

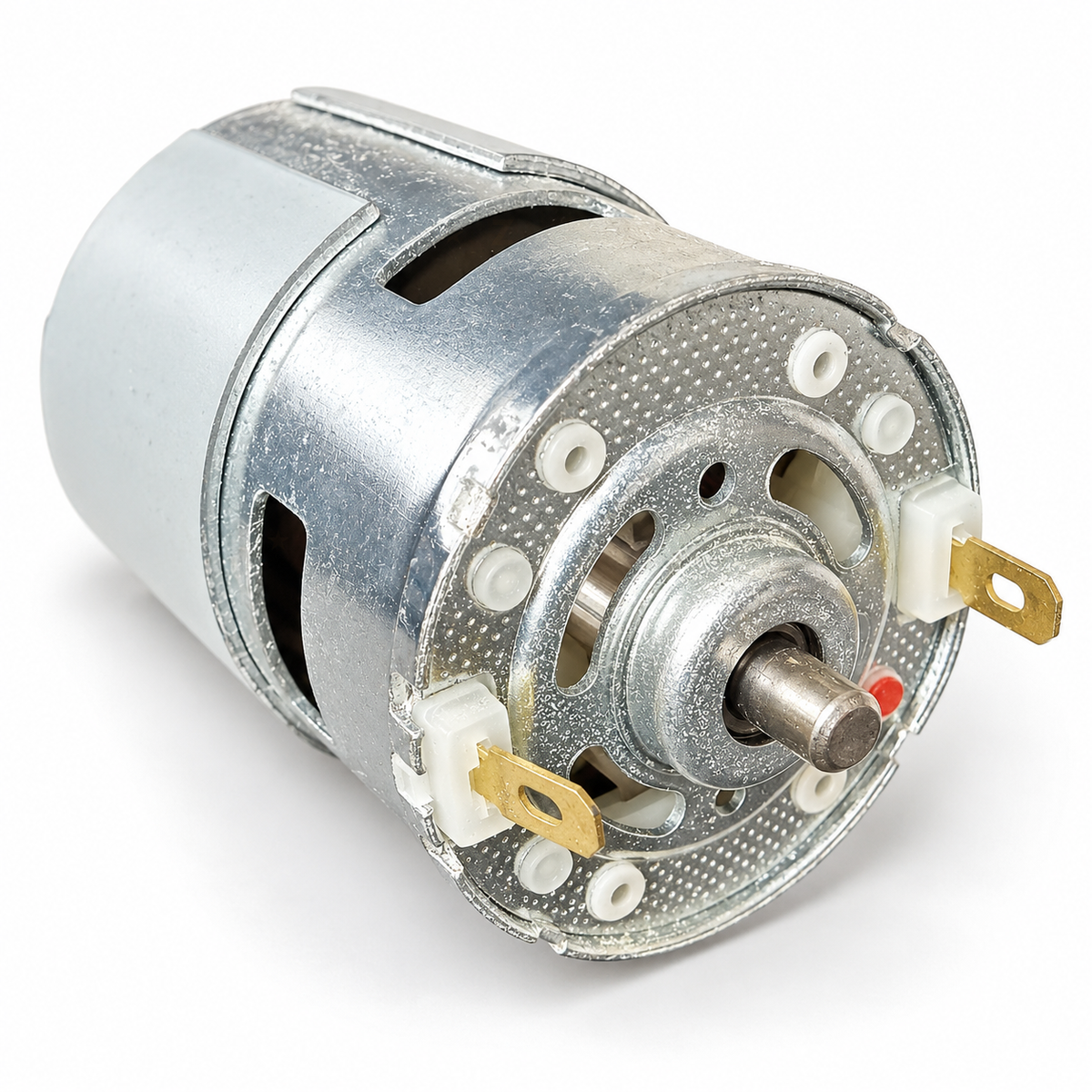

  • Rear of the 775 DC motor showing the two solder tab terminals and the red dot beside the + tab
775 DC Motor 24V - Ball Bearing, 5mm D Shaft
SKU: MTR-775-24V

775 DC Motor 24V - Ball Bearing, 5mm D Shaft

$19.99 NZD
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

No GST added (we're not GST registered). Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Only 1 available

Easy 30-day returns · 12-month warranty

Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

A 775-size brushed DC motor rated for 24V, with a ball bearing at the front, a 5mm shaft with one flat and two threaded mounting holes in the front face. It is the usual size for home-built drills, grinders, sanders, pumps and small saws, and runs from a 24V supply through a PWM speed controller.

Specifications

Rated voltage24V DC
Motor typeBrushed DC, 2 tab terminals
Front bearing625Z ball bearing
Shaft5mm with one flat, about 19mm long
Rear shaft endShort stub, about 5mm
Mounting2 threaded holes, M4 size, about 29mm apart
Can sizeAbout 42mm diameter x 66mm long
Polarity markRed dot beside the + tab
Speed, current, torqueNot marked on the motor

Datasheets

Full technical datasheet PDF

What's in the box

1×
775 DC motor, 24V

Unused stock held since 2024, so it may show light storage marks. No bracket or wires included.

Great for

Home-built bench grinder or polisher
Small drill press or PCB drill
Belt sander or mini table saw project
24V water pump or fan project

Wiring & getting started

  1. Mount it first

    Bolt through the two threaded holes in the front face (M4 size, about 29mm apart) or clamp the can. It jumps when it starts, so fix it down before the first run.

  2. Solder the wires

    Solder your supply wires to the two tabs, + to the tab beside the red dot. A 0.1µF ceramic capacitor across the tabs cuts electrical noise from the brushes.

  3. Use a proper supply and controller

    Use a 24V supply rated 5A or more and a PWM motor speed controller rated for 24V and the motor's current. Swap the wires to reverse it, or use an H-bridge motor driver for forward and reverse.

  4. Controlling it from a board

    An Arduino or ESP32 pin cannot drive it. Switch it through a MOSFET module or motor driver with its own 24V supply, and join the grounds.

Frequently Asked Questions

Answers to the questions buyers ask most.

What voltage does this 775 motor run on?
It is a 24V DC motor. It will also turn on a lower voltage such as 12V, just more slowly and with less power. Do not run it above 24V.
What power supply do I need?
A 24V DC supply rated 5A or more. A 775 can draw several amps under load and a surge at start-up, so a small plug-pack will cut out or overheat.
Can I run it from an Arduino or ESP32?
Not directly. A board pin can only switch the motor through a MOSFET module or a motor driver rated for the motor's current, powered from its own 24V supply with the grounds joined.
How do I control the speed and direction?
Use a PWM motor speed controller rated for 24V and several amps. The direction reverses when you swap the two wires; for forward and reverse under control, use an H-bridge motor driver.
What shaft does it have, and what fits it?
A 5mm shaft with one flat, about 19mm long, running in a 625Z ball bearing. It takes 5mm bore couplers, pulleys and 775 drill chuck adaptors; tighten the set screw onto the flat.
How do I mount it?
The front face has two threaded holes, M4 size, about 29mm apart through the shaft centre, plus a raised bearing boss about 19mm across. Try a screw and check the spacing on your motor before you print a bracket.
How fast is it and how much torque does it have?
Speed, current and torque are not marked on this motor, so we do not quote figures. Speed rises with voltage and drops with load, which is why a PWM controller is the usual way to set it.
