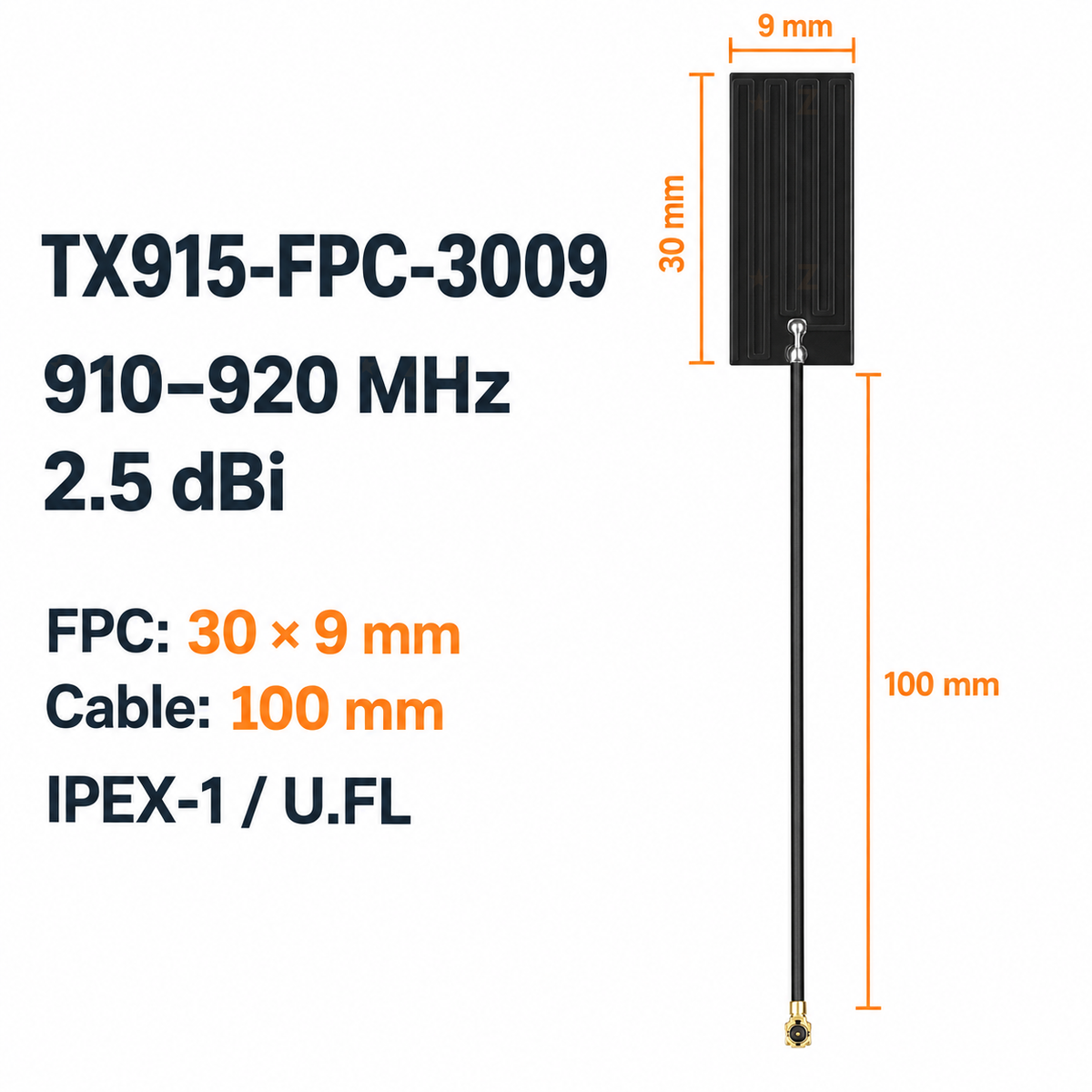

TX915-FPC-3009 antenna dimensions, 30 by 9 mm FPC, 100 mm cable, 910 to 920 MHz, 2.5 dBi

CDEBYTE 915 MHz FPC Antenna - IPEX-1 / U.FL

TX915-FPC-3009 - 30 x 9 mm
$3.99 NZD
Save 5% at 3+
Skip to product information
TX915-FPC-3009 antenna dimensions, 30 by 9 mm FPC, 100 mm cable, 910 to 920 MHz, 2.5 dBi
  • TX915-FPC-3009 antenna dimensions, 30 by 9 mm FPC, 100 mm cable, 910 to 920 MHz, 2.5 dBi

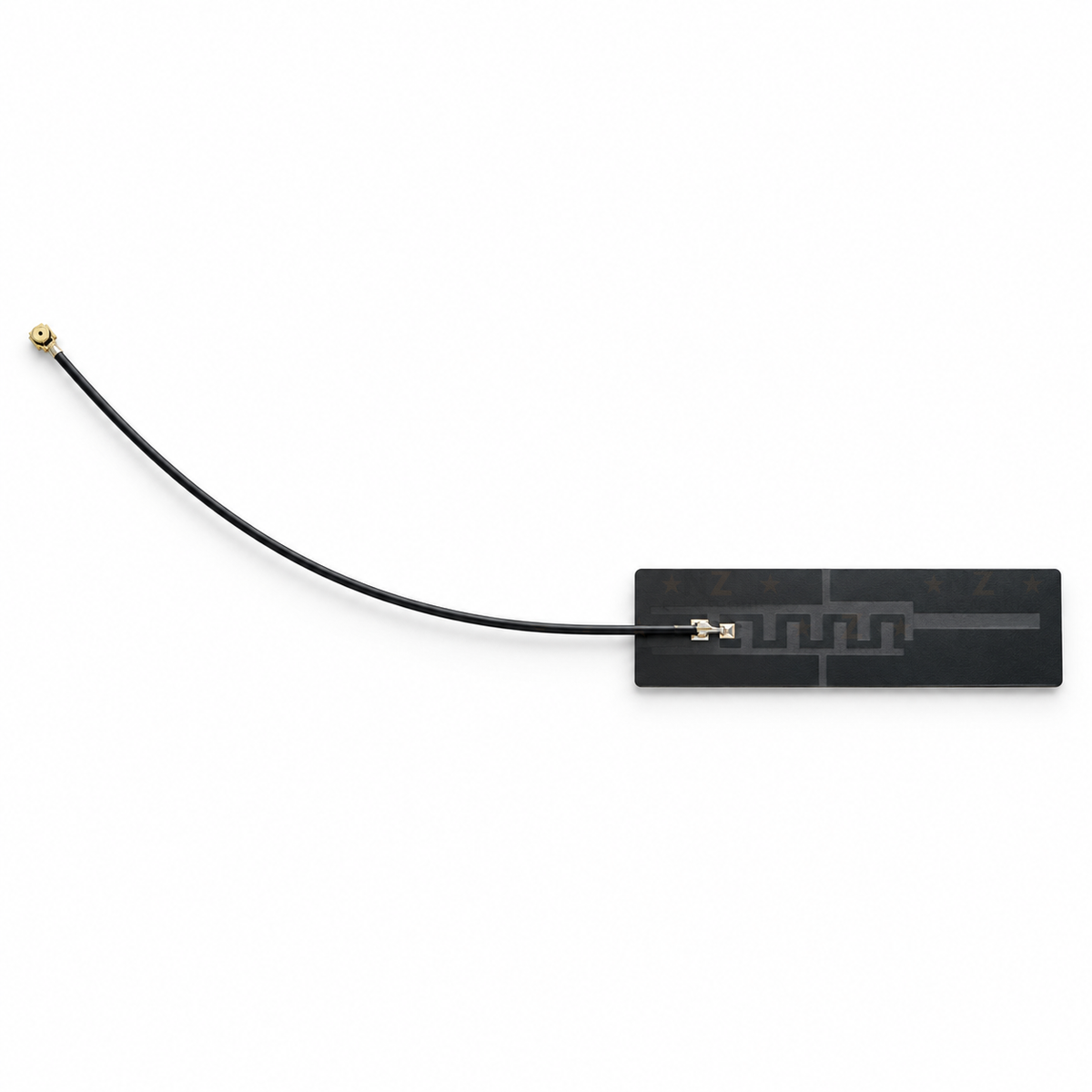

  • CDEBYTE 915 MHz flexible FPC antenna topside with IPEX-1 U.FL cable connector

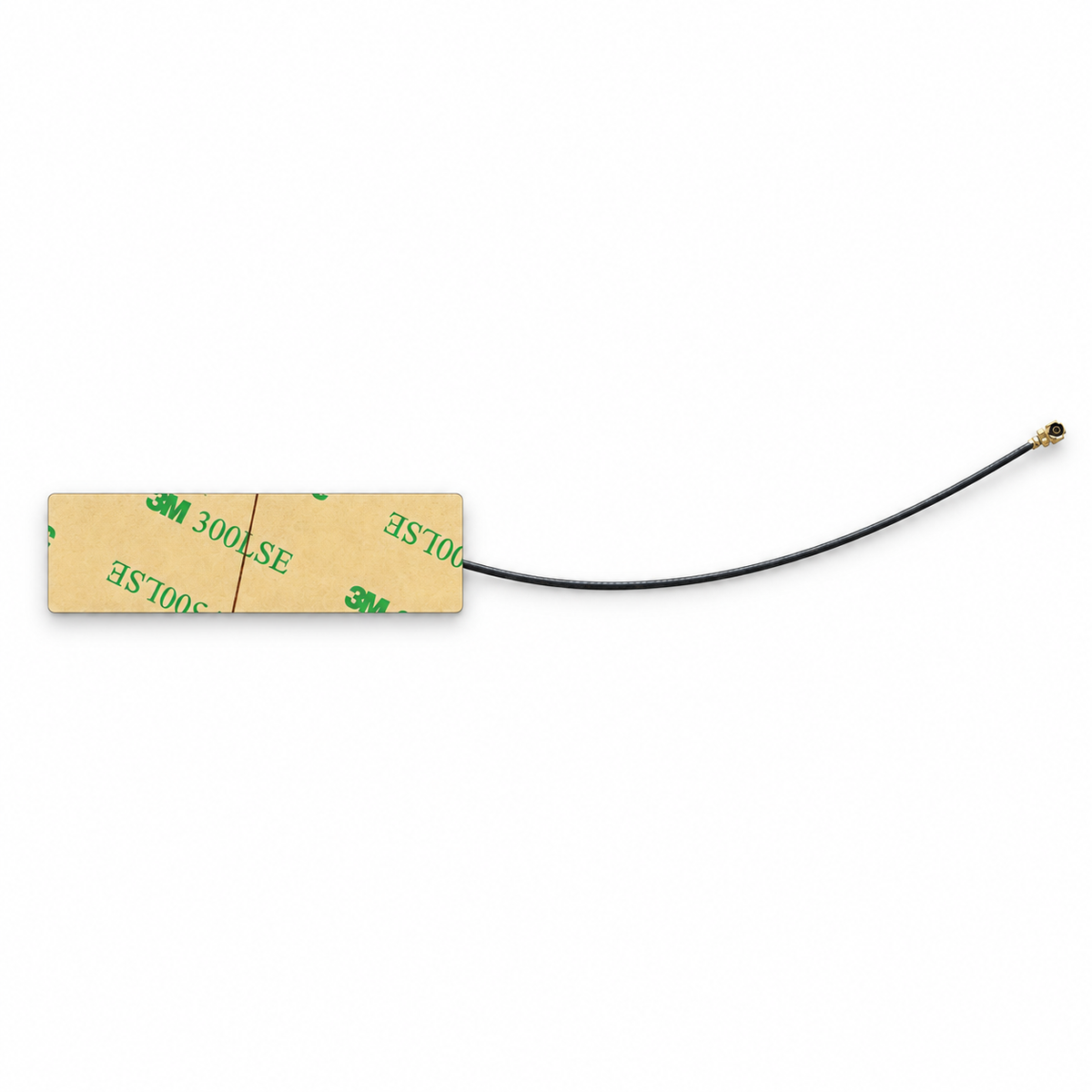

  • CDEBYTE 915 MHz FPC antenna adhesive underside with 3M 300LSE backing and IPEX-1 connector

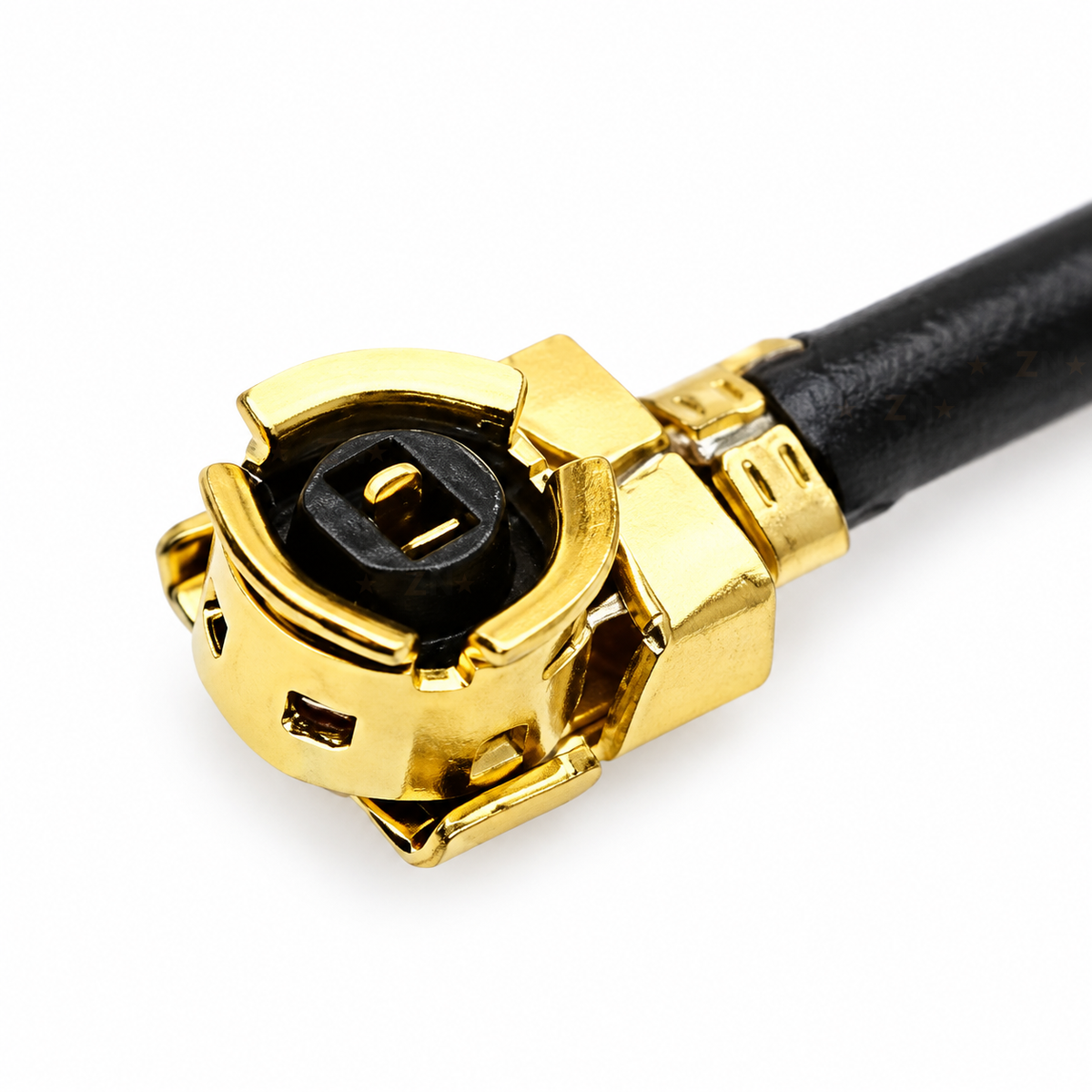

  • Close-up of the first-generation IPEX-1 U.FL plug fitted to the antenna cable
CDEBYTE 915 MHz FPC Antenna - IPEX-1 / U.FL
SKU: ANT-TX915-FPC-3009

CDEBYTE 915 MHz FPC Antenna - IPEX-1 / U.FL

$3.99 NZD
Model
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

Low-profile CDEBYTE 915 MHz flexible antennas for compatible LoRa, telemetry and sub-GHz IoT radio hardware. Choose the element size, tuning range and nominal gain that suit the enclosure, then confirm the radio uses an IPEX-1 / U.FL connector.

Specifications

TX915-FPC-3009910-920 MHz, 2.5 dBi, 30 x 9 mm FPC, 100 mm cable

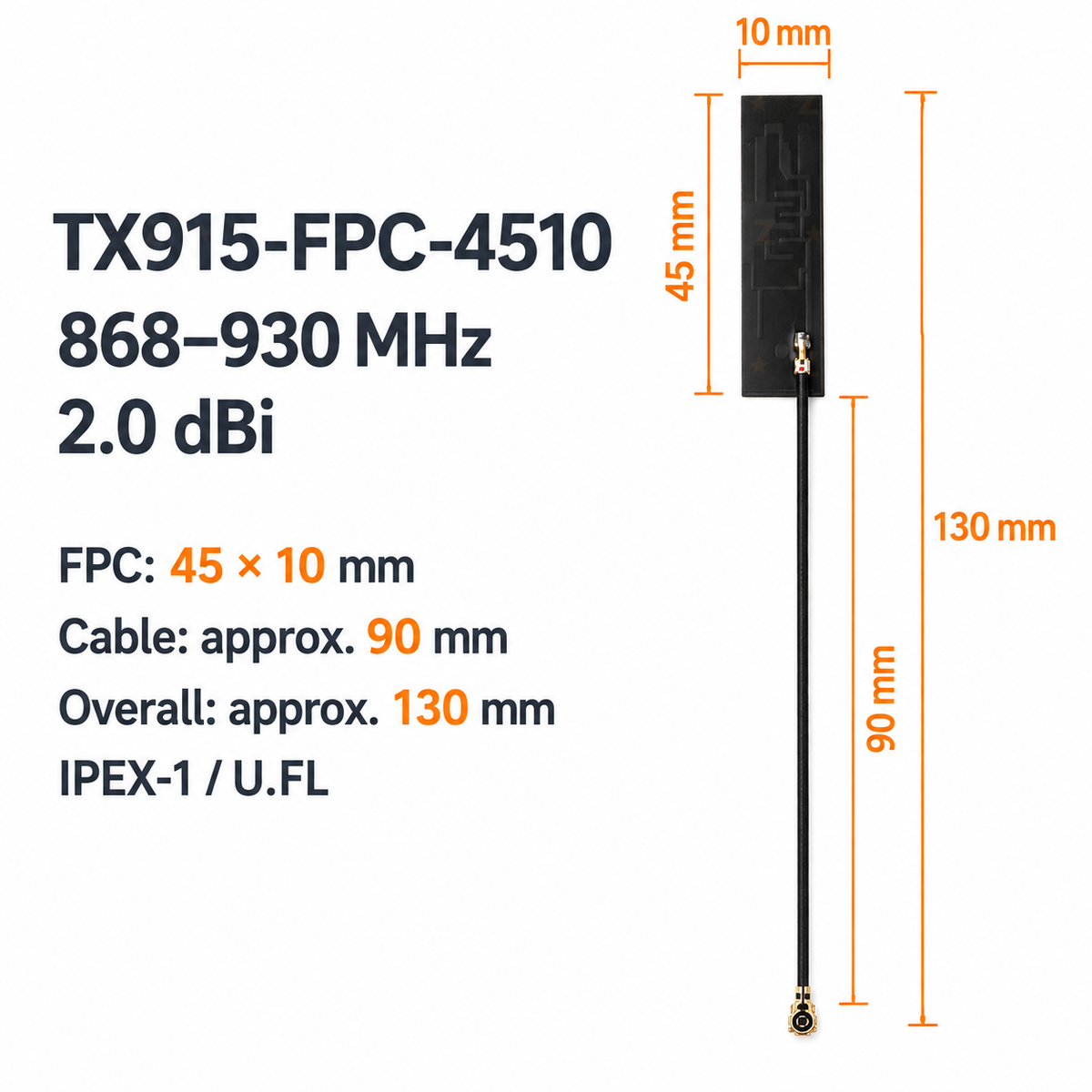

TX915-FPC-4510868-930 MHz, 2.0 dBi, 45 x 10 mm FPC, approx. 90 mm cable

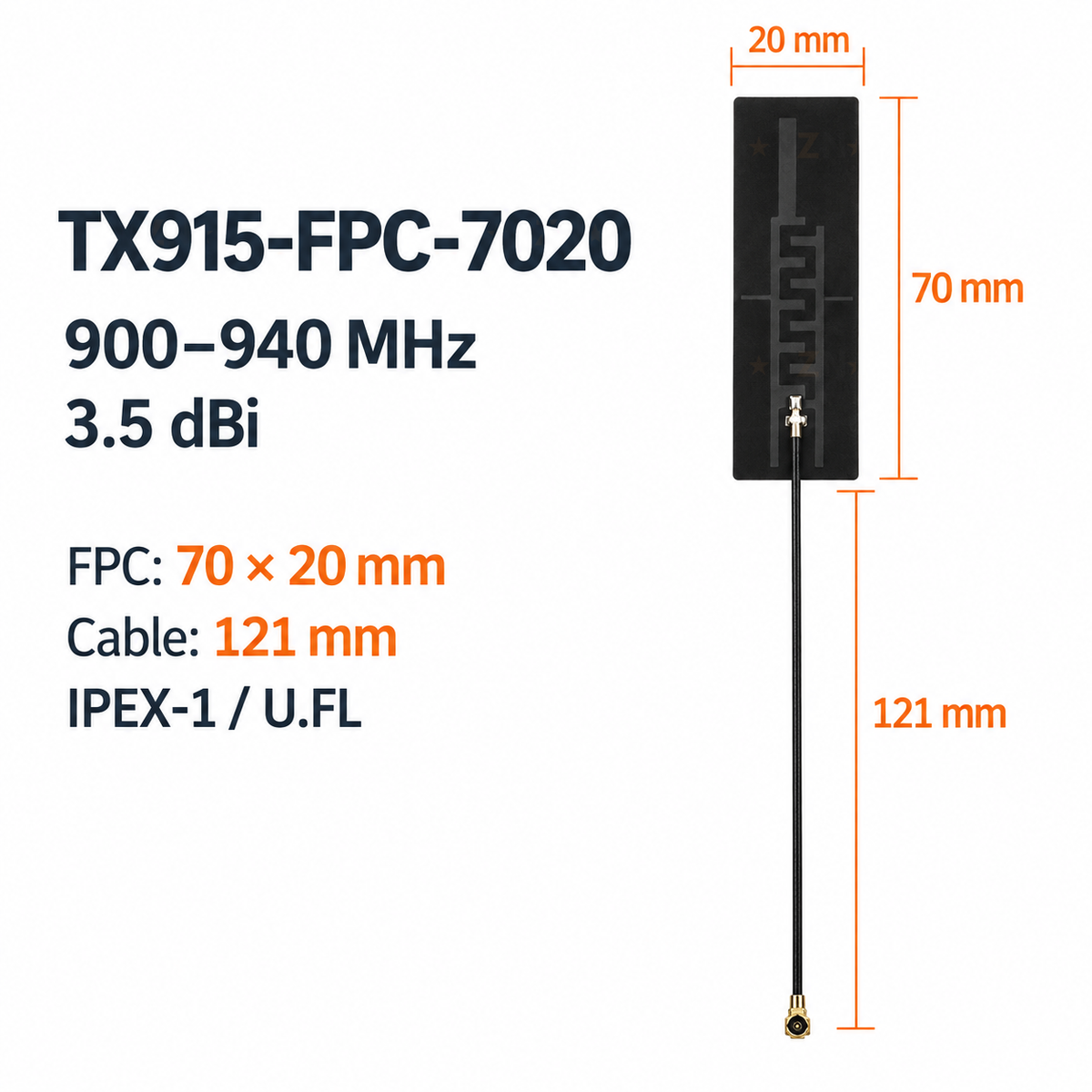

TX915-FPC-7020900-940 MHz, 3.5 dBi, 70 x 20 mm FPC, 121 mm cable

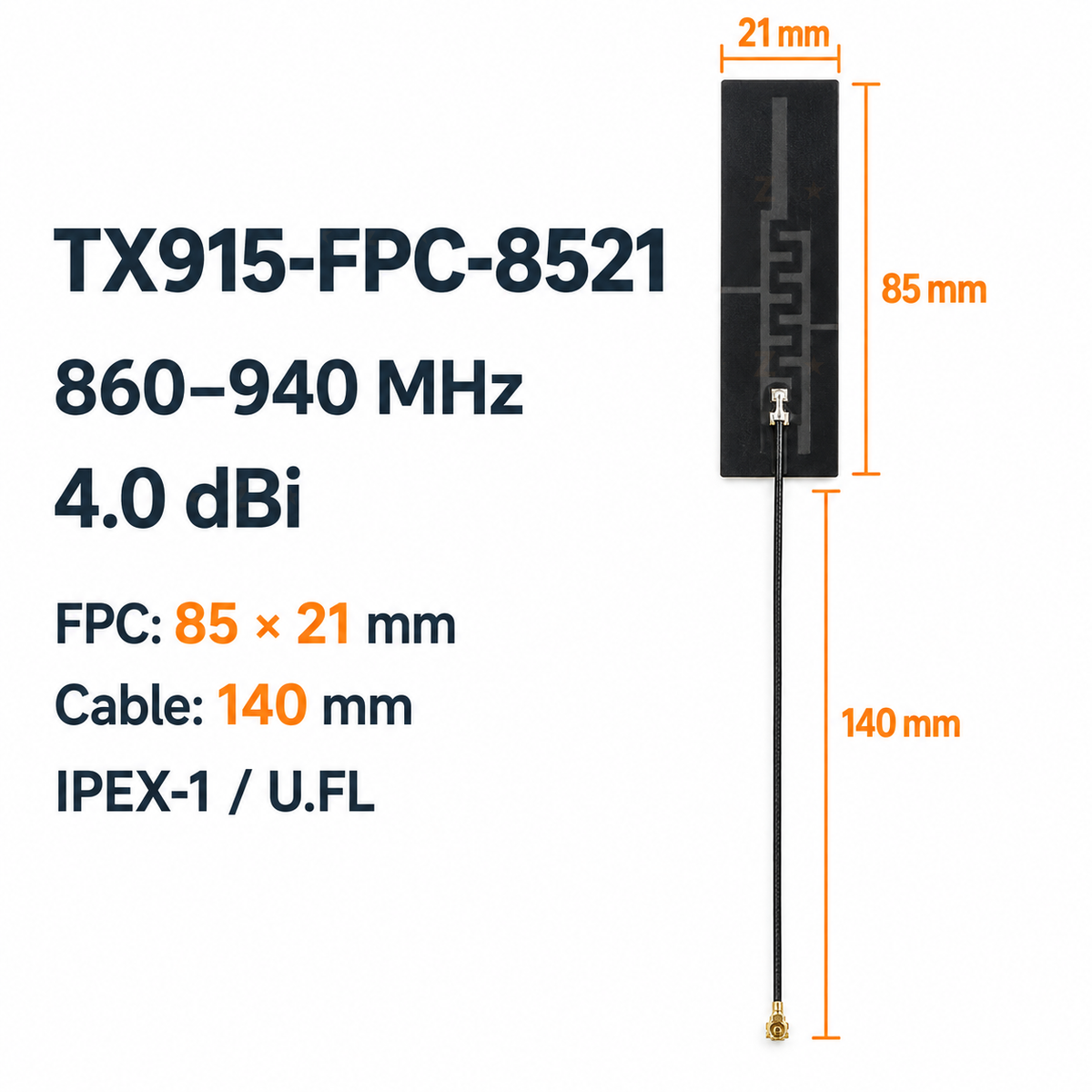

TX915-FPC-8521860-940 MHz, 4.0 dBi, 85 x 21 mm FPC, 140 mm cable
ConnectorIPEX-1 / U.FL cable plug
Nominal impedance50 ohm

Datasheets

915 MHz FPC antenna family technical datasheet PDF

What's in the box

1x
Selected FPC antenna

One adhesive-backed antenna with fitted black micro-coax lead and IPEX-1 / U.FL plug.

Great for

LoRa and LoRaWAN radio modules
AU915 telemetry projects
Embedded IoT nodes
Non-metallic equipment enclosures

Wiring & getting started

  1. Check the connector

    Confirm the radio uses IPEX-1 / U.FL. Smaller MHF4-style connectors are not interchangeable.

  2. Power the radio off

    Align the plug squarely and press straight down on the metal shell. Do not lever or rotate the connector.

  3. Choose the mounting area

    Bond the FPC to a clean, dry, non-metallic surface and keep the radiating element clear of metal, carbon fibre, batteries and high-current wiring.

  4. Validate the final installation

    Enclosure materials, cable routing and nearby conductive parts can change antenna performance. Test the complete radio in its finished enclosure.

Note: This is a passive antenna. The transmitter, operating frequency, output power, antenna gain and installation together determine the system's radiated output and compliance. Confirm the complete radio system meets the rules for its intended New Zealand use.

Frequently Asked Questions

Answers to the questions buyers ask most.

Are these IPEX-1 / U.FL antennas?
Yes. Each antenna has a first-generation IPEX-1 / U.FL cable plug. It does not fit smaller MHF4-style sockets.
Which model should I choose?
Choose by tuning range, available mounting area and nominal gain. A larger antenna is not automatically better inside every enclosure, so test the selected model in the finished assembly.
Can I use one with a New Zealand 915 MHz LoRa radio?
These passive antennas cover model-specific sub-GHz ranges around 915 MHz. Confirm the antenna range, connector and the complete radio system's permitted frequency, output power and EIRP for your application.
Can the FPC be cut or sharply folded?
No. Mount it on a clean non-metallic surface, route the cable gently and do not cut, crease or trim the radiating element.
How many antennas are supplied?
One antenna is supplied in the model selected.
