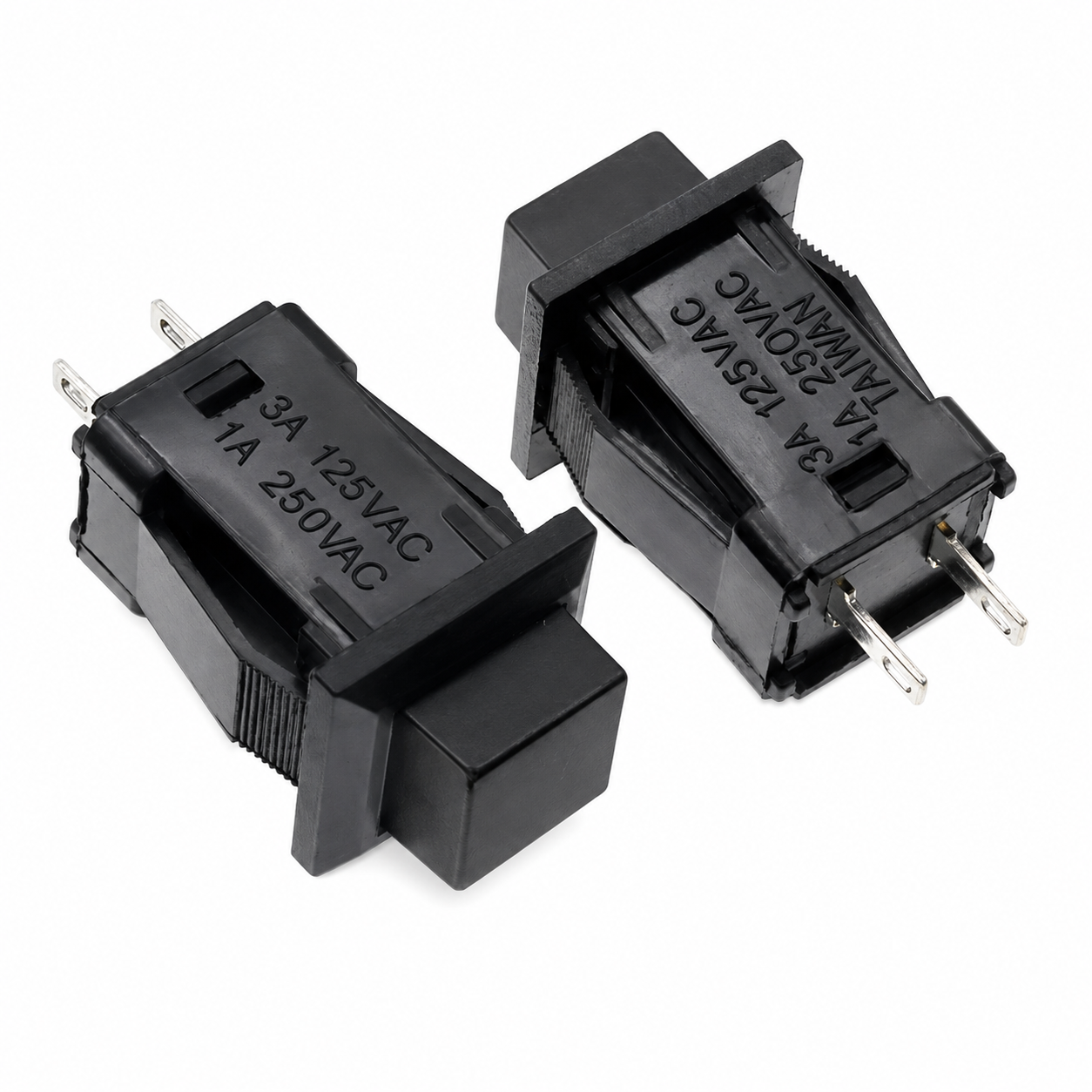

DS429 Square Push Button
Black / Latching
$3.99 NZD
Skip to product information
$3.99 NZD

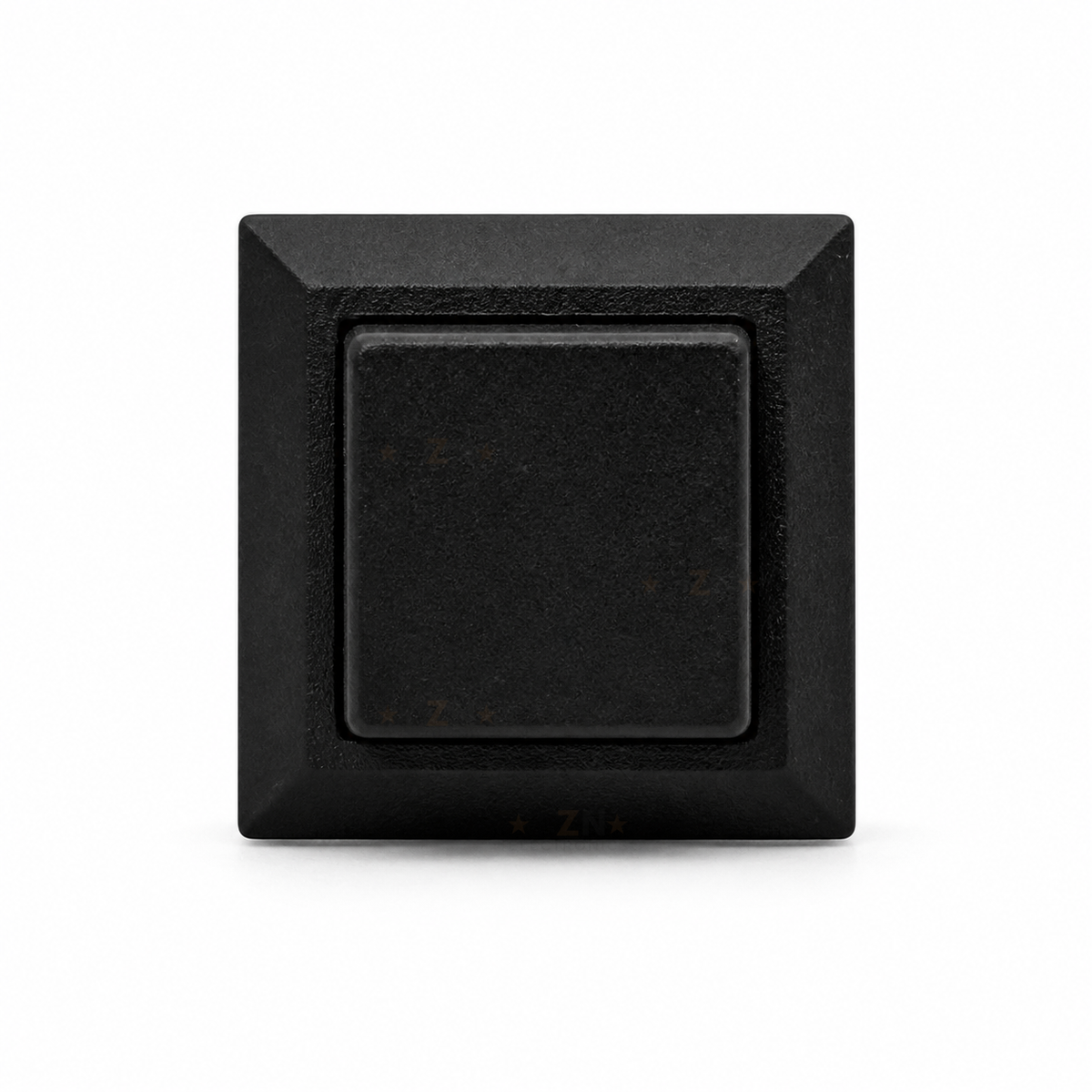

DS429 Square Push Button
Stock amount:
Tax included. Shipping is calculated at checkout.
Urban $40
Rural $60

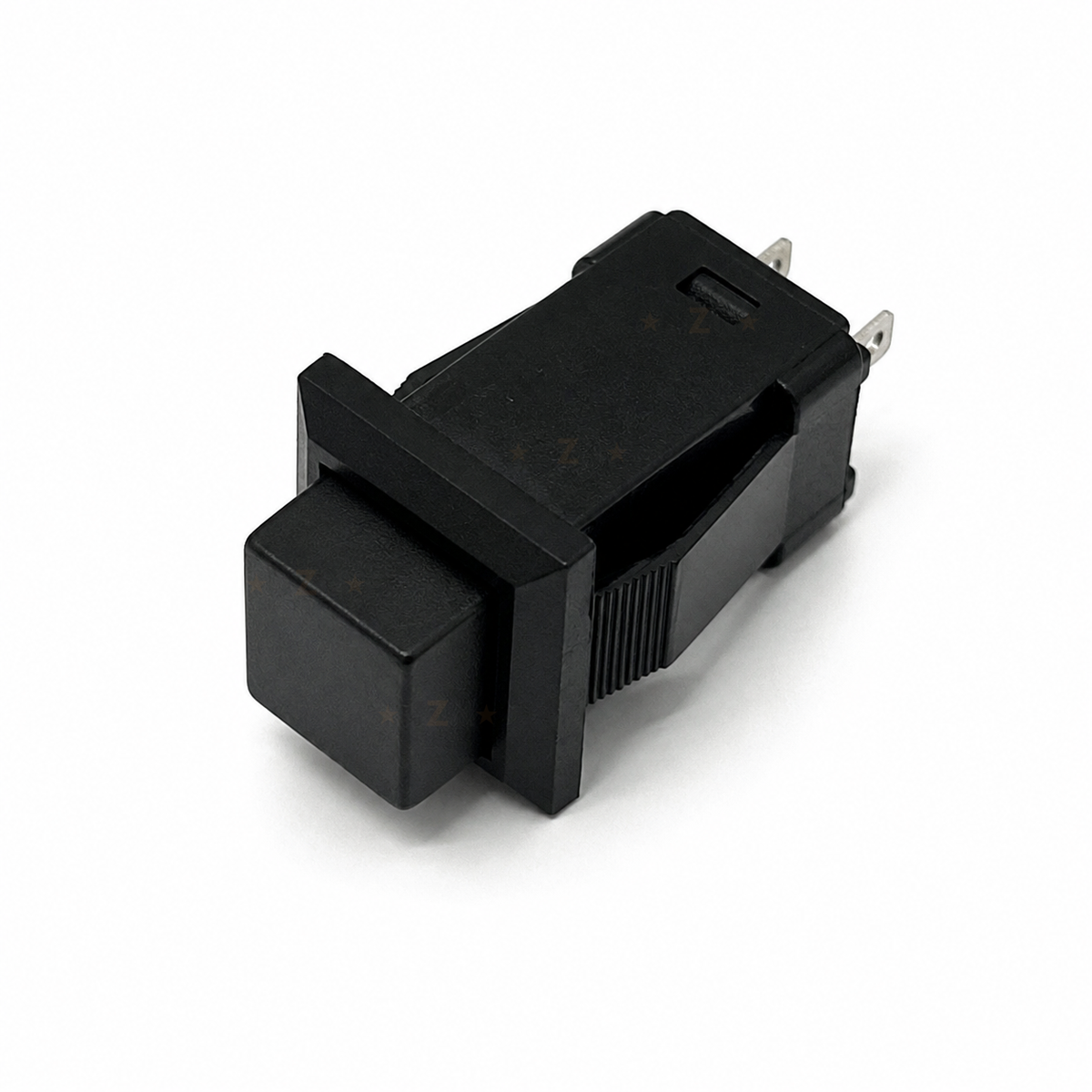

Compact square push button built for reliable switching in DIY electronics, control panels, and custom builds. Available in momentary or latching action — both in the same durable ABS housing with a standard panel-mount footprint.
- Available in Momentary or Latching action

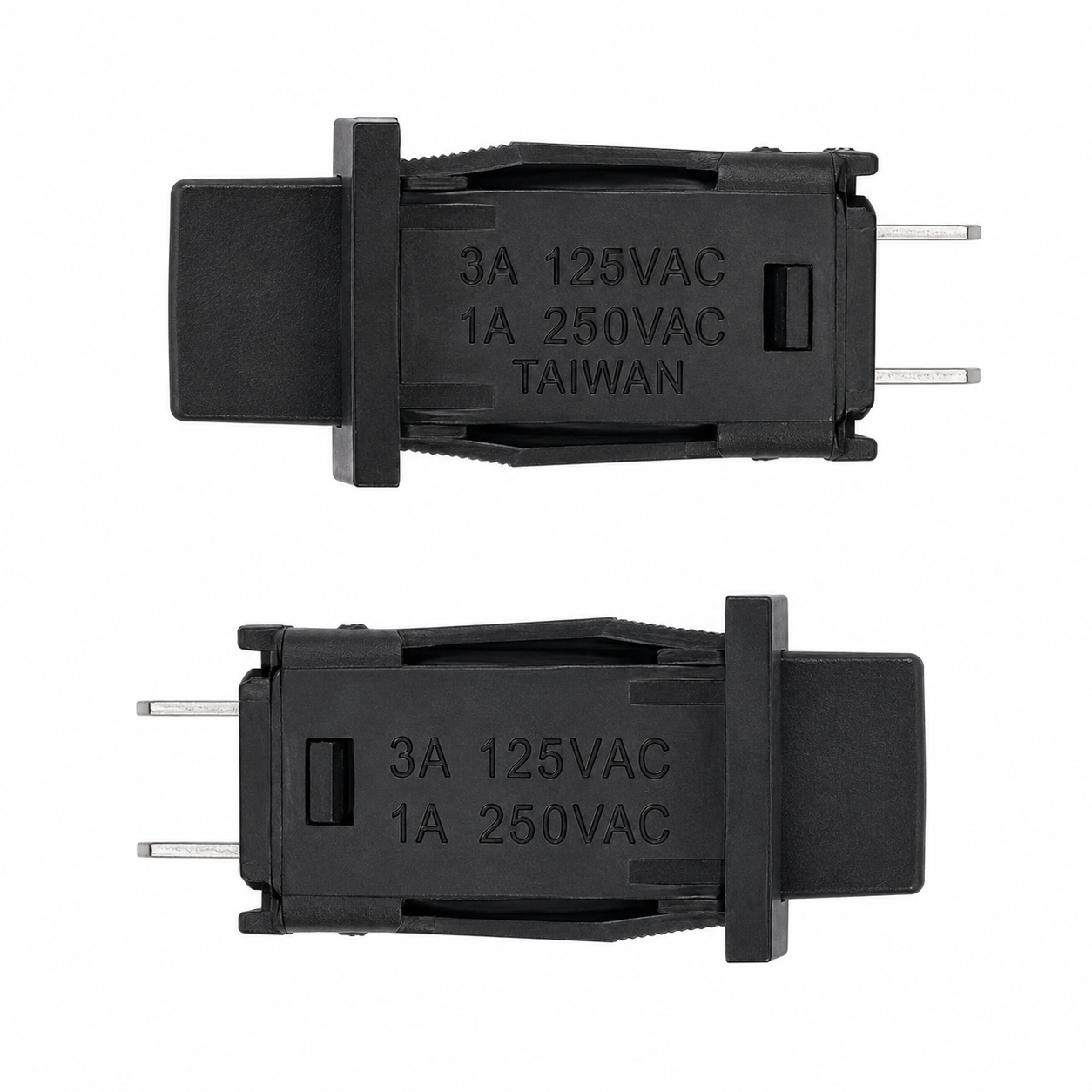

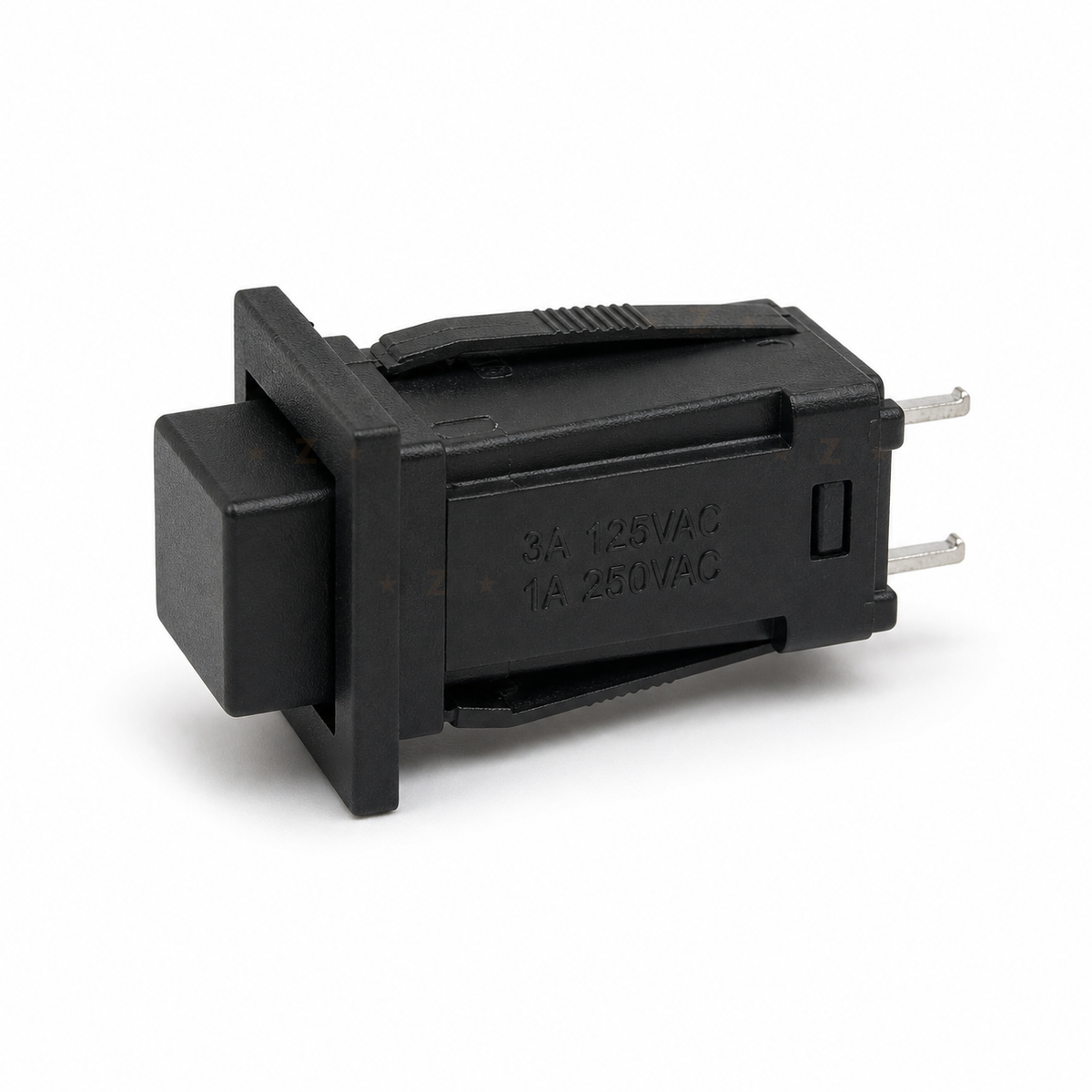

- Rated 3A @ 125VAC / 1A @ 250VAC
- 13 × 11mm rectangular panel cutout

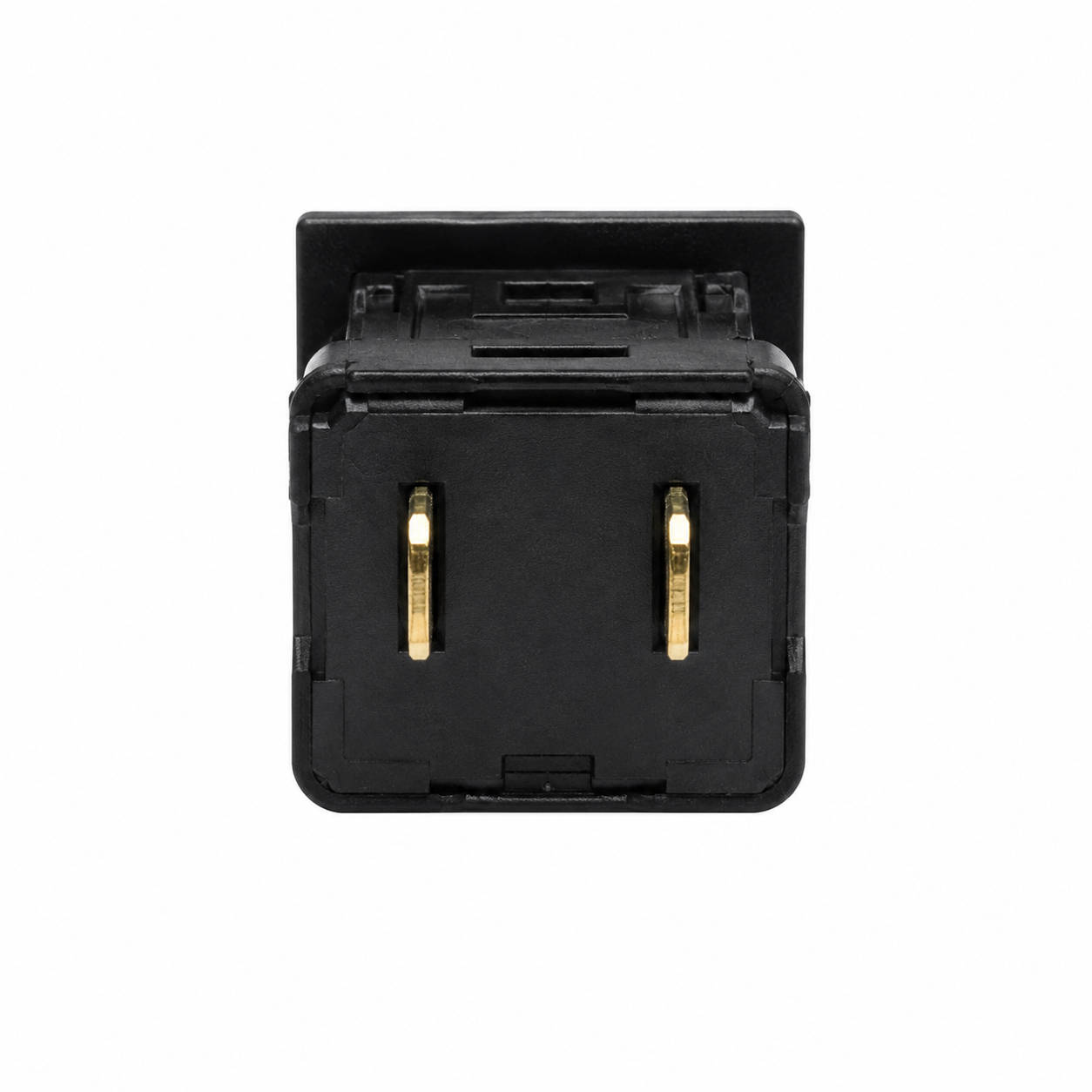

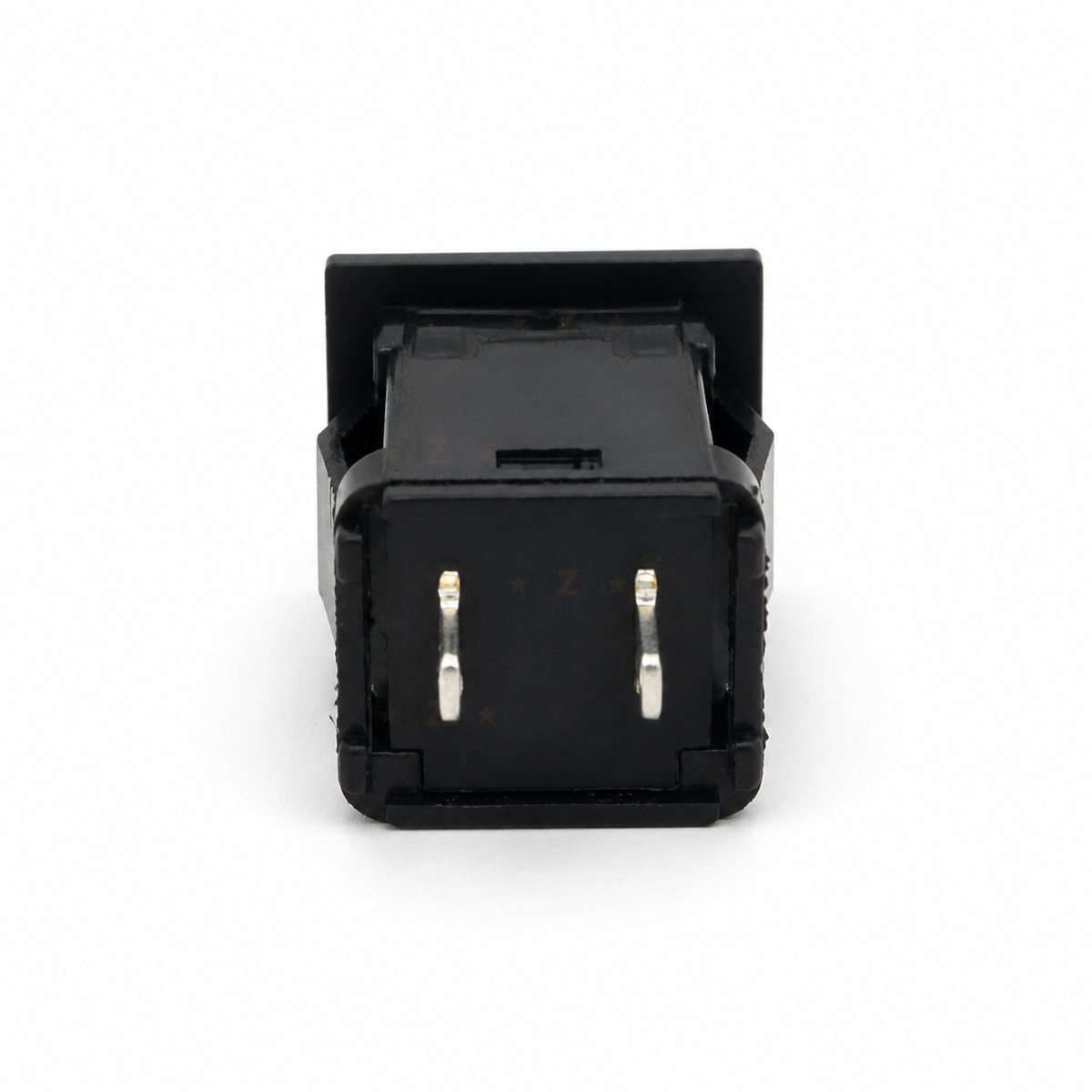

- Pin terminal connections
- ABS plastic housing — black
- Operating range −25°C to +85°C
- Sold individually
Which Action Do You Need?
M
Momentary
Active only while held. Releases when you let go. Use for triggers, doorbells, reset buttons, or any action that should fire only while pressed.
L
Latching
Press once to turn on, press again to turn off. Stays in position without being held. Use for power switches, mode selectors, or any on/off control.
?
Not sure?
If your circuit needs to stay on after you release the button, choose Latching. If it should only trigger while pressed, choose Momentary.
Please note: Select your required action (Momentary or Latching) from the variant selector before adding to cart.
Specifications
ModelDS429
Contact TypePin terminal
Rated Current & Voltage3A @ 125VAC / 1A @ 250VAC

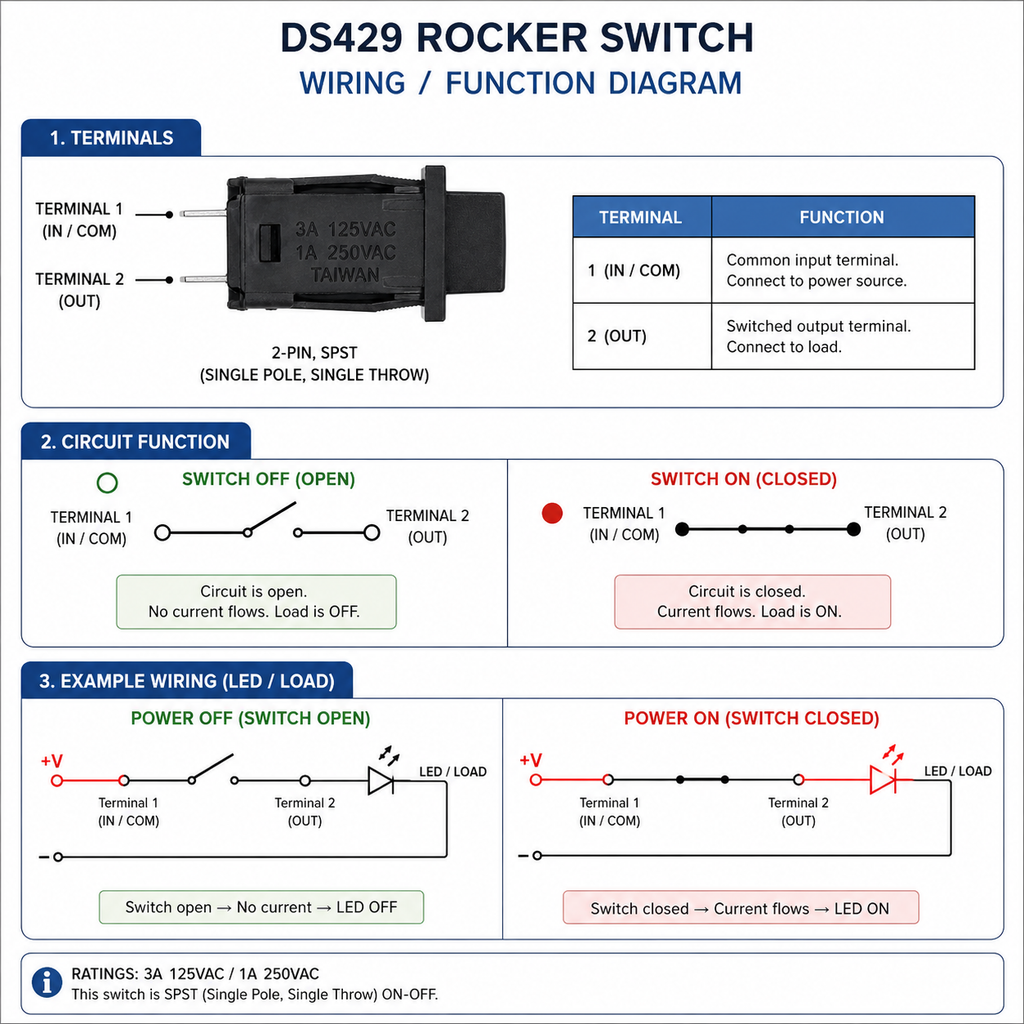

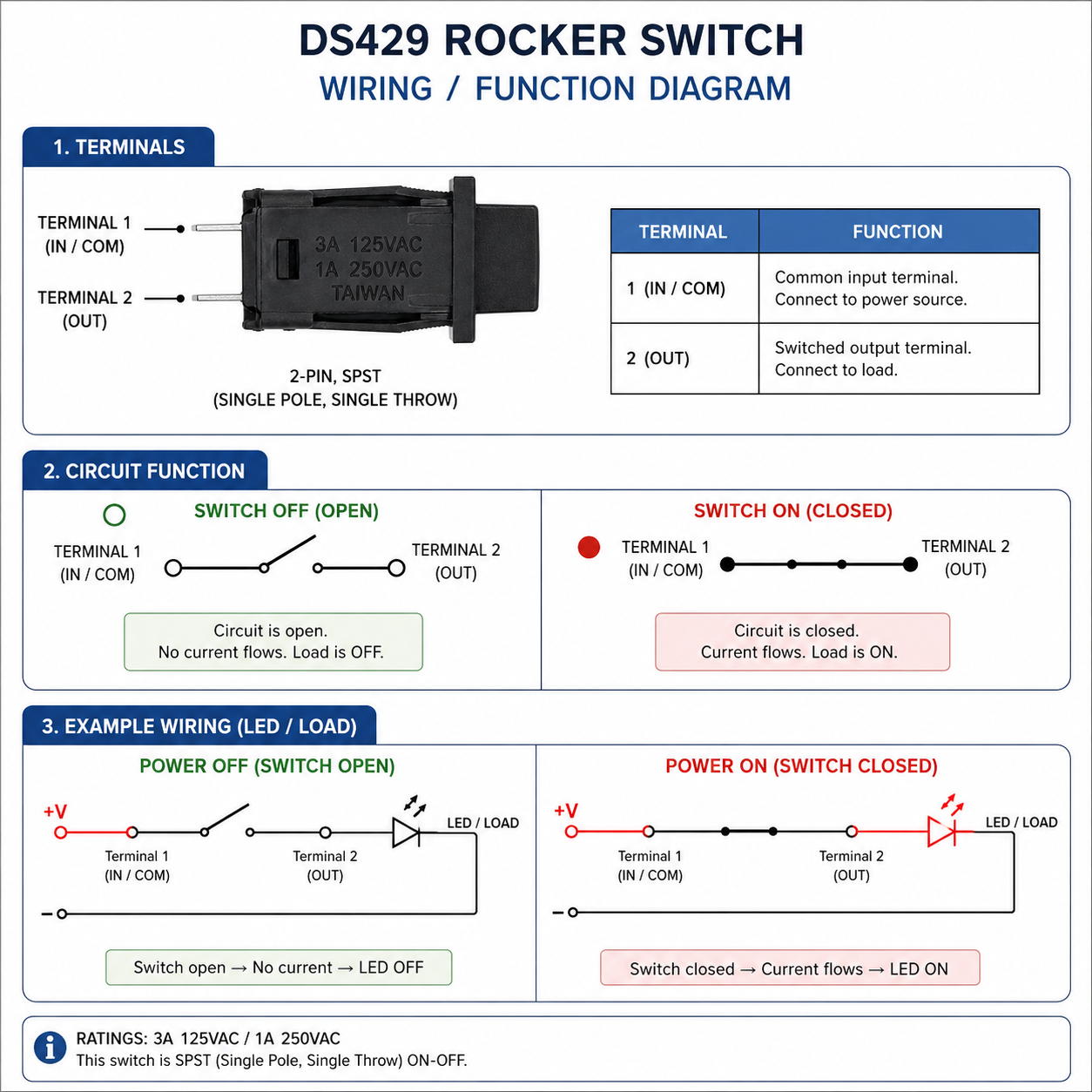

Switch ActionMomentary (NO) or Latching — select variant
Mounting Hole13 × 11mm rectangular
Housing MaterialABS plastic
ColourBlack
Operating Temperature−25°C to +85°C
Please note: Select your required action (Momentary or Latching) from the variant selector before adding to cart.
Momentary vs Latching
Momentary
Active while held only
The circuit closes when you press and opens the moment you release. Ideal for any function that should only fire while the button is physically held down.
Latching
Press on, press off
The circuit stays closed after you press and release. Press again to open. Ideal for any on/off control that needs to hold its state without being held.
Momentary — typical usesDoorbells, reset buttons, triggers, joystick inputs, test points
Latching — typical usesPower switches, mode selectors, enable/disable circuits, LED toggles
Please note: Both variants share the same DS429 housing and panel cutout size. Select your action type from the variant selector before adding to cart.
What's Included
1×
DS429 Square Push Button
Your selected action type (Momentary or Latching). Sold individually.
Please note: Sold individually. Select Momentary or Latching from the variant selector before adding to cart.
Common Uses
DIY electronics & maker projects

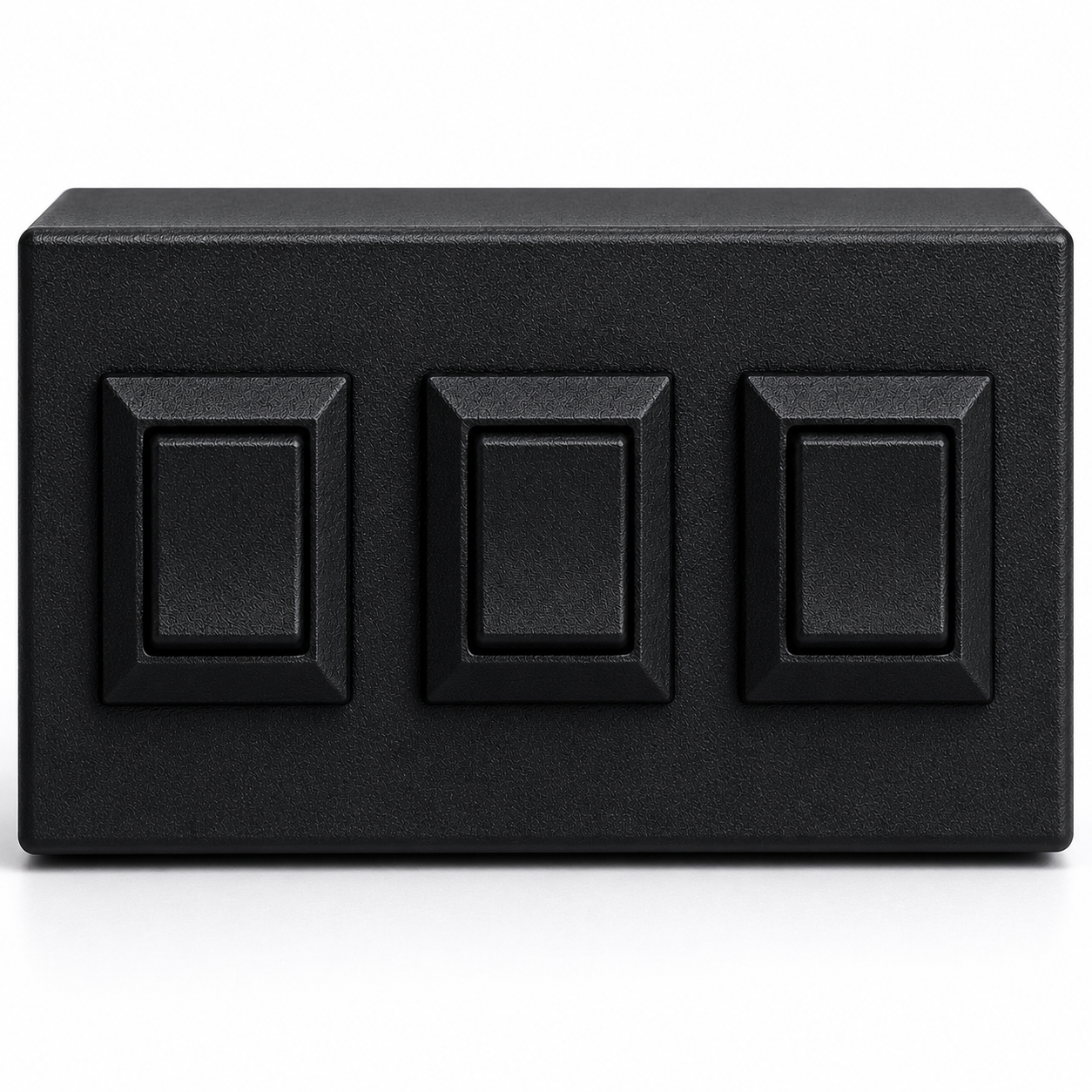

Control panels & custom enclosures
Arcade builds & custom game controllers
3D printer control interfaces
Industrial & hobbyist automation
Power switching & mode selection circuits
Please note: Both Momentary and Latching variants fit the same 13 × 11mm panel cutout.
Common Questions
Can this switch be used for mains AC wiring?
The switch is rated for AC use (up to 3A @ 125VAC or 1A @ 250VAC), but any mains-voltage installation must be carried out by a qualified electrician in accordance with local wiring regulations.
What size panel cutout do I need?
The switch requires a 13 × 11mm rectangular cutout for panel mounting. The body clips or fastens into the panel from the front.
I ordered the wrong action type — can I swap it?
The Momentary and Latching variants are electrically different and are not interchangeable. Make sure to select the correct action from the variant selector before ordering.
