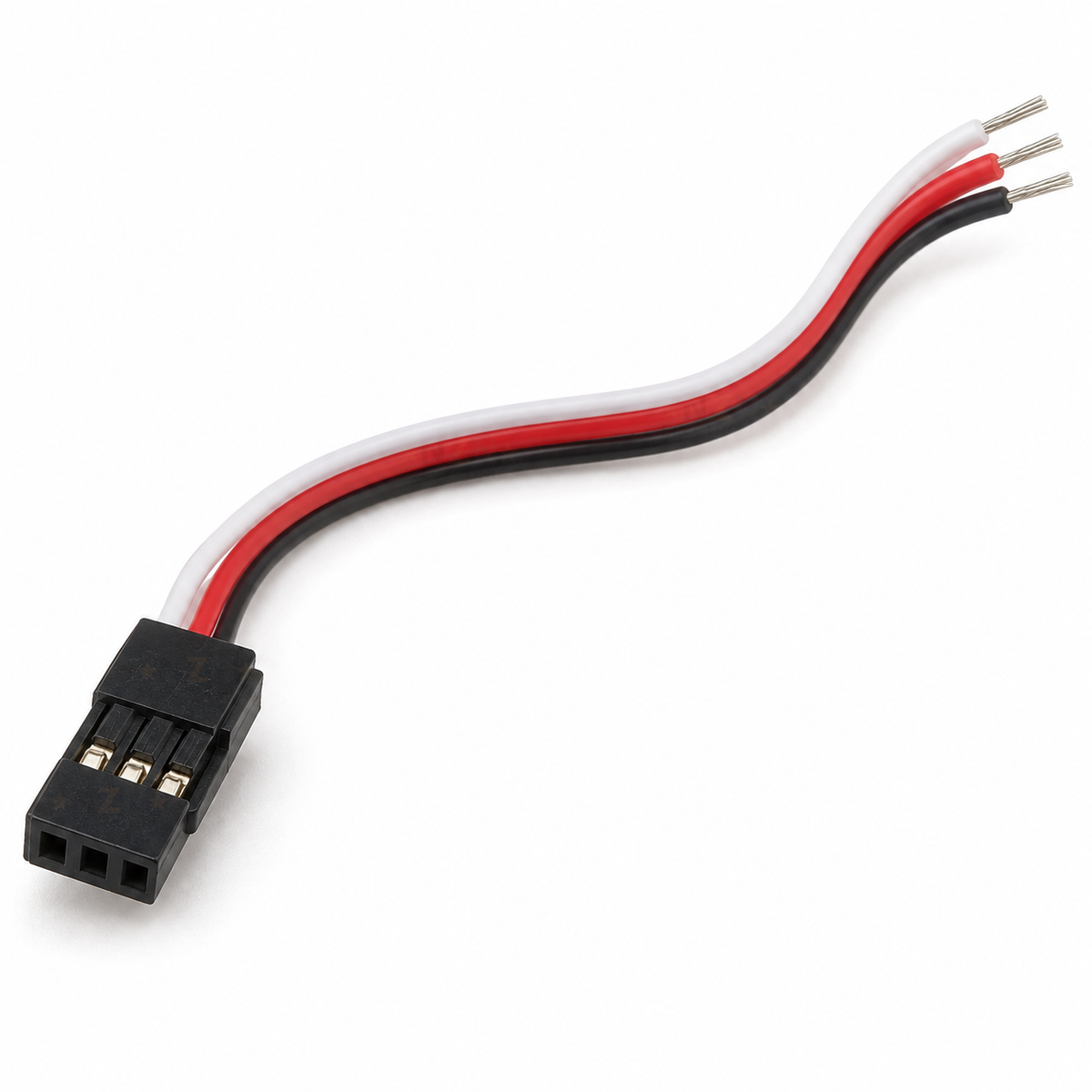

100 mm Futaba-style servo pigtail lead with a black male plug and flat white, red and black wires ending in bare tips

100mm Futaba-Style Servo Pigtail Lead - Male Plug, 22 AWG

$3.99 NZD
Save 6% at 3+
Skip to product information
100 mm Futaba-style servo pigtail lead with a black male plug and flat white, red and black wires ending in bare tips
  • 100 mm Futaba-style servo pigtail lead with a black male plug and flat white, red and black wires ending in bare tips

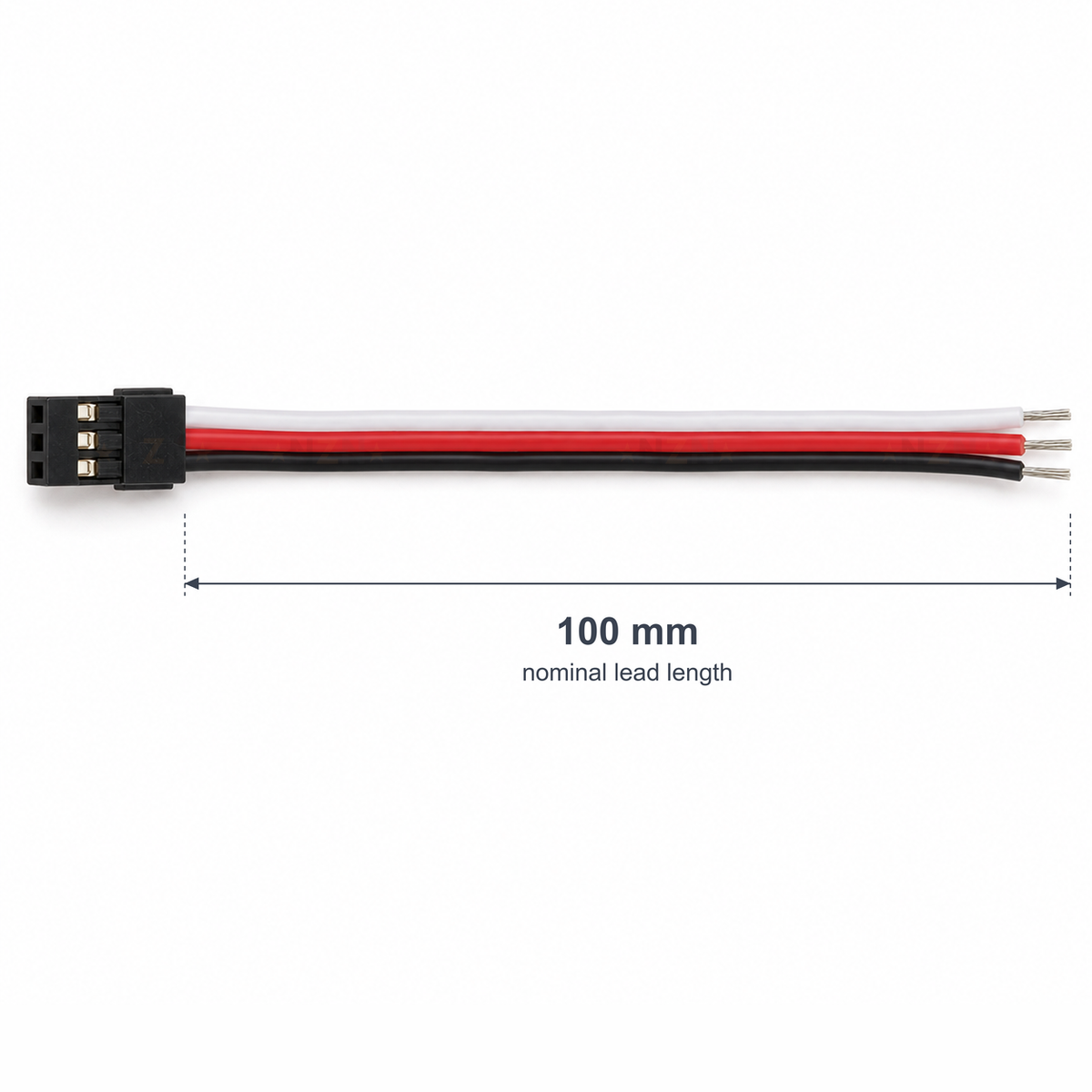

  • Servo pigtail laid straight with a 100 mm nominal lead length marked from the back of the plug to the wire tips
100mm Futaba-Style Servo Pigtail Lead - Male Plug, 22 AWG
SKU: CBL-SERVO-PIG-FUT-100

100mm Futaba-Style Servo Pigtail Lead - Male Plug, 22 AWG

$3.99 NZD
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A short 100 mm servo lead with a Futaba-style male plug on one end and bare wire tips on the other. Use it to replace a damaged plug on a servo, ESC or sensor, or to make your own lead for a receiver or servo header. Solder or splice the free end to your device and the plug fits a standard 3-pin servo connection.

Specifications

PlugFutaba-style male, 3-position keyed housing
Fits3-pin 2.54 mm servo headers and Futaba-style sockets
Nominal length100 mm
Wire coloursWhite signal, red positive, black negative
Cable formFlat 3-wire ribbon, 22 AWG supplier-listed
Free endShort bare stranded tips, ready to solder

What's in the box

1 x
100 mm Futaba-style servo pigtail lead

One male plug with a 100 mm flat white, red and black lead and bare tips.

Great for

Replacing a broken servo plug

Cut off a cracked or damaged plug and solder this lead on in its place.

ESCs, sensors and lights

Give a bare-wired device a plug that fits a receiver channel.

Arduino and ESP32 servo headers

Connect your own wiring to the 3-pin servo rows on boards like the Nano IO expansion shield.

Wiring & getting started

  1. Power off first

    Disconnect the battery or supply before cutting or soldering any lead.

  2. Match the colours

    Join white to the signal wire, red to positive and black to negative (ground) on your device. Check your device's own wire colours, as some use orange, red and brown instead.

  3. Solder and insulate

    Solder each joint and cover it with heat-shrink so no bare copper is left showing.

  4. Plug in the right way round

    On a receiver or servo header, black goes to the negative or ground pin, usually the outer edge. Check the markings before powering up.

Frequently Asked Questions

Answers to the questions buyers ask most.

Which end is the male plug?
The black Futaba-style housing is the male servo plug, the same end a servo has. It pushes onto a receiver's 3-pin header or into a Futaba-style extension socket. The other end has bare wire tips for soldering.
Will it fit JR or Spektrum receivers?
The contacts use the common 2.54 mm servo spacing and the same signal, positive and ground order, so it plugs onto most receiver headers. The housing has a Futaba-style side key, so check it fits beside neighbouring plugs or in a JR-style socket before relying on it.
Which wire is which?
White is signal, red is positive and black is negative (ground). Some servos and ESCs use orange, red and brown instead; orange matches white and brown matches black.
Can I use it to run two servos from one channel?
No, this is a single lead. Use the 150mm Futaba-style servo Y cable to connect two servos to one channel.
