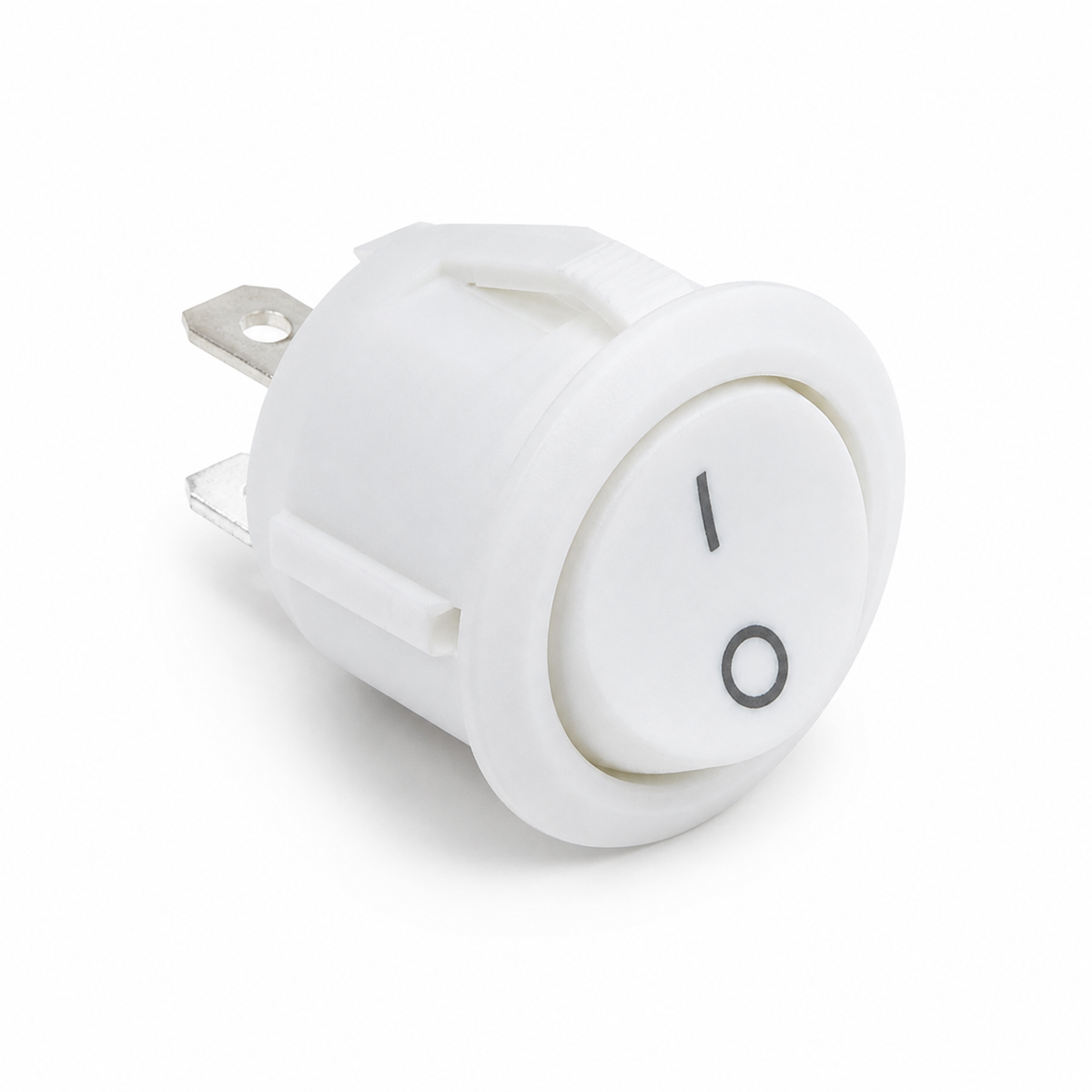

White KCD1-105 20mm round ON/OFF rocker switch, angled view

KCD1-105 20mm Round Rocker Switch - ON/OFF, 6A 250VAC

White
$2.19 NZD
Save 10% at 5+
Skip to product information
White KCD1-105 20mm round ON/OFF rocker switch, angled view
  • White KCD1-105 20mm round ON/OFF rocker switch, angled view

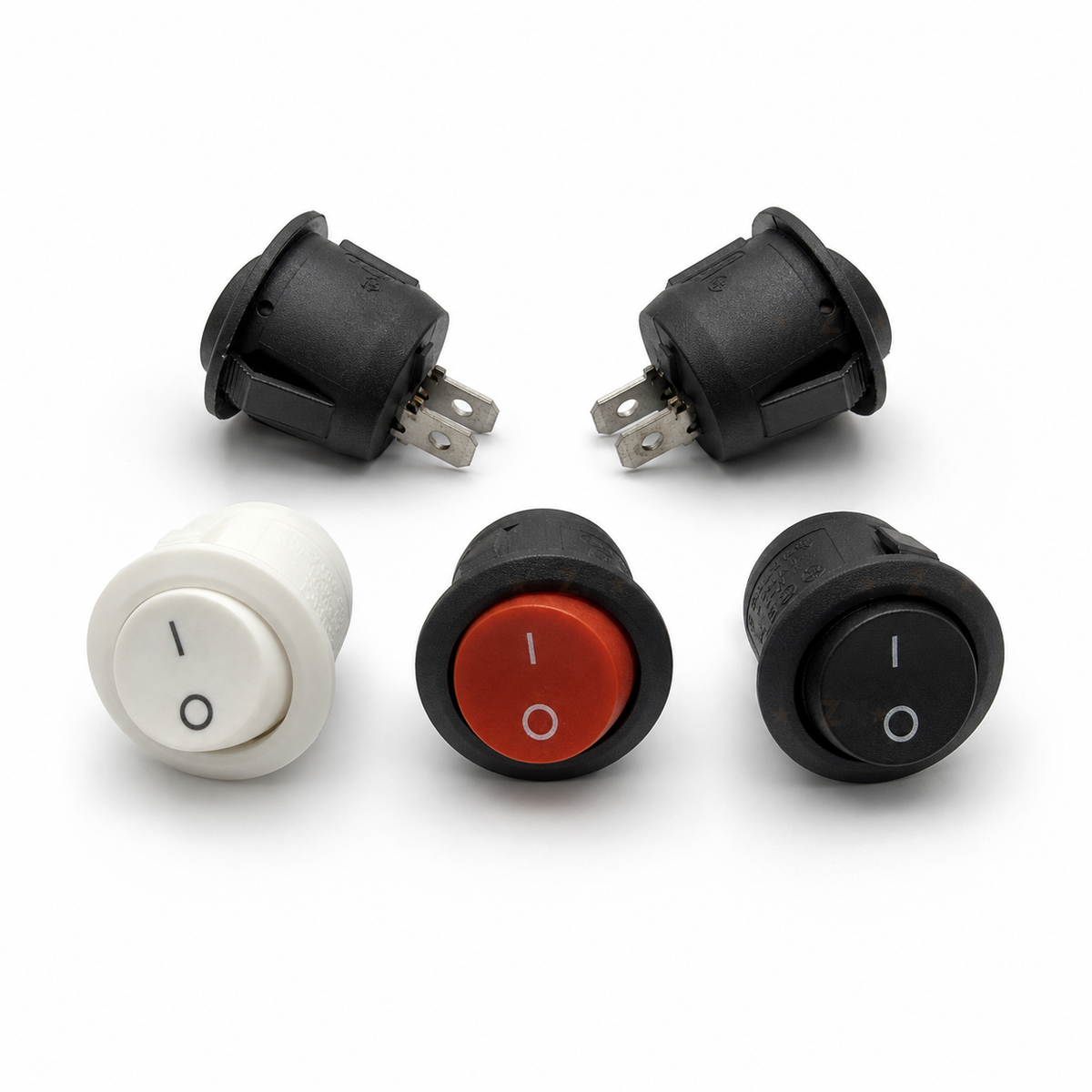

  • KCD1-105 rocker switch colour options with front and rear two-terminal views

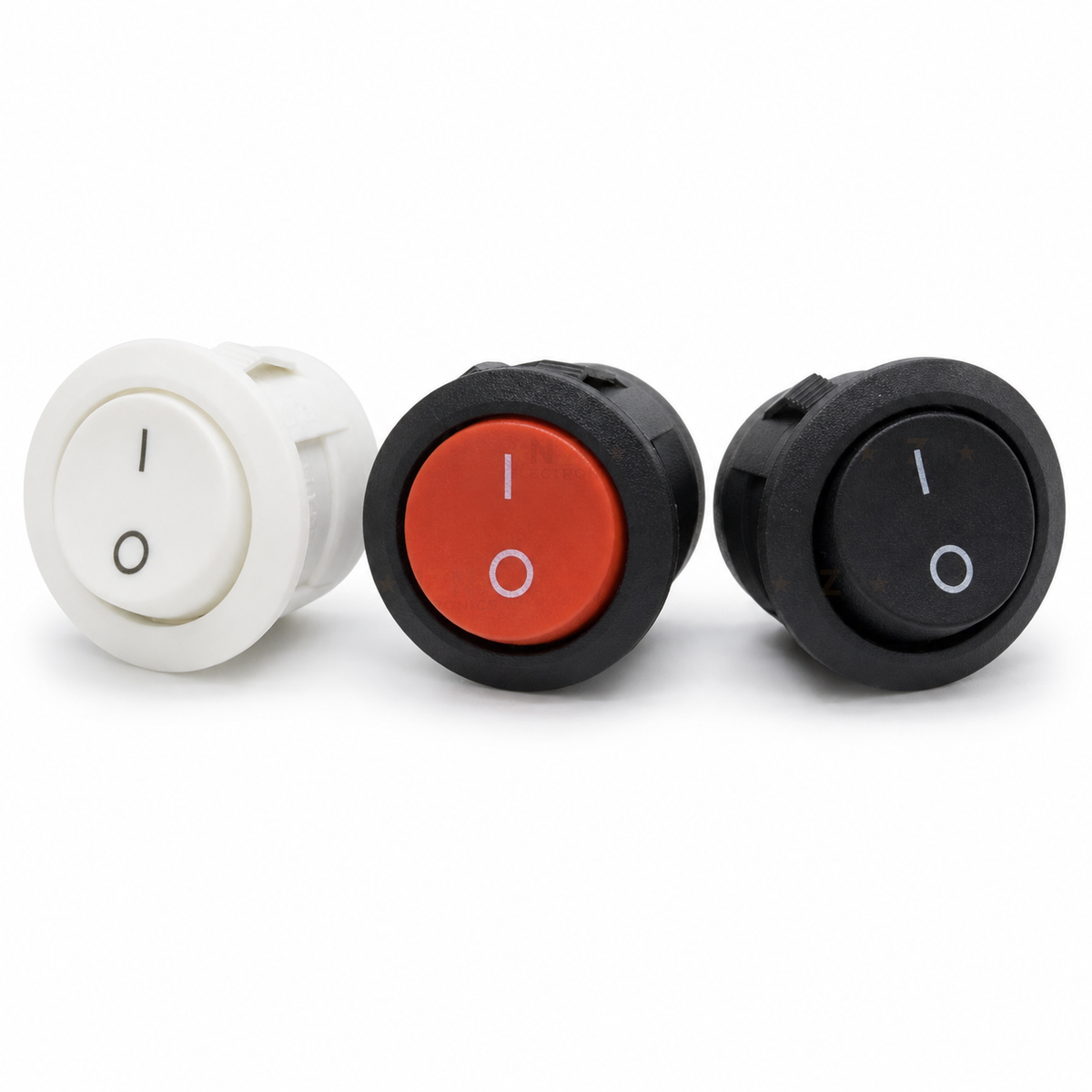

  • White, red and black KCD1-105 20mm round ON/OFF rocker switches, front view

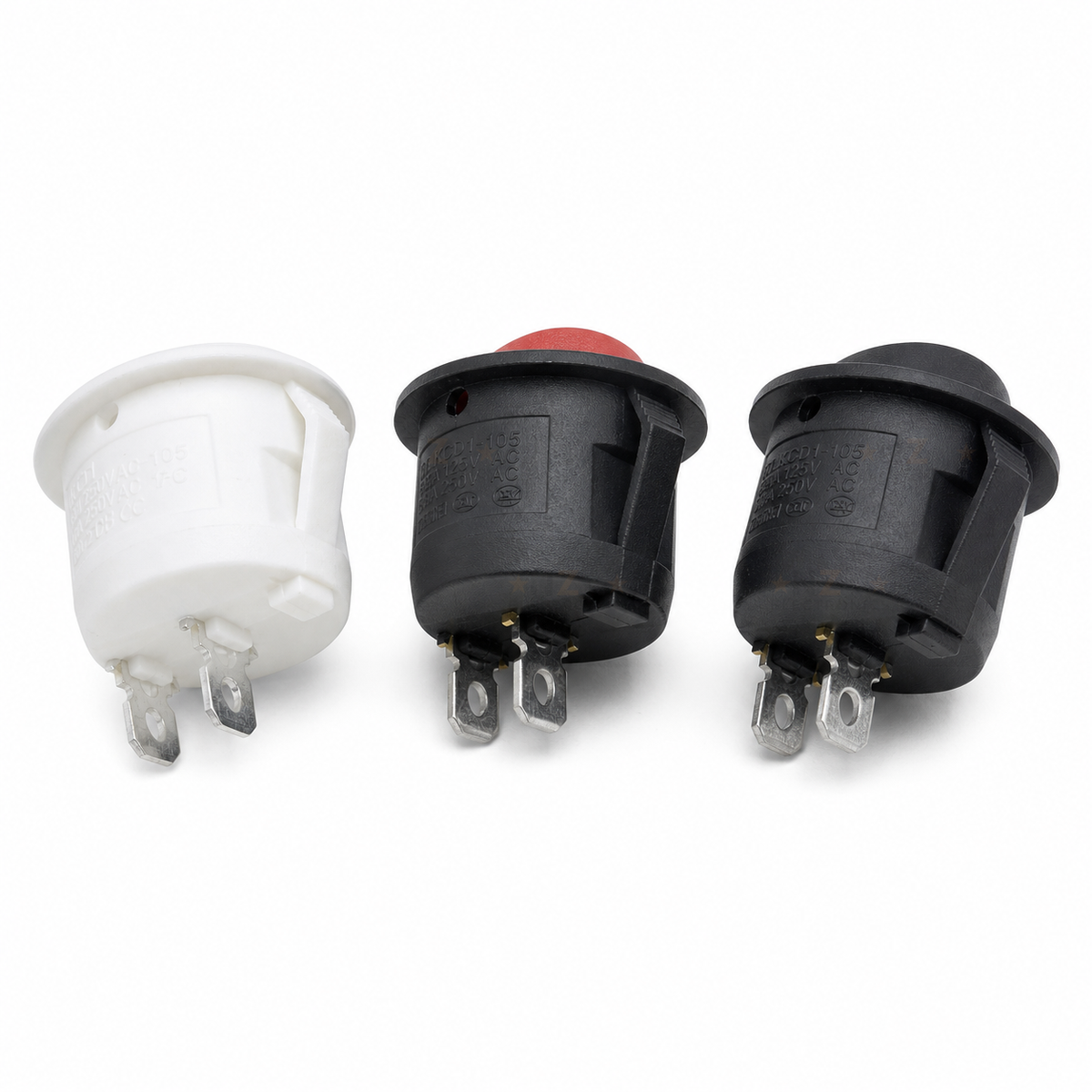

  • White, red and black KCD1-105 rocker switches, rear view showing two spade terminals

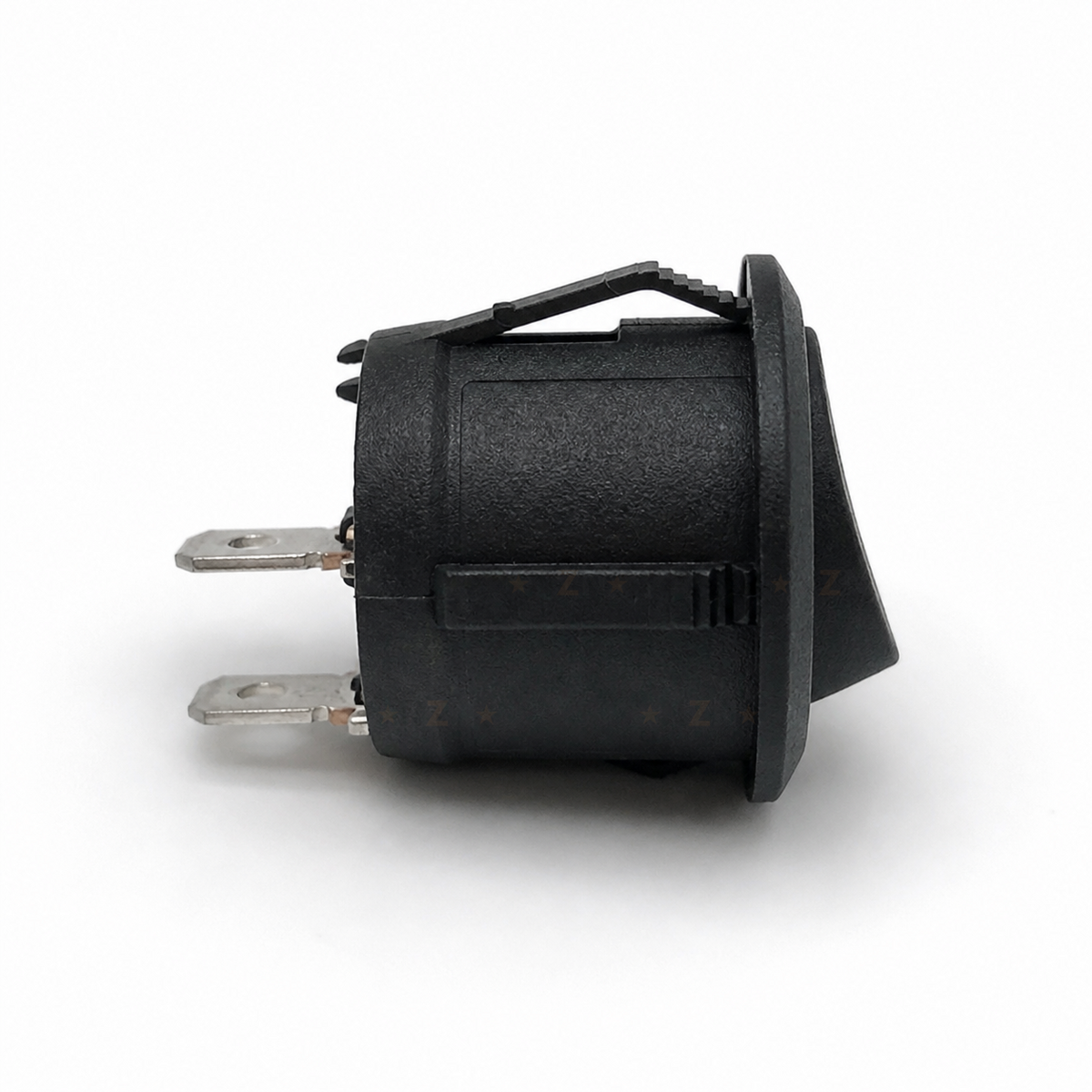

  • Black KCD1-105 rocker switch side view showing snap-in tabs and two terminals

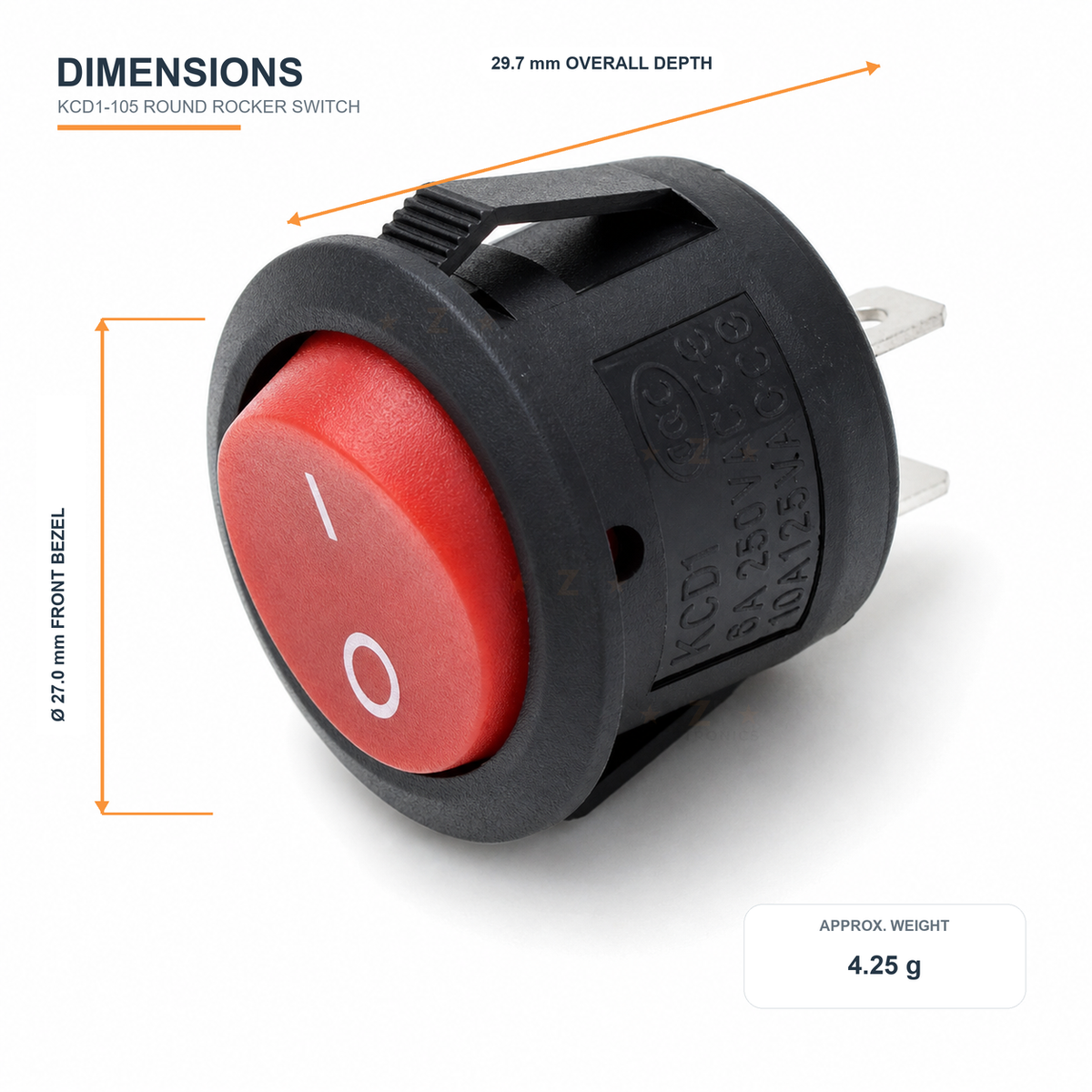

  • KCD1-105 rocker switch dimensions: 27mm bezel, 29.7mm depth and approximately 4.25g
KCD1-105 20mm Round Rocker Switch - ON/OFF, 6A 250VAC
SKU: SW-KCD1-105-WHT

KCD1-105 20mm Round Rocker Switch - ON/OFF, 6A 250VAC

$2.19 NZD
Colour
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A compact KCD1-105 round rocker switch for simple ON/OFF control in project enclosures, control panels and appliance repairs. It snaps into a 20mm round panel opening and uses two quick-connect terminals for straightforward SPST switching.

Specifications

ModelKCD1-105
Switch actionLatching ON/OFF
Contact configurationSPST, 2 terminals
AC rating6A at 250VAC
Alternate AC rating10A at 125VAC
Temperature markingT85
Panel cut-out20mm round
MountingSnap-in panel mount
Terminals4.8mm quick-connect tabs

Datasheets

Full technical datasheet PDF

What's in the box

1×
KCD1-105 round rocker switch

Supplied in your selected colour: red, black or white.

Great for

Project enclosures
Control panels
Appliance repairs
Bench power supplies

Wiring & getting started

  1. Disconnect the power

    Make sure the circuit is fully isolated before cutting the panel or connecting the switch.

  2. Prepare the panel opening

    Make a clean 20mm round opening and remove sharp edges that could damage wiring.

  3. Connect the switched conductor

    Connect the supply side to one terminal and the load side to the other using insulated 4.8mm connectors or suitable soldered leads.

  4. Snap in and test

    Press the switch into the panel until both retaining clips engage, then check ON/OFF operation before final assembly.

Note: This SPST switch disconnects one conductor only. Mains wiring must use a suitable enclosure, insulation and strain relief, and should be completed by a suitably qualified person.

Frequently Asked Questions

Answers to the questions buyers ask most.

What size panel opening does this switch need?
It is designed for a 20mm round panel cut-out. Remove burrs before fitting so the retaining clips can seat cleanly.
Is the switch illuminated?
No. These are non-illuminated ON/OFF rocker switches with I and O position markings.
What circuit does it switch?
The two terminals form a latching SPST contact. Wire the conductor you want to switch through the two terminals.
What are the electrical ratings?
The stock is marked 6A at 250VAC and 10A at 125VAC, with a T85 temperature marking. Use appropriate derating and safe wiring practices for the load and installation.
Which colours are available?
Choose red, black or white. The red and black versions use a black body; the white version has a white body and actuator.
