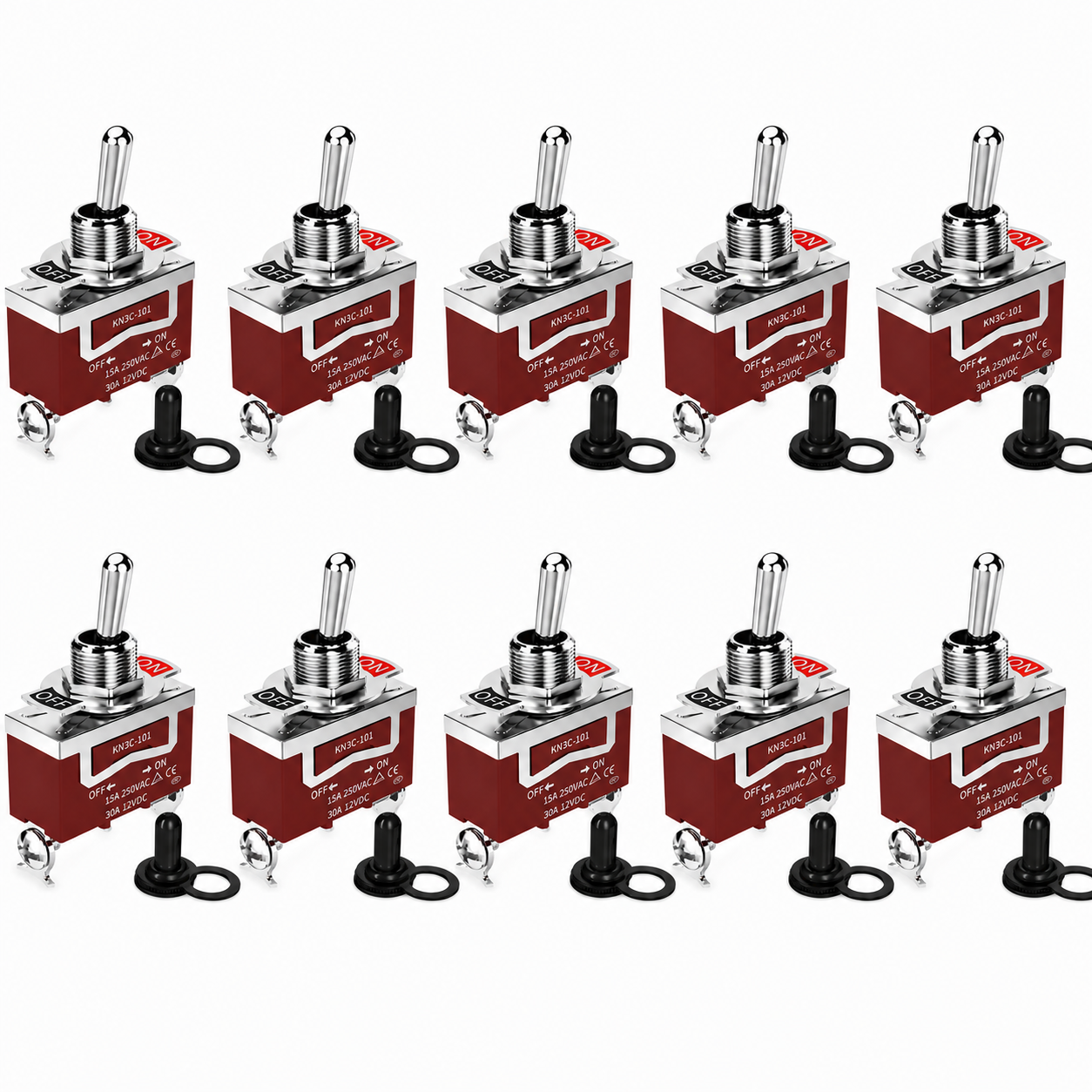

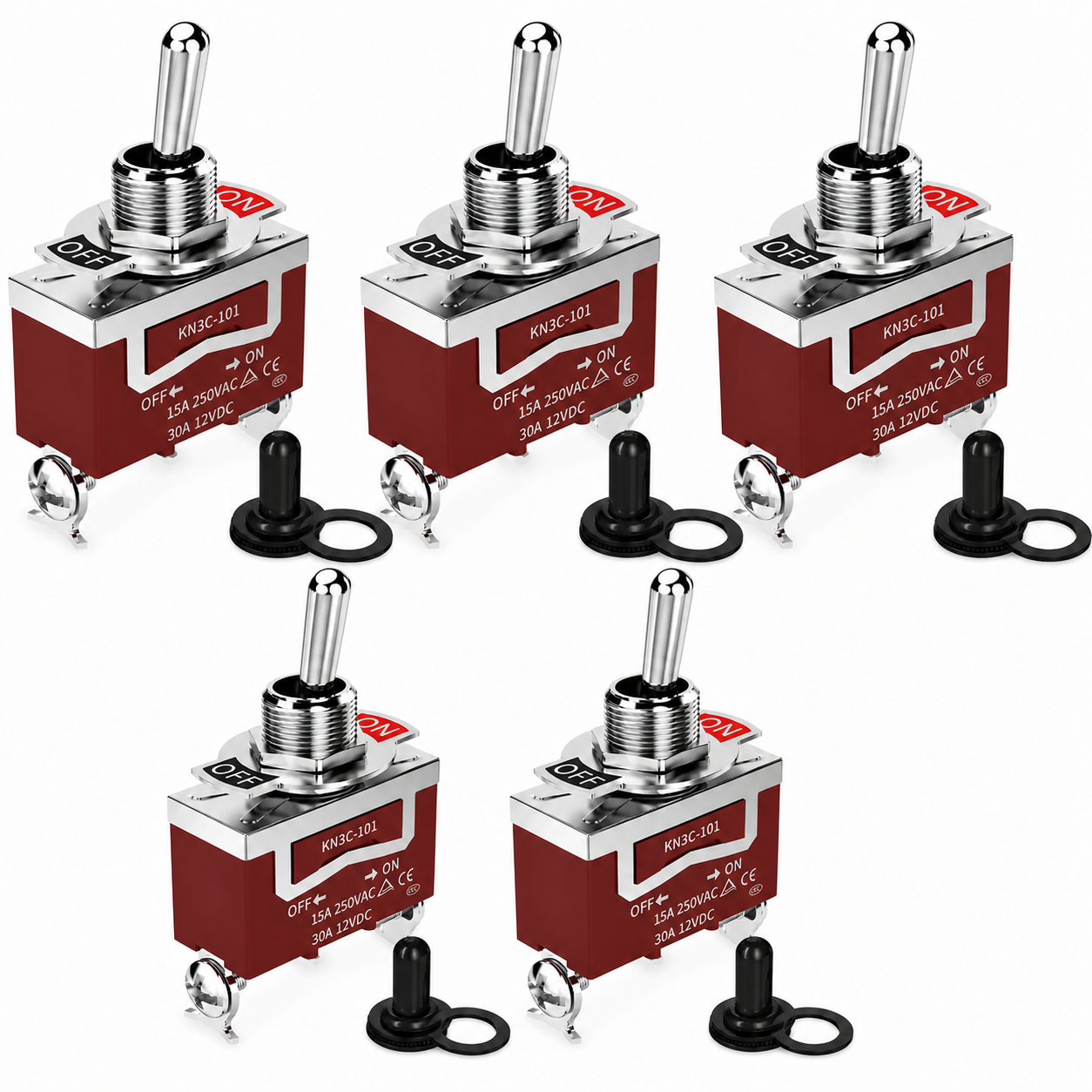

KN3C-101 Toggle Switch, SPST ON-OFF, 30A 12VDC

$5.49 NZD
Save 10% at 5+
Skip to product information
KN3C-101 toggle switch with metal lever, mounting nuts and two screw terminals, shown close up

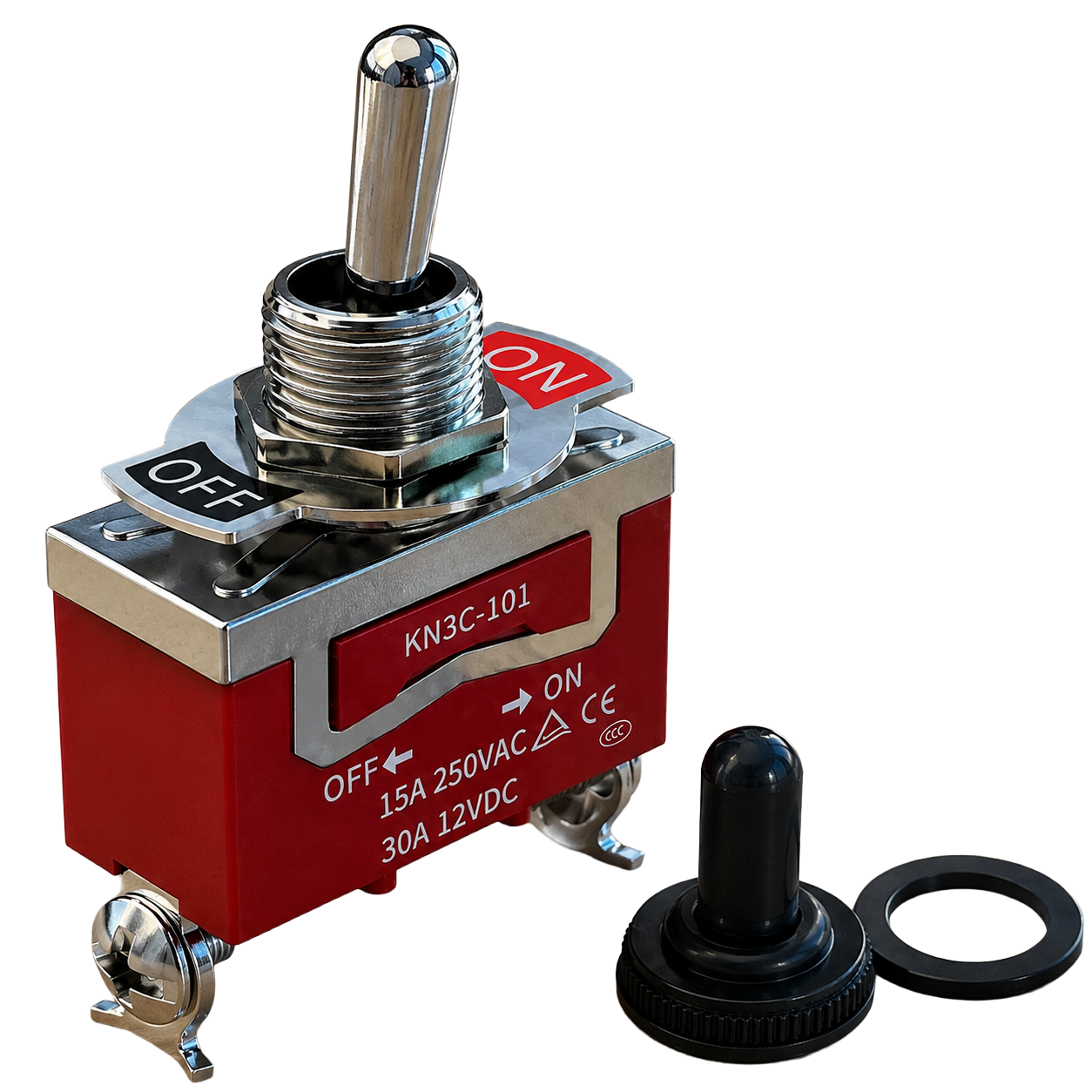

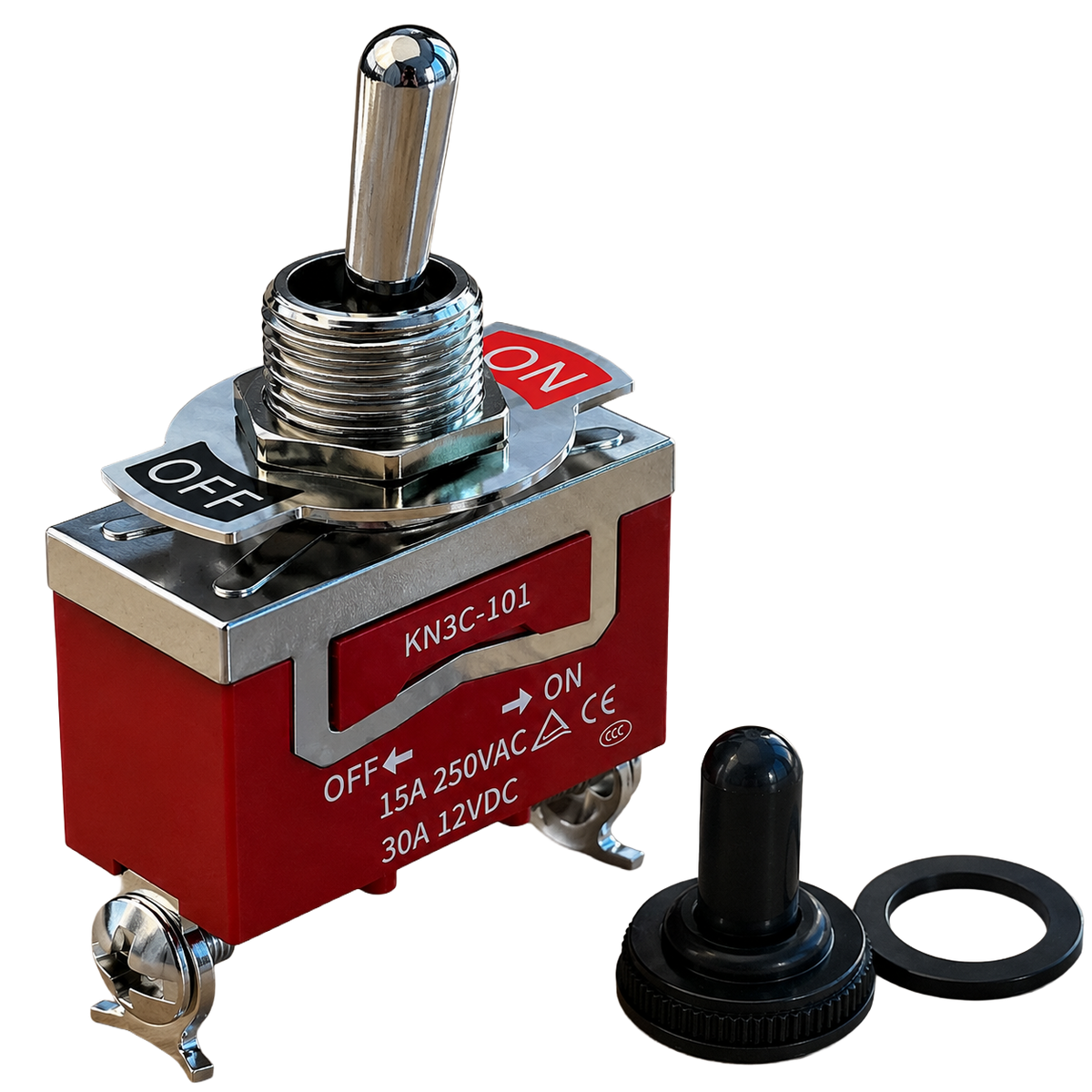

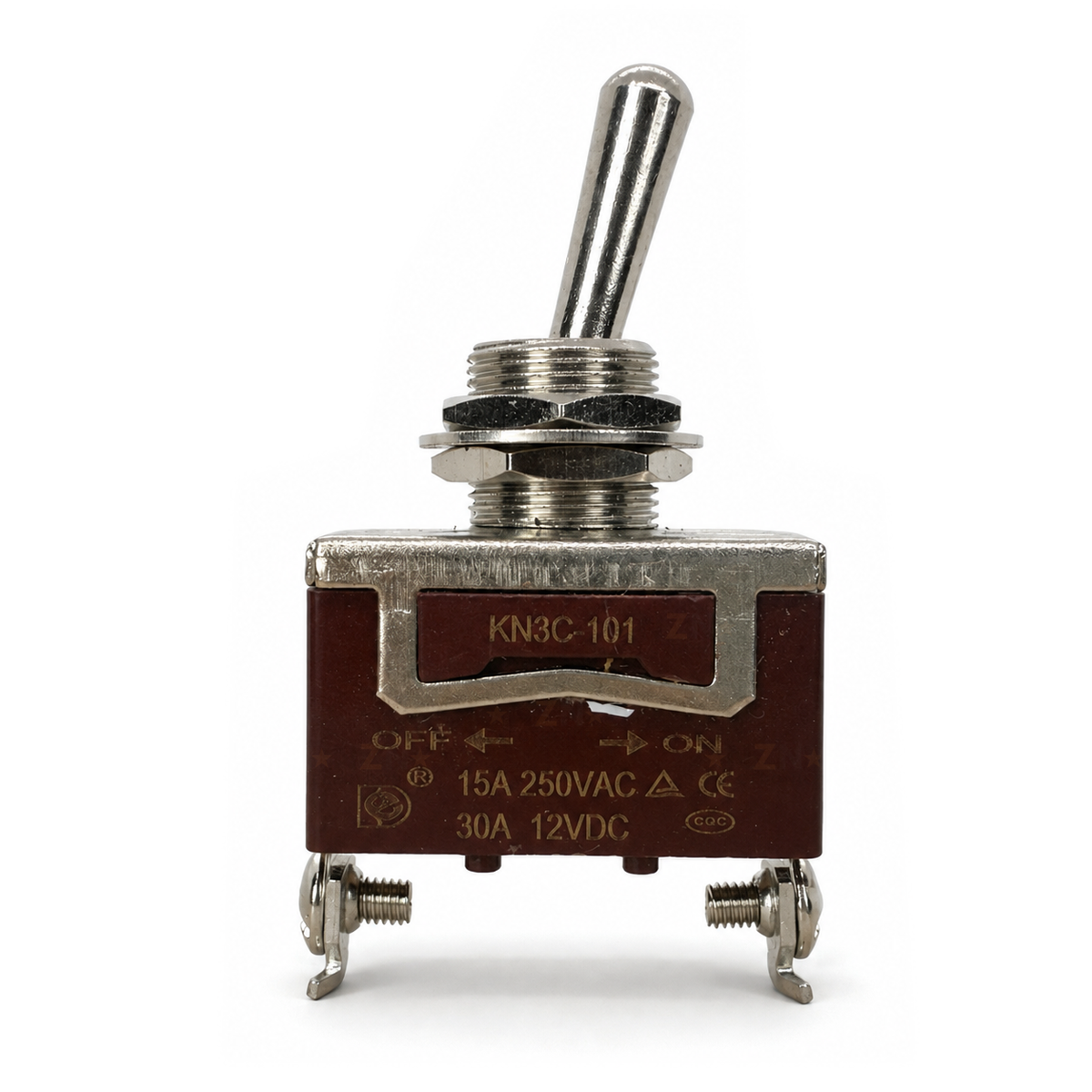

  • KN3C-101 toggle switch with metal lever, mounting nuts and two screw terminals, shown close up

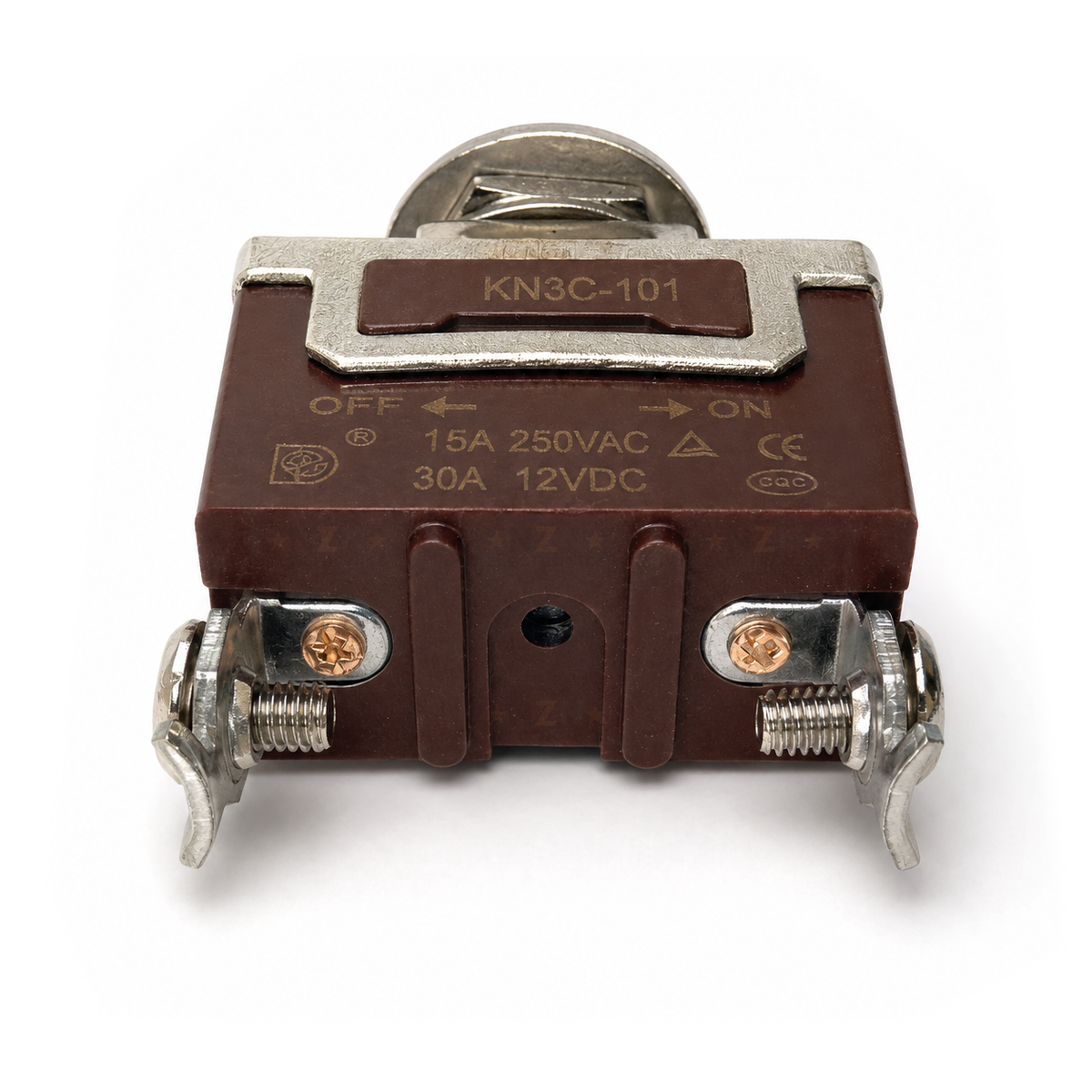

  • Angled underside of KN3C-101 showing two screw terminals and marked AC and DC ratings

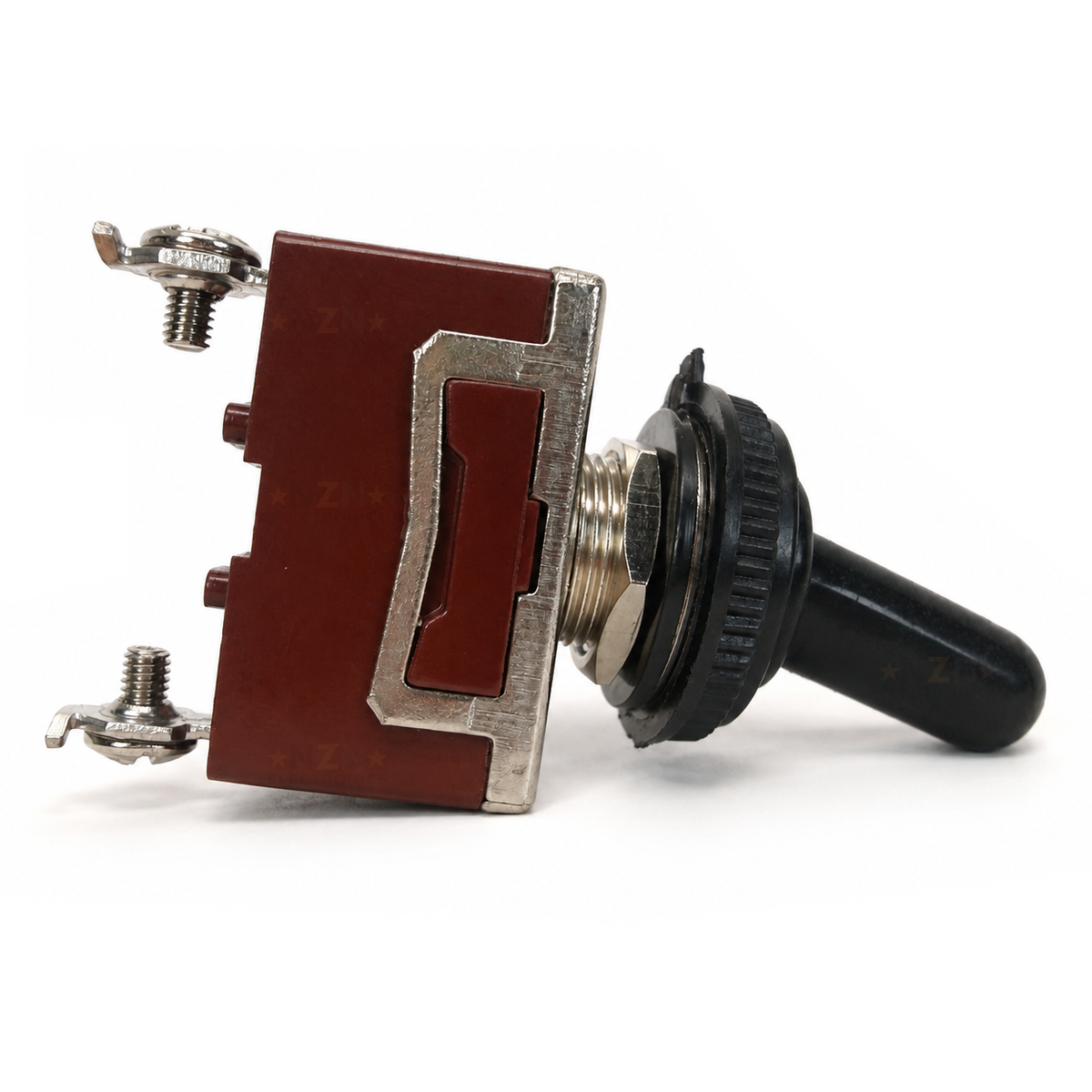

  • Side view of KN3C-101 toggle switch with rubber boot fitted over the lever

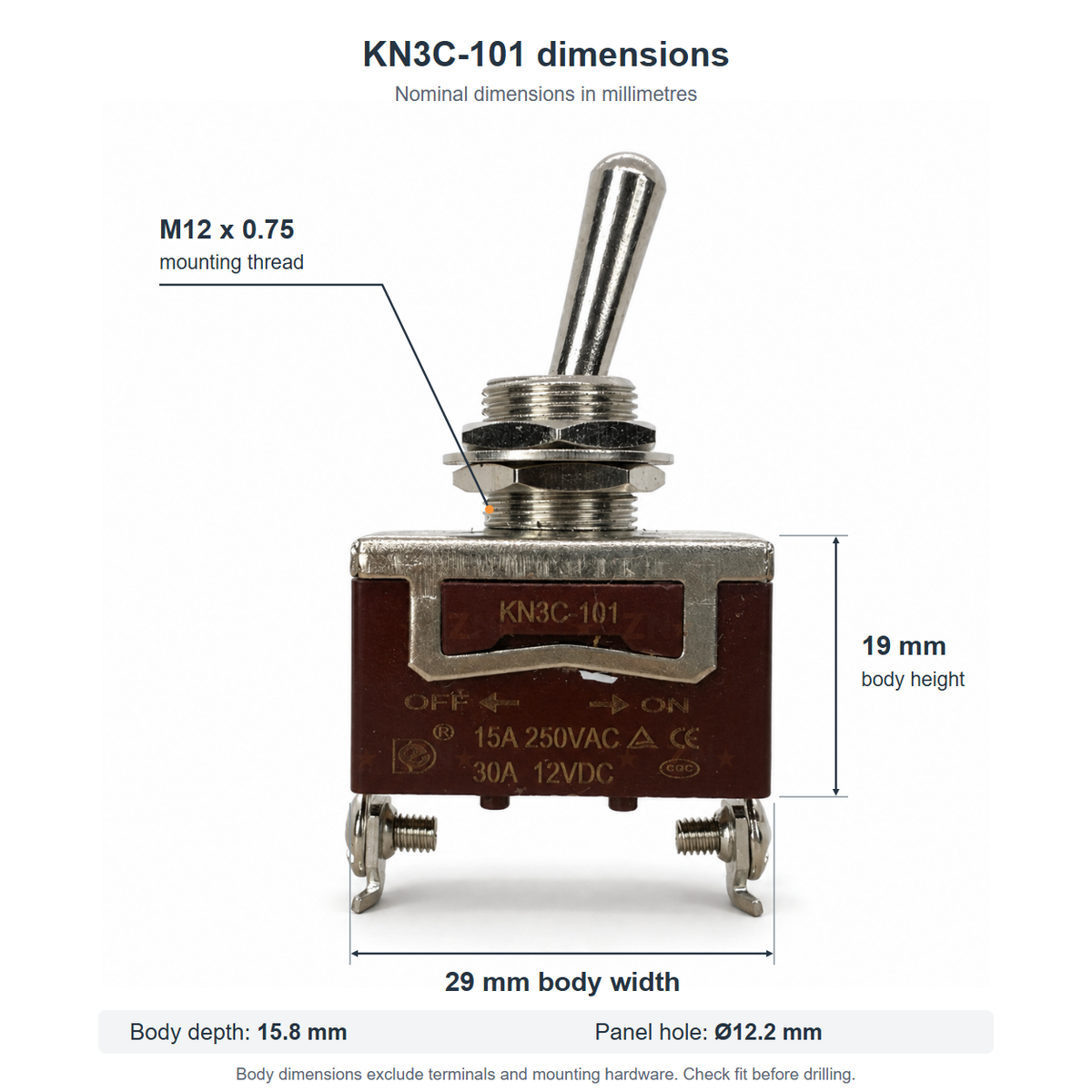

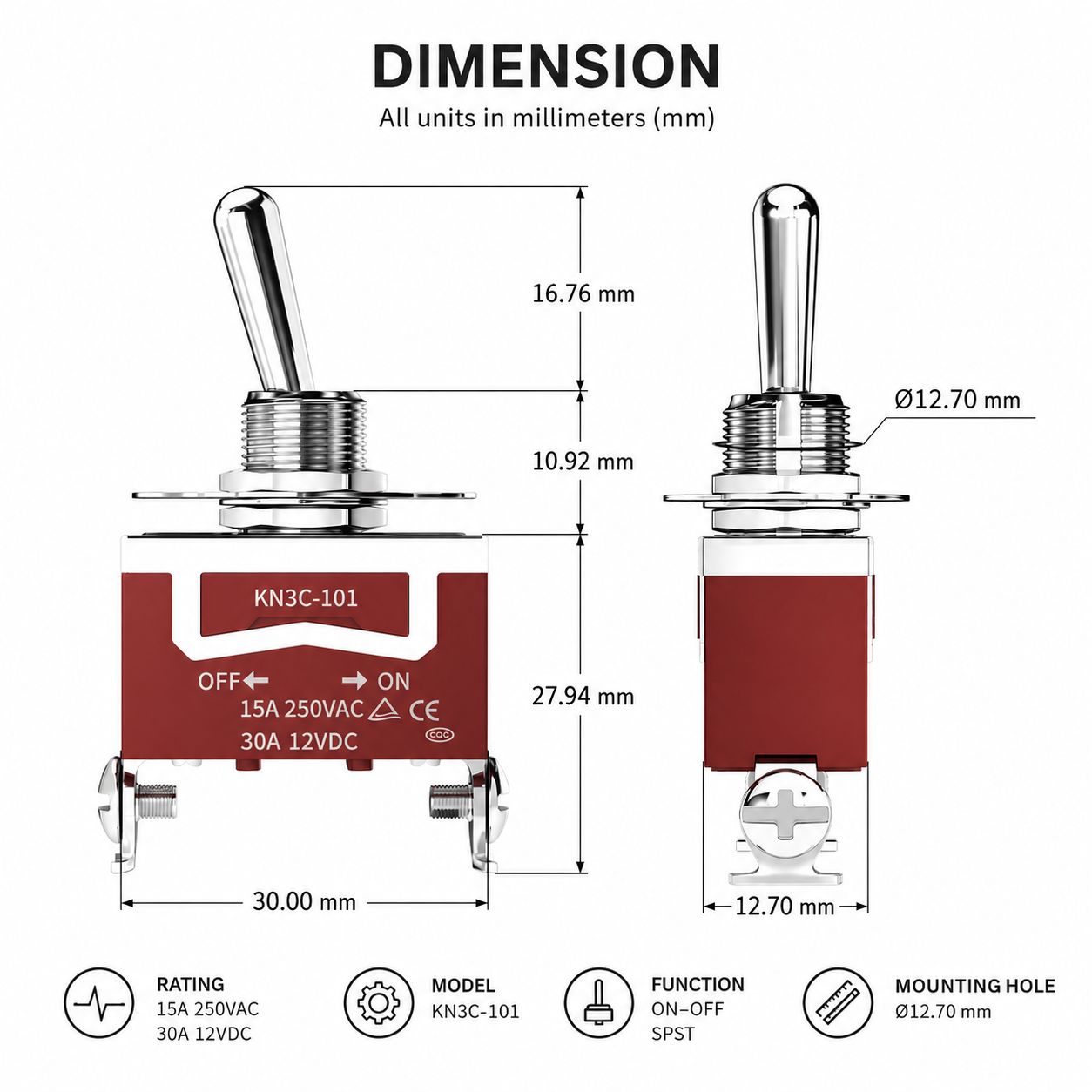

  • KN3C-101 nominal dimensions: 29 x 15.8 x 19 mm body, M12 x 0.75 mounting thread and 12.2 mm panel hole

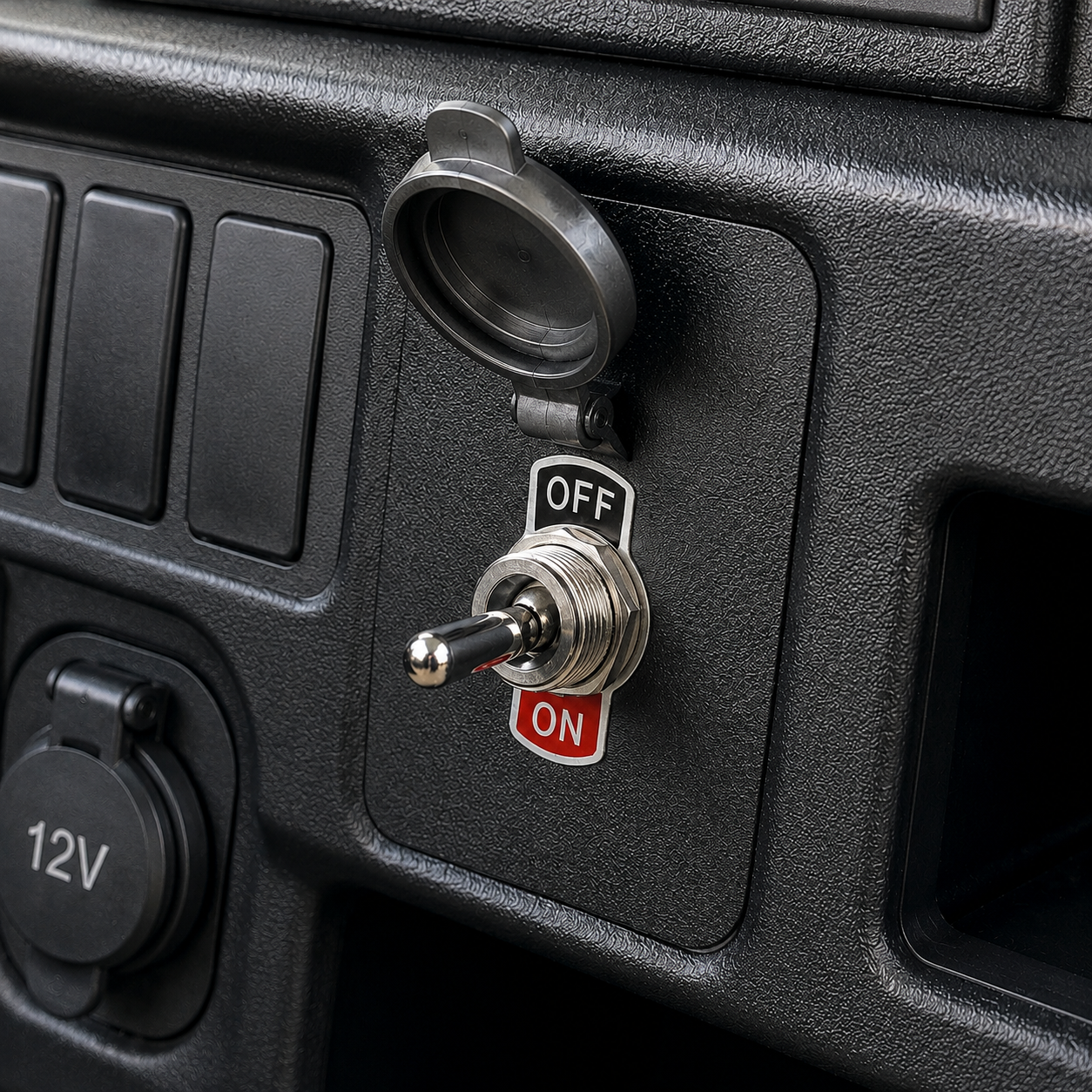

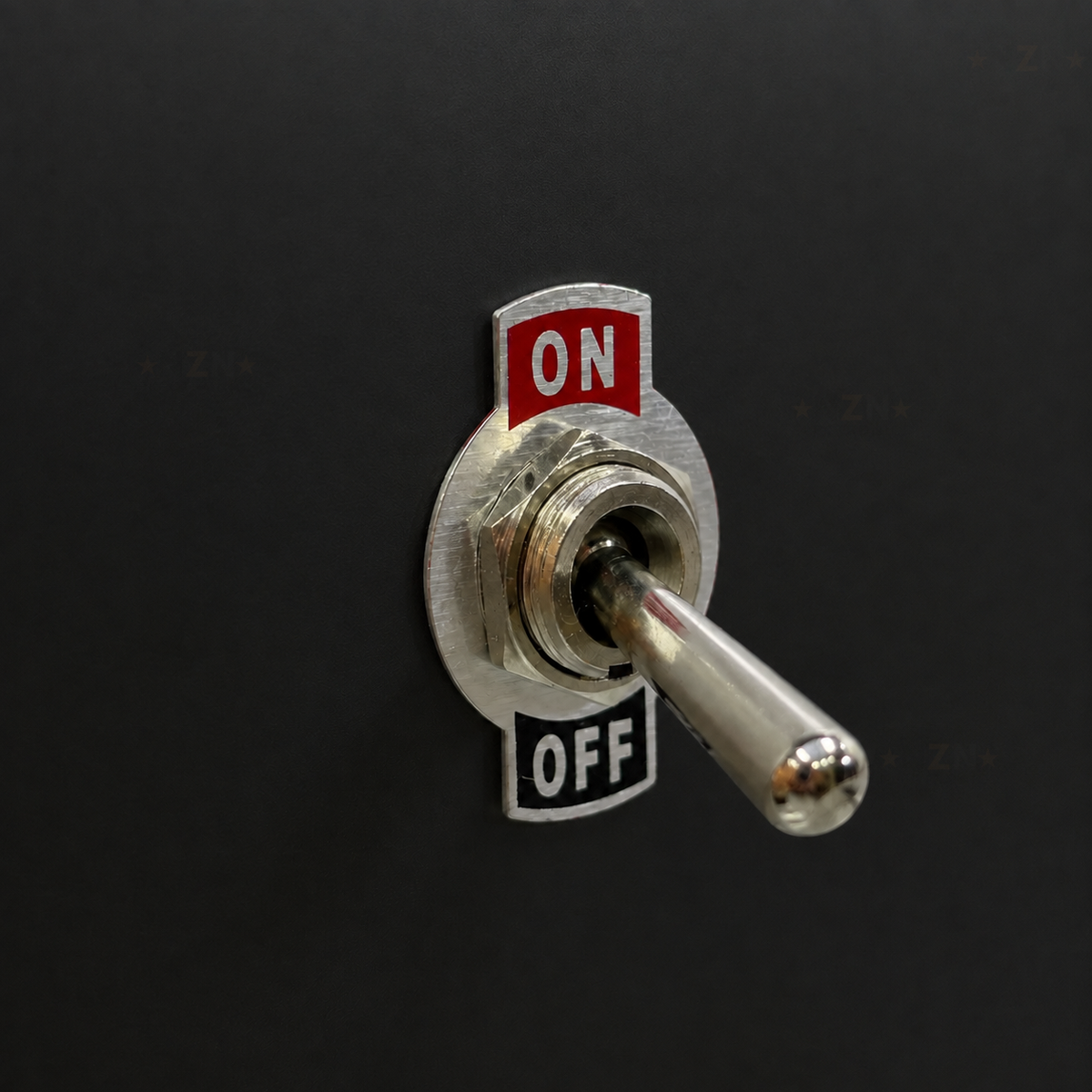

  • KN3C-101 toggle switch mounted through a black demonstration panel with ON/OFF plate; panel not included
KN3C-101 Toggle Switch, SPST ON-OFF, 30A 12VDC
SKU: SW-KN3C-101

KN3C-101 Toggle Switch, SPST ON-OFF, 30A 12VDC

$5.49 NZD
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

The Daier KN3C-101 is a maintained ON-OFF toggle switch for panel controls and low-voltage power circuits. Two screw terminals make wiring straightforward, while the threaded mounting bushing secures the switch through your enclosure. A rubber lever boot, ON/OFF plate and mounting hardware are included.

Specifications

ModelKN3C-101
Switch functionSPST maintained ON-OFF
Terminals2 screw terminals
Marked AC rating15A at 250VAC
Marked DC rating30A at 12VDC
Mounting threadM12 x 0.75
Nominal panel hole12.2mm diameter
Nominal body size29 x 15.8 x 19mm
Housing materialBakelite
Lever materialNickel-plated brass
Operating temperature-25 to +85°C
Lever movementTwo maintained positions

Datasheets

Full technical datasheetPDF

What's in the box

1×
KN3C-101 toggle switch with mounting accessories

Includes a rubber boot, ON/OFF plate, two mounting nuts and a locking washer. One switch per unit. The demonstration panel is not included.

Great for

12V DC project power controls
Bench equipment and enclosure panels
Maintained ON/OFF control circuits

Wiring & getting started

  1. Check the panel fit

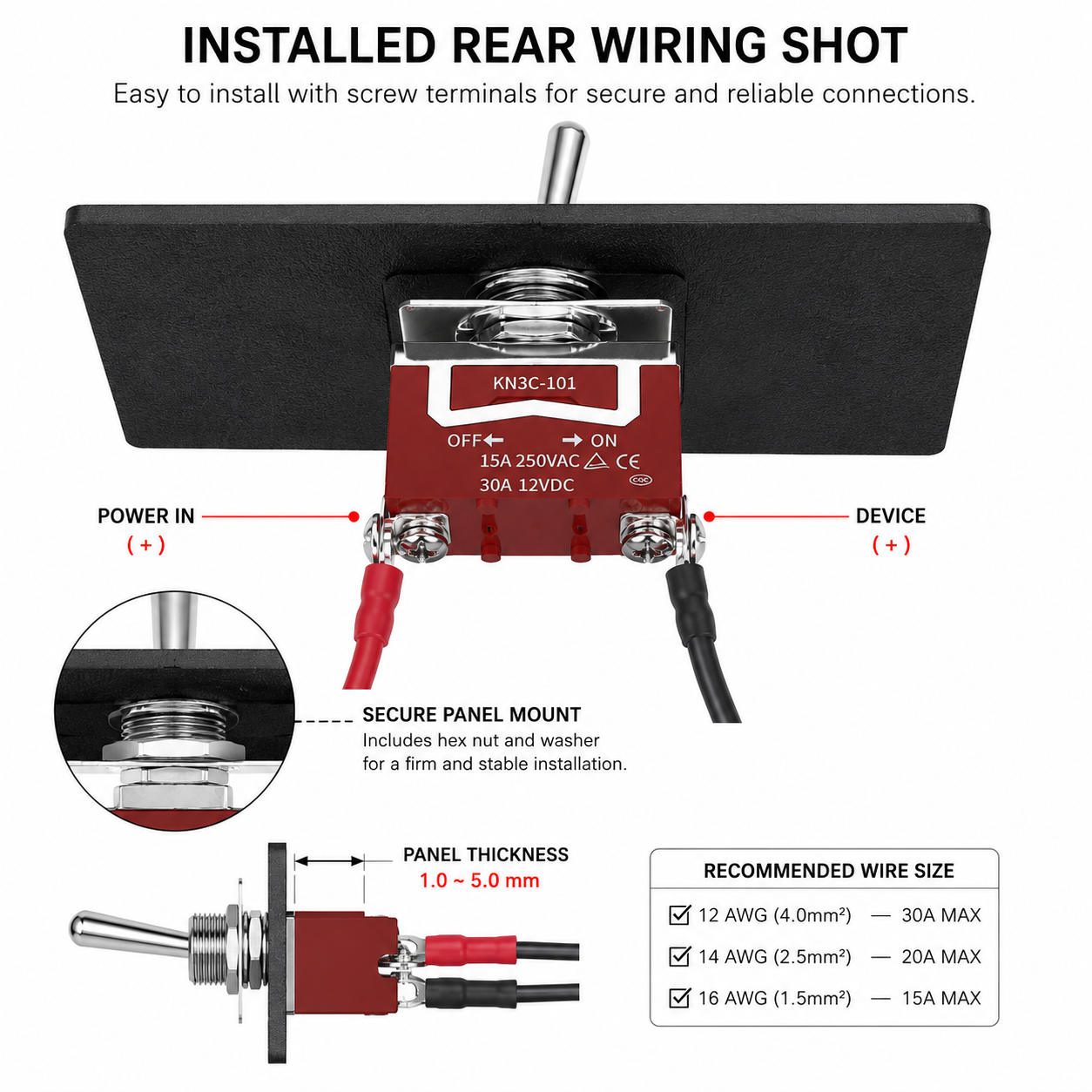

    Check the nominal 12.2mm hole against the supplied switch before drilling. Allow space behind the panel for the body, terminals and wire bends.

  2. Mount from behind the panel

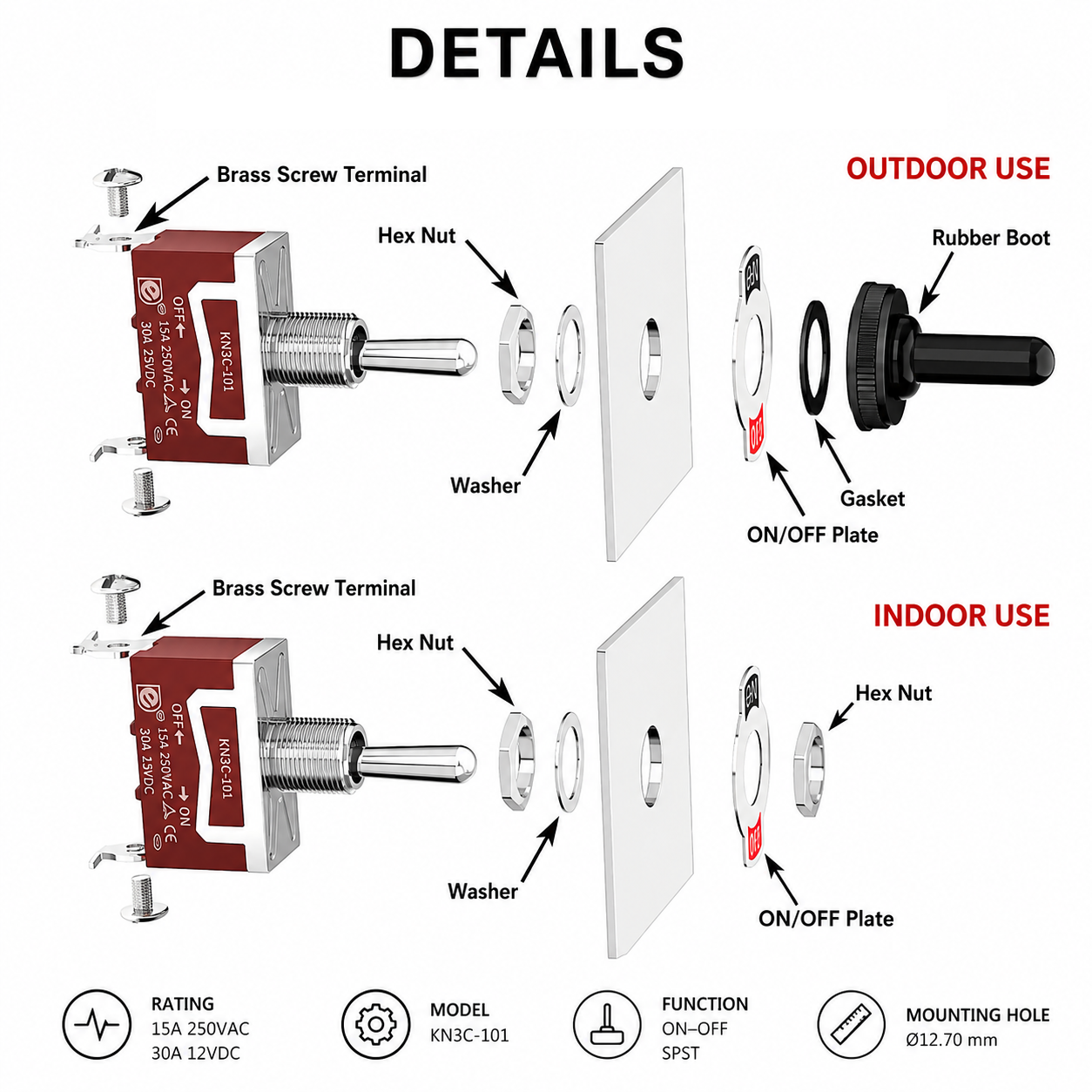

    Remove the front retaining hardware, insert the threaded bushing from behind, then fit the plate and retaining hardware. Adjust the rear nut to suit the panel and fit the boot if required.

  3. Check the contact operation

    With power disconnected, measure continuity between the two screw terminals. ON closes the circuit and OFF opens it. Align the plate with the measured operation.

  4. Connect and protect the circuit

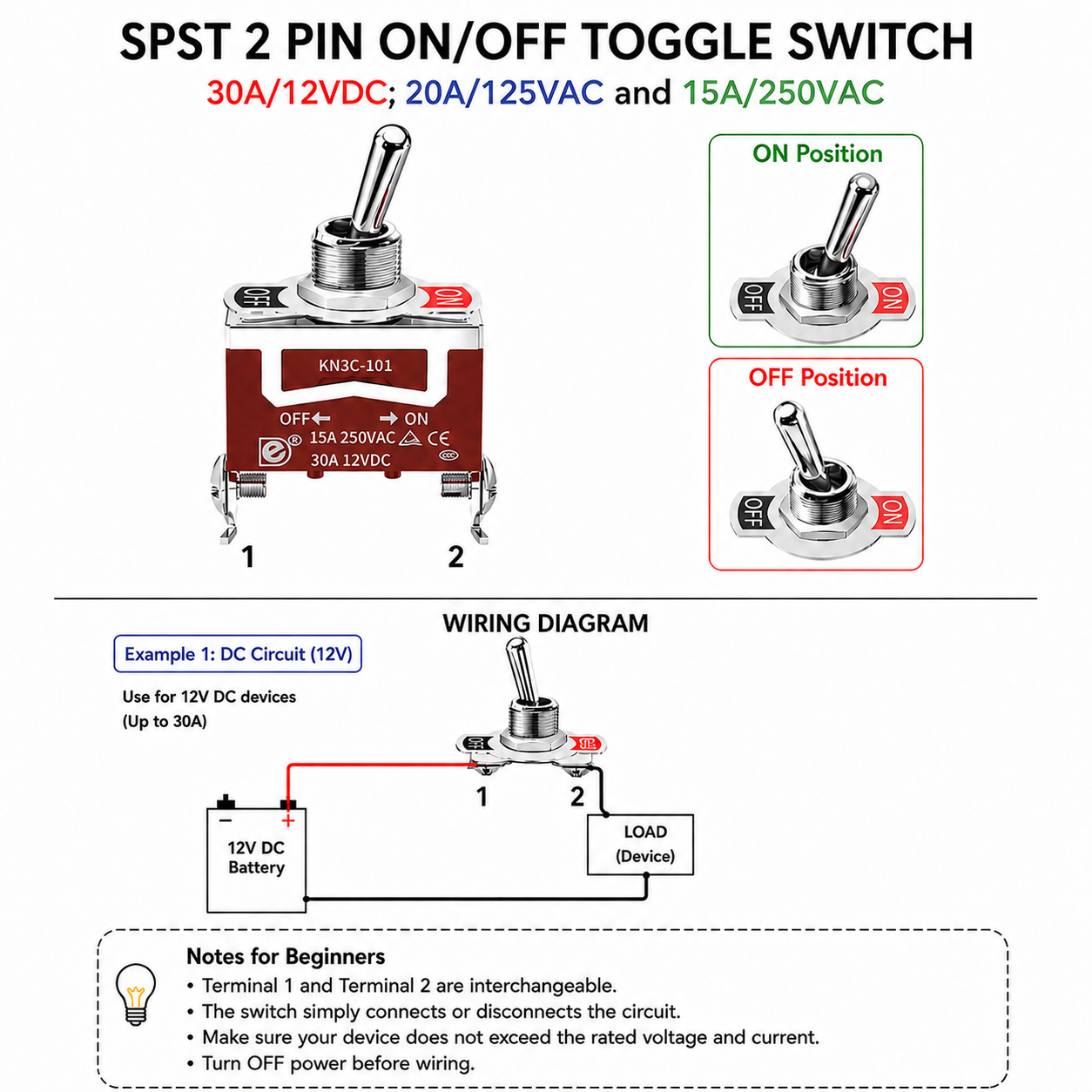

    For low-voltage DC use, wire the switch in series with the load and fit a suitable fuse near the supply. Secure and insulate the connections. Use a suitably rated relay for motors or other loads with high starting current. Apply each rating only with its stated voltage and AC/DC type.

Note: The boot covers the lever. Protect the body and terminals from water. Mains-powered equipment requires appropriate enclosure and insulation, with installation by a qualified electrician.

Frequently Asked Questions

Answers to the questions buyers ask most.

Does the lever stay on, or spring back?
It stays in the selected ON or OFF position. This is a maintained SPST switch with two terminals.
Can I use it on a 12V DC circuit?
Yes. The switch body is marked 30A at 12VDC. Match the switch to the load and its starting current, and use a suitable fuse. Use a suitably rated relay for motors or other high-starting-current loads.
What hole does it need in the panel?
The nominal mounting hole is 12.2mm for the M12 x 0.75 threaded bushing. Check the supplied switch before machining and allow room for mounting hardware and connections.
Does the rubber boot protect the whole switch?
The boot covers the lever. Install the body and screw terminals inside an enclosure that protects them from water.
