LGT8F328P-LQFP32 Mini Dev Board - USB-C, Arduino Nano Compatible

$4.99 NZD
Save 5% at 2+
Skip to product information
Purple LGT8F328P-LQFP32 MiniEVB USB-C development board at a three-quarter angle

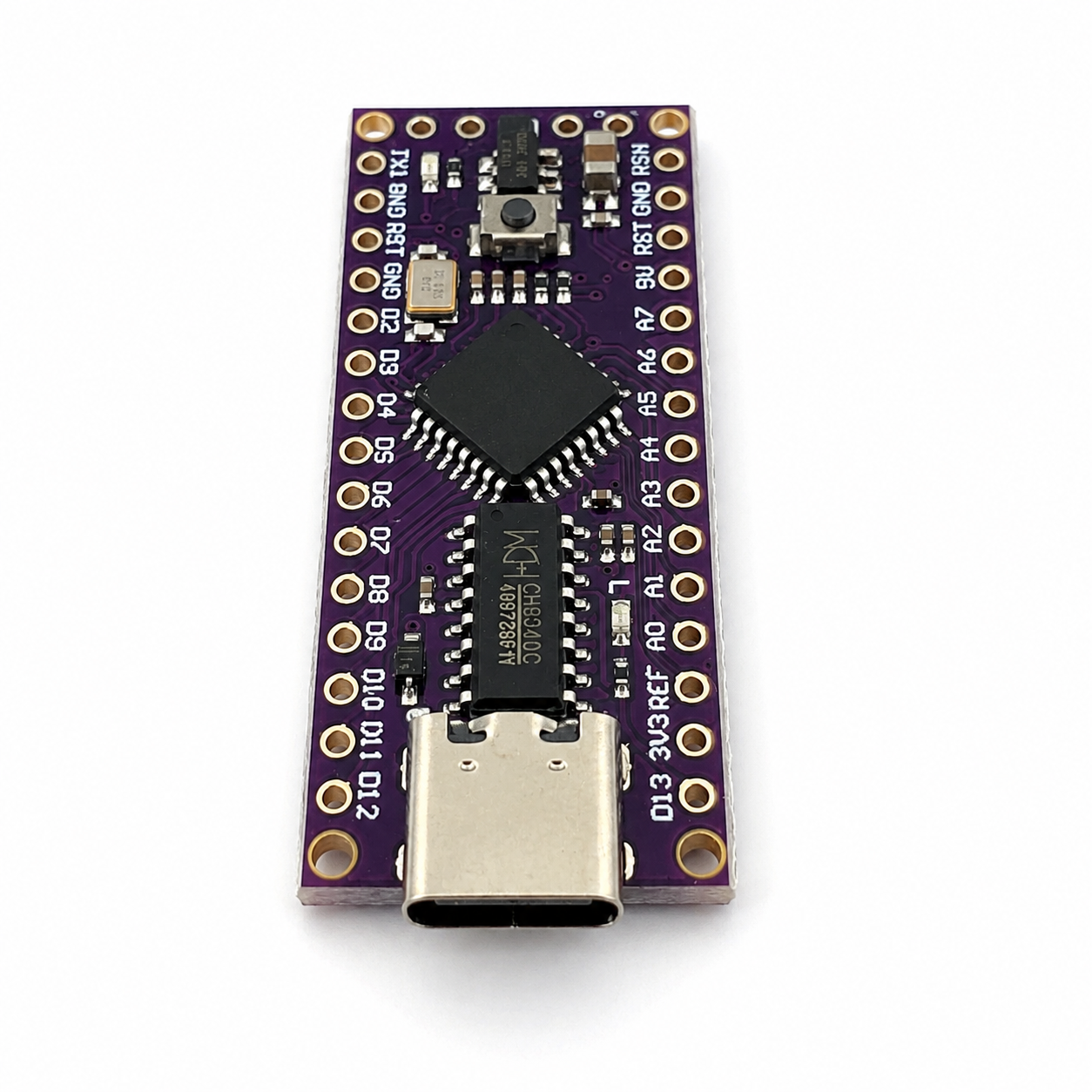

  • Purple LGT8F328P-LQFP32 MiniEVB USB-C development board at a three-quarter angle

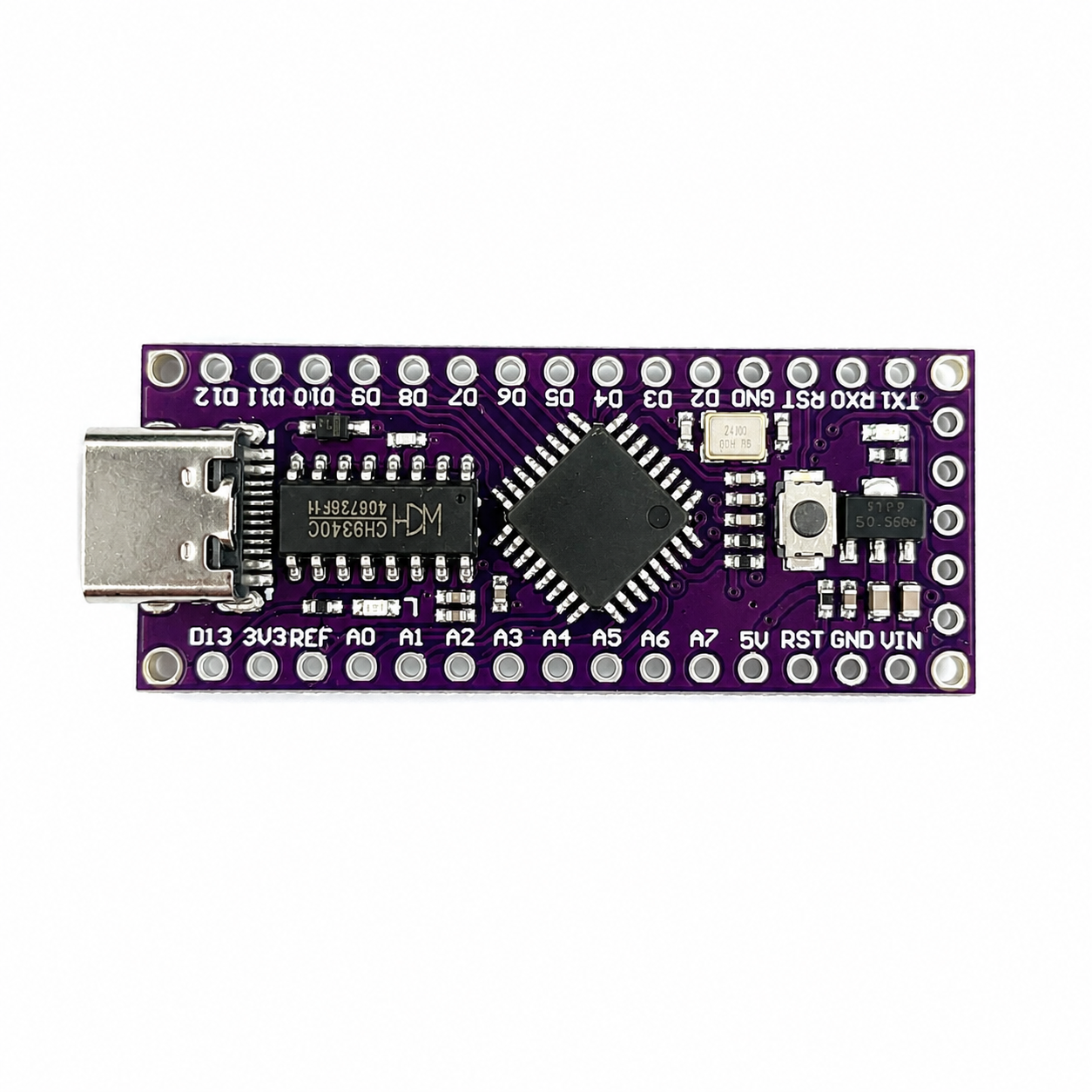

  • Component-side top view of the LGT8F328P MiniEVB with CH9340C USB serial bridge and USB-C

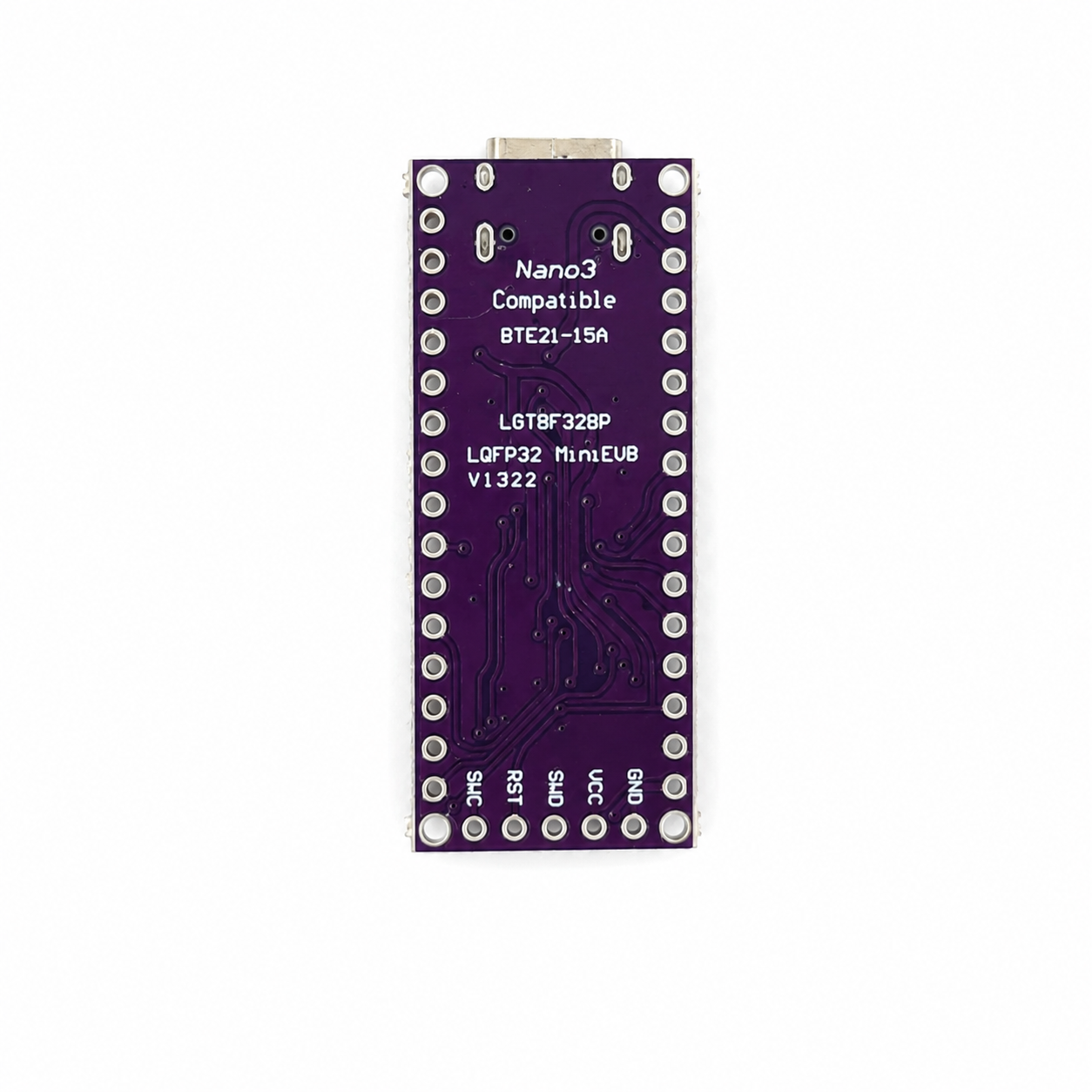

  • Underside of the LGT8F328P MiniEVB showing four mounting holes and the five-pad programming edge

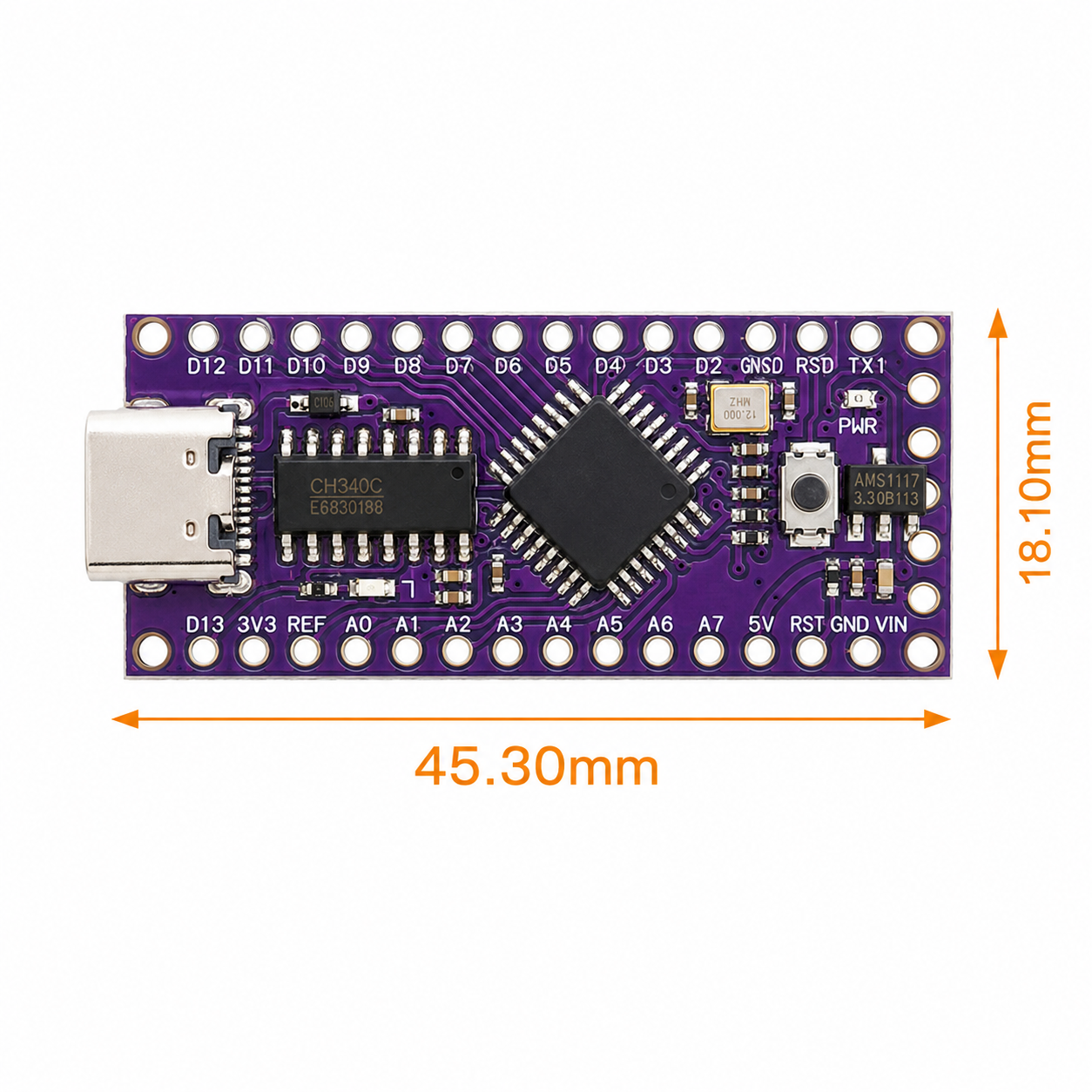

  • Straight component-side view of the LGT8F328P MiniEVB showing its two 15-pin rails and USB-C connector
LGT8F328P-LQFP32 Mini Dev Board - USB-C, Arduino Nano Compatible
SKU: MCU-LGT8F328P-TYPEC

LGT8F328P-LQFP32 Mini Dev Board - USB-C, Arduino Nano Compatible

$4.99 NZD
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

A compact LGT8F328P development board in the familiar 30-pin Nano-style format. This exact purple USB-C variant uses a CH9340C USB-to-serial bridge and a fitted 16 MHz external crystal oscillator. Use the maintained LGT8FX board package for Arduino IDE support.

Specifications

ModelLGT8F328P-LQFP32 MiniEVB V1322
MicrocontrollerLGT8F328P, LQFP32 package
USB connectorUSB-C
USB-to-serial bridgeCH9340C
External oscillator16 MHz crystal
First-upload clock settingExternal 16 MHz, divider 1
Logic voltage3.3 V
Program flash32 KB physical, 29,696-byte sketch limit in the current LGT8FX package
SRAM2 KB
ADCSelectable 10-bit or 12-bit readings
DAC8-bit analog output on D4
PWMUp to 9 controller outputs, subject to board routing
InterfacesUART, SPI and I2C-compatible TWI
Pin formatTwo 15-pin, 2.54 mm rails
Mounting holesFour, one at each board corner
Dimensions45.30 x 18.10 mm
Approximate weight4.15 g
HeadersNot fitted or included

Datasheets

Full technical datasheetPDF Beginner Quick Start guidePDF

What's in the box

1×
LGT8F328P-LQFP32 USB-C development board

Bare assembled board. Pin headers are not included.

Great for

Compact Arduino-style prototyping
Selectable 12-bit sensor measurements
Simple analog reference output from D4
Timing-sensitive projects using the fitted 16 MHz crystal
Breadboard builds using the familiar Nano pin arrangement
Learning the LGT8FX Arduino core

Wiring & getting started

  1. Connect a known USB-C data cable

    For the first test, leave VIN, 5V and every signal pin disconnected.

  2. Install the LGT8FX board package

    Add the maintained LGT8FX package URL in Arduino IDE Preferences, then install lgt8fx from Boards Manager.

  3. Select the exact board settings

    Choose LGT8F328, 328P-LQFP32 MiniEVB, External 16 MHz, clock divider 1, 64-byte serial buffer and 57600 upload speed.

  4. Upload Blink

    Select the new USB serial port. The onboard D13 LED should complete one full on/off cycle each second.

Note: The I/O uses 3.3 V logic. Do not apply a 5 V signal directly to a GPIO pin. Power motors and servos from a suitable external supply, use a motor driver where required, and join the external ground to board GND.

Frequently Asked Questions

Answers to the questions buyers ask most.

Which clock source should I select?
Select External 16 MHz with clock divider 1 for this exact V1322 USB-C board. The fitted metal crystal is marked 16.000.
Which board and variant should I select in Arduino IDE?
Install the maintained LGT8FX package, then choose LGT8F328 and 328P-LQFP32 MiniEVB. Use a 64-byte serial buffer and 57600 upload speed for the first test.
Can I select Internal 32 MHz?
The controller supports other clock profiles, but the recommended known-good profile for this stocked board and its fitted 16 MHz crystal is External 16 MHz with clock divider 1.
Are pin headers included?
No. This is supplied as a bare assembled board with two unpopulated 15-pin, 2.54 mm rails.
Can I use 5 V signals on the GPIO pins?
No. The board uses 3.3 V logic. Do not apply a 5 V signal directly to a GPIO pin.
Why does no serial port appear?
Try a known USB-C data cable and another USB port first. If Windows still shows no serial port, install a CH9340C driver and reconnect the board.
