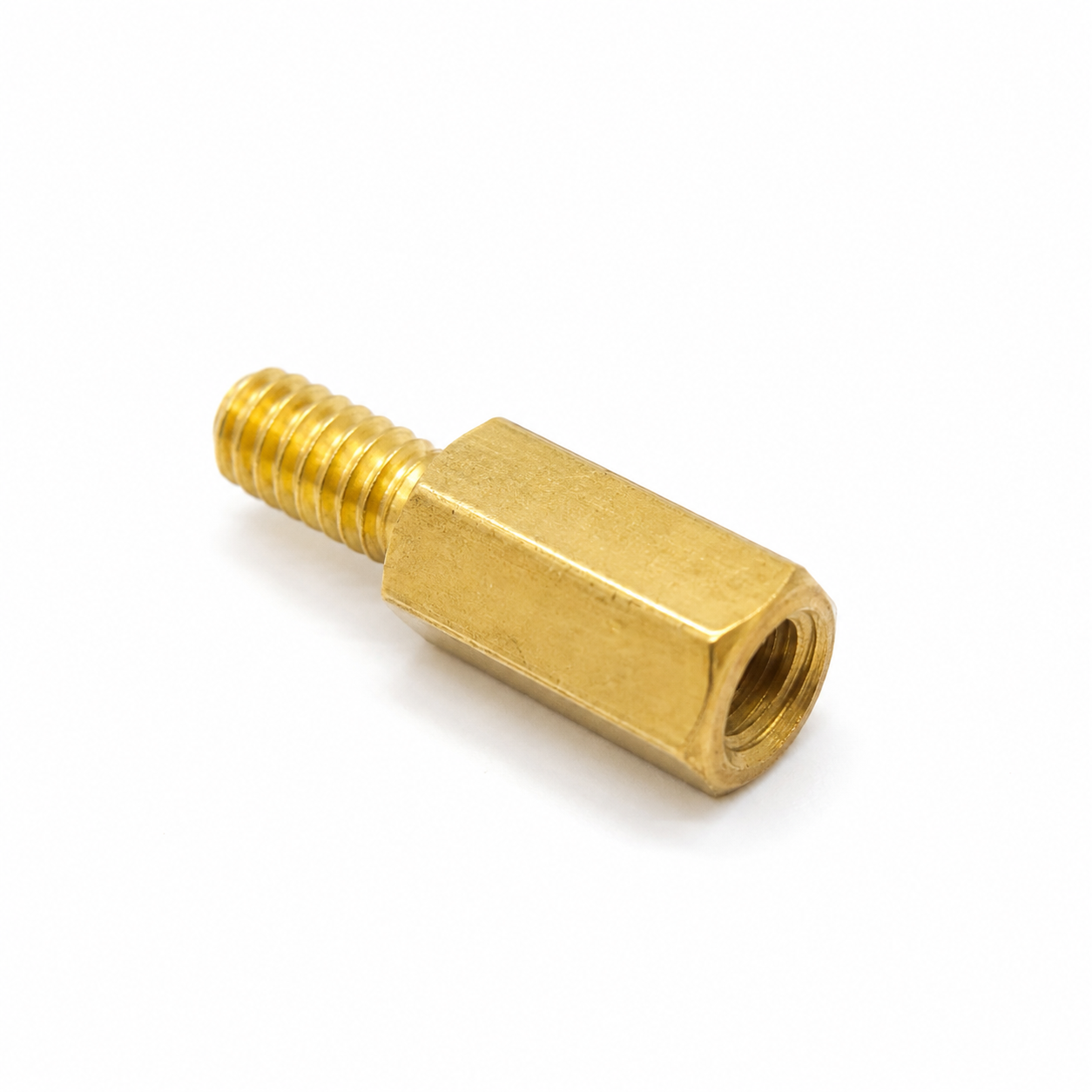

M2 x 5+4 brass male-female hex standoff with 4mm threaded stud

M2 Brass PCB Standoffs, Male-Female Hex Spacers

M2 x 5+4
$0.59 NZD
each Save 10% at 25+
Skip to product information
M2 x 5+4 brass male-female hex standoff with 4mm threaded stud
  • M2 x 5+4 brass male-female hex standoff with 4mm threaded stud
M2 Brass PCB Standoffs, Male-Female Hex Spacers
SKU: FST-SPACER-M2-5-4-BR

M2 Brass PCB Standoffs, Male-Female Hex Spacers

$0.59 NZD
Size
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Only 9 left, so the usual minimum of 10 is lowered to 9.

Easy 30-day returns · 12-month warranty

Add these too
Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

A PCB standoff is a small threaded pillar that holds a circuit board a set height off a panel, case or another board, so nothing underneath touches the board and there is room for wires. These are brass M2 male-female hex standoffs. One end has a female M2 thread and the other a 4mm male M2 stud, so they screw into a tapped hole, pass through a board and take a nut, or screw into each other.

Use them to lift a small module or display off a panel, mount a board with M2 holes inside an enclosure, or stack two boards with a set gap. Choose the 5, 10 or 20mm body for the gap you need, and stack them for anything taller: two 10+4 standoffs give a 20mm gap. Fit the stud end with an M2 hex nut and the female end with an M2 screw.

Specifications

ThreadM2 x 0.4 (metric coarse)
TypeMale-female hex standoff
MaterialBrass, plain finish
M2 x 5+45mm body + 4mm stud, 9mm overall

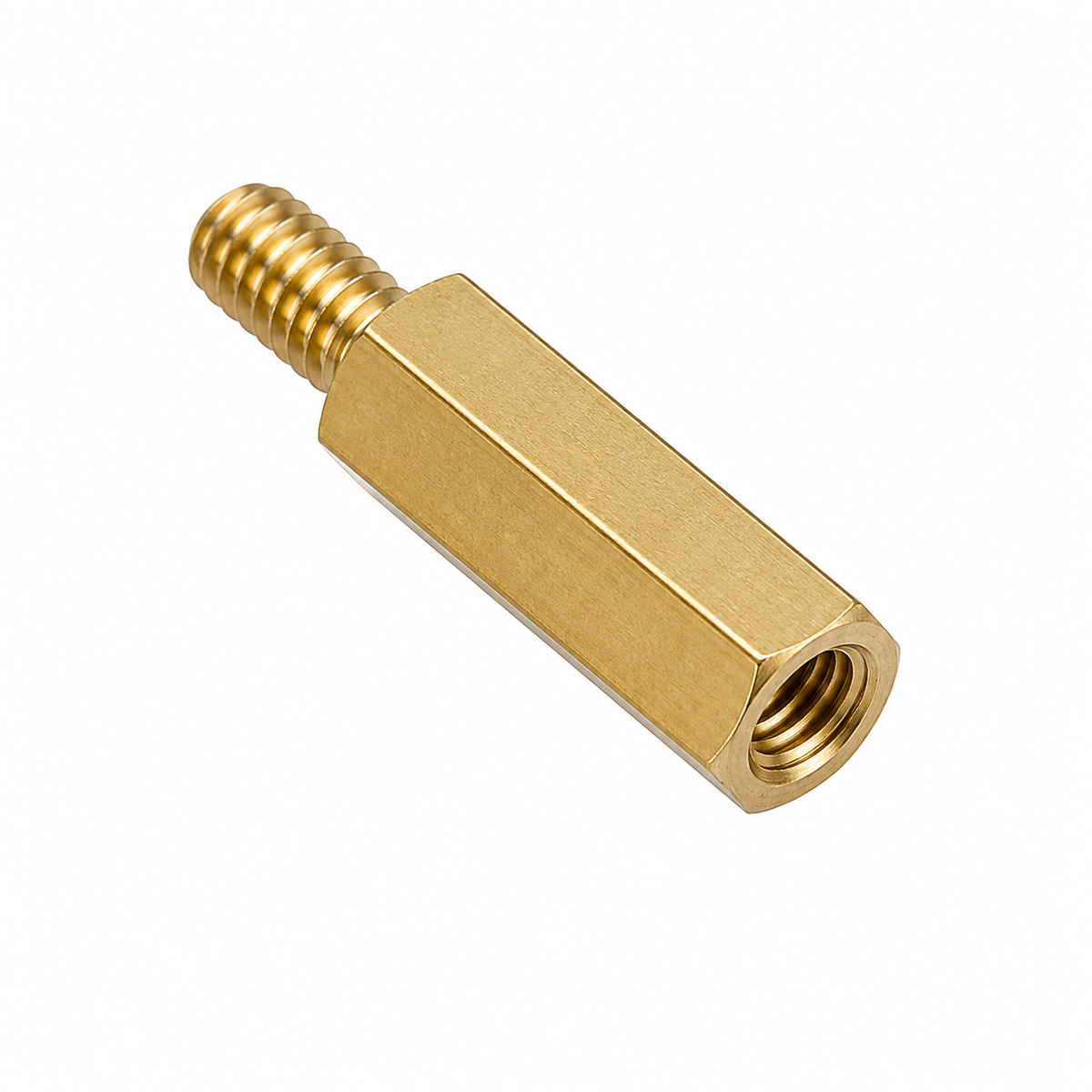

M2 x 10+410mm body + 4mm stud, 14mm overall

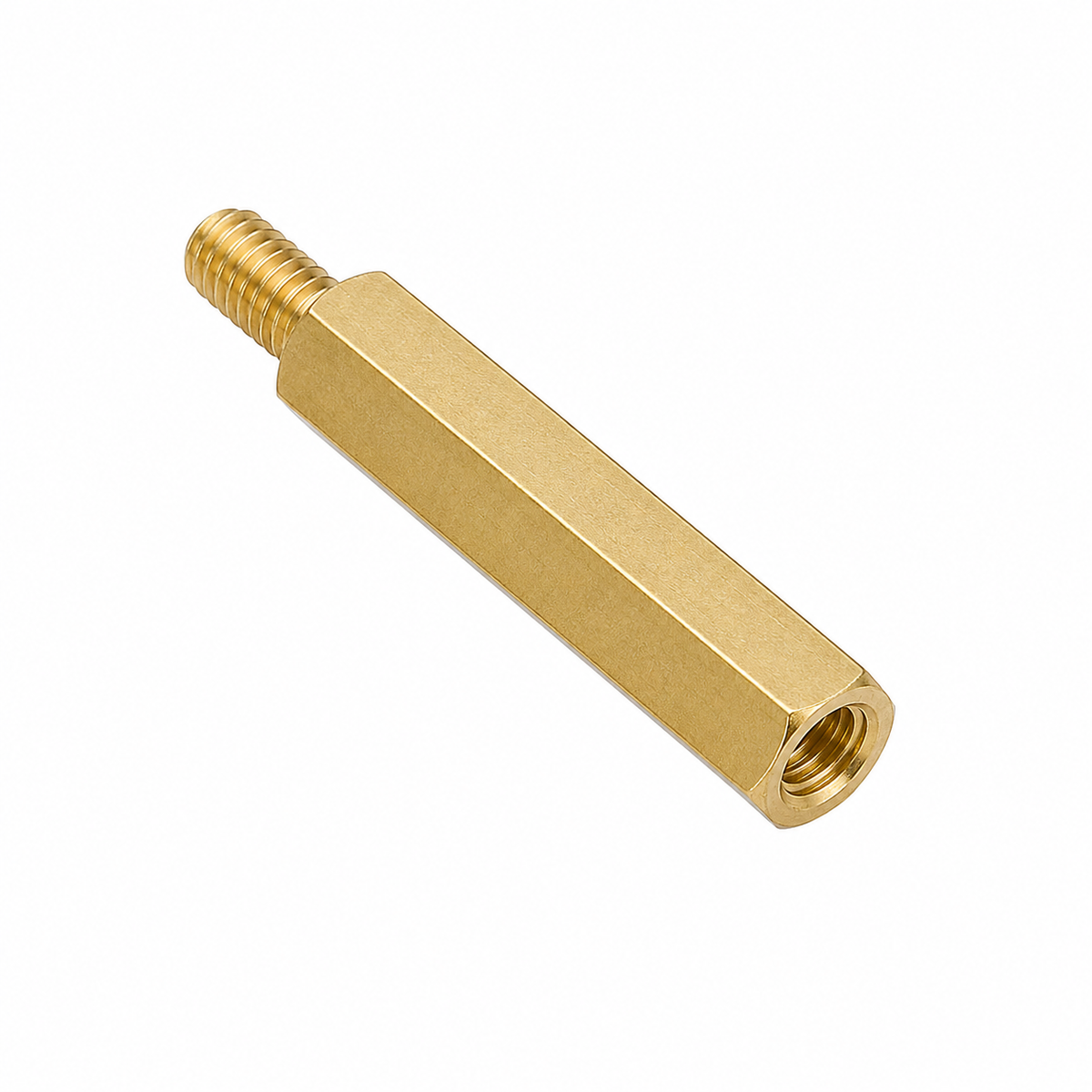

M2 x 20+420mm body + 4mm stud, 24mm overall
Board holeM2 clearance, 2.2 to 2.5mm
Minimum order10 per size, bulk pricing from 25
In the boxStandoffs only, nuts and screws sold separately

Wiring & getting started

  1. Fit the stud

    Screw the 4mm stud into a tapped M2 hole, or pass it through the board or panel and fit an M2 hex nut underneath. The stud passes through a 1.6mm PCB with room for a standard M2 nut.

  2. Fix the board on top

    Sit the board on the standoffs and fasten it with an M2 screw into each female end, or add another standoff to build up height.

  3. Snug, not tight

    Hold the hex body with small pliers or a nut driver while you tighten, and stop once the joint is firm. An M2 washer under the nut protects the board.

  4. Check it sits level

    Press each corner of the board. It should sit level and not rock. If one corner moves, that standoff is not screwed fully home, so tighten it until it seats.

Frequently Asked Questions

Answers to the questions buyers ask most.

What do the numbers in M2 x 10+4 mean?
M2 is the thread size. 10 is the hex body length in mm, which is the gap the standoff holds. 4 is the male stud length in mm. So M2 x 10+4 is a 10mm body with a 4mm stud, 14mm overall.
Why is the minimum order 10?
They are sold per standoff with a minimum of 10 per size, so a set of four corners has spares. You can buy any quantity from 10 up, and bulk pricing starts at 25. If we have fewer than 10 of a size left, the minimum drops to what is in stock.
