MTS-102 Mini Toggle Switch - SPDT ON-ON, Blue, 6A 125VAC

$1.99 NZD
Skip to product information
MTS-102 blue mini toggle switch upright, showing the ON ON 6A 125VAC plate, one hex nut with star and tab washers, and three flat solder lugs

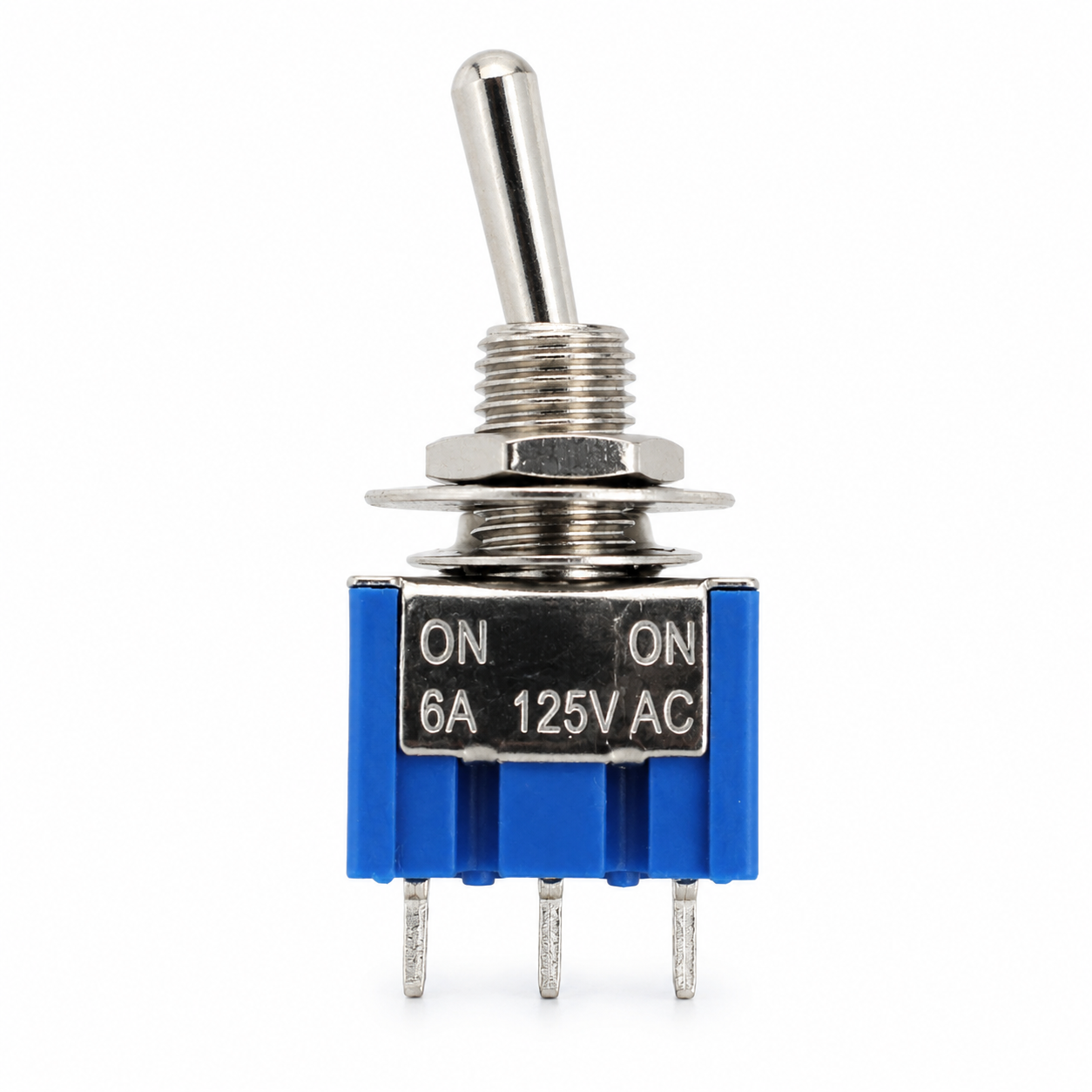

  • MTS-102 blue mini toggle switch upright, showing the ON ON 6A 125VAC plate, one hex nut with star and tab washers, and three flat solder lugs

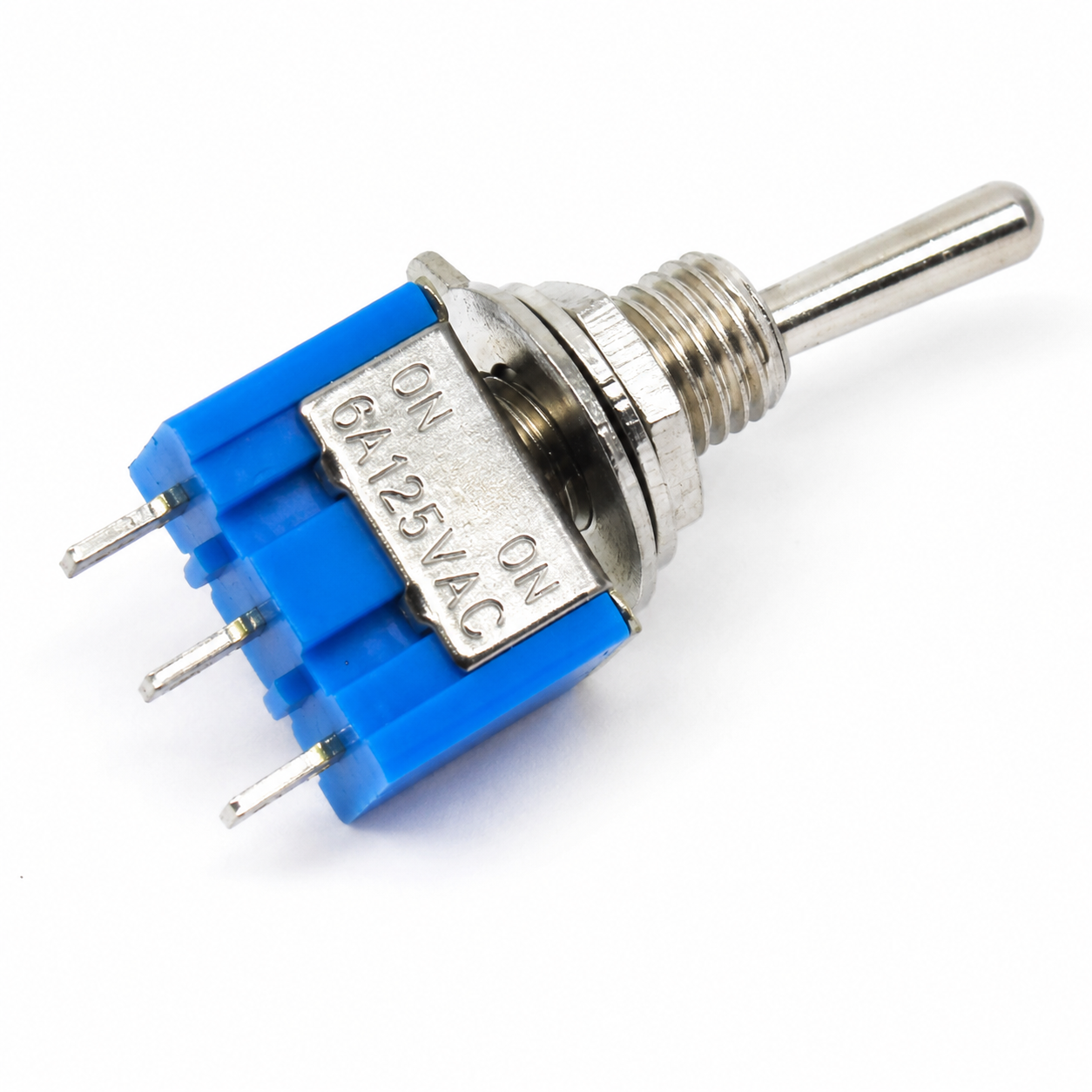

  • MTS-102 toggle switch side view showing the three flat solder lugs with oblong holes and the nut and washers on the threaded bushing
  • MTS-102 toggle switch with its supplied mounting hardware laid out: one hex nut, one star lock washer and one tab washer

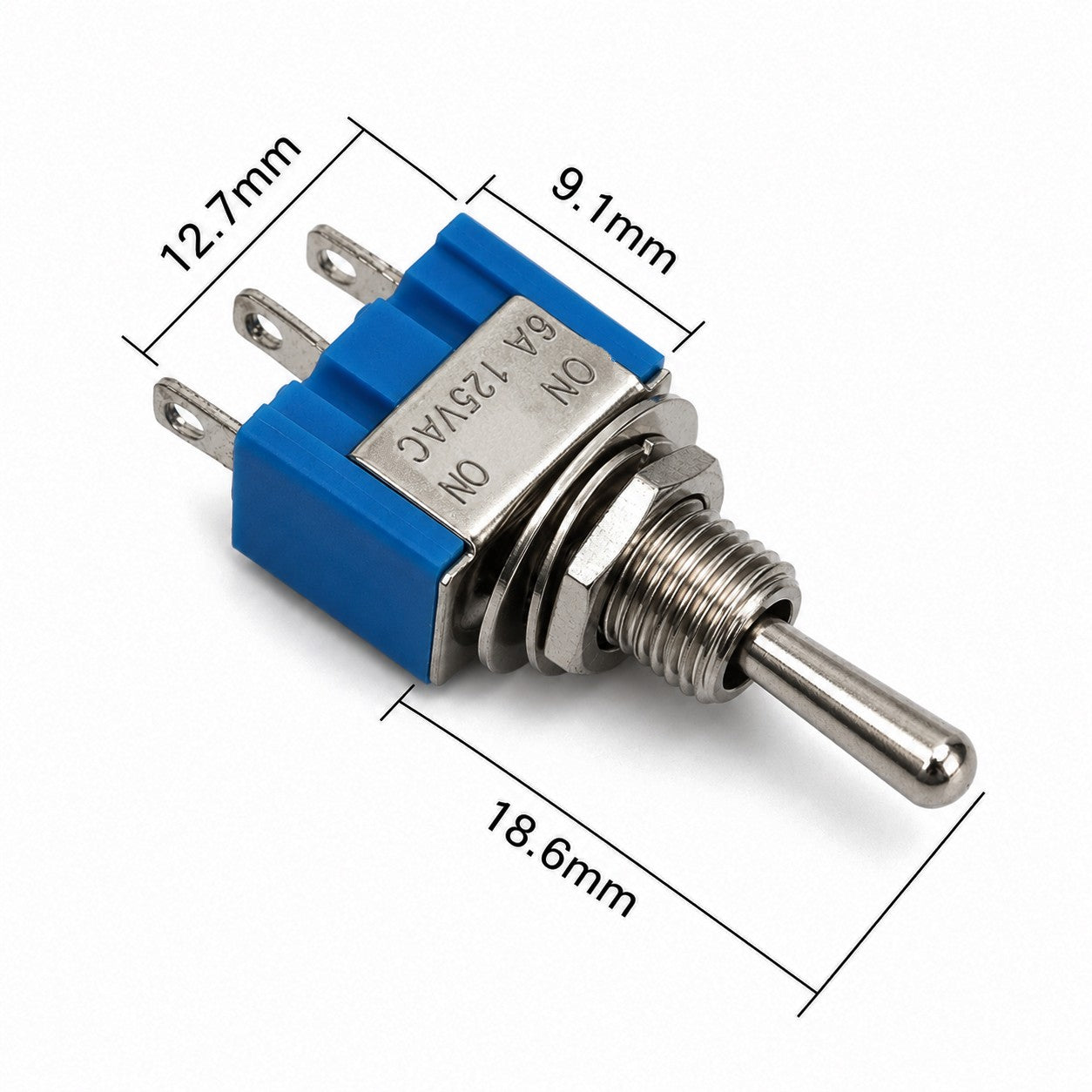

  • MTS-102 toggle switch dimension drawing: 18.6mm from body face to lever tip, body 12.7mm by 9.1mm
MTS-102 Mini Toggle Switch - SPDT ON-ON, Blue, 6A 125VAC
SKU: SW-MTS102-SPDT-3P

MTS-102 Mini Toggle Switch - SPDT ON-ON, Blue, 6A 125VAC

$1.99 NZD
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Easy 30-day returns · 12-month warranty

Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

The MTS-102 is a blue mini toggle switch with SPDT ON-ON action: two latching positions and no off position. The centre solder lug is common and connects to one outer lug in each lever position, so it suits selecting between two circuits in a small panel. Need a centre-off position? Choose the MTS-103 ON-OFF-ON. Reversing a motor? Use the MTS-202 DPDT.

Specifications

ModelMTS-102
ColourBlue
FunctionSPDT ON-ON, latching
Terminals3 solder lugs, centre common
Stock marking6A 125VAC
Panel hole6mm diameter
Size (stock drawing)Body about 12.7 x 9.1mm, about 18.6mm from body face to lever tip
Mounting hardware1 hex nut, 1 star lock washer, 1 tab washer
Quantity1 switch

Datasheets

Full technical datasheet PDF Quick Start guide PDF

What's in the box

1×
MTS-102 toggle switch

Blue SPDT ON-ON switch with one hex nut, one star lock washer and one tab washer.

Great for

Choose between two inputs on an Arduino or ESP32 project
Switch a 12V LED between two colours or circuits
Mode or range selector on a test box or instrument panel
Select one of two signal or audio paths

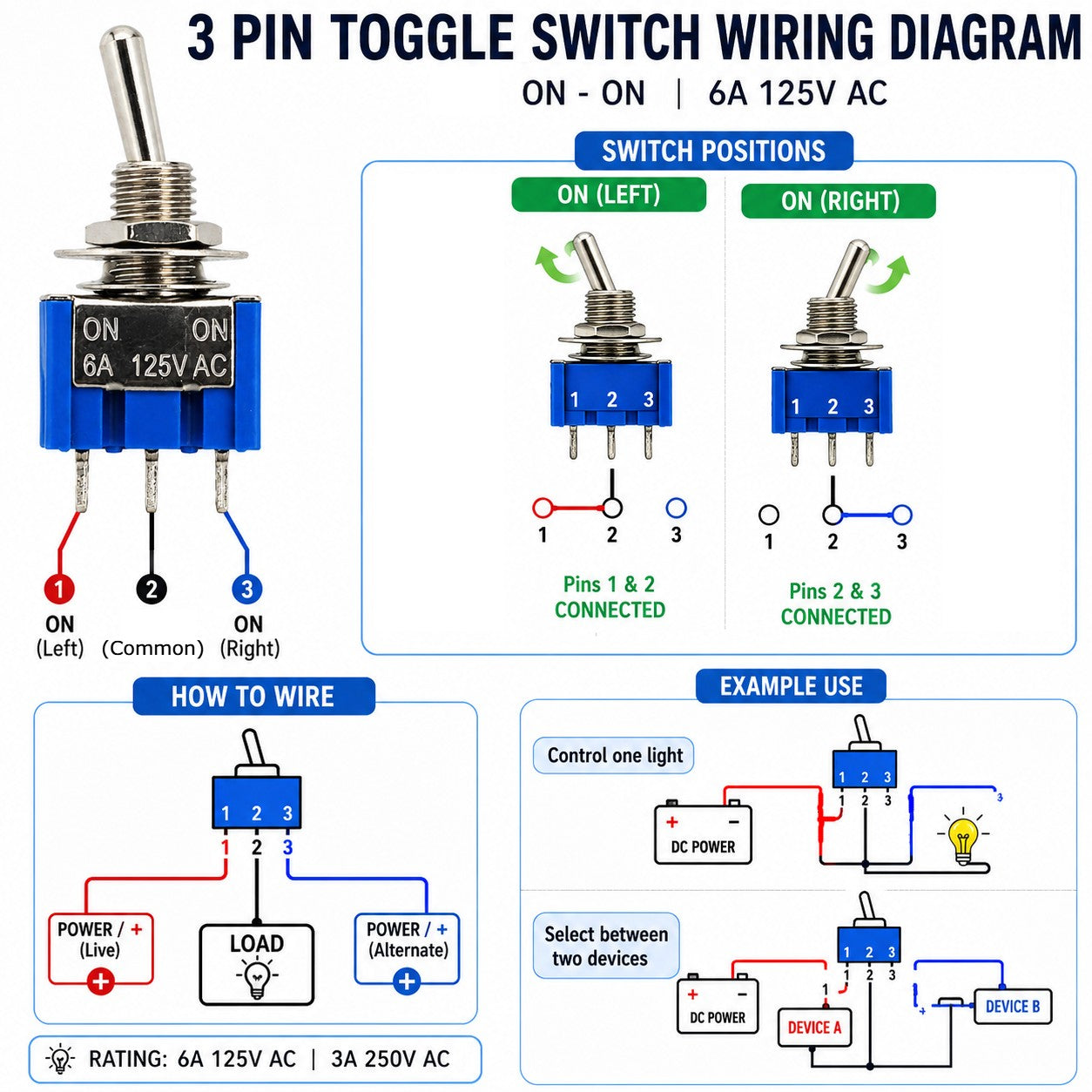

Wiring & getting started

  1. Work with the power off

    Do the continuity check, mounting and soldering with the circuit disconnected.

  2. Map the two positions

    Set a multimeter to continuity, hold one probe on the centre lug and touch each outer lug in turn. Each lever position closes the centre to one outer lug.

  3. Mount it

    Drill a 6mm hole, pass the bushing through with the washers fitted and tighten the hex nut without crushing the panel.

  4. Solder and insulate

    Solder the common wire to the centre lug and the two switched wires to the outer lugs, then cover the joints with heat shrink. Our toggle switch wiring guide shows SPST, SPDT and DPDT layouts.

Note: The switch is marked 6A 125VAC. Do not infer another voltage rating from this marking. Mains AC work in New Zealand must be done or certified by a licensed electrician.
Related guide Toggle Switch Types Explained: SPST, SPDT, DPDT and How to Wire ThemWhat SPST, SPDT, DPDT, ON-ON and ON-OFF-ON mean, how to map any toggle switch with a meter, and how to wire one for 12V, Arduino inputs or motor reversing.

Frequently Asked Questions

Answers to the questions buyers ask most.

Does the MTS-102 have a centre-off position?
No. It is an ON-ON switch with two latching positions. The centre lug is common and connects to one outer lug in each position. For a centre-off switch, choose the MTS-103 ON-OFF-ON.
Which lug is common?
The centre lug. Each lever position connects it to one outer lug. Check which outer lug closes in each position with a multimeter on continuity before you solder.
What is it rated for?
The switch is marked 6A 125VAC, and that is the rating we go by. Any mains AC wiring in New Zealand must be done or certified by a licensed electrician.
What size hole does it need?
A 6mm round hole. The threaded bushing passes through the panel and the supplied hex nut, with its star lock washer and tab washer, holds it in place.
Can one MTS-102 reverse a two-wire DC motor?
No. A single SPDT switch cannot swap both motor wires. Use a DPDT switch such as the MTS-202, wired as a reversing switch, or a motor driver.
Can I use it in a low-voltage project?
Yes. It is commonly used to choose between two inputs, modes or signal paths on Arduino, ESP32 and 12V hobby projects. The marked rating is 6A 125VAC.
