WH148 B10K Potentiometer 15mm Shaft | 3-Pin Linear

Name: WH148 B10K Potentiometer, 15mm Shaft, 3-Pin, Linear Taper
Brand: NZN Electronics
SKU: POT-WH148-B10K-15MM
Price: 1.29 NZD
Availability: InStock

WH148 B10K Potentiometer, 15mm Shaft, 3-Pin, Linear Taper

$1.29 NZD

WH148 B10K Potentiometer, 15mm Shaft, 3-Pin, Linear Taper

$1.29 NZD

Rated 4.9/5 by 20 NZN customers Verified

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Save up to 25%

Unit price applies automatically in your cart.

Availability:

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66.00

Urban $66 Rural $88

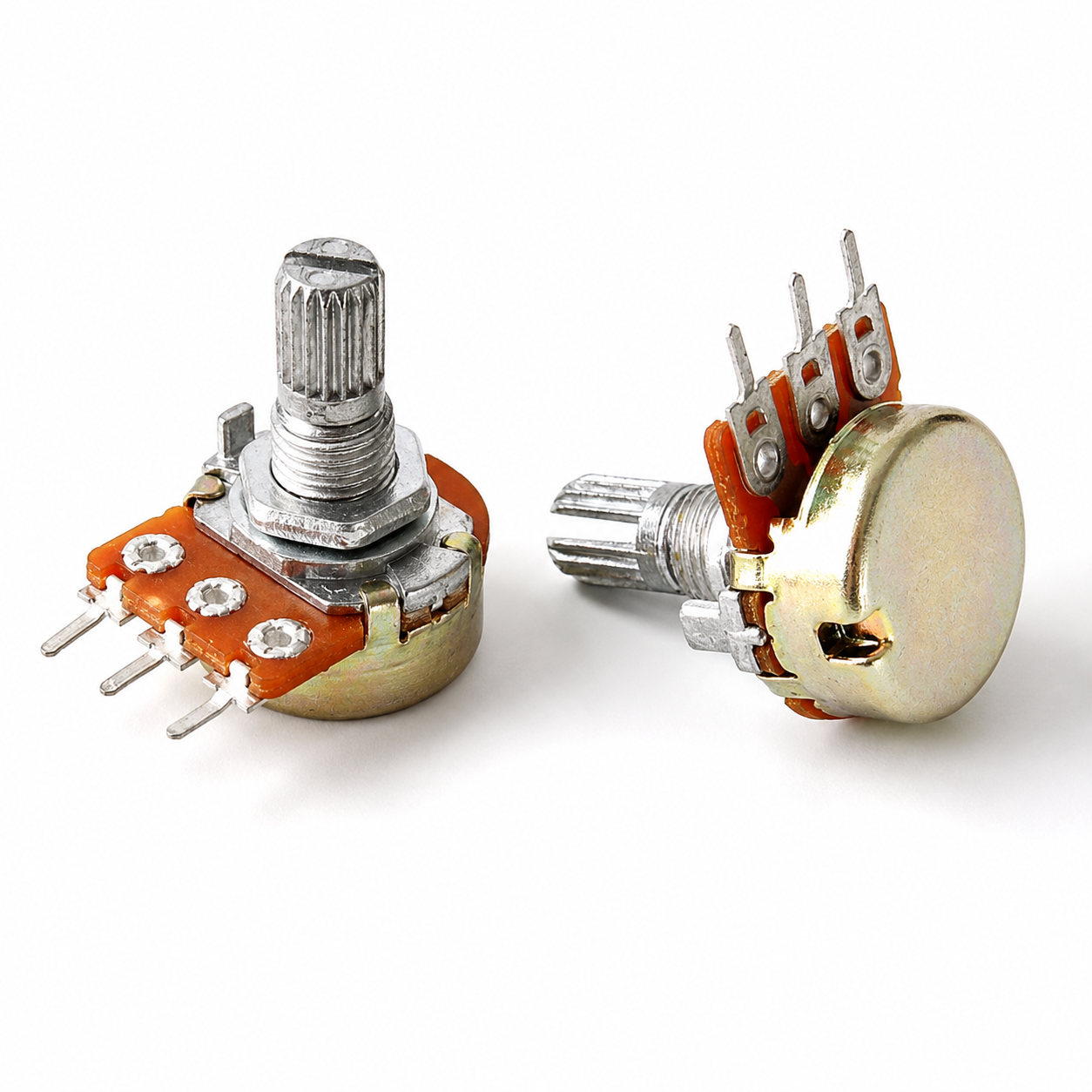

The WH148 is a reliable, general-purpose 10kΩ (B10K) linear taper rotary potentiometer with a 15mm knurled 6mm shaft and a standard 3-pin layout. It is a drop-in fit for breadboards, panels and PCBs, and a go-to part for volume and tone controls, signal adjustment and Arduino or ESP32 analog input. A panel nut and washer are included for a clean, secure mount.

10kΩ resistance, linear (B) taper
Smooth 300° rotation

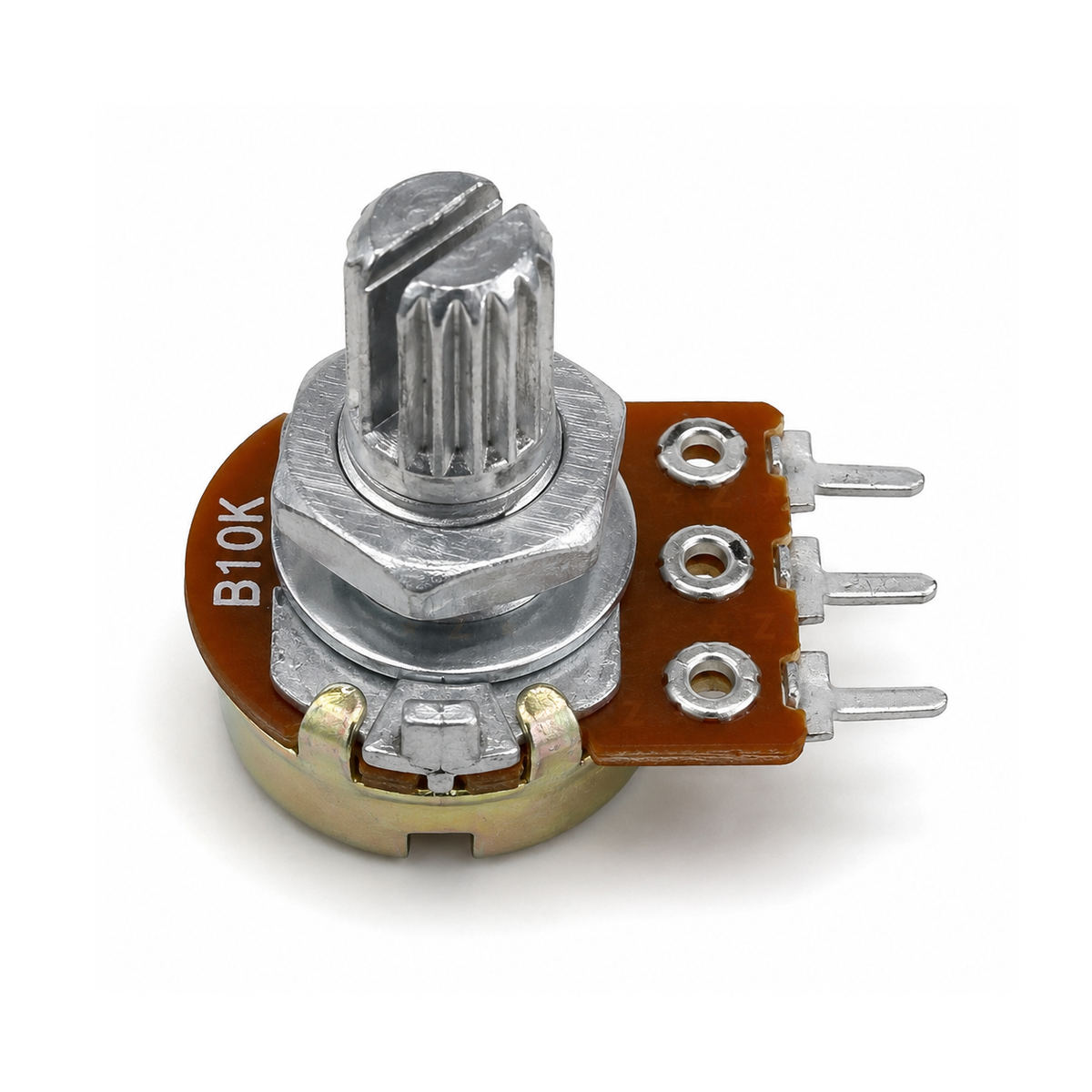

15mm knurled shaft, 6mm diameter
3 solder pins, breadboard and panel friendly
Panel nut and washer included
Rated to 50V DC, 0.05W
Fits most standard 6mm push-fit knobs
Ideal for Arduino and ESP32 analog input

Specifications

Resistance10kΩ (B10K)

TaperLinear (B)

Rotation angle300° ±10°

Shaft15mm knurled, 6mm diameter

MountingThreaded bushing with nut and washer

Pins3-pin (outer legs plus centre wiper)

Rated power0.05W

Max operating voltage50V DC

Insulation resistance≥100MΩ at 250V DC

Withstand voltage250V AC for 1 minute

Rotational noise<100mV

Rotational life10,000 cycles

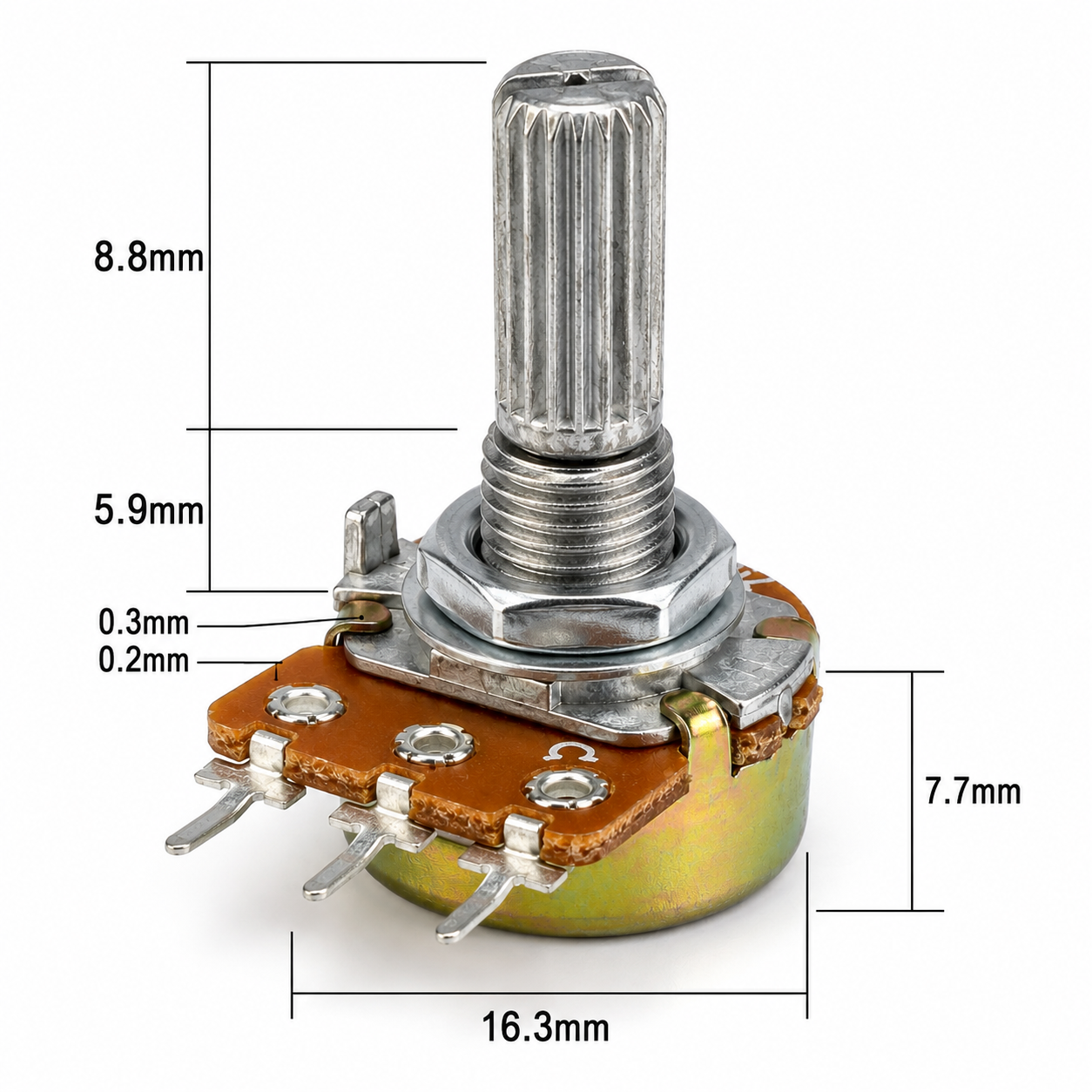

Body size~16 × 16 × 7.7mm

What's in the box

1×

WH148 B10K 15mm potentiometer

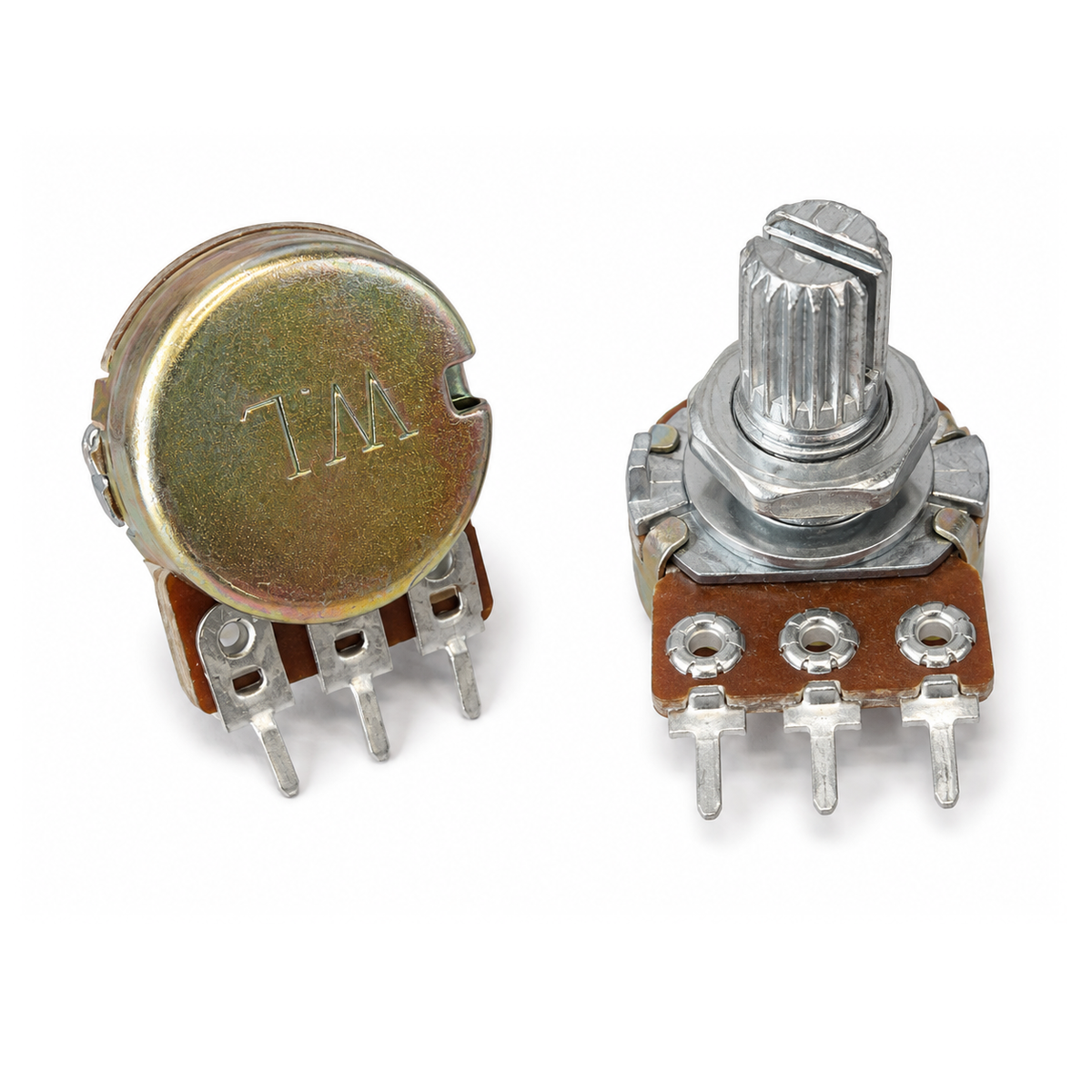

Supplied with one panel mounting nut and one washer. Knob sold separately.

Great for

Volume, tone and balance controls

Arduino and ESP32 analog input

Motor speed and PWM adjustment

LED dimmer and brightness circuits

Breadboard prototyping and testing

Guitar and instrument controls

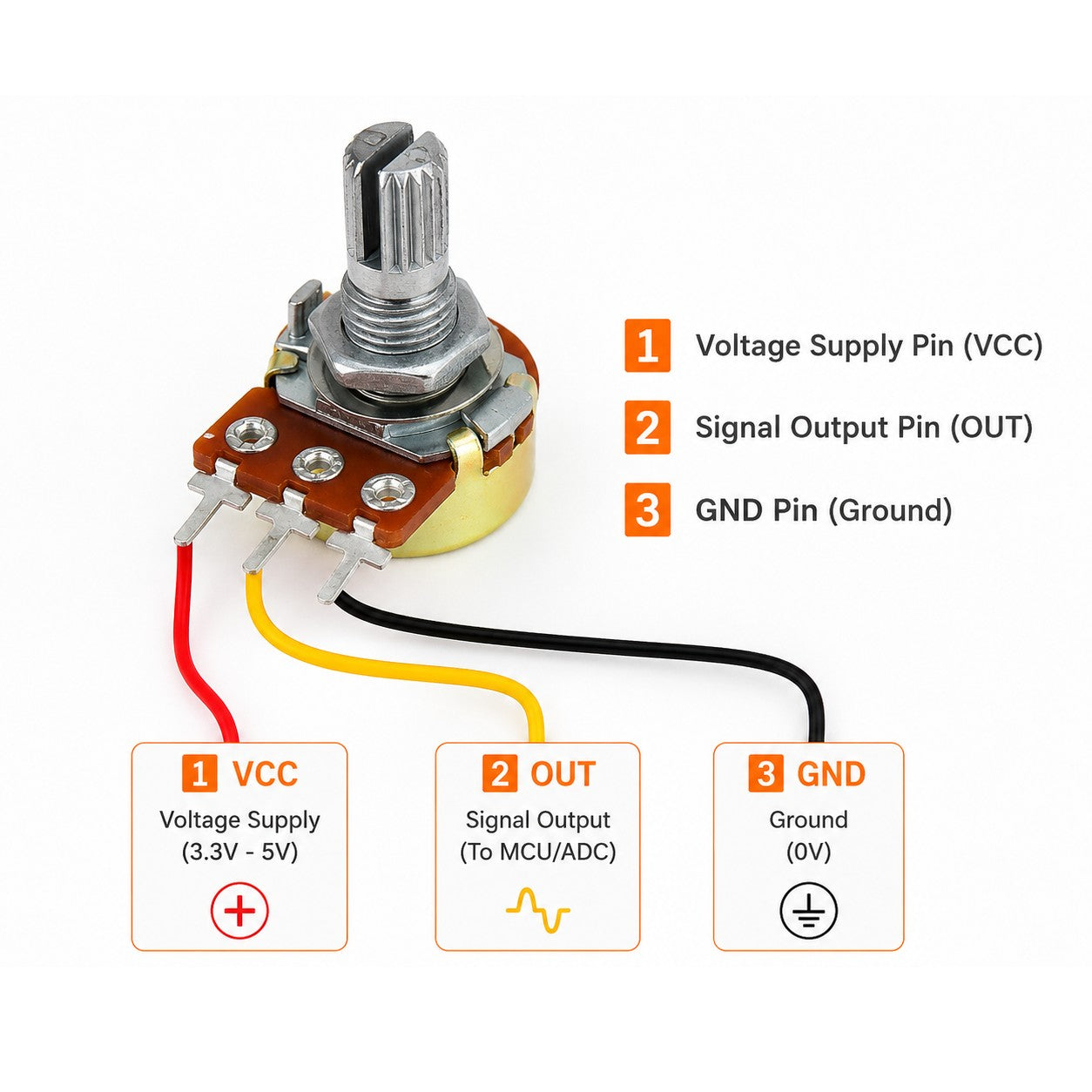

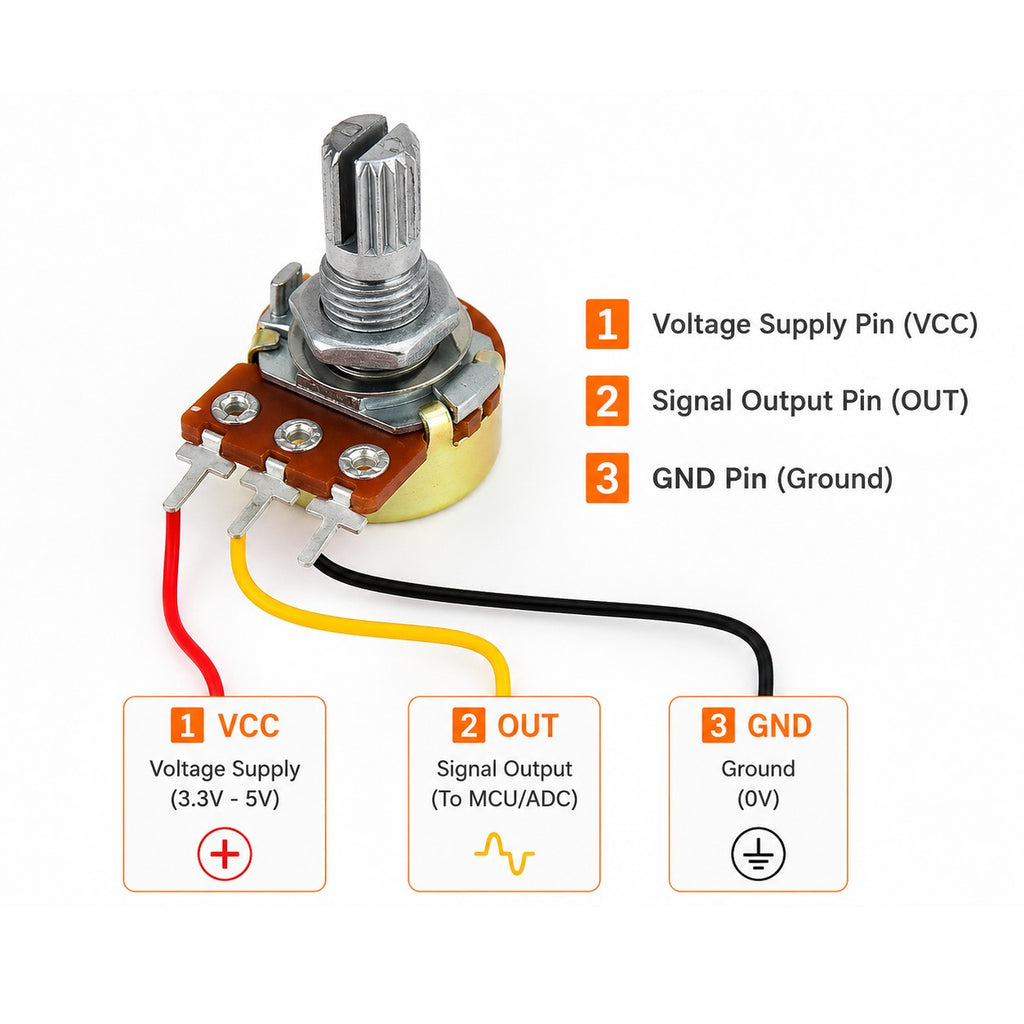

Wiring & getting started

Connect the outer pins
Wire pin 1 to your supply (VCC, 3.3-5V) and pin 3 to ground (GND). Swap these two if the direction of travel feels reversed.
Take the wiper output
Pin 2, the centre wiper, is your output. Send it to a microcontroller analog input (ADC) or the point you want to control.
Read the value
On Arduino, analogRead() on the wiper pin gives 0 to 1023 across the full sweep. On ESP32 use analogRead() on an ADC pin.
Mount it cleanly
Push the shaft through a panel hole, fit the washer and tighten the nut. The knurled 6mm shaft accepts most push-fit and set-screw knobs.

Good to know: This is a linear (B) taper pot, so resistance changes at a steady rate across the sweep. For audio volume where you want finer control at low levels, an A (log) taper is the better choice. Packed and dispatched from our Te Awamutu stock.

Got questions?

Frequently asked questions

What does B taper (linear) mean?

B taper means the resistance changes at a steady, even rate across the full 300 degree sweep. It is ideal for general-purpose control, signal circuits and Arduino or ESP32 analog input. For audio volume where you want finer control at low levels, an A (log) taper is a better fit.

15mm vs 20mm shaft, which should I choose?

The 15mm shaft suits lower-profile panels where the knob sits closer to the surface. The 20mm shaft gives more clearance for deeper enclosures or taller knobs. Both share the same 6mm knurled diameter and are electrically identical.

How do I wire it to an Arduino?

Connect pin 1 to VCC (3.3-5V) and pin 3 to GND, then take the centre wiper (pin 2) to an analog input. analogRead() returns 0 to 1023 across the sweep. Swap pins 1 and 3 if the direction of travel feels reversed.

What size knob does it need?

The shaft is a standard 6mm knurled (splined) shaft, so it fits most push-fit and set-screw knobs sold for 6mm pots. A knob is not included.
