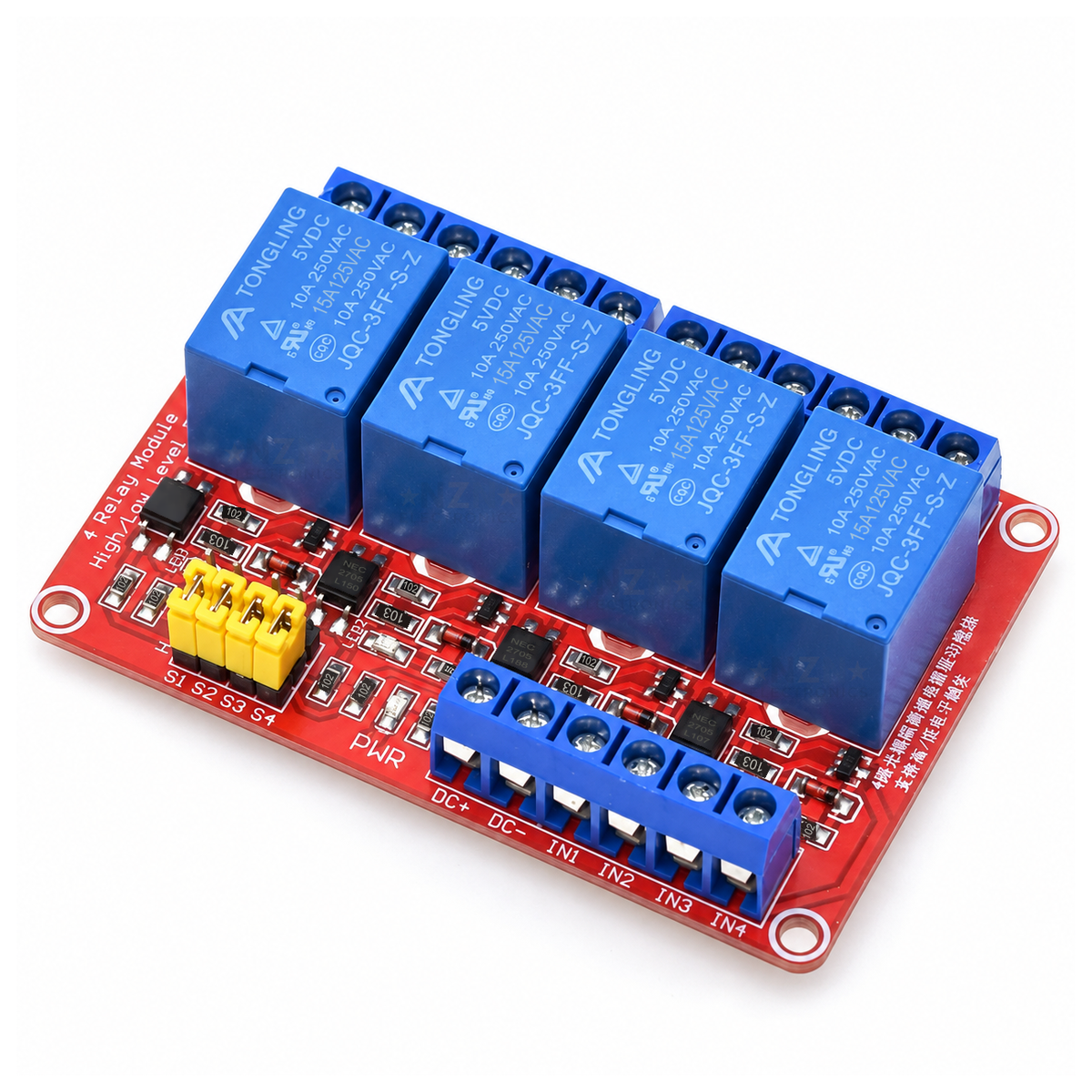

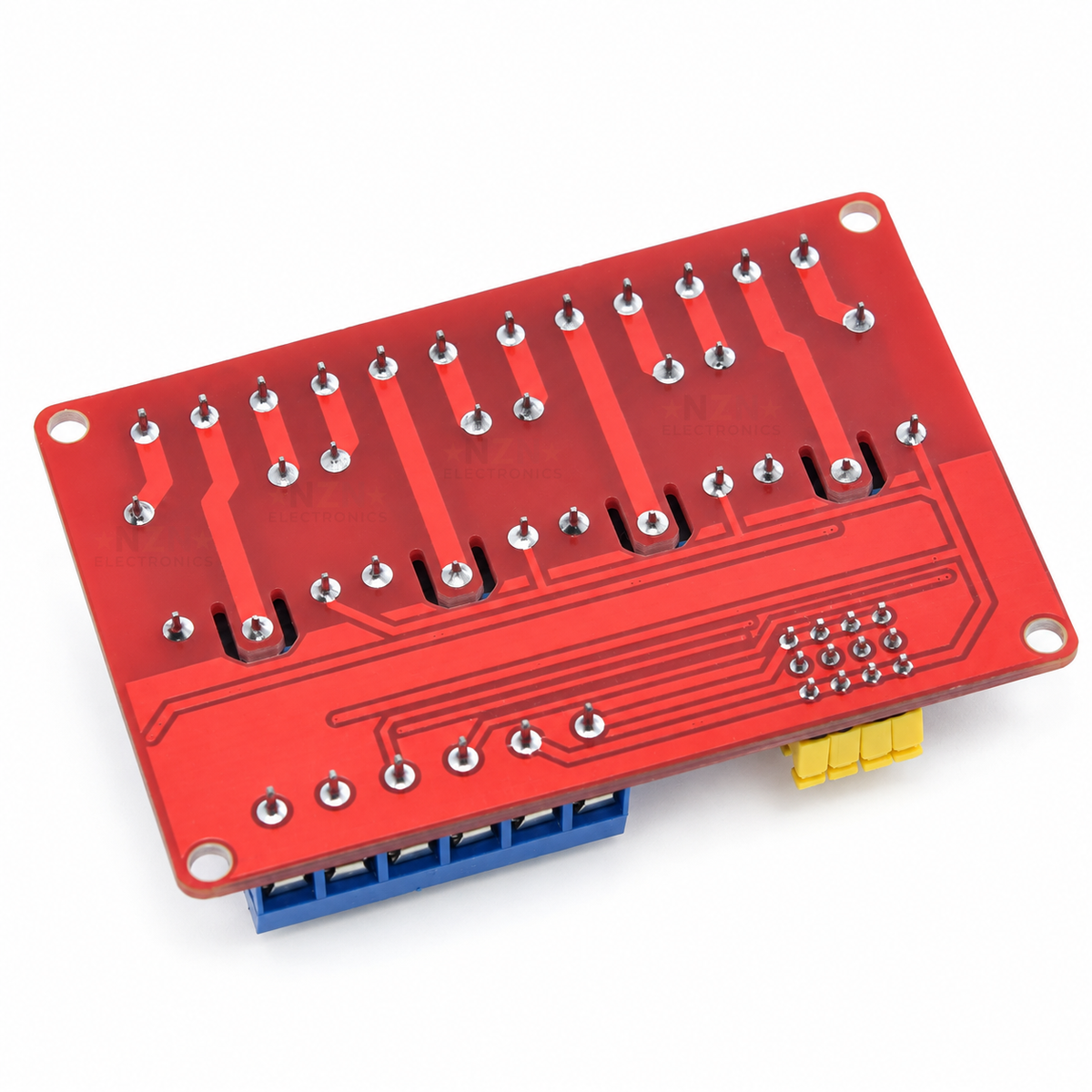

Control 4 low-voltage circuits from a controller using this 5V relay board. Each channel has an optocoupler input and a jumper to select high- or low-level triggering, with screw terminals for the supply, input and relay contacts.

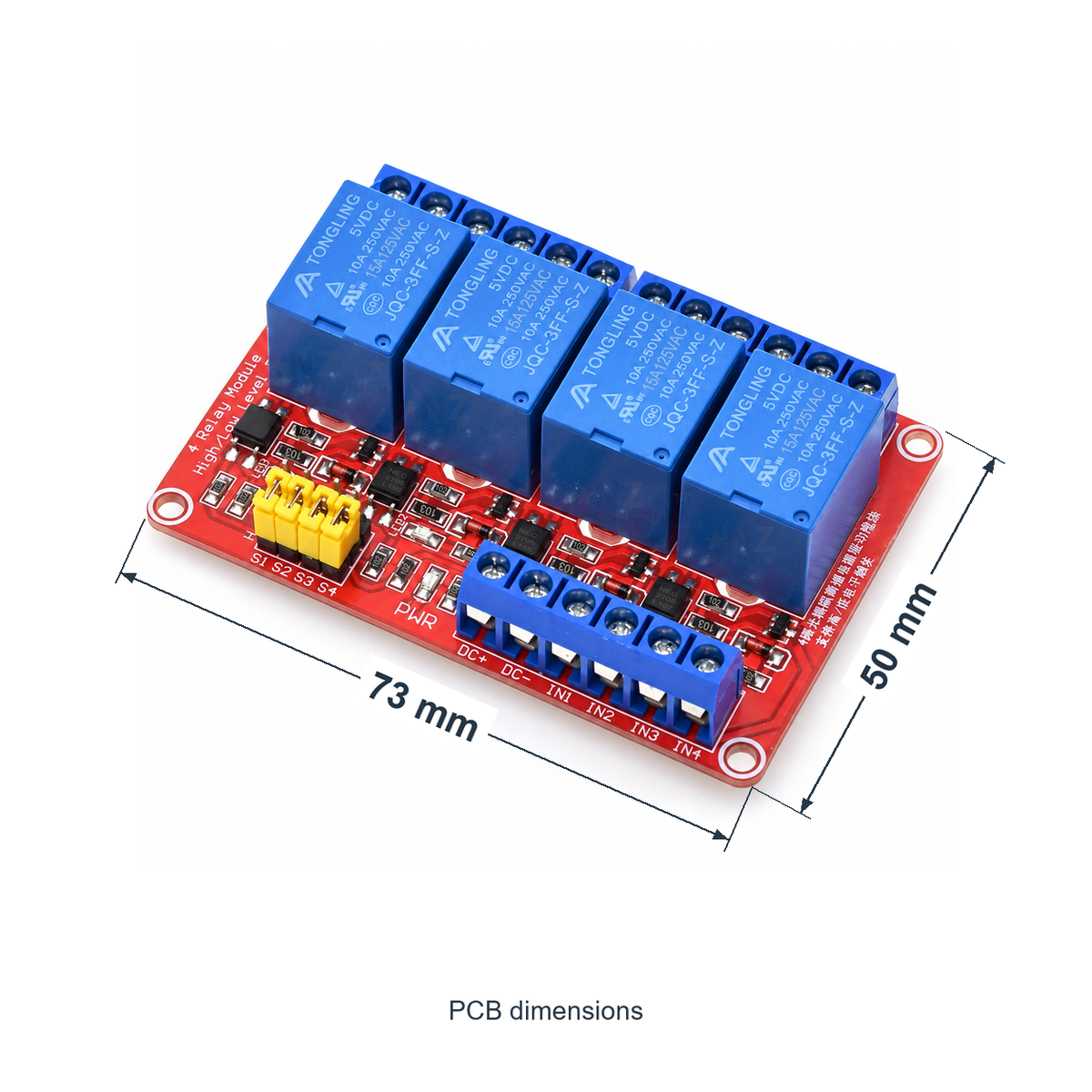

Specifications
Datasheets
What's in the box
Assembled module with fitted terminals.
Great for
Wiring & getting started
- Select the trigger
With power off, set each channel jumper to H for high-level triggering or L for low-level triggering.
- Power the board
Connect a regulated 5V DC supply to DC+ and DC-. Share DC- with the controller ground and connect its signal to the appropriate IN terminal. Supply the board from a power rail, never directly from a GPIO pin.
- Test before adding the load
Keep contact terminals disconnected. Apply the selected input state and check the click, indicator and COM-to-NO continuity. The untriggered state should connect COM to NC.
- Connect the load
Turn power off and wire a small low-voltage DC load through COM and NO or NC. Recheck the required power-up state before using the circuit unattended.
Note: The contact ratings printed on the relay describe the fitted component, not a certified rating for the assembled board. Use low-voltage DC for prototyping and keep exposed terminals protected.
