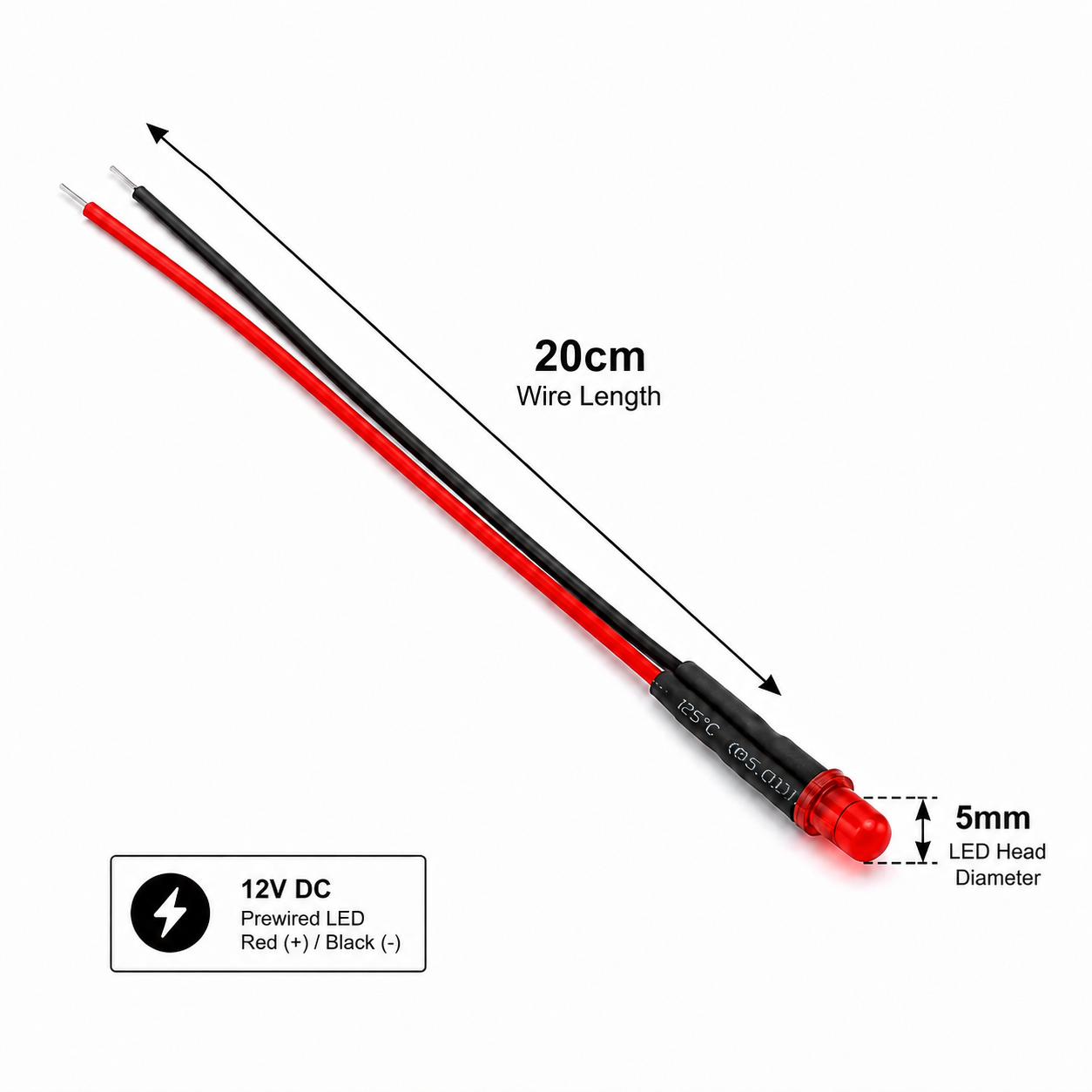

Red 5mm pre-wired 12V diffused LED with red and black leads

5mm Pre-wired Diffused LED - 12V, 20cm Leads

Red
$0.99 NZD
Save 13% at 5+
Skip to product information
Red 5mm pre-wired 12V diffused LED with red and black leads
  • Red 5mm pre-wired 12V diffused LED with red and black leads
  • Six 5mm pre-wired 12V LEDs: diffused red, green, yellow, orange and blue, plus a water-clear white, with red and black leads
  • Close-up of a red 5mm diffused LED showing the flange and the resistor bulge in the heat-shrink on the red lead
  • Stripped and tinned ends of the red positive and black negative LED leads
5mm Pre-wired Diffused LED - 12V, 20cm Leads
SKU: LED-5MM-DIF-RED-12V

5mm Pre-wired Diffused LED - 12V, 20cm Leads

$0.99 NZD
5.0 1 review
Color
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

A 5mm diffused indicator LED made for 12V DC, with the resistor already fitted and about 20cm of red and black lead. Connect it straight to a 12V supply for panel, vehicle, alarm and model lights. For 5V projects, use the 5V version of our 3mm pre-wired diffused LED instead.

Specifications

LED head5mm round
LensDiffused (white: water-clear)
Supply12V DC
Lead lengthApproximately 20cm
PolarityRed (+), black (-)
ResistorPre-fitted under heat-shrink
Wire endsStripped and tinned
ColoursRed, green, yellow, orange, white, blue
Sale unitIndividual LED

Datasheets

Full technical datasheet PDF

What's in the box

1×
5mm pre-wired 12V diffused LED

In the colour you choose. Order as many as you need.

Great for

Power or status light on a 12V control panel
Switch or dash indicator in a car, caravan or boat
Status light on an alarm, CCTV or gate controller
Showing when a 12V pump, fan or relay is on
Model railway and diorama lighting from 12V
Replacing a failed indicator in 12V equipment

Wiring & getting started

  1. Power off

    Disconnect the 12V supply before making connections.

  2. Connect positive

    Connect the red wire to +12V, for example through the switch you want it to show.

  3. Connect negative

    Connect the black wire to negative or ground.

  4. Power and check

    Turn the supply on. If the LED does not light, turn it off and check the polarity and supply voltage.
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonymous

Exactly what we needed, and speedy order processing and delivery times.

Frequently Asked Questions

Answers to the questions buyers ask most.

Do I need to add a resistor?
No. A resistor is already fitted under the heat-shrink on the red lead and is chosen for 12V DC.
Which wire is positive?
Red is positive (+) and black is negative (-). Connected the other way round, the LED does not light.
Can I use it in a car?
Yes, for 12V vehicle circuits such as a switch or dash indicator. With the engine running, a car's system often sits near 14V, which pushes more current through the LED than a steady 12V supply. Use a regulated 12V feed where it needs to last.
Will it work from 5V or an Arduino pin?
No. It is made for 12V DC. For 5V projects, choose the 5V version of our 3mm pre-wired diffused LED. To switch this 12V LED from a microcontroller, use a transistor or relay module.
Are these diffused or clear LEDs?
Red, green, yellow, orange and blue have a diffused (frosted) lens with a soft, even glow. White has a water-clear lens, which gives a brighter, more pointed light.
How many do I get?
They are sold individually. Choose the colour and how many you need.
