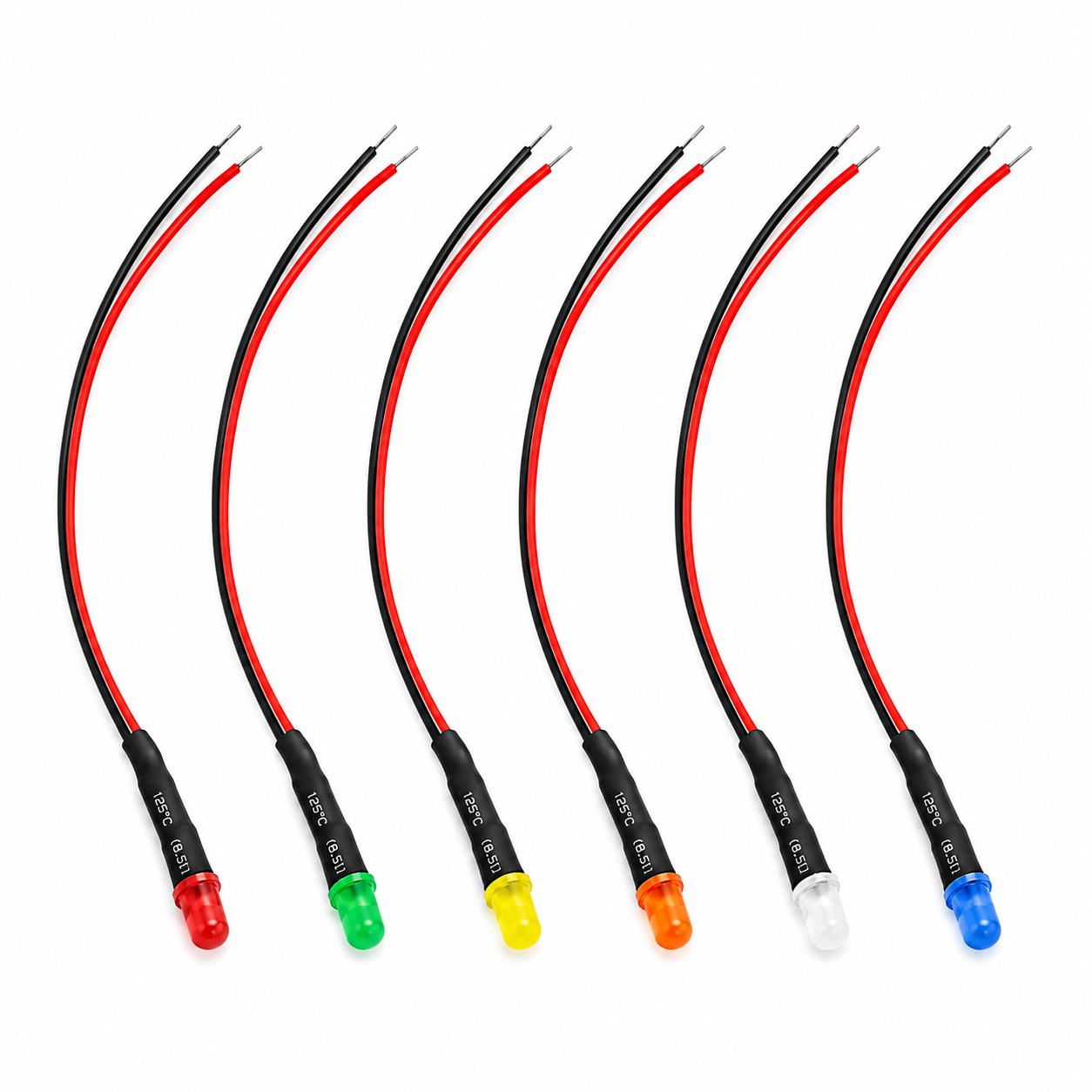

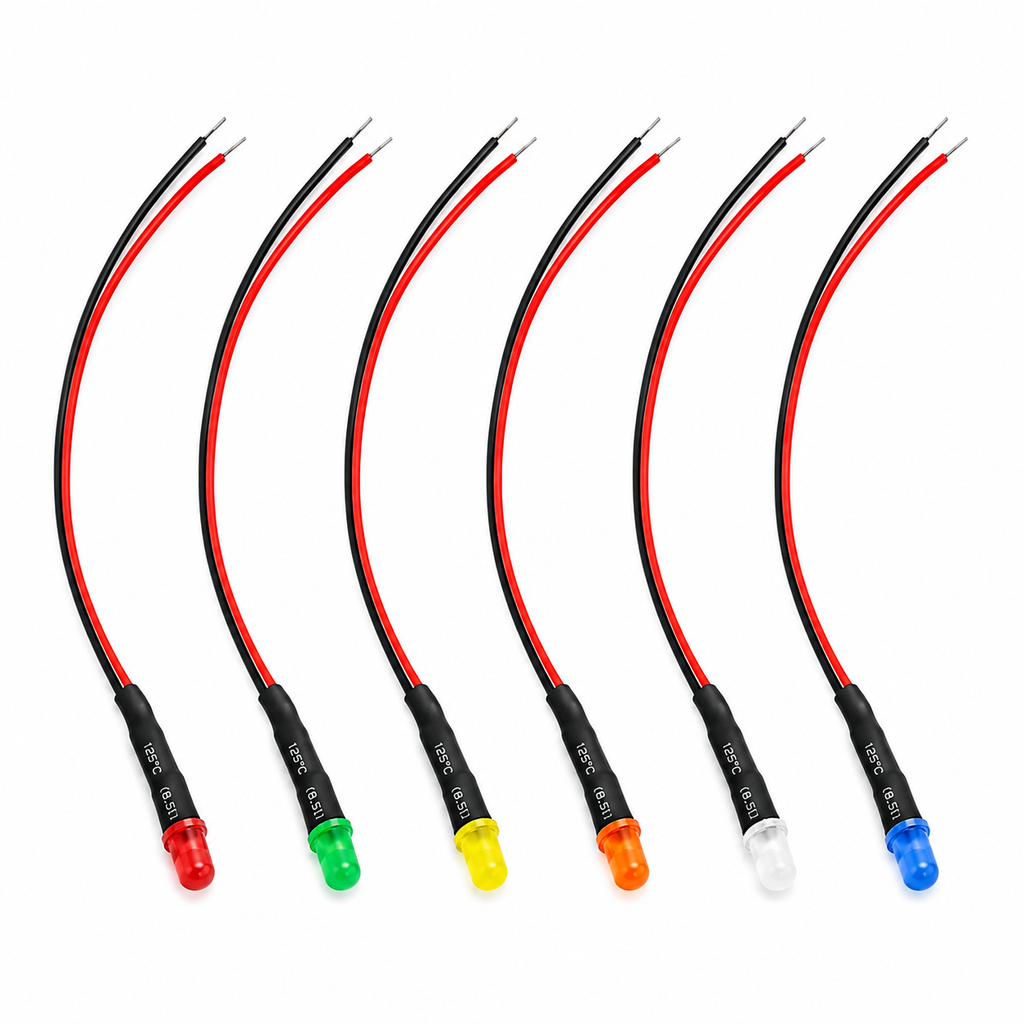

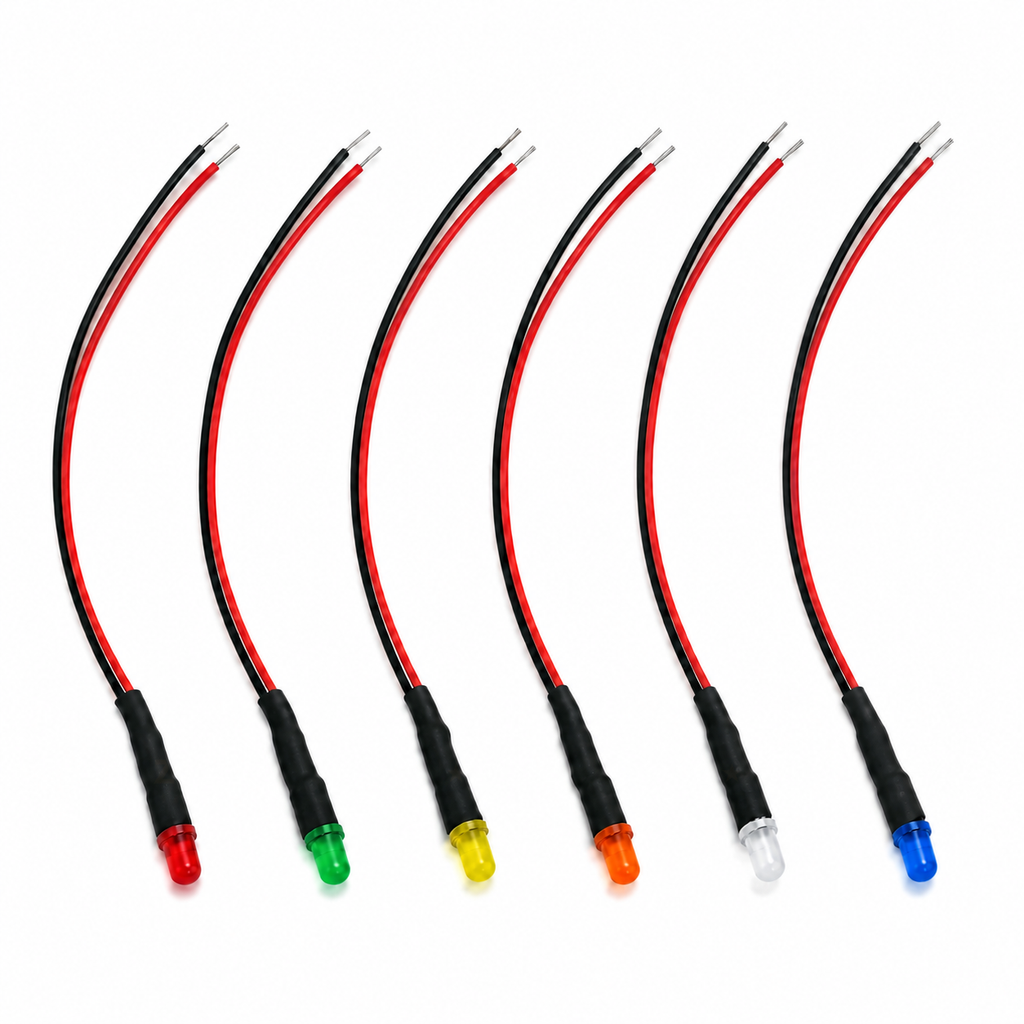

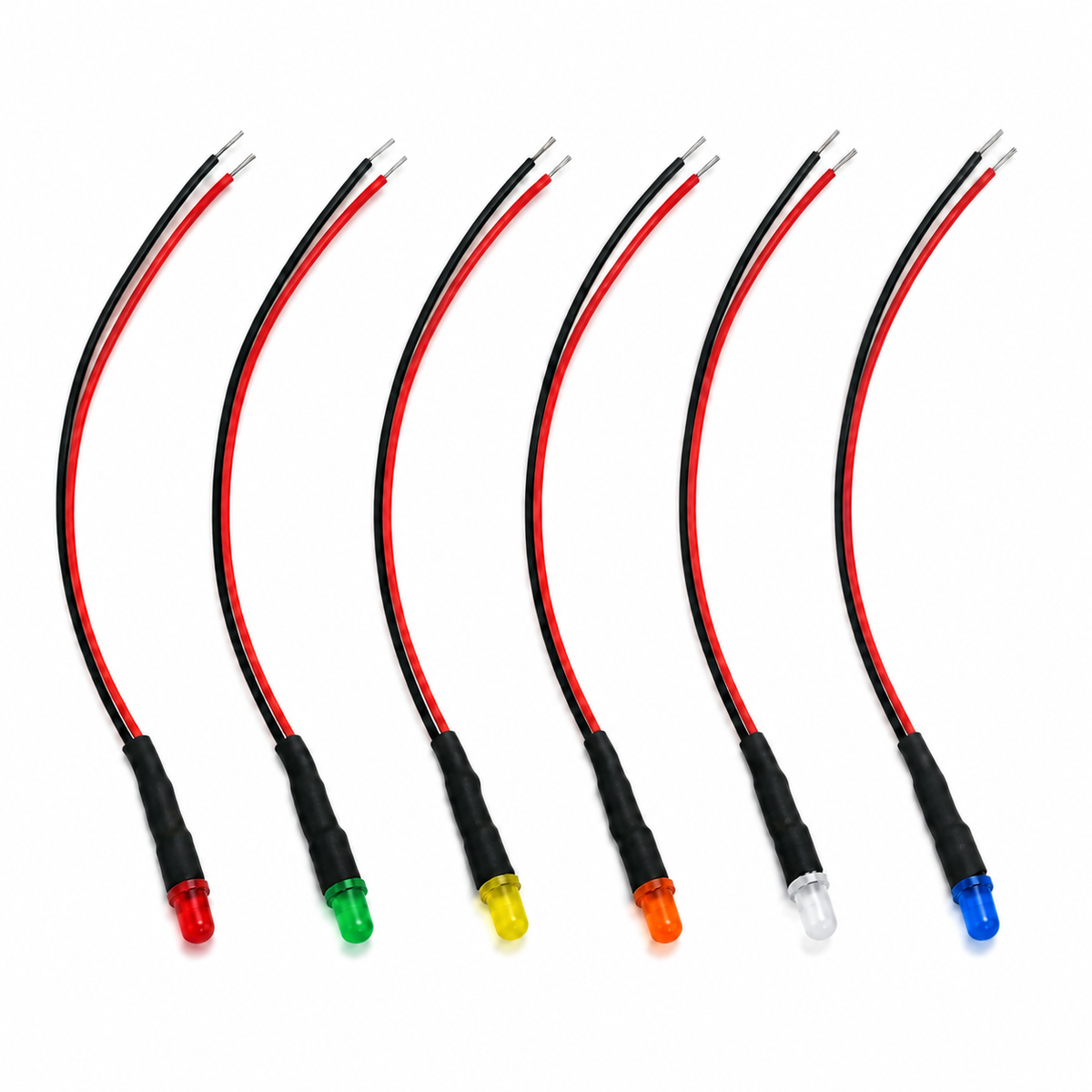

  • Six 3mm pre-wired diffused LEDs in red, green, yellow, orange, white and blue

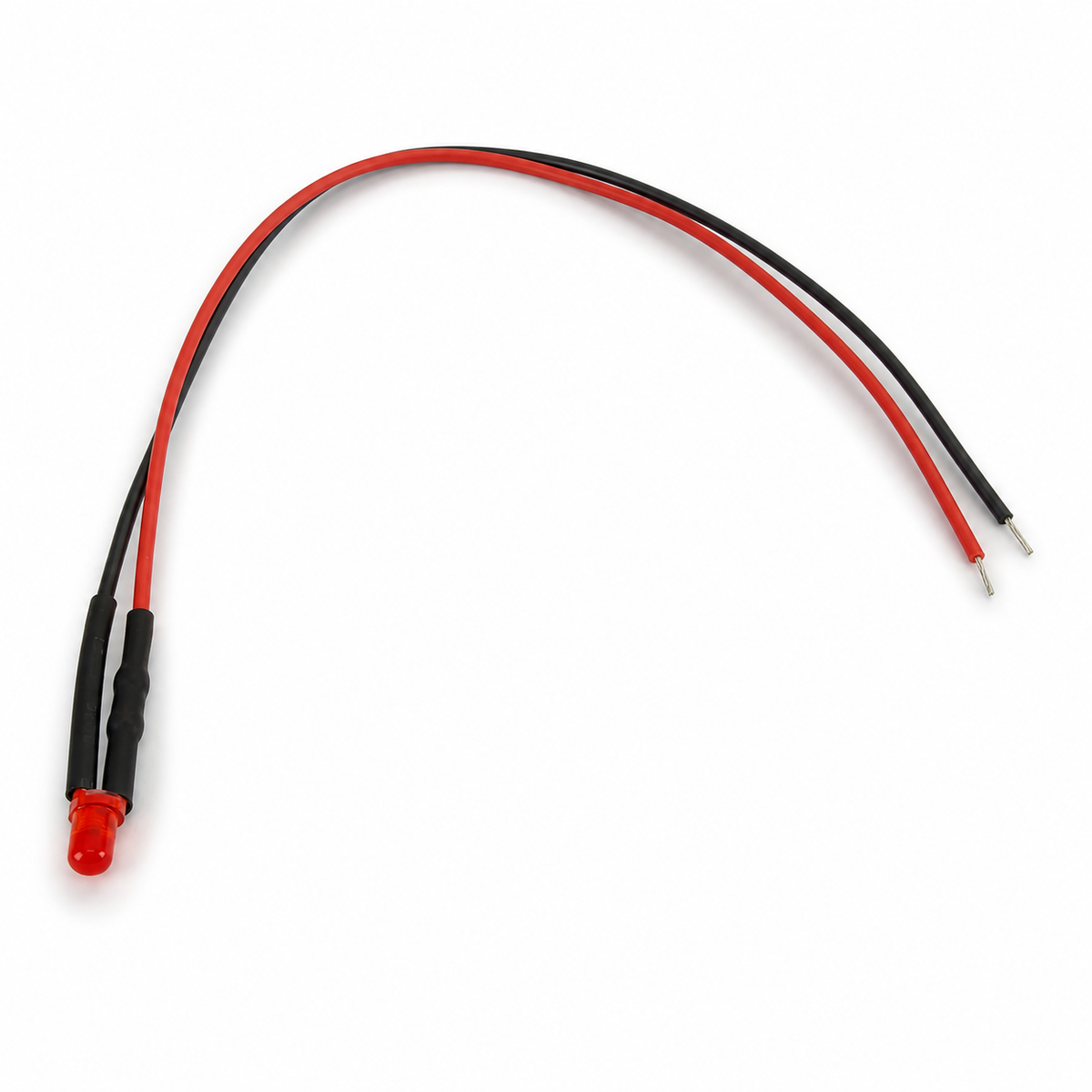

  • Red 3mm pre-wired diffused LED with 20cm red and black leads

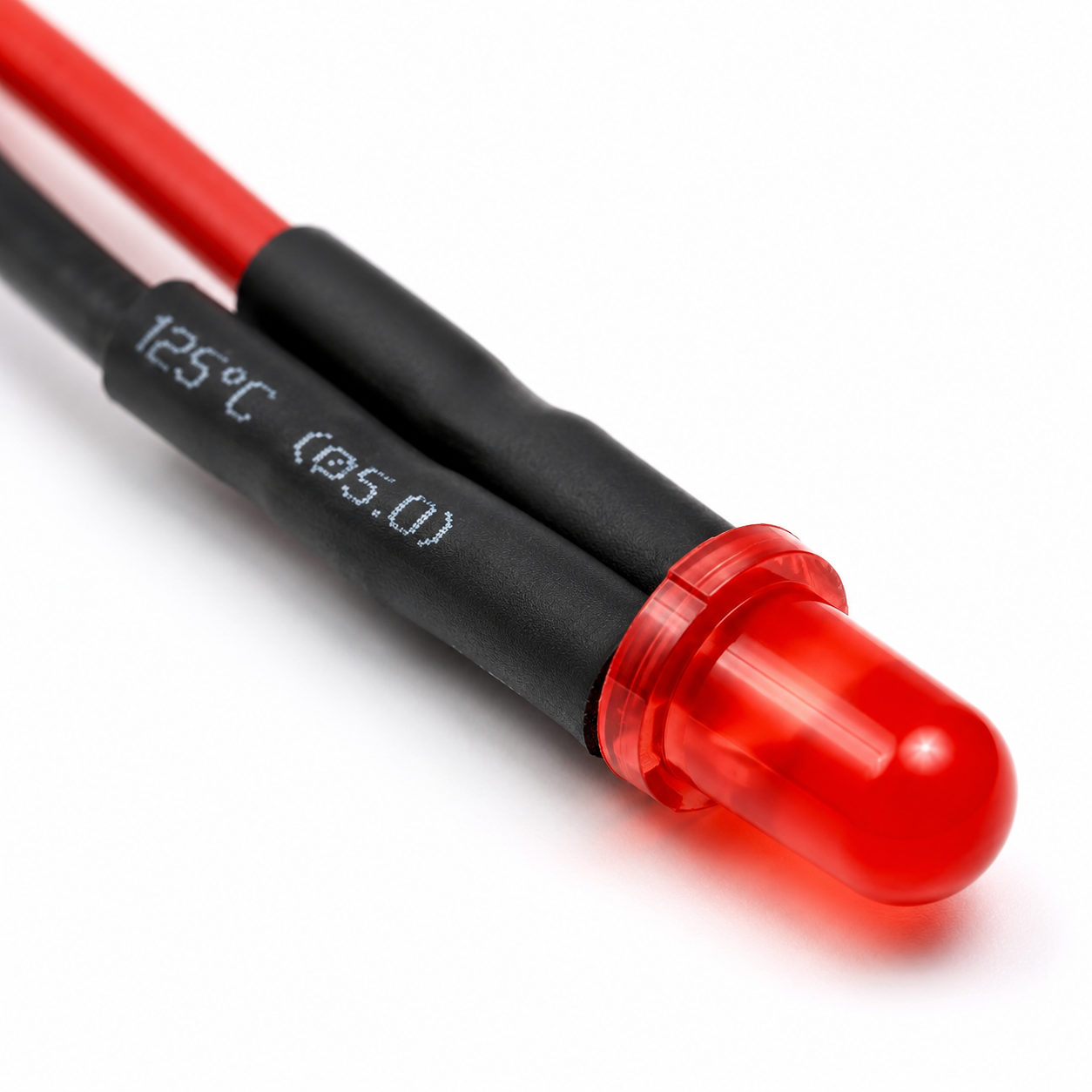

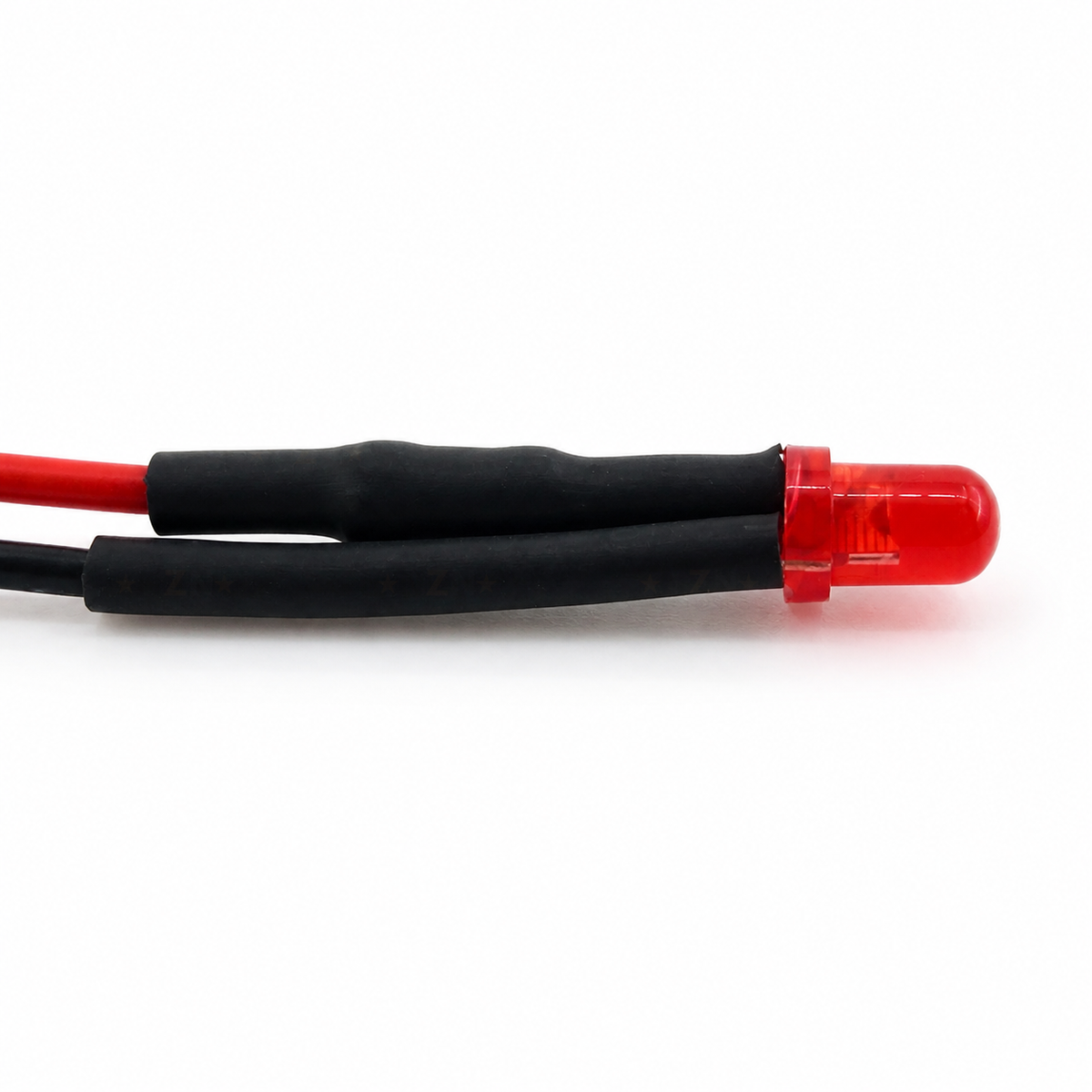

  • Close view of a red 3mm diffused LED, resistor heat-shrink and twin leads

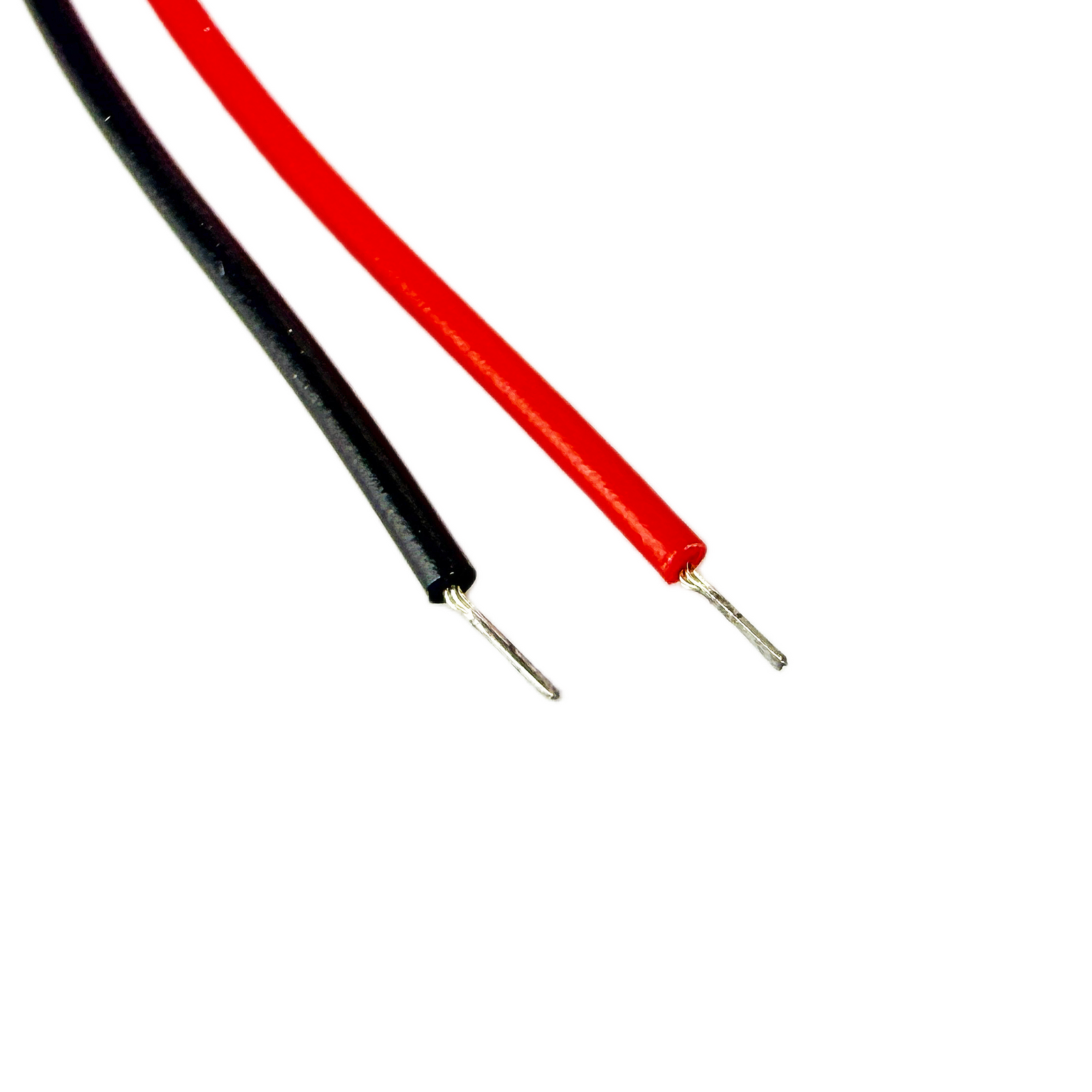

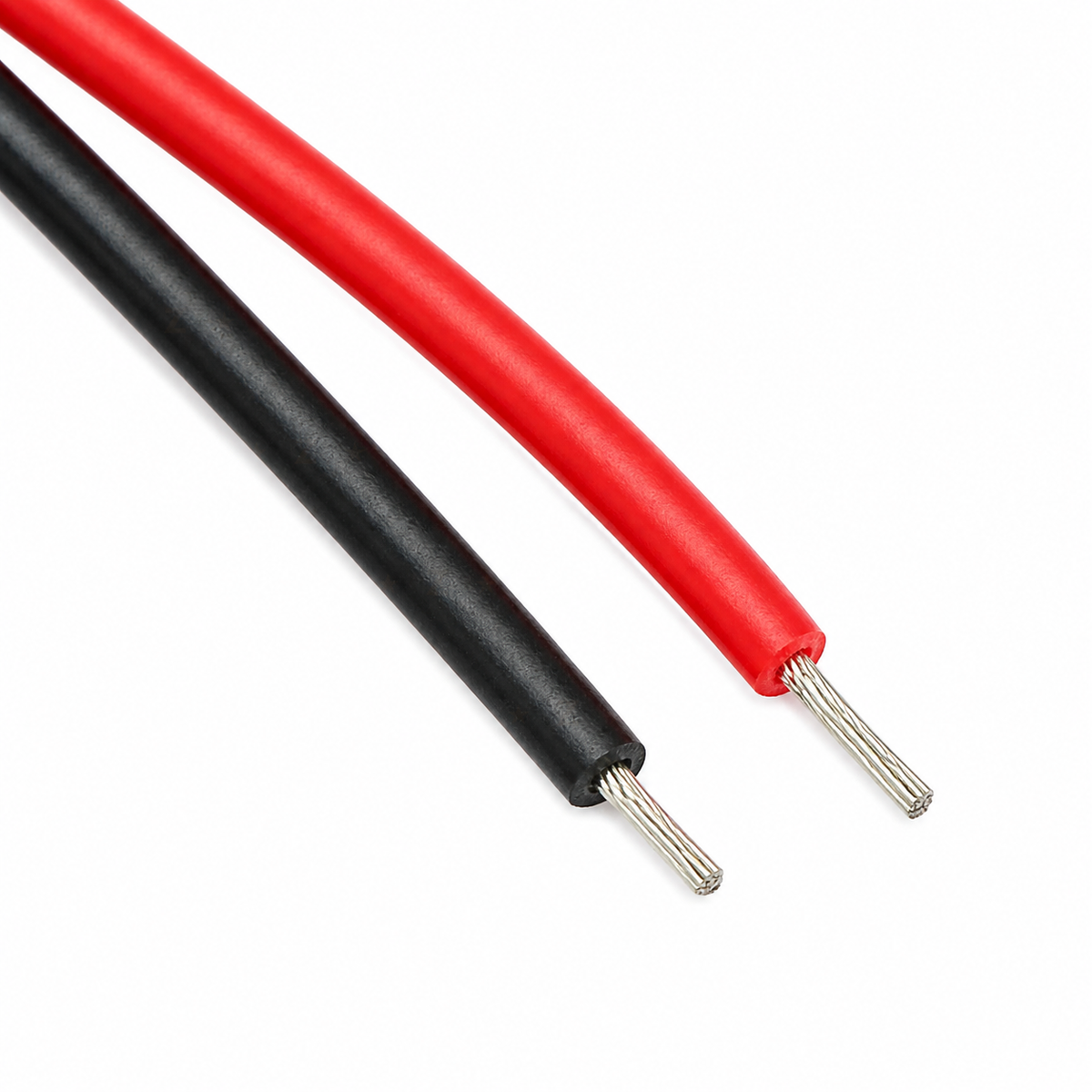

  • Stranded stripped ends of the red positive and black negative LED wires

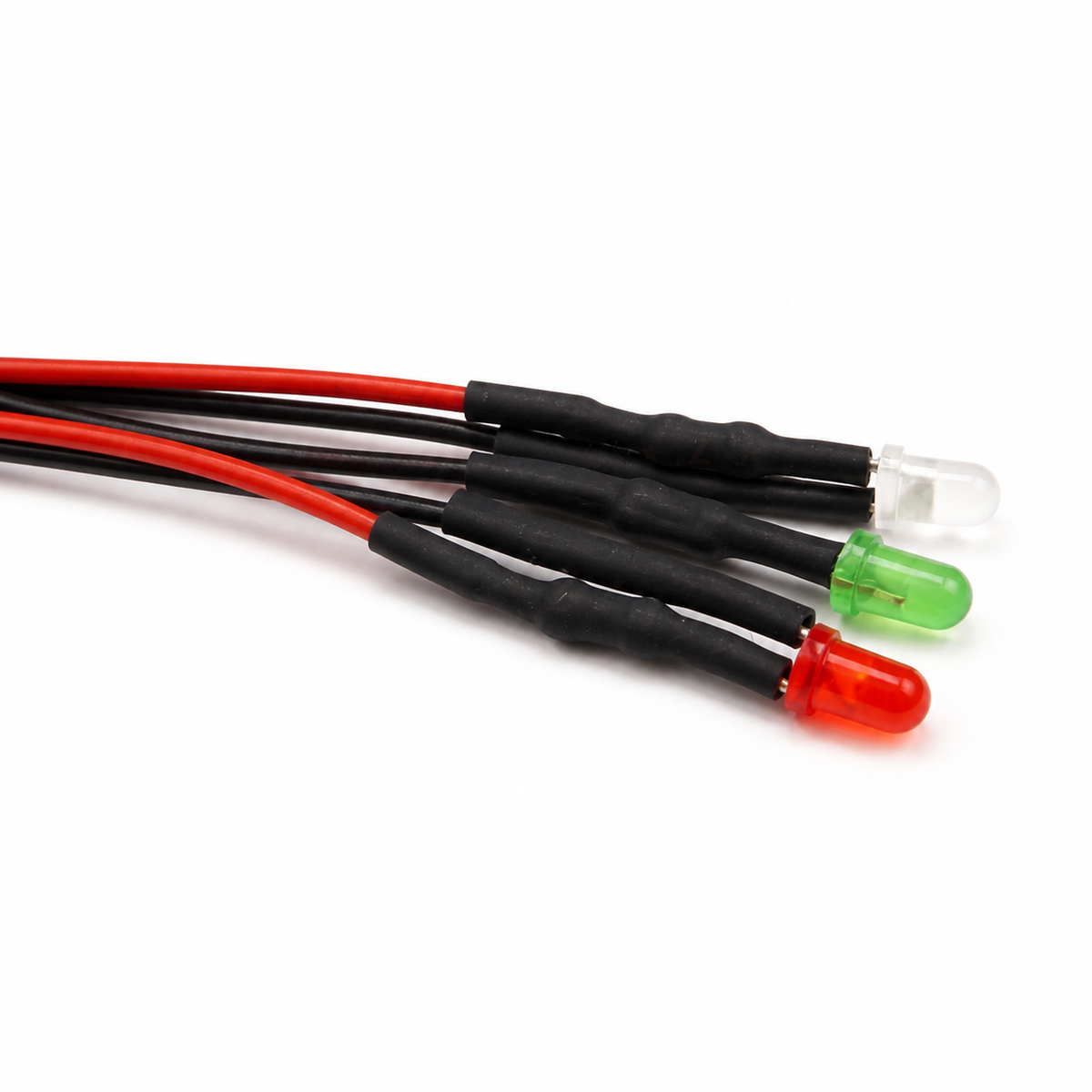

  • Red, green and white 3mm pre-wired diffused LED colour examples

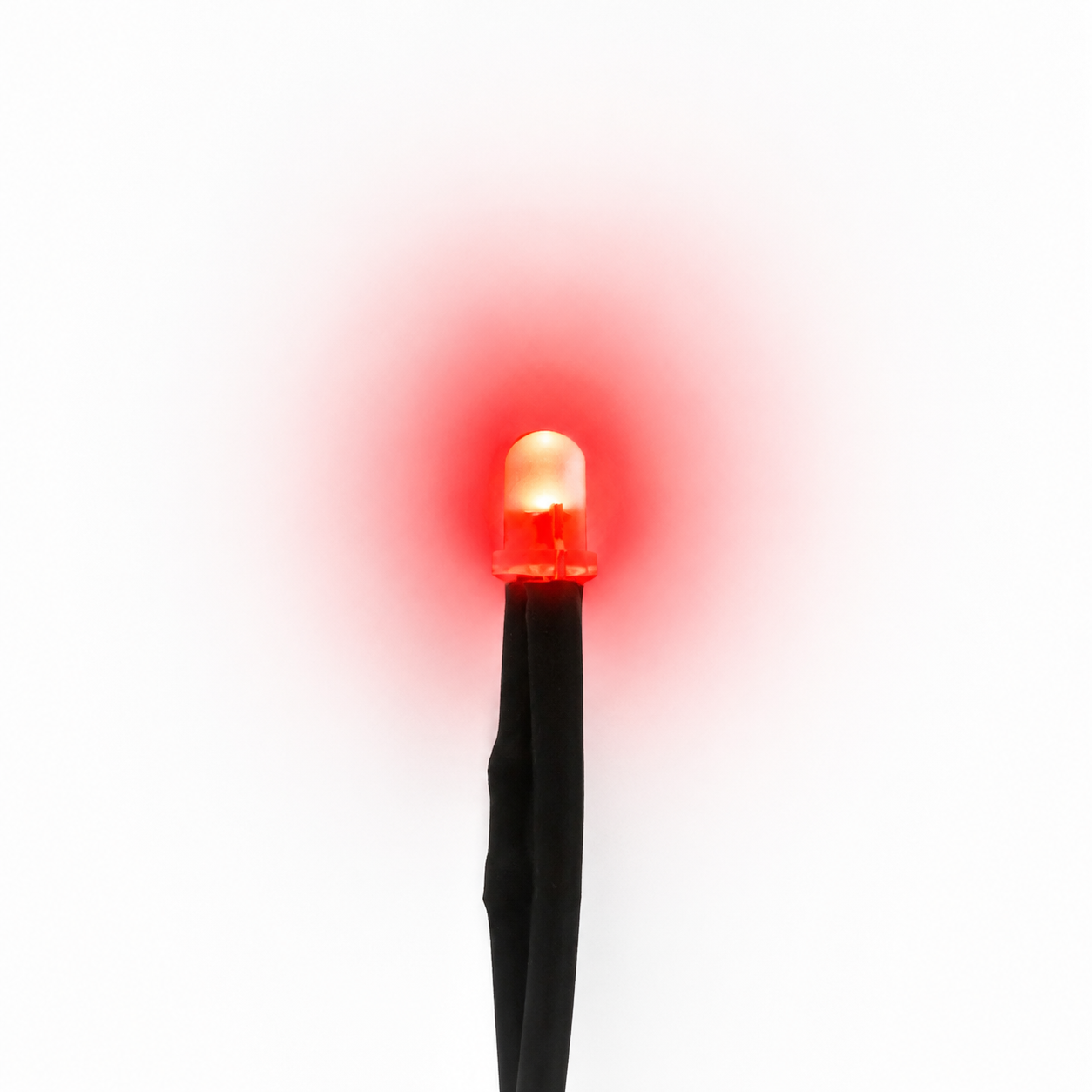

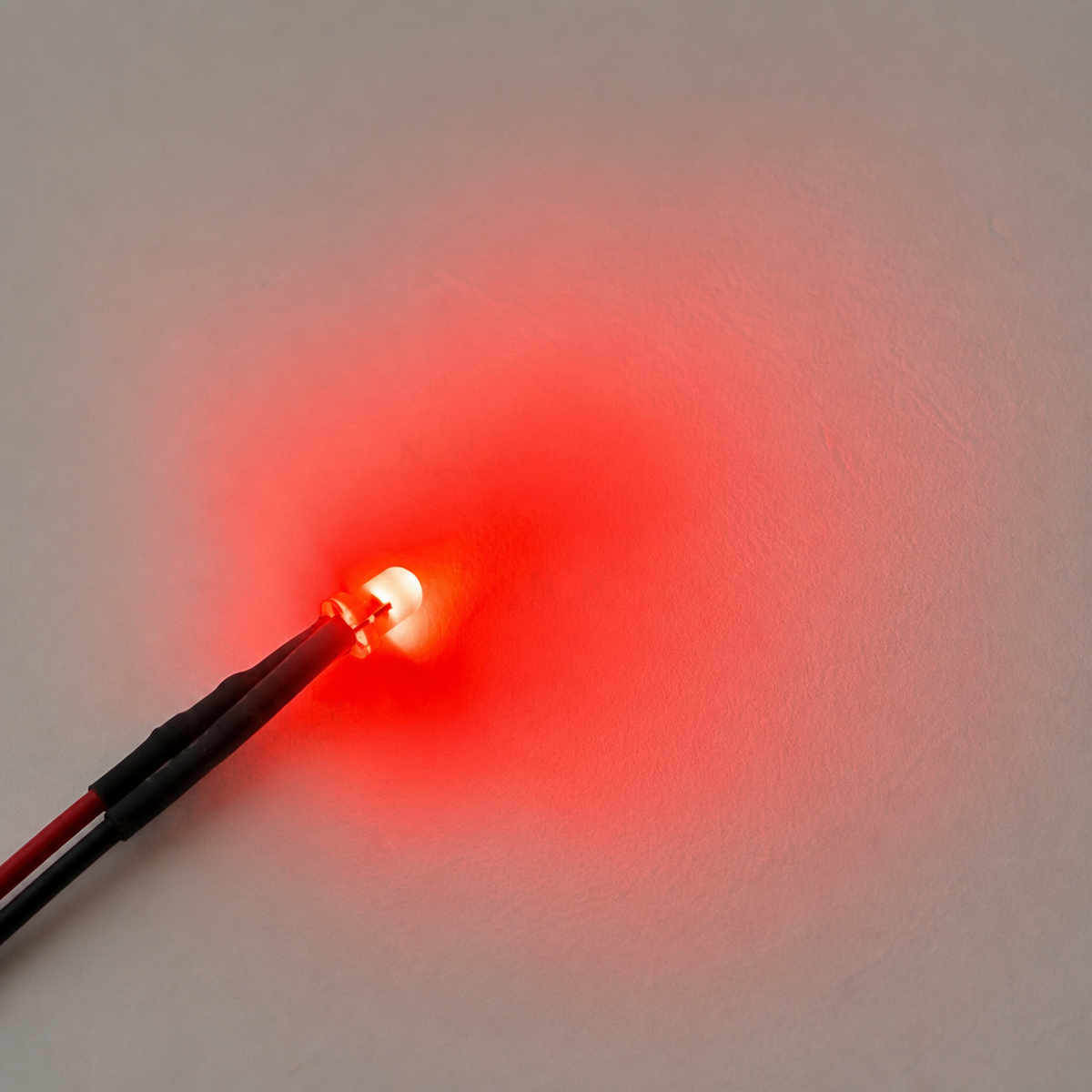

  • Red 3mm diffused LED illuminated against a surface showing its glow

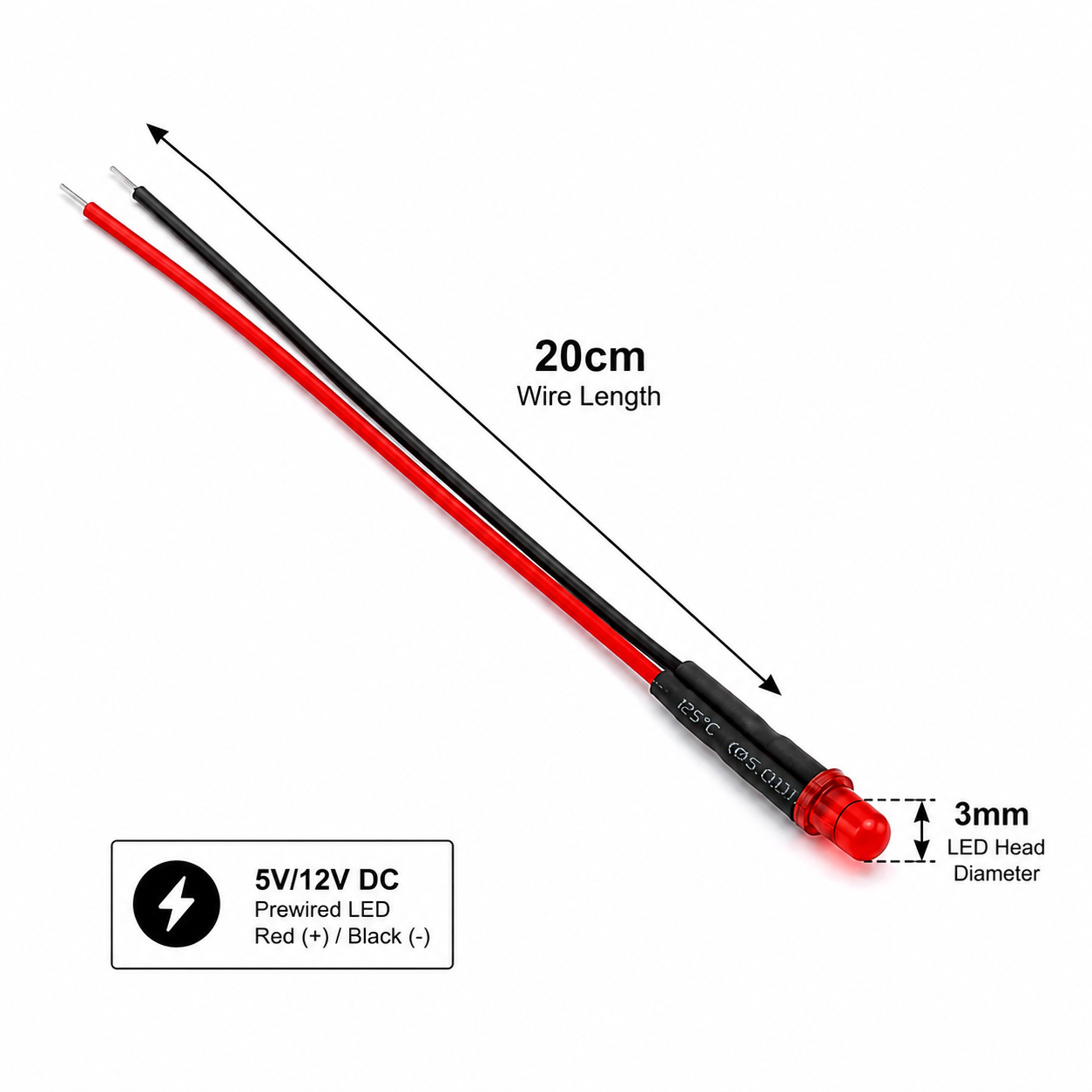

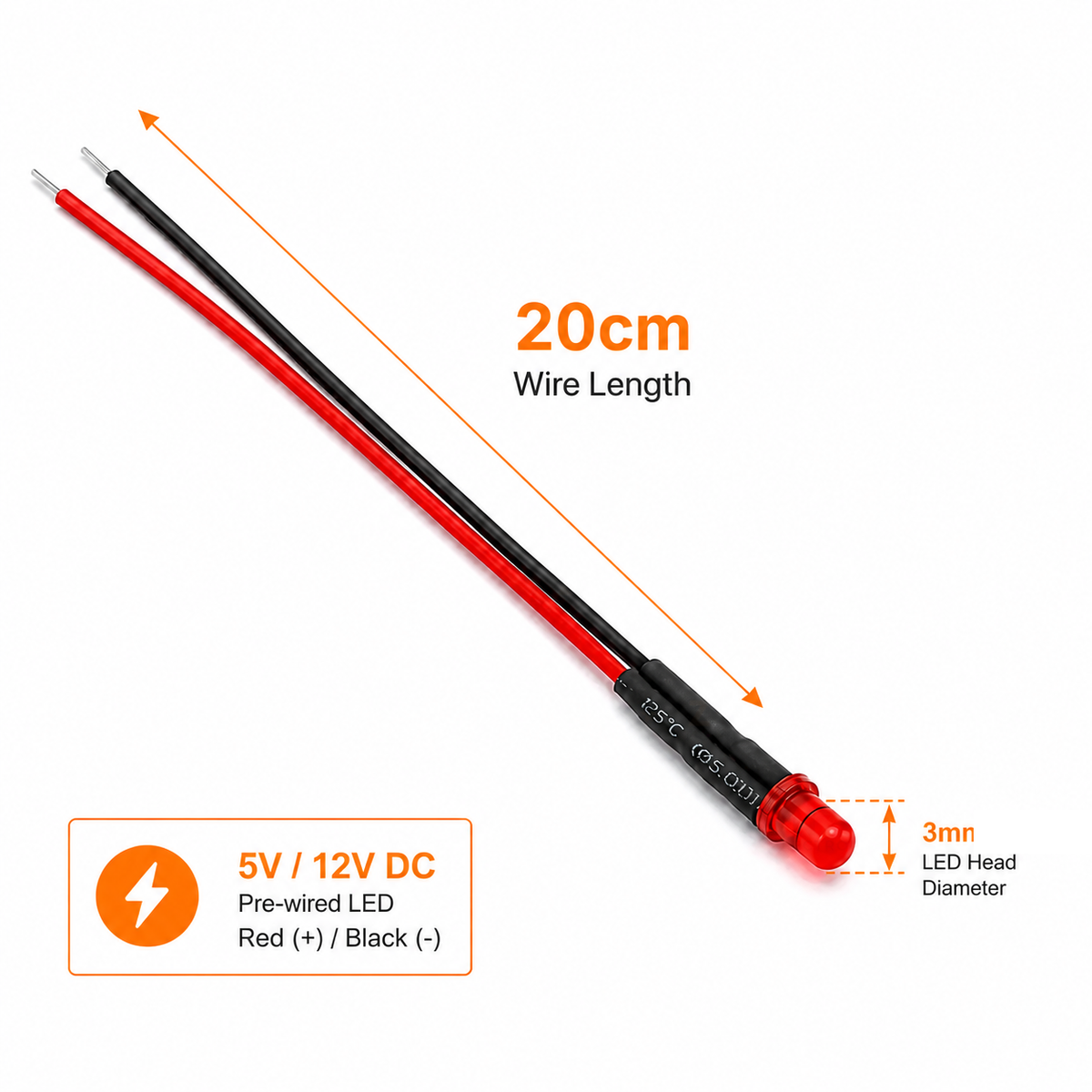

  • 3mm pre-wired LED dimensions showing 20cm lead length and 3mm head
3mm Pre-wired Diffused LED - 20cm, 5V or 12V
SKU: LED-3MM-DIF-RED-5V

3mm Pre-wired Diffused LED - 20cm, 5V or 12V

$0.99 NZD
Color
Voltage
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A compact 3mm diffused indicator LED with a fitted resistor and approximately 20cm red and black leads. Choose the 5V or 12V version and your preferred colour for control panels, models, repairs and hobby electronics.

Specifications

LED head3mm round top
LensDiffused
VoltageChoose 5V or 12V DC
Lead lengthApproximately 20cm
PolarityRed (+), black (-)
ResistorPre-fitted under heat-shrink
Wire endsStripped and tinned stranded conductor

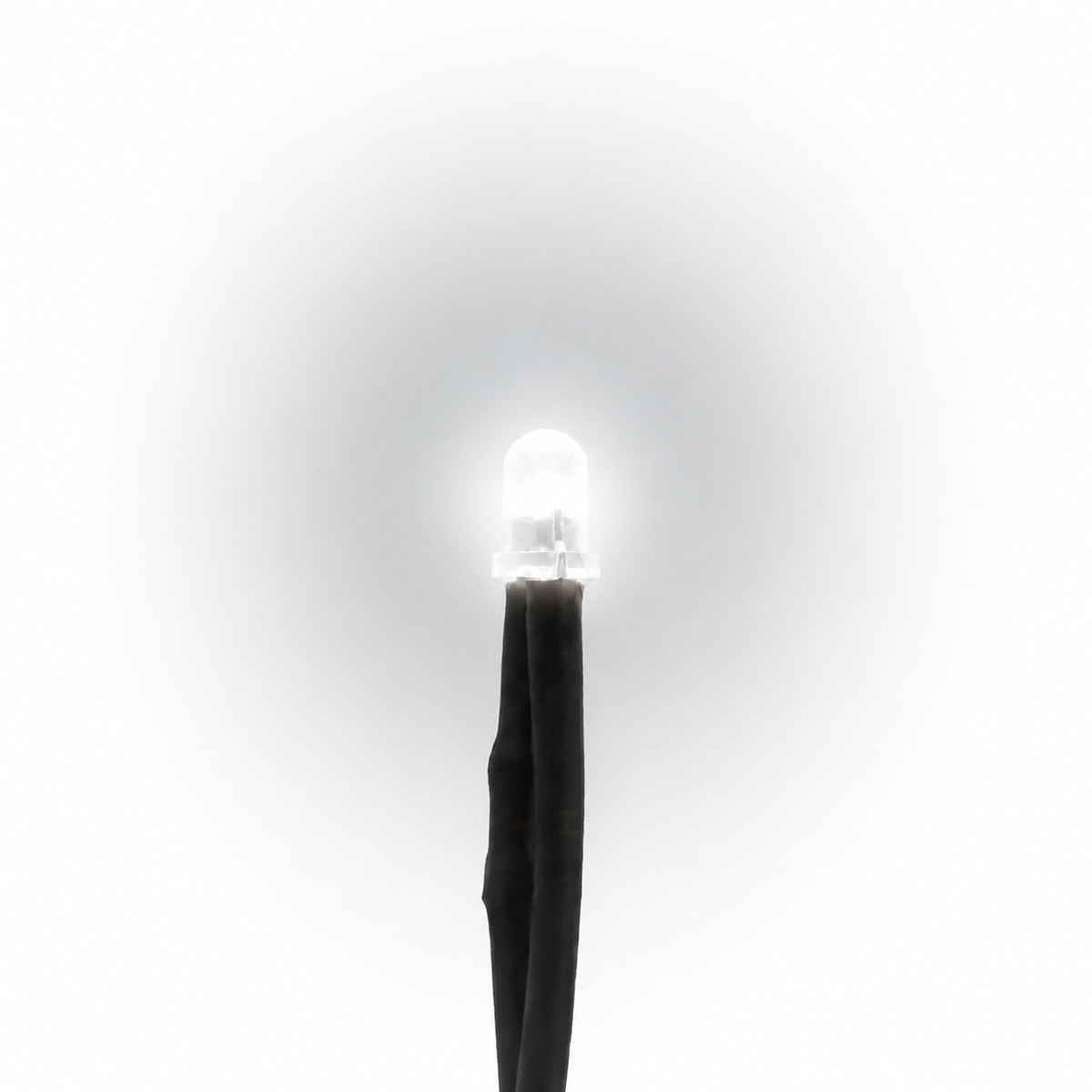

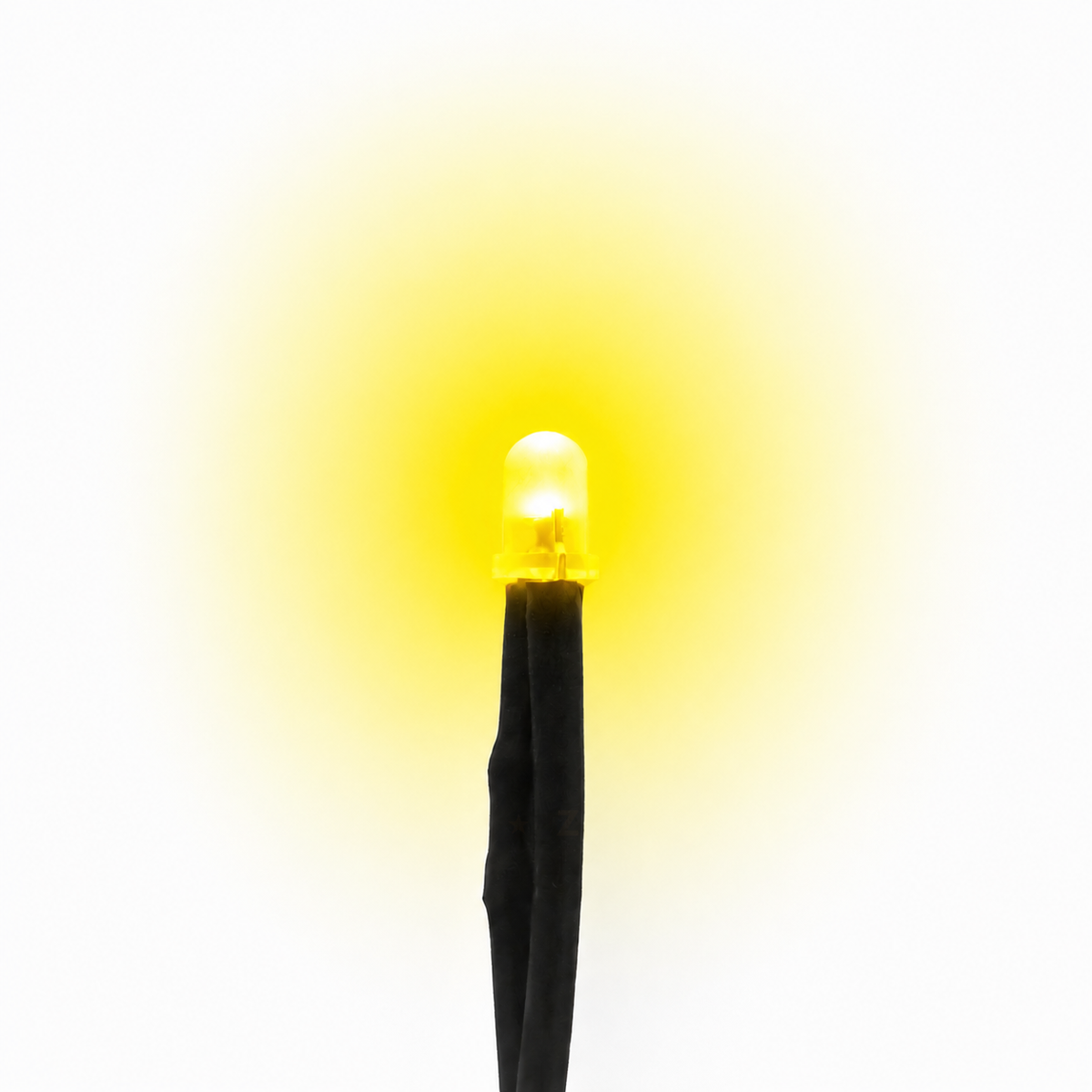

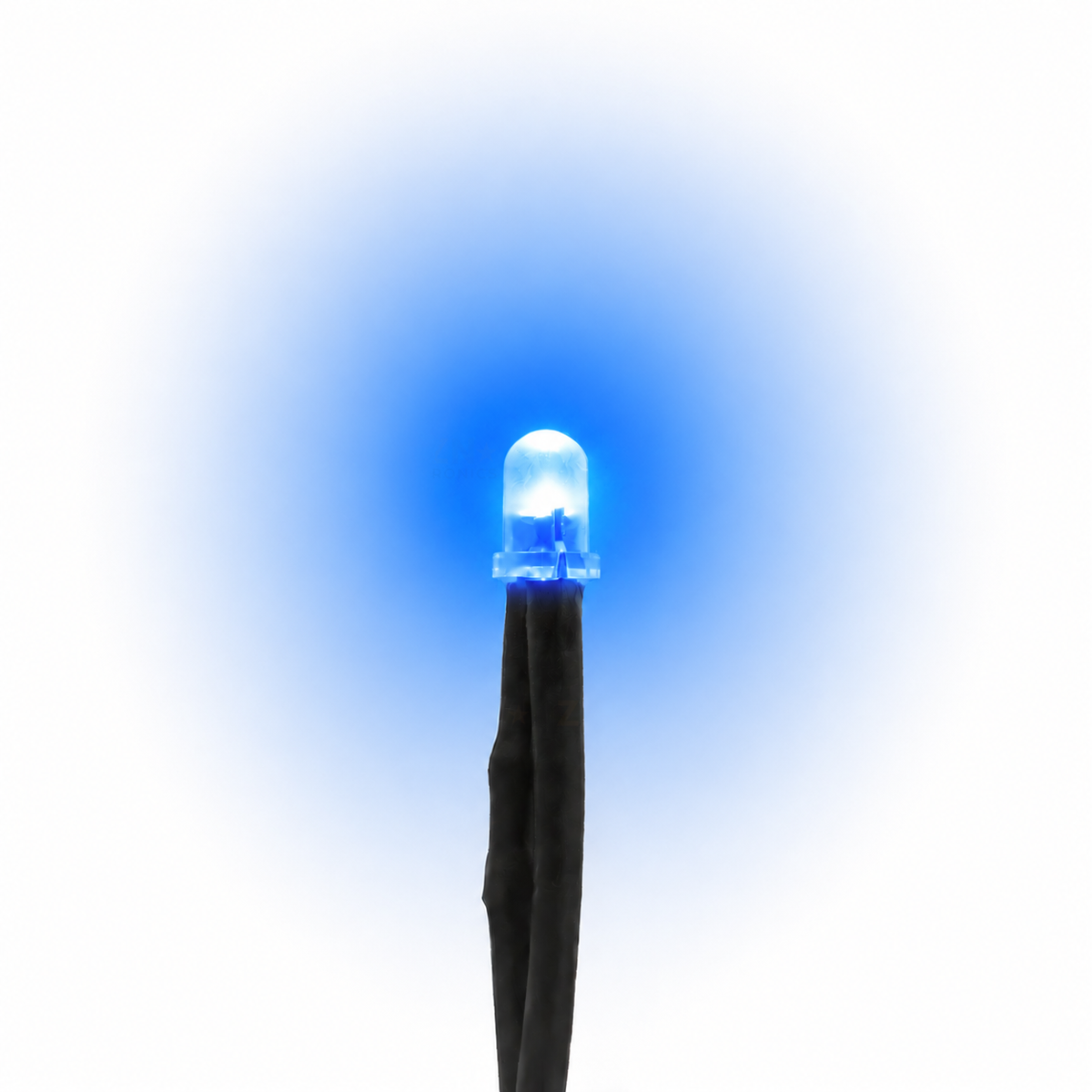

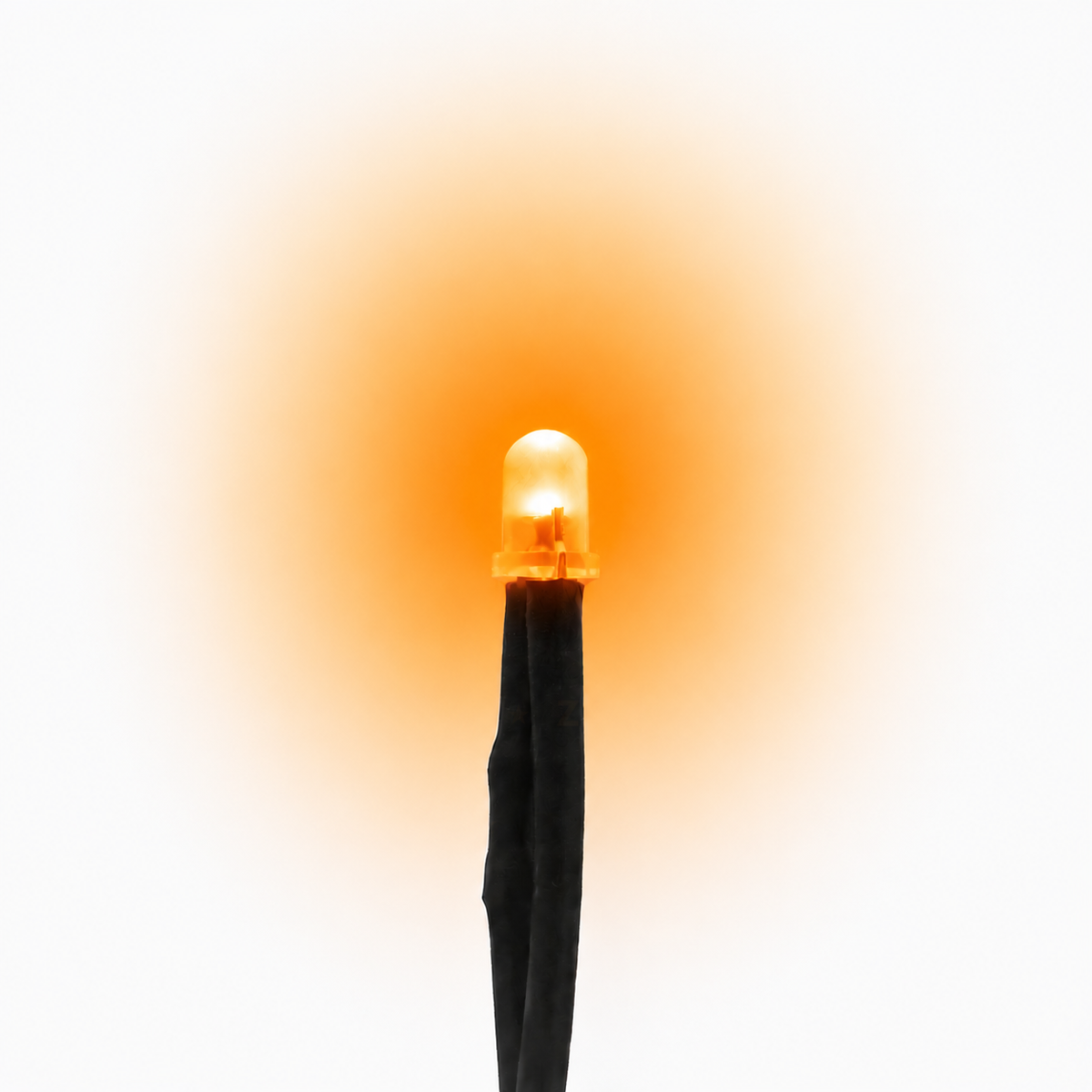

ColoursRed, green, yellow, orange, white, blue
Sale unitIndividual LED

What's in the box

1×
Selected 3mm pre-wired diffused LED

Choose the colour, voltage and quantity required.

Great for

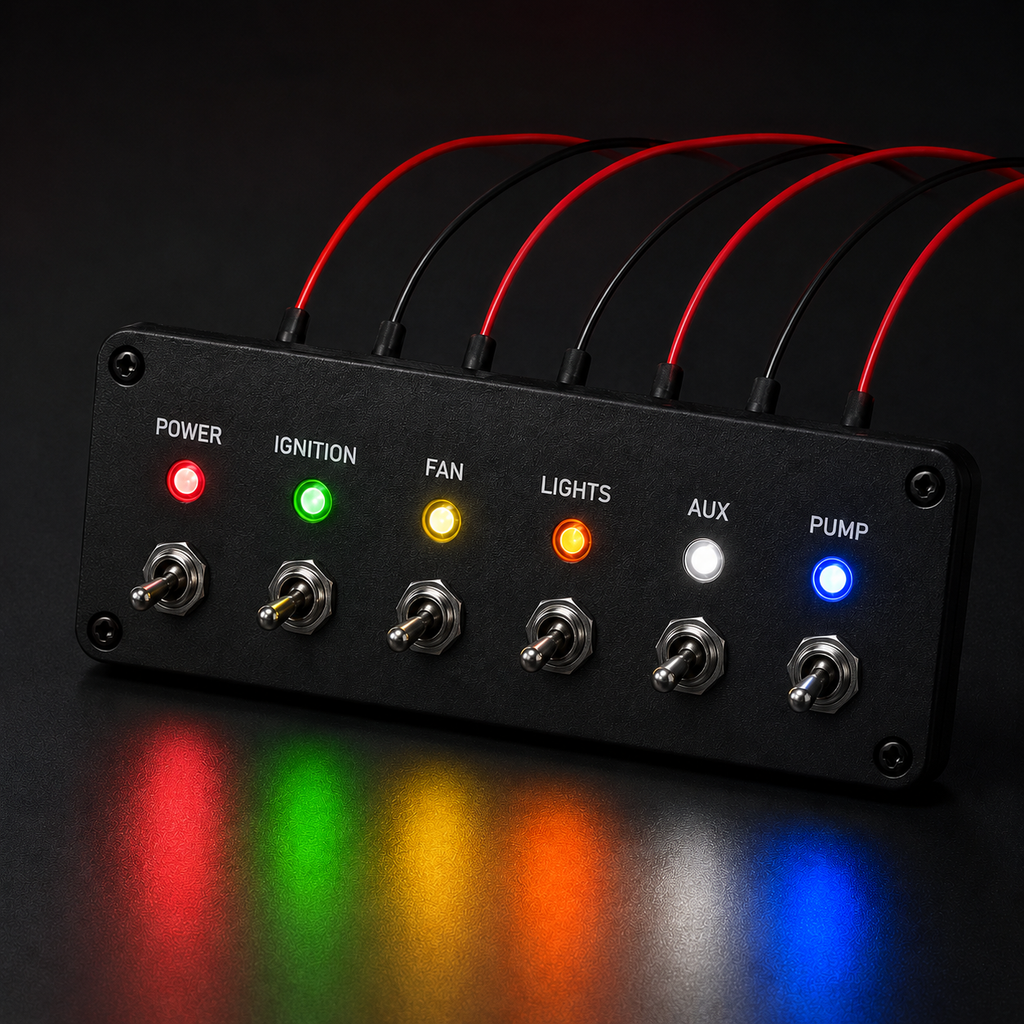

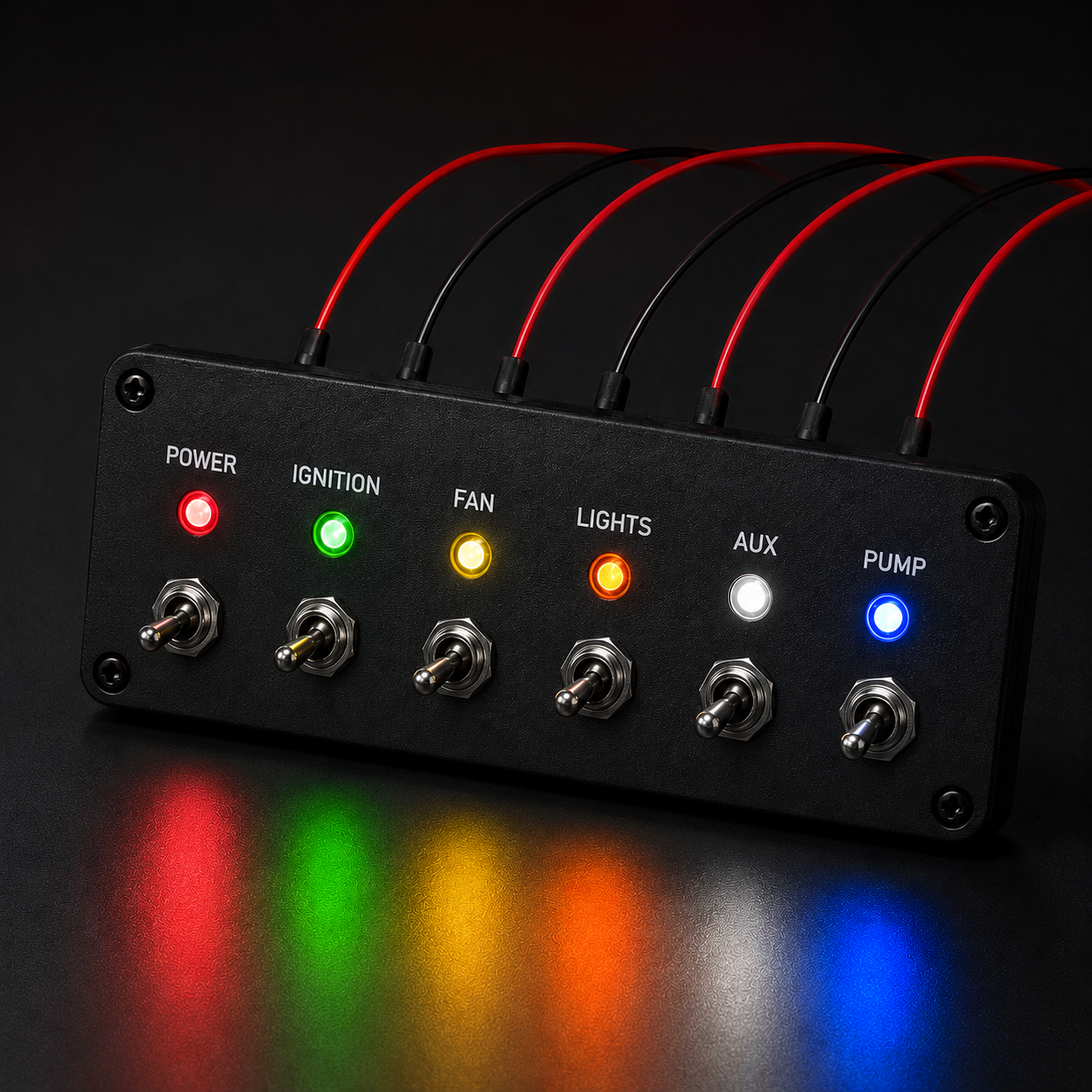

Control panel indicators
Model and diorama lighting
Hobby electronics
Status lights
Automotive projects with a regulated matching supply
Repair and custom wiring

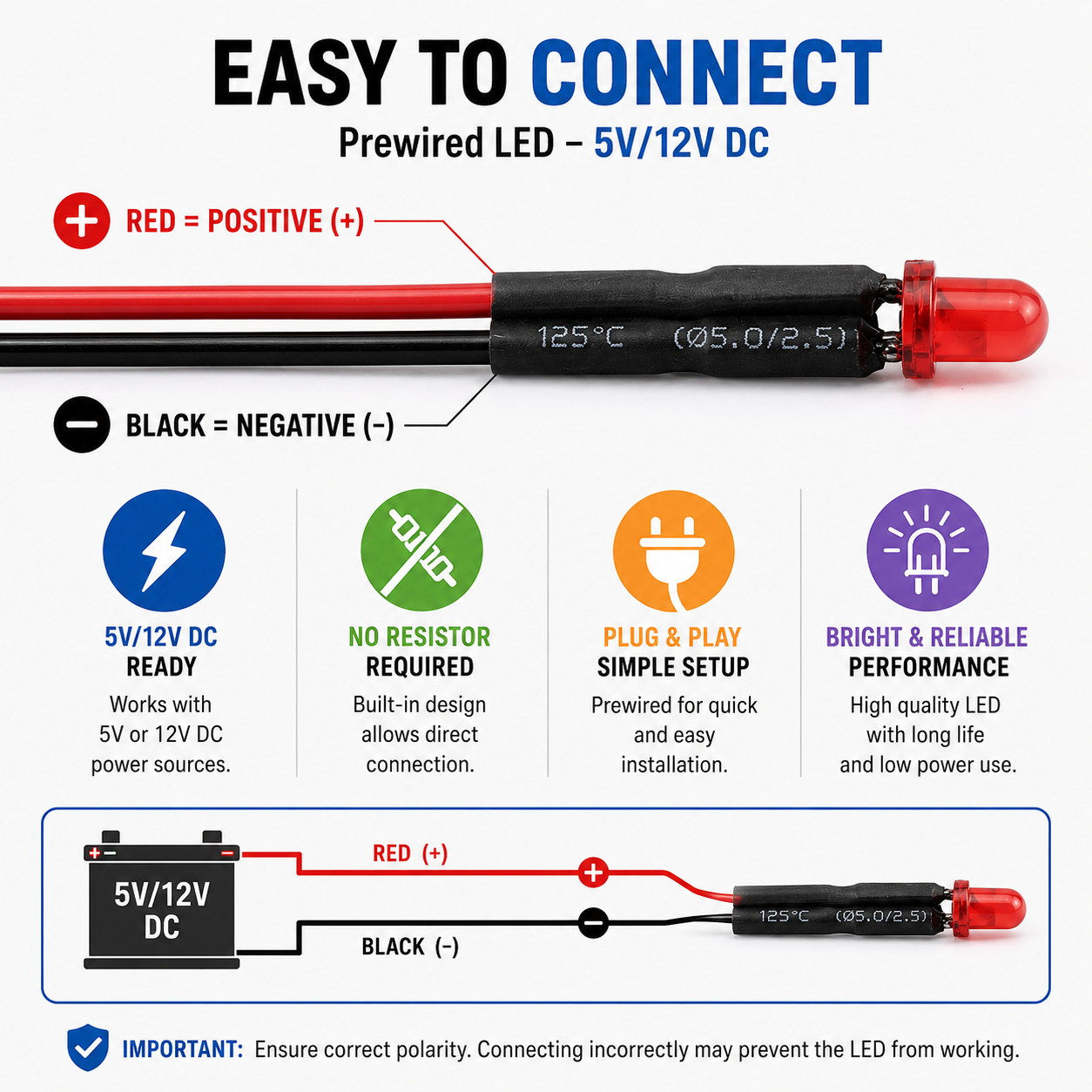

Wiring & getting started

  1. Choose the matching voltage

    Use the 5V version with a regulated 5V DC supply or the 12V version with a regulated 12V DC supply.

  2. Connect positive

    Connect the red wire to the positive supply.

  3. Connect negative

    Connect the black wire to negative or ground.

  4. Power and check

    Apply power from the matching regulated DC supply. If the LED does not light, disconnect power and recheck the polarity and supply voltage.

Frequently Asked Questions

Answers to the questions buyers ask most.

Do I need an external resistor?
No. A resistor is already fitted under the heat-shrink.
Can I connect the 5V version to 12V?
No. Select the version rated for your supply voltage.
Which wire is positive?
Red is positive (+) and black is negative (-).
Are these diffused or clear LEDs?
These LEDs have a diffused lens for a softer indicator glow.
How many are supplied?
They are sold individually. Choose the colour, voltage and quantity required.
Can I drive one directly from a microcontroller GPIO?
Power it from the matching regulated supply. If you want to switch it from a GPIO, use a suitable transistor or driver and check the controller's current limits.
