Clear 24-compartment electrolytic capacitor kit case, lid closed, with black, teal and green capacitors visible through the lid

Electrolytic Capacitor Assortment Kit - 24 Values (0.1µF-1000µF, 10-50V)

$15.99 NZD
Skip to product information
Clear 24-compartment electrolytic capacitor kit case, lid closed, with black, teal and green capacitors visible through the lid
  • Clear 24-compartment electrolytic capacitor kit case, lid closed, with black, teal and green capacitors visible through the lid

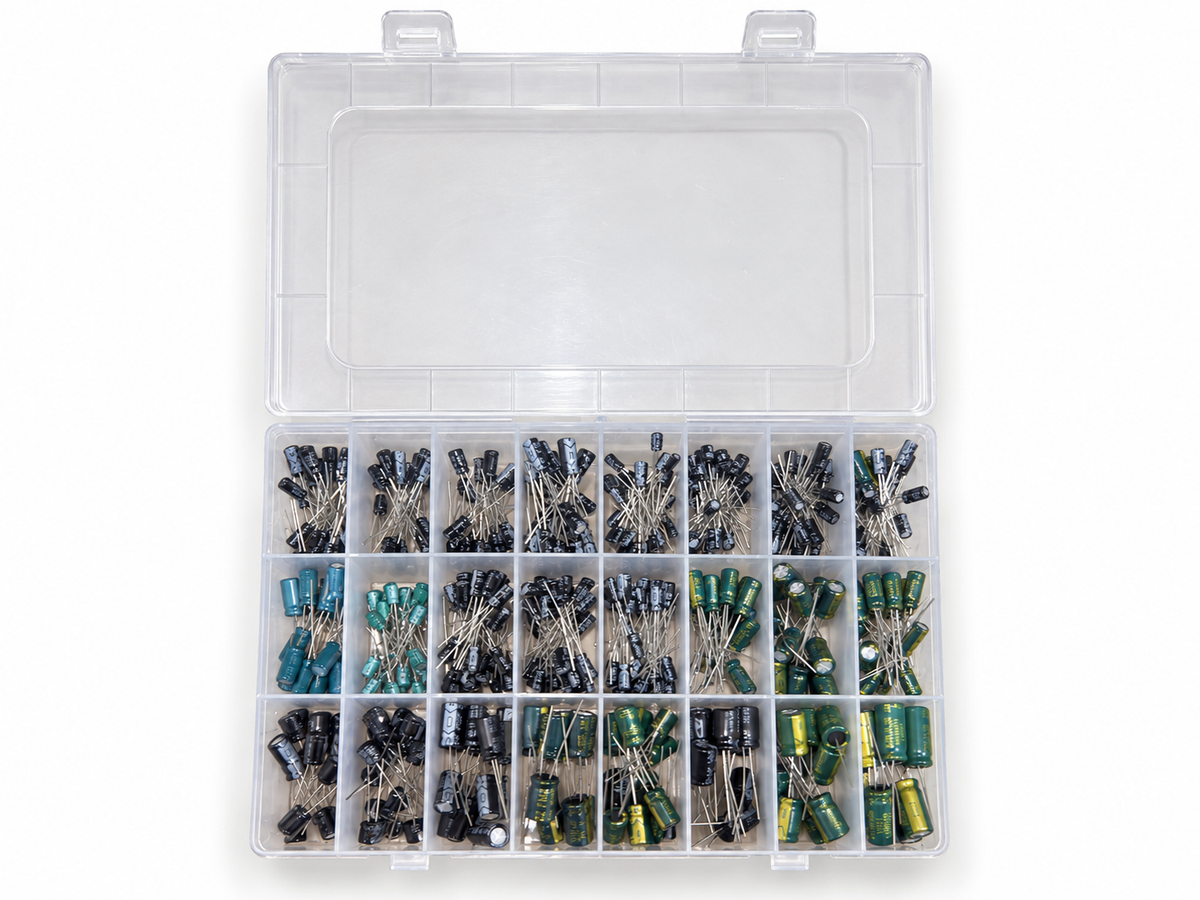

  • Top view of the open capacitor kit showing 24 compartments in 3 rows of 8, small black capacitors at the back and larger green and black ones at the front

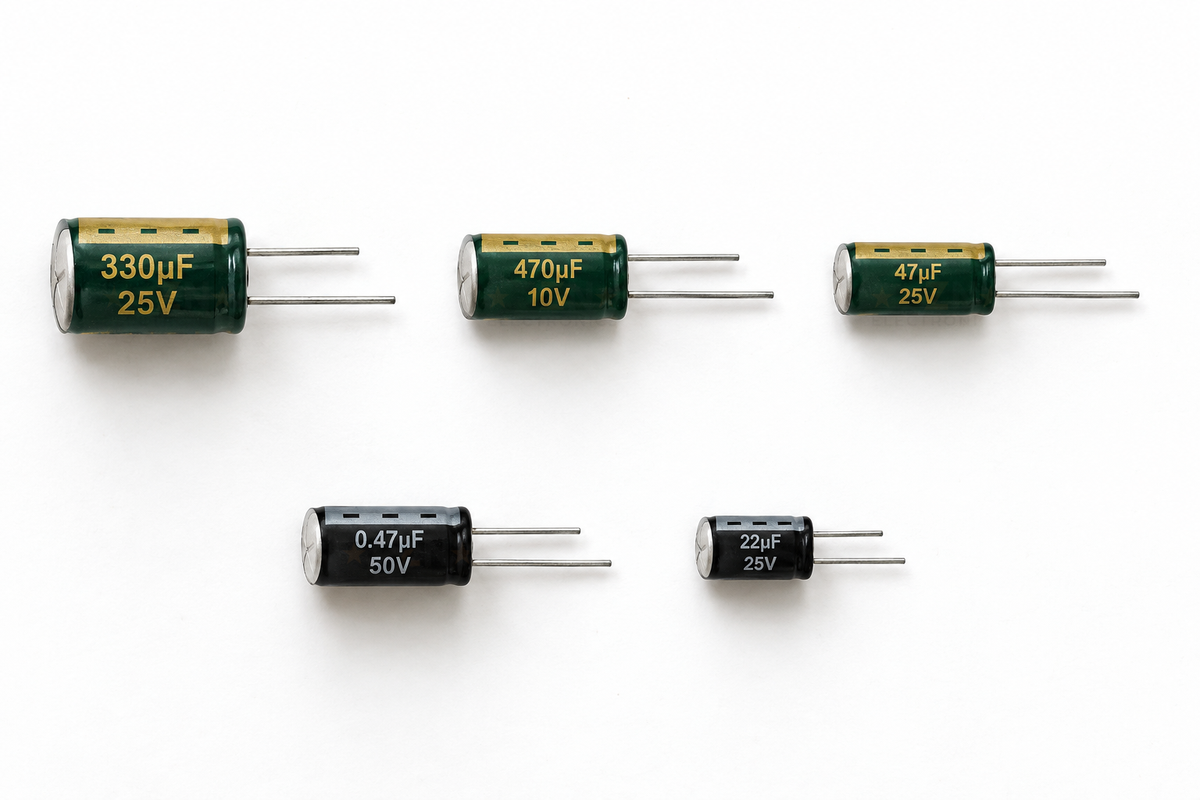

  • Five capacitors from the kit, 330µF 25V, 470µF 10V, 47µF 25V, 0.47µF 50V and 22µF 25V, showing the printed values and the negative stripe
Electrolytic Capacitor Assortment Kit - 24 Values (0.1µF-1000µF, 10-50V)
SKU: NZE-CAP-ELEC-200

Electrolytic Capacitor Assortment Kit - 24 Values (0.1µF-1000µF, 10-50V)

$15.99 NZD
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

No GST added (we're not GST registered). Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Easy 30-day returns · 12-month warranty

Add these too
Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

A kit of radial aluminium electrolytic capacitors in 24 values from 0.1µF to 1000µF, rated 10V to 50V and 105°C, sorted by value into a clear 24-compartment case. It covers decoupling and smoothing for Arduino, ESP32 and hobby projects, bulk caps for motor and servo supplies, and the common low-voltage sizes on TV, monitor, audio and game console boards. Every can is printed with its value and voltage.

Specifications

TypeAluminium electrolytic, radial through-hole
Values24, from 0.1µF to 1000µF
Voltage ratings10V, 16V, 25V and 50V
Temperature rating105°C
Can sizes (diameter x height)About 4 x 7mm up to 10 x 16mm
MountingRadial, 2 leads, fits breadboard and 0.1in protoboard
Polarity markingStripe with minus signs and shorter lead = negative
SleevesMixed makers: black, teal and green, each printed with value and voltage
StorageClear 24-compartment case, 3 rows of 8, snap-shut lid

What's in the kit

0.1µF 50V4 x 7mm
0.22µF 50V*5 x 11mm
0.47µF 50V5 x 11mm
1µF 50V5 x 11mm
2.2µF 50V*4 x 7mm
3.3µF 50V*4 x 7mm
4.7µF 50V*4 x 7mm
10µF 25V*4 x 7mm
10µF 50V5 x 11mm
22µF 16V*4 x 7mm
22µF 25V4 x 7mm
33µF 16V4 x 7mm
47µF 10V4 x 7mm
47µF 25V5 x 11mm
47µF 50V6 x 11mm
100µF 16V5 x 11mm
100µF 25V*5 x 11mm
220µF 10V5 x 11mm
220µF 25V*6 x 11mm
330µF 25V8 x 12mm
470µF 10V6 x 11mm
470µF 16V*8 x 12mm
680µF 16V*8 x 12mm
1000µF, 10V or 16V*10 x 16mm

Datasheets

Quick Start guide: kit contents, polarity and voltage choice PDF

What's in the box

1×
Electrolytic capacitor assortment, 24 values

Sorted by value into a clear 24-compartment case with a snap-shut lid. The case is plain, with no label.

Great for

Decoupling an Arduino or ESP32 regulator with 10µF and 100µF caps
Bulk capacitance on a servo, motor or LED strip supply with 470µF to 1000µF
Replacing low-voltage caps on TV, monitor, audio and game console boards
555 timer and RC timing experiments with 1µF to 100µF
Audio coupling between stages with 1µF to 47µF
Stocking a school, club or maker-space parts drawer

Wiring & getting started

  1. Find the negative lead

    The stripe with minus signs marks the negative lead, which is also the shorter one. Fitting an electrolytic backwards can damage it.

  2. Pick the value and voltage

    Choose a voltage rating comfortably above your circuit, ideally 1.5 times or more. Any cap here suits a 5V rail; a 12V rail needs a 25V or 50V cap; on 24V use only caps printed 50V.

  3. Fit and solder

    The radial leads drop into a breadboard or 0.1in protoboard. Line the stripe up with the negative pad, then solder and trim.

  4. Put spares back

    Return each cap to its own compartment so the values stay sorted for next time.

Note: Values marked * are listed as the kit is laid out and we are still confirming them against our stock, so read the value and voltage printed on the can before fitting it. Can colours and makers vary between compartments, can sizes are approximate, and caps can shift between compartments in transit.

Frequently Asked Questions

Answers to the questions buyers ask most.

What values and voltages are in the kit?
24 values: 0.1µF, 0.22µF, 0.47µF, 1µF, 2.2µF, 3.3µF and 4.7µF at 50V; 10µF at 25V and 50V; 22µF at 16V and 25V; 33µF at 16V; 47µF at 10V, 25V and 50V; 100µF at 16V and 25V; 220µF at 10V and 25V; 330µF at 25V; 470µF at 10V and 16V; 680µF at 16V; and 1000µF at 10V or 16V. The description lists the can size for each, and every can is printed with its value and voltage.
Which voltage rating should I use?
Pick a rating comfortably above the highest voltage in your circuit, ideally 1.5 times or more. Every cap in the kit suits a 5V rail. On 12V use a 25V or 50V cap. On 24V use only caps printed 50V. A higher rating than you need is always fine.
Will they fit my board?
They are radial through-hole cans with two leads. The small values are about 4mm across and 7mm tall, the mid values 5 or 6mm across and 11mm tall, 330µF to 680µF about 8 x 12mm, and 1000µF about 10mm across and 16mm tall. Check the footprint diameter and the height above the board if space is tight.
Can I use these to recap a TV, monitor or power supply?
Yes for the low-voltage caps on those boards, up to 1000µF and 50V. Replace like with like: the same capacitance and the same or a higher voltage, read off the can. Mains-side caps and anything rated above 50V are not in this kit.
Which lead is negative?
The lead under the stripe with minus signs printed down the can. It is also the shorter lead. If the leads have been trimmed, go by the stripe.
Why are the cans different colours?
The values come from more than one maker, so sleeve colours differ between compartments: black, teal and green. Colour means nothing electrically; go by the value and voltage printed on each can.
