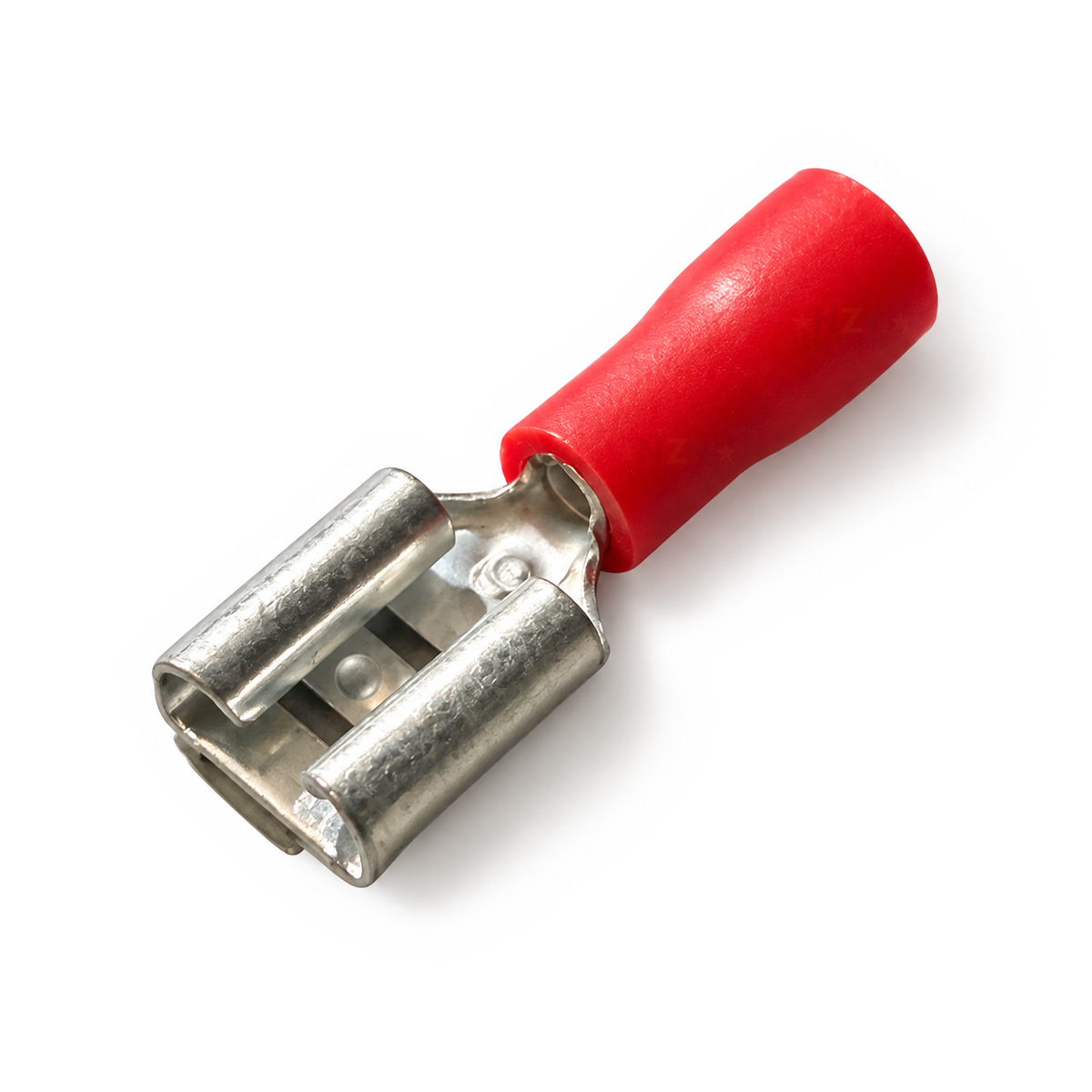

FDD1.25-250 female spade terminal with red insulated barrel and exposed metal receptacle, angled view

FDD1.25-250 Female Spade Terminals - Red 6.35mm

$0.35 NZD
each Save 10% at 10+
Skip to product information
FDD1.25-250 female spade terminal with red insulated barrel and exposed metal receptacle, angled view
  • FDD1.25-250 female spade terminal with red insulated barrel and exposed metal receptacle, angled view

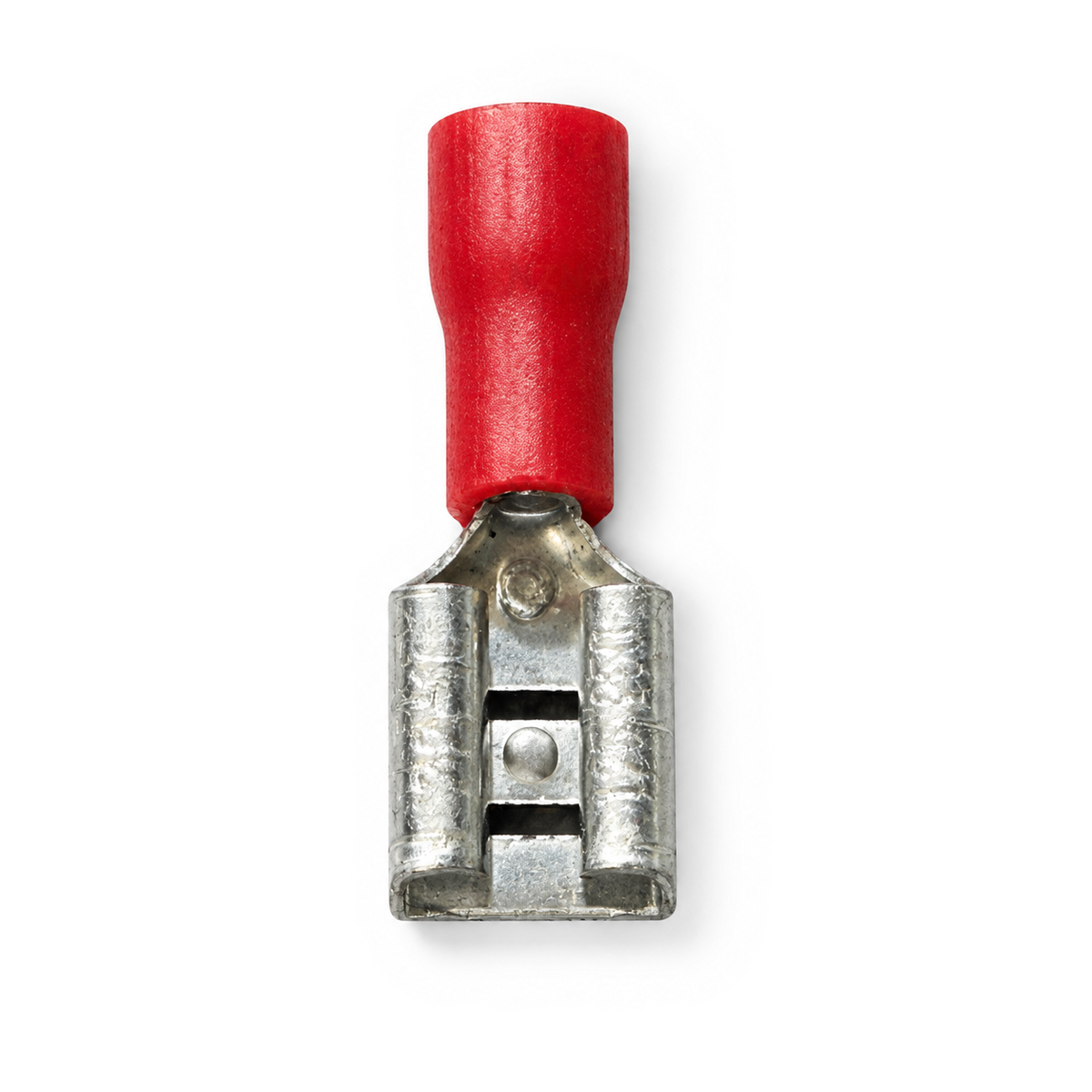

  • Top view of one FDD1.25-250 terminal showing the paired contact rails, openings and red wire sleeve

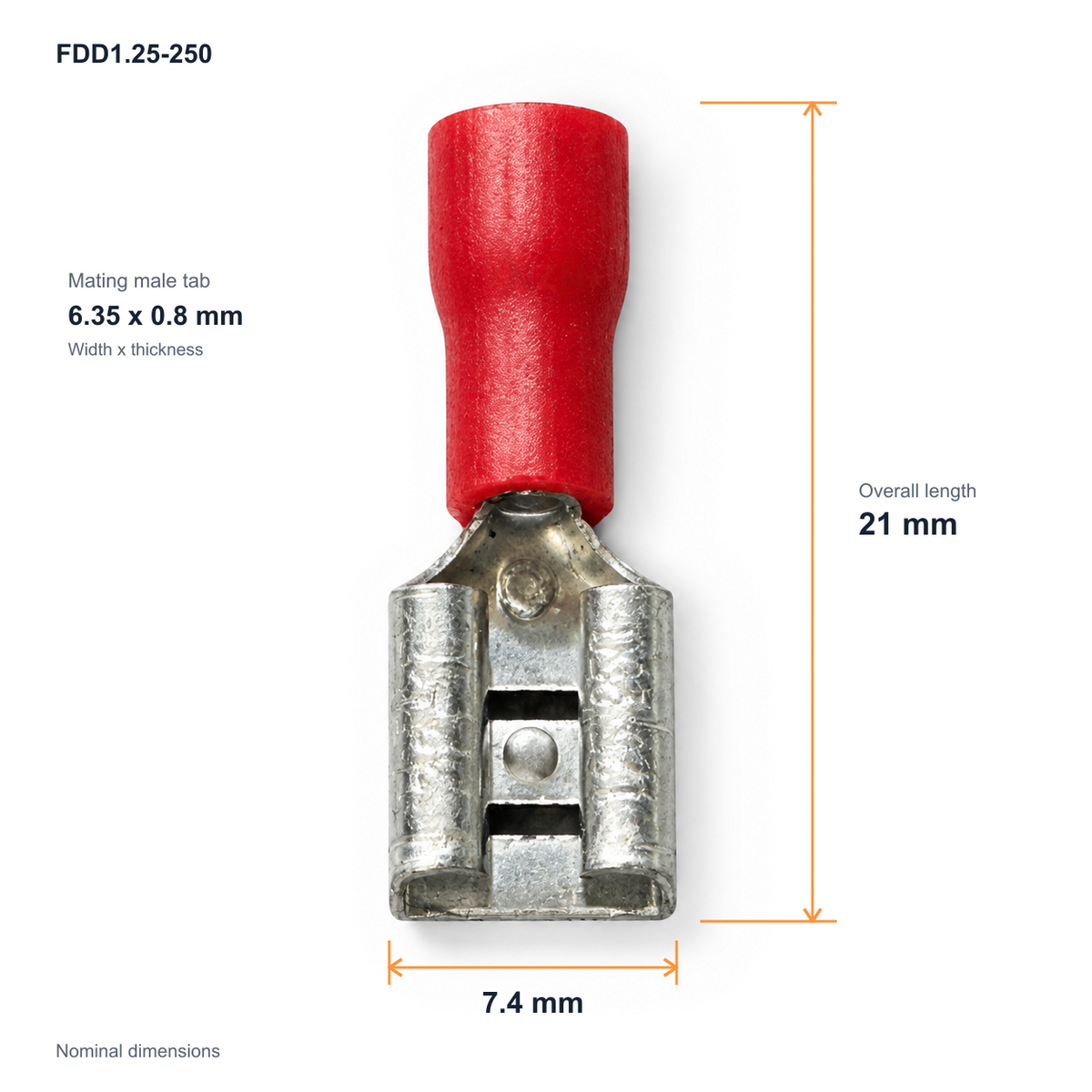

  • FDD1.25-250 nominal dimensions: 21 mm long, 7.4 mm wide, for a 6.35 x 0.8 mm male tab
FDD1.25-250 Female Spade Terminals - Red 6.35mm
SKU: SPD-FEM-RED-FDD

FDD1.25-250 Female Spade Terminals - Red 6.35mm

$0.35 NZD
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Minimum order quantity: 5

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

The FDD1.25-250 female spade terminal makes a removable wire connection to a 6.35 x 0.8 mm male blade tab. Its red sleeve covers the crimp barrel, with a conductor range of 0.5-1.5 mm² for small wiring and repair projects.

Specifications

ModelFDD1.25-250
Connection typeFemale spade quick disconnect
Mating male tab6.35 x 0.8 mm, width x thickness
Conductor cross-section0.5-1.5 mm²
Overall length21 mm nominal
Receptacle width7.4 mm nominal
Insulation coverageRed sleeve over the wire barrel
Wire terminationCrimp
Purchase unitOne terminal

Datasheets

Full technical datasheet PDF

What's in the box

1×
FDD1.25-250 red female spade terminal

Sold individually. Minimum order: 5 terminals. Your selected quantity is supplied together.

Great for

Removable wire-to-tab connections
Replacing a damaged female spade terminal
Preparing wiring for correctly sized blade tabs

Wiring & getting started

  1. Check the fit with power disconnected

    Match the male tab's width and thickness to 6.35 x 0.8 mm. Select wire with a conductor cross-section of 0.5-1.5 mm² and confirm its insulation fits the sleeve.

  2. Prepare the wire and crimping tool

    Use a tool and die intended for insulated terminals and your wire size. Strip to the wire-barrel length without cutting strands, then insert the conductor fully.

  3. Crimp and inspect

    Crimp the wire barrel according to the tool instructions. Check for escaped strands, damaged insulation or a distorted receptacle. Confirm that the wire is secure and the terminal seats firmly on the tab.

  4. Protect the exposed contact

    The metal receptacle remains uncovered. Fit suitable insulation or an enclosure where it could touch adjacent conductors or be touched during use. Disconnect power before fitting or removing the terminal.

Frequently Asked Questions

Answers to the questions buyers ask most.

Which male blade tab does this terminal fit?
Use a 6.35 x 0.8 mm male blade tab, measured as width x thickness. Check both dimensions and confirm a firm fit with power disconnected.
What wire size should I use?
Use wire with a conductor cross-section of 0.5-1.5 mm². Also check that its insulation fits the red sleeve and that your crimping die suits the terminal and wire size.
Which part is insulated?
The red sleeve covers the wire barrel. The metal receptacle remains exposed, so fit suitable insulation or an enclosure where contact with adjacent conductors or people could occur.
Do I need a crimping tool?
Yes. Use a tool and die intended for insulated terminals and your chosen wire size. Follow the tool instructions and inspect the finished crimp before applying power.
Does a quantity of one mean one terminal or a pack?
One unit means one terminal. The minimum order is 5 terminals, and your selected quantity is supplied together.
