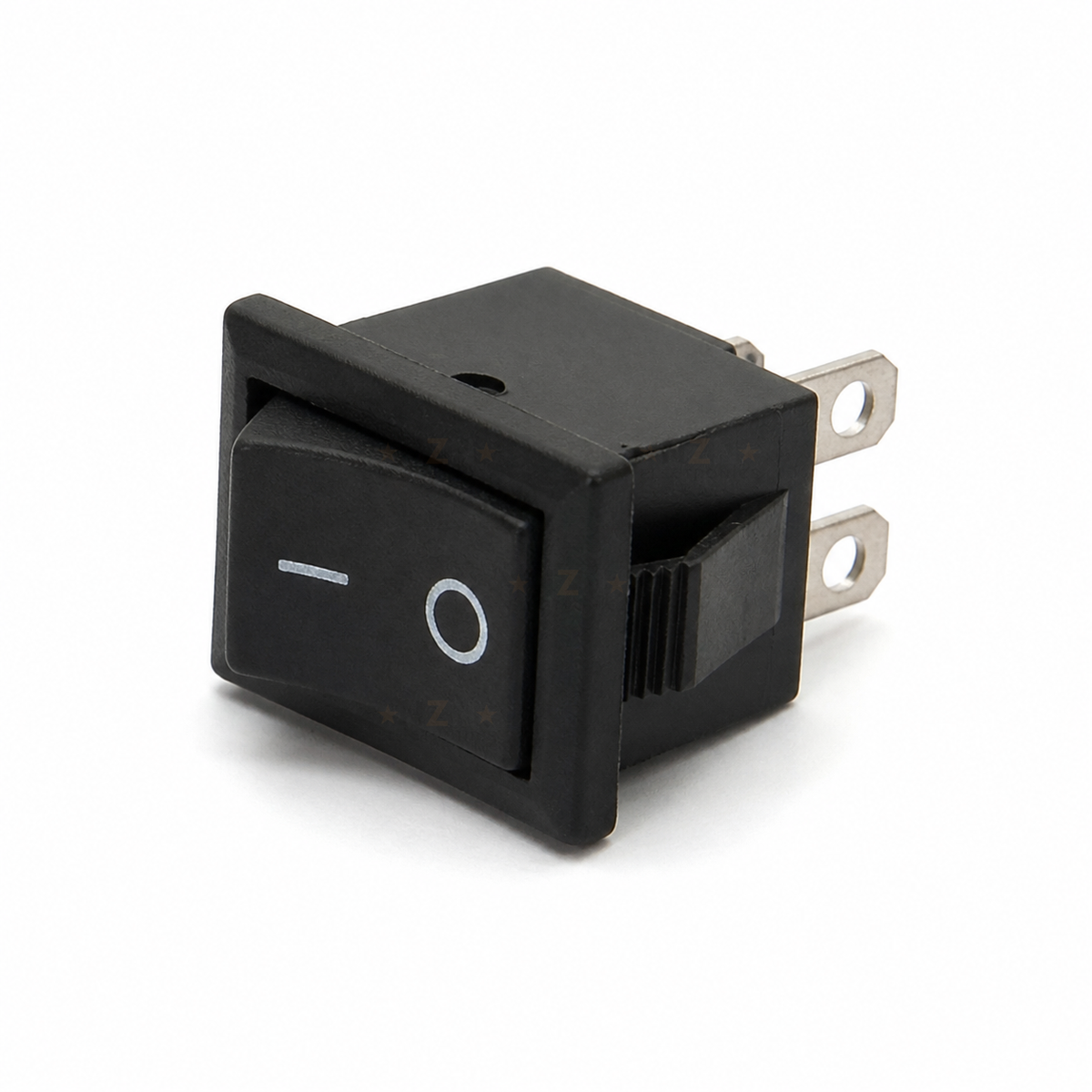

KCD1 21x15mm black rocker switch, three-quarter view showing two terminals

KCD1 21x15mm Rocker Switch - ON/OFF, 6A 250VAC

$1.85 NZD
Save 3% at 5+
Skip to product information
KCD1 21x15mm black rocker switch, three-quarter view showing two terminals
  • KCD1 21x15mm black rocker switch, three-quarter view showing two terminals

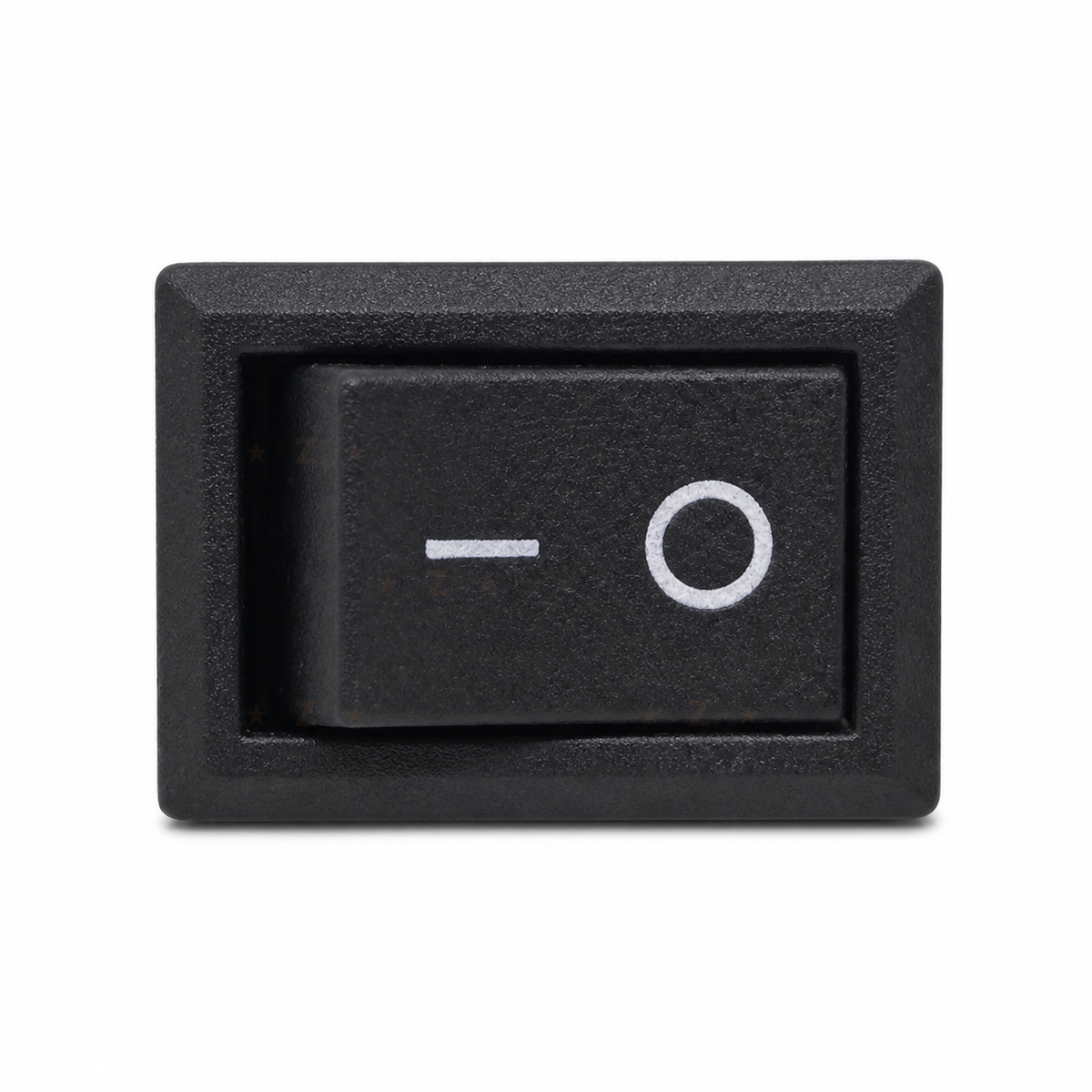

  • KCD1 21x15mm black rocker switch, straight-on I/O actuator view

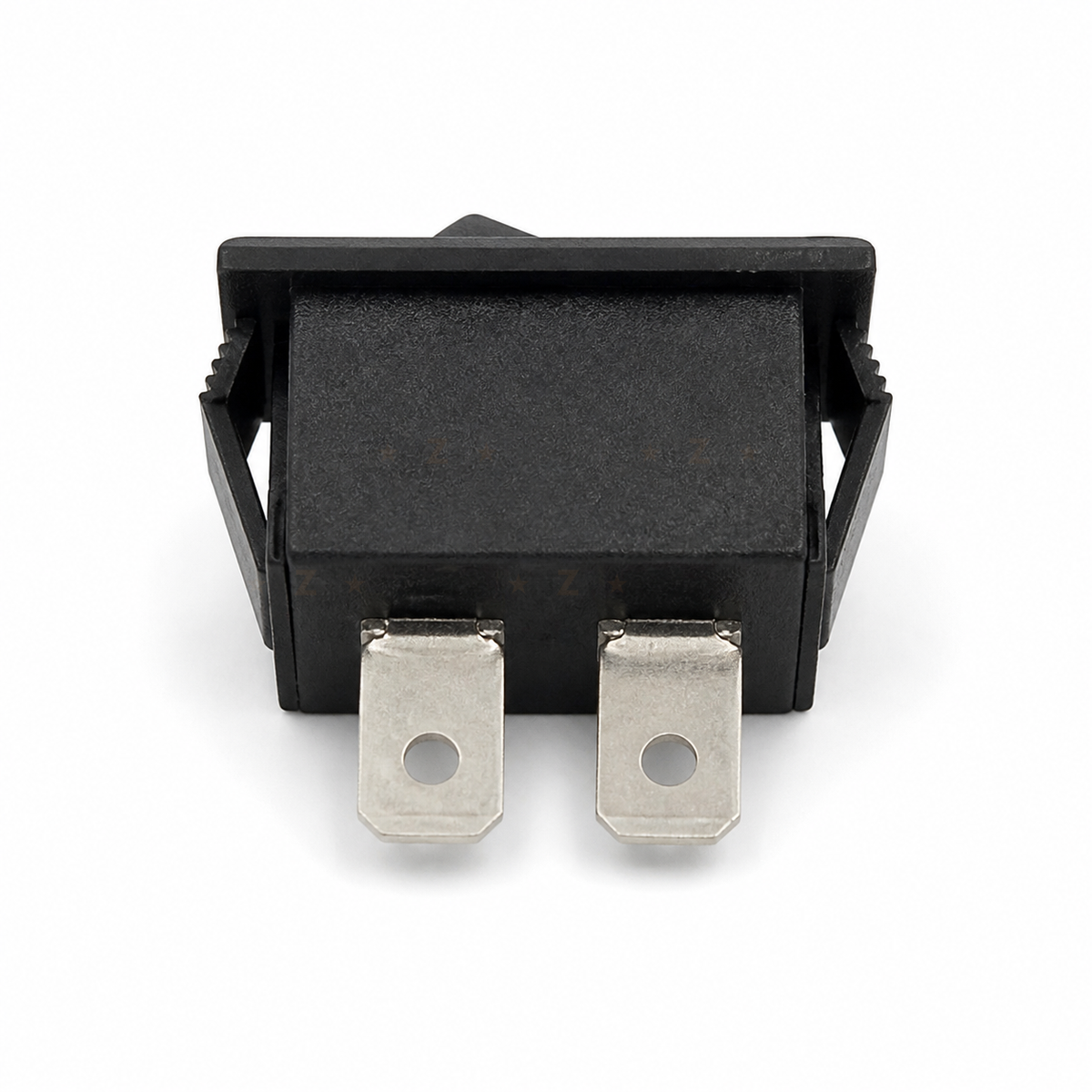

  • KCD1 rocker switch rear construction with two blade terminals and snap clips

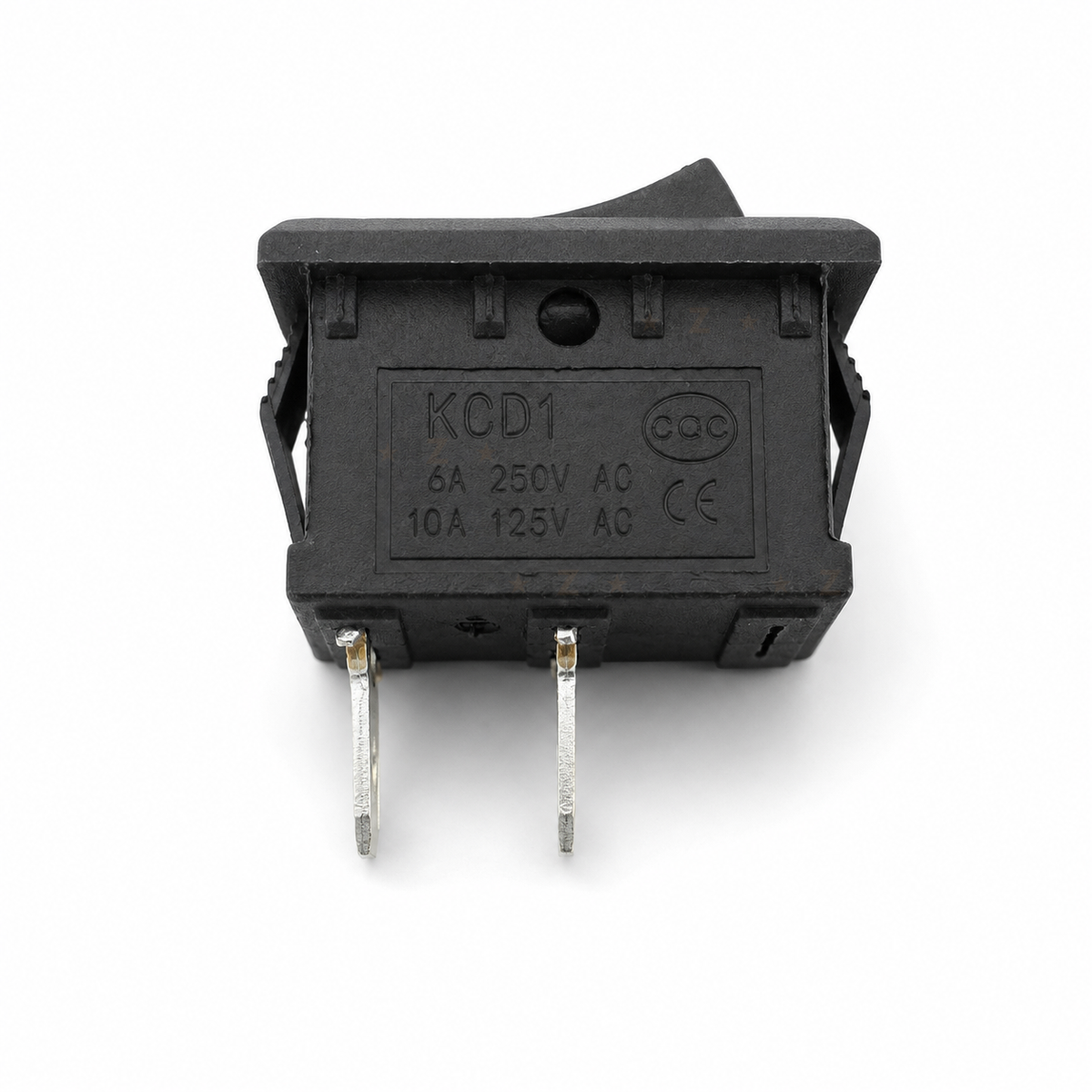

  • KCD1 rocker switch side view showing 6A 250VAC and 10A 125VAC markings

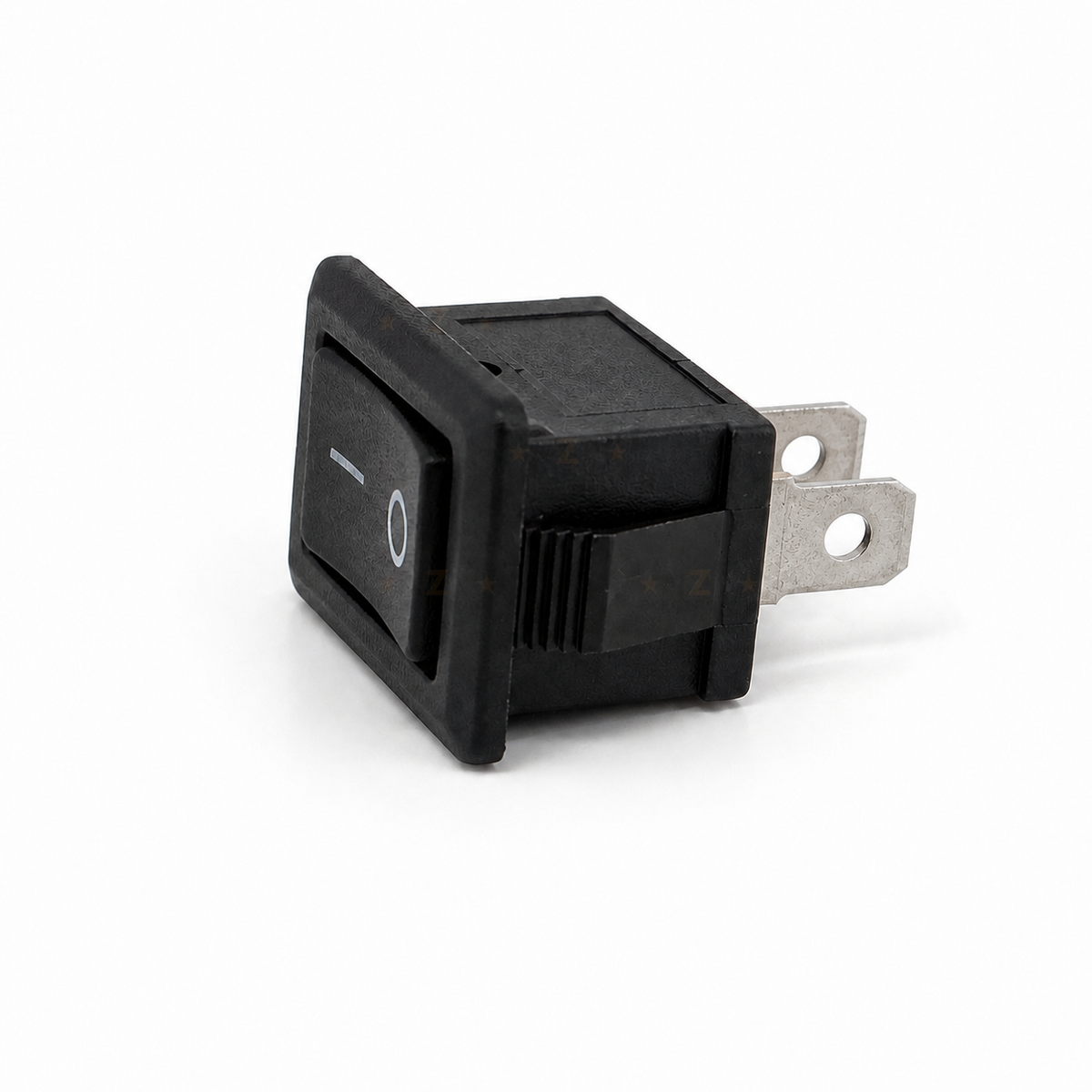

  • KCD1 rectangular rocker switch side profile and snap-in mounting clip

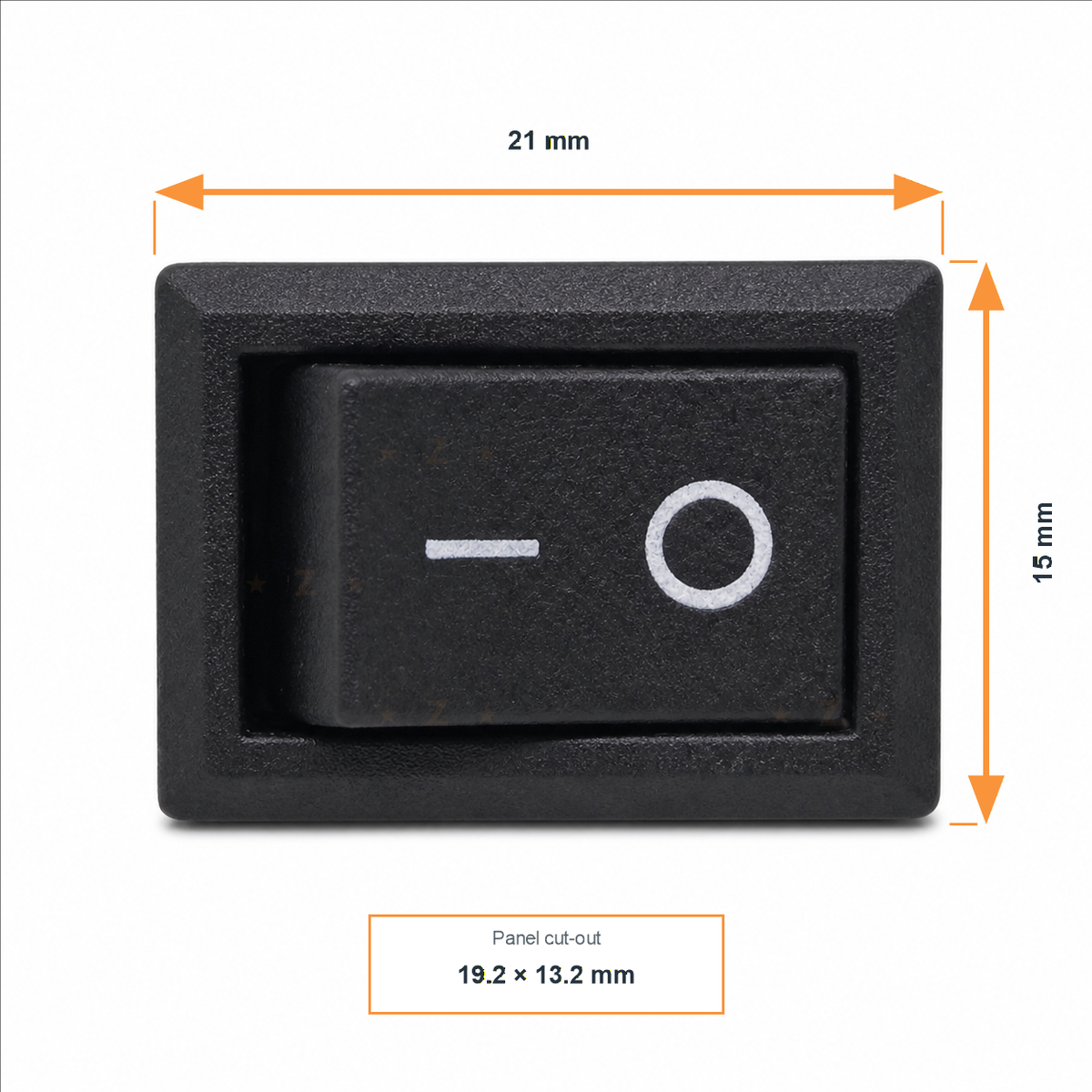

  • KCD1 rectangular rocker switch dimensions, 21mm by 15mm front face
KCD1 21x15mm Rocker Switch - ON/OFF, 6A 250VAC
SKU: SW-KCD1-21X15-BLK

KCD1 21x15mm Rocker Switch - ON/OFF, 6A 250VAC

$1.85 NZD
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A compact black KCD1 rocker switch for maintained ON/OFF control in project enclosures, control panels and appliance repairs. It has a 21 x 15 mm front face, two non-polarised terminals and stock markings of 6 A at 250 VAC or 10 A at 125 VAC.

Specifications

Model markingKCD1
Contact configurationSPST
Switch actionMaintained ON/OFF
Positions2
Terminals2 blade / solder lugs
Stock marking6 A 250 VAC
Alternate marking10 A 125 VAC
Front face21 x 15 mm
Panel opening18.8 x 12.7 mm nominal
Body depth13.2 mm nominal
Blade width4.8 mm nominal
MountingSnap-in panel clips
IlluminationNone
ColourBlack
Actuator markingI / O

Datasheets

Full technical datasheet PDF

What's in the box

1×
KCD1 21 x 15 mm rocker switch

Black, non-illuminated, two-terminal SPST version.

Great for

Project enclosure power control
Control panels
Appliance repairs
Bench and hobby equipment

Wiring & getting started

  1. Prepare the panel

    Use the nominal 18.8 x 12.7 mm opening as a starting point, then trial-fit a sample before cutting a production panel.

  2. Connect the switched conductor

    Connect one side of the conductor to each terminal. The two terminals are not polarised.

  3. Check the contact state

    Press I for a closed contact and O for an open contact. Isolate power before checking or changing wiring.

Note: For mains work, switch the active conductor rather than protective earth. Use a suitable enclosure, insulated terminals, strain relief and wiring rated for the circuit. Mains installation should be completed by a suitably qualified person.

Frequently Asked Questions

Answers to the questions buyers ask most.

Is this the KCD1 or the smaller KCD11 switch?
This is the 21 x 15 mm KCD1 rectangular switch. It is not the smaller 15 x 10 mm KCD11 type.
Does the switch light up?
No. This is a non-illuminated black rocker switch.
How are the two terminals wired?
Connect one side of the conductor being switched to each terminal. The terminals are not polarised. Press I to close the contact and O to open it.
What panel opening should I use?
The reference opening is 18.8 x 12.7 mm. Panel thickness and tool tolerance affect the fit, so trial-fit one switch before cutting a production panel.
Can it be used on 230 V mains?
The stock is marked 6 A 250 VAC and 10 A 125 VAC. For mains work, use a suitable enclosure, insulated terminals, strain relief and correctly rated wiring, and have installation completed by a suitably qualified person.
