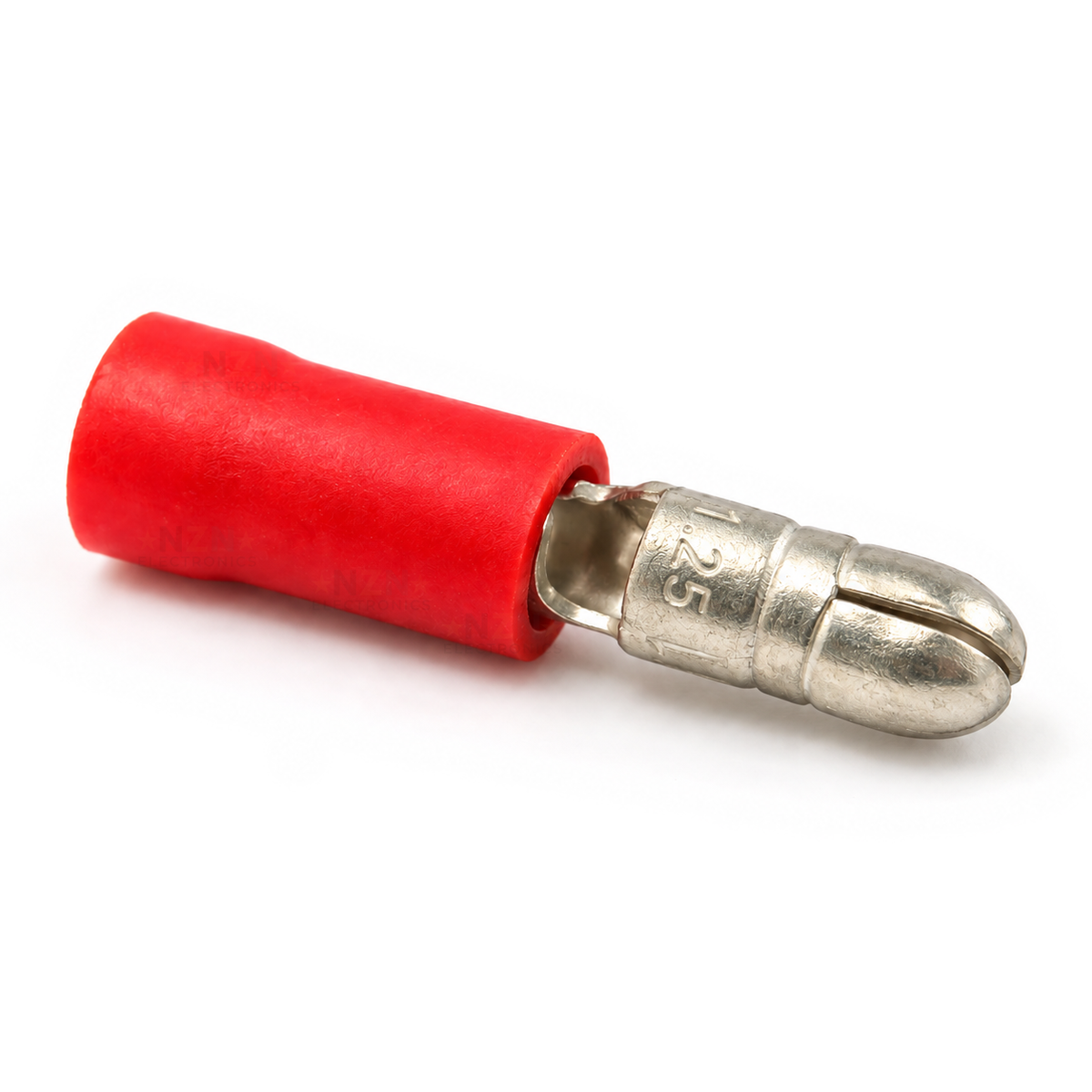

Red MPD1.25-156 male bullet connector with slotted bullet tip and red insulated crimp barrel

MPD1.25-156 Male Bullet Connectors - Red 4mm

$0.35 NZD
each Save 10% at 10+
Skip to product information
Red MPD1.25-156 male bullet connector with slotted bullet tip and red insulated crimp barrel
  • Red MPD1.25-156 male bullet connector with slotted bullet tip and red insulated crimp barrel

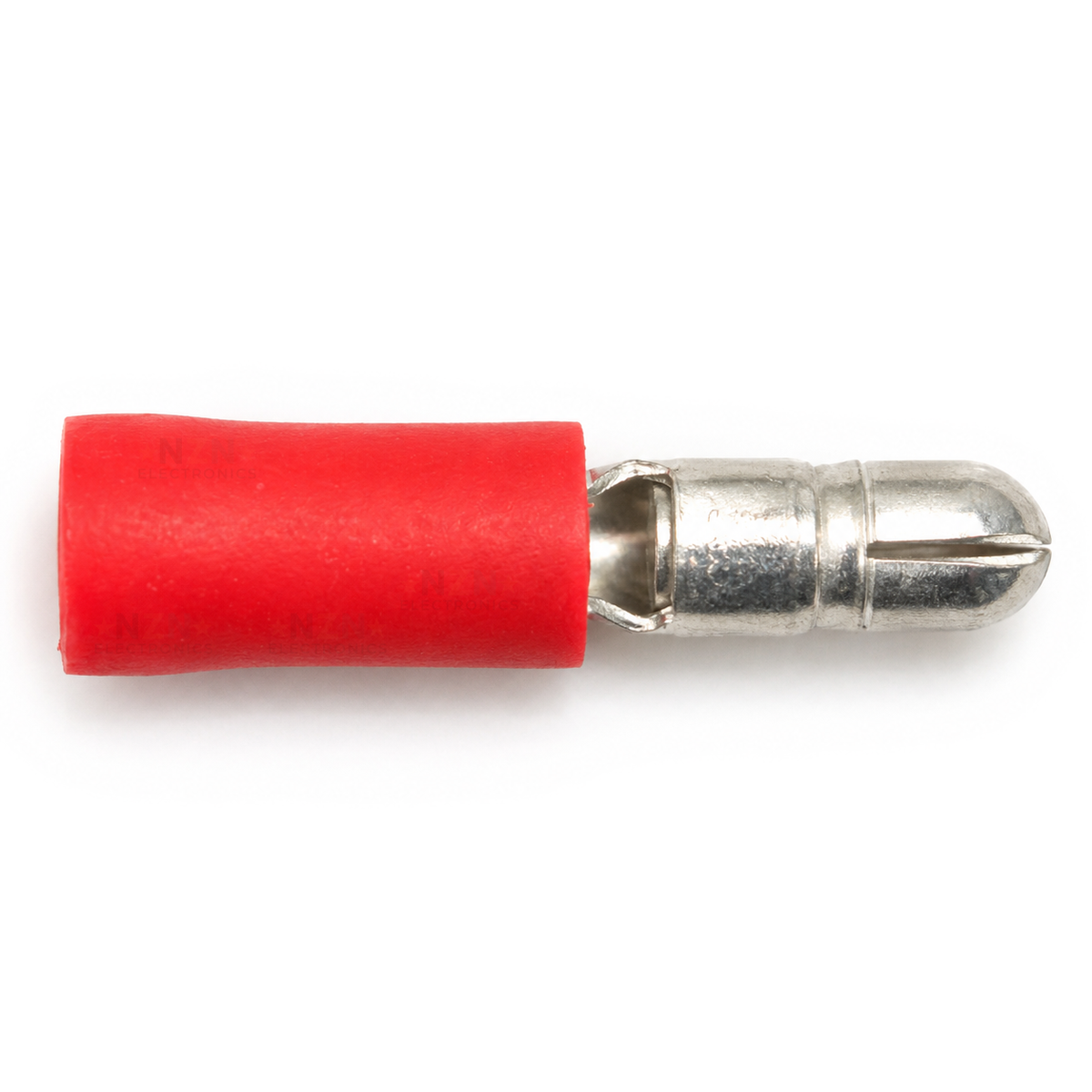

  • Top view of the red male bullet connector showing the sleeve, ring groove and domed bullet nose

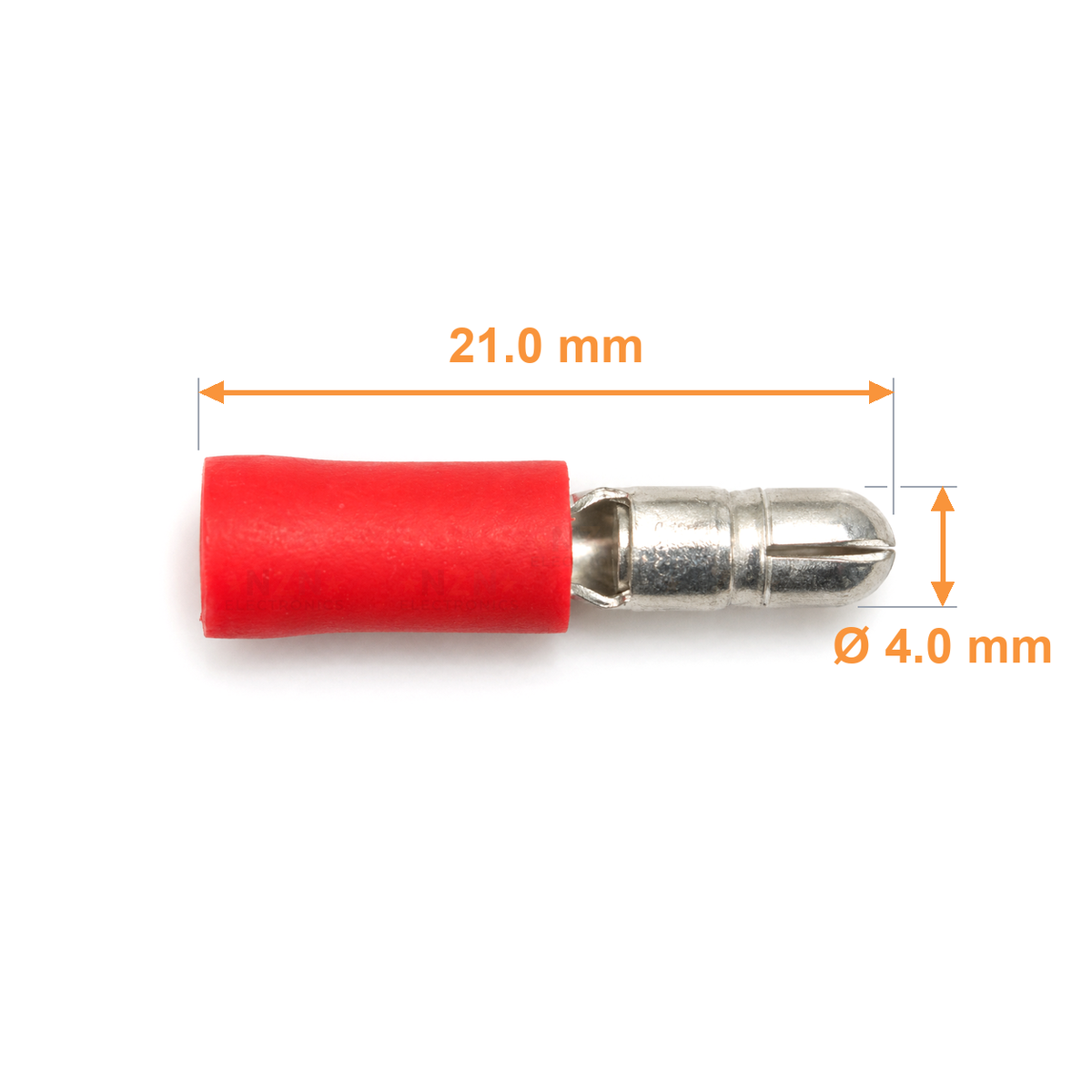

  • MPD1.25-156 red male bullet dimensions: overall length 21.0 mm, bullet diameter 4.0 mm
MPD1.25-156 Male Bullet Connectors - Red 4mm
SKU: BC-MAL-RED

MPD1.25-156 Male Bullet Connectors - Red 4mm

$0.35 NZD
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Minimum order quantity: 5

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

The MPD1.25-156 is a red male bullet crimp connector with a 4 mm bullet and a slotted spring tip. It pushes into a matching 4 mm female bullet, such as a red FRD1.25-156, to make a joint you can pull apart later. The red sleeve covers the crimp barrel and suits wire from 0.5 to 1.5 mm².

Specifications

ModelMPD1.25-156
Connection typeMale bullet, crimp
Bullet size4 mm nominal (156 series)
Bullet tipSlotted spring tip
Mates withMatching 4 mm female bullet, such as FRD1.25-156
Conductor cross-section0.5-1.5 mm²
Insulation coverageRed sleeve over the wire barrel, bullet exposed
Sleeve colourRed
Purchase unitOne connector, minimum 5

Datasheets

Full technical datasheet PDF

What's in the box

1×
MPD1.25-156 red male bullet connector

Sold individually. Minimum order: 5 connectors. Your selected quantity is supplied together. Female bullets are not included.

Great for

Repairing a bullet joint on a motorbike, trailer or car light lead
Adding a plug-apart joint to a 12V accessory lead
Unpluggable leads for 12V lamps and car speakers

Wiring & getting started

  1. Check the sizes with power off

    Use wire with a conductor of 0.5 to 1.5 mm² and check that its insulation fits the red sleeve. The female half must be a 4 mm bullet of the same series.

  2. Strip and crimp

    Use a crimping tool and die made for insulated terminals and your wire size. Strip to the length of the wire barrel without cutting strands, push the conductor fully in, then crimp the red barrel.

  3. Inspect and join

    Check for loose strands or a split sleeve and give the wire a firm tug. Push the bullet fully into the female until the sleeves meet.

  4. Keep the bullet covered

    The bullet is bare metal. Put it on the side of the circuit that is not live when unplugged, usually the load side, and cover the joint if it could touch other conductors.
Related guide Crimp Terminal Colour Codes: Wire Sizes and How to Crimp ProperlyWhat red, blue and yellow crimp terminals fit, how to match them to your wire, when to use butt, spade, ring or bullet terminals, and how to make a crimp tha...

Frequently Asked Questions

Answers to the questions buyers ask most.

What does this male bullet plug into?
A matching 4 mm female bullet of the same series, such as a red FRD1.25-156. We don't stock the red female at the moment, so check your existing female is a 4 mm bullet before ordering.
What wire size suits it?
Wire with a conductor of 0.5 to 1.5 mm². Check that the wire insulation fits inside the red sleeve and that your crimp die suits the wire.
What is the slot in the tip for?
It lets the tip squeeze slightly as it goes into the female, which keeps the joint tight so it doesn't fall out.
Is the bullet insulated?
No. The red sleeve covers only the crimp barrel. Fit the male on the side that is not live when the joint is pulled apart, and cover the joint if it could touch other conductors.
Do I need a crimping tool?
Yes. Use a crimper with a die for insulated terminals, usually the red position. Pliers squash the sleeve and give a weak joint.
Does a quantity of one mean one connector?
Yes, one unit is one male connector. The minimum order is 5, with discounts at 10, 20 and 30.
