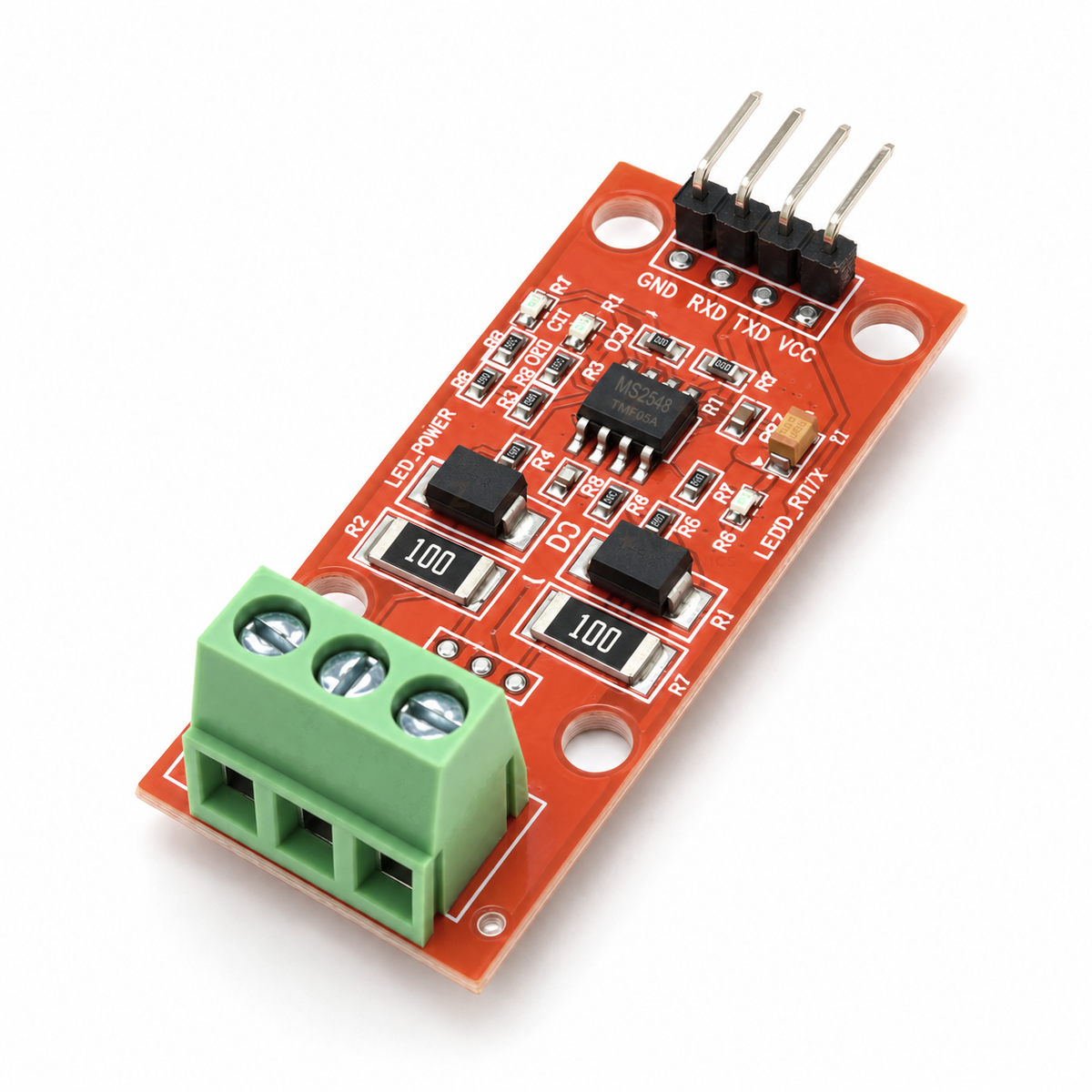

MS2548 TTL to RS485 5V module with the green three-way bus terminal in the foreground and the four-pin GND, RXD, TXD, VCC header behind

MS2548 TTL to RS485 Auto Direction Module - 5V

$3.94 NZDRegular price $4.69 NZD15% off
Skip to product information
SKU: MOD-MS2548-RS485

MS2548 TTL to RS485 Auto Direction Module - 5V

$3.94 NZD Regular price $4.69 NZD15% off Black Friday Ends Monday 30 November
Availability:
Order before 7:30am (12pm weekends) for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Easy 30-day returns · 12-month warranty

Add $50.00 for Free Urban delivery ($88.00 for Rural)
Urban $50 Rural $88

Connect a microcontroller UART to a two-wire RS485 bus with this MS2548 module. It runs from 5V, and the MS2548 transceiver switches between transmit and receive by itself, so no direction-control pin is needed. The header pins are named from the module's side: RXD is the module's input and takes your controller's TX, and TXD is its output to your controller's RX. A 5V board such as an Arduino Uno wires straight on. For a 3.3V board such as an ESP32, follow the wiring steps below.

Specifications

Board markingHW-144
TransceiverMS2548
Module supply5V DC (4.5 to 5.5V)
Header pinsRXD in, TXD out (about 5V)

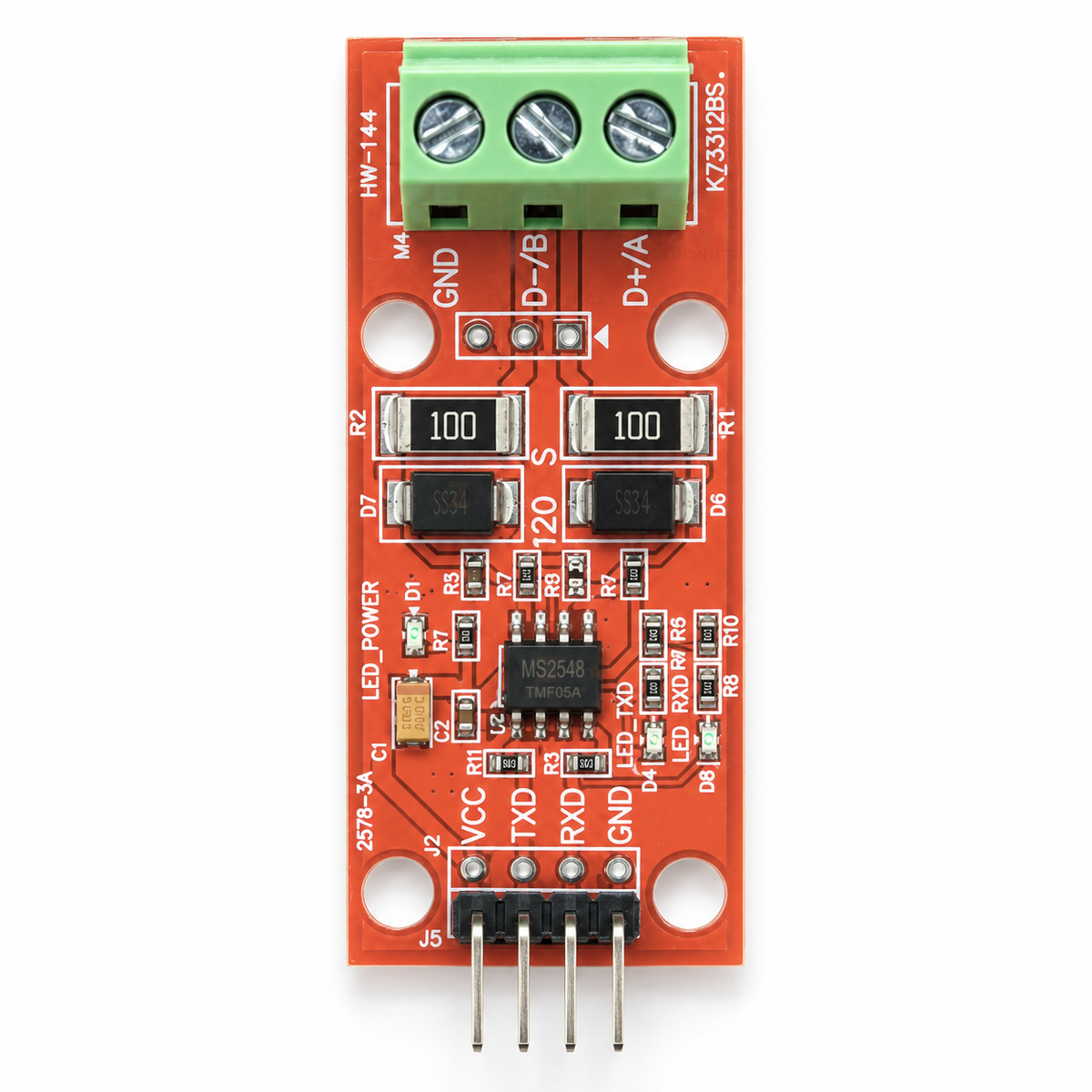

TTL interfaceVCC, TXD, RXD, GND
RS485 interfaceD+/A, D-/B, GND
Bus modeTwo-wire half duplex
Direction controlAutomatic, in the transceiver
Bus loading1/4 unit load, up to 128 nodes
Status LEDsPower, TXD and RXD
Termination120 ohm via 120_S bridge

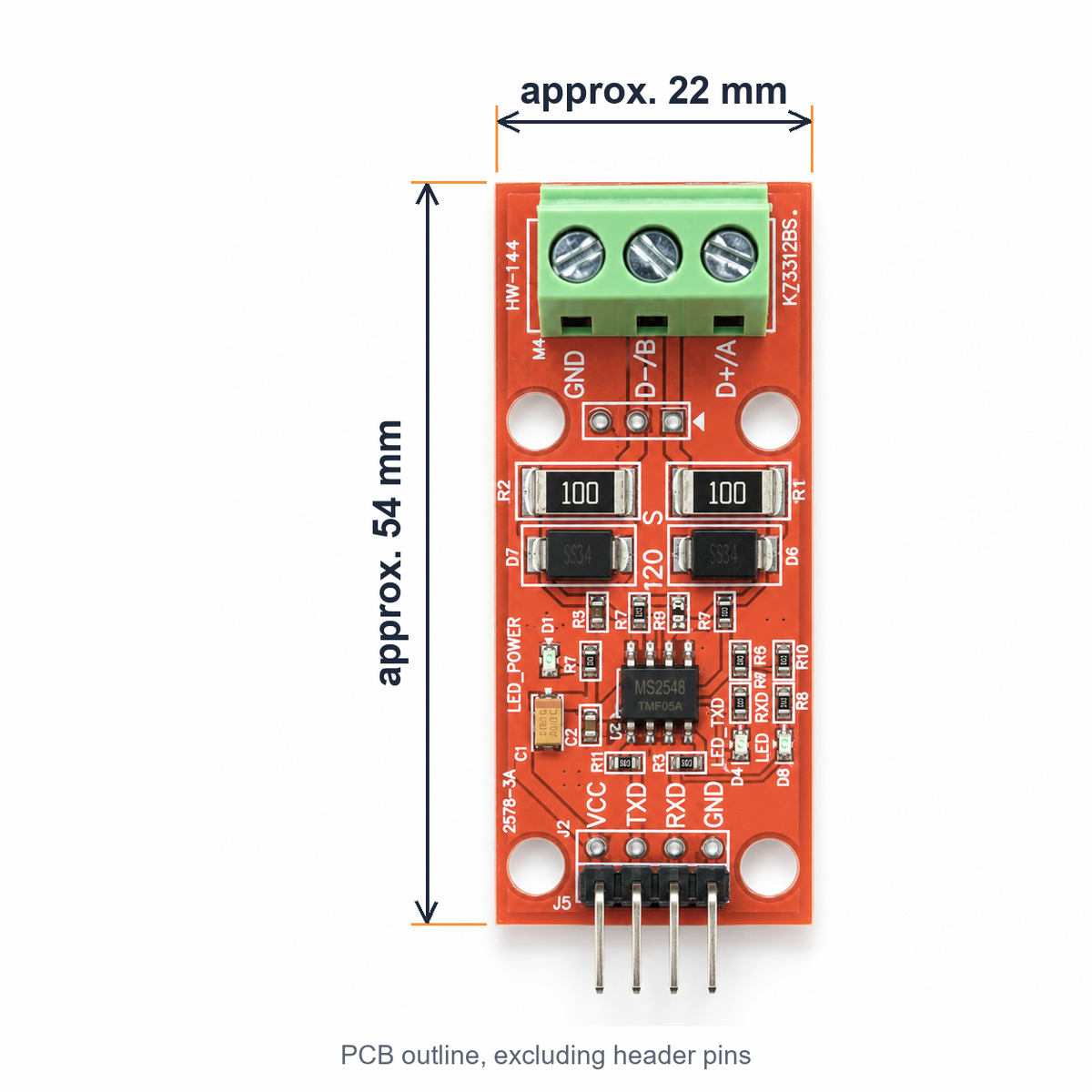

Board sizeAbout 54 x 22 mm

Datasheets

What's in the box

1×
MS2548 TTL to RS485 module

Red HW-144 board with a fitted right-angle 4-pin header and a green 3-way screw terminal.

Great for

Reading a Modbus RTU energy meter from an Arduino
Talking to a VFD or PLC serial port
Polling RS485 sensors over a long cable
Linking two microcontrollers across a workshop

Wiring & getting started

  1. Connect power with the circuit off

    Connect a regulated 5V supply to VCC and join the controller and module grounds. Do not run it from 3.3V.

  2. Check which pin is which

    Power the module from 5V with nothing connected to TXD or RXD, and measure each pin to GND. The output (TXD) reads close to the supply voltage. The input (RXD) reads lower.

  3. Connect the UART, crossed over

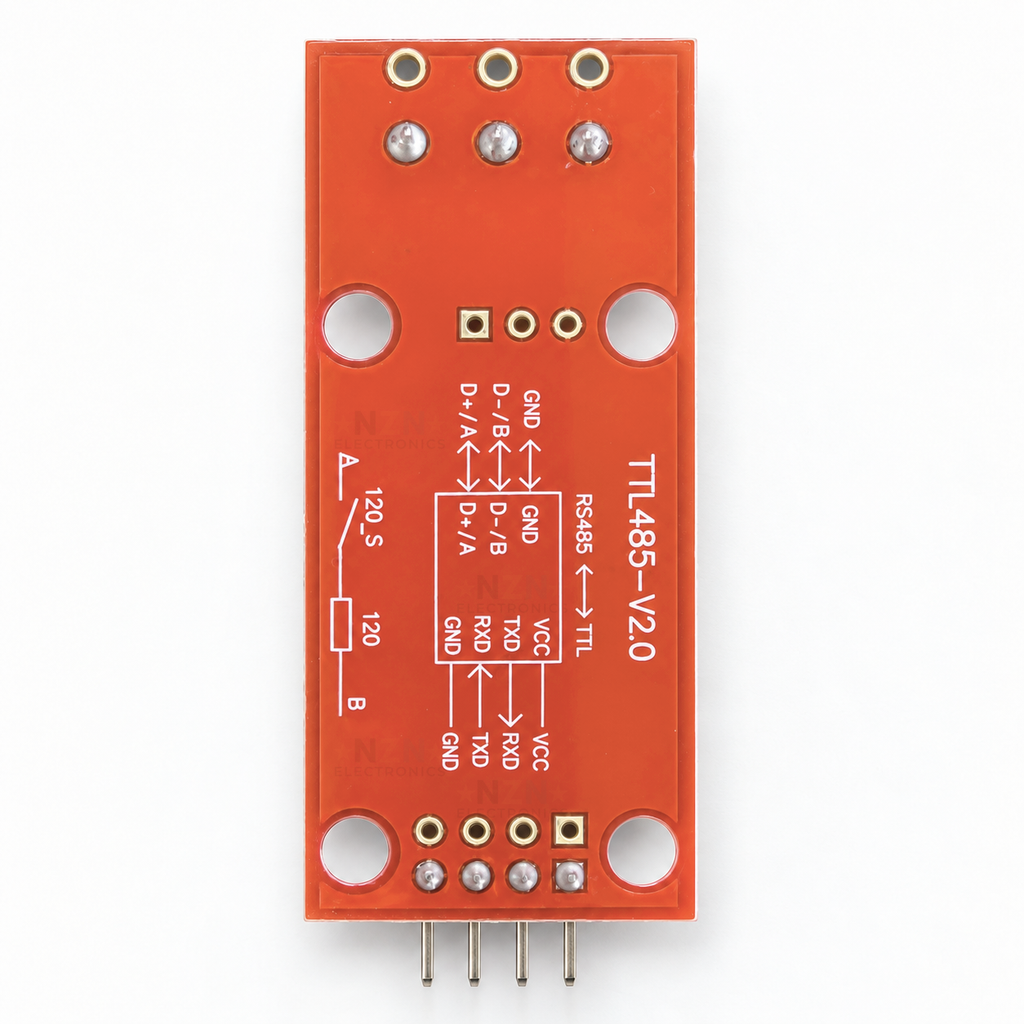

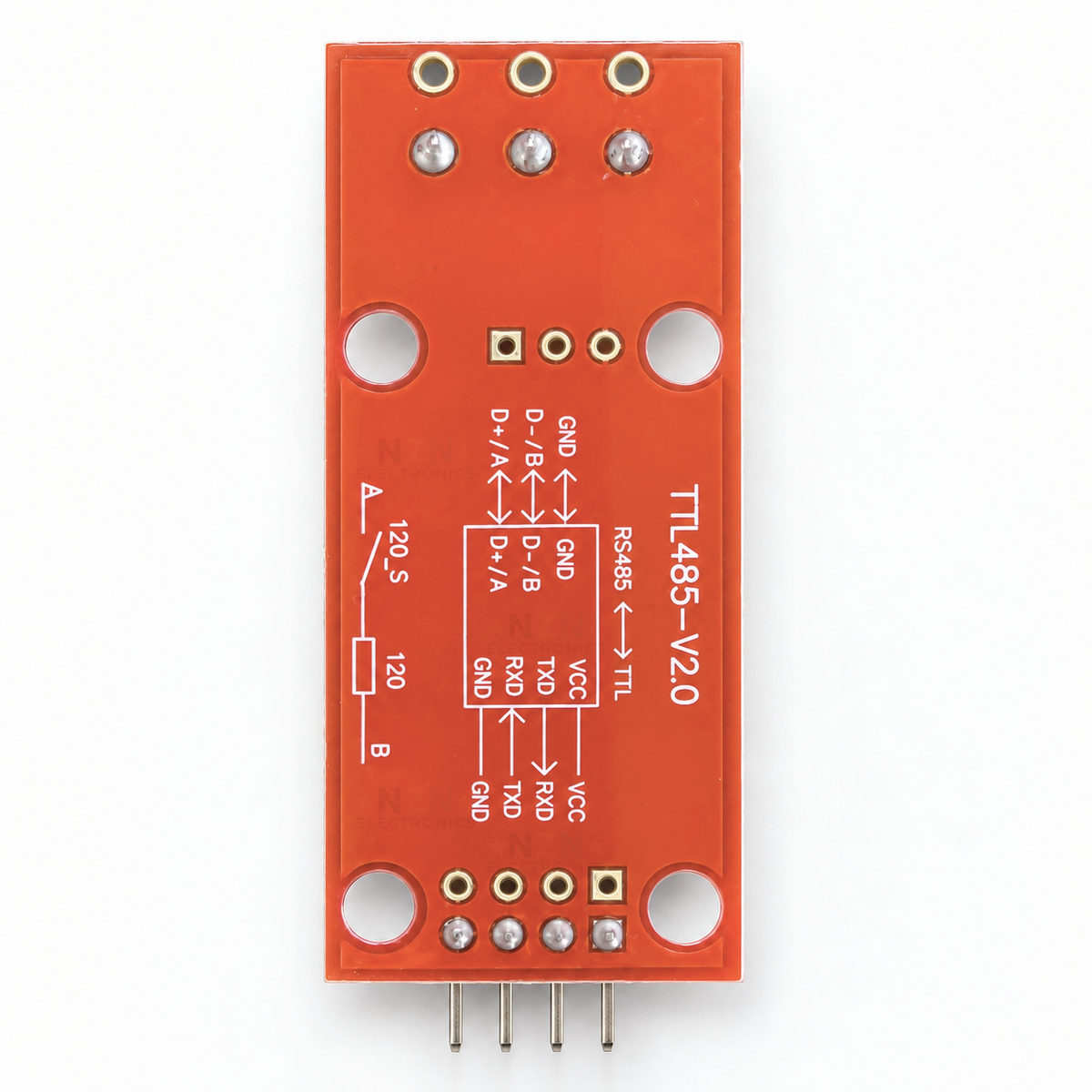

    Connect controller TX to the module's RXD and controller RX to the module's TXD, as the drawing on the back of the board shows. TXD outputs about 5V, so on a 3.3V board such as an ESP32 or Pico, bring it down with a level shifter or a divider: 10k from TXD to the controller's RX pin and 20k from that pin to GND. We have not yet confirmed that this board's RXD input reliably reads 3.3V logic, so run that line through a level shifter too.

  4. Connect the RS485 bus

    Connect D+/A to the remote A or + terminal and D-/B to the remote B or - terminal. Keep the polarity the same along the whole bus.

  5. Set termination and start slow

    Bridge 120_S only when this module is at a physical end of the cable. Start at 9600 baud and raise the speed once replies are reliable.

Frequently Asked Questions

Answers to the questions buyers ask most.

Can I use it with an ESP32 or Raspberry Pi Pico?
Yes, with some care. Power the module from 5V. Its TXD output swings to about 5V, so feed it to your board's RX through a level shifter or a 10k/20k divider. We have not yet confirmed that this board's RXD input reliably reads 3.3V logic, so use a level shifter on that line too. A 5V board such as an Arduino Uno connects directly.
Which pin does my controller's TX go to?
RXD. The header is labelled from the module's side, so controller TX goes to RXD and controller RX goes to TXD, as the drawing on the back of the board shows. To check a board, power it with nothing on the data pins: TXD reads close to the supply voltage and RXD reads lower.
Will it run from 3.3V?
No. The MS2548 transceiver is rated for 4.5V to 5.5V. Power VCC from a regulated 5V rail.
Do I need a direction-control pin?
No. The MS2548 switches between transmit and receive by itself, so only VCC, TXD, RXD and ground connect to the controller.
What baud rate can it use?
The transceiver is rated to 20 Mbps, but cable length and the automatic switching set the practical limit. Start at 9600 baud, the common Modbus RTU rate, and raise it once replies are reliable.
How many devices can share the bus?
The transceiver is a 1/4 unit load, so up to 128 devices of the same loading can share one bus. Wire them along one cable and keep A and B polarity the same at every device.
When should I enable the 120 ohm termination?
Bridge 120_S only when this module sits at a physical end of the RS485 cable. Leave it open at modules in the middle of the bus.
Is this module galvanically isolated?
No. The controller side and the RS485 side share ground. Use an isolated RS485 interface where isolation is required.
