PBS-33B 12mm Waterproof Momentary Push Button Switch
1 Pack / Black
$3.99 NZD
Skip to product information
$3.99 NZD
PBS-33B 12mm Waterproof Momentary Push Button Switch
Stock amount:
Tax included. Shipping is calculated at checkout.
Urban $40
Rural $60

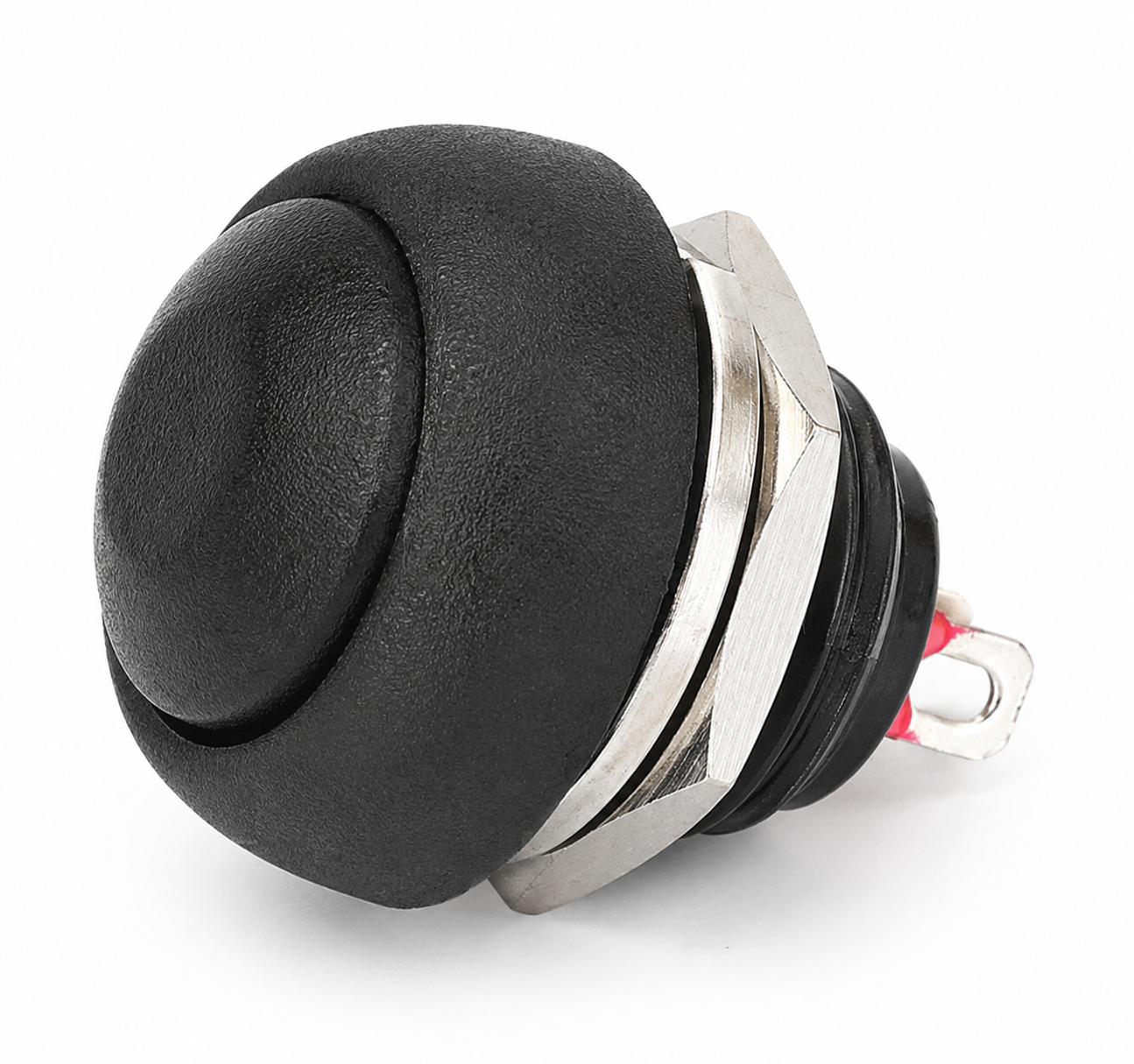

The PBS-33B is a compact waterproof momentary push button switch designed for 12mm panel mounting. It uses a self-resetting, non-locking action with 2-pin normally-open contacts, making it ideal for Arduino projects, appliance repairs, DIY electronics, toys, control panels, and low-voltage switching applications.
- 12mm panel mount push button switch
- Momentary self-reset operation
- 2-pin normally-open contact design
- Water-resistant mini plastic body
- Available in Black, Yellow, Blue, Green, Red and White
Momentary Operation
This switch is OFF by default and turns ON only while pressed. When released, it automatically returns to the OFF position. This makes it suitable for reset buttons, start buttons, signal inputs, trigger switches, and microcontroller input projects.
Please note: This is a momentary non-latching switch. It does not stay ON after being released.
Specifications
ModelPBS-33B
Switch TypeMomentary push button
OperationOFF-(ON), self-reset / non-locking
Contact TypeNormally Open (NO)

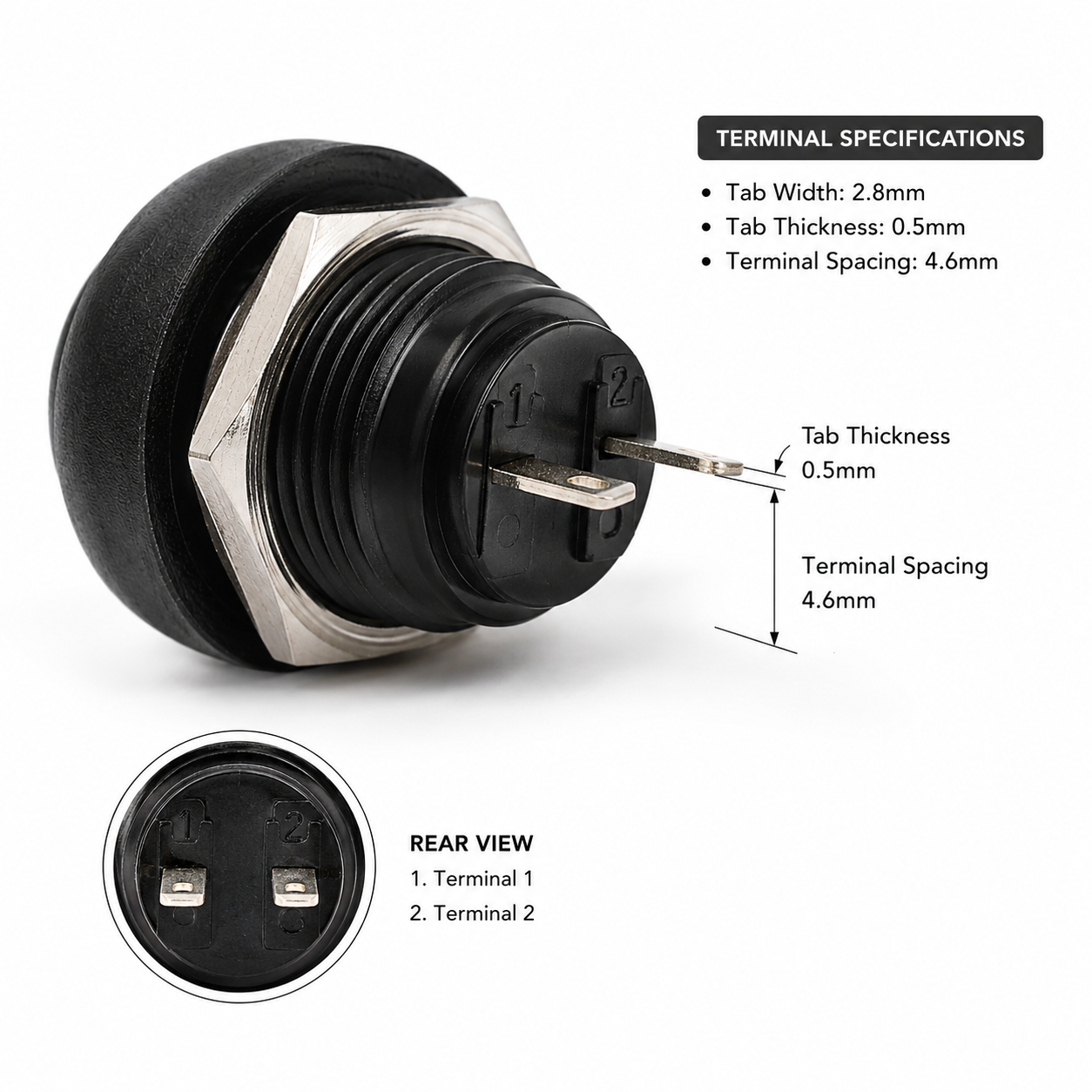

Terminals2-pin

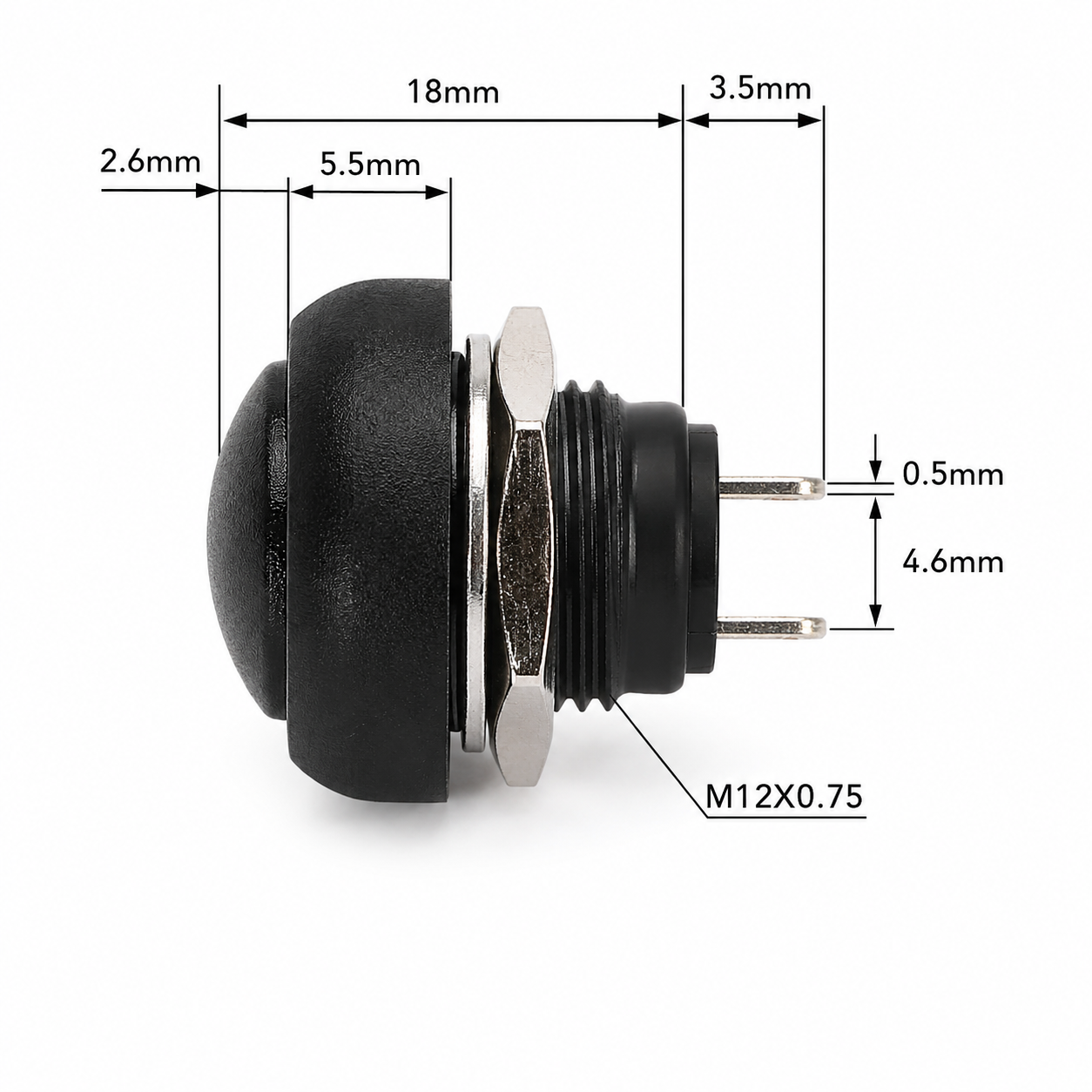

Mounting Hole12mm panel cut-out

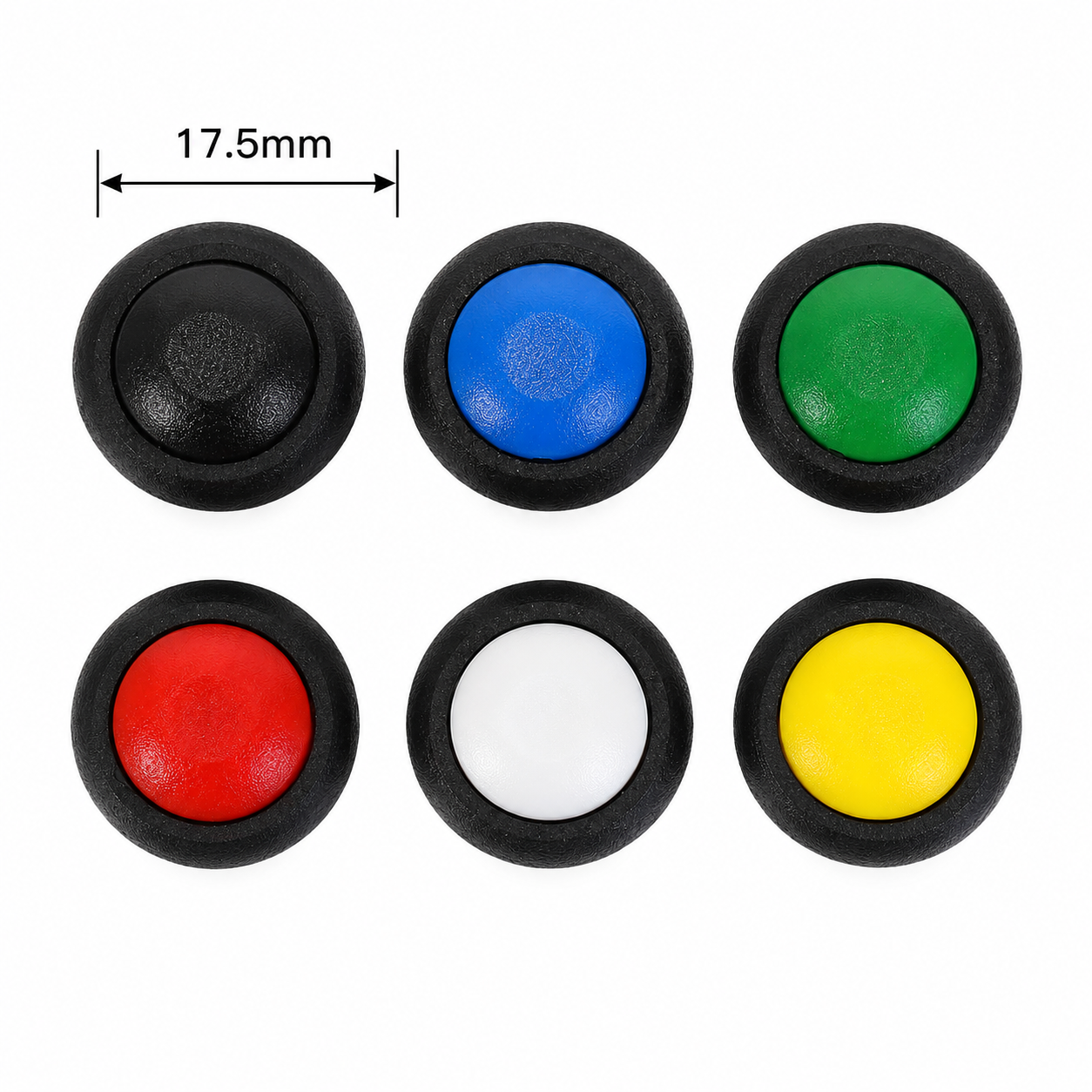

Head DiameterApprox. 17.5mm
Electrical Rating3A 125VAC / 1A 250VAC
Contact Resistance20mΩ max
Insulation Resistance500VDC 100MΩ min
Dielectric Strength1000VAC for 1 minute
Operating Temperature-25°C to +85°C
Electrical LifeUp to 50,000 cycles
Body MaterialPlastic

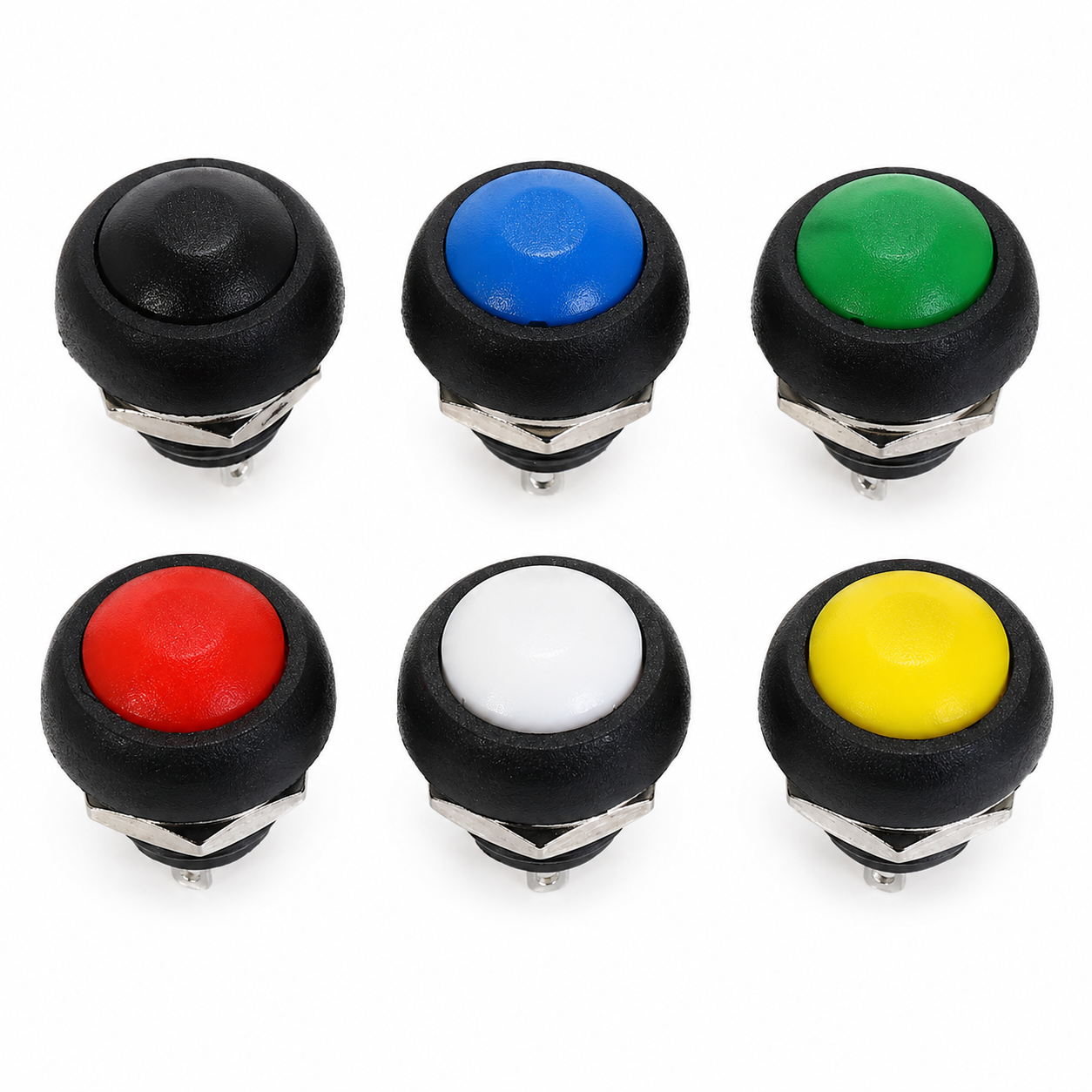

Available ColoursBlack, Yellow, Blue, Green, Red, White
CertificationRoHS
Please note: Supplier ratings may vary slightly by production batch. For microcontroller projects, use the switch as a signal input rather than switching high-current loads directly.
What's Included
1×
PBS-33B momentary push button switch
12mm panel mount, 2-pin normally-open, self-reset push button switch in your selected colour.
Please note: Wiring, connectors, panels, and development boards shown in example photos are not included.
Common Uses
Arduino and microcontroller input buttons
DIY electronics and hobby projects
Appliance control and replacement buttons
Toy repairs and small electronic devices

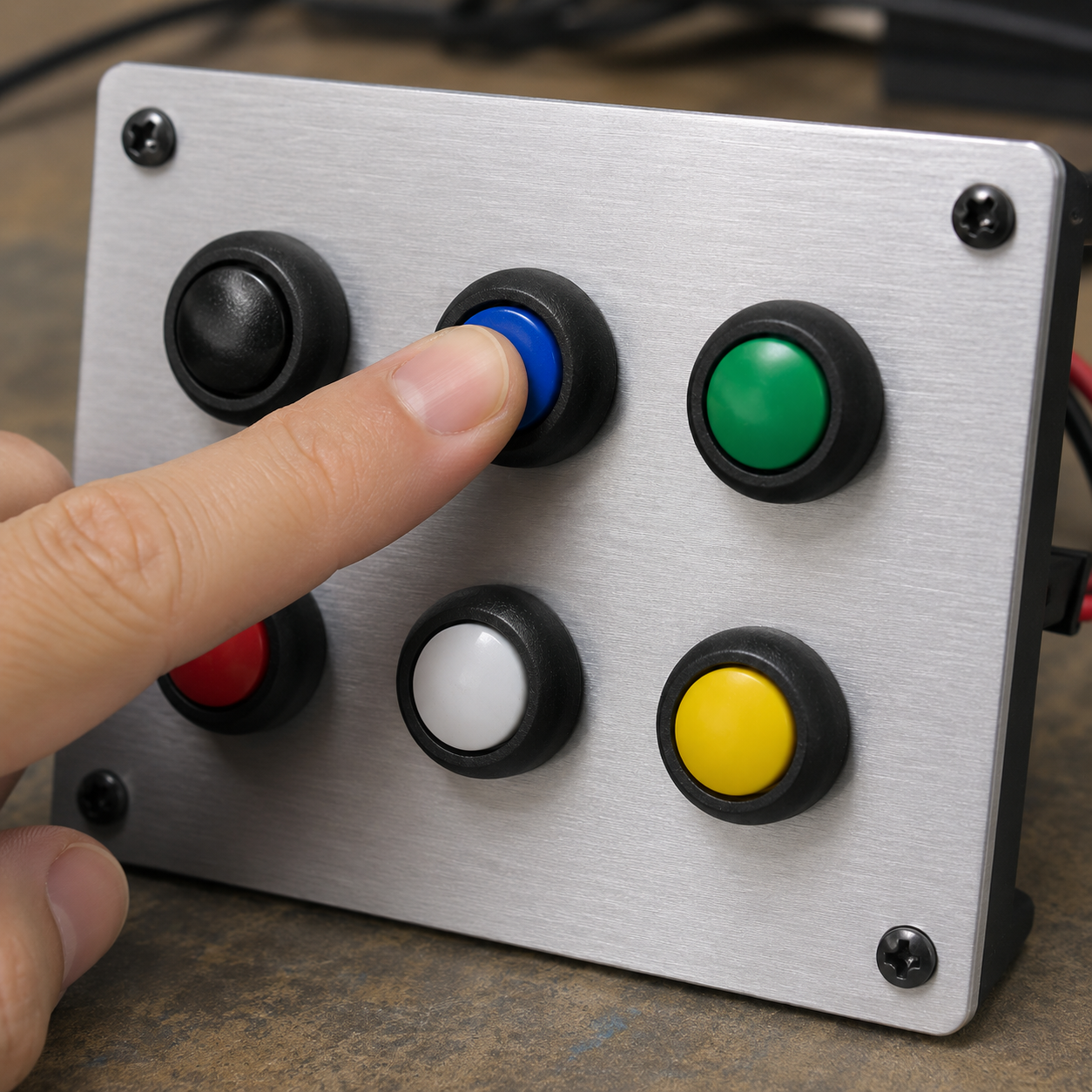

Panel-mounted start, reset, or trigger buttons
Low-voltage signal and control circuits

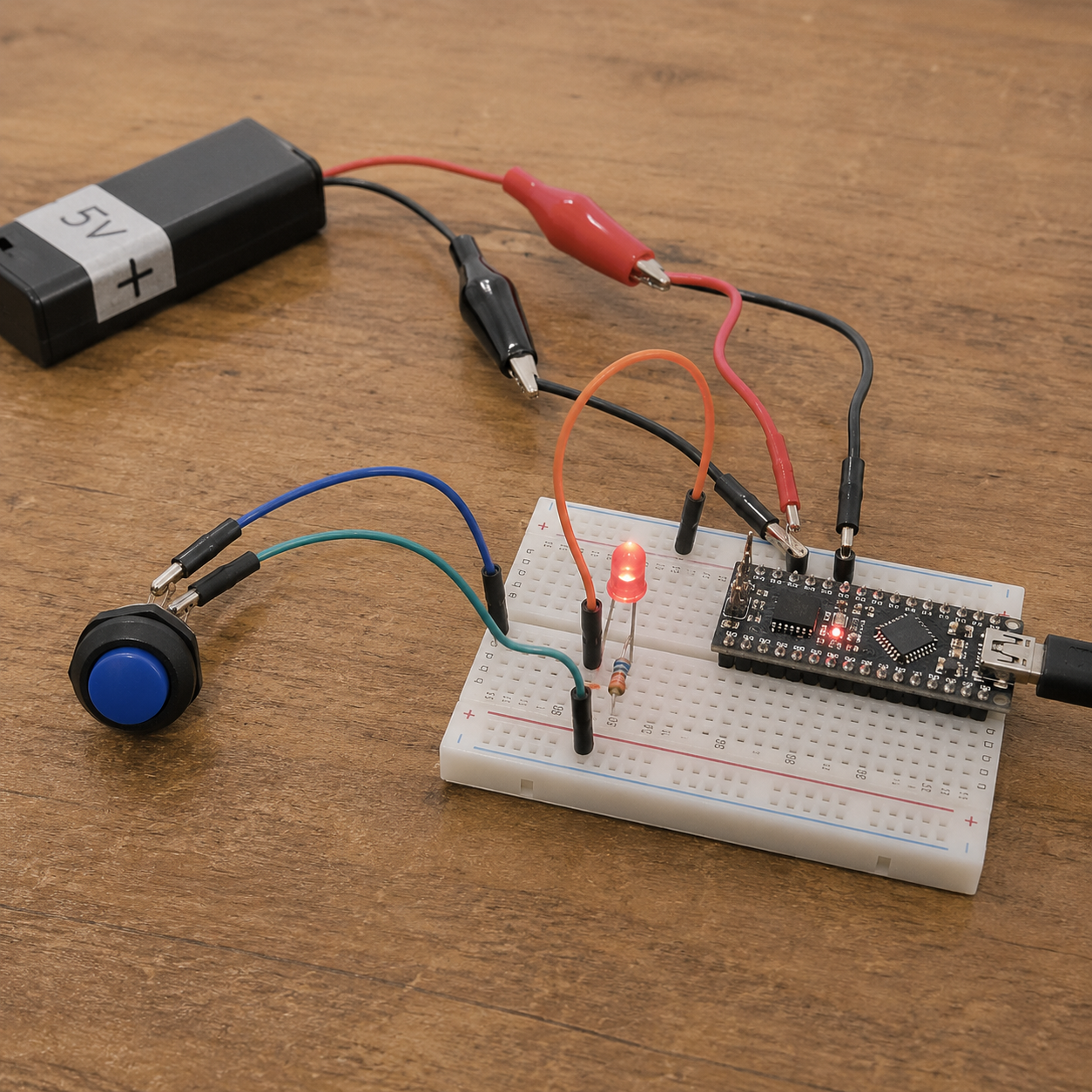

Please note: For Arduino use, connect one terminal to a digital input and the other to GND, then use INPUT_PULLUP in your sketch.
Common Questions
Is this switch momentary or latching?
It is momentary. The switch turns ON while pressed and returns to OFF when released.
Is it normally open or normally closed?
This is a normally-open switch. The circuit is open by default and closes only while the button is pressed.
What size mounting hole does it need?
It is designed for a 12mm panel mounting hole.
Can I use it with Arduino?
Yes. It works well as a simple digital input button for Arduino, ESP32, Raspberry Pi Pico, and other microcontroller boards.
Can it switch mains voltage?
The switch has an AC rating, but for safety we recommend using it for low-voltage signal/control applications unless installed by a suitably qualified person.
Please note: Always confirm your wiring, voltage, and current requirements before installation.
