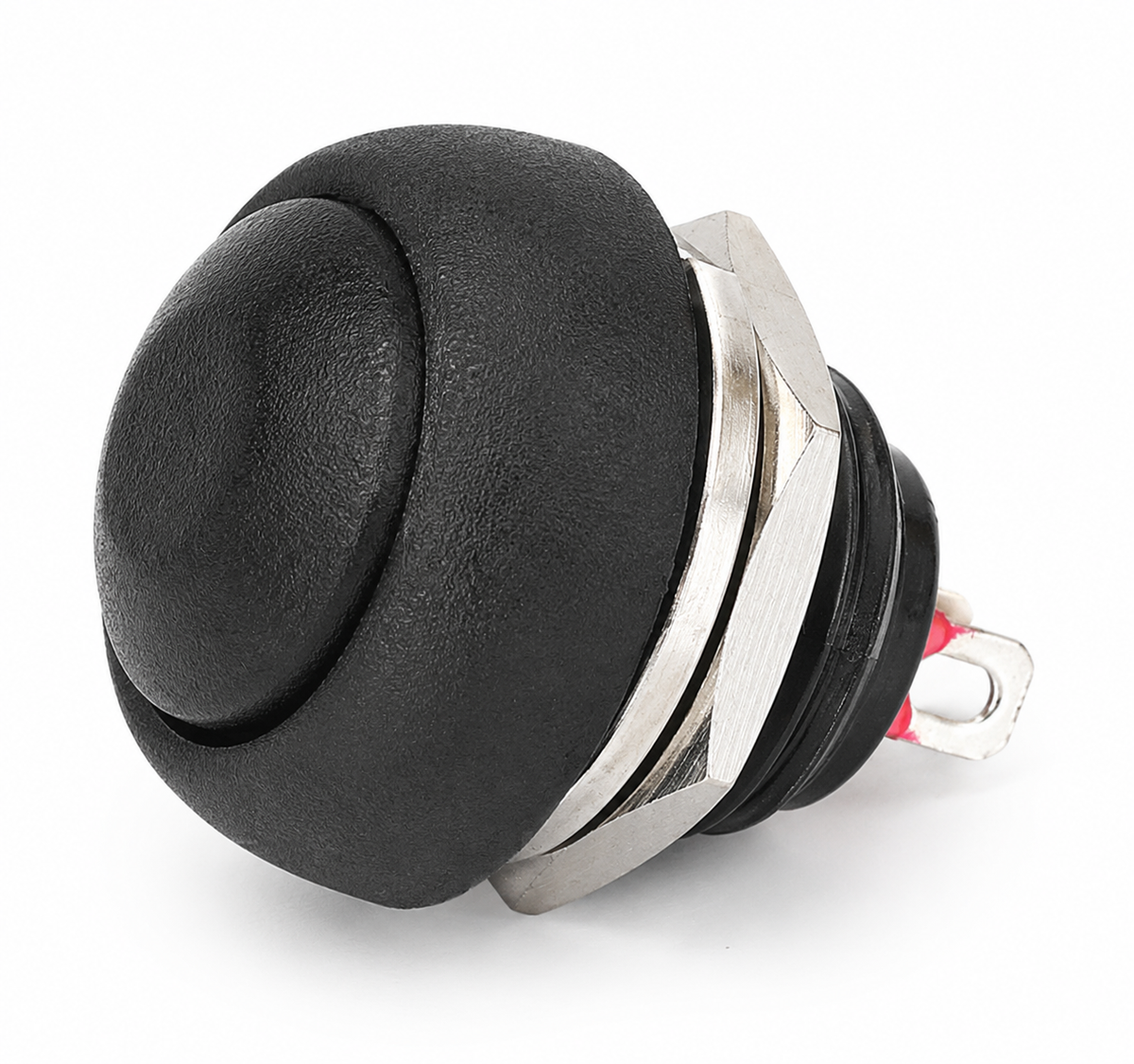

Black PBS-33B 12mm momentary push button with mounting nut

PBS-33B 12mm Momentary Push Button Switch

Black
$1.59 NZD
Save 5% at 10+
Skip to product information
Black PBS-33B 12mm momentary push button with mounting nut
  • Black PBS-33B 12mm momentary push button with mounting nut

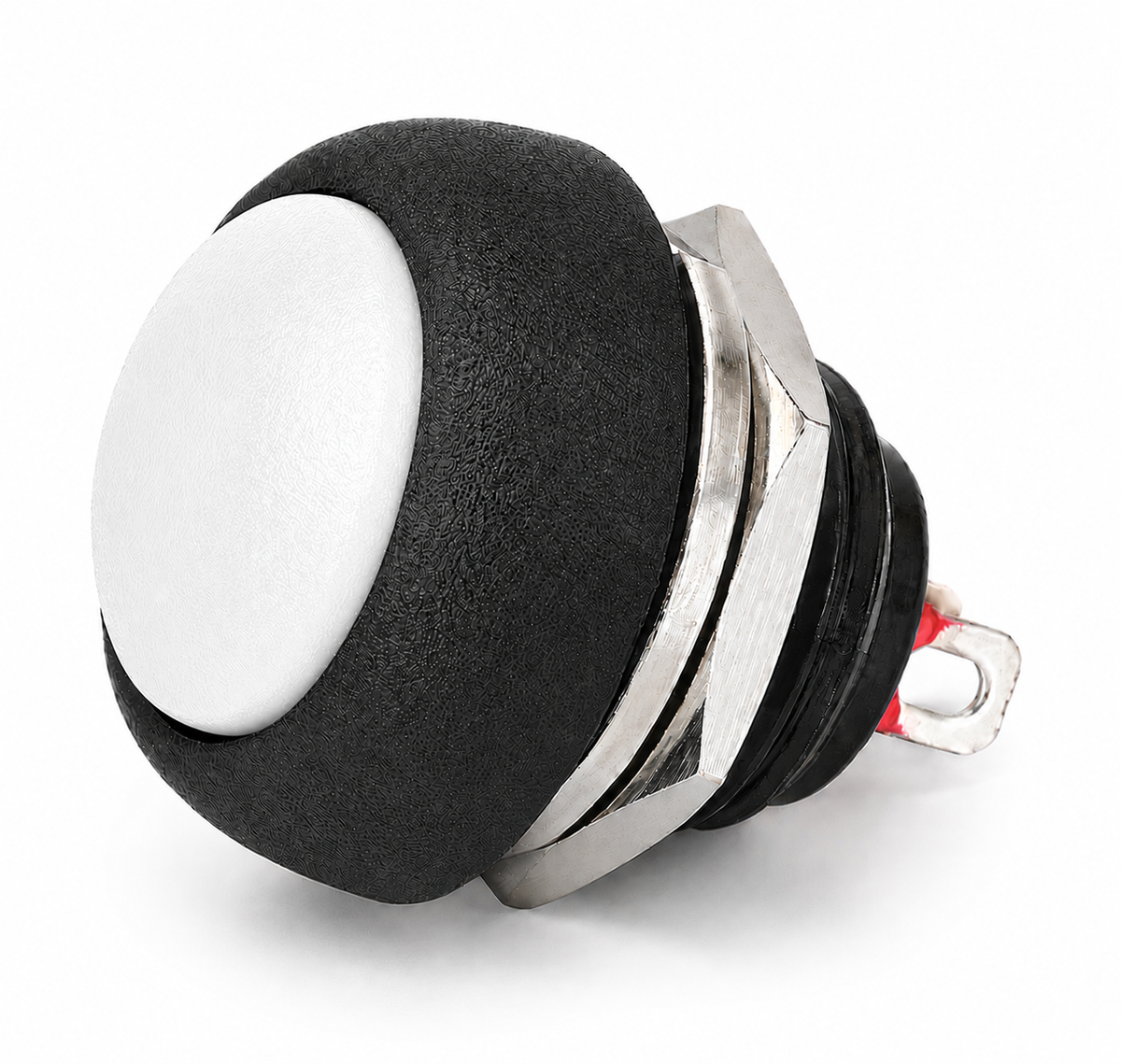

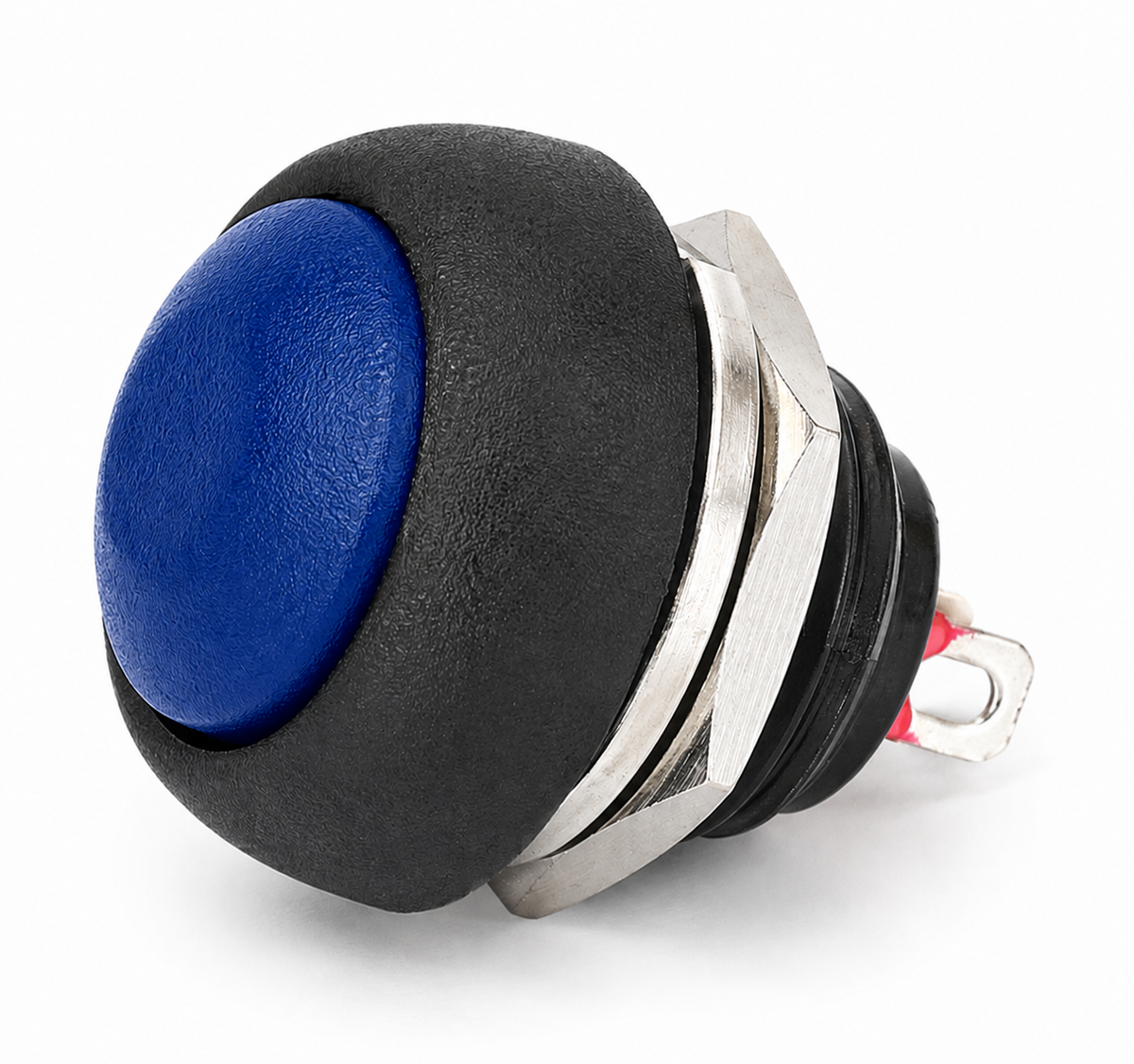

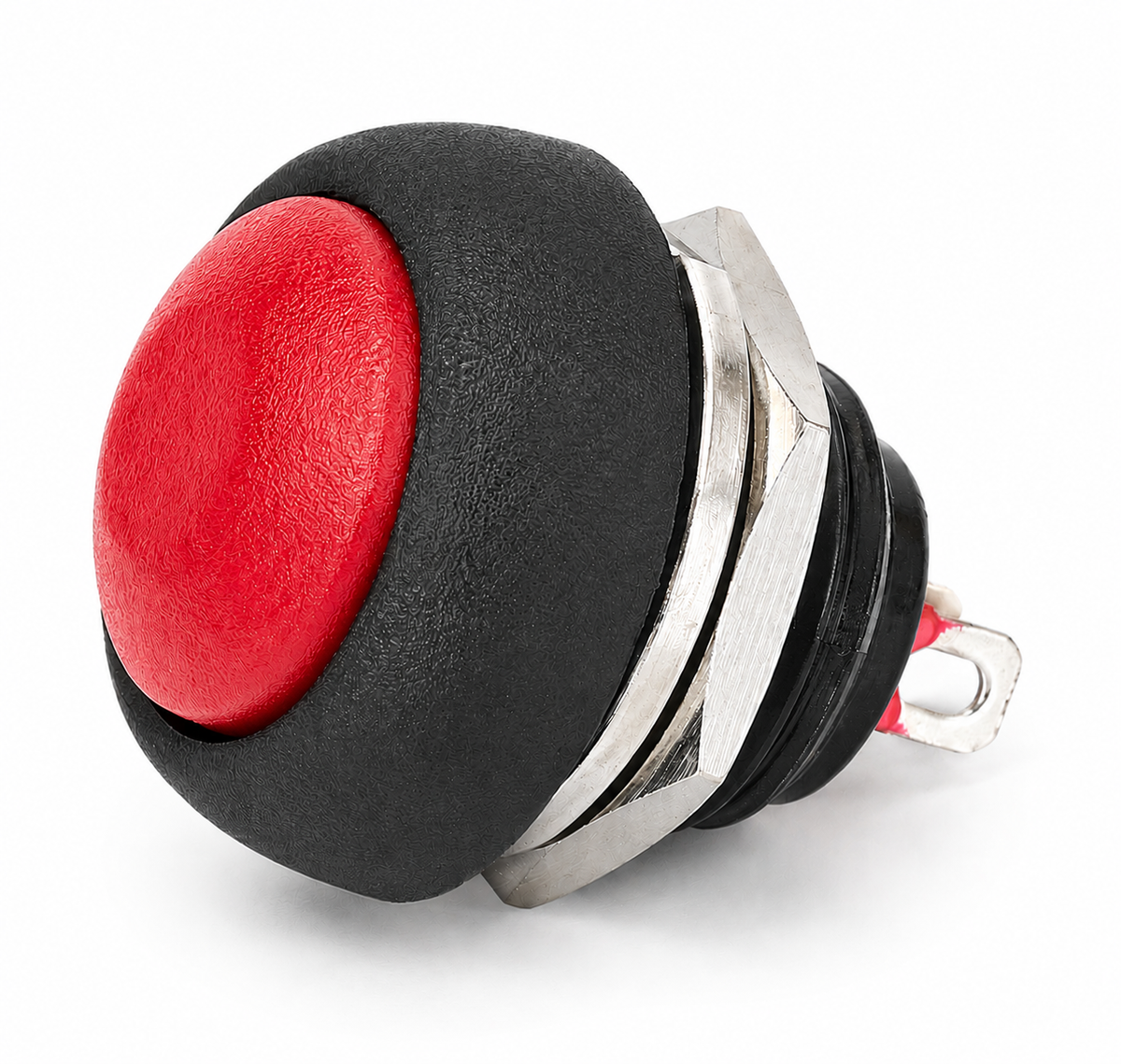

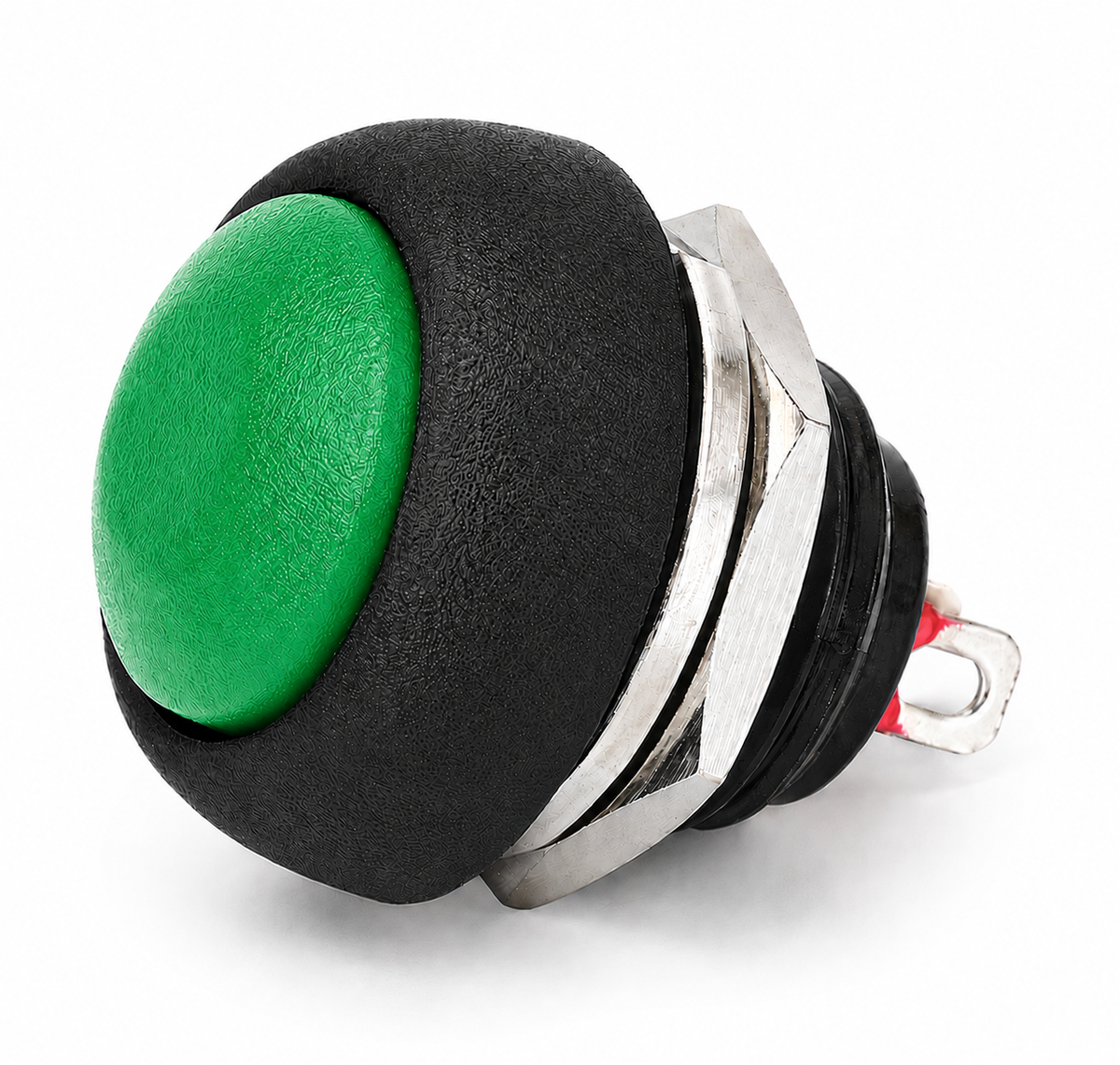

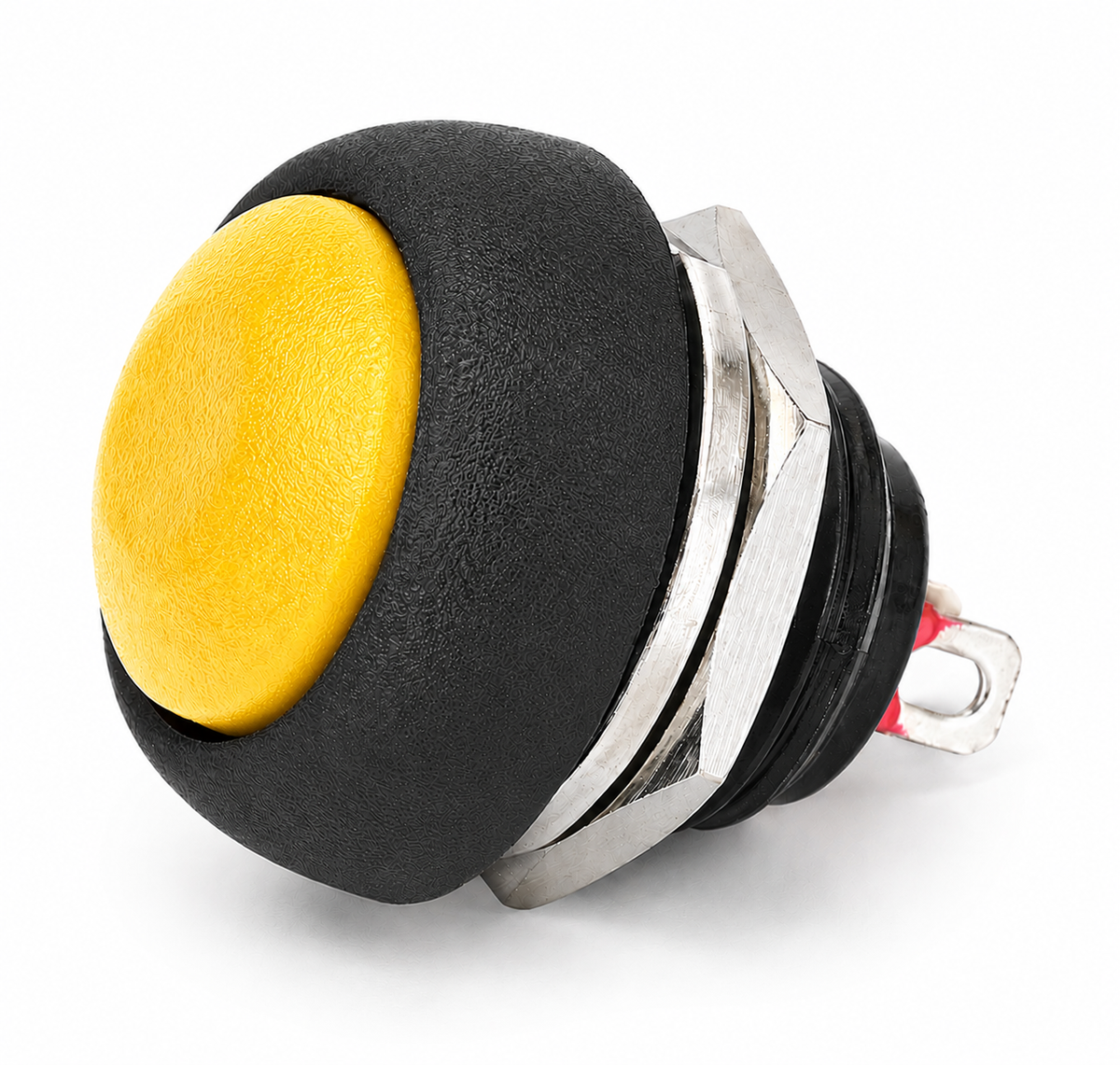

  • PBS-33B push buttons shown in six available colours, sold individually
  • PBS-33B momentary push button viewed from above
  • Finger pressing a PBS-33B momentary push button
  • Side view of a PBS-33B push button and threaded panel mount
  • Rear view of the PBS-33B push button with two solder terminals
  • PBS-33B push button shown in a project example
PBS-33B 12mm Momentary Push Button Switch
SKU: PBS-33B-BLACK

PBS-33B 12mm Momentary Push Button Switch

$1.59 NZD
Colour
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

The PBS-33B is a 12mm panel-mount momentary push button with two solder terminals. It connects the two terminals only while you hold it down, so it suits reset buttons, triggers and microcontroller inputs. It comes in six colours and is sold individually: each quantity is one switch in the colour you choose.

Specifications

ModelPBS-33B
Mounting12mm panel hole, threaded body with mounting nut
ActionMomentary, returns when released
ContactsNormally open (NO), closes while pressed
ConnectionTwo solder terminals
ColoursBlack, yellow, blue, green, red or white

What's in the box

1×
PBS-33B push button with mounting nut

One switch in your selected colour for each unit ordered. Volume discounts apply automatically from 5 of one colour.

Great for

A reset or mode button on an Arduino or ESP32 project
A start or trigger button on a project box lid
Colour-coded buttons on a control panel or game

Wiring & getting started

  1. Fit the switch

    Drill a 12mm hole, push the switch through from the front and tighten the nut from behind.

  2. Connect a digital input

    With the board powered off, solder one terminal to a digital input and the other to GND. The terminals are not polarised. For an Arduino input, enable INPUT_PULLUP.

  3. Check the response

    With that pull-up wiring, the input reads HIGH when released and LOW while pressed. Add software debouncing if one press registers more than once.

Note: No current rating is marked on these switches, so use them for low-voltage signal circuits up to 12V DC, such as microcontroller inputs. To control a motor, lamp, pump or anything on mains, have the button drive a relay or transistor instead of switching the load directly.

Frequently Asked Questions

Answers to the questions buyers ask most.

What can this button switch?
Use it for low-voltage signal circuits up to 12V DC, such as an Arduino or ESP32 input. No current rating is marked on the switch, so do not switch a motor, lamp, pump or mains load directly. Use the button to drive a relay or transistor instead.
Does the button stay on after I press it?
No. It is momentary: the contacts close only while you hold the button down and open again when you release it.
Does quantity 1 mean one switch or a pack?
Quantity 1 is one switch in the selected colour. Enter the number of individual switches you need. The quantity discounts shown above apply automatically from 5 of one colour.
Does it come with wires attached?
No. This version has two solder terminals and includes a mounting nut. Add your own wiring.
Can I use it as an Arduino input?
Yes. Connect one terminal to a digital input and the other to GND, then enable INPUT_PULLUP. The input reads LOW when pressed and HIGH when released.
