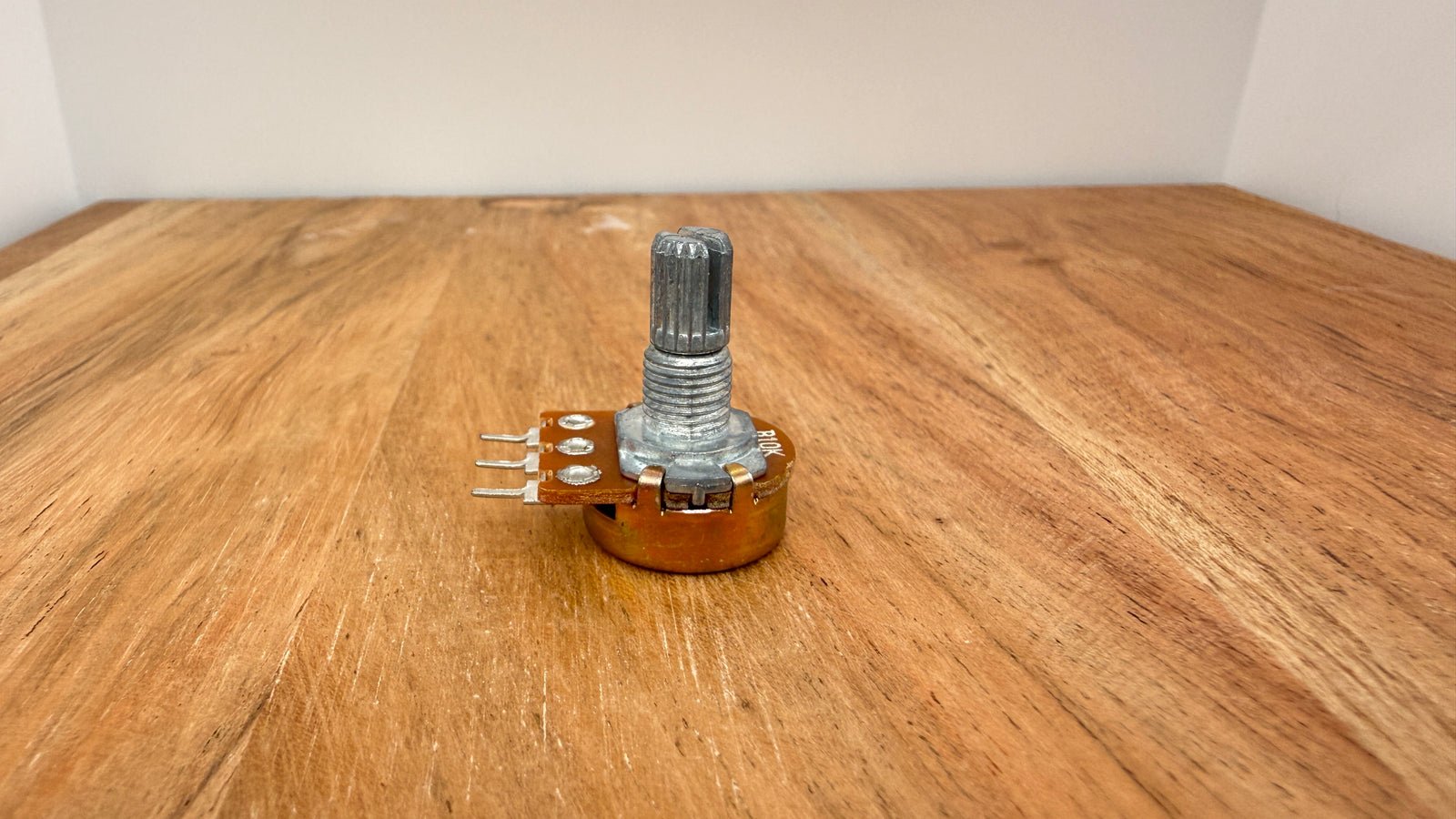

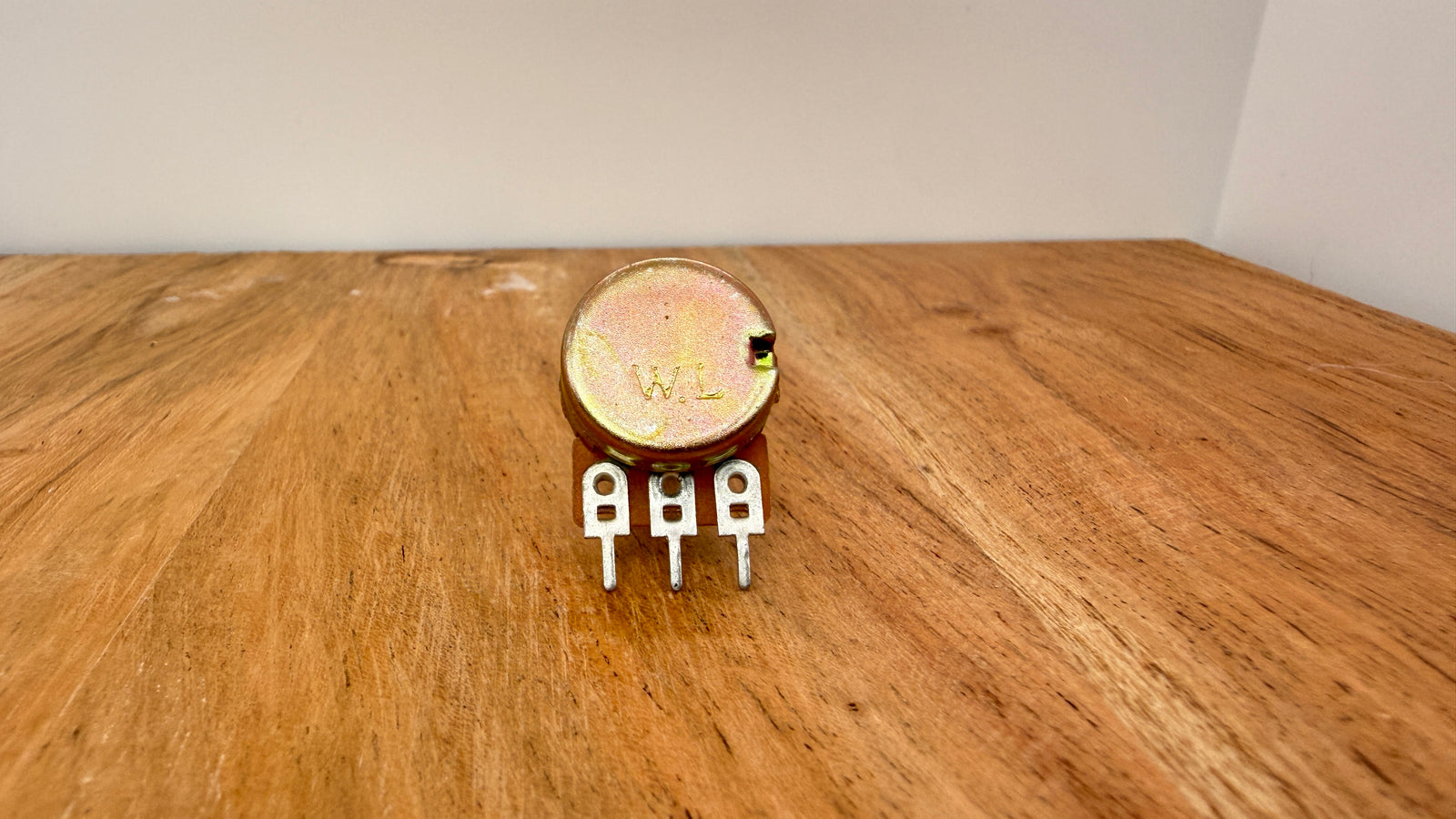

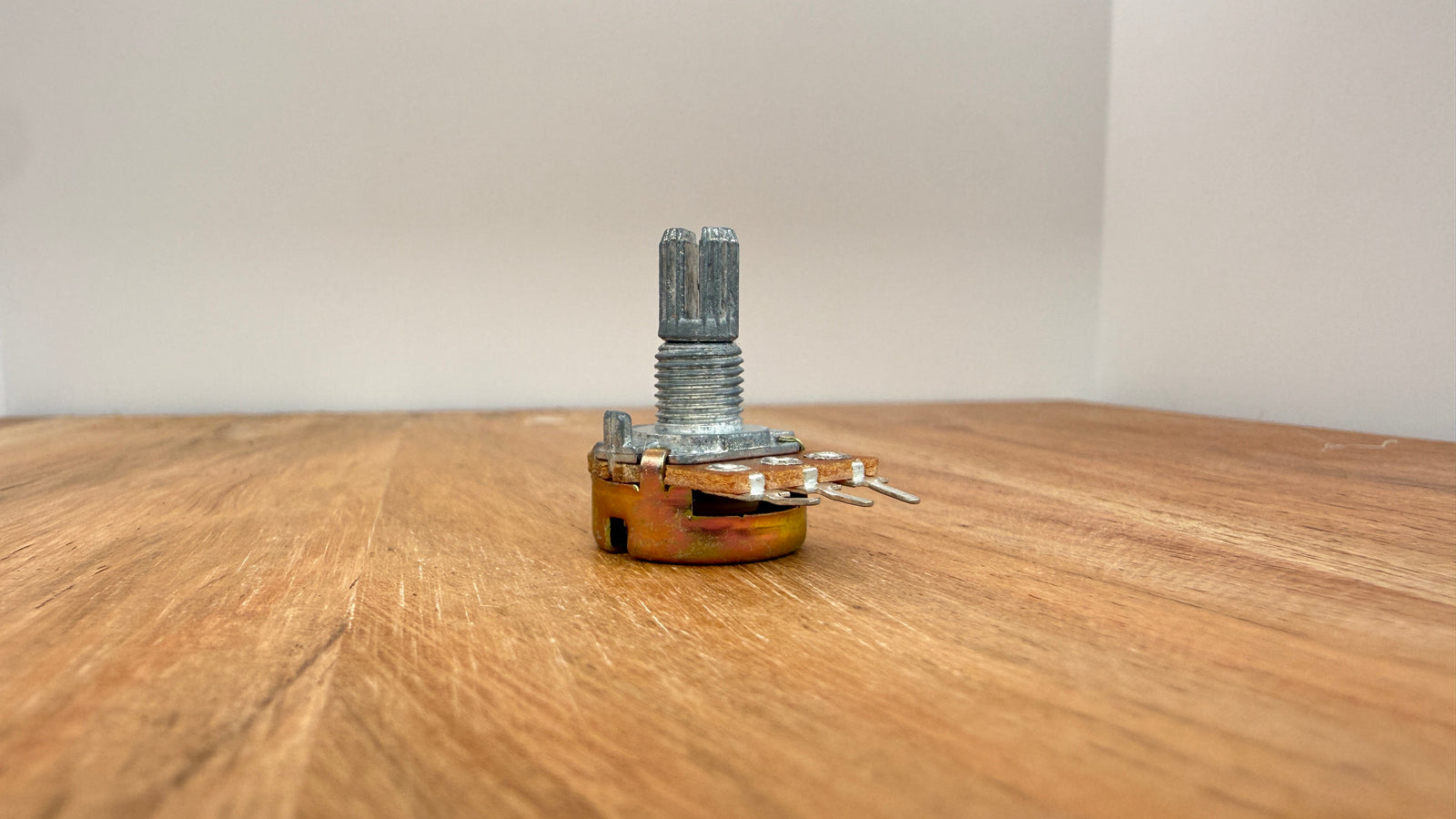

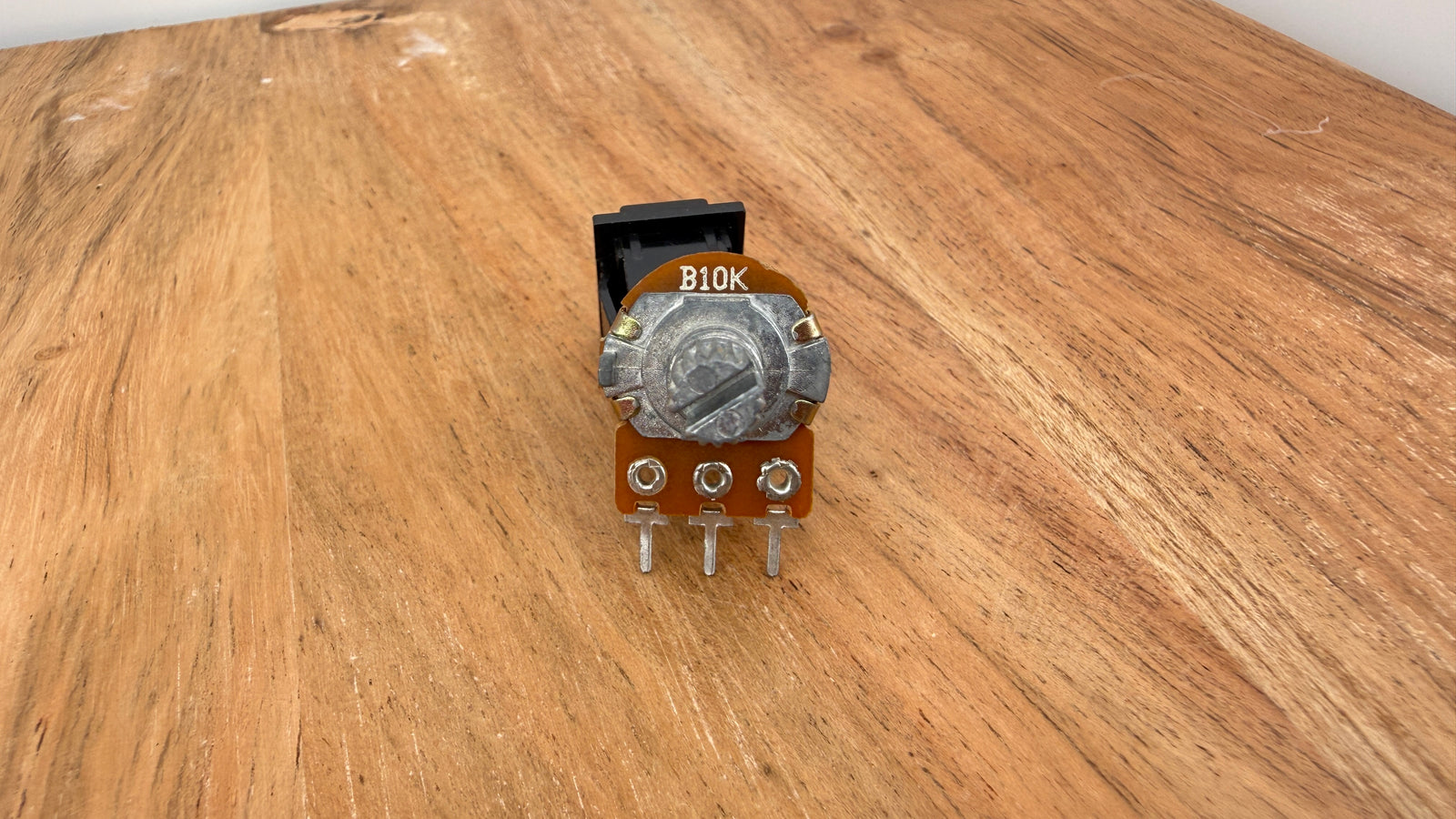

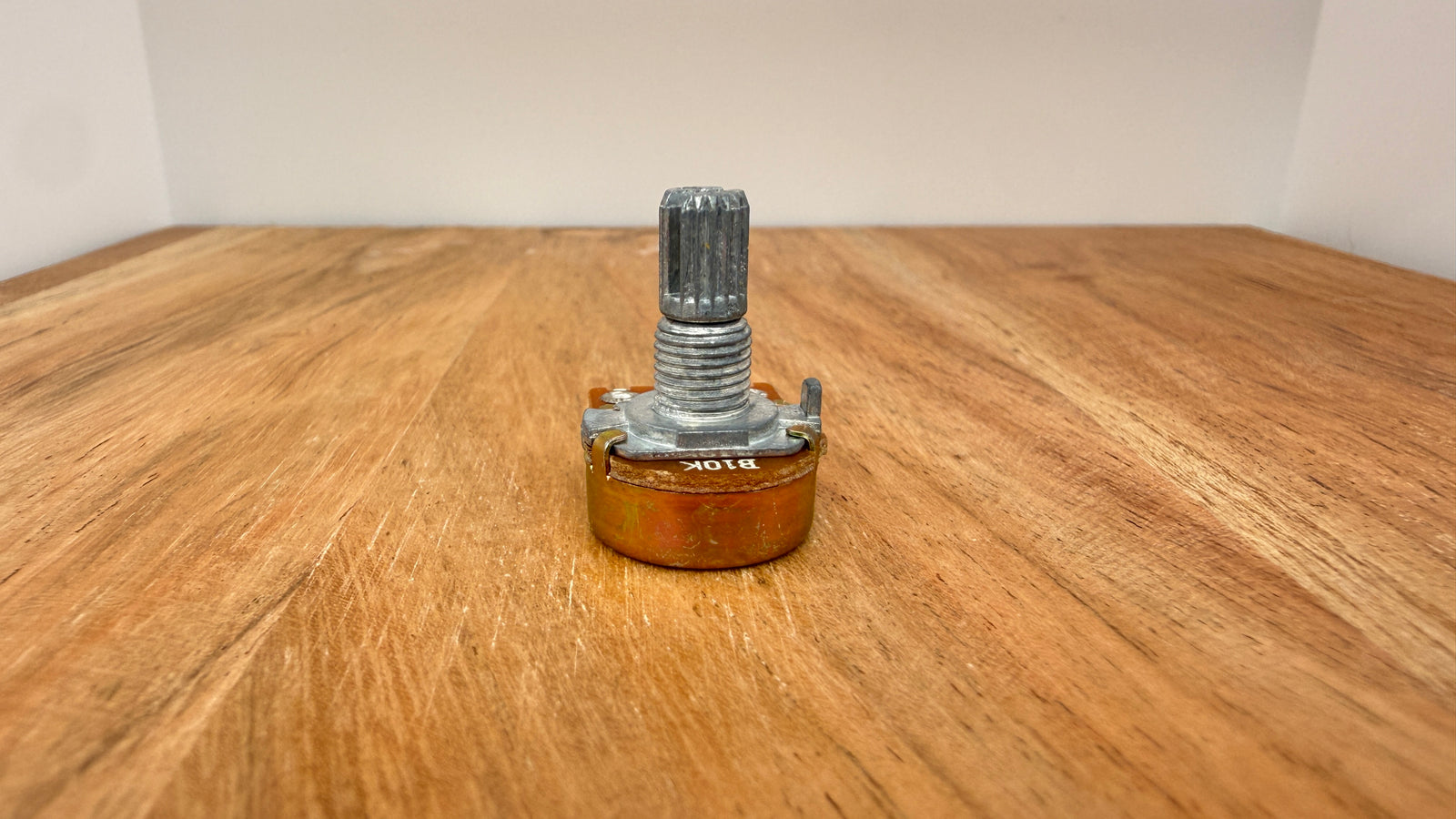

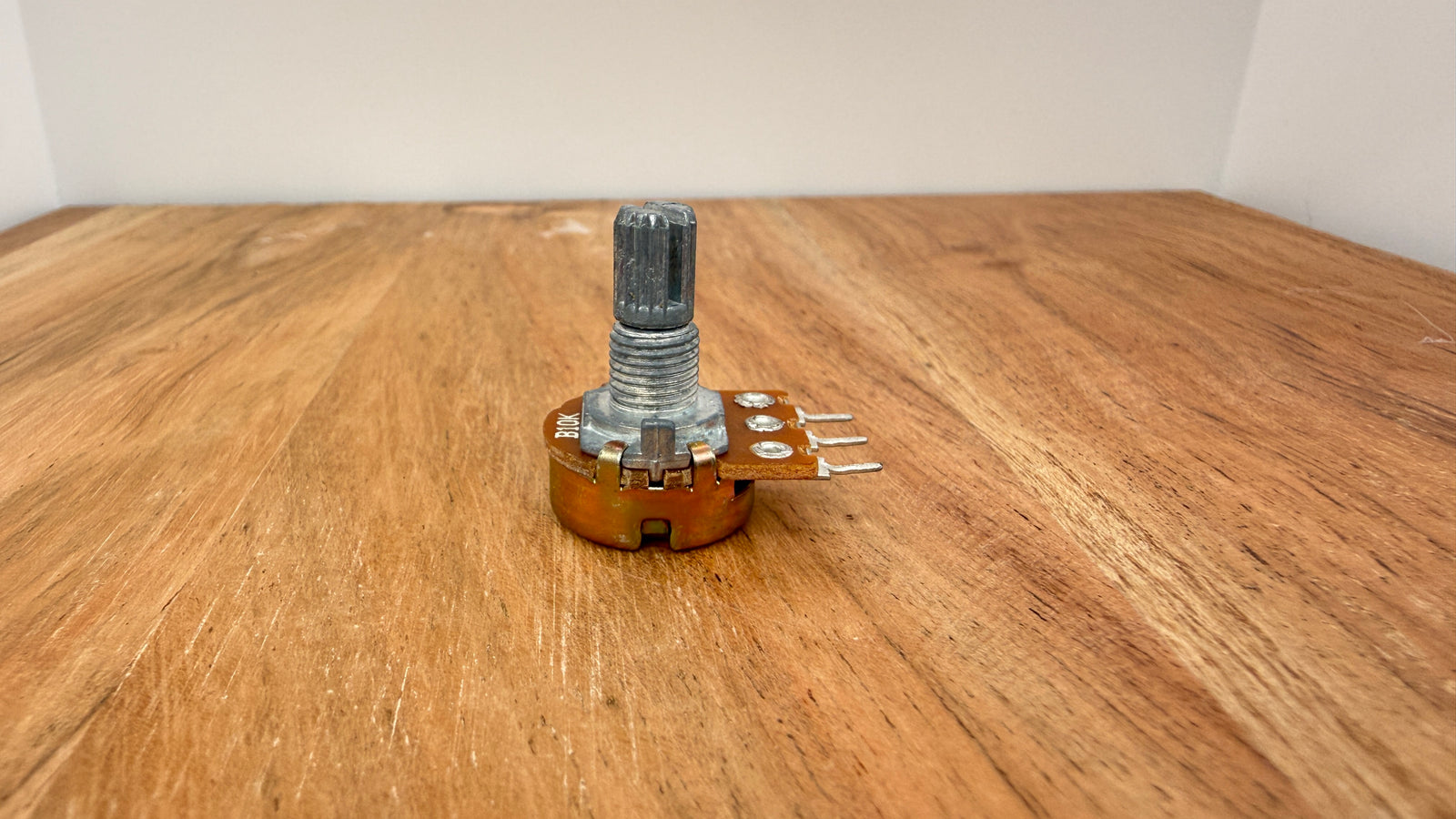

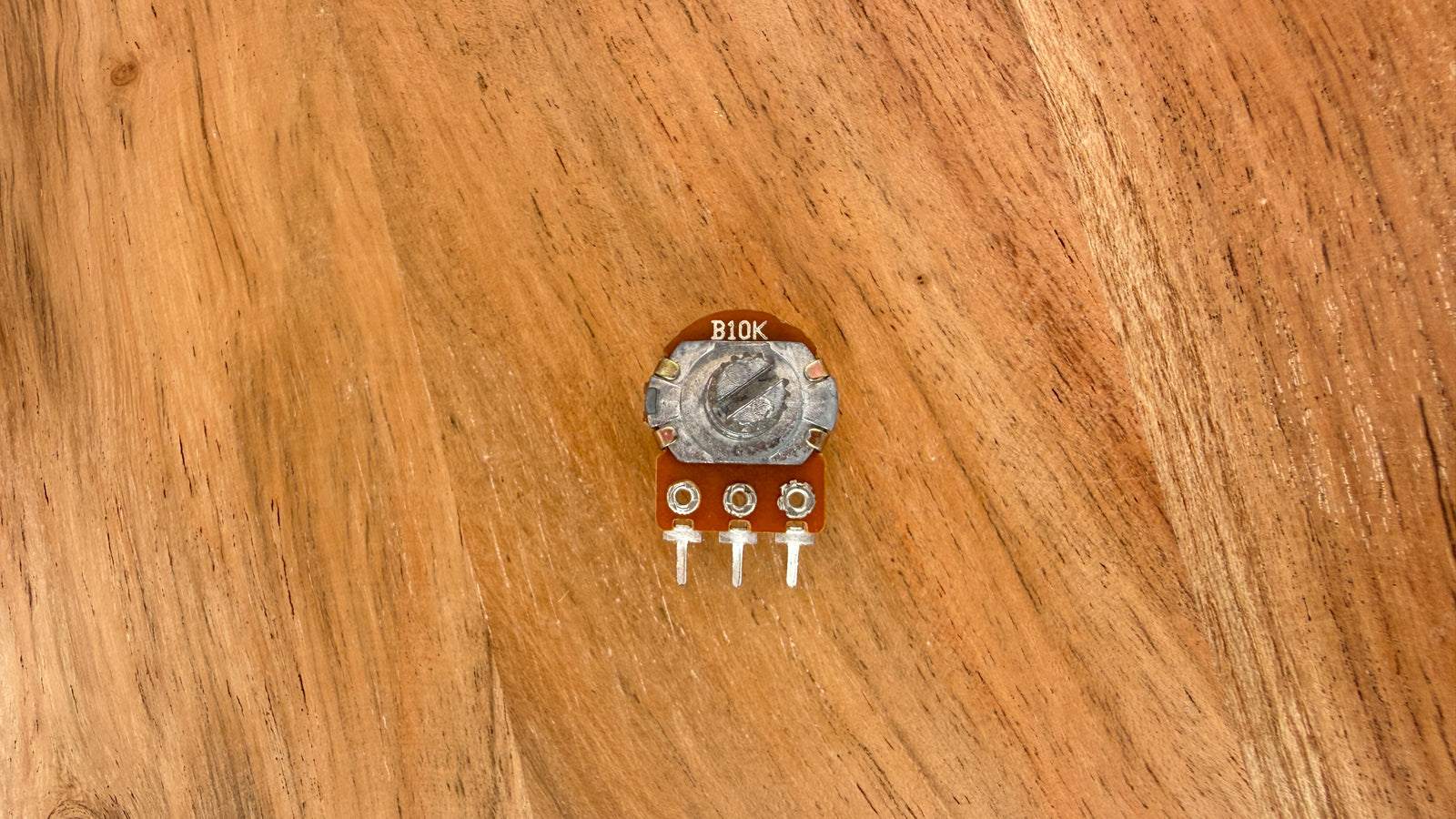

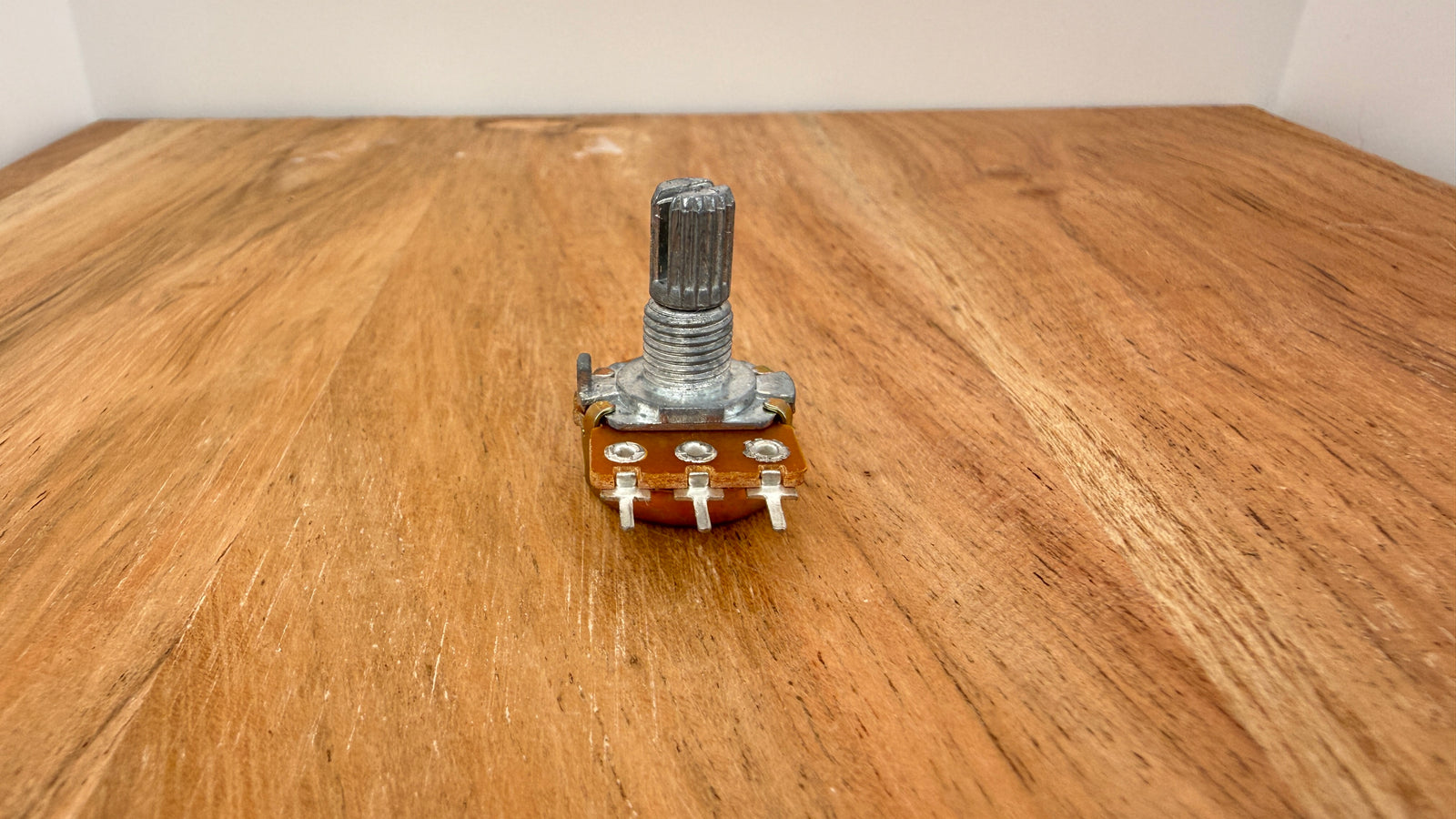

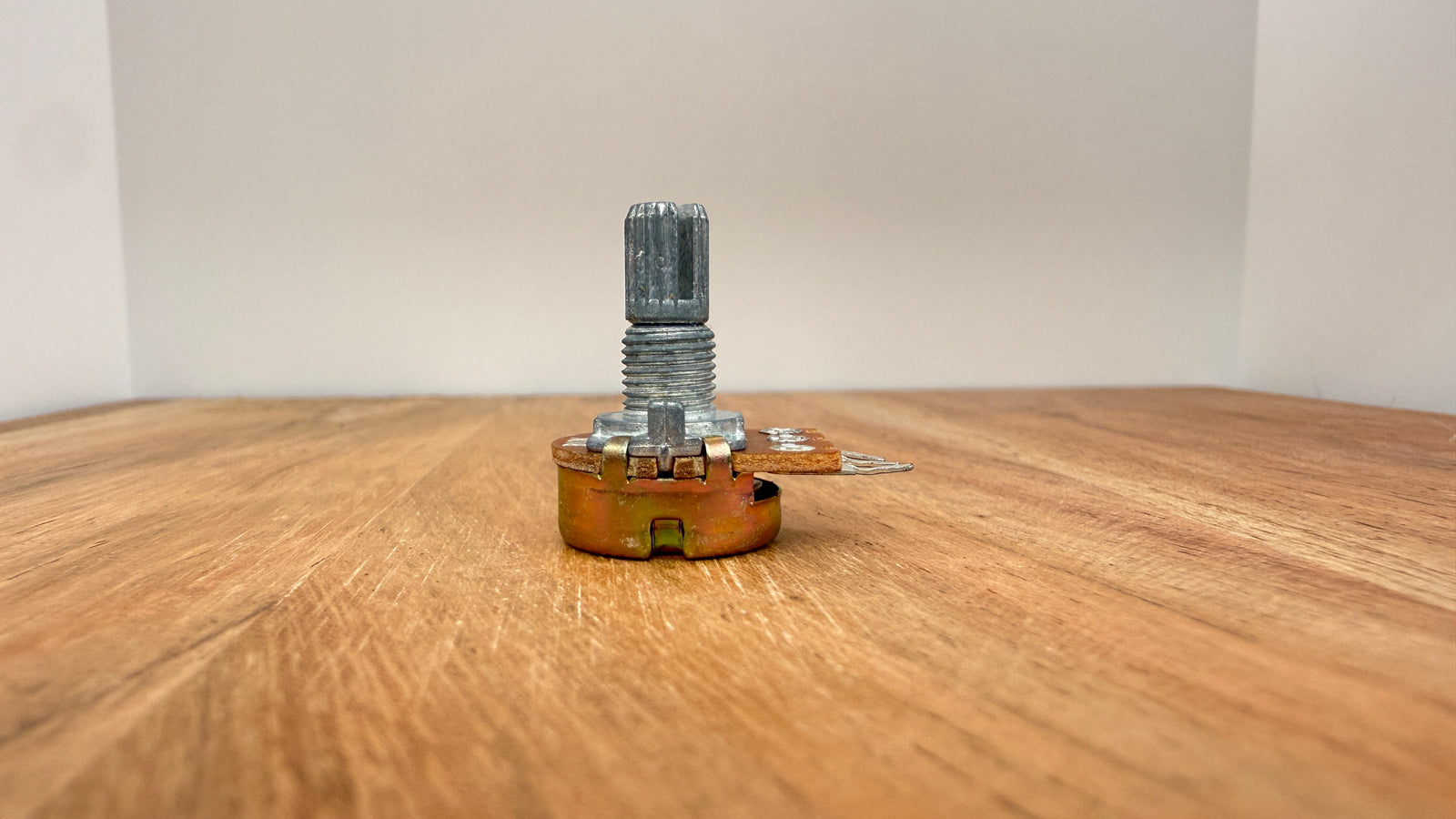

WH148 B10K Potentiometer – 15mm Shaft, 3-Pin, Linear Taper (Clearance)
Stock amount:
Gone once out of stock
Tax included. Shipping is calculated at checkout.
Urban $40
Rural $60
⚠️ Clearance Item — Does not include a nut & washer for panel mounting. The potentiometer is fully functional — only the mounting hardware is missing.
A reliable, general-purpose rotary potentiometer with a 15mm knurled shaft and standard 3-pin layout — a drop-in fit for most PCB and panel-mount applications. Ideal for audio volume control, signal mixing, DIY electronics, and circuit prototyping.
Specifications
| Resistance | 10kΩ (B10K) |
| Taper | Linear (B) |
| Rotation Angle | 300° ± 10° |
| Load Power | 0.05W |
| Operating Voltage | 50V DC |
| Insulation Resistance | ≥100MΩ at DC 250V |
| Withstand Voltage | AC 250V for 1 minute |
| Rotating Noise | <100mV |
| Rotation Life | 10,000 cycles |
| Shaft Length | 15mm (knurled) |
| Pins | 3-pin |
Common Uses
Audio equipment — volume, tone & balance controls
Signal mixing & routing in DIY audio builds
Motor speed control & PWM signal adjustment
Lighting dimmer circuits & LED brightness control
Circuit prototyping & breadboard testing
Guitar & instrument controls — volume & tone knobs
Please note: Nut and washer not included (clearance reason). If you need panel mounting hardware, see the standard 15mm version. Knob sold separately — shaft diameter is 6mm, compatible with most standard push-fit and set-screw knobs.
