Green KCD4 four-terminal rocker switch with translucent I/O actuator and snap-in housing

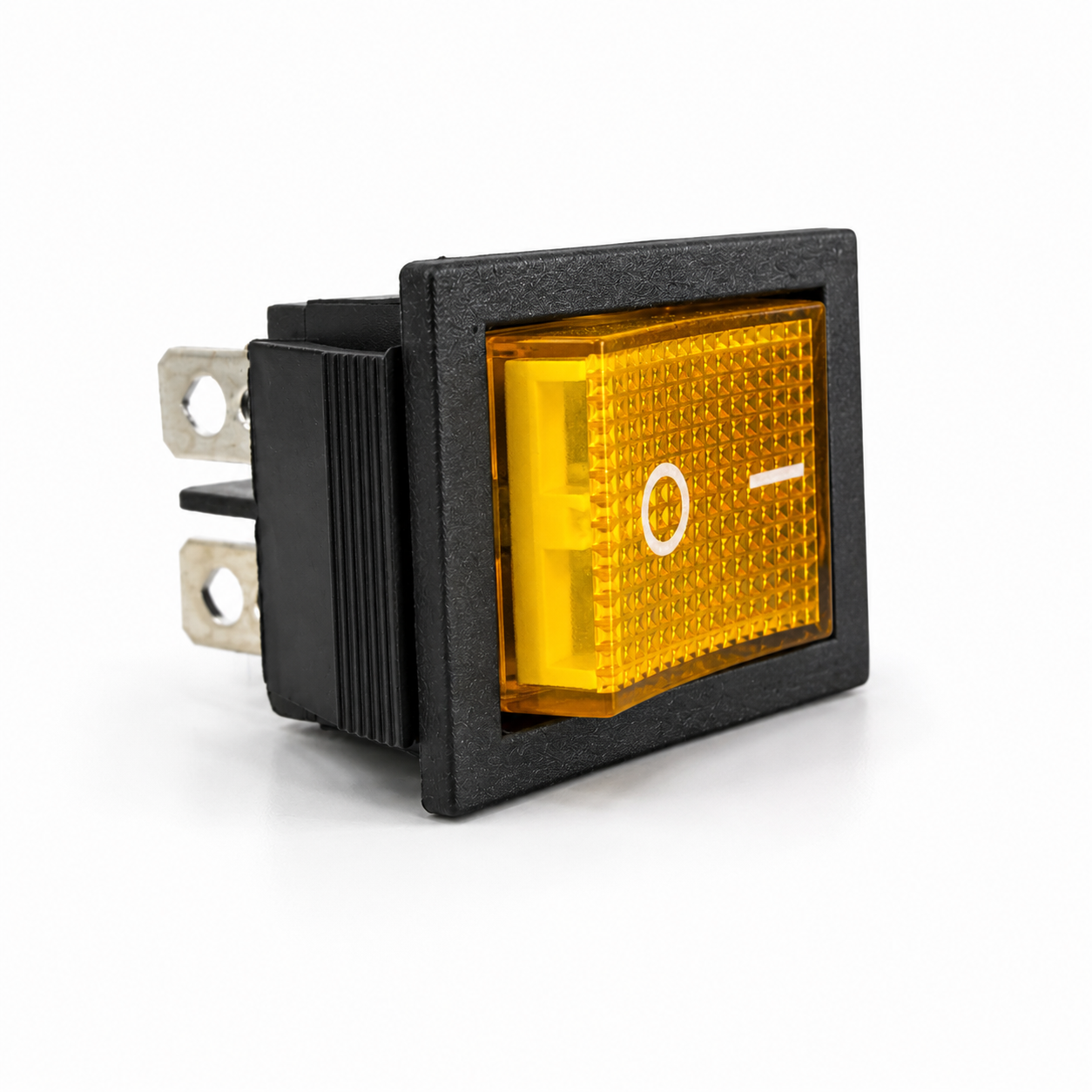

KCD4 16A Rocker Switch - DPST ON/OFF, 5 Colours

Green
$3.99 NZD
Save 10% at 3+
Skip to product information
Green KCD4 four-terminal rocker switch with translucent I/O actuator and snap-in housing
  • Green KCD4 four-terminal rocker switch with translucent I/O actuator and snap-in housing

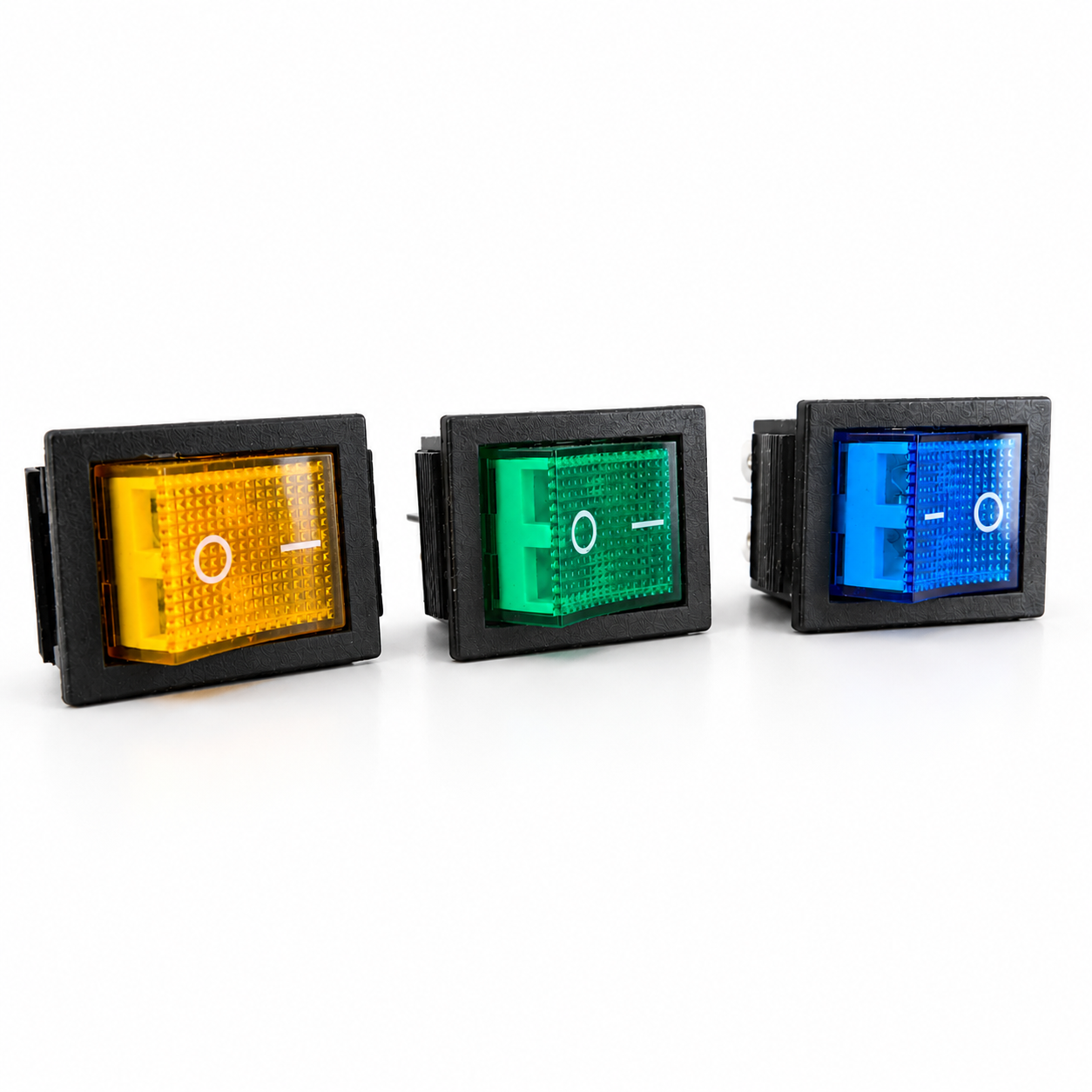

  • KCD4 rocker switch colour choices: green, yellow, blue, red and solid black; one switch supplied

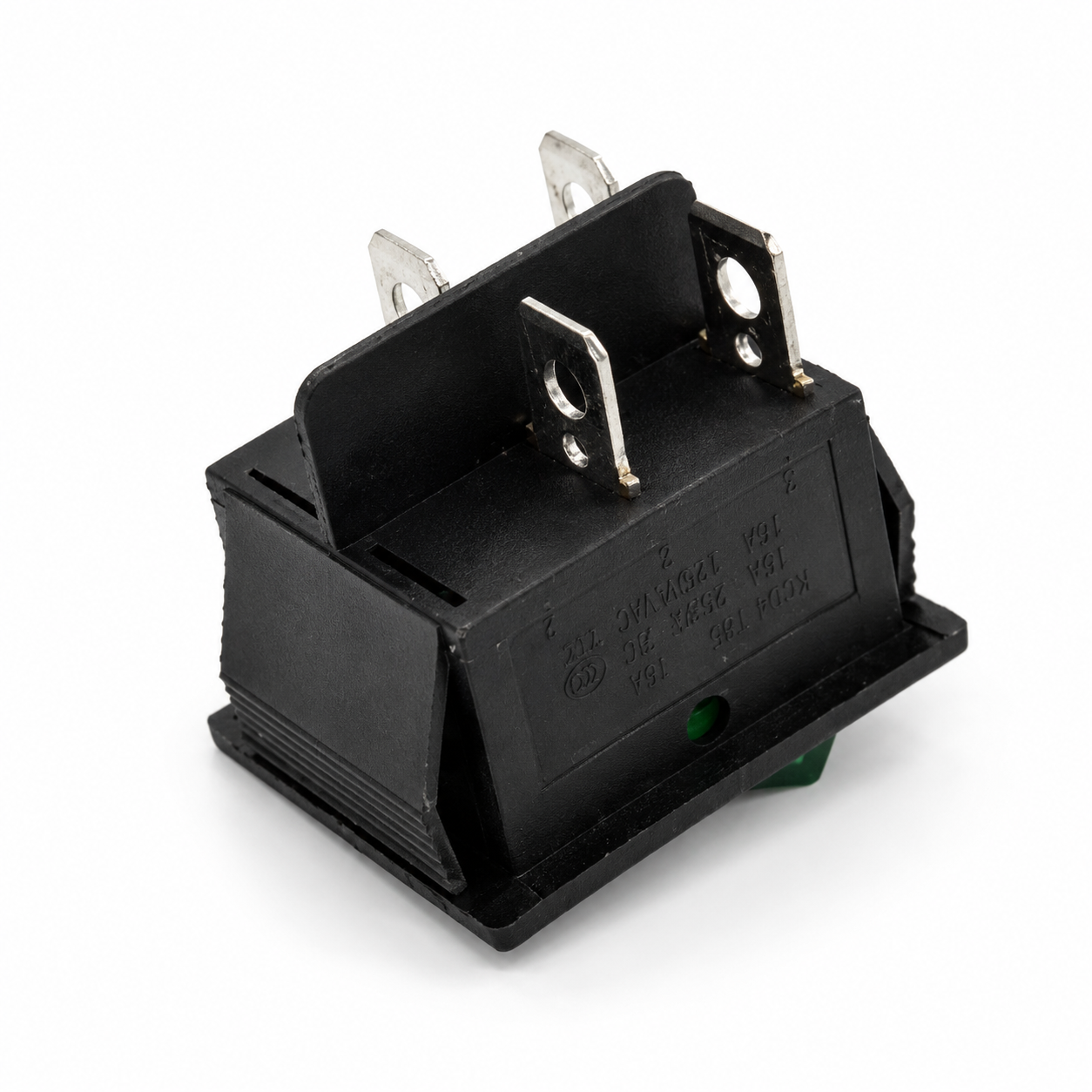

  • Shared rear construction of the KCD4 rocker switch, showing four blade terminals and centre divider
KCD4 16A Rocker Switch - DPST ON/OFF, 5 Colours
SKU: SW-KCD4-16A-ILL-GRN

KCD4 16A Rocker Switch - DPST ON/OFF, 5 Colours

$3.99 NZD
5.0 1 review
Color
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

KCD4 four-pin DPST rocker switch rated 16 A at 250 V AC. Its two contact pairs switch together between ON and OFF. Choose illuminated green, yellow, blue or red, or solid black with no illumination. Each option is sold as one switch.

Specifications

ModelKCD4
Contact rating16 A at 250 V AC
Switch functionDPST, 2-position ON/OFF with I / O markings
TerminalsFour blades, 6.3 mm wide x 0.8 mm thick
MountingRectangular snap-in panel mount
Bezel30.5 x 25 mm
Panel thickness0.70-3.00 mm; use the matching cutout range in the datasheet
Illuminated optionsGreen, yellow, blue and red
Non-illuminated optionBlack

Datasheets

Technical datasheetPDF

What's in the box

1×
KCD4 rocker switch in your selected colour

Wiring and mating connectors are sold separately.

Great for

Replacing a matching ON/OFF switch in electrical equipment or appliances
Control panels and enclosures with a rectangular switch opening

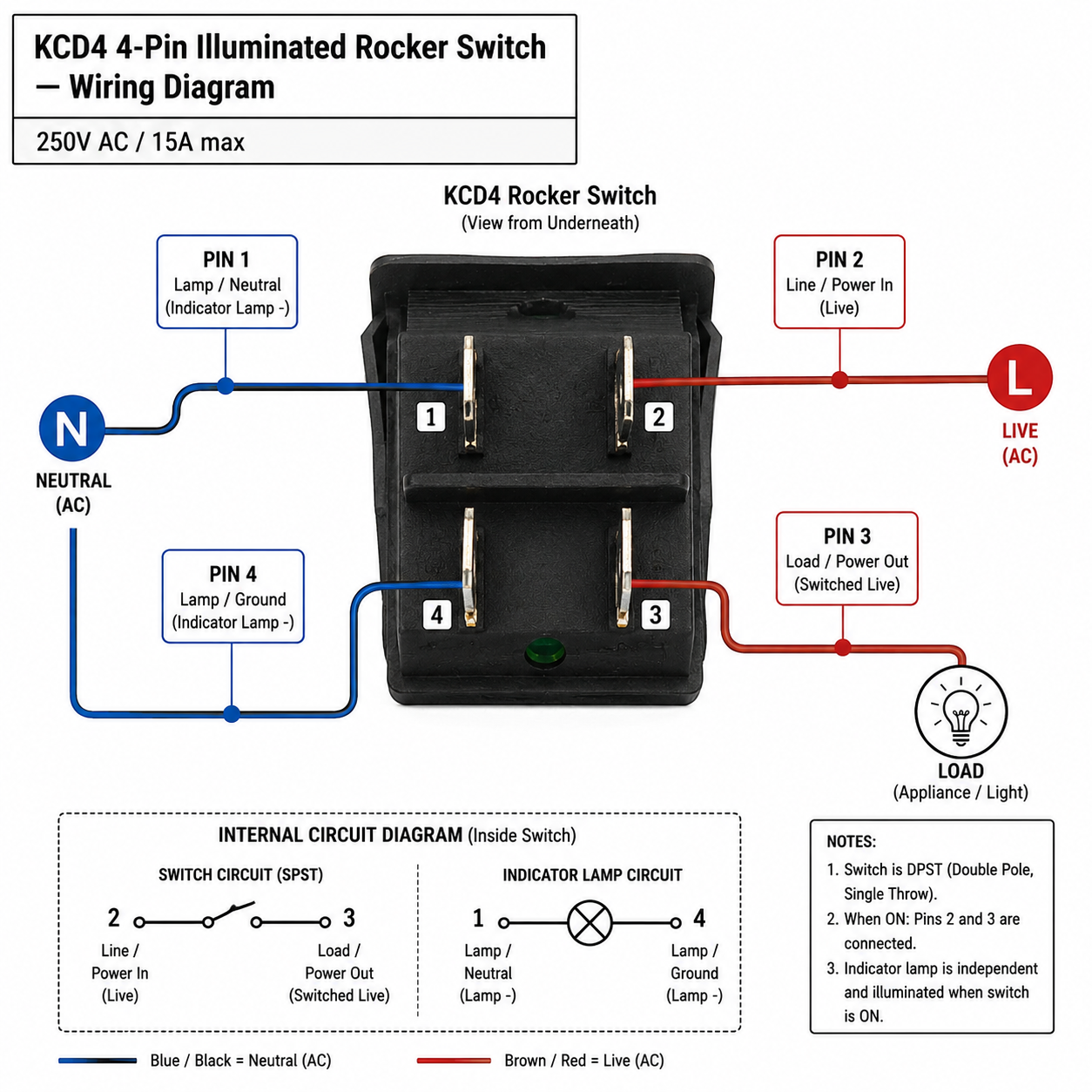

Wiring & getting started

  1. Match the load and indicator supply

    Use the 16 A at 250 V AC contact rating when selecting the switch for an AC circuit. Check the actual load, including inrush, and confirm the lamp supply before connecting an illuminated option. The contact rating does not identify the lamp voltage.

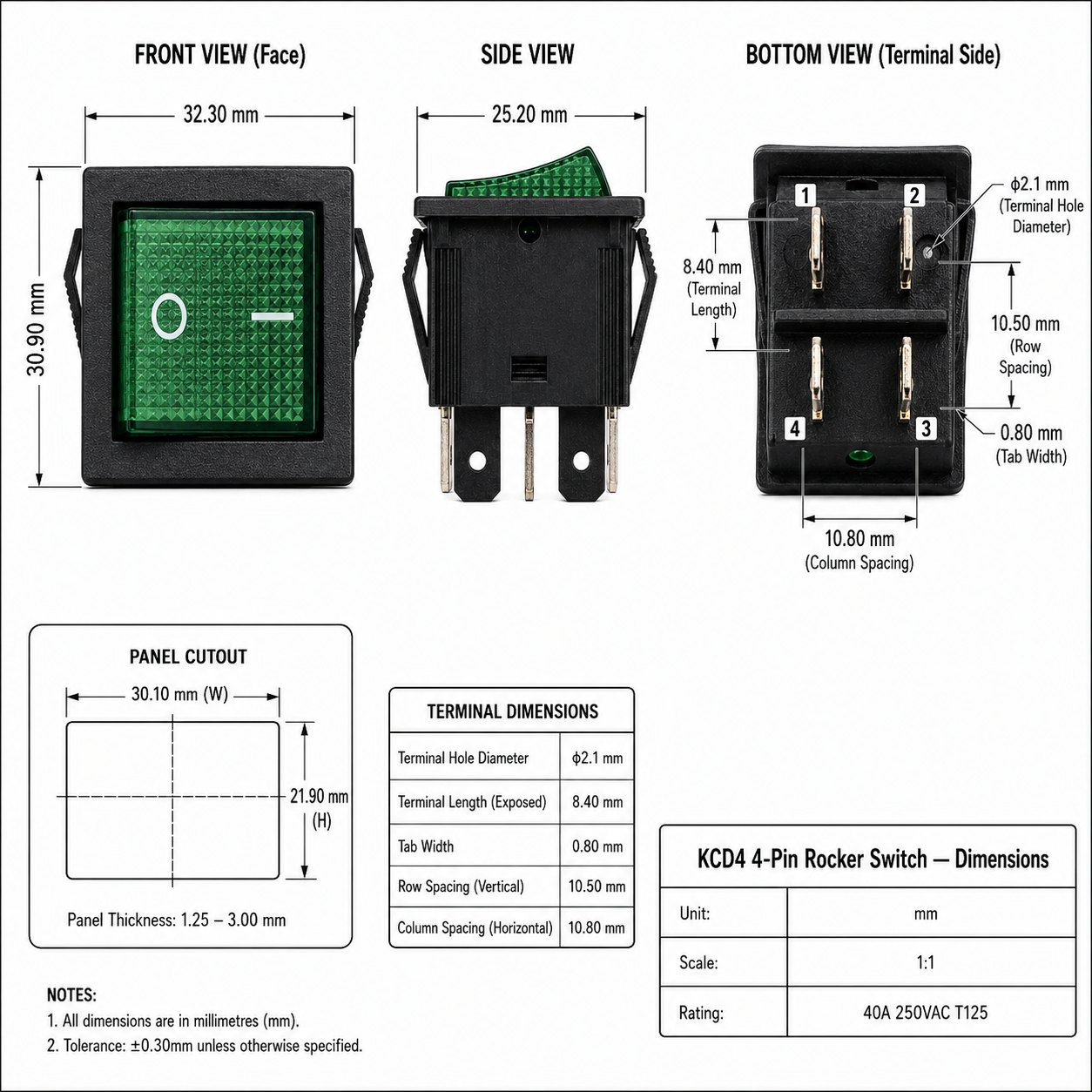

  2. Choose the correct panel cutout

    The opening depends on panel thickness. Use the three cutout ranges in the technical datasheet, check the fit, and select matching insulated connectors for the 6.3 x 0.8 mm blades.

  3. Identify the terminals with power disconnected

    Check the two contact pairs by continuity before wiring. The circuit numbers in the datasheet do not assign physical terminal positions. For mains equipment, have a licensed electrical worker select, install and test the replacement.
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
N
Norlito O.

⭐⭐⭐⭐⭐ Excellent service! Very happy with my purchase. The item arrived quickly, was exactly as described, and the quality is great. Highly recommended! 👍

Frequently Asked Questions

Answers to the questions buyers ask most.

What is the switch rating and contact arrangement?
The contact rating is 16 A at 250 V AC. This is a four-pin DPST switch: two contact pairs open and close together between OFF and ON. Do not treat the AC contact rating as a DC or motor-load rating.
Which colours are illuminated?
Green, yellow, blue and red are illuminated. Black is non-illuminated. Confirm the lamp supply before connecting an illuminated option; the 250 V AC contact rating does not identify the lamp voltage.
Do I receive all the switches shown in the group photo?
No. The price is for one switch in the colour selected on the product page. Select the colour you want before adding it to your cart.
What panel opening does this switch need?
The bezel is 30.5 x 25 mm. For 0.70-1.25 mm panels, the opening is 28.9-29.1 x 21.9-22.1 mm. For 1.25-2.00 mm panels, use 29.1-29.2 x 21.9-22.1 mm. For 2.00-3.00 mm panels, use 29.2-29.3 x 21.9-22.1 mm. Check the dimensioned datasheet and fit before cutting the final panel.
How should I identify the terminals?
With all power disconnected, check which two pairs switch together using a continuity tester. The circuit shows contacts 2 to 1 and 5 to 6, but those numbers are not a physical rear-terminal map. Do not assign live, neutral or lamp connections from position alone. Use a licensed electrical worker for mains installation.
