VENGIM VG521T DIN-rail power-on delay timer relay

VENGIM VG521T DIN-Rail Power-On Delay Timer Relay

$48.99 NZD
Skip to product information
VENGIM VG521T DIN-rail power-on delay timer relay

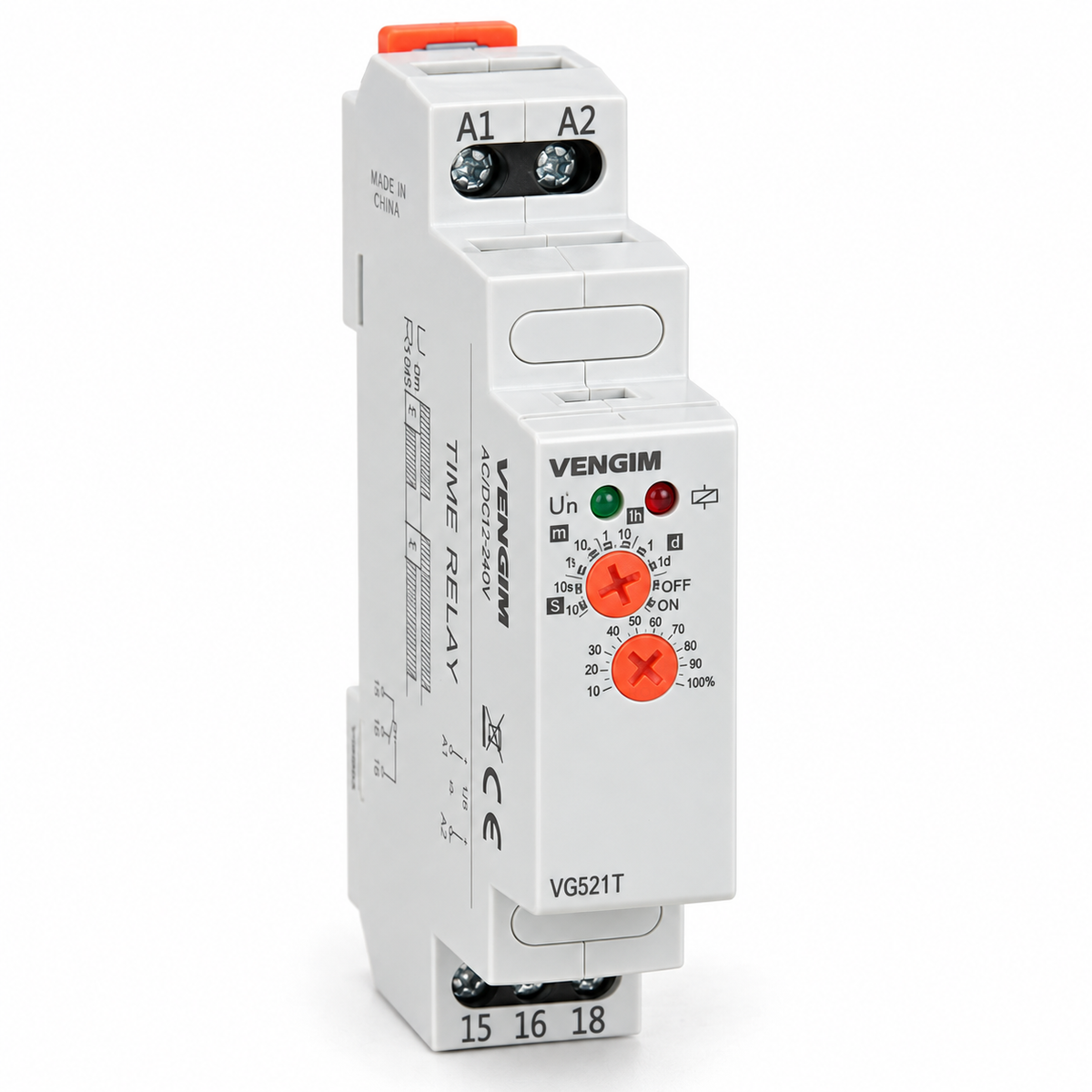

  • VENGIM VG521T DIN-rail power-on delay timer relay

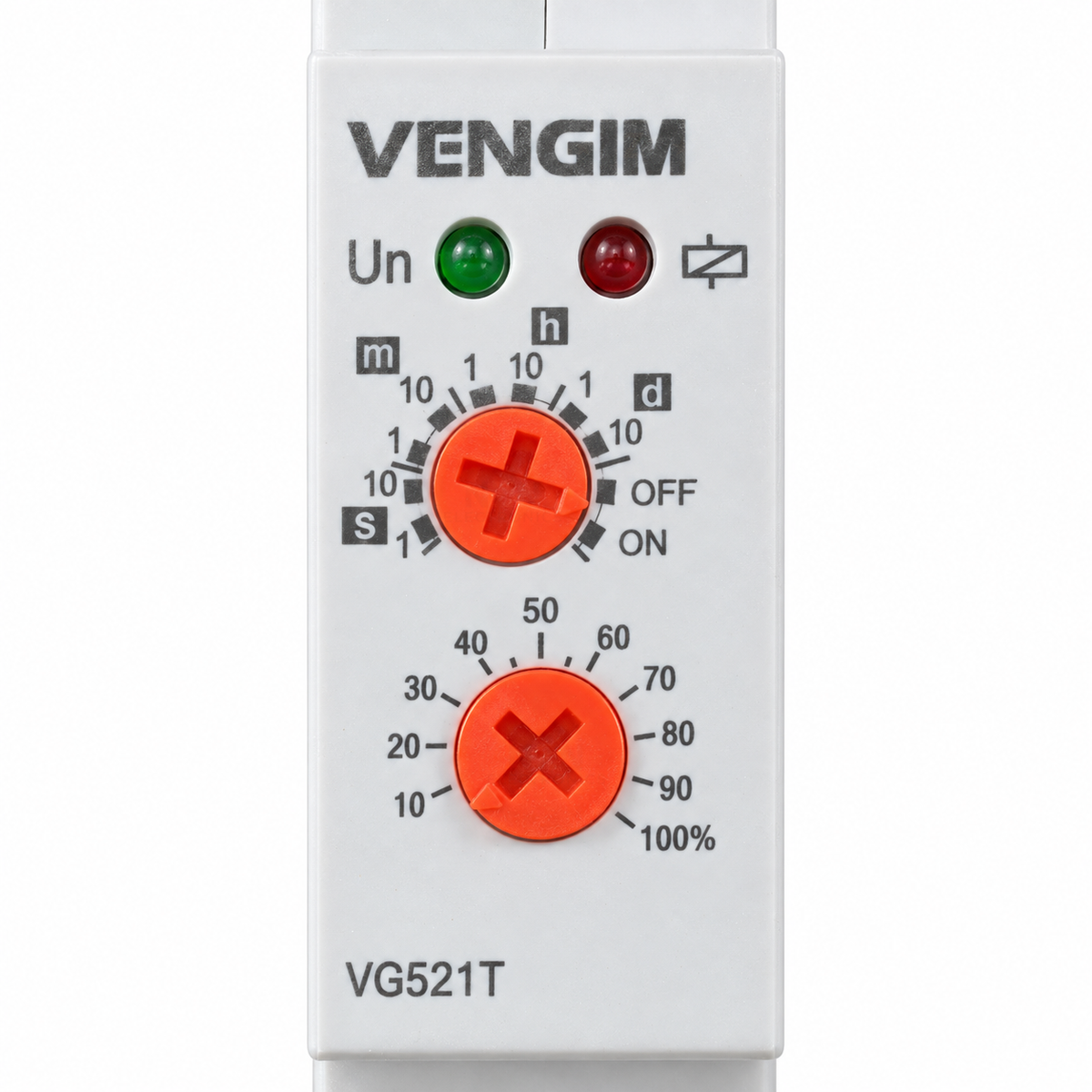

  • VG521T front controls with range selector, percentage dial and status LEDs

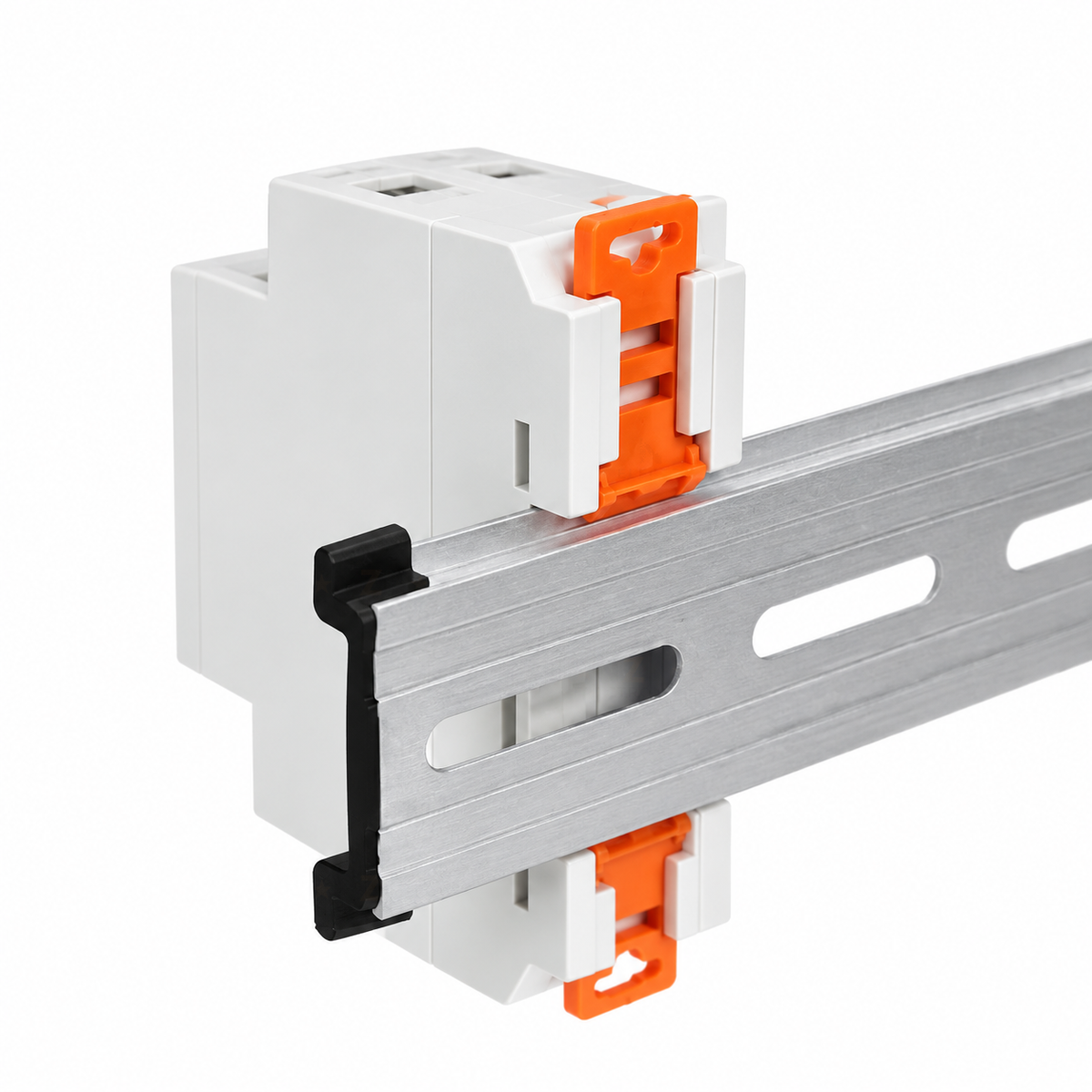

  • VG521T rear DIN-rail mounting latch installed on 35 mm rail

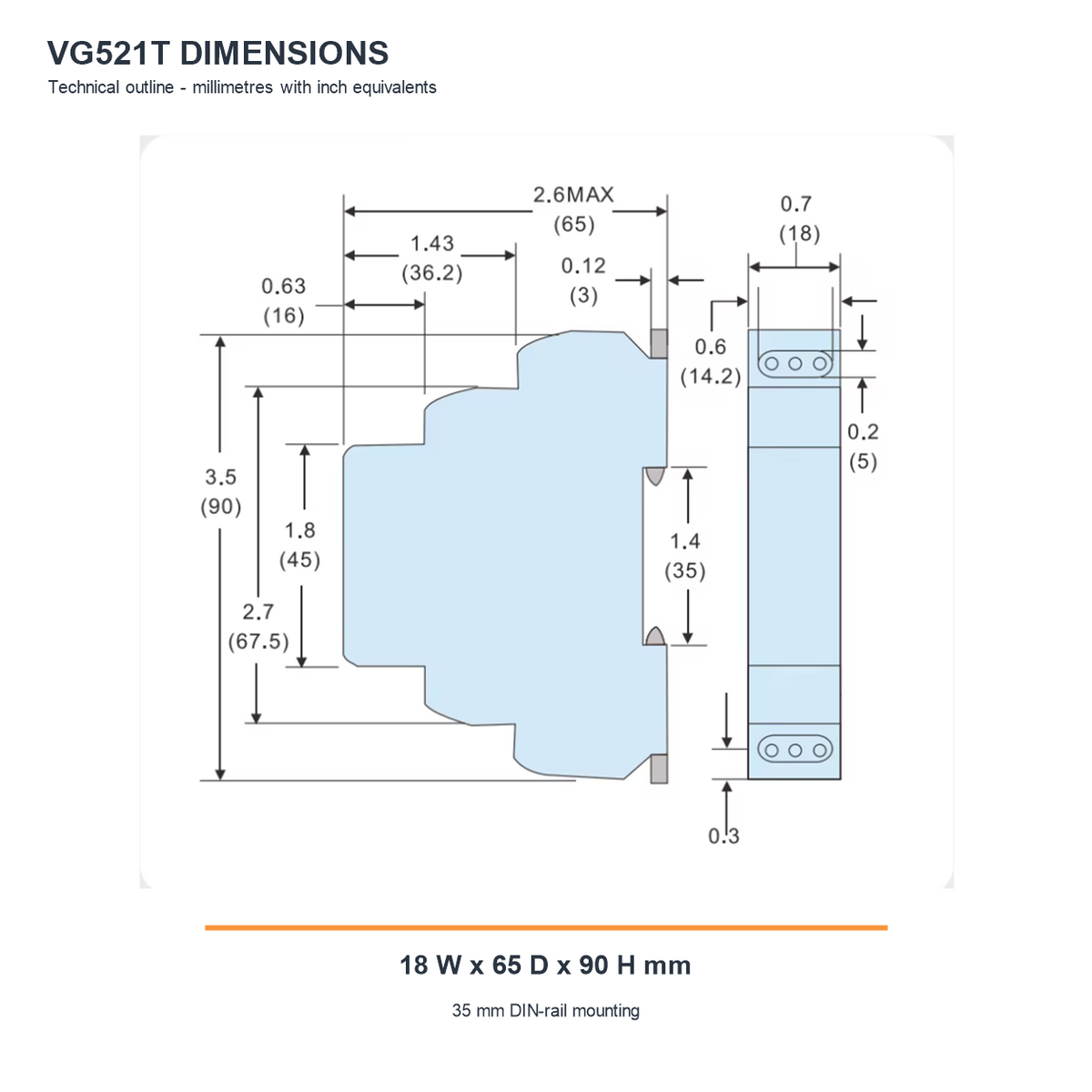

  • VG521T dimensions drawing showing 18 mm width, 65 mm depth and 90 mm height
VENGIM VG521T DIN-Rail Power-On Delay Timer Relay
SKU: REL-TMR-VG521T

VENGIM VG521T DIN-Rail Power-On Delay Timer Relay

$48.99 NZD
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

Add a controlled start delay to pumps, lighting, access systems and other automation circuits. The slim VENGIM VG521T begins timing when power reaches A1 and A2, then changes its SPDT output after the selected delay from 0.1 seconds to 10 days.

Specifications

ModelVENGIM VG521T
Timing functionPower-on delay
Supply voltage12-240 V AC/DC
Supply frequency50/60 Hz for AC operation
Time range0.1 seconds to 10 days
Setting accuracy±5% of full range
Output contact1 C/O, SPDT
Resistive load rating5 A at 240 V AC or 24 V DC
TerminalsA1, A2, 15 common, 16 NC, 18 NO
Operating temperature-20 to +55 °C
Dimensions18 x 65 x 90 mm, W x D x H
Mounting35 mm DIN rail

Datasheets

Full technical datasheet PDF

What's in the box

1×
VENGIM VG521T timer relay

18 mm DIN-rail module with screw terminals and two front adjustment controls.

Great for

Staggered equipment start-up
Pump and motor control panels
Lighting and building automation
Doors, gates, shutters and control systems

Wiring & getting started

  1. Isolate the circuit

    Disconnect and verify the supply before touching any terminal. Use a licensed electrical worker for fixed or mains wiring in New Zealand.

  2. Connect the timer supply

    Connect the control supply across A1 and A2. Timing starts when this supply is energised.

  3. Select the timed contact

    Terminal 15 is common. Use 15-18 for a normally open output that closes after the delay, or 15-16 for a normally closed output that opens after the delay.

  4. Set the delay

    Choose the range with the upper selector, then set 10-100% of that range with the lower dial. For example, 10 seconds at 30% gives about 3 seconds.

Note: The 5 A rating applies to resistive loads. Inductive loads such as contactor coils, motors and solenoids may require additional suppression or an appropriately rated external contactor.

Frequently Asked Questions

Answers to the questions buyers ask most.

What happens when power is applied?
The timing period starts when A1 and A2 are energised. After the selected delay, 15-18 closes and 15-16 opens.
Can it run from AC or DC?
Yes. This stocked VG521T variant accepts 12-240 V AC or DC. AC operation is specified for 50/60 Hz.
How is the delay set?
Choose the time range with the upper selector, then set 10-100% of that range with the lower dial. For example, 10 seconds at 30% gives about 3 seconds.
Can it switch a 5 A motor or solenoid directly?
The 5 A rating is for resistive loads. Inductive loads can create higher switching stress and may require suppression or an appropriately rated external contactor.
Who should install it?
Isolate the supply before wiring. Use a licensed electrical worker for fixed or mains wiring in New Zealand.
