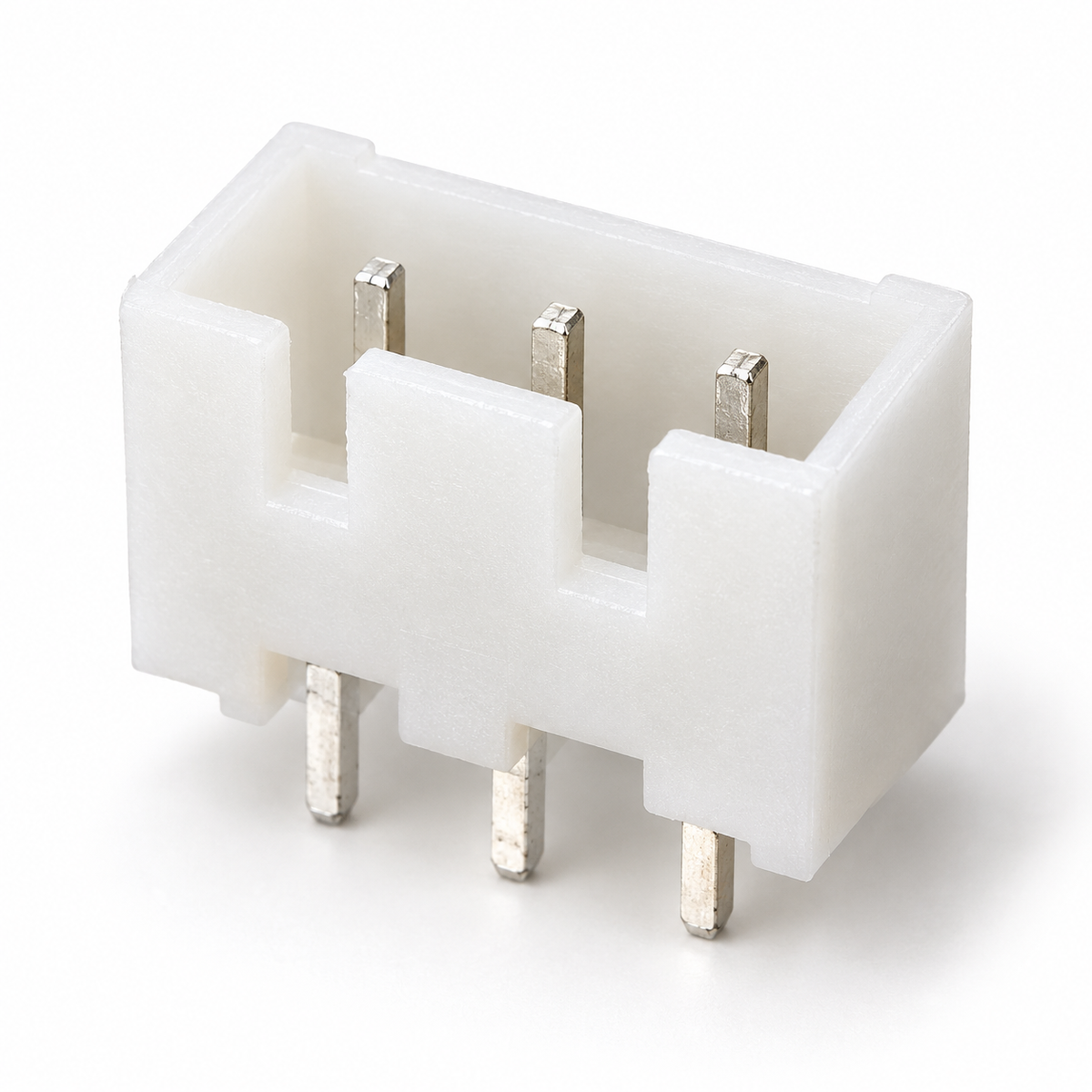

XH 2.5mm 3-pin vertical PCB header with three silver pins inside the white shroud, latch-side wall facing forward
  • XH 2.5mm 3-pin vertical PCB header with three silver pins inside the white shroud, latch-side wall facing forward

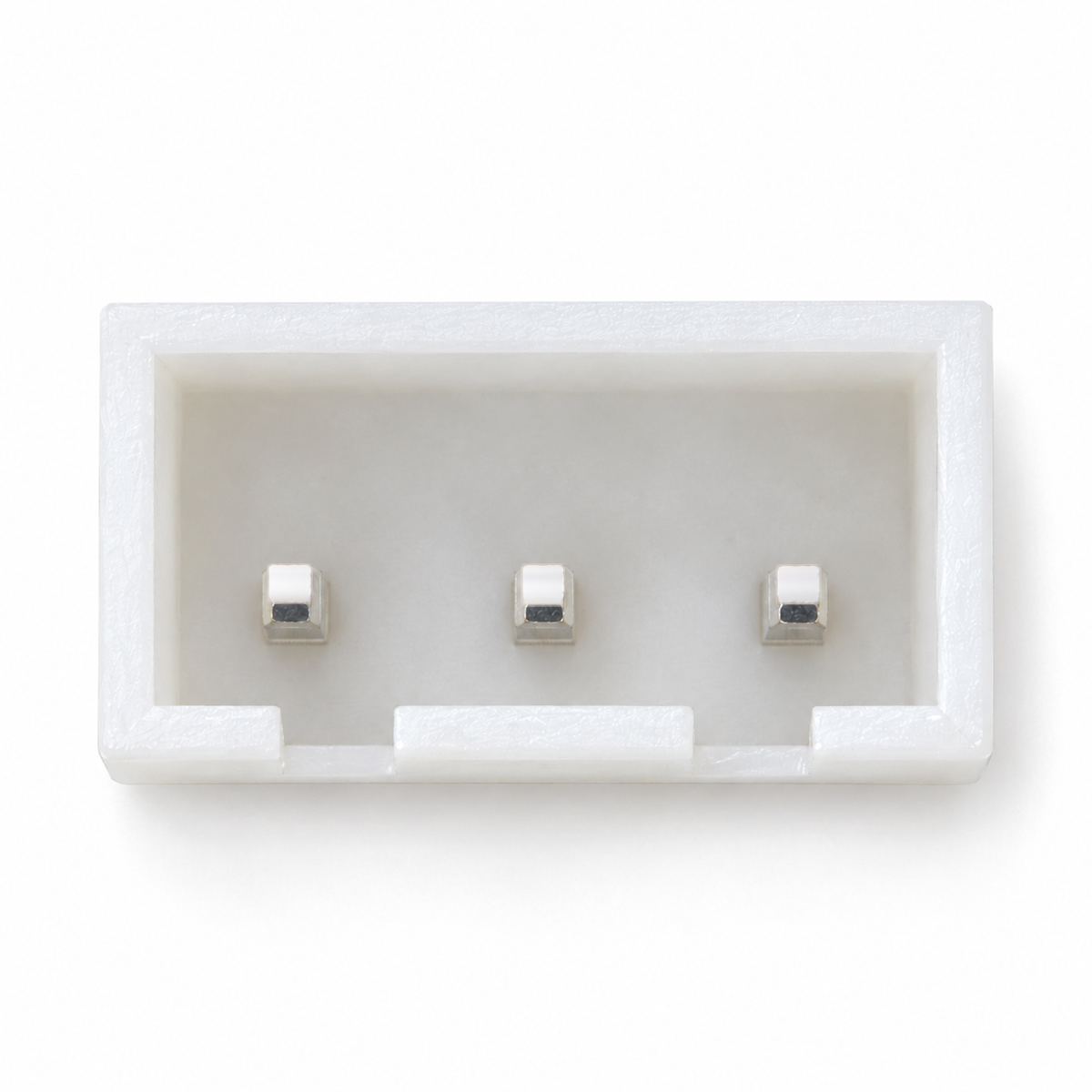

  • Top view into the XH 3-pin header showing the row of three square pins and the two latch slots

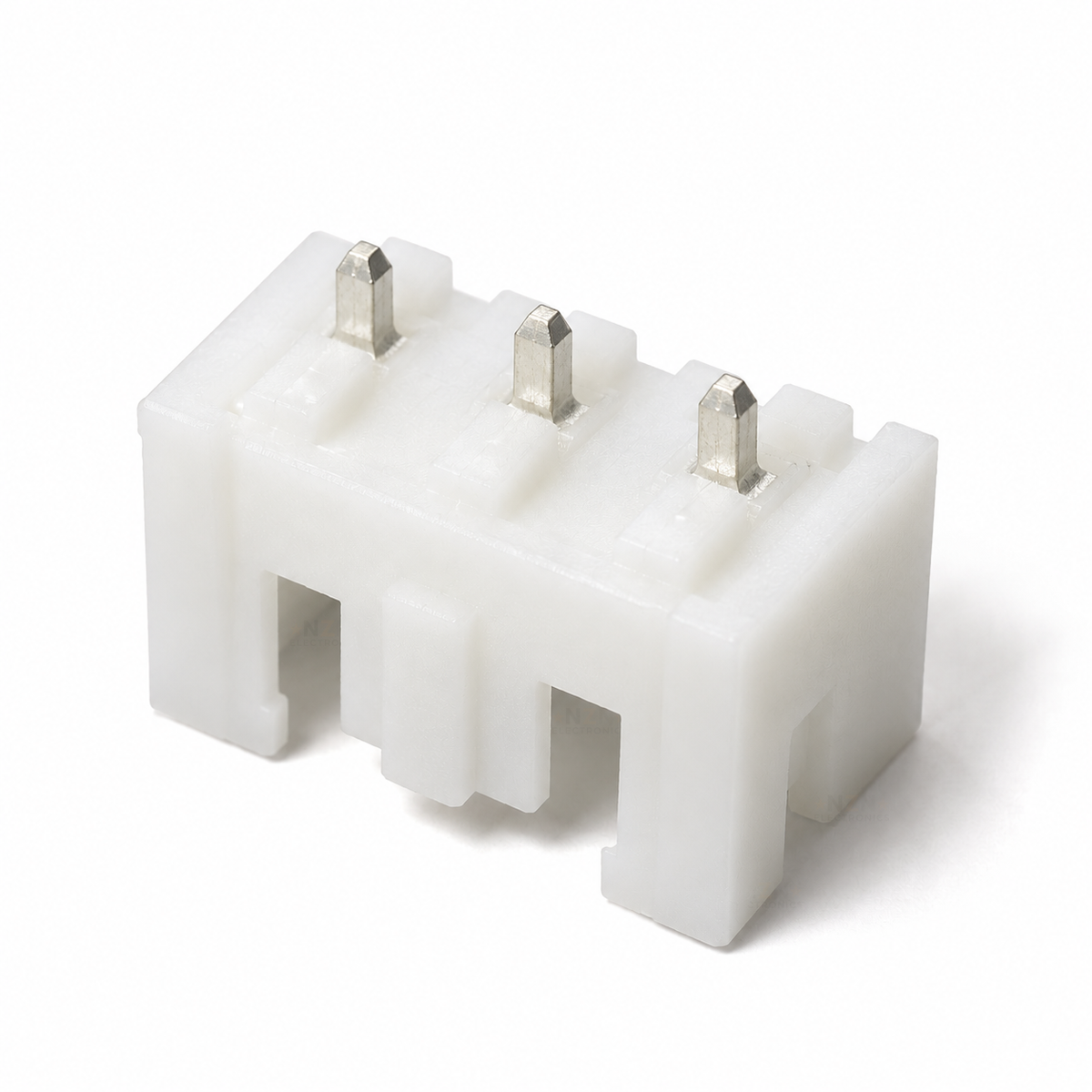

  • XH 3-pin header upside down showing its three straight through-hole solder pins

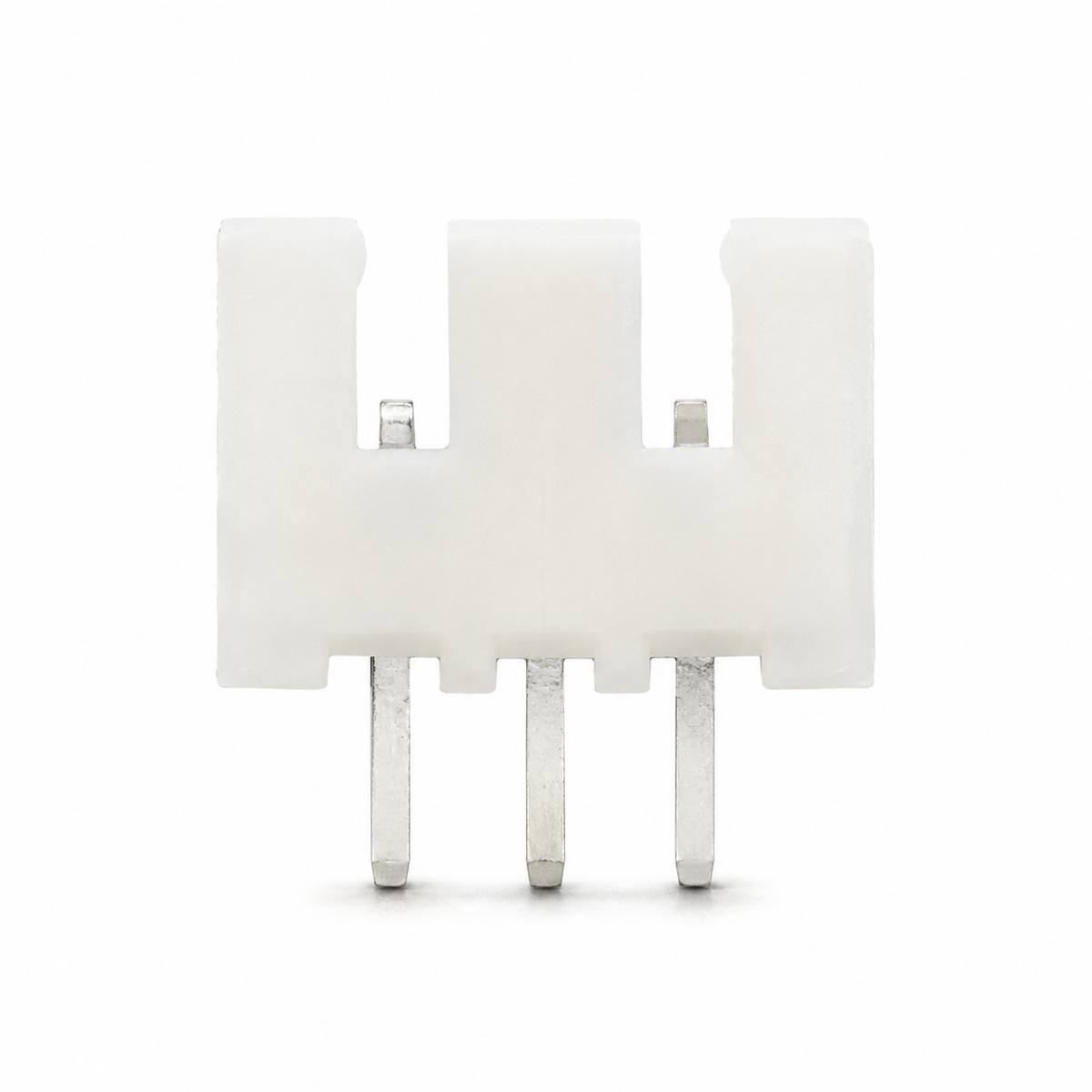

  • Side view of the XH 3-pin header latch wall with its centre tongue, two slots and three solder pins

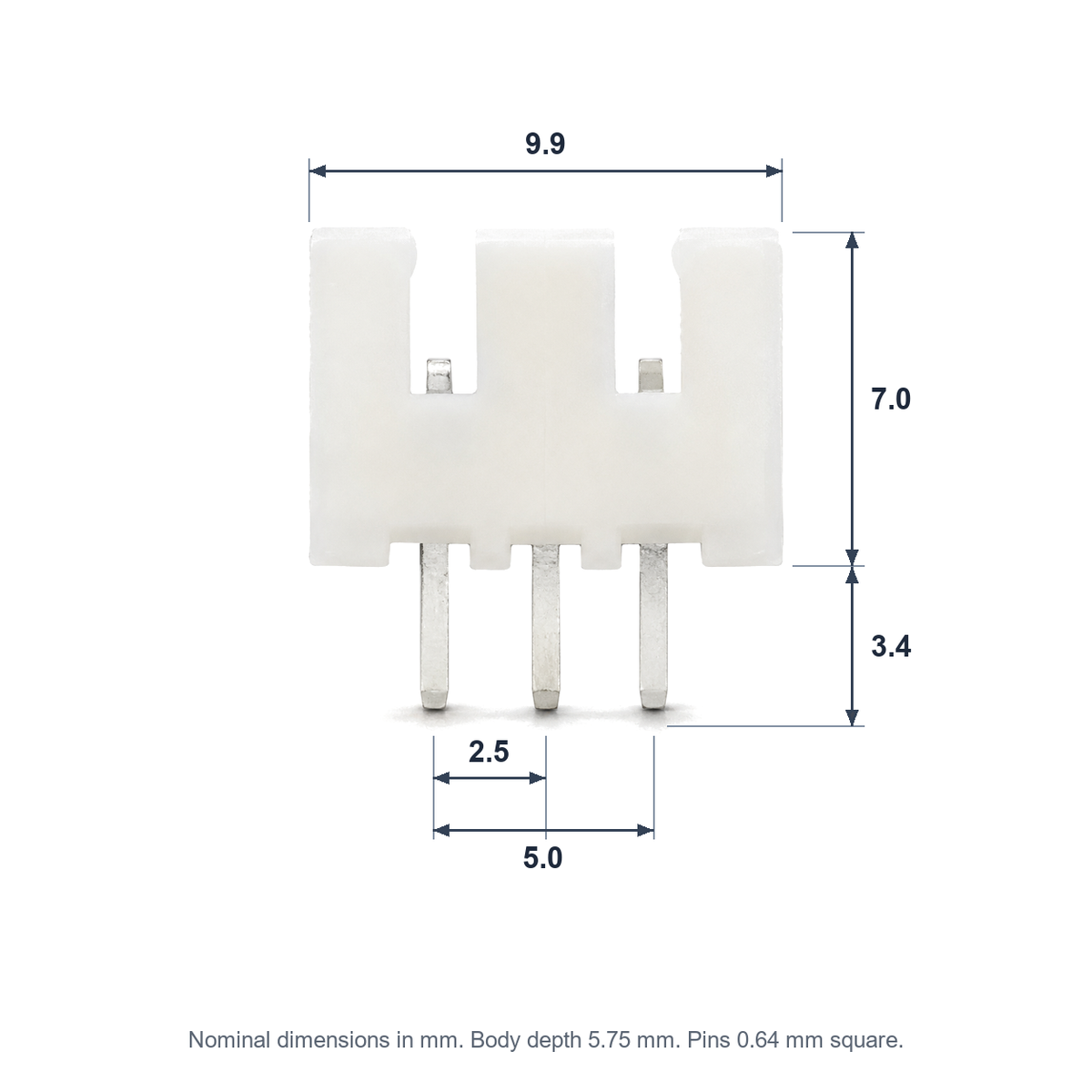

  • XH 3-pin header dimensions: 9.9 mm long, 7.0 mm tall, 3.4 mm pins at 2.5 mm pitch

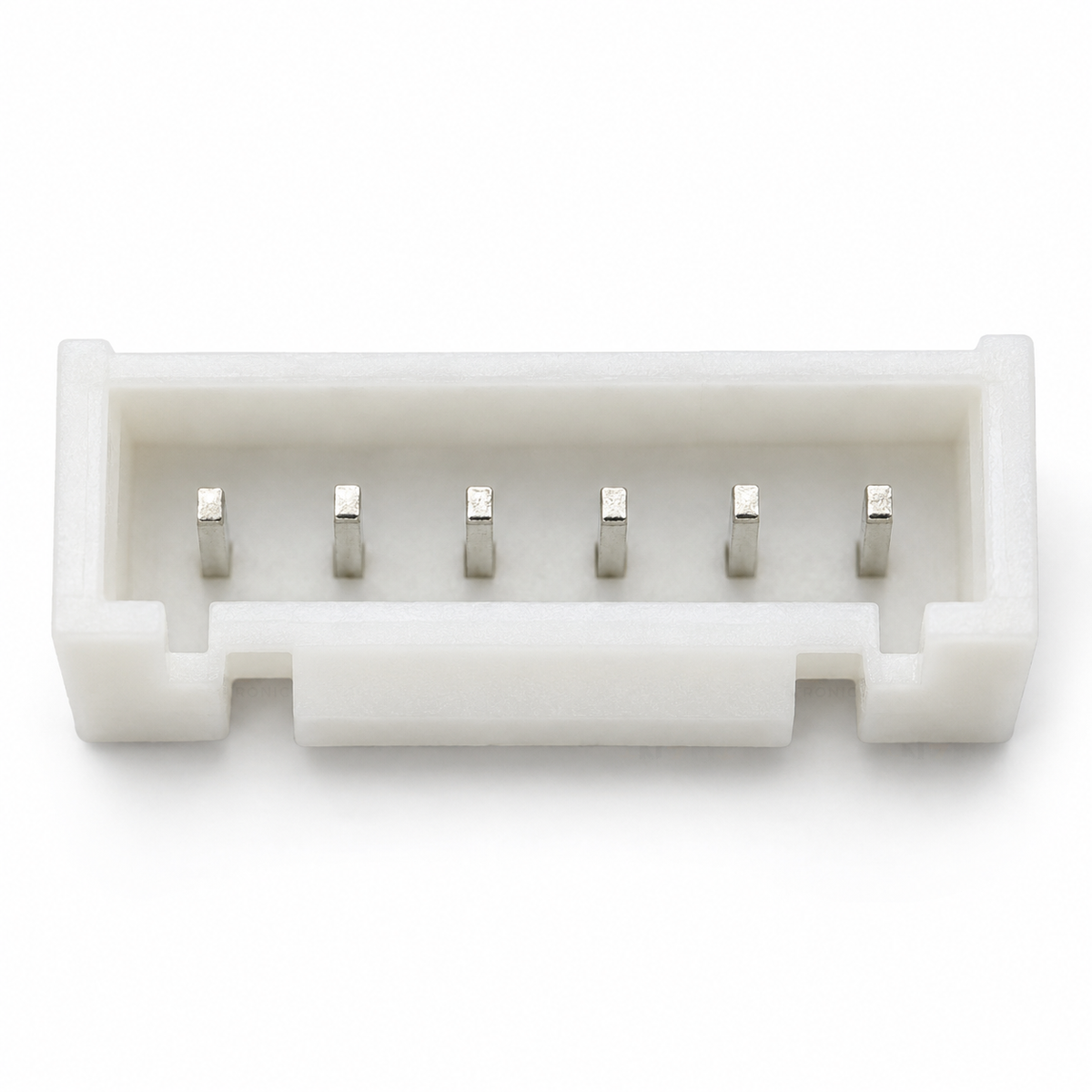

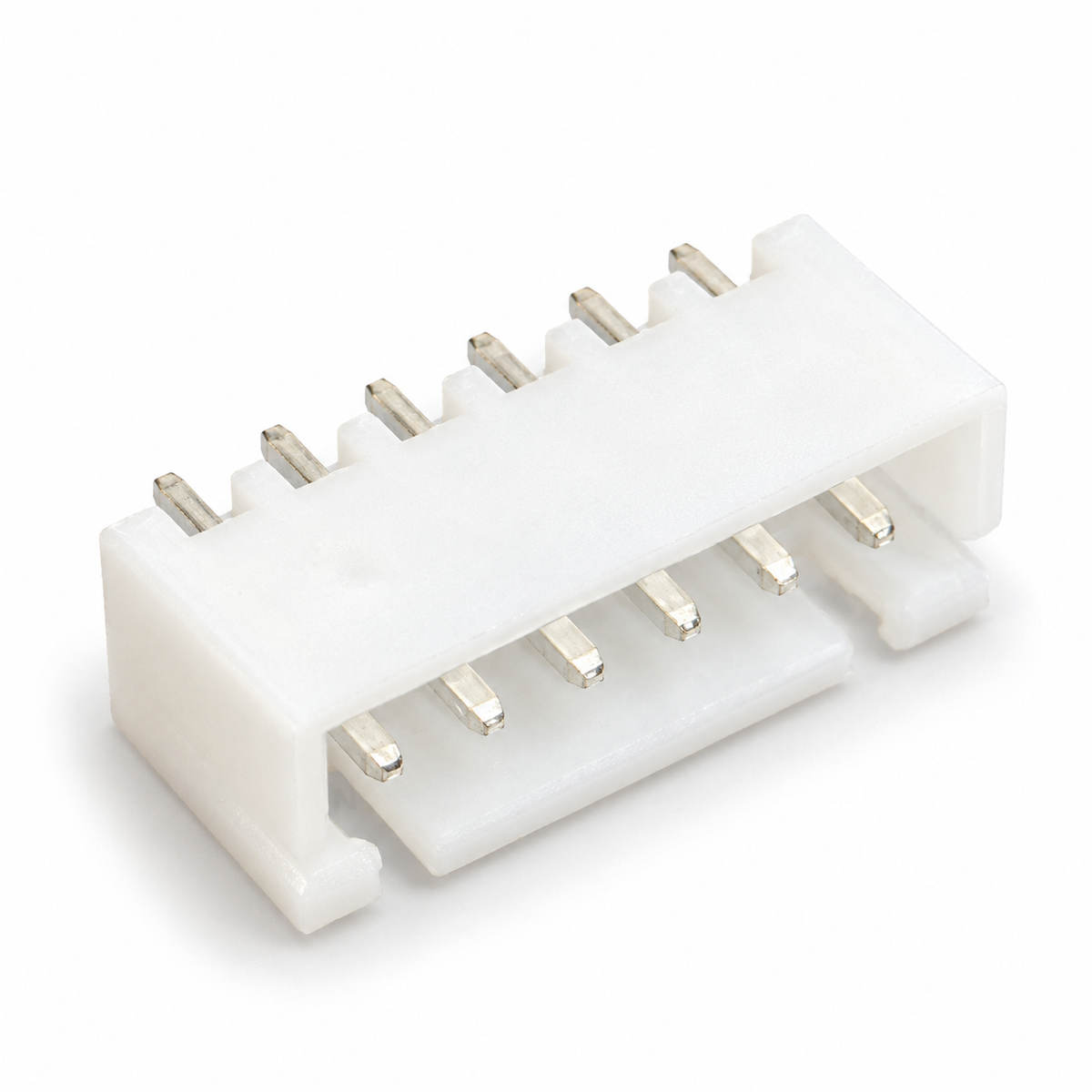

  • Looking into the XH 6-pin header shroud, showing the six square pins and the two latch slots on the front wall

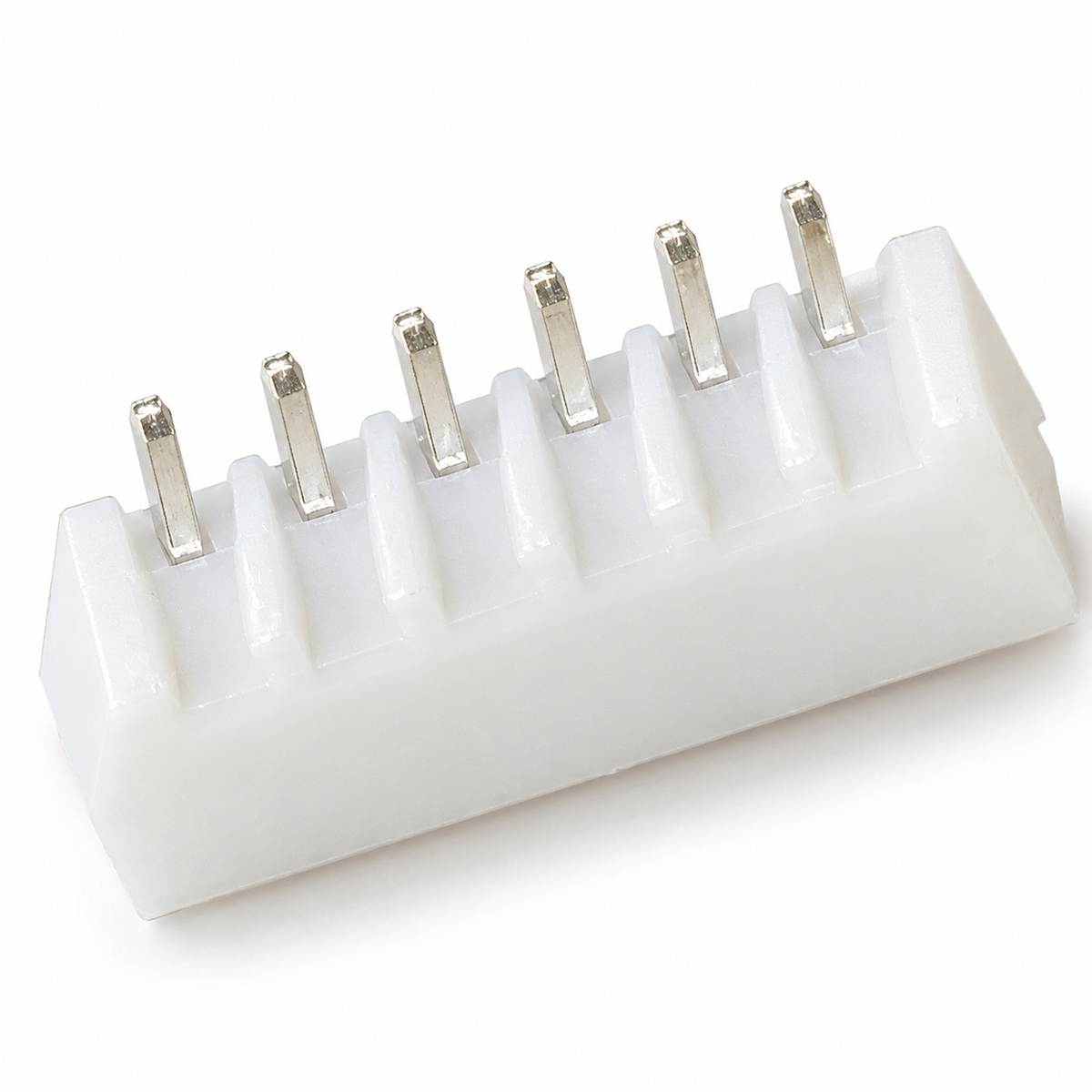

  • XH 6-pin header upside down, showing the six through-hole solder pins and standoff ribs on the base

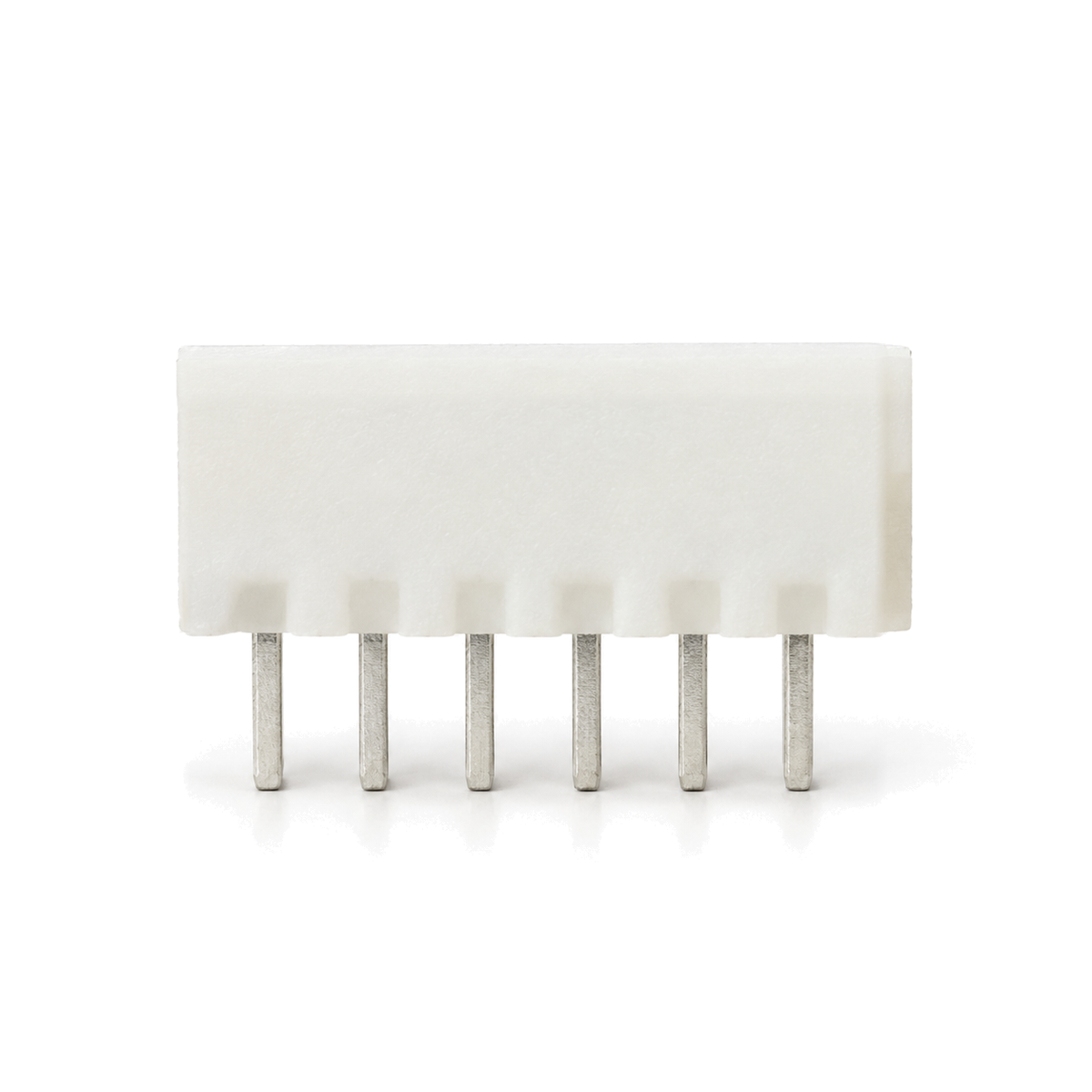

  • Side view of the XH 6-pin header, plain back wall with the six solder pins in a row underneath

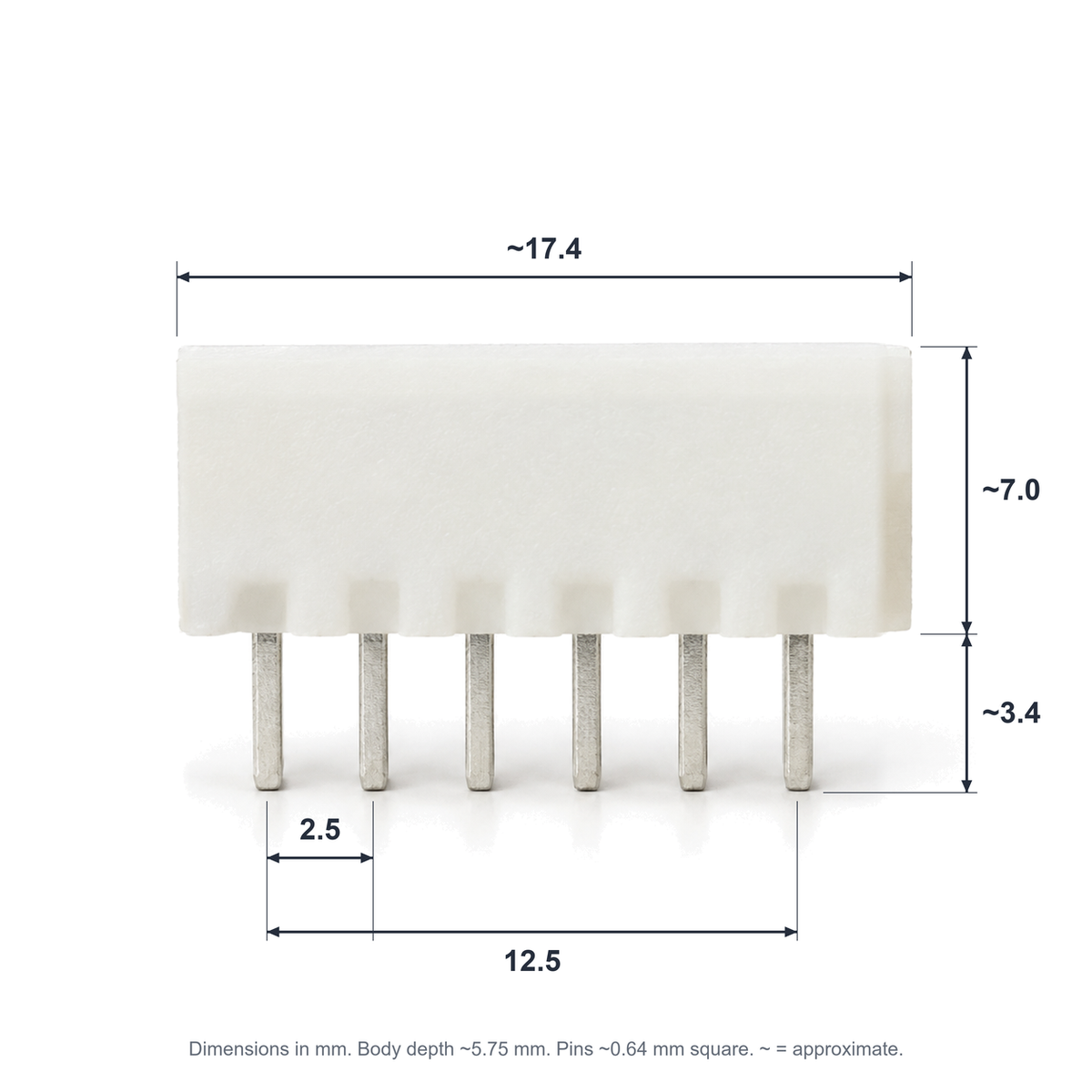

  • XH 6-pin header dimensions: about 17.4mm long, 7mm body height, 3.4mm solder pins, 2.5mm pitch, 12.5mm pin span
XH 2.5mm PCB Header 3 or 6 Pin, Vertical Through-Hole (JST-XH Compatible)
SKU: JST-XH-3P-M

XH 2.5mm PCB Header 3 or 6 Pin, Vertical Through-Hole (JST-XH Compatible)

$0.39 NZD
Pins
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Minimum order quantity: 4

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

XH 2.5mm PCB headers in 3-pin and 6-pin sizes, the board half of the common white XH wire-to-board connector. The pins go straight through the board and are soldered underneath, and the shrouded top takes an XH plug that latches on one side, so it only goes in one way. The 3-pin suits 2S LiPo balance leads and 3-wire sensors, and the 6-pin suits 5S balance leads and 6-wire harnesses.

Specifications

Connector familyXH, 2.5mm pitch (JST-XH compatible)
Sizes3-pin or 6-pin, single row
MountingThrough-hole, straight (vertical), plug enters from above
3-pin body9.9 x 5.75 mm, 7.0 mm tall above the board
6-pin body17.4 x 5.75 mm, 7.0 mm tall above the board
Pins0.64 mm square, silver finish, 3.4 mm below the board
PCB holes0.9 to 1.0 mm in a 2.5 mm row (5.0 mm end to end on the 3-pin, 12.5 mm on the 6-pin)
On 0.1 inch boardFits 2.54 mm stripboard: 0.08 mm out over 3 pins, 0.2 mm over 6
LatchSlotted wall on one side, plug fits one way
Mates with3-way or 6-way XH housing with XH crimp terminals
CurrentXH parts are rated 3 A per contact on 22 AWG; we suggest 2 A or less
Minimum order4 headers ($1.56 for 3-pin, $3.16 for 6-pin)

Datasheets

Full technical datasheet PDF

What's in the box

4+
XH 2.5mm vertical PCB headers in the size you choose

Loose headers, as many as you order. Plug housings and crimp terminals are not included.

Great for

Adding a 2S or 5S balance lead socket to a charger or battery monitor board
Plug-in 3-wire sensors such as temperature or Hall sensors
Unpluggable fan, LED or 6-wire signal leads on your own PCB
Replacing a broken XH socket on an existing board

Wiring & getting started

  1. Pick the size

    Count the wires on your plug: 3 wires need the 3-pin header, 6 wires need the 6-pin.

  2. Face the latch the right way

    The wall with the two slots is the latch side. Turn the header so the plug's latch faces that wall with the wires in the order your board expects; it will not go in the other way round.

  3. Solder it

    Push it down flat on the board, solder one end pin, check it sits square, then solder the rest. Keep the iron on each joint only long enough for the solder to flow.

  4. Make the cable

    Crimp XH terminals onto 22 to 28 AWG wire and click them into a matching XH housing, such as our 3-way XH housing, then push it onto the header until it latches.

Note: XH (2.5mm) is a different size from PH (2.0mm). A PH plug will not fit these headers.

Frequently Asked Questions

Answers to the questions buyers ask most.

Which size do I need?
Count the wires on your plug. A 3-wire XH plug, such as a 2S LiPo balance lead, needs the 3-pin header. A 6-wire XH plug, such as a 5S balance lead, needs the 6-pin header.
Will it fit my LiPo balance lead?
Yes, if the lead ends in a white XH plug with the same number of wires. 2S packs use a 3-pin XH plug and 5S packs use a 6-pin XH plug. Check the wire order your board expects before soldering.
Is this 2.5mm or 2.54mm pitch?
2.5mm, the XH standard. The difference from a 0.1 inch (2.54mm) layout is 0.08mm over 3 pins and 0.2mm over 6 pins, so both sizes fit 2.54mm stripboard. For a new board, draw 2.5mm holes.
Is it compatible with JST-XH?
Yes. These are unbranded XH-style headers made to the same 2.5mm layout, and they mate with JST XH plugs and other XH leads of the same pin count. They are not made by JST.
Will a JST-PH plug fit?
No. PH is 2.0mm pitch and smaller all round, so it will not seat in an XH header.
Is it through-hole or surface mount?
Through-hole. The pins pass through 0.9 to 1.0mm holes and are soldered on the underside. The header stands upright with the opening facing up.
Which way does the plug go in?
The plug's latch goes on the side of the header with the two slots. It only fits that way round, so it cannot be plugged in backwards.
What do I need to make a cable for it?
An XH housing with the same number of ways and XH crimp terminals on 22 to 28 AWG wire. We stock the 3-way XH housing; housings and terminals are not included with the header.
How much current can it carry?
We suggest 2 A or less per pin. That covers balance leads, sensors, signal lines and small motors. Use a larger connector for main battery or motor power.
Is there a minimum order?
Yes, 4 headers of the size you choose. The price per header drops from 10 and again from 20, as shown above the Add to cart button.
