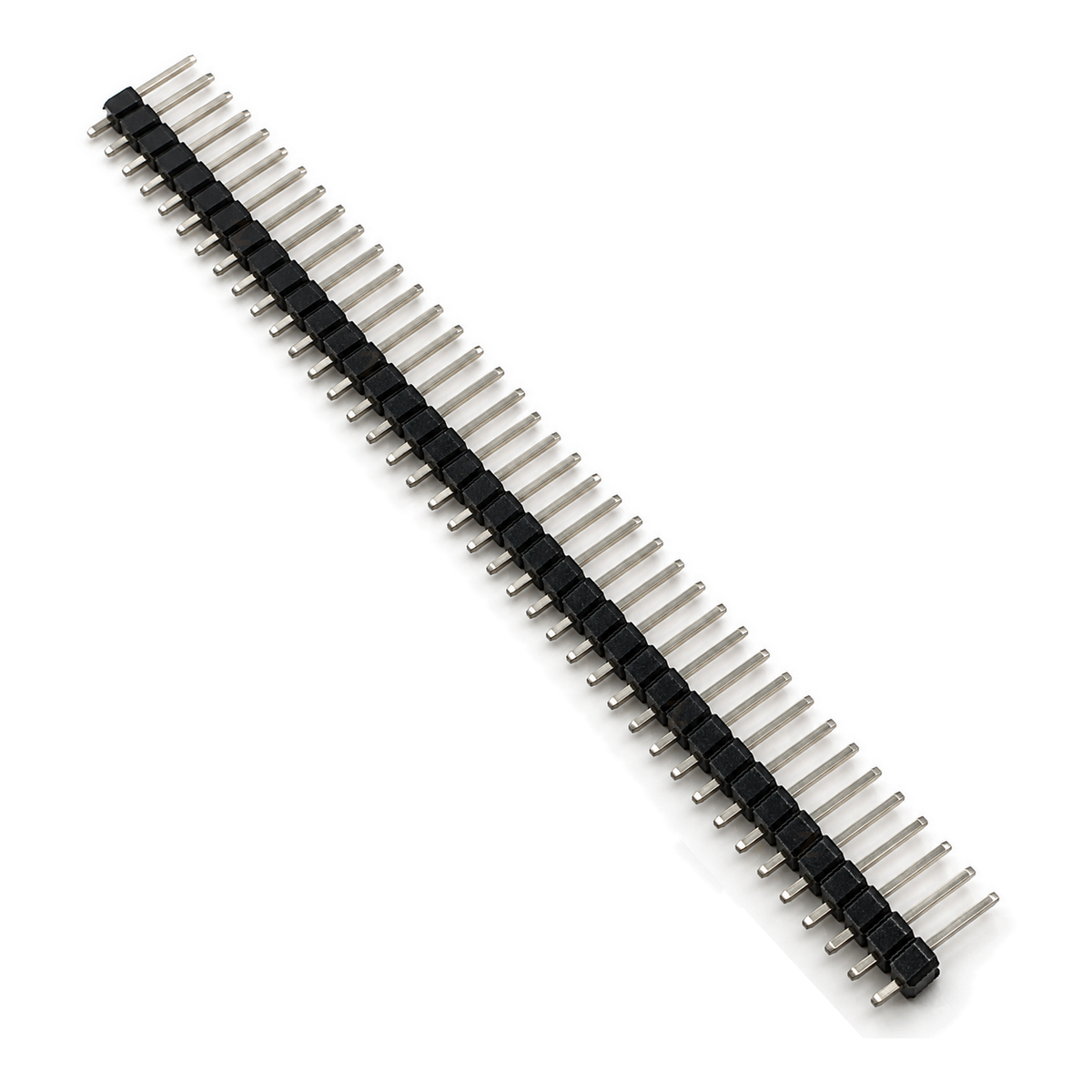

One 40-pin 2.54mm straight male header strip lying on its side, long pins on one side of the black plastic and short pins on the other

2.54mm Male Pin Header Strip 1x40 - Straight, Breakaway

$0.59 NZD
Save 5% at 5+
Skip to product information
One 40-pin 2.54mm straight male header strip lying on its side, long pins on one side of the black plastic and short pins on the other
  • One 40-pin 2.54mm straight male header strip lying on its side, long pins on one side of the black plastic and short pins on the other

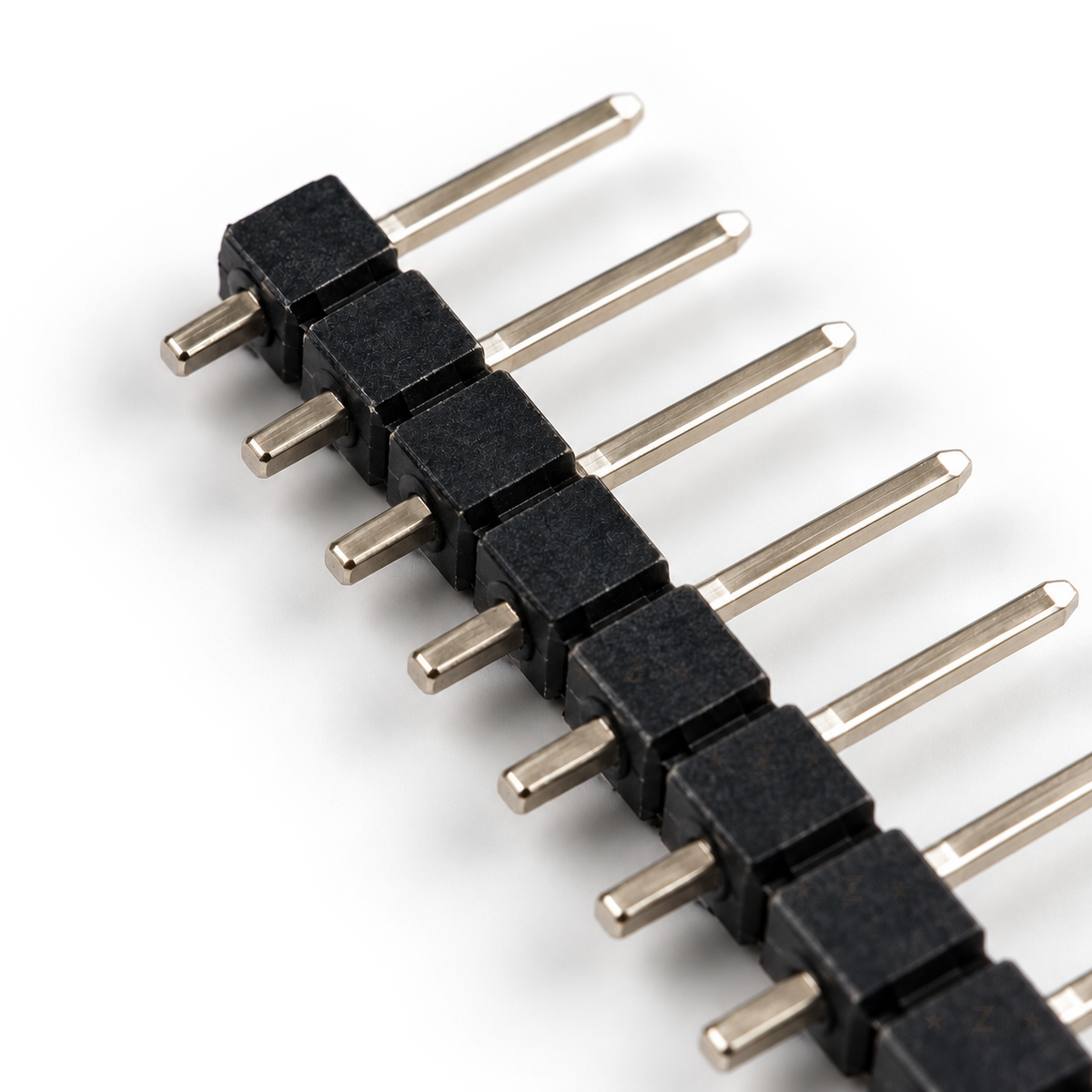

  • Close-up of the end of the straight header strip showing the notches between the black blocks and the square pins with chamfered tips
  • Straight header close-up marked with 2.54mm pitch, about 6mm mating pin length and about 3mm solder side length

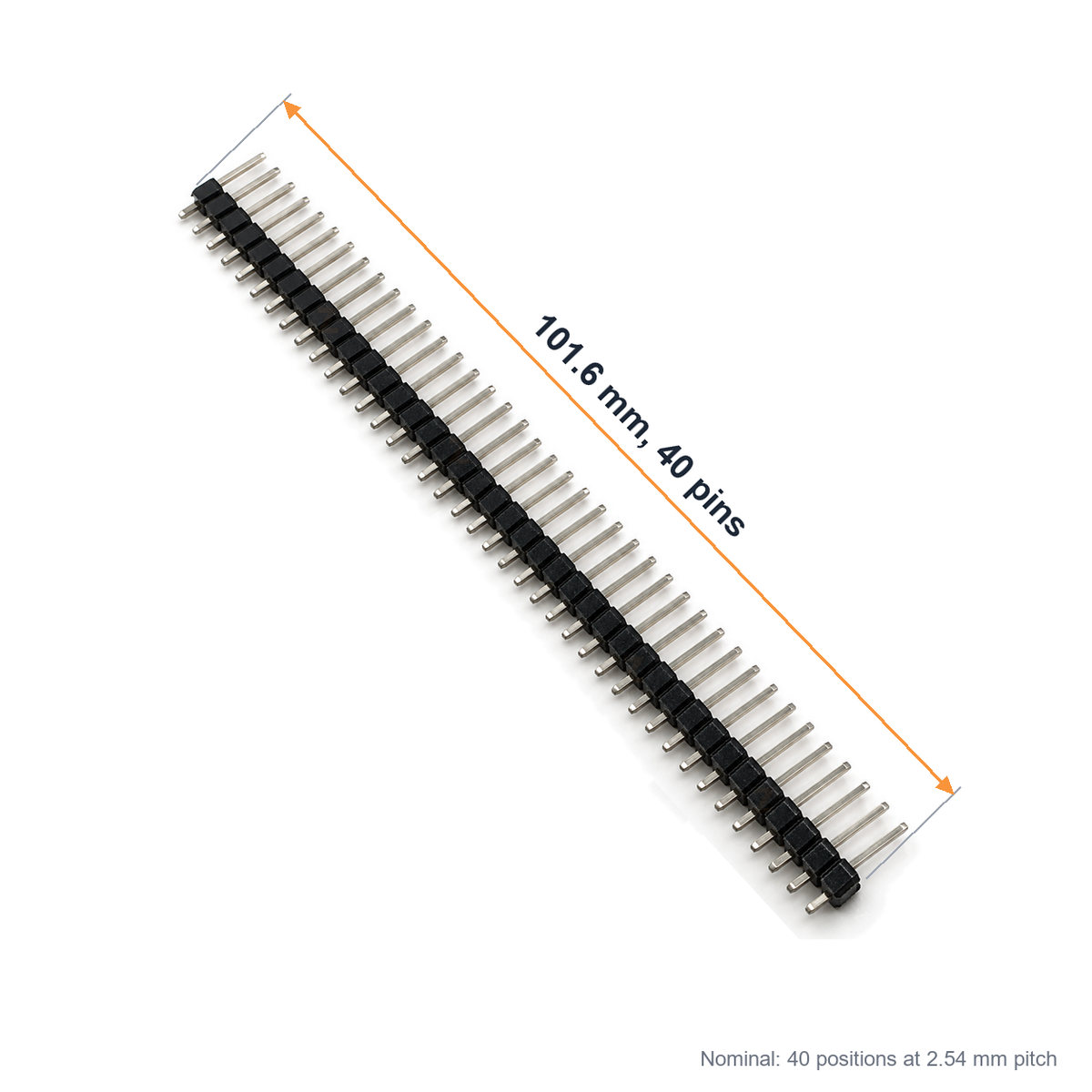

  • Full straight header strip with an arrow marking its 101.6mm length across 40 pins
2.54mm Male Pin Header Strip 1x40 - Straight, Breakaway
SKU: HDR-254-M-1X40-ST

2.54mm Male Pin Header Strip 1x40 - Straight, Breakaway

$0.59 NZD
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A single-row male pin header with 40 straight pins at the standard 2.54mm (0.1 inch) spacing. It snaps cleanly to any length, so you can fit pins to a sensor module, Nano, ESP32 board or your own PCB and plug it into a breadboard, a female header or Dupont jumper leads. If you need the pins to point out sideways, parallel to the board, use the right-angle 1x40 header.

Specifications

Pins40 in one row (1x40)
Pitch2.54mm (0.1 inch)
Strip length101.6mm (40 x 2.54mm)
Pin styleStraight, square pins
Pin lengthAbout 11.5mm: about 6mm mating side, 3mm solder side
PlasticBlack, about 2.5mm, notched between every pin
BreakawaySnaps at any notch, no pins lost
Mates withBreadboards, 2.54mm female headers, Dupont sockets
MountingThrough-hole, hand solder

Datasheets

Full technical datasheet PDF

What's in the box

1×
2.54mm 1x40 straight male header strip

One 40-pin strip per unit. Buy 5 or more for the bulk prices shown above.

Great for

Fitting pins to a sensor module so it plugs into a breadboard
Adding headers to an ESP32, Nano or Pico-style board
Making plug-in connection points on your own PCB
Replacing a damaged or missing header on a module
Adding test points to stripboard for Dupont jumper leads
Building stackable adaptor and shield boards

Wiring & getting started

  1. Snap to length

    Count the pins you need, then bend the strip at the notch with flat-nose pliers or your fingers. It breaks cleanly between two pins. Side cutters work too if you cut in the notch, not through a pin.

  2. Short side into the board

    The short ends go through the board and get soldered. The long ends are the connector side. For a module, push the long ends into a breadboard first and sit the module on top, so the pins stay straight while you solder.

  3. Solder and check

    Tack one end pin, check the strip sits flat, then solder the rest. Keep each joint quick so the plastic does not soften, and check for bridges between neighbouring pins before powering up.

  4. Connect

    Plug the finished pins into a breadboard or a female header, or use female Dupont jumper wires.

Frequently Asked Questions

Answers to the questions buyers ask most.

Will it fit a breadboard and Dupont jumper wires?
Yes. The pins are on the standard 2.54mm (0.1 inch) spacing used by breadboards, female headers and Dupont jumper sockets. Female Dupont ends push straight onto the long pins.
How do I get the length I need?
Snap it. Bend the strip at the notch after the last pin you want, with flat-nose pliers or your fingers, and it breaks cleanly between two pins. You can take any number from 1 to 40 pins from one strip.
Which side goes into the board?
The short ends go through the board and get soldered. The long ends are the connector side, for a breadboard, female header or jumper lead.
Is the price for one pin or a whole strip?
A whole strip. Each unit is one 40-pin strip. Buying 5, 10 or 25 strips lowers the price per strip, as shown in the bulk price table.
Do I need the straight or the right-angle version?
Straight pins stand up from the board, which is what you want for breadboards and most modules. Right-angle pins point out sideways, parallel to the board, for side-entry plugs and low connections. We stock both in 1x40 strips.
Do the pins need soldering?
Yes. They are through-hole pins and need soldering for a reliable connection. Pushing a board onto loose pins without solder gives intermittent contact.
