2mm Pre-wired 5V White Diffused LED — 20cm
Sale price
$0.50 NZD
Regular price
$0.71 NZD
Skip to product information
$0.50 NZD
$0.71 NZD
Save 29%
2mm Pre-wired 5V White Diffused LED — 20cm
Stock amount:
Tax included. Shipping is calculated at checkout.
Urban $40
Rural $60

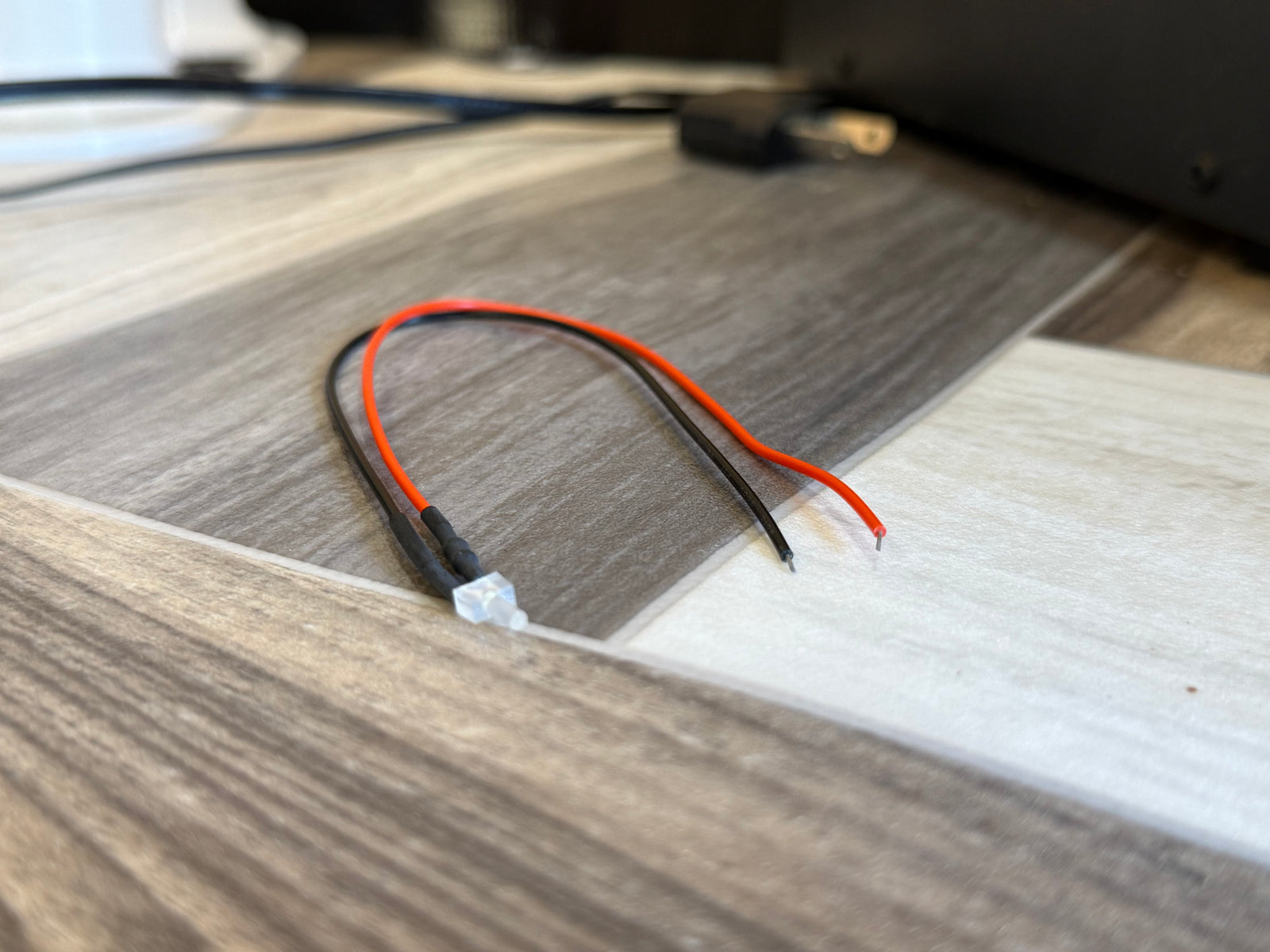

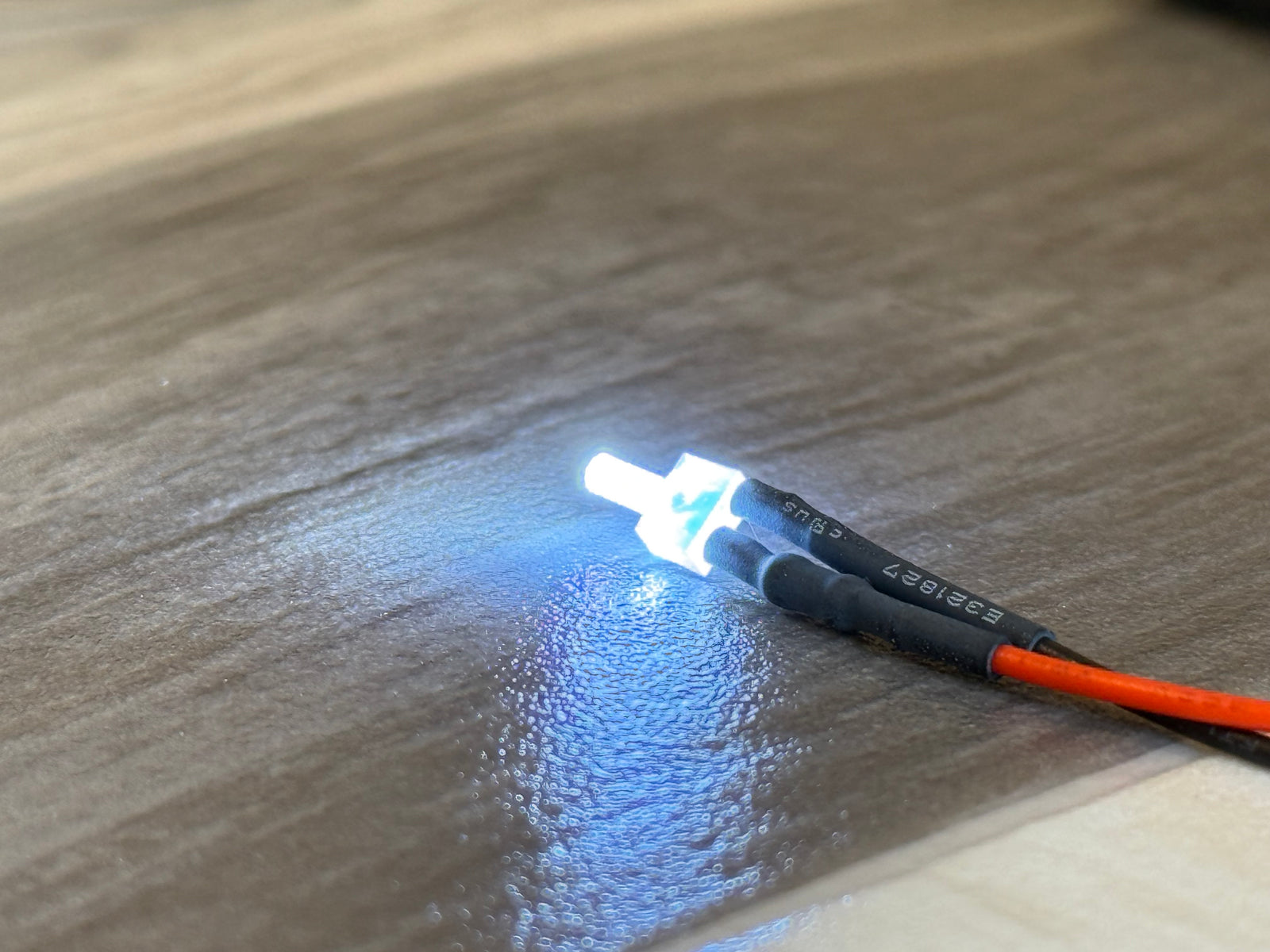

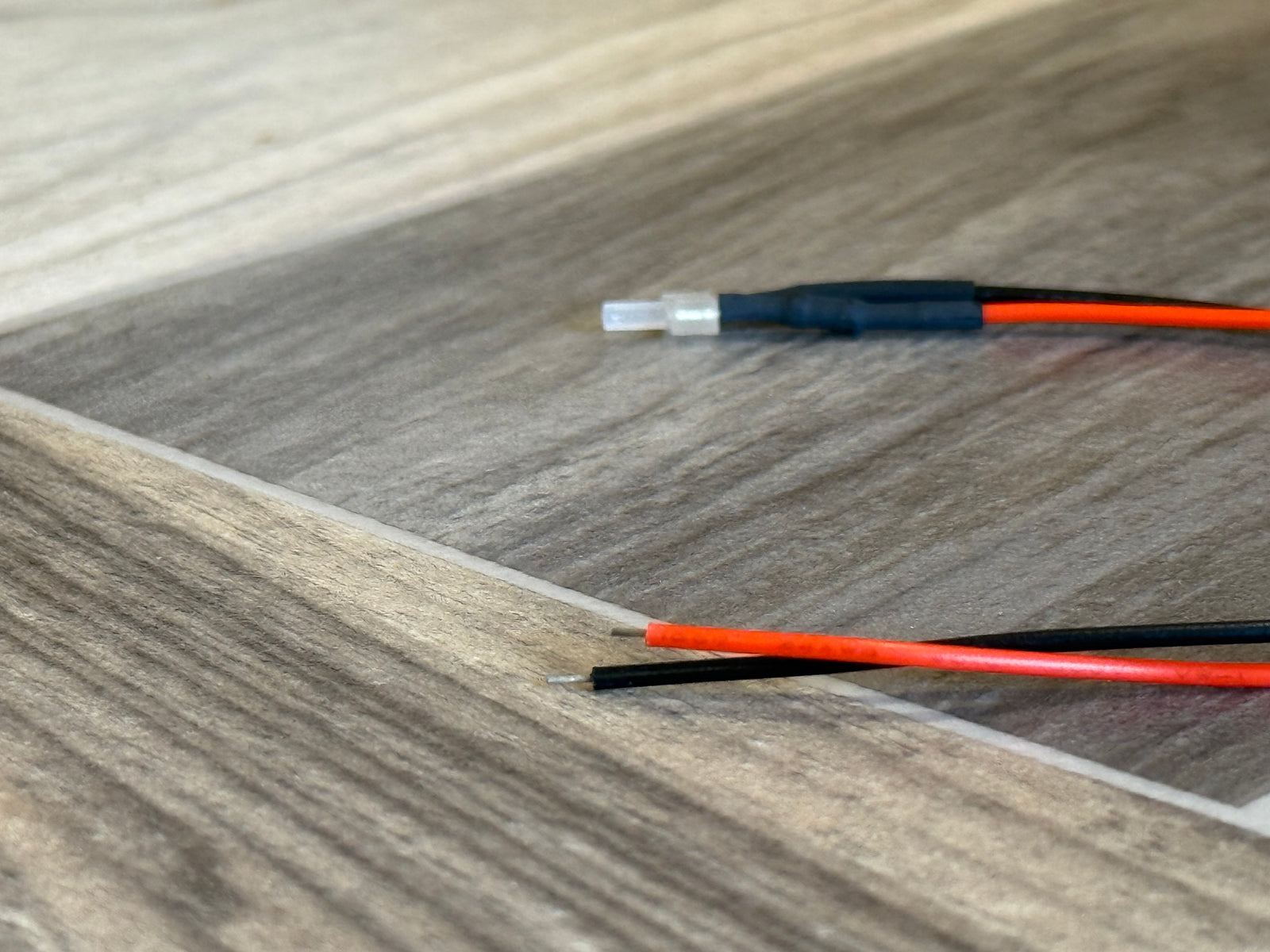

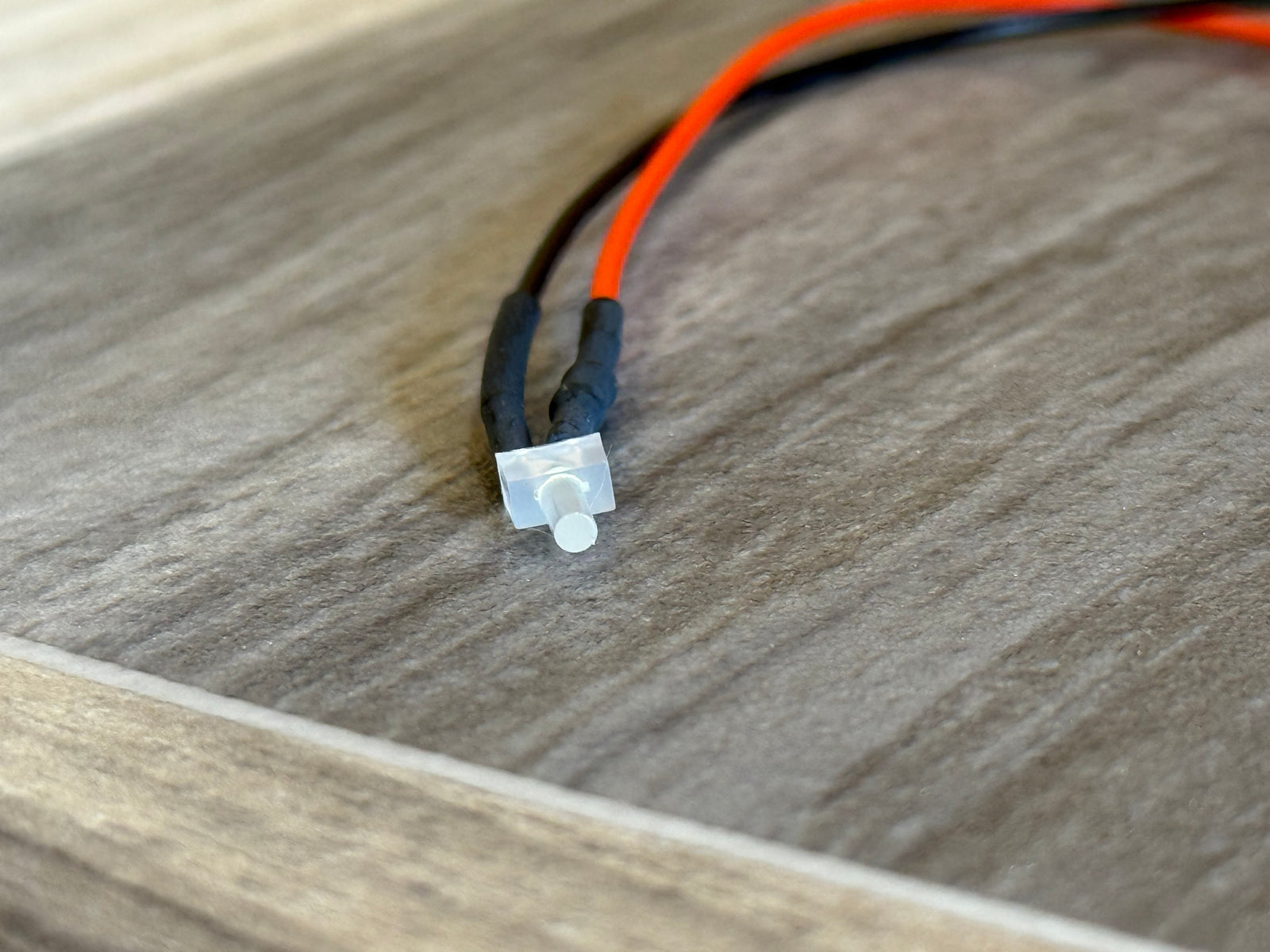

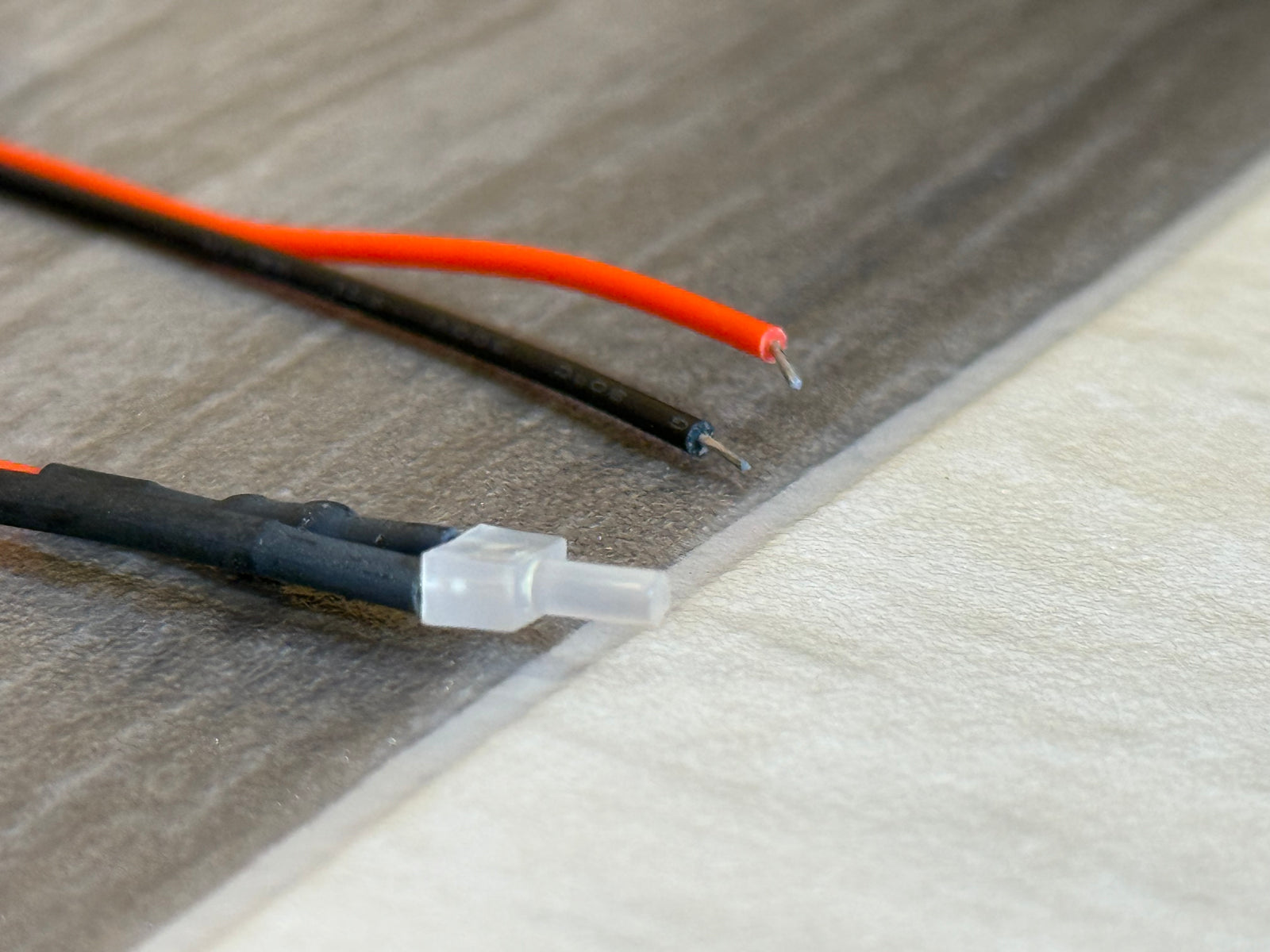

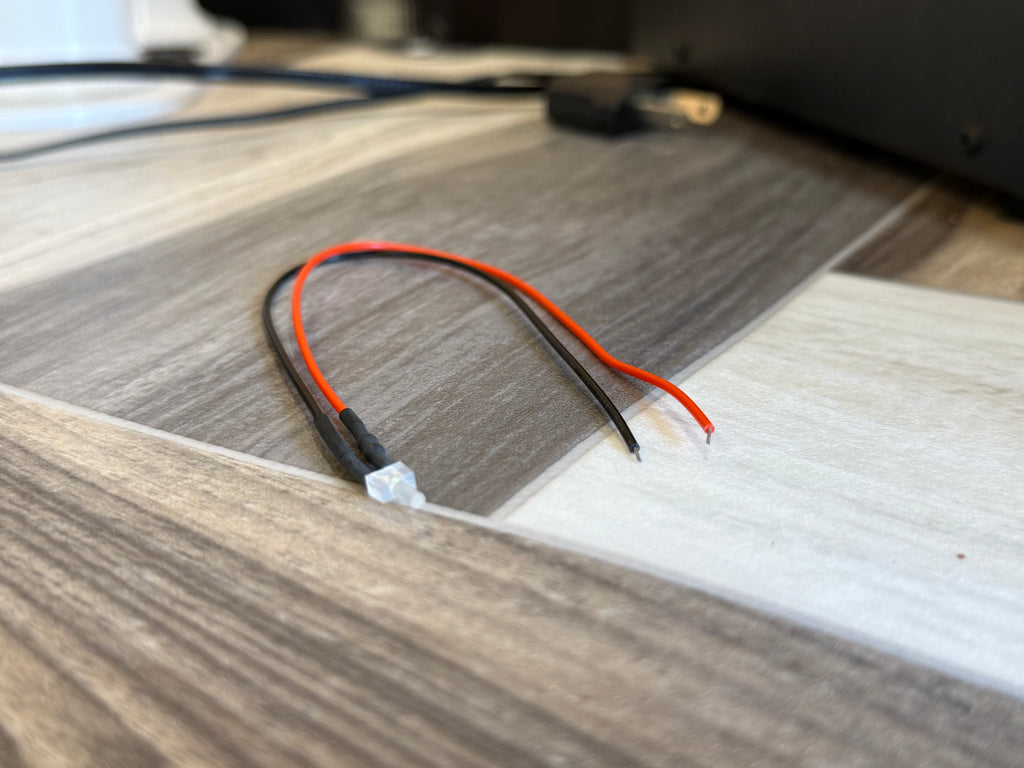

Tiny 2mm flat-top white diffused LEDs, pre-wired with 20cm leads and ready to use straight from the pack. The flat-top lens produces a wide, soft glow — ideal for tight spaces where a standard 3mm LED simply won’t fit. No soldering, no resistor maths — just connect to 5V and go.
Specifications
| LED Size | 2mm flat top |
| Lens Type | Diffused (wide, even glow) |
| Operating Voltage | 5V DC (resistor pre-installed) |
| Max Forward Current | 20mA |
| Viewing Angle | 160–180° |
| Wire Length | 20cm |
| Wire Colour | Red (positive) / Black (negative) |
| Life Rating | 100,000 hours |
| Operating Temperature | −40°C to +85°C |
| Package | Through Hole — flat top |
| Colour | White |
How to Connect
Red wire → Positive (5V supply or GPIO pin)
Black wire → Ground (GND)
The resistor is already soldered inside the heat shrink near the LED — no additional components needed. Compatible with Arduino, Raspberry Pi, ESP32, and any regulated 5V supply.
Black wire → Ground (GND)
The resistor is already soldered inside the heat shrink near the LED — no additional components needed. Compatible with Arduino, Raspberry Pi, ESP32, and any regulated 5V supply.
Common Uses
Tight-space indicator lights where 3mm won’t fit
Scale model & diorama lighting — cockpits & detail work
Custom control panels & miniature enclosures
Breadboard prototyping & circuit learning
Arduino & microcontroller status indicators
RC models — nav lights, instrument panels & interiors
Common Questions
Do I need an external resistor?
No — the resistor is pre-installed inside the heat shrink tubing near the LED. Connect directly to 5V and GND.
Why choose 2mm over 3mm?
The 2mm flat-top form factor is ideal when space is very limited — panel cutouts, scale models, tight PCB layouts, or anywhere a standard 3mm dome won’t physically fit. The flat top also gives a slightly wider side-on glow.
Can I use these at 3.3V?
They will light up at 3.3V but will be noticeably dimmer. The built-in resistor is sized for 5V operation.
Please note: These LEDs are pre-wired for 5V DC only. Do not connect to 12V or mains power. Polarity matters — red wire is positive, black is negative. Sold individually.
