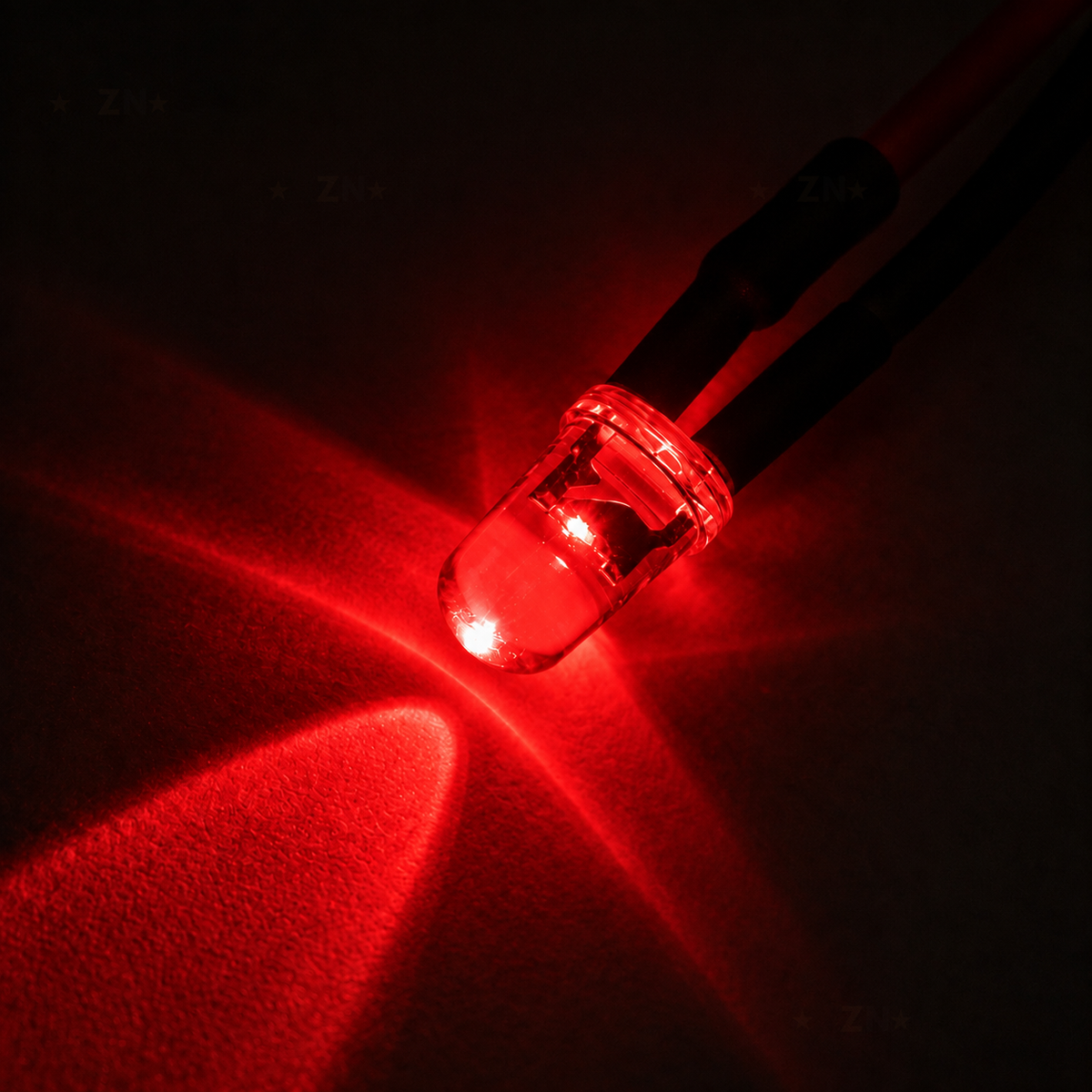

Red lit colour illustration of a 3mm round pre-wired water-clear LED
  • Red lit colour illustration of a 3mm round pre-wired water-clear LED

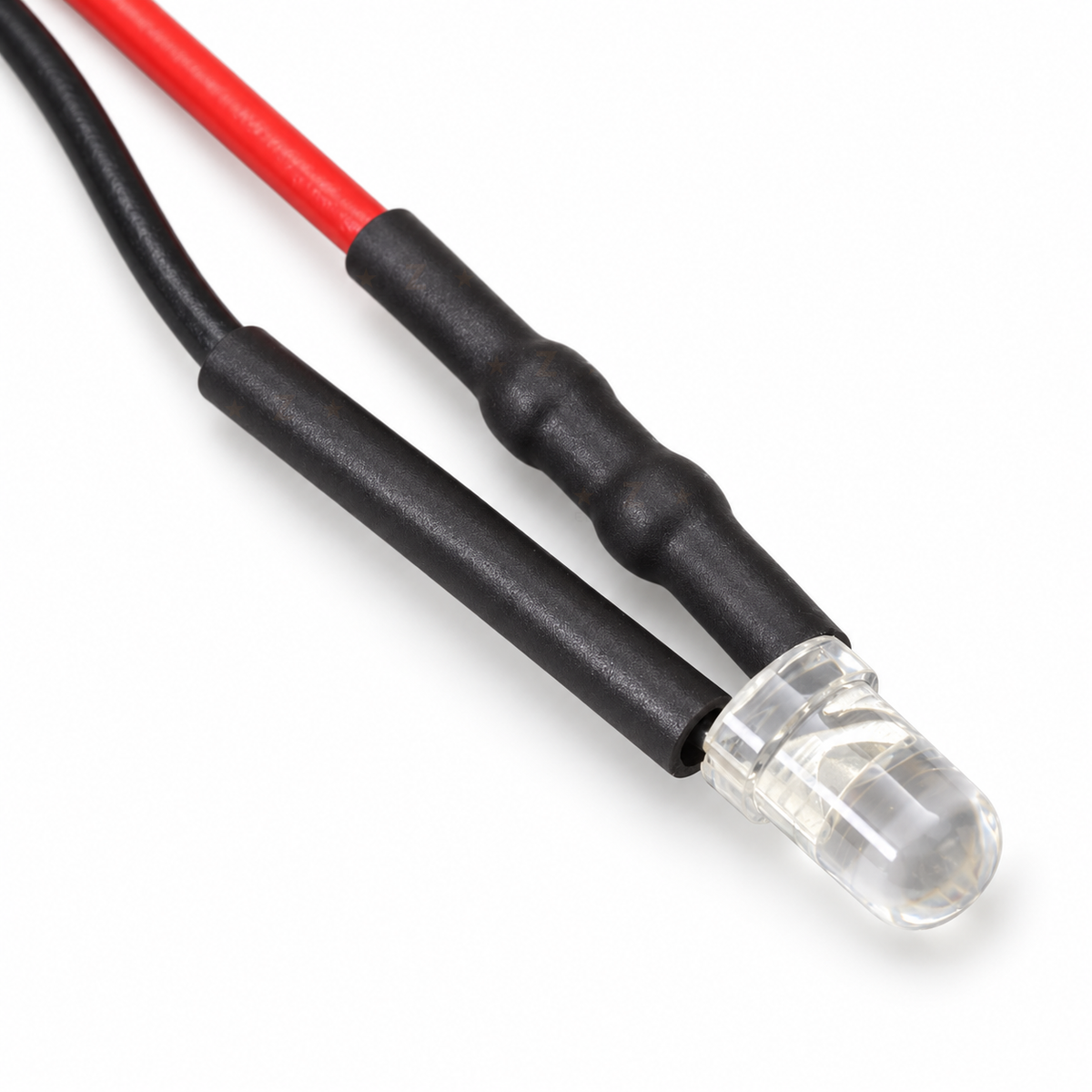

  • Close view of a 3mm water-clear LED lens with red and black leads

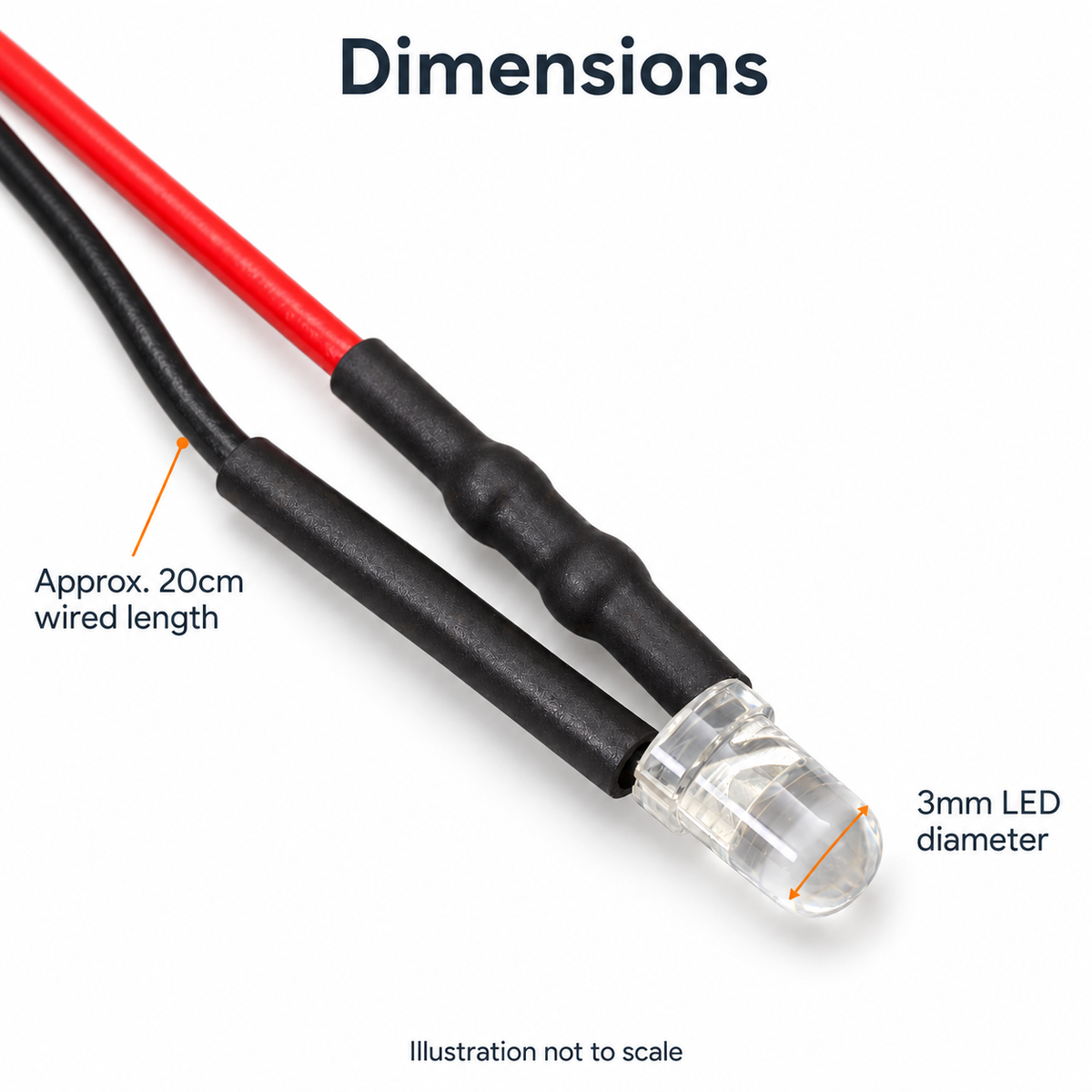

  • 3mm round pre-wired LED dimensions: nominal 3mm LED diameter and approximately 20cm wired length, illustration not to scale
3mm Round Pre-Wired Water-Clear LED - Colours & Flash Effects
SKU: LED-3MM-WC-RED-3-24V

3mm Round Pre-Wired Water-Clear LED - Colours & Flash Effects

$0.99 NZD
Colour
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A 3mm round water-clear LED with approximately 20cm leads for model lighting, small indicators and decorative projects. Choose from ten steady colours or two colour-changing flash effects. Sold individually.

Specifications

LED size and shape3mm round top
LensWater clear
Wired lengthApproximately 20cm
DC operating range3-12V DC per single pre-wired LED
CurrentLess than 20mA
Beam angle45 degrees

Datasheets

Full technical datasheetPDF

What's in the box

1×
Pre-wired LED in your selected colour or effect

Supplied with one mounting base. Quantity refers to individual LEDs.

Great for

Model railway and diorama lighting
Small project indicators
Decorative displays

Wiring & getting started

  1. Check your DC circuit

    Use a 3-12V DC supply. Check polarity before applying power and keep current below 20mA.

  2. Insulate the connections

    Switch the supply off while wiring and insulate exposed joins before use.

Note: Do not exceed 12V DC per pre-wired LED. Colour images illustrate the selected emission; Fast Flash and Slow Flash change colour over time.

Frequently Asked Questions

Answers to the questions buyers ask most.

How many LEDs do I receive?
Each quantity is one pre-wired LED in your selected colour or effect, supplied with one mounting base.
What is the difference between Fast Flash and Slow Flash?
Both change colour over time. Fast Flash changes more quickly and Slow Flash more slowly. An exact cycle time is not specified.
What voltage can I use for one pre-wired LED?
The confirmed operating range for a single pre-wired LED from this pack is 3-12V DC. Do not exceed 12V DC per unit.
What is the estimated series resistance?
An illustrative estimate is 450-500 ohms, using R = (12V - assumed LED forward voltage) / 0.020A and an assumed 2-3V LED drop. The stated current is less than 20mA, not a measured 20mA, so the actual fitted resistance may be higher or otherwise differ. This estimate is unverified and does not model the flashing options. Resistor wattage and tolerance are unspecified.
