Blue insulated RV2-5 M5 ring terminal in an angled product view

Blue Insulated Ring Terminal M5 RV2-5 - 16-14 AWG

M5 / RV2-5
$0.35 NZD
each Save 25% at 10+
Skip to product information
Blue insulated RV2-5 M5 ring terminal in an angled product view

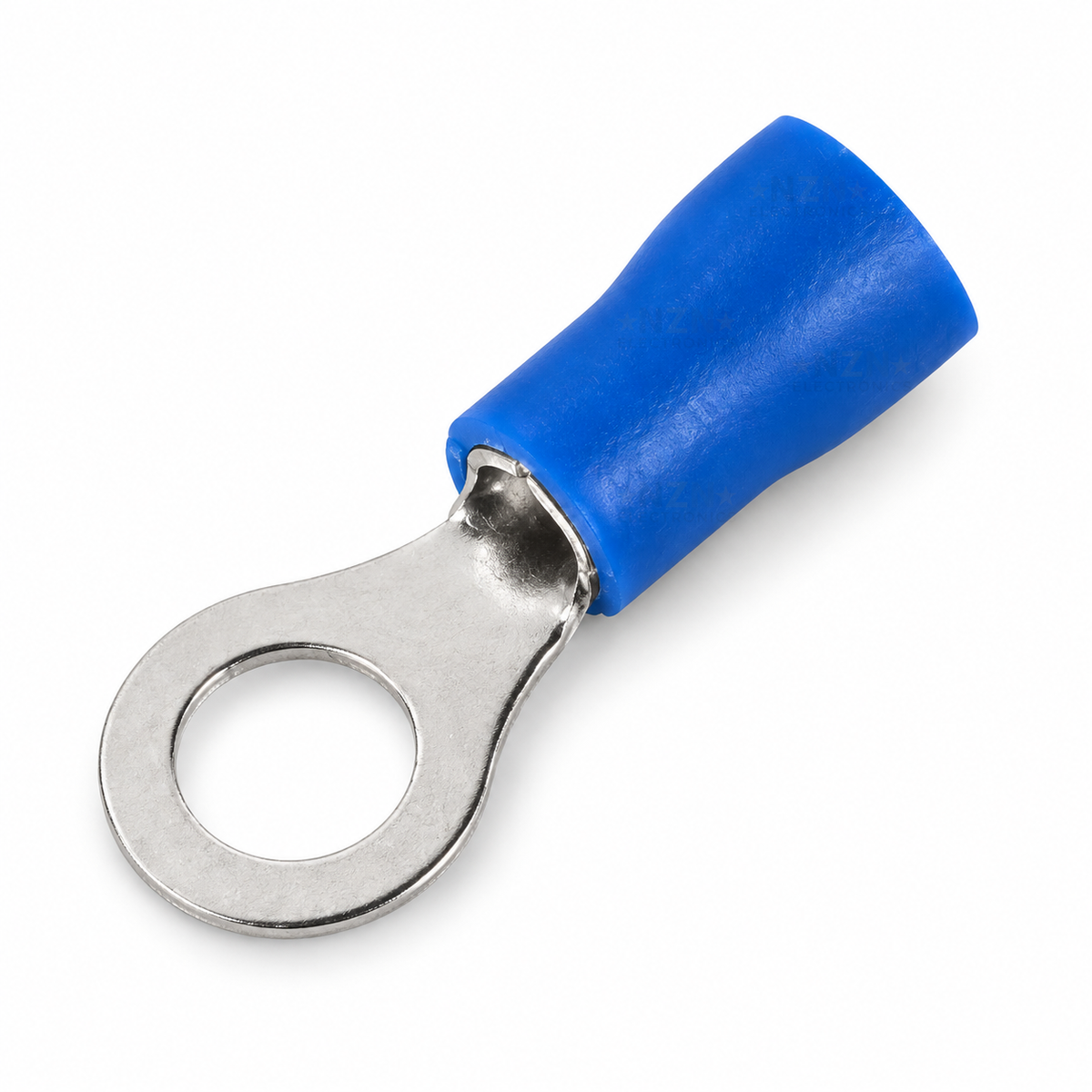

  • Blue insulated RV2-5 M5 ring terminal in an angled product view

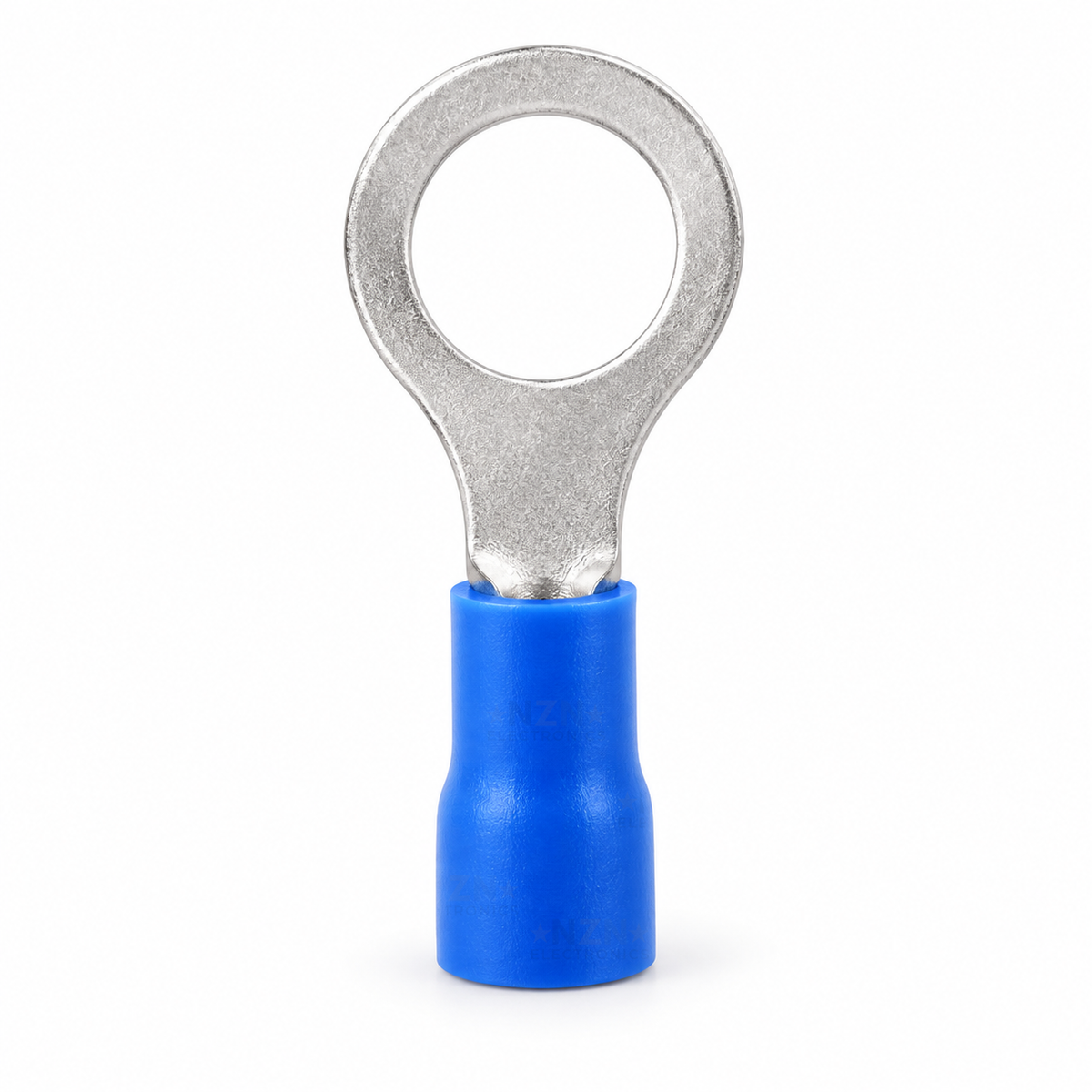

  • Blue insulated RV2-5 M5 ring terminal viewed from above

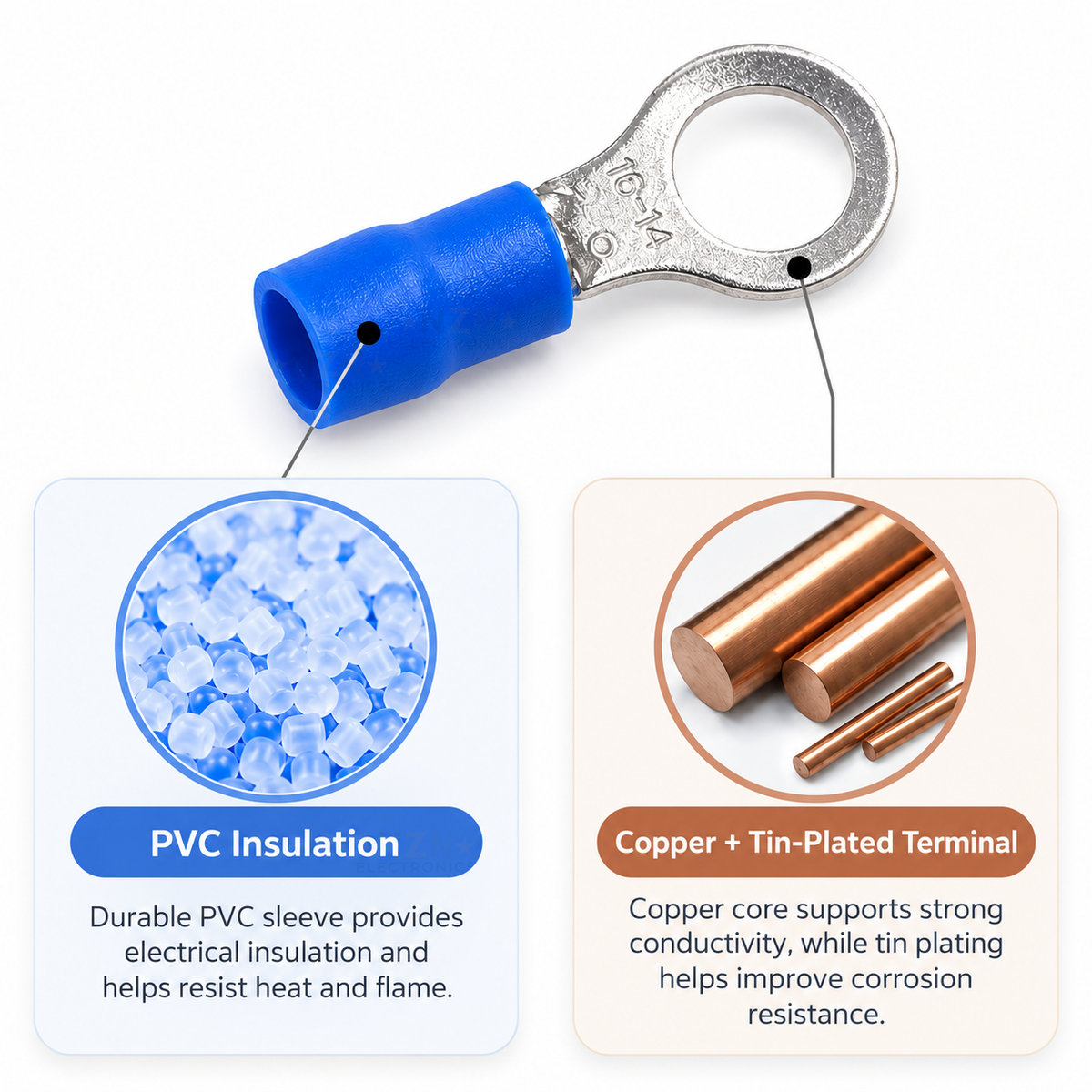

  • Blue RV2-5 ring terminal infographic with material and insulation callouts

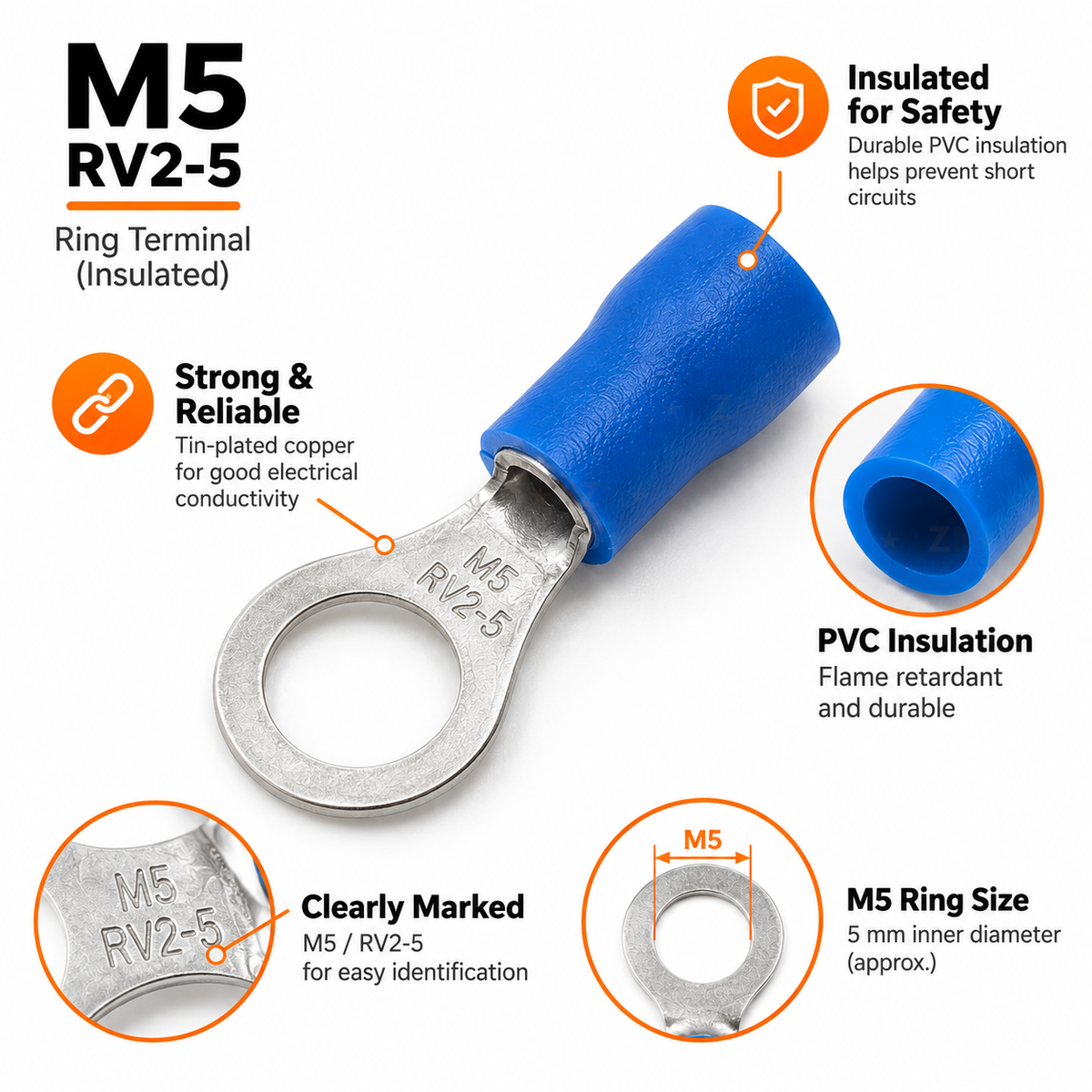

  • Blue RV2-5 ring terminal infographic showing the M5 and RV2-5 identification
Blue Insulated Ring Terminal M5 RV2-5 - 16-14 AWG
SKU: RT-BLU-M5

Blue Insulated Ring Terminal M5 RV2-5 - 16-14 AWG

$0.35 NZD
▼ 65% was $0.99
VariantM5 / RV2-5
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Minimum order quantity: 5

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

The blue RV2-5 insulated ring terminal is a crimp-on wire terminal for M5 studs, screws and posts. It accepts 1.5-2.5 mm² / 16-14 AWG conductors and has a stated maximum current of 27 A. The copper ring and insulating sleeve make it a practical choice for tidy, removable wire-to-stud connections.

Specifications

VariantM5 / RV2-5
Connection typeInsulated ring crimp terminal
ColourBlue
Terminal materialCopper
Insulating material thickness0.5 mm
Wire range1.5-2.5 mm²
Wire gauge16-14 AWG
Maximum current27 A
Wire terminationCrimp

Datasheets

Full technical datasheet PDF

What's in the box

1 x
Blue insulated RV2-5 ring terminal

Sold individually. Minimum order: 5 terminals. Your selected quantity is supplied together.

Great for

M5 stud, screw and post connections
Battery and earth wiring
Control panels and enclosures
Automotive and project wiring

Wiring & getting started

  1. Confirm the fit with power disconnected

    Match the terminal to 1.5-2.5 mm² / 16-14 AWG wire and M5 fastening hardware before starting.

  2. Prepare the conductor

    Strip only as much insulation as the crimp-tool instructions require. Keep the strands together and insert the conductor fully into the barrel.

  3. Crimp and inspect

    Use a tool and die intended for insulated terminals and the selected wire size. Check the sleeve for damage, confirm no strands have escaped and perform a gentle tug test.

  4. Fit the ring

    Place the ring over the M5 stud, screw or post and tighten the hardware according to the equipment instructions. Check clearance before restoring power.

Note: 27 A is the supplied maximum-current specification for this terminal variant. Actual safe current depends on the conductor, crimp quality, temperature, installation and the rest of the wiring system.

Frequently Asked Questions

Answers to the questions buyers ask most.

What does RV2-5 mean?
RV2-5 identifies this blue M5 insulated ring terminal variant.
What wire size does it fit?
Use 1.5-2.5 mm² wire, equivalent to 16-14 AWG for this product listing.
What is the maximum current?
The supplied maximum-current specification is 27 A. Actual safe current depends on the conductor, crimp, temperature and installation.
How is it fitted?
Strip the conductor as directed by the crimp tool, insert it fully, crimp with a die intended for insulated terminals, then inspect and gently tug-test the connection.
Is it sold as a single terminal?
Yes. One quantity is one terminal. The minimum order is 5 terminals.
What fastener does it fit?
This is the M5 ring variant. Match the ring to the stud, screw or post and check clearance before restoring power.
