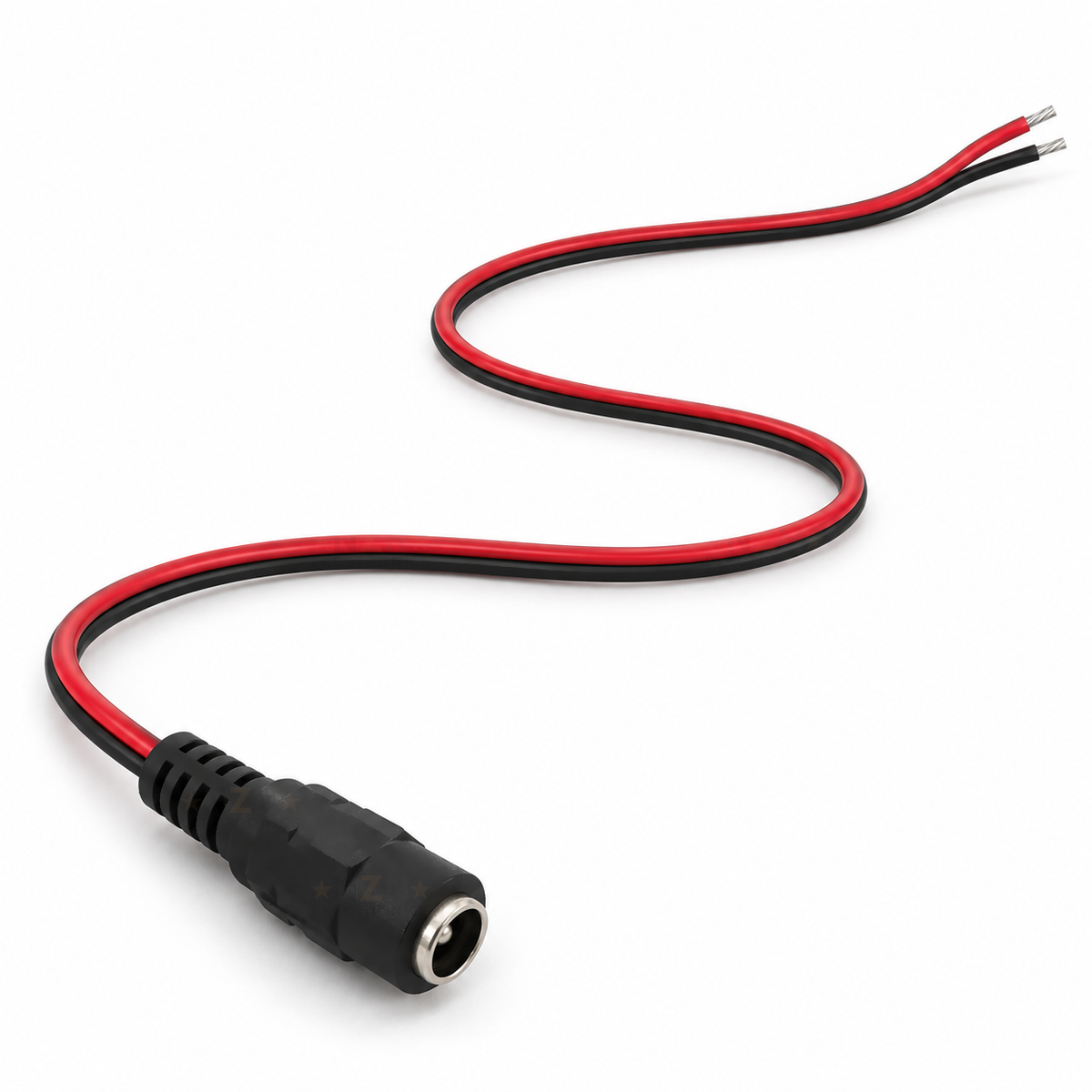

5.5 x 2.1mm female DC socket pigtail with red and black lead and tinned ends

5.5x2.1mm DC Power Pigtail Cable - Female or Male

Female socket
$1.79 NZD
Save 5% at 5+
Skip to product information
5.5 x 2.1mm female DC socket pigtail with red and black lead and tinned ends
  • 5.5 x 2.1mm female DC socket pigtail with red and black lead and tinned ends

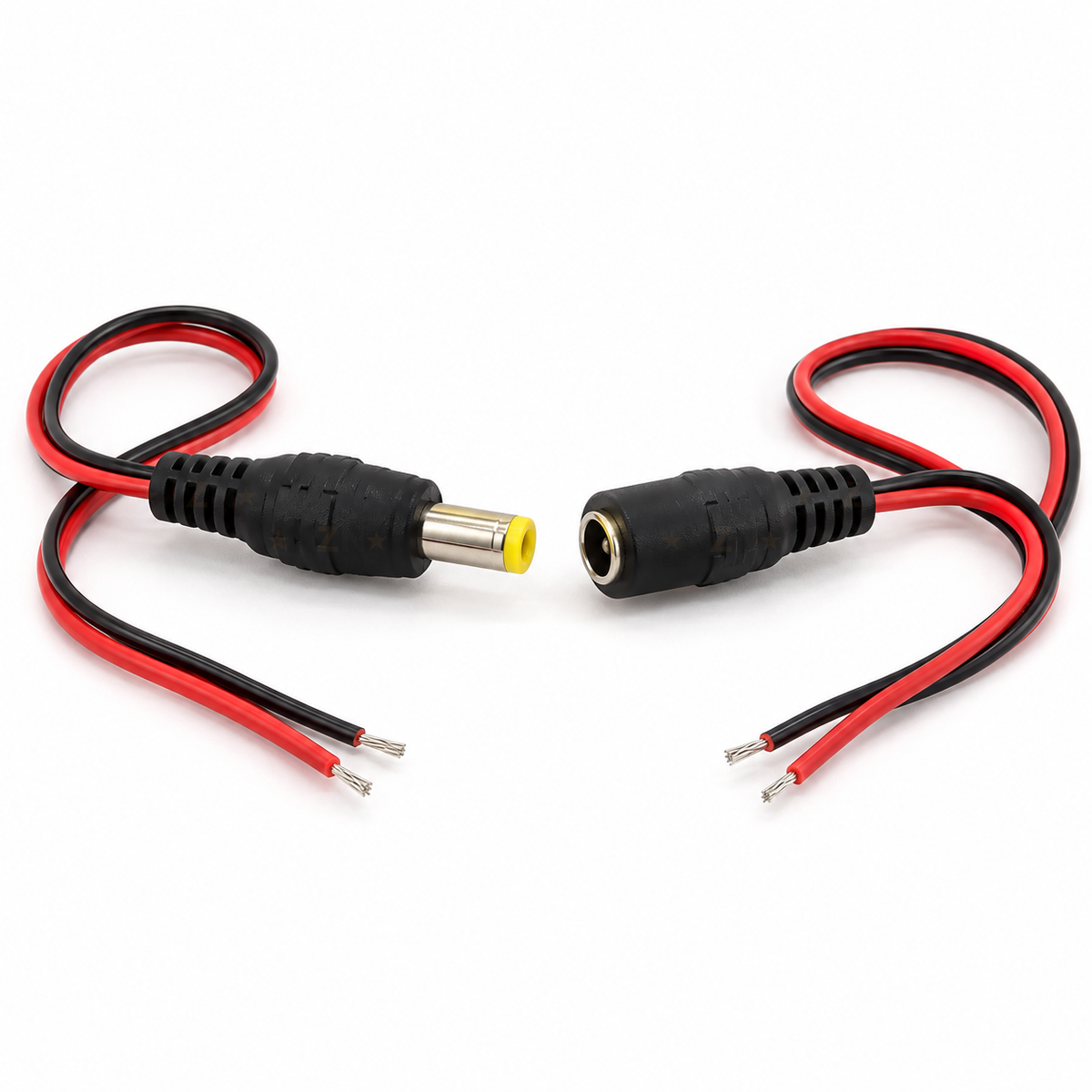

  • Male DC plug lined up with the matching 5.5 x 2.1mm female socket, both on short pigtail leads

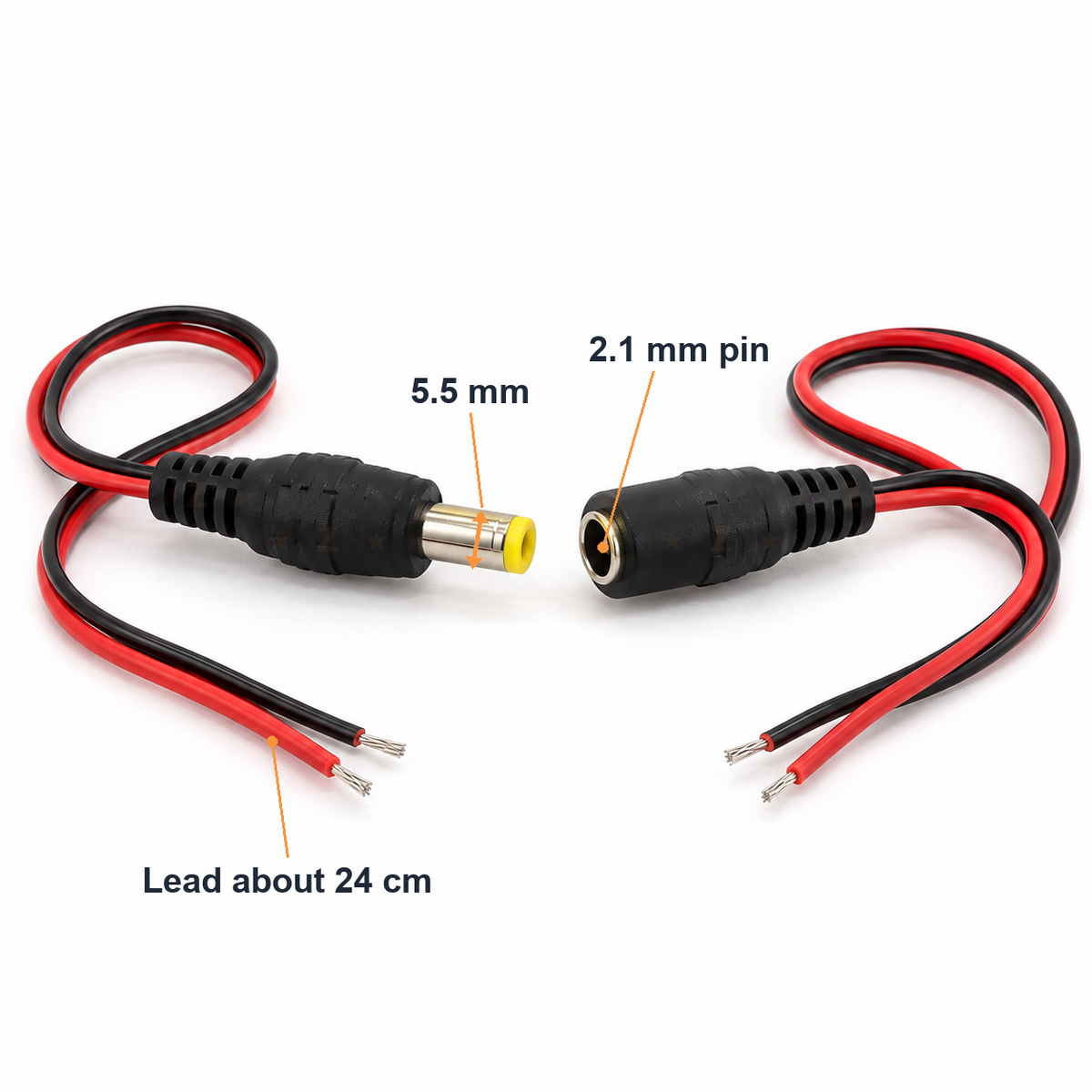

  • DC pigtail dimensions: 5.5mm barrel, 2.1mm centre pin and a lead of about 24cm
5.5x2.1mm DC Power Pigtail Cable - Female or Male
SKU: CBL-DC-55-21-F

5.5x2.1mm DC Power Pigtail Cable - Female or Male

$1.79 NZD
Type
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A DC power pigtail with a 5.5 x 2.1mm barrel connector on one end and about 24cm of red and black lead with tinned ends on the other. Choose the female socket to accept a power supply's plug, or the male plug to feed a device that has a DC socket. It suits 12V LED strips, CCTV cameras and project boxes powered from a plug pack.

Specifications

Barrel size5.5mm outside, 2.1mm centre pin
VersionsFemale socket or male plug
LeadAbout 24cm, red and black twin cable
PolarityRed wire to the centre pin
CurrentUp to 2A
Other endStripped and tinned, ready to solder or clamp

What's in the box

1×
5.5 x 2.1mm DC pigtail

Female socket or male plug, as selected.

Great for

Wiring a 12V plug pack to an LED strip
Replacing a damaged plug on a CCTV camera lead
Adding a plug-in power input to a project box
Making a removable joint in a low-voltage DC cable

Wiring & getting started

  1. Check the barrel size

    Look for 5.5 x 2.1mm on your power supply label. A 5.5 x 2.5mm plug looks almost the same but sits loose in a 2.1mm socket.

  2. Match the polarity

    The red wire goes to the centre pin. Most plug packs are centre positive, so red is positive. Check the polarity symbol on your supply's label; if it shows centre negative, treat red as negative.

  3. Join the leads

    Solder and cover with heatshrink, use a screw terminal, or use a WAGO 221 lever connector for a tool-free joint.

  4. Check before you power up

    Plug in the supply and measure the voltage and polarity at the far end before connecting your device. Keep the load to 2A or less.

Frequently Asked Questions

Answers to the questions buyers ask most.

Will this fit my power supply?
Yes, if the supply has a 5.5mm outside, 2.1mm centre pin barrel plug, which is the usual size on 12V plug packs. A 5.5 x 2.5mm plug looks almost identical but is a loose fit, so check the size printed on the supply label.
Which wire is positive?
The red wire is connected to the centre pin. Most 12V plug packs are centre positive, so red is positive. The polarity symbol on your supply label confirms it; on a centre-negative supply, red is negative.
Should I buy the female or the male version?

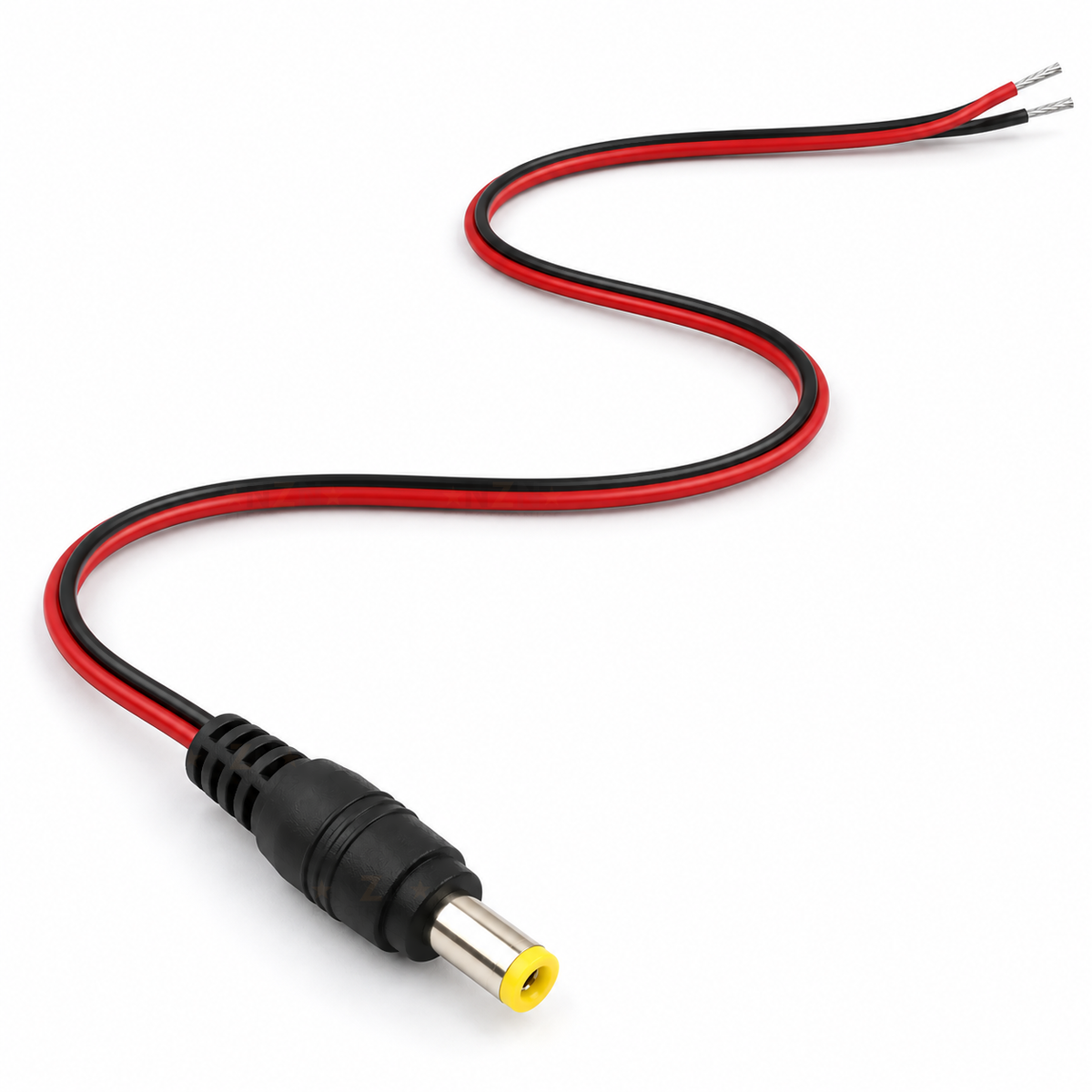

Buy the female socket to plug a power supply into your wiring. Buy the male plug to feed power into a device that has a DC socket, such as a CCTV camera or a board with a barrel jack. Buy one of each to make a joint you can unplug.
How much current can it carry?
Up to 2A, which is 24W at 12V. That suits CCTV cameras, short LED strip runs and project boards. Use a heavier cable and connector for bigger loads.
