WAGO 221-412 2 pole lever wire connector

WAGO 221-412 Lever Connectors - 2 Pole Lever Nuts, 32A 450V

$1.79 NZD
Save 5% at 5+
Skip to product information
WAGO 221-412 2 pole lever wire connector

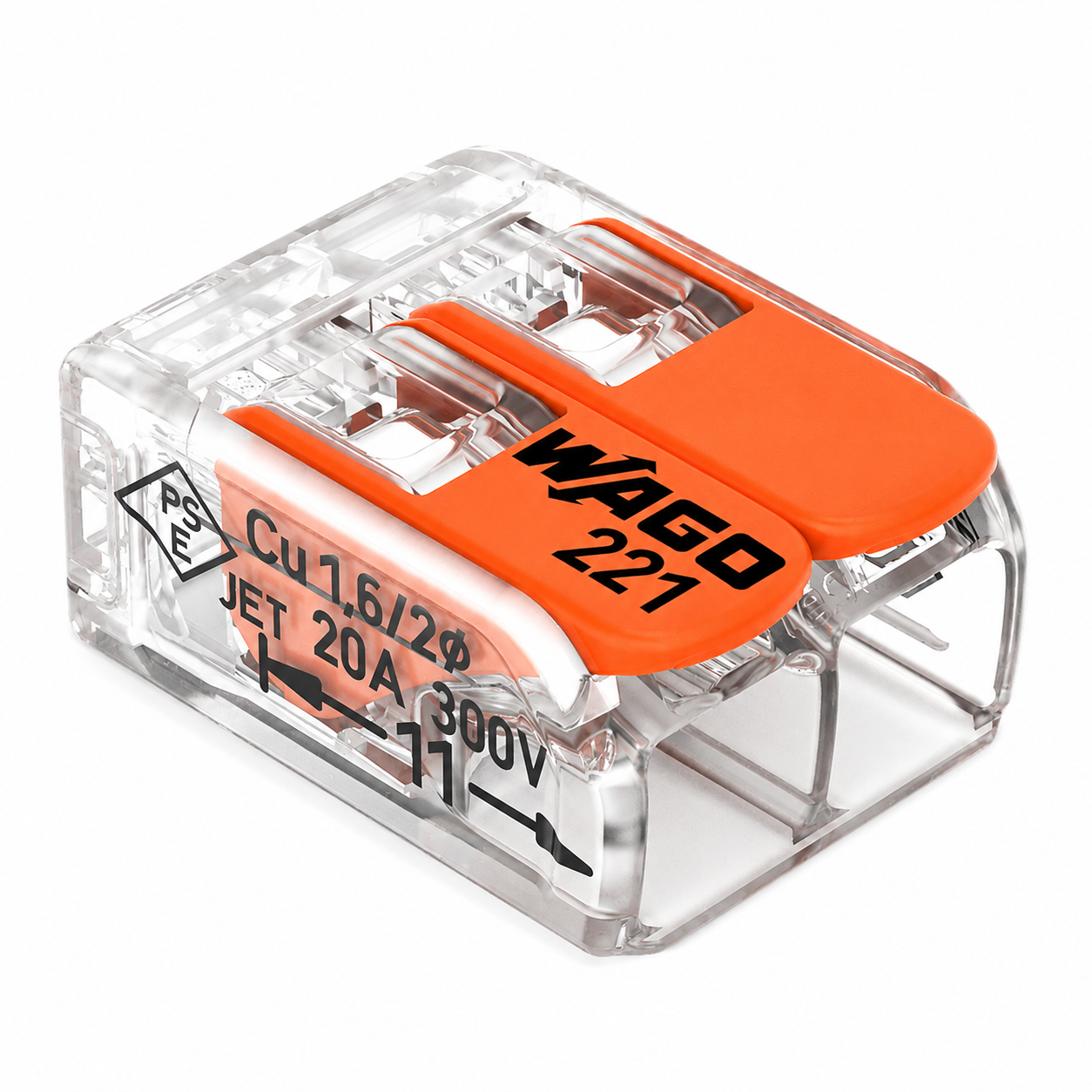

  • WAGO 221-412 2 pole lever wire connector

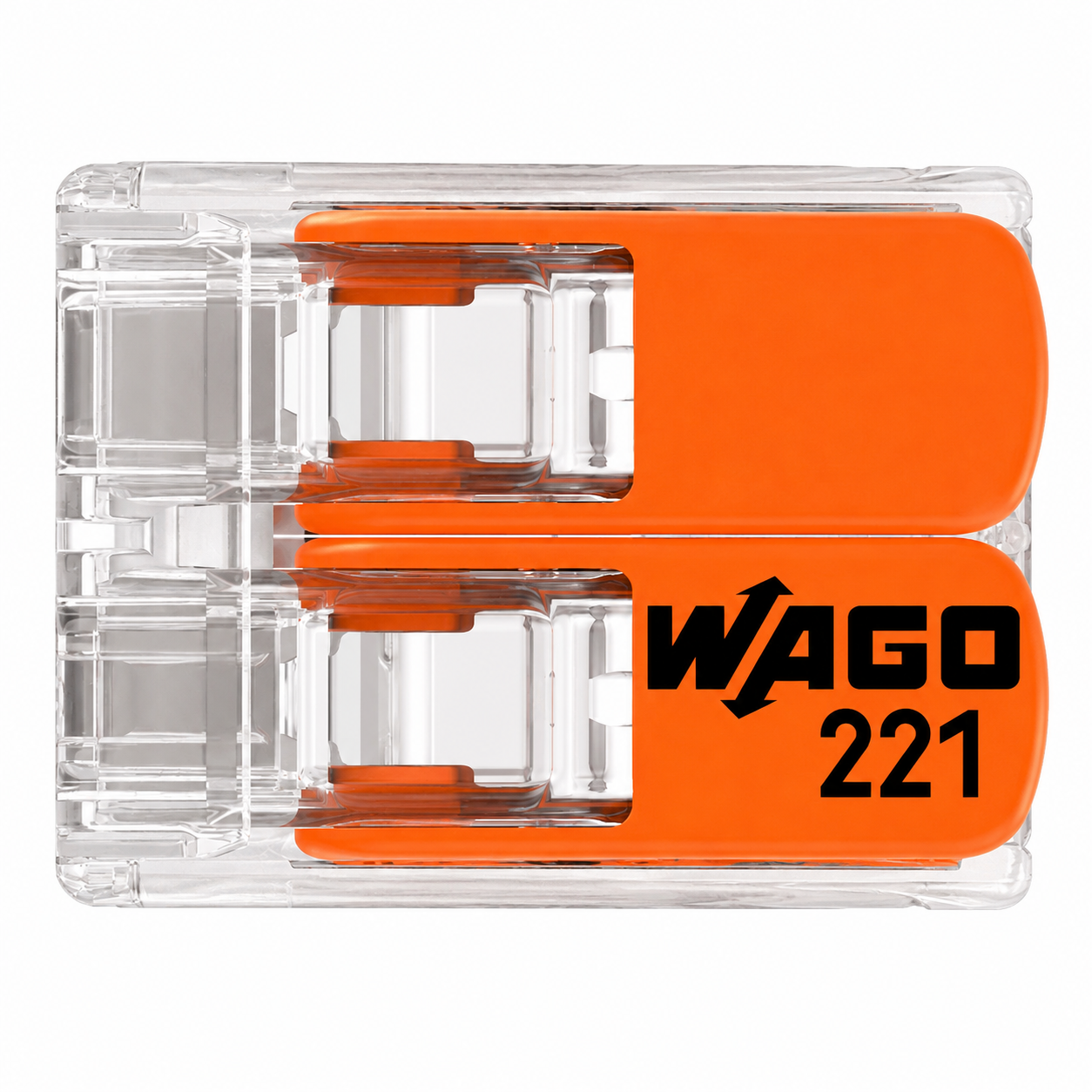

  • WAGO 221-412 2 pole lever connector top down view

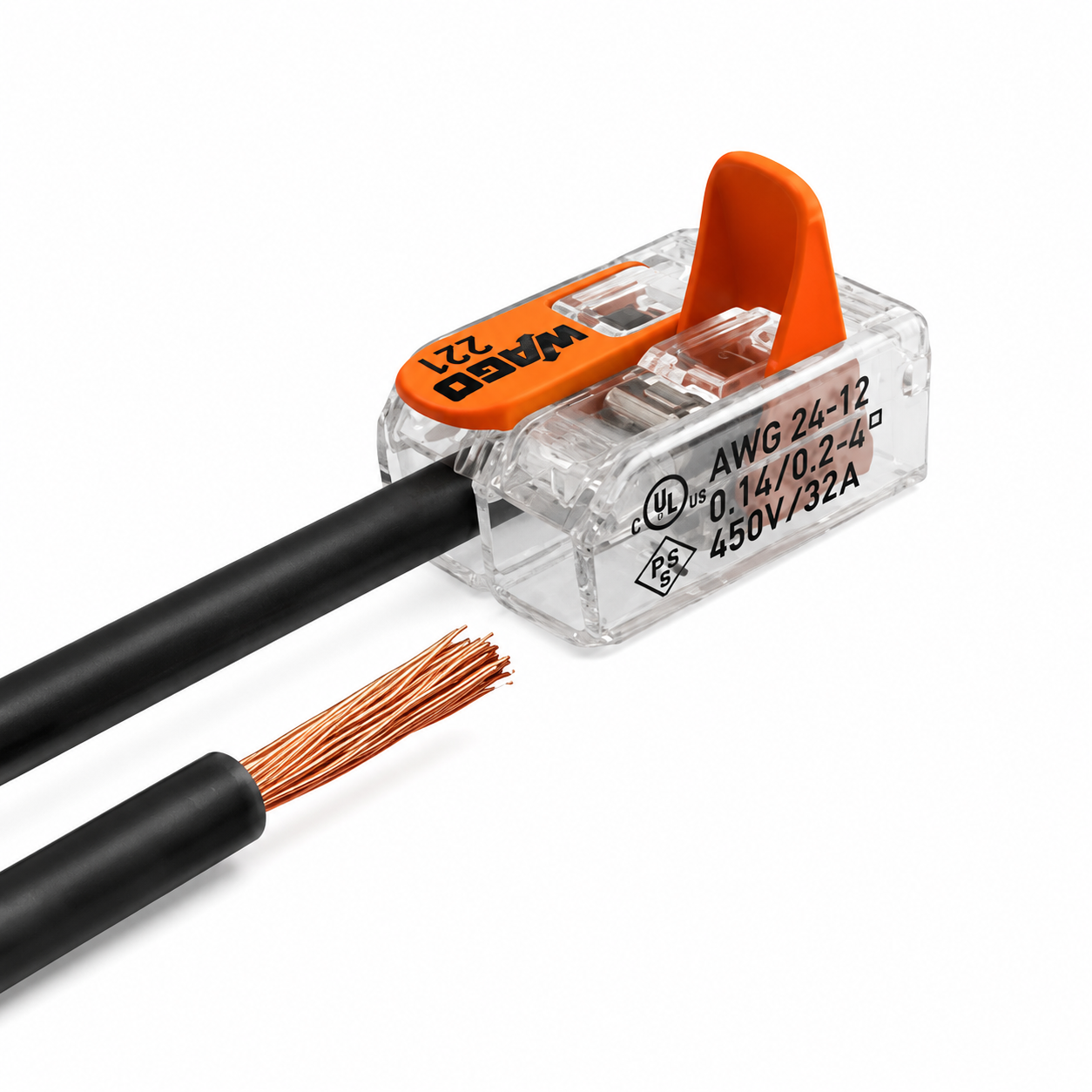

  • WAGO 221-412 connector joining two wires with lever open

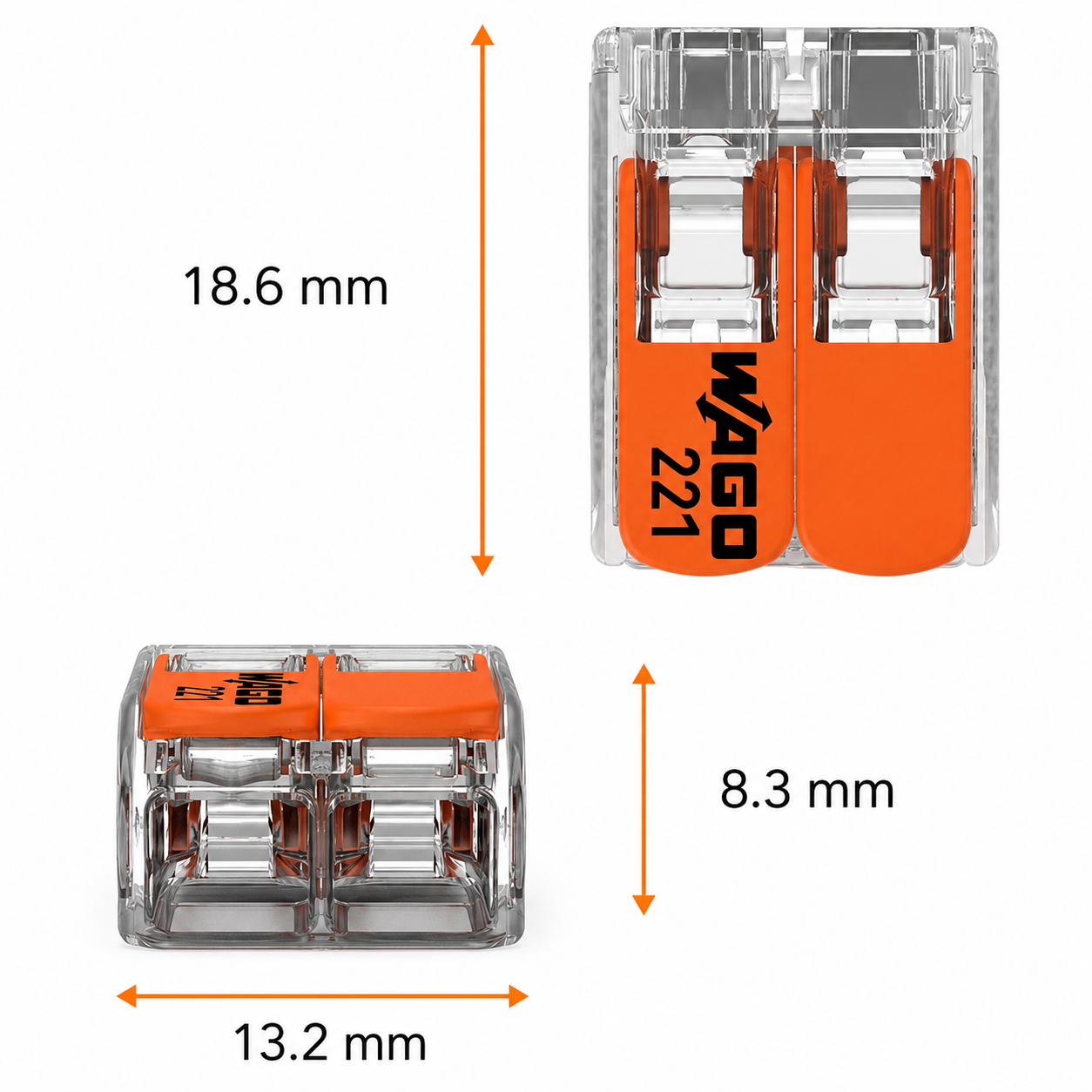

  • WAGO 221-412 dimensions 18.6 x 13.2 x 8.3 mm
WAGO 221-412 Lever Connectors - 2 Pole Lever Nuts, 32A 450V
SKU: WAGO-221-2P

WAGO 221-412 Lever Connectors - 2 Pole Lever Nuts, 32A 450V

$1.79 NZD
8 bought this month
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Add these too
Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

The WAGO 221-412 joins two wires in one small clear block, with no tools. Lift a lever, push the stripped wire in and close the lever; lift it again to take the wire back out. Each port takes solid or stranded copper from 0.2 to 4 mm² and fine-stranded flex from 0.14 to 4 mm², so 1.0, 1.5 and 2.5 mm² TPS and appliance flex all fit, and you can join flex to solid cable without ferrules. The clear housing shows when each wire is fully in. Use them to extend or repair a cable run, connect a light fitting or downlight, or join LED strip and low-voltage DC wiring. Joining more than two wires? The WAGO 221-413 takes three and the WAGO 221-415 takes up to five. Sold individually, with quantity discounts from 5.

Specifications

ModelWAGO 221-412
Connection points2
Rating (IEC)32A, 450V
Rated impulse voltage4 kV
Solid or stranded wire0.2 to 4 mm² (24 to 12 AWG)
Fine-stranded wire0.14 to 4 mm²
Strip length11 mm
Surrounding air temperatureUp to 85°C (T85)
HousingClear polycarbonate, orange levers
Size18.3 x 13.0 x 8.15 mm
Weight1.7 g
Sold asSingle connectors, discounts from 5

Datasheets

Full technical datasheet PDF

Wiring & getting started

  1. Turn the power off

    Isolate the circuit and check it is dead before handling the wires.

  2. Strip the wire

    Remove 11 mm of insulation without nicking the copper.

  3. Lift, insert and close

    Raise the lever fully, push the wire all the way in, then press the lever back down.

  4. Check it

    Look through the housing to make sure the copper is fully in, then give the wire a gentle tug.

Note: Use copper wire only. Mains wiring must follow New Zealand electrical rules and be done or checked by a licensed electrician.

Frequently Asked Questions

Answers to the questions buyers ask most.

Are these genuine WAGO?
Yes. These are genuine WAGO 221-412 COMPACT lever connectors, the same part electricians use, not a lookalike. If you are comparing prices, check the part number: 221-412 is the 2-port size of the 221 series.
Will it take 2.5 mm² TPS or appliance flex?
Yes. Each port takes solid or stranded copper from 0.2 to 4 mm² and fine-stranded flex from 0.14 to 4 mm², so 1.0, 1.5 and 2.5 mm² TPS and flex all fit. Fine-stranded flex goes straight in without a ferrule. Strip 11 mm.
Can I join flex to solid cable?
Yes. Each port has its own lever, so you can put fine-stranded flex in one side and solid house cable in the other.
Can I reuse them?
Yes. Lift a lever to release a wire and re-clamp it as often as you like, which makes them handy for testing and temporary joins.
Are they rated for 230V mains?
Yes. They are rated 32A at 450V, so they suit 230V lighting and power circuits when the cable is sized for the load. Mains work in New Zealand must follow the wiring rules and be done or checked by a licensed electrician.
Which WAGO size do I need?
Count the wires you are joining. Two wires: this 221-412. Up to three: the 221-413. Up to five: the 221-415. All three take the same wire range, so you can use them side by side in one job.
