ESP32-H2 SuperMini - Bent GPIO9 Pin

Name: ESP32-H2 SuperMini - Bent GPIO9 Pin
Brand: NZN Electronics
SKU: ESP32-H2-MINI-SLD-1PK-CLR-1
Price: 8.95 NZD
Availability: InStock

$8.95 NZD ~~$11.95 NZD~~ Save 25%

Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66

Urban $66 Rural $88

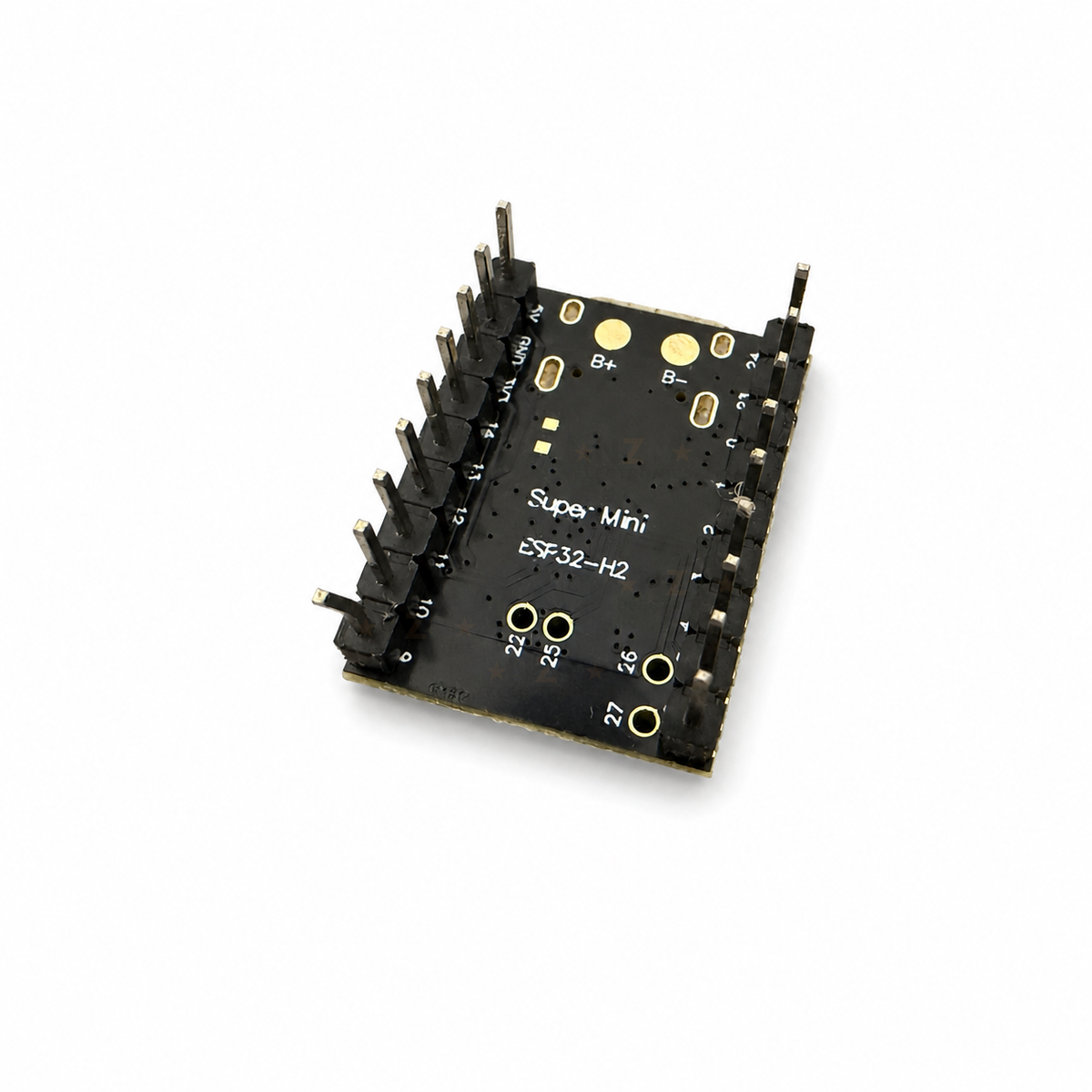

An ESP32-H2 SuperMini development board with soldered headers, offered at a reduced price because the pin marked 9 (GPIO9) is bent outward. The board has been tested working with esptool. Suitable for Bluetooth LE and Thread or Zigbee development with your own firmware.

Specifications

ProcessorESP32-H2, single-core 32-bit RISC-V, up to 96 MHz

Memory4 MB flash and 320 KB SRAM

WirelessBluetooth 5.3 LE and IEEE 802.15.4 for Thread and Zigbee

USBUSB-C with native USB Serial/JTAG

Logic3.3 V GPIO

HeadersTwo soldered rows of nine pins, 2.54 mm pitch

What's in the box

1×

ESP32-H2 SuperMini board with the stated header fault

Soldered headers included. USB cable and other accessories sold separately.

Great for

Bluetooth LE experiments

Thread or Zigbee development with compatible firmware and network equipment

Wiring & getting started

Check the header arrangement
The GPIO9 header pin is bent. Check clearance before connecting jumper leads or inserting the board into a socket; do not force it into a breadboard.
Connect using a USB-C data cable
Use ESP32-H2-compatible development software and 3.3 V GPIO connections. This is a development board, so your application firmware is required.

Price comparison: The comparison price is the current price of our regular pre-soldered ESP32-H2 SuperMini. This unit is reduced for the disclosed header condition.

Frequently Asked Questions

Answers to the questions buyers ask most.

Why is this board reduced?

The soldered header pin marked 9 (GPIO9) is bent outward. The price reflects this disclosed pin damage.

Has the board been tested?

Yes. NZN has confirmed it working with esptool. This is a development board and requires your own application firmware.

What does the comparison price refer to?

It is the current price of our regular pre-soldered ESP32-H2 SuperMini, with normally fitted, undamaged headers.
