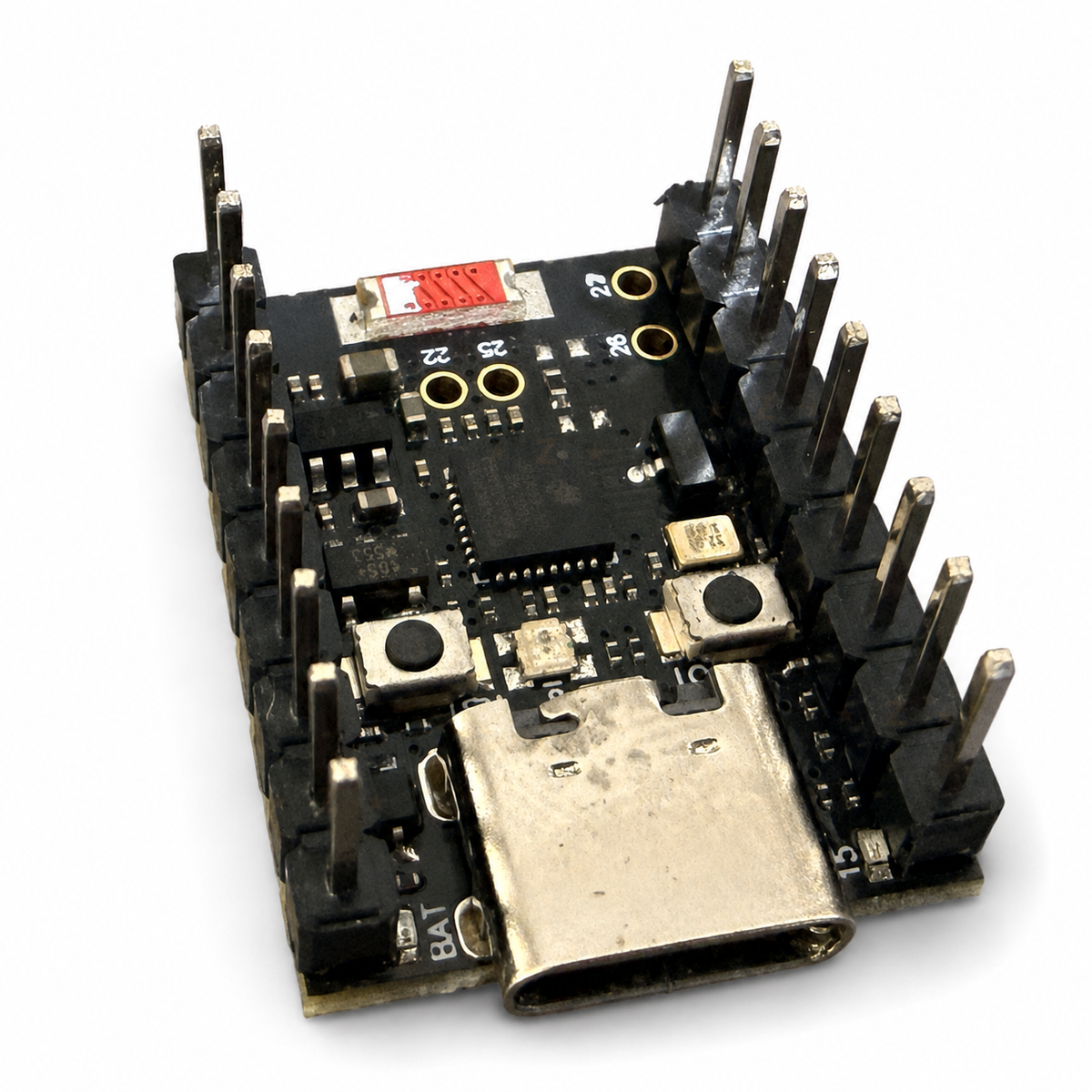

ESP32-H2 SuperMini clearance board with long header pins and black plastic housings soldered on the component face

ESP32-H2 SuperMini - Reversed Headers

$6.95 NZD $11.95 NZD
Skip to product information
ESP32-H2 SuperMini clearance board with long header pins and black plastic housings soldered on the component face
  • ESP32-H2 SuperMini clearance board with long header pins and black plastic housings soldered on the component face
ESP32-H2 SuperMini - Reversed Headers
SKU: ESP32-H2-MINI-SLD-1PK-CLR-2

ESP32-H2 SuperMini - Reversed Headers

$6.95 NZD $11.95 NZD Save 41%
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

An ESP32-H2 SuperMini development board with soldered headers, offered at a reduced price because the headers were soldered on the opposite face. The black plastic strips and long pins are on the component side. The board has been tested working with esptool. Suitable for Bluetooth LE and Thread or Zigbee development with your own firmware.

Specifications

ProcessorESP32-H2, single-core 32-bit RISC-V, up to 96 MHz
Memory4 MB flash and 320 KB SRAM
WirelessBluetooth 5.3 LE and IEEE 802.15.4 for Thread and Zigbee
USBUSB-C with native USB Serial/JTAG
Logic3.3 V GPIO
HeadersTwo soldered rows of nine pins, 2.54 mm pitch

What's in the box

1×
ESP32-H2 SuperMini board with the stated header fault

Soldered headers included. USB cable and other accessories sold separately.

Great for

Bluetooth LE experiments
Thread or Zigbee development with compatible firmware and network equipment

Wiring & getting started

  1. Check the header arrangement

    The pins project from the component side. Check the photographs against your mounting needs. Moving the headers to the usual underside requires desoldering and resoldering.

  2. Connect using a USB-C data cable

    Use ESP32-H2-compatible development software and 3.3 V GPIO connections. This is a development board, so your application firmware is required.

Price comparison: The comparison price is the current price of our regular pre-soldered ESP32-H2 SuperMini. This unit is reduced for the disclosed header condition.

Frequently Asked Questions

Answers to the questions buyers ask most.

Why is this board reduced?
The headers were soldered on the opposite face, with the long pins and black plastic strips on the component side. The price reflects this assembly fault.
Has the board been tested?
Yes. NZN has confirmed it working with esptool. This is a development board and requires your own application firmware.
What does the comparison price refer to?
It is the current price of our regular pre-soldered ESP32-H2 SuperMini, with normally fitted, undamaged headers.
