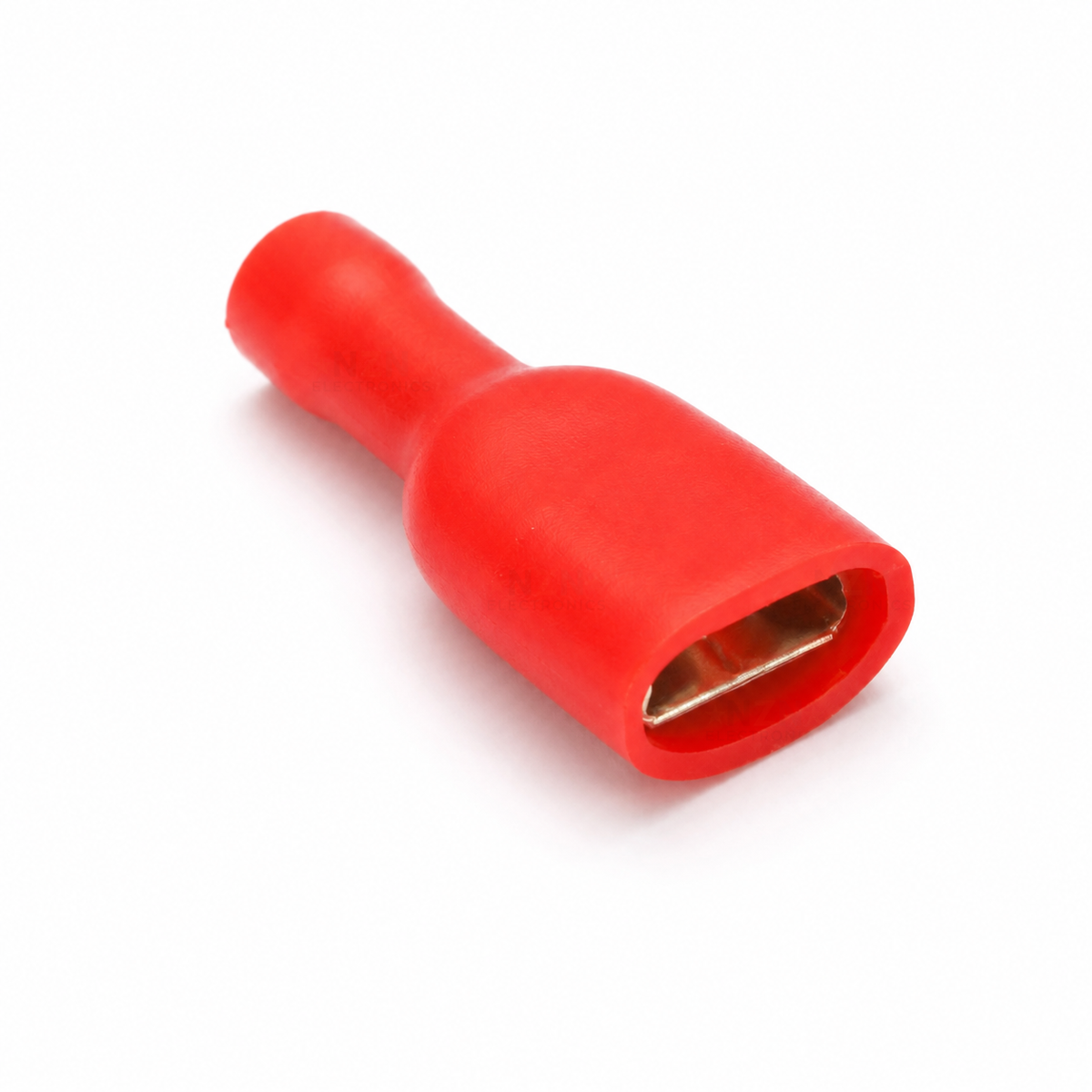

Red FDFD1.25-250 fully insulated female spade terminal for 0.5-1.5 mm² wire, with the 6.3 mm receptacle recessed in the red sleeve

Fully Insulated Female Spade Terminals 6.3mm - Red, Blue, Yellow (FDFD1.25, FDFD2, FDFD5.5-250)

Red 0.5-1.5mm²
$0.39 NZD
each Save 10% at 10+
Skip to product information
Red FDFD1.25-250 fully insulated female spade terminal for 0.5-1.5 mm² wire, with the 6.3 mm receptacle recessed in the red sleeve
  • Red FDFD1.25-250 fully insulated female spade terminal for 0.5-1.5 mm² wire, with the 6.3 mm receptacle recessed in the red sleeve

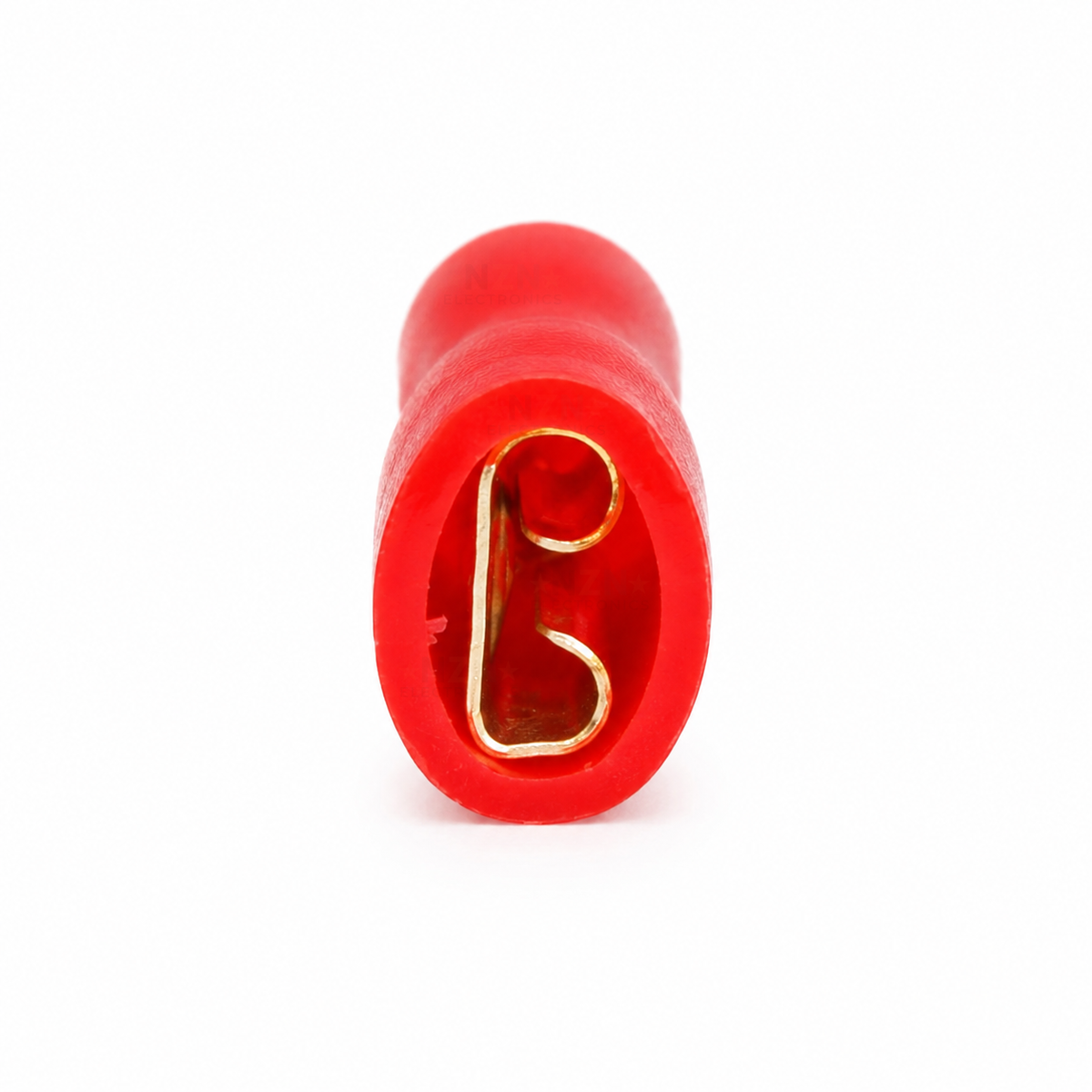

  • End view into the tab entry of the red fully insulated female spade, showing the rolled spring contacts that grip a 6.3 mm tab
  • Top view of the blue fully insulated female spade showing the wide tab end and narrower wire entry
  • FDFD2-250 blue fully insulated female spade dimensions: overall length 22.2 mm

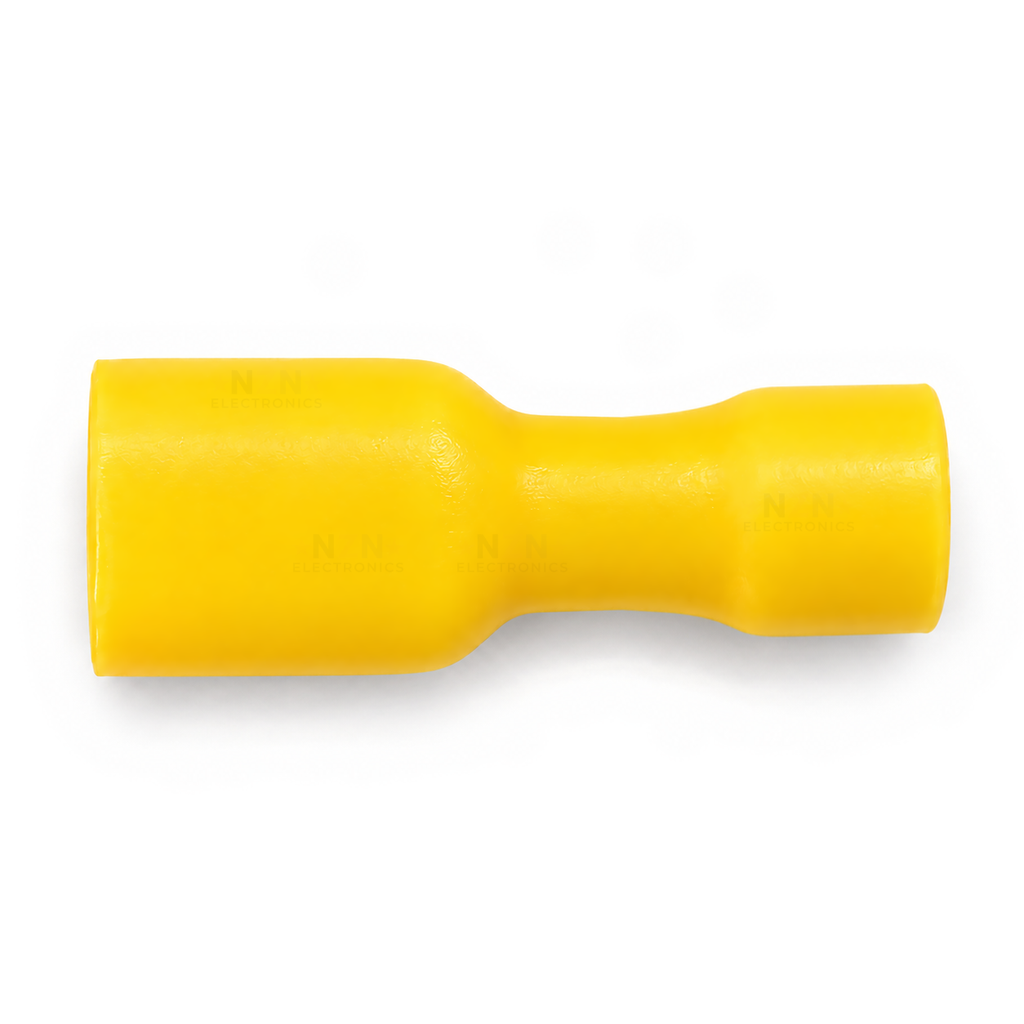

  • Top view of the yellow FDFD5.5-250 fully insulated female spade showing the wide tab end and the fatter wire-barrel sleeve

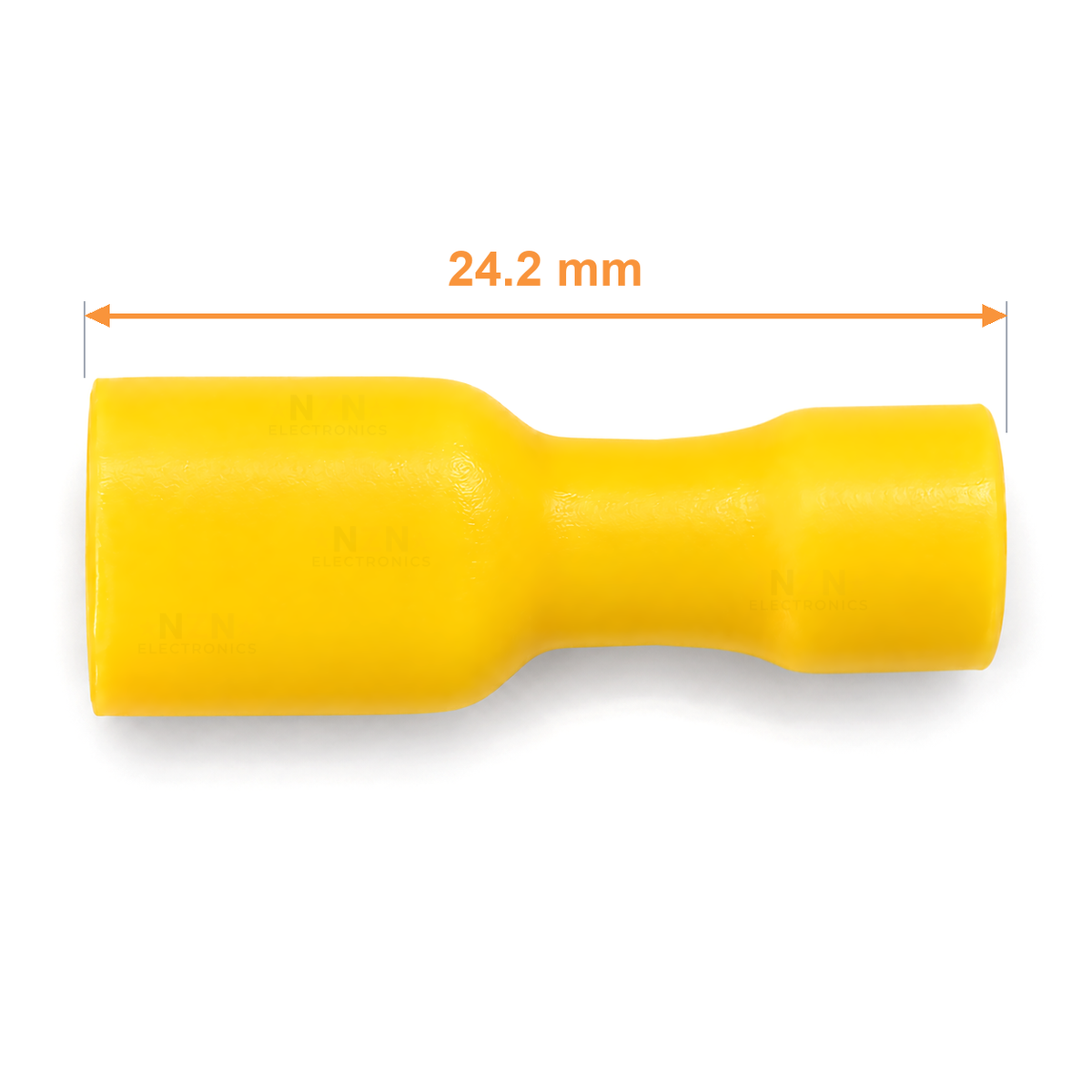

  • FDFD5.5-250 yellow fully insulated female spade dimensions: overall length 24.2 mm
Fully Insulated Female Spade Terminals 6.3mm - Red, Blue, Yellow (FDFD1.25, FDFD2, FDFD5.5-250)
SKU: SPD-FEM-RED

Fully Insulated Female Spade Terminals 6.3mm - Red, Blue, Yellow (FDFD1.25, FDFD2, FDFD5.5-250)

$0.39 NZD
Colour
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Minimum order quantity: 5

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

Fully insulated female spade crimp terminals in three wire sizes: red FDFD1.25-250 for 0.5 to 1.5 mm² wire, blue FDFD2-250 for 1.5 to 2.5 mm² and yellow FDFD5.5-250 for heavier 4 to 6 mm² cable. All three push onto a 6.3 x 0.8 mm male tab, and the sleeve covers the whole terminal, so no bare metal shows once it is fitted. Pick the colour that matches your wire. To join two red-size wires with a plug-apart joint, pair them with our red MDD1.25-250 male spade terminals.

Specifications

ModelsFDFD1.25-250 (red), FDFD2-250 (blue), FDFD5.5-250 (yellow)
Connection typeFemale spade quick disconnect, crimp
Fits male tab6.3 x 0.8 mm, width x thickness
Red wire size0.5-1.5 mm² conductor
Blue wire size1.5-2.5 mm² conductor
Yellow wire size4-6 mm² conductor
Tab series250 (6.3 mm, 1/4 inch)
Insulation coverageFully insulated, receptacle and barrel
Purchase unitOne terminal, minimum 5

Datasheets

Full technical datasheet PDF

What's in the box

1×
Fully insulated female spade terminal in the colour you choose

Sold individually. Minimum order: 5 terminals of a colour. Your selected quantity is supplied together.

Great for

Light 0.5 to 1.5 mm² switch, LED and accessory leads onto rocker switch and relay tabs (red)
Connecting 1.5 to 2.5 mm² wire to a rocker switch, relay or fuse holder tab (blue)
Terminating heavier 4 to 6 mm² cable onto a 6.3 mm switch, relay or fuse holder tab (yellow)
Covered spade joints in 12V vehicle, trailer and boat wiring

Wiring & getting started

  1. Check the sizes with power off

    The tab must be 6.3 x 0.8 mm. Smaller 4.8 mm and 2.8 mm tabs also exist and will be loose. Use red for 0.5 to 1.5 mm² conductor, blue for 1.5 to 2.5 mm² and yellow for 4 to 6 mm².

  2. Strip and crimp

    Use a crimping tool with a die for insulated terminals, in the red, blue or yellow position to match the terminal. Strip to the length of the wire barrel without cutting strands, push the conductor in through the wire end, then crimp the barrel section of the sleeve.

  3. Inspect and fit

    Check for loose strands or a split sleeve and give the wire a firm tug. Push the terminal straight onto the tab until it is fully seated.
Related guide Crimp Terminal Colour Codes: Wire Sizes and How to Crimp ProperlyWhat red, blue and yellow crimp terminals fit, how to match them to your wire, when to use butt, spade, ring or bullet terminals, and how to make a crimp tha...

Frequently Asked Questions

Answers to the questions buyers ask most.

Which colour do I need?
Match the colour to the copper size of your wire. Red suits 0.5 to 1.5 mm² conductor, blue suits 1.5 to 2.5 mm² and yellow suits 4 to 6 mm². If your wire sits on a boundary, check that the insulation fits the sleeve opening.
What tab does it fit?
All three colours fit a 6.3 x 0.8 mm male tab, also called 1/4 inch or 250 series. It is the common size on rocker switches, relays and fuse holders. They will be loose on smaller 4.8 mm or 2.8 mm tabs.
What does fully insulated mean?
The sleeve covers the receptacle as well as the crimp barrel, so once it is pushed onto a tab no bare metal is left showing.
Do I need a crimping tool?
Yes. Use a crimper with a die for insulated terminals, in the red, blue or yellow position to match the terminal. Pliers squash the sleeve and give a weak joint.
Are they waterproof?
No. The sleeve insulates but is not sealed. For engine bays, trailers or outdoor wiring, add adhesive-lined heat-shrink over the wire end.
Can I use them on 240V mains wiring?
No. Fixed mains wiring in New Zealand is prescribed electrical work for a registered electrician. These are for 12V and other low voltage work such as vehicles, trailers, boats, solar and general DC wiring.
Does a quantity of one mean one terminal?
Yes, one unit is one terminal of the colour you choose. The minimum order is 5 of a colour, with a discount at 10 and 20.
