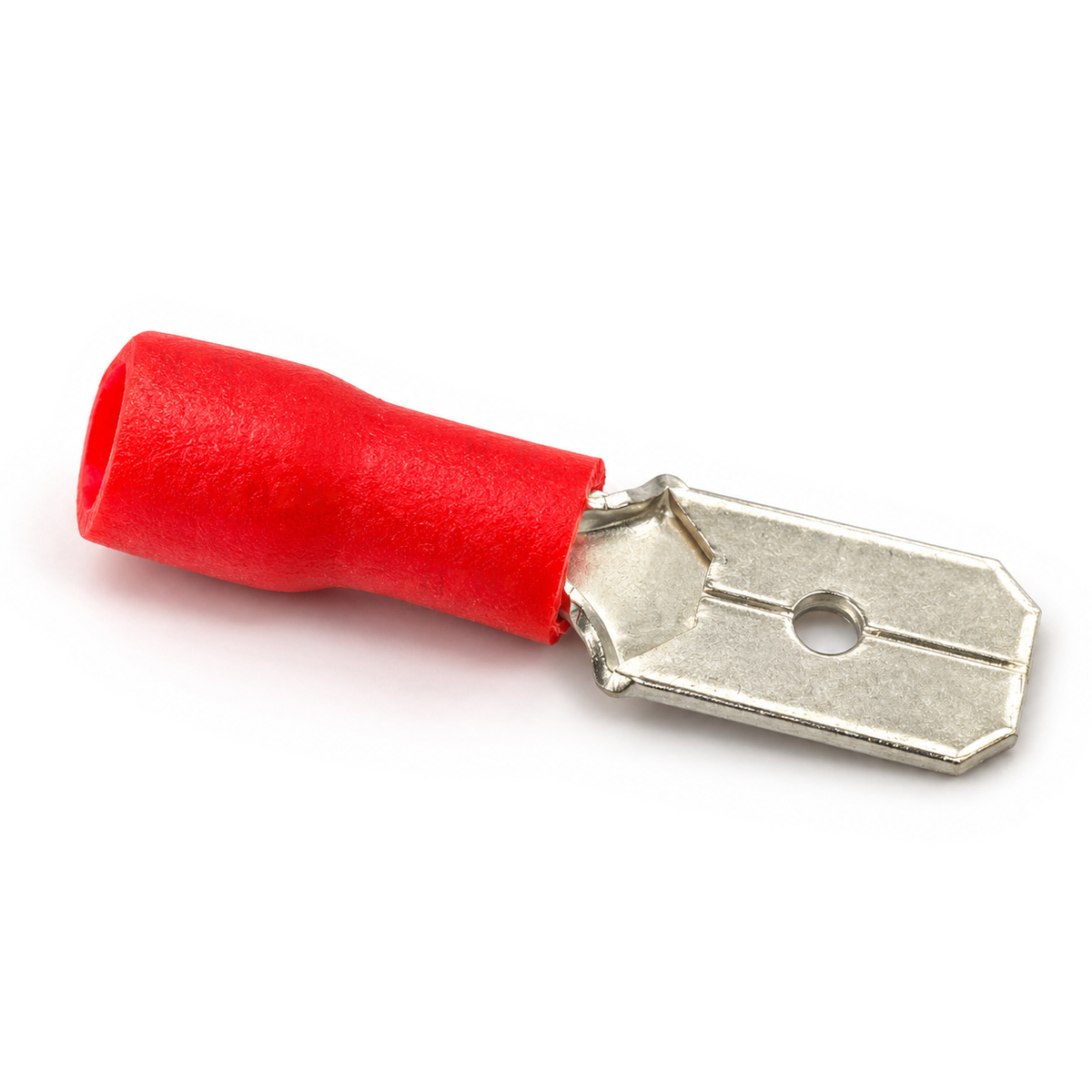

Red MDD1.25-250 male spade terminal with a bare 6.3 mm blade, detent hole and red insulated crimp barrel

MDD1.25-250 Male Spade Terminals - Red 6.3mm

$0.35 NZD
each Save 10% at 10+
Skip to product information
Red MDD1.25-250 male spade terminal with a bare 6.3 mm blade, detent hole and red insulated crimp barrel
  • Red MDD1.25-250 male spade terminal with a bare 6.3 mm blade, detent hole and red insulated crimp barrel

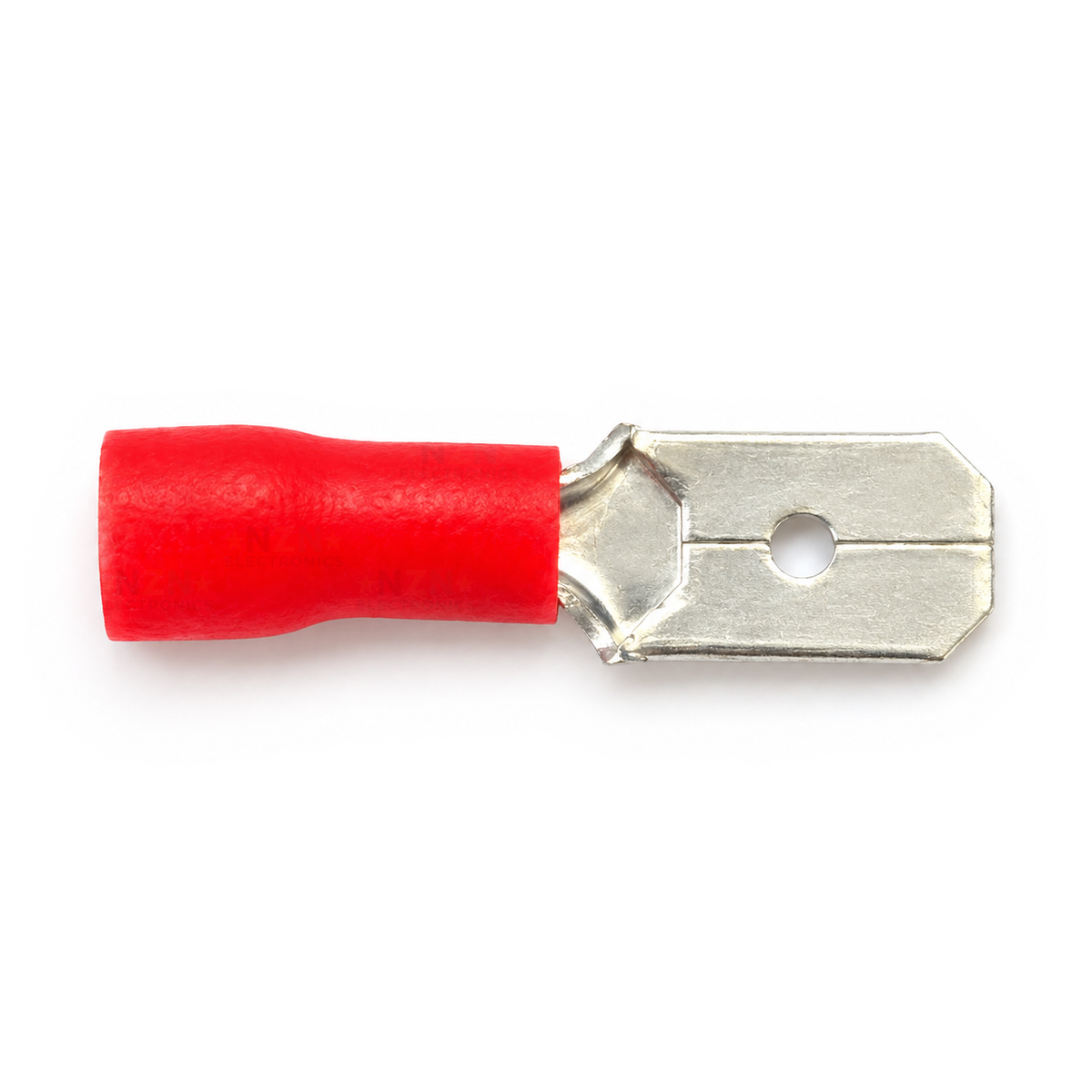

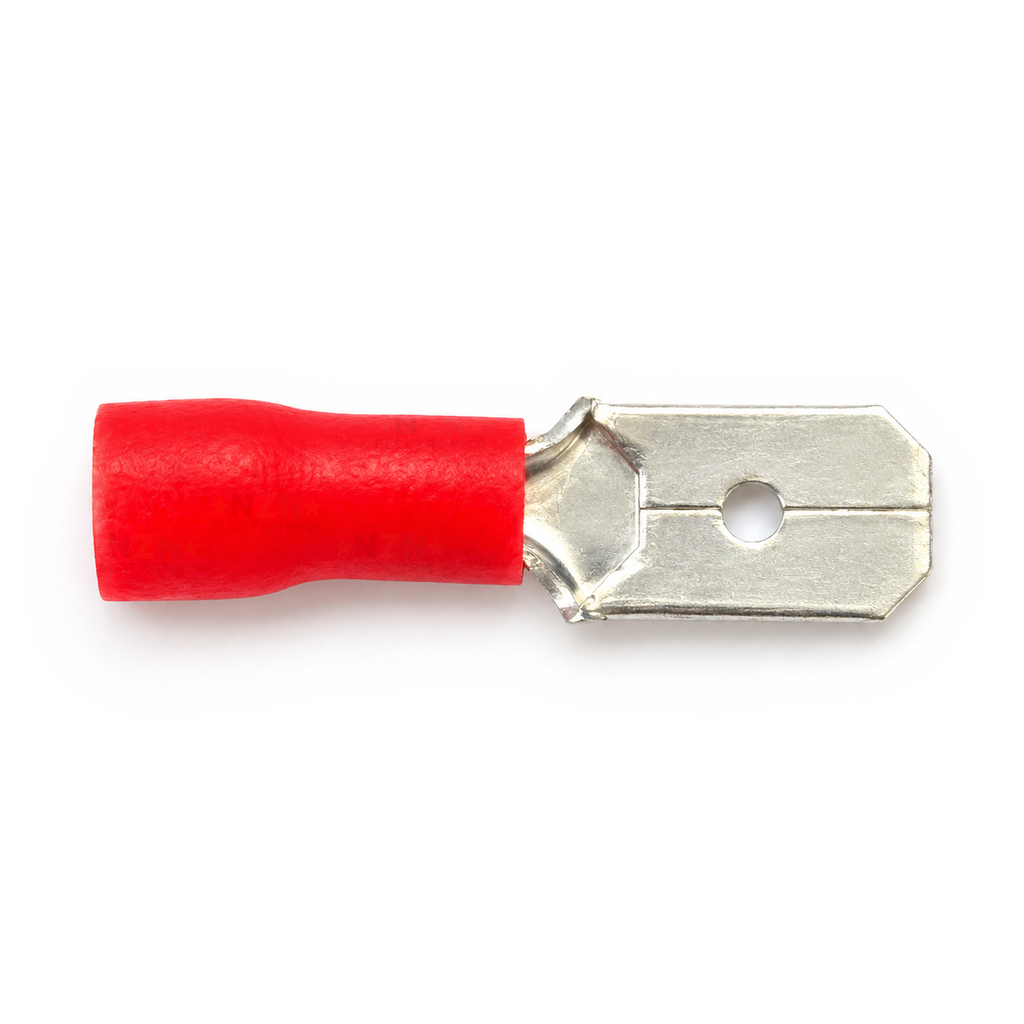

  • Top view of the red MDD1.25-250 male spade showing the blade groove, centre hole and chamfered tip

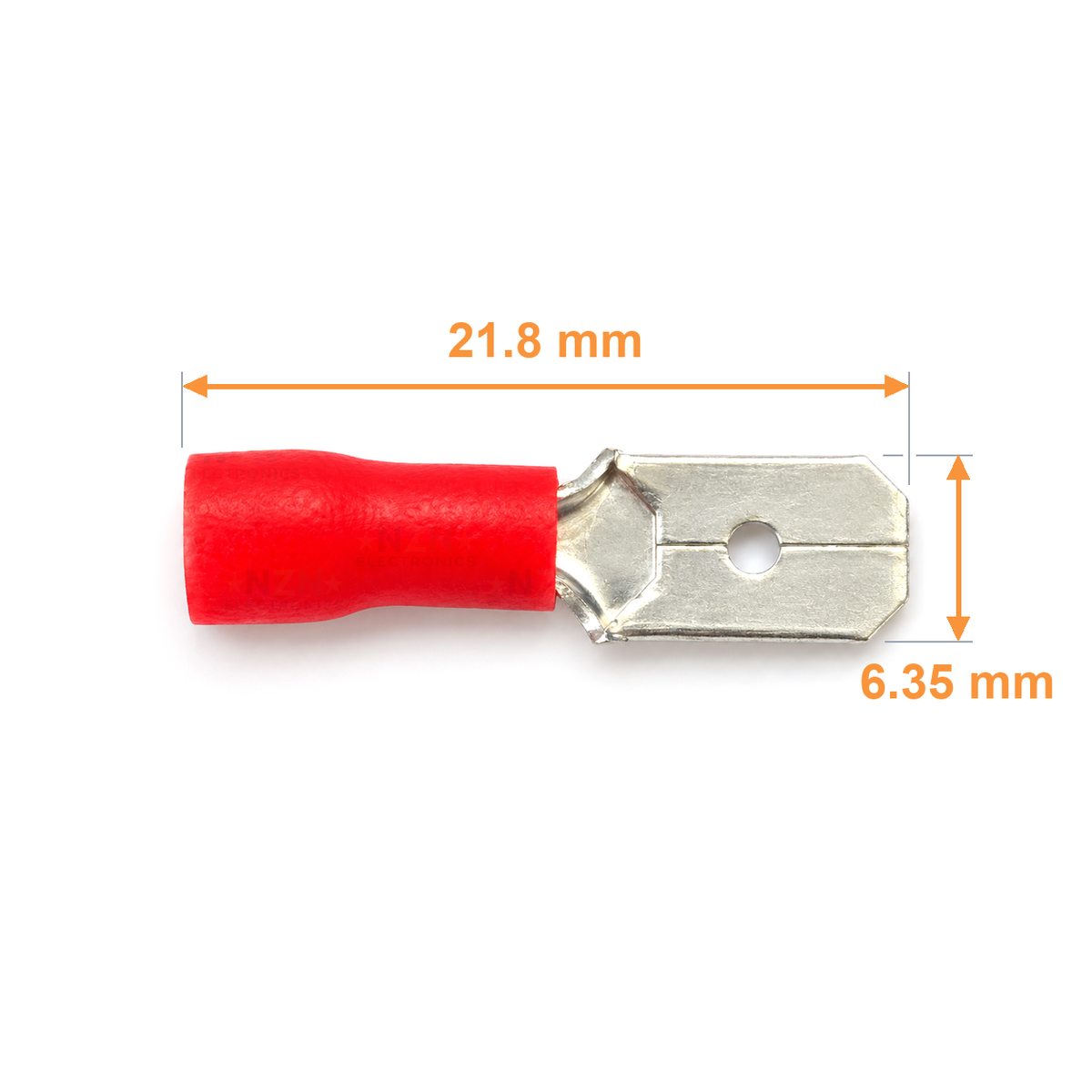

  • MDD1.25-250 male spade dimensions: overall length 21.8 mm, blade width 6.35 mm
MDD1.25-250 Male Spade Terminals - Red 6.3mm
SKU: SPD-MAL-RED-MDD

MDD1.25-250 Male Spade Terminals - Red 6.3mm

$0.35 NZD
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Minimum order quantity: 5

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

The MDD1.25-250 is a red male spade crimp terminal with a 6.3 x 0.8 mm blade. It plugs into a 6.3 mm female spade, such as our FDD1.25-250 red female spade terminals, to make a joint you can pull apart later. The red sleeve covers the crimp barrel and suits wire from 0.5 to 1.5 mm².

Specifications

ModelMDD1.25-250
Connection typeMale spade quick disconnect, crimp
Blade size6.3 x 0.8 mm, width x thickness
Mates with6.3 mm (250 series) female spade
Blade detentCentral round hole
Conductor cross-section0.5-1.5 mm²
Insulation coverageRed sleeve over the wire barrel, blade exposed
Sleeve colourRed
Purchase unitOne terminal, minimum 5

Datasheets

Full technical datasheet PDF

What's in the box

1×
MDD1.25-250 red male spade terminal

Sold individually. Minimum order: 5 terminals. Your selected quantity is supplied together.

Great for

Making a plug-apart joint in a wire with a matching female spade
Adding a removable lead to a 12V fan, lamp or accessory
Replacing a damaged male spade on a wiring loom

Wiring & getting started

  1. Check the size with power off

    Use wire with a conductor of 0.5 to 1.5 mm² and check that its insulation fits the red sleeve. The mating part must be a 6.3 mm female spade.

  2. Strip and crimp

    Use a crimping tool and die made for insulated terminals and your wire size. Strip to the length of the wire barrel without cutting strands, push the conductor fully in, then crimp the red barrel.

  3. Inspect the joint

    Check for loose strands, split insulation or a bent blade, and give the wire a firm tug. Then push the female spade fully onto the blade. It should take a firm push and not wobble.

  4. Cover the exposed metal

    The blade is bare metal. Once mated, fit heat-shrink or an insulated cover if the joint could touch other conductors or be touched while powered.
Related guide Crimp Terminal Colour Codes: Wire Sizes and How to Crimp ProperlyWhat red, blue and yellow crimp terminals fit, how to match them to your wire, when to use butt, spade, ring or bullet terminals, and how to make a crimp tha...

Frequently Asked Questions

Answers to the questions buyers ask most.

What does this male spade plug into?
A 6.3 mm female spade, also sold as 6.35 mm, 1/4 inch or 250 series. Our FDD1.25-250 red female spade terminals are the matching part.
What wire size suits it?
Wire with a conductor of 0.5 to 1.5 mm². Check that the wire's insulation fits inside the red sleeve and that your crimp die is the right size.
What is the hole in the blade for?
It is a detent. Many female spades have a small raised dimple that clicks into the hole, which helps stop the joint shaking loose.
Is the blade insulated?
No. The red sleeve covers only the crimp barrel and the blade is bare metal. Once the joint is made, cover it with heat-shrink or an insulated boot if it could touch other conductors or be touched while powered.
Do I need a crimping tool?
Yes. Use a crimper with a die made for insulated terminals in this wire range. Pliers squash the sleeve and give a weak joint.
Does a quantity of one mean one terminal?
Yes, one unit is one terminal. The minimum order is 5, and larger quantities get a volume discount.
