GT2 20 Tooth Aluminium Timing Pulley, 5mm Bore 6mm Belt

Name: GT2 Aluminium Timing Pulley, 20 Tooth 5mm Bore for 6mm Belt
Brand: NZN Electronics
SKU: 3DP-GT2-20T-B5-W6
Price: 3.99 NZD
Availability: InStock

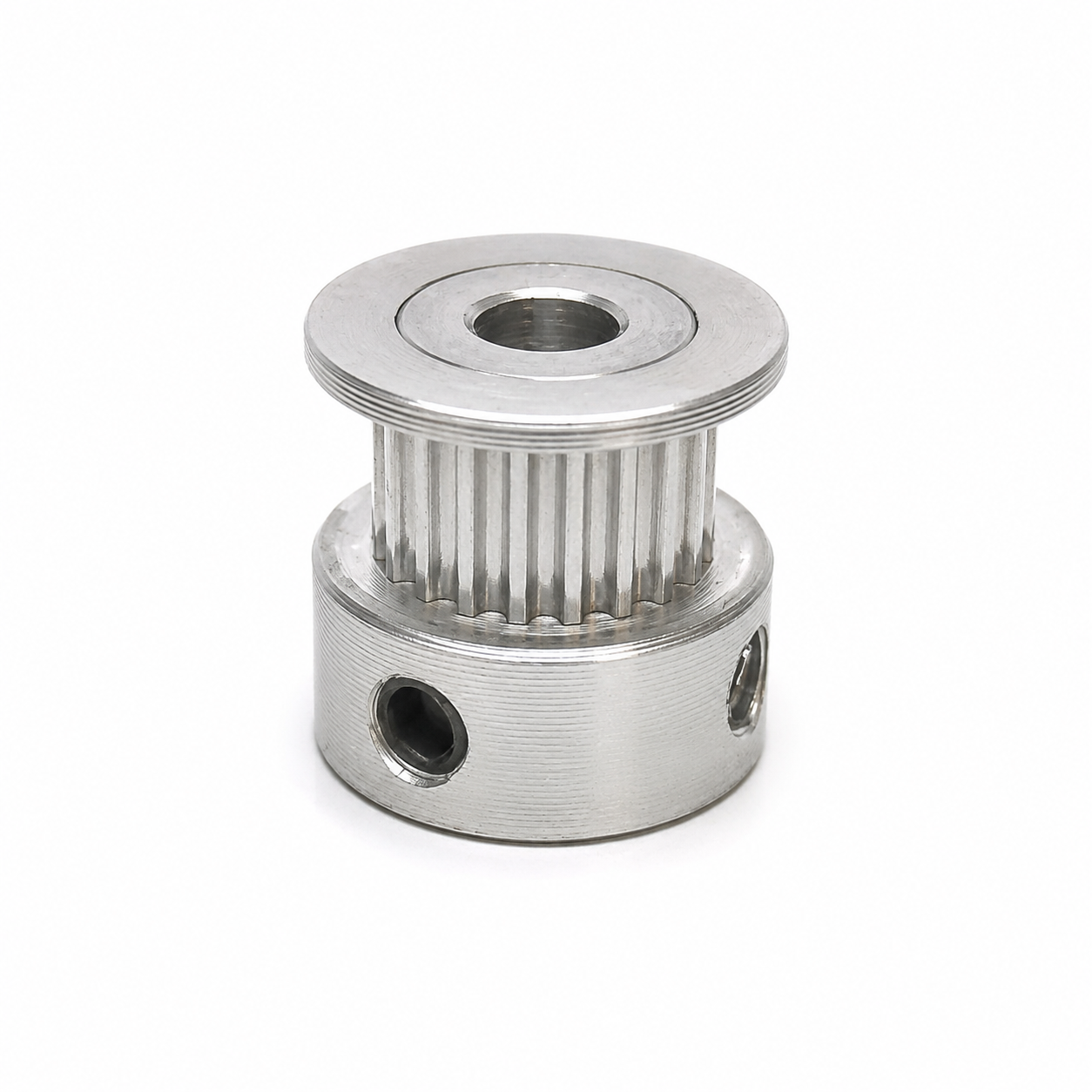

Aluminium GT2 20 tooth timing pulley with 5mm bore and twin flanges for 6mm belt

GT2 Aluminium Timing Pulley, 20 Tooth 5mm Bore for 6mm Belt

$3.99 NZD

GT2 Aluminium Timing Pulley, 20 Tooth 5mm Bore for 6mm Belt

$3.99 NZD

Rated 4.9/5 by 20 NZN customers Verified

Shipping from $5.99 urban / $9.99 rural.

Availability:

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66.00

Urban $66 Rural $88

This is an aluminium GT2 timing pulley with 20 teeth, a 5mm bore and a slot for 6mm wide belt, the same drive pulley used on the X and Y axes of most 3D printers and plenty of small CNC and linear builds. GT2 means a 2mm tooth pitch, so it runs on standard 2GT / GT2 6mm belt. Twin flanges keep the belt centred, and two M3 grub screws lock it firmly onto a 5mm motor shaft so it holds position under load instead of slipping.

20 teeth, GT2 profile (2mm pitch)
Runs on standard 2GT / GT2 6mm belt
5mm bore for NEMA 17 and 5mm shafts
Twin flanges stop the belt walking off
Two M3 grub screws fitted for a firm grip
Machined aluminium, light and hard wearing
Drop-in for 3D printer X and Y axes
Great for CNC, plotters and linear motion

How to fit it

Slide the pulley onto your 5mm motor shaft and line one grub screw up with the flat on the shaft. Set the pulley height so it matches the idler and the belt path, then tighten both M3 grub screws with a 1.5mm hex key, the one on the flat first. Fit your 6mm GT2 belt between the flanges and tension it so it is firm with no sag.

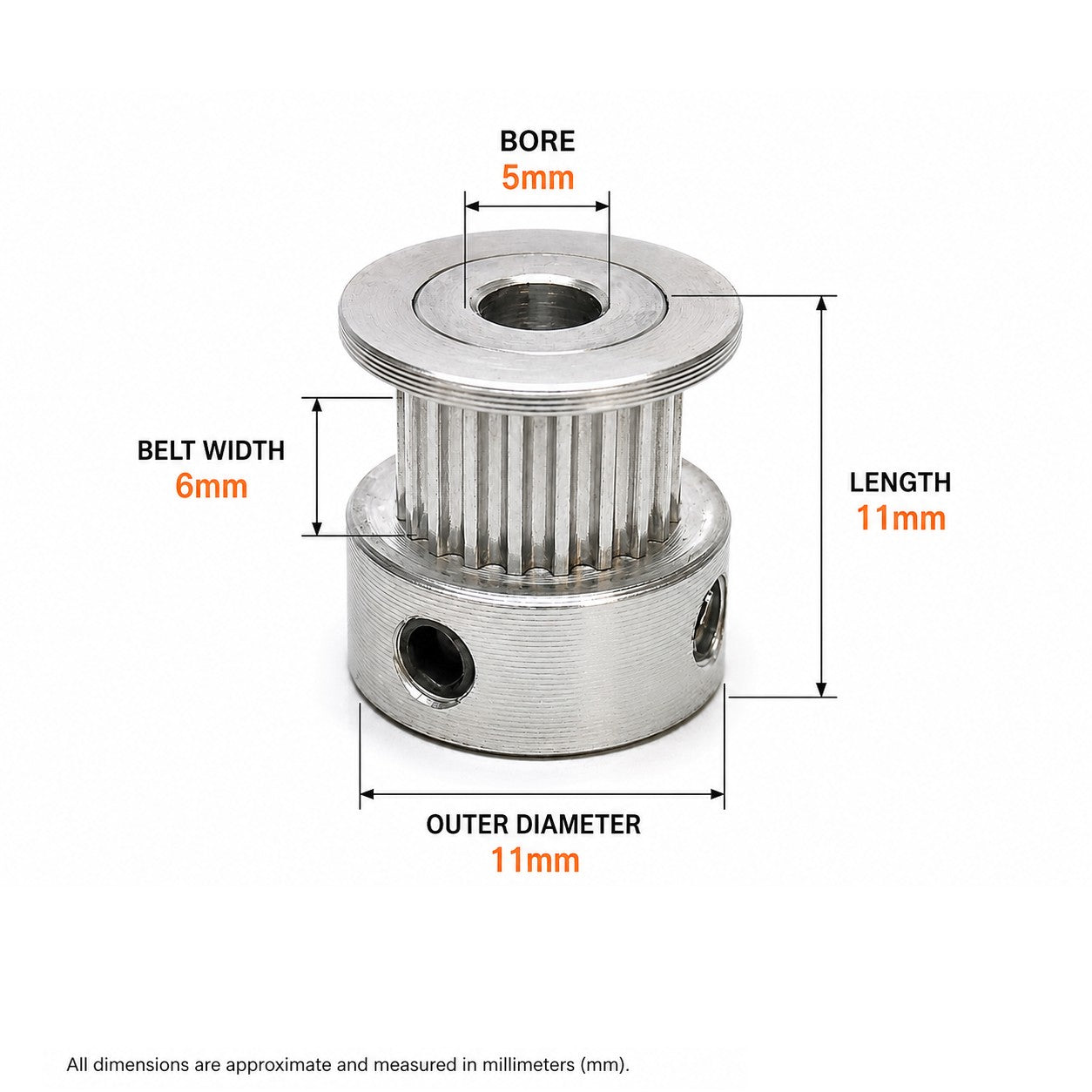

Specifications

Tooth profileGT2 (2mm pitch)

Number of teeth20

Bore diameter5mm

Belt width6mm (2GT / GT2)

Pitch diameterAround 12.7mm

Flanges2 (belt guiding)

Grub screws2 x M3, pre-fitted

Overall heightAround 11mm

Hub diameterAround 11mm

MaterialAluminium alloy

What's in the box

GT2 20 tooth aluminium pulley, with two M3 grub screws fitted

Buy one or a whole handful. Bulk pricing kicks in automatically as you add more to your cart.

Great for

3D printer X and Y axis belt drive

Ender, CR-10 and Prusa style belt paths

NEMA 17 stepper motor shafts

CNC routers, plotters and pen machines

DIY linear motion and gantries

Any 6mm GT2 belt build

Good to know: measurements are taken by hand, so please allow a millimetre or two of tolerance. This pulley is made for 6mm wide GT2 belt on a 5mm shaft, so check your belt width and shaft size before ordering. Shipped from our stock in Te Awamutu.

Got questions?

Frequently asked questions

Will this fit my 3D printer?

Most Cartesian printers like the Ender 3, CR-10 and Prusa i3 drive their X and Y belts with a 20 tooth GT2 pulley on a 5mm motor shaft, which is exactly this part. If your printer uses a different tooth count or a wider 9mm belt, check before ordering.

What belt does it use?

Standard 2GT / GT2 belt in the 6mm width, the most common belt on 3D printers and small CNC gantries. It will not suit a 9mm or 10mm wide belt.

Does it come with grub screws?

Yes, two M3 grub screws come fitted in the hub. You tighten them onto the flat of your motor shaft with a 1.5mm hex key to lock the pulley in place. The hex key is not included.

Will it fit a NEMA 17 stepper?

Yes. A NEMA 17 stepper has a 5mm output shaft and this pulley has a 5mm bore, so it slides straight on. Line a grub screw up with the flat on the shaft for the firmest hold.

Is it aluminium or steel?

It is machined aluminium alloy, which keeps the rotating mass low and is the usual choice for a printer drive pulley. The teeth are cut clean for smooth, low backlash belt engagement.
