IEC C14 10A 250V panel mount power inlet, front three-quarter view

IEC C14 Panel Mount Power Inlet 10A 250V

$2.99 NZD
Save 5% at 2+
Skip to product information

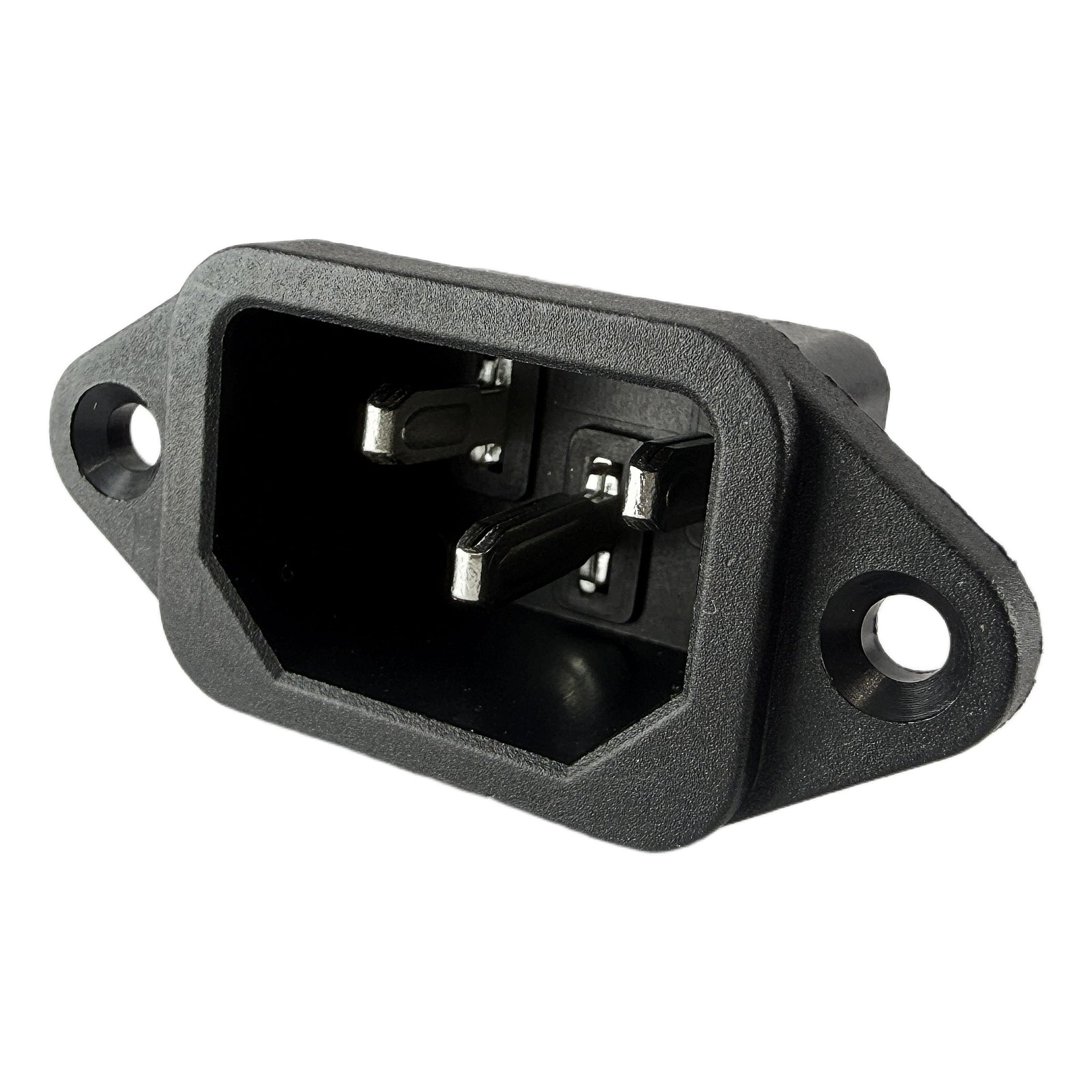

IEC C14 10A 250V panel mount power inlet, front three-quarter view
  • IEC C14 10A 250V panel mount power inlet, front three-quarter view

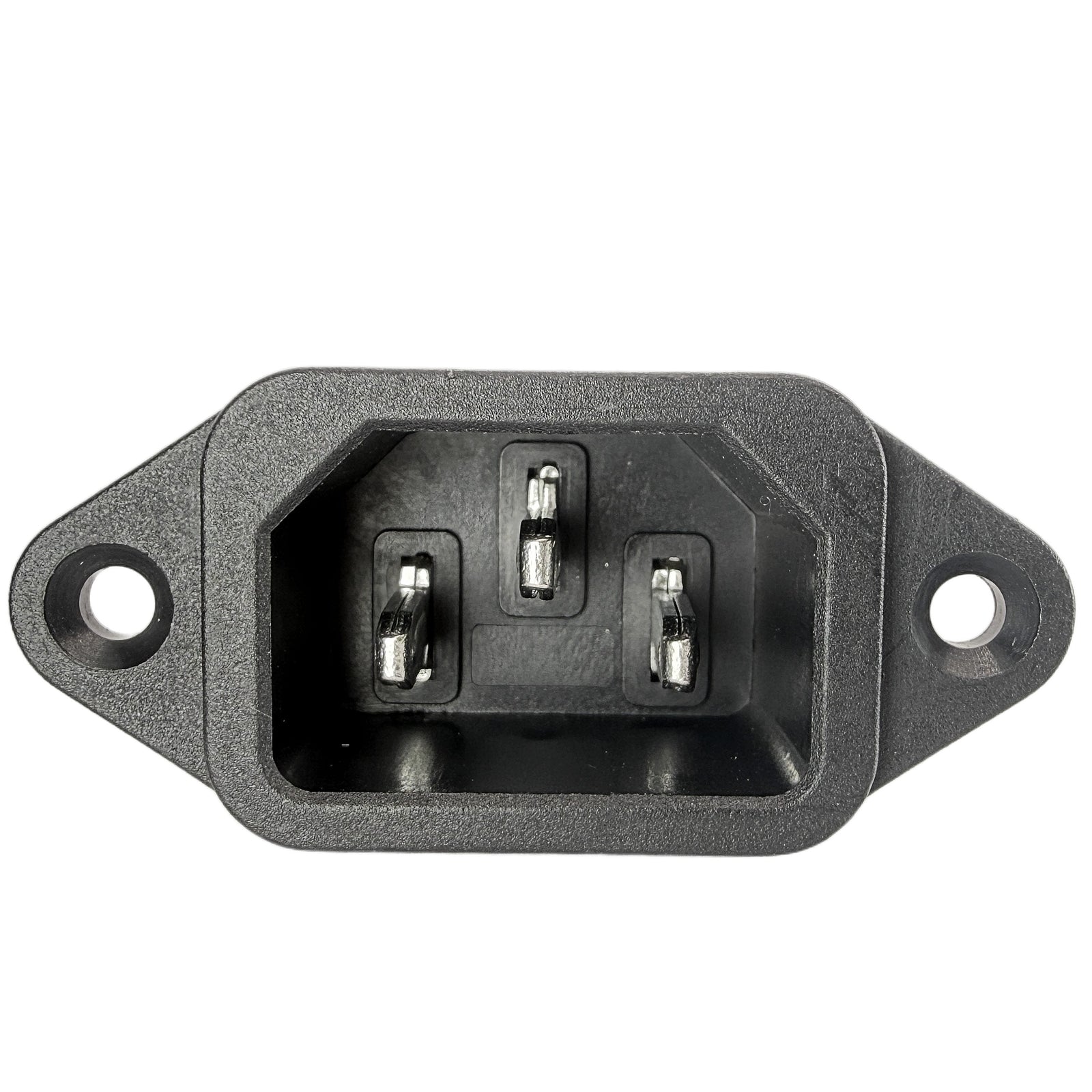

  • IEC C14 panel mount inlet front view showing three contacts and mounting holes

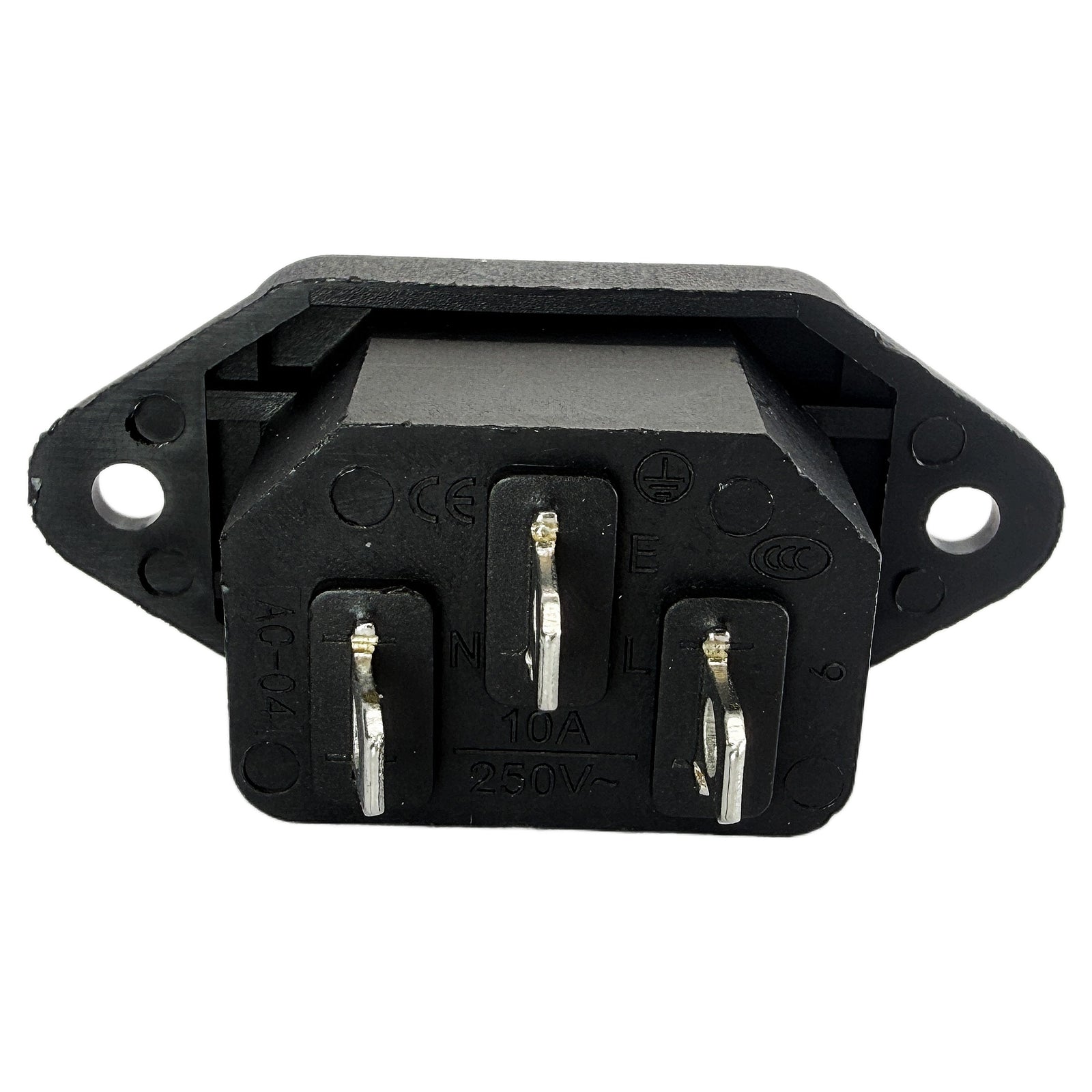

  • Rear of AC-04 IEC C14 inlet showing L, N, earth and 10A 250V markings

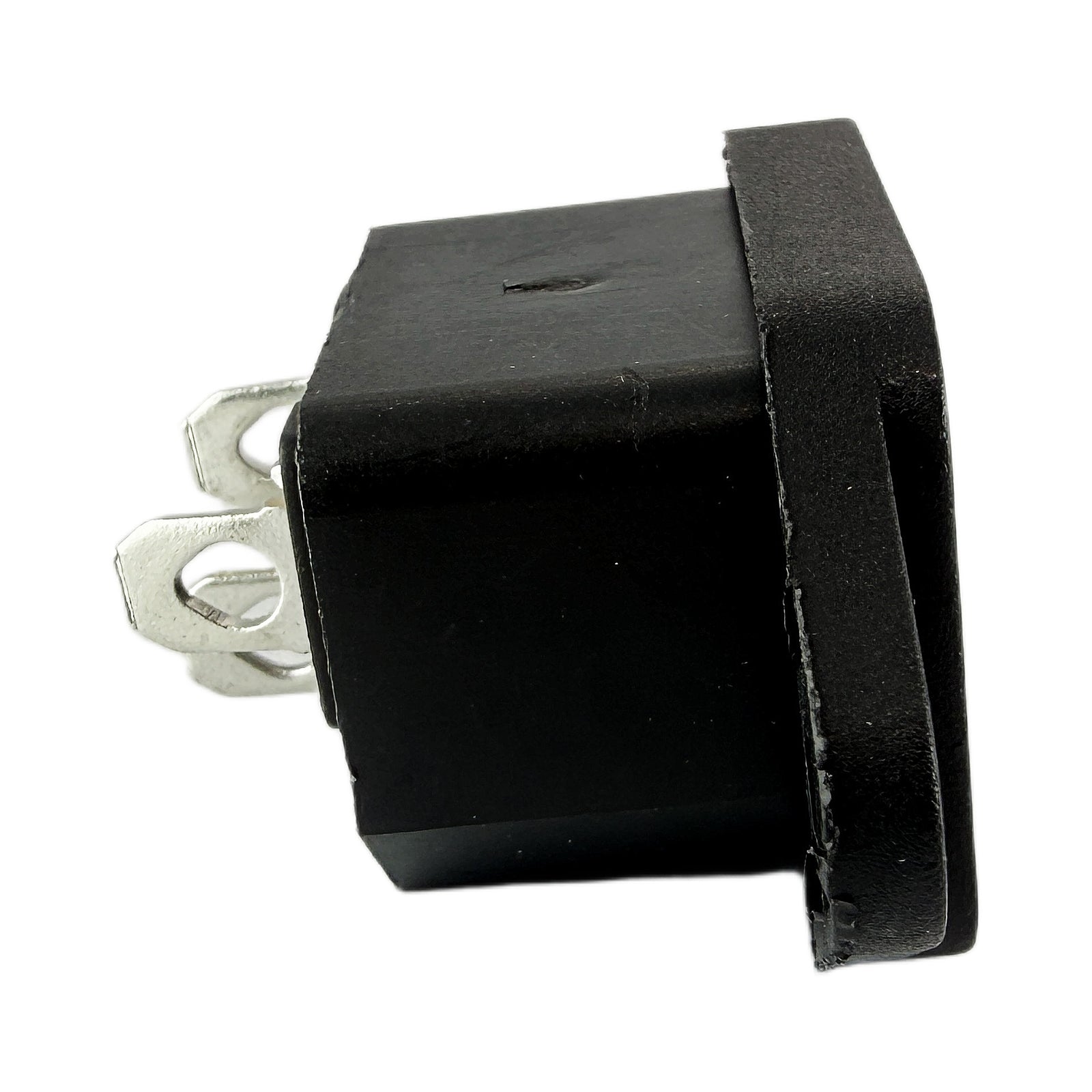

  • IEC C14 panel mount inlet side profile showing rear solder terminals
IEC C14 Panel Mount Power Inlet 10A 250V
SKU: NZE-C14-I

IEC C14 Panel Mount Power Inlet 10A 250V

$2.99 NZD
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A three-pole IEC 60320 C14 appliance inlet for fitting a removable C13 mains lead to an equipment enclosure. The current NZN stock is marked AC-04 and 10A 250V AC, with a two-hole screw flange and rear solder tabs.

Specifications

Connector formIEC 60320 C14 inlet
Mating connectorIEC C13 female
Number of poles3: L, N and earth
Stock marking10A 250V AC
Mounting styleTwo-hole panel flange
Rear terminationTabs with solder holes
Model markingAC-04
Body colourBlack
Terminal labelsL, N and earth
Observed marksCE and CCC
Mounting screwsNot included
Power leadNot included

Datasheets

Full technical datasheet PDF

What's in the box

1×
IEC C14 panel mount inlet

Mounting screws and the C13 power lead are not included.

Great for

Equipment enclosures
3D printer control boxes
Bench power projects
PSU and amplifier housings
Matching inlet repairs

Wiring & getting started

  1. Confirm the part

    Check the AC-04 and 10A 250V AC stock markings before installation.

  2. Design the enclosure

    Provide secure mounting, insulation, clearances and cable strain relief appropriate to the finished equipment.

  3. Protect the circuit

    Select wiring and over-current protection for the complete assembly, not from the connector marking alone.

  4. Inspect and test

    Installation and testing must be completed by a suitably qualified person in accordance with applicable New Zealand electrical requirements.

Frequently Asked Questions

Answers to the questions buyers ask most.

What power lead fits this inlet?
It mates with a standard IEC C13 female connector, as used on many detachable equipment power leads.
What is the marked electrical rating?
The current stock is marked 10A 250V AC. The safe load of the finished equipment also depends on its wiring, protection, enclosure and installation.
Are mounting screws included?
No. The listing includes one panel inlet only, without mounting screws or a power lead.
How are the rear terminals connected?
The rear line, neutral and earth terminals are tabs with solder holes.
Who should install it?
This is a mains-voltage component. Installation and testing must be completed by a suitably qualified person in accordance with applicable New Zealand electrical requirements.
