Insulated bootlace ferrules (cord-end terminals) crimp onto the stripped end of stranded wire to give a clean, solid pin that won't fray, splay or work loose. They're the professional way to land stranded cable into screw terminals — DIN-rail blocks, circuit breakers, contactors, terminal strips and lever connectors all hold a ferrule far more reliably than bare strands.
- Stops stranded wire fraying & stray strands
- Solid, secure crimp for reliable terminations

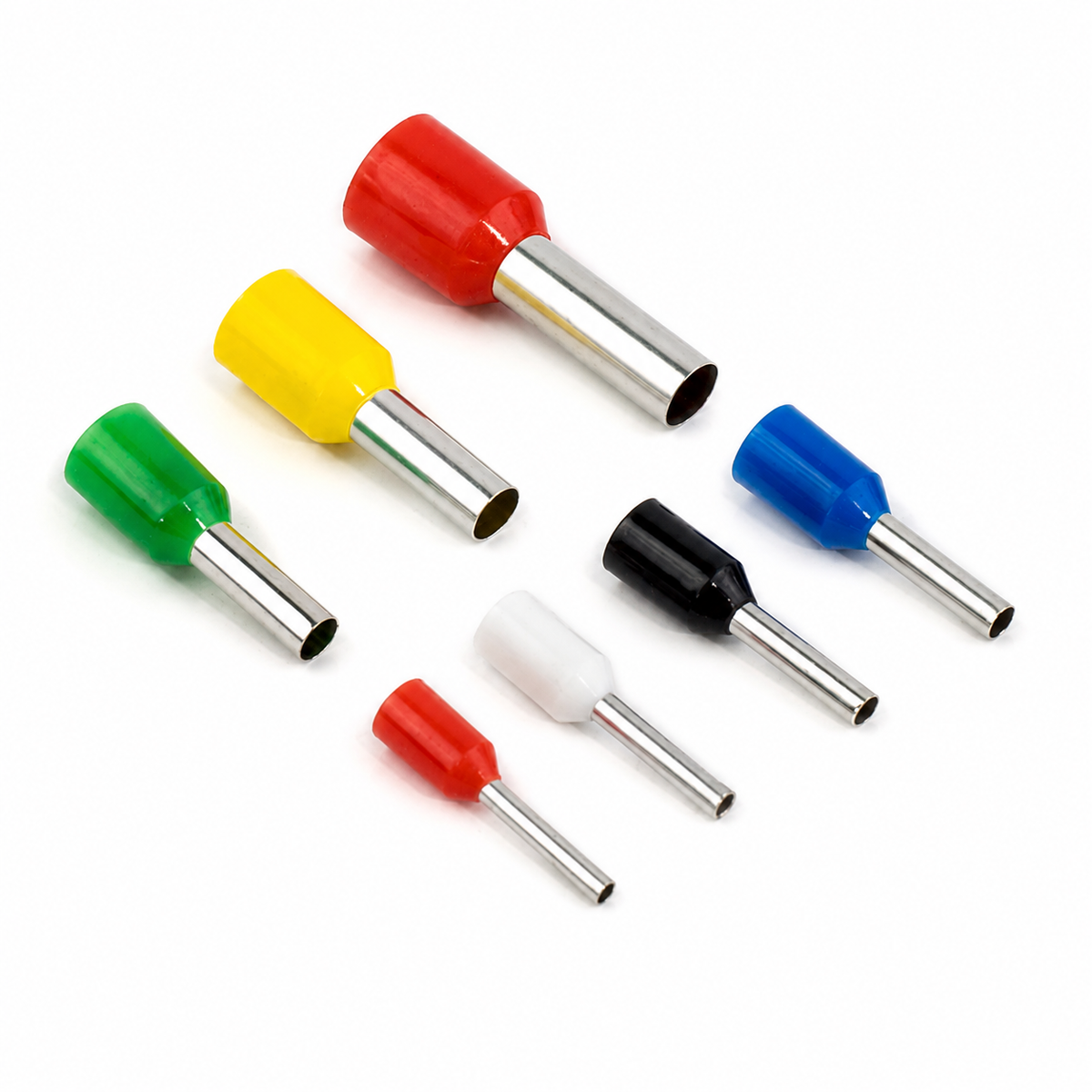

- Colour-coded insulated collar by wire size
- Electro-tinned copper barrel
- Fits screw terminals, DIN blocks, breakers & contactors
- DIN 46228-4 sizing, 10–22 AWG range
- Sold per piece — buy only the sizes you need
- Tidier, safer, more professional panel wiring
Sizes & dimensions
| Type | Wire | AWG | Pin length | Overall length | Collar Ø |
|---|---|---|---|---|---|

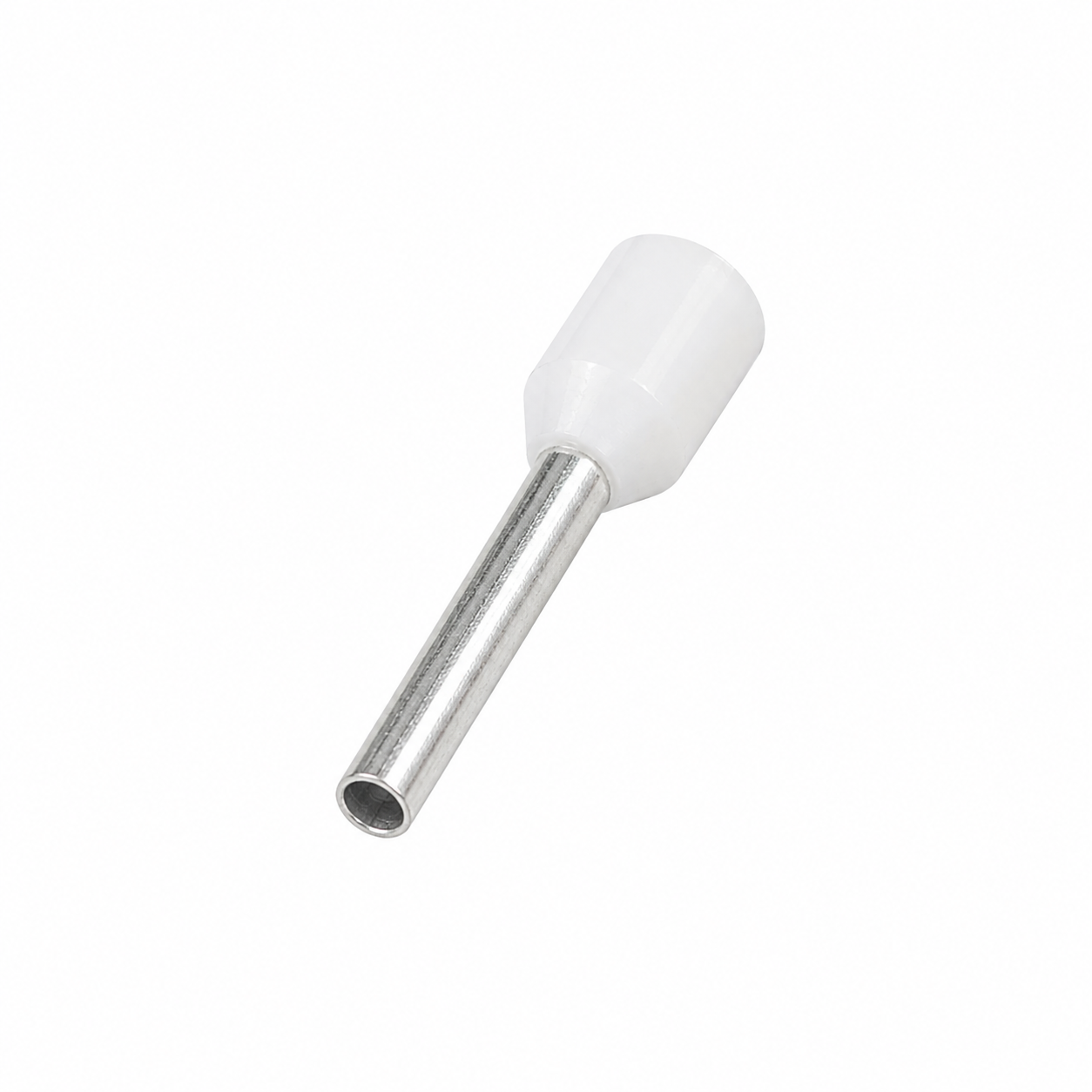

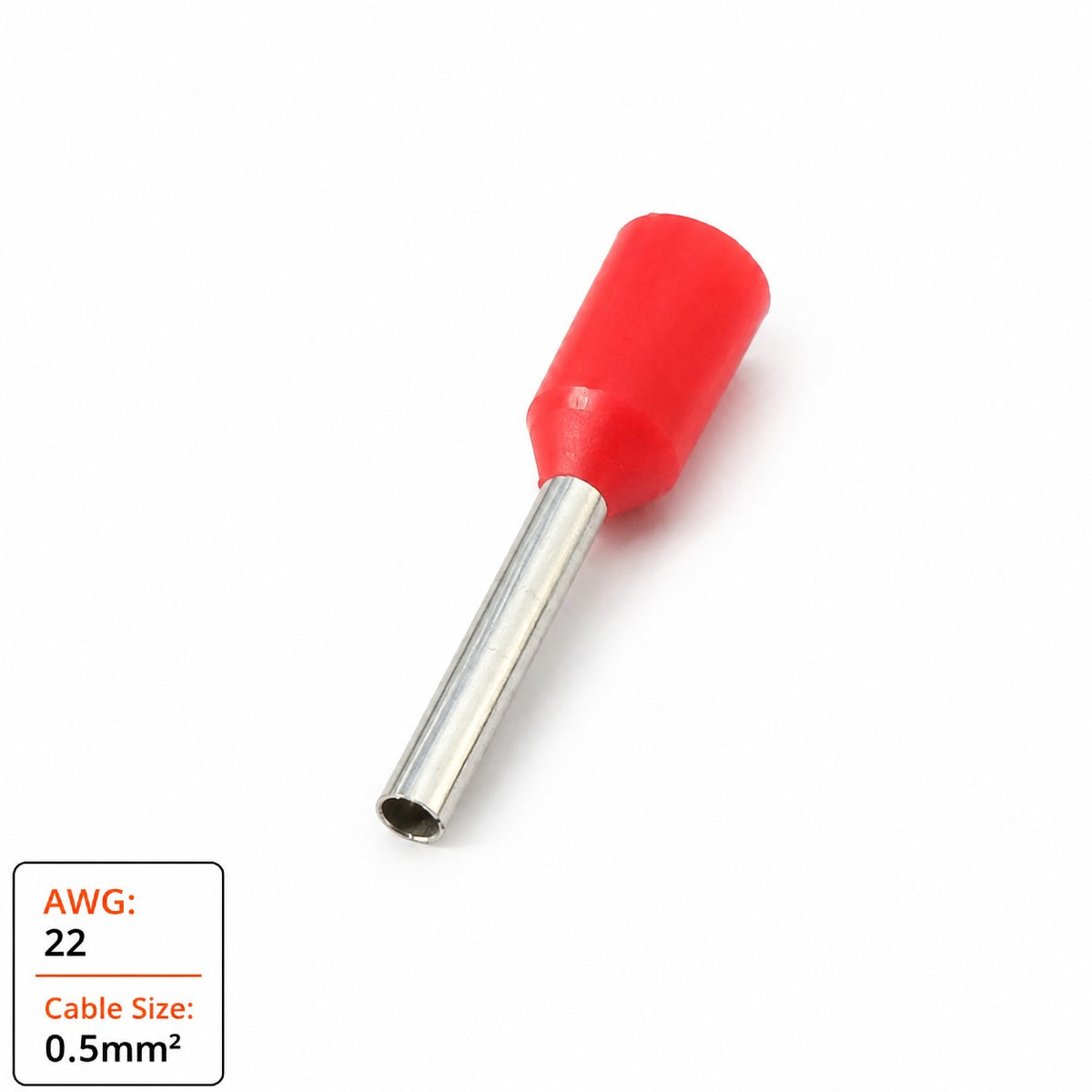

| E0508 | 0.5mm² | 22 | 8.0mm | 14.0mm | 2.6mm |

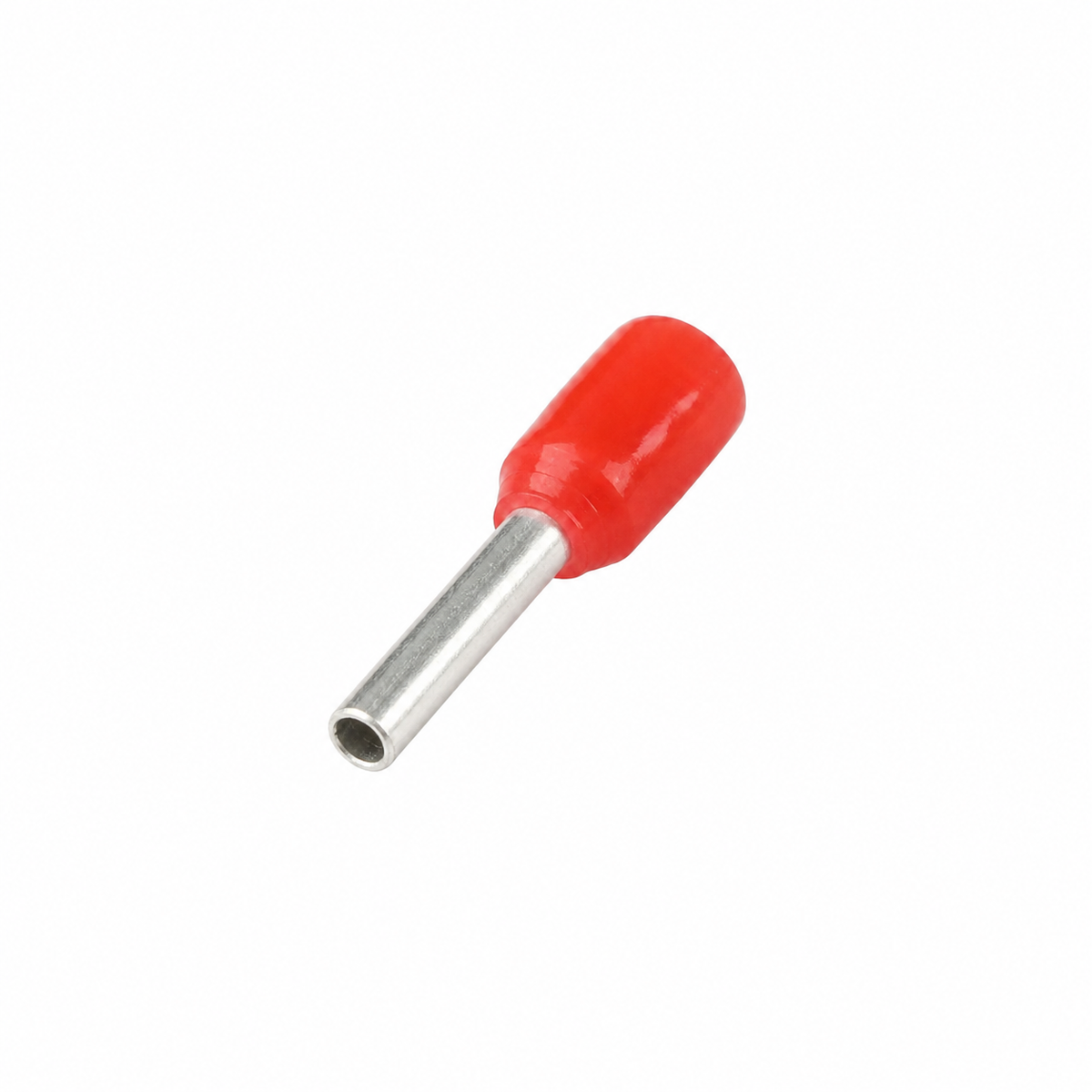

| E7508 | 0.75mm² | 20 | 8.0mm | 14.4mm | 2.8mm |

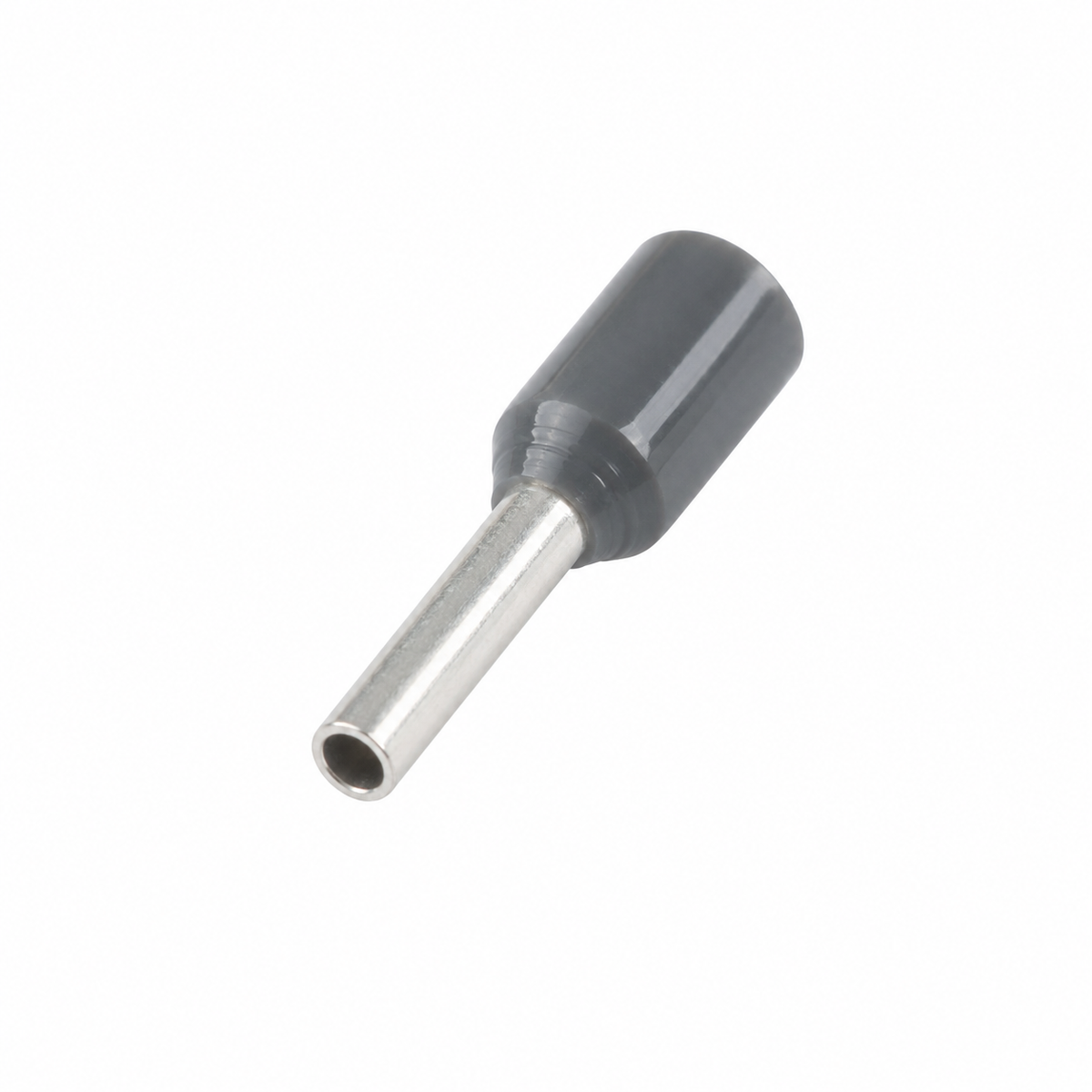

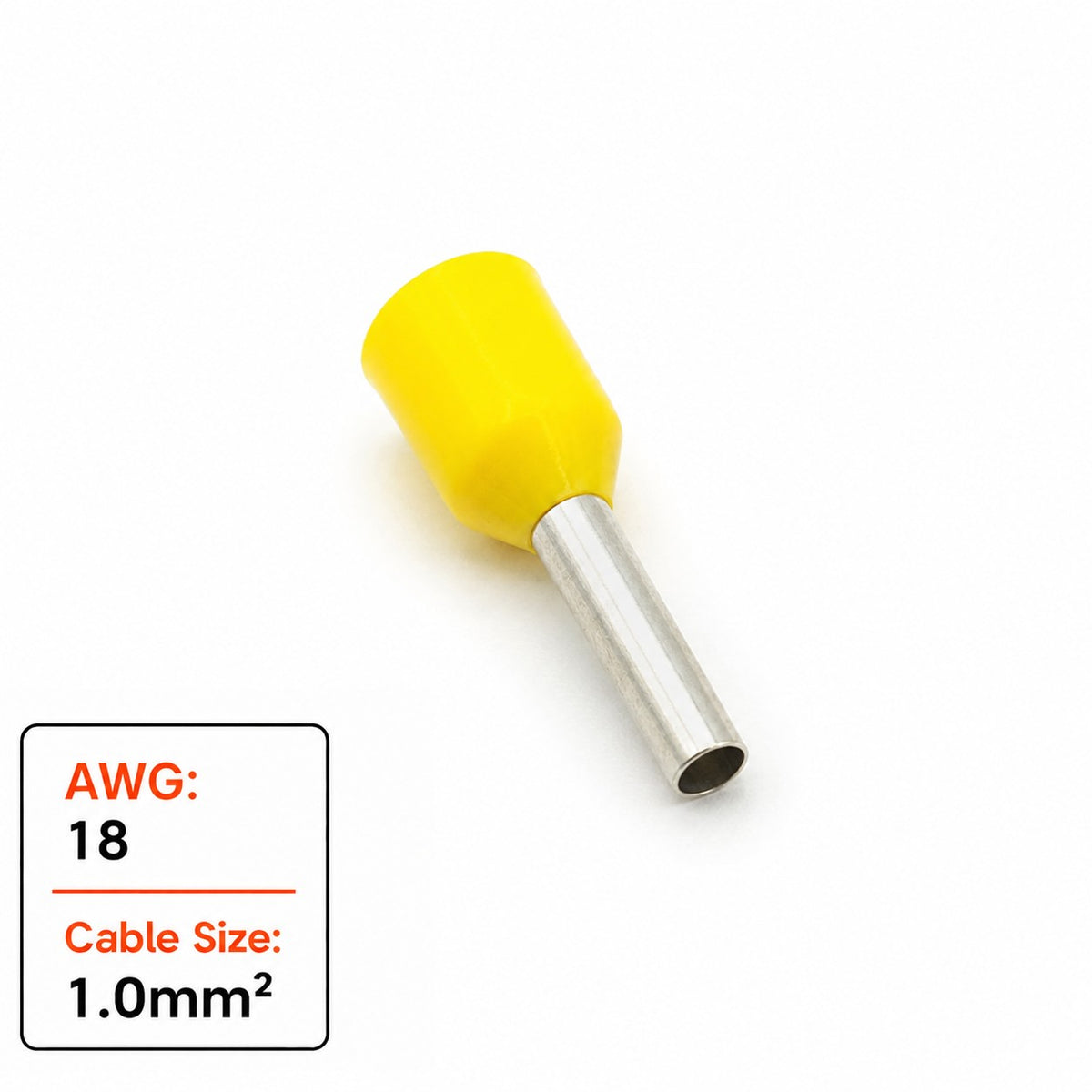

| E1008 | 1.0mm² | 18 | 8.0mm | 14.4mm | 3.0mm |

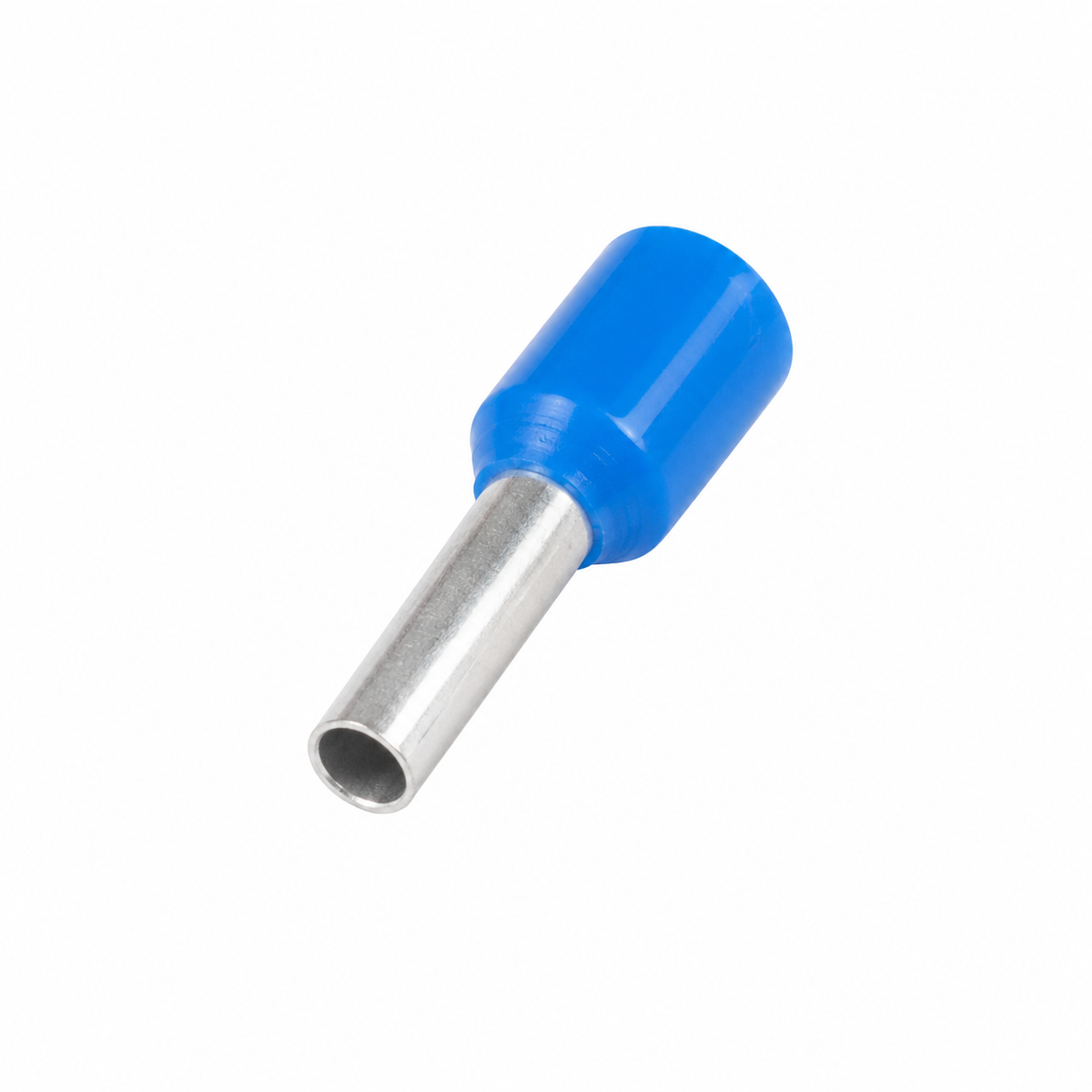

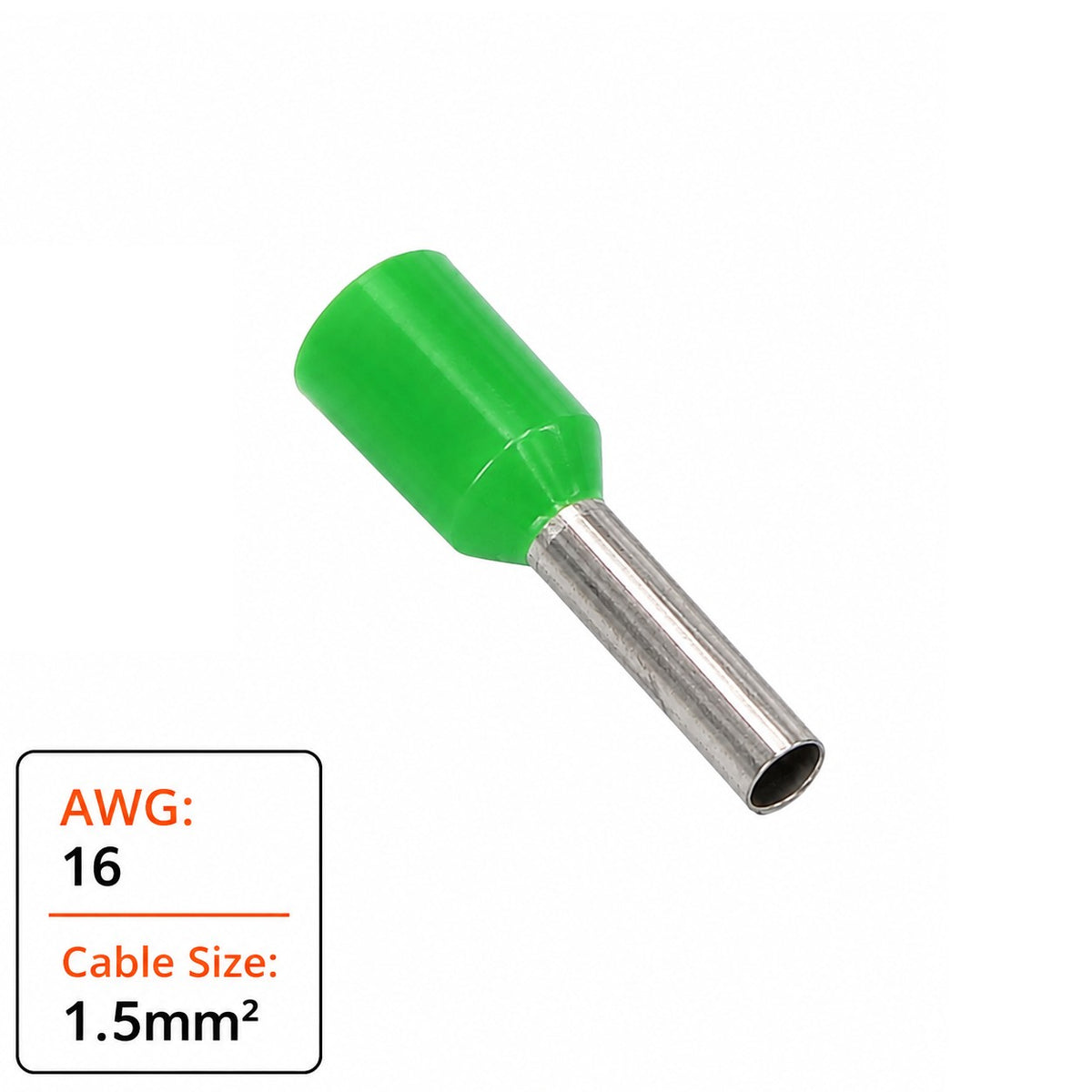

| E1508 | 1.5mm² | 16 | 8.0mm | 14.4mm | 3.5mm |

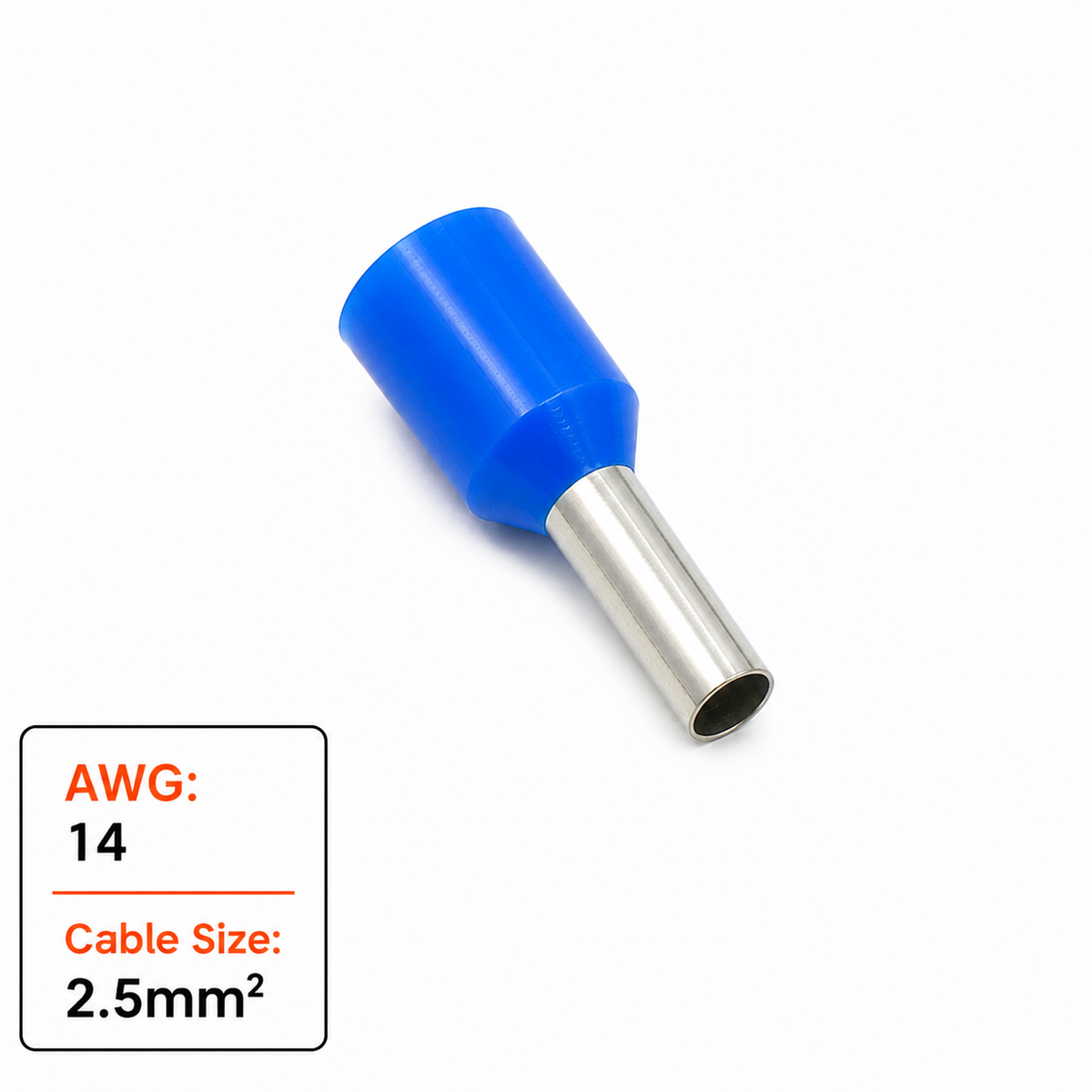

| E2508 | 2.5mm² | 14 | 8.0mm | 15.6mm | 4.2mm |

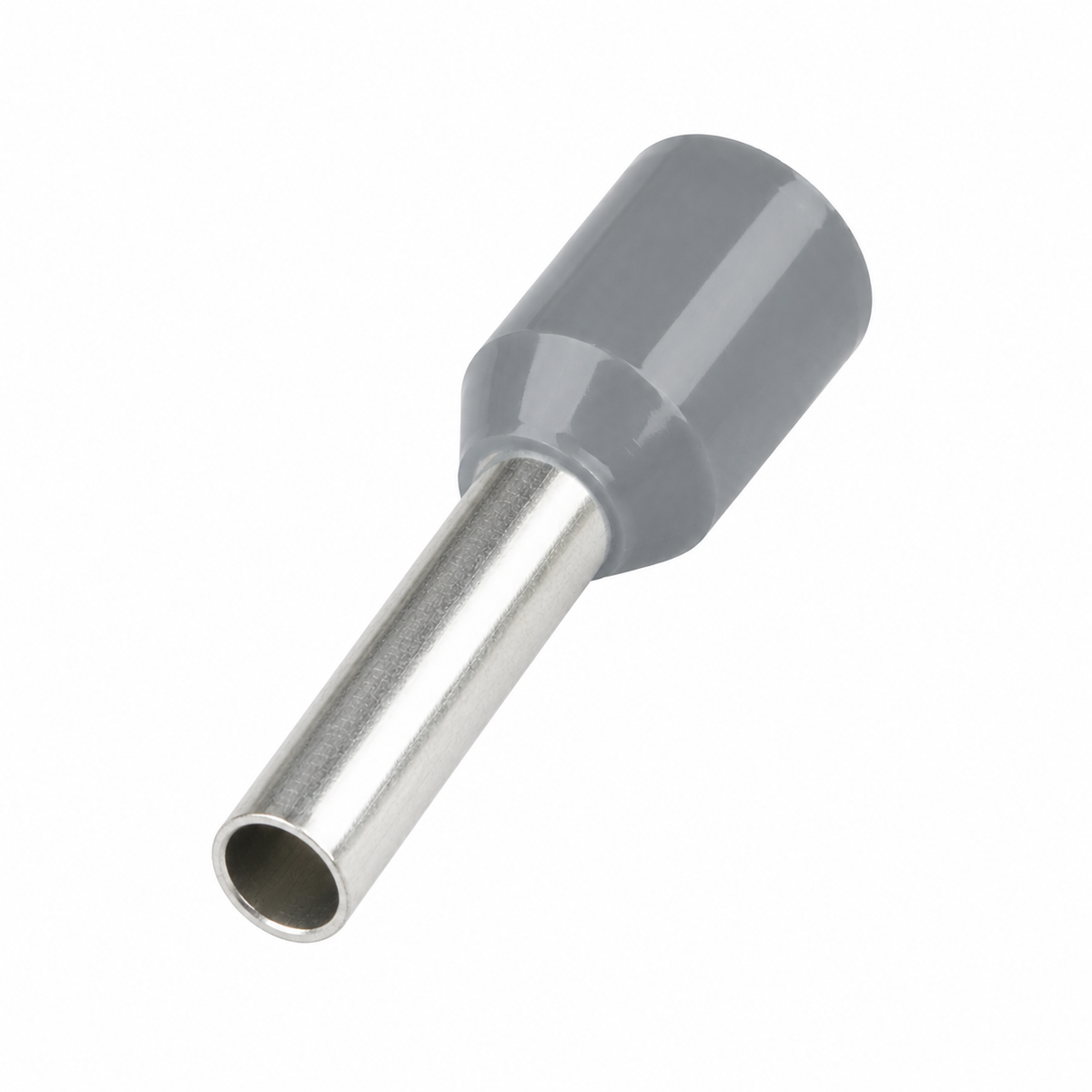

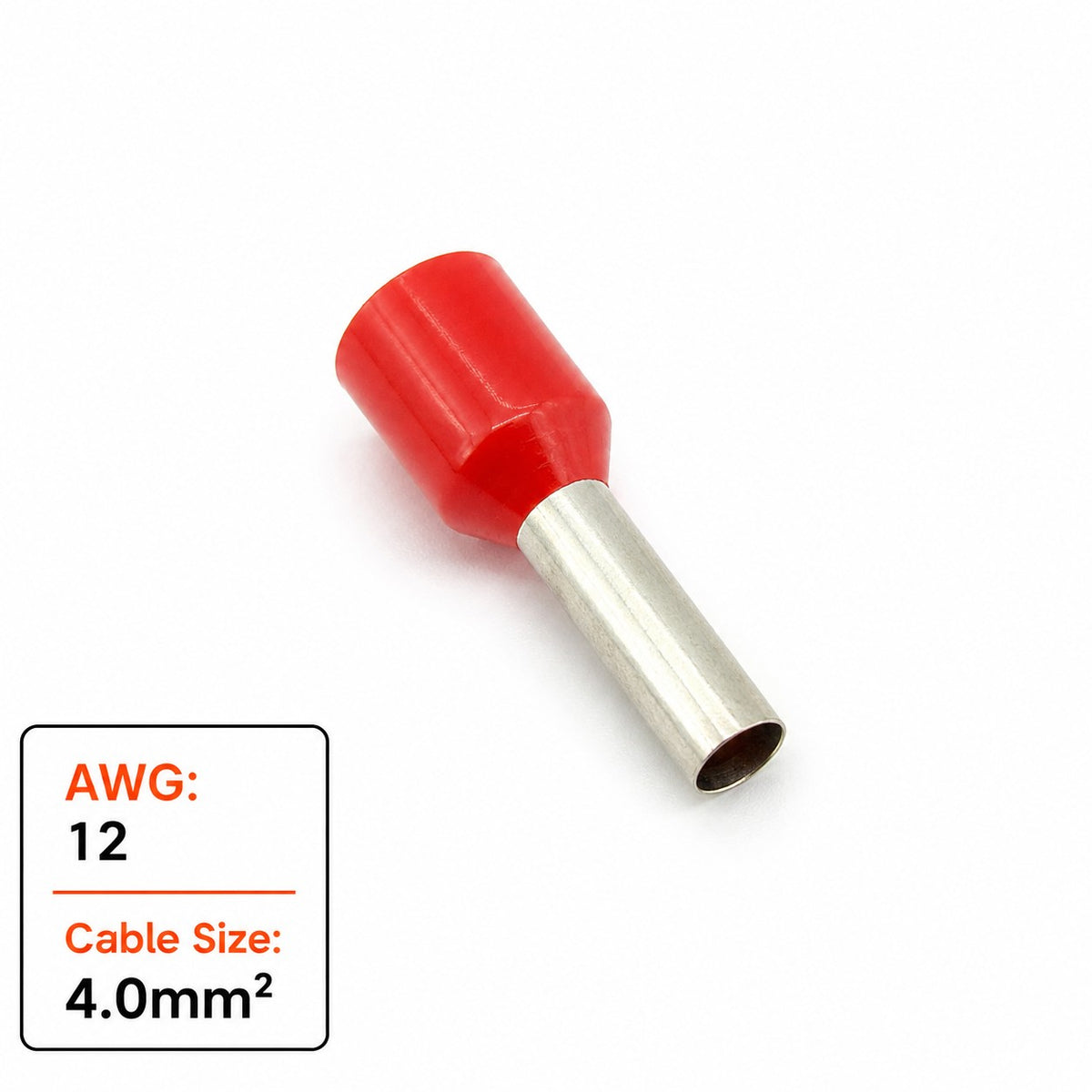

| E4009 | 4.0mm² | 12 | 9.0mm | 16.5mm | 4.4mm |

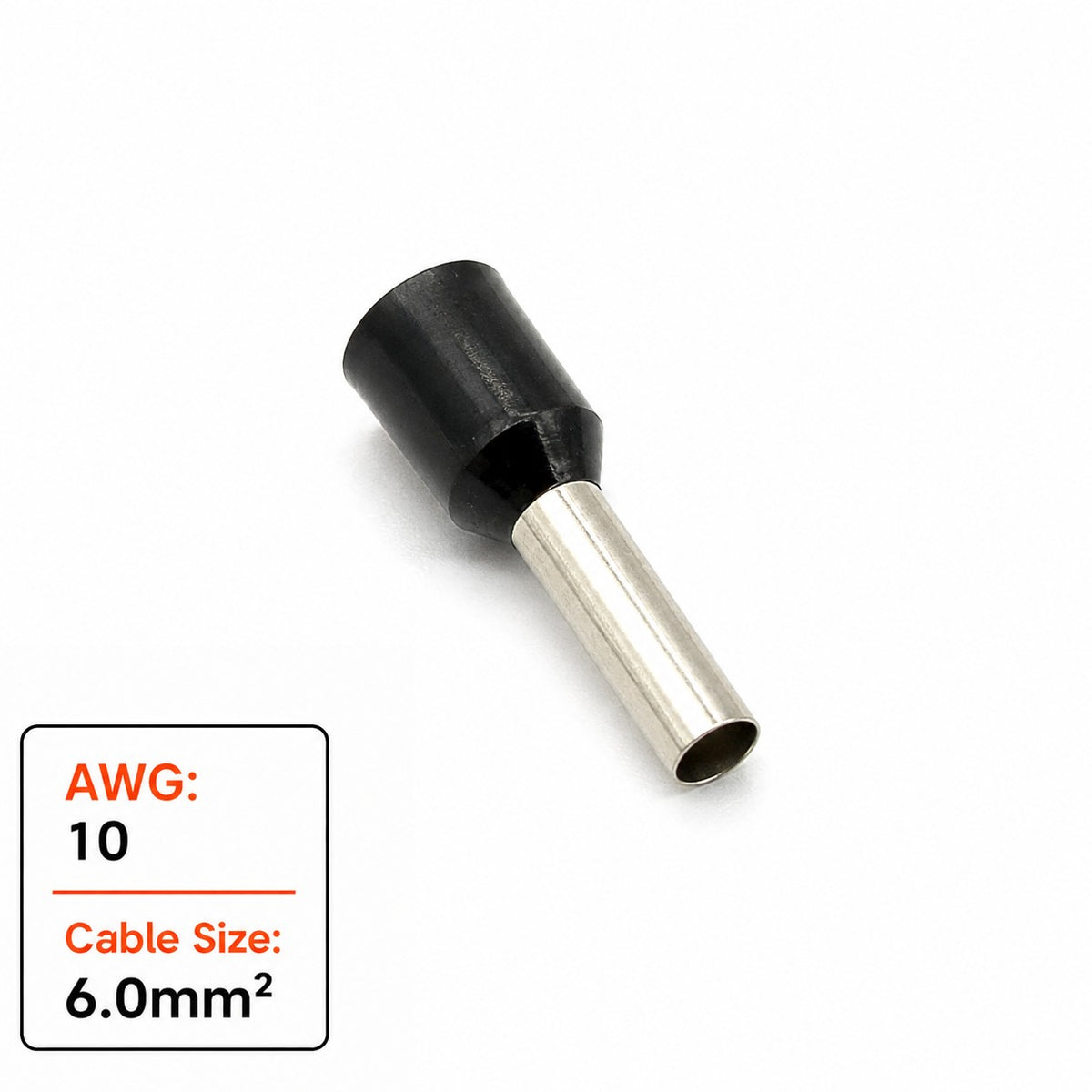

| E6012 | 6.0mm² | 10 | 12.0mm | 20.4mm | 6.0mm |
Great for
- Control panels & DIN-rail wiring
- Breakers, contactors & terminal blocks
- 3D printer, CNC & automation builds
- Automotive, marine & 12/24V systems
- Audio, lighting & power distribution
- Any stranded-to-screw-terminal connection
Good to know: Ferrules are crimped on with a ferrule (bootlace) crimp tool — a normal terminal crimper won't do it. Sold individually with a minimum order of 5 pieces; mix sizes to suit your job. Choose the ferrule that matches your wire's mm²/AWG.
