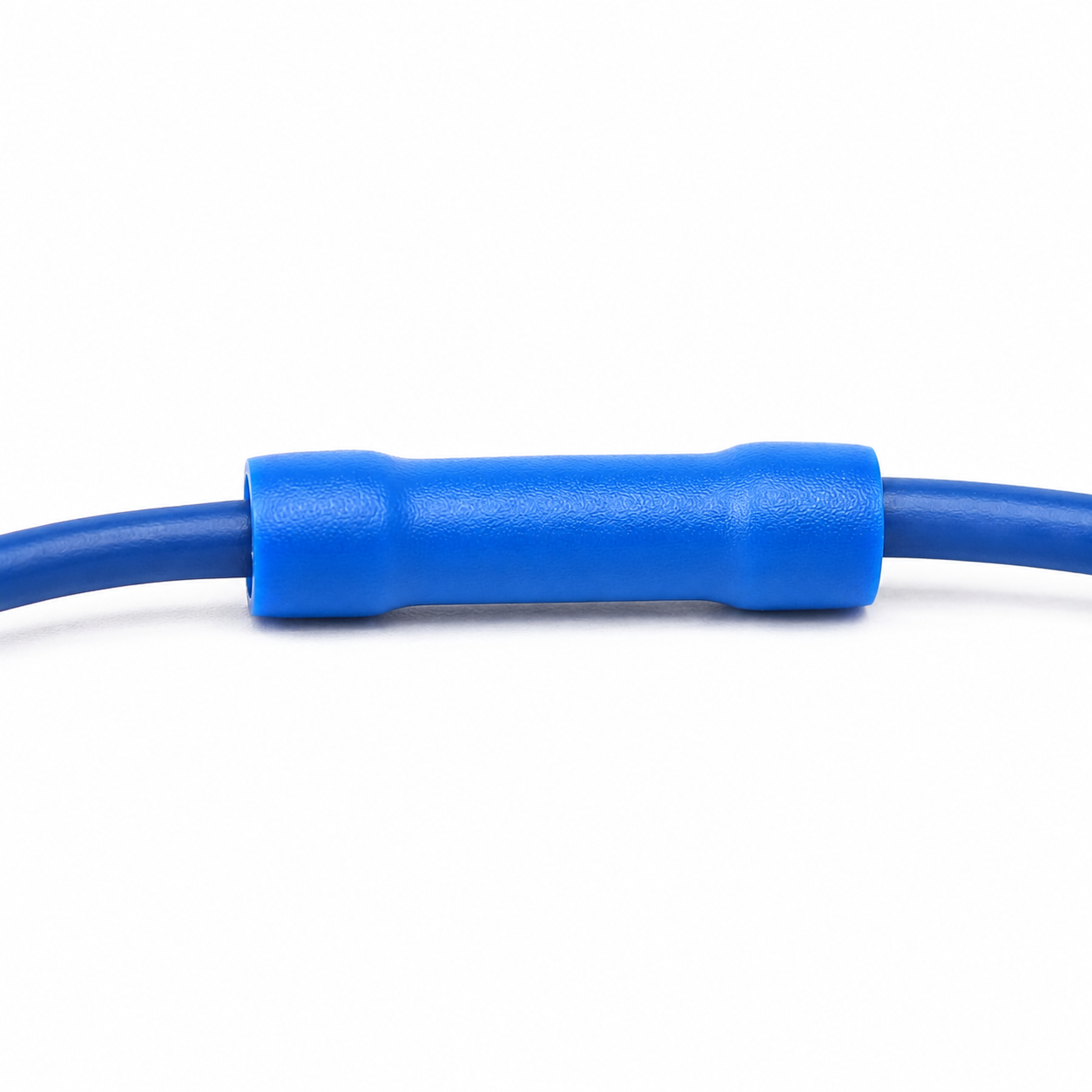

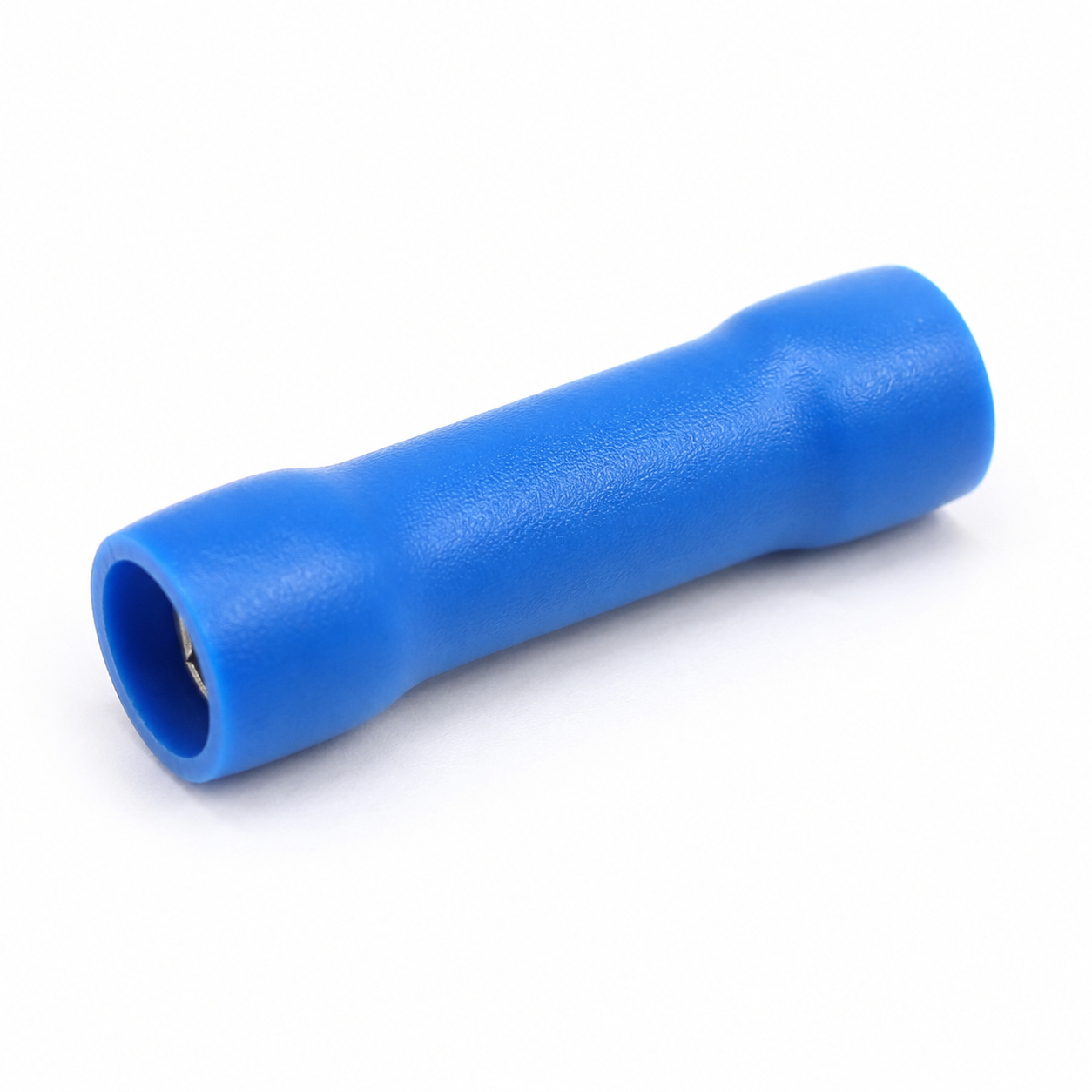

A butt connector joins two wires end to end in one crimp, with no twisting, no tape and no exposed copper. Push a stripped wire into each end, crimp both sides, and the tin-plated brass barrel clamps the strands while the PVC sleeve covers the whole join. This is the blue BV2 size, which takes 1.5 to 2.5 mm² wire (16 to 14 AWG), the most common gauge in 12V automotive, trailer, marine and general low-voltage work. Sold loose by the piece so you buy the exact number your job needs.
- Joins two wires end to end in a single crimp

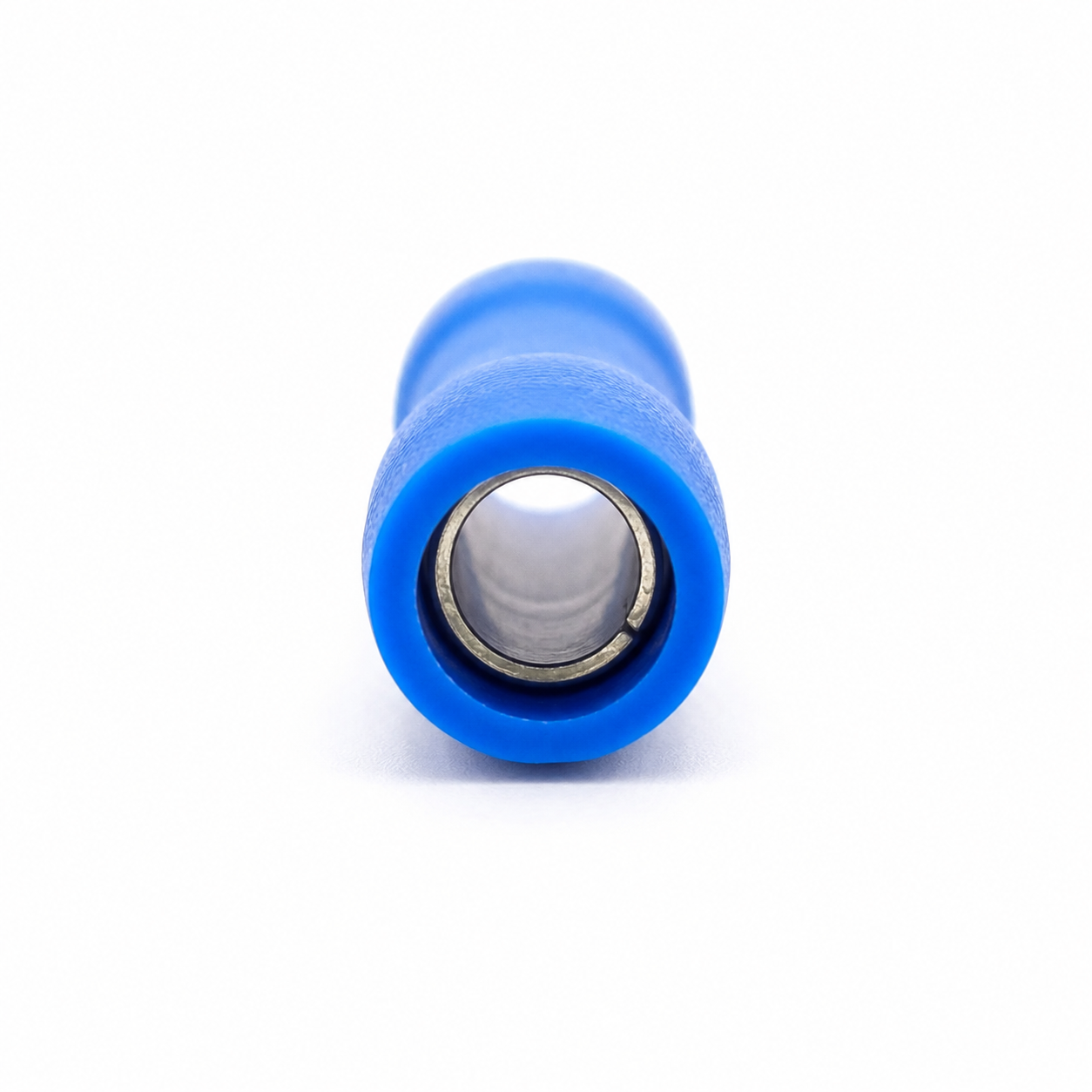

- Tin-plated brass barrel for a low-resistance join
- Fully insulating PVC sleeve, no exposed metal
- Colour coded blue for 1.5 to 2.5 mm² (16 to 14 AWG)
- 600V insulation, rated to 75°C
- Funnel-shaped ends make the wire easy to feed in
- Buy more, pay less with automatic bulk pricing
- Stocked and dispatched fast from NZ
Buy more, pay less
Specifications
What you'll receive
Sold per piece with a 5 connector minimum, so you can set the exact quantity your job needs at checkout. Bulk discounts apply automatically at 25, 50 and 100 pieces.
Great for

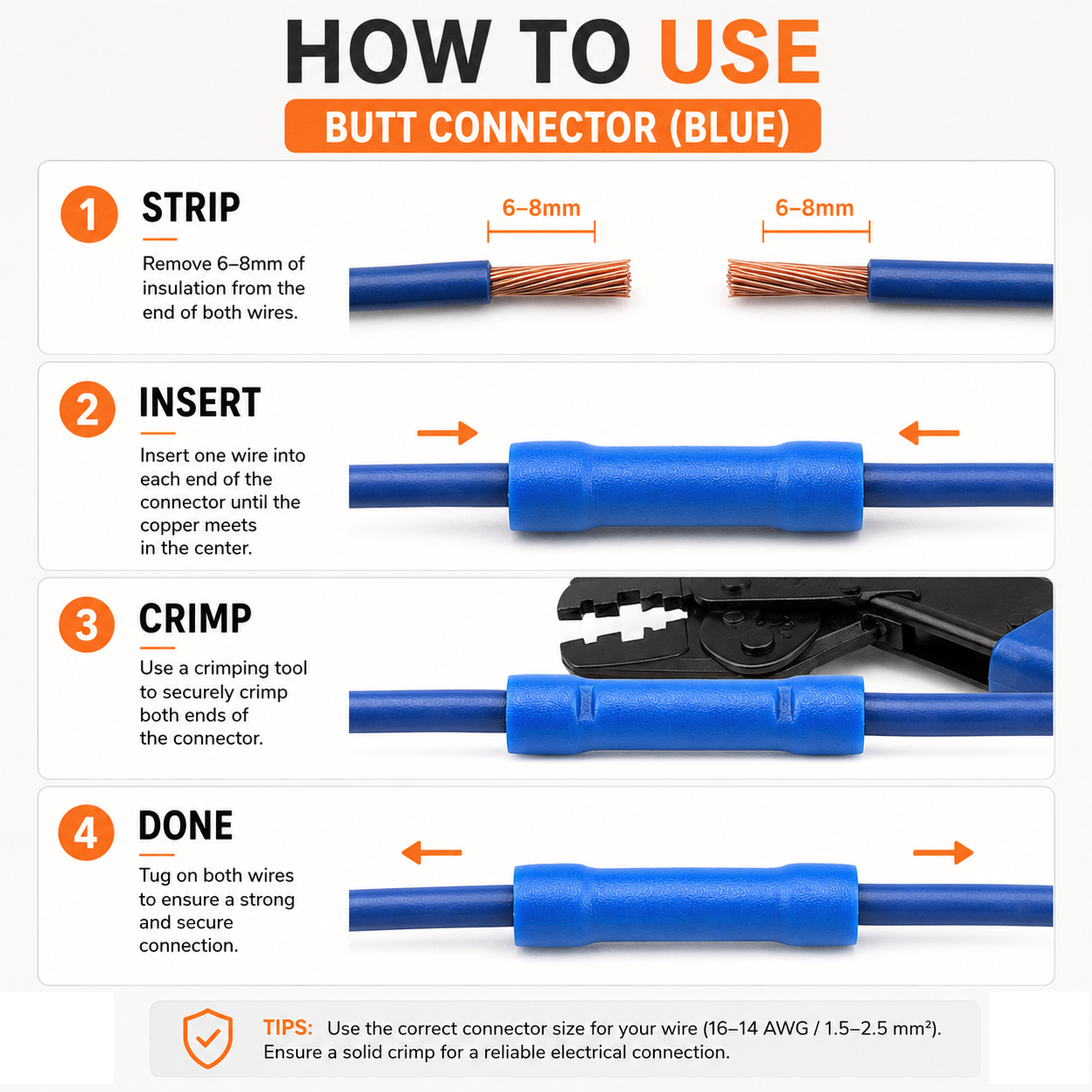

How to crimp them
- Strip both wires
Remove about 6 to 8 mm of insulation from the end of each wire and twist the strands together.
- Insert one wire into each end
Feed the bare copper in until it reaches the middle of the barrel and the wire insulation sits against the sleeve.
- Crimp both ends
Squeeze each end with an insulated terminal crimping tool, using the blue jaw position.
- Tug to test
Pull firmly on both wires. A good crimp will not move. If a wire slides out, cut it back and redo it with a fresh connector.
Good to know: match the connector colour to your wire gauge for the best crimp, blue being 1.5 to 2.5 mm². These are insulated but not sealed, so for wet or exposed locations either slip adhesive lined heat shrink over the finished join or use our solder seal connectors instead. Stocked and dispatched fast from our Te Awamutu base, overseas prices without the overseas wait.
