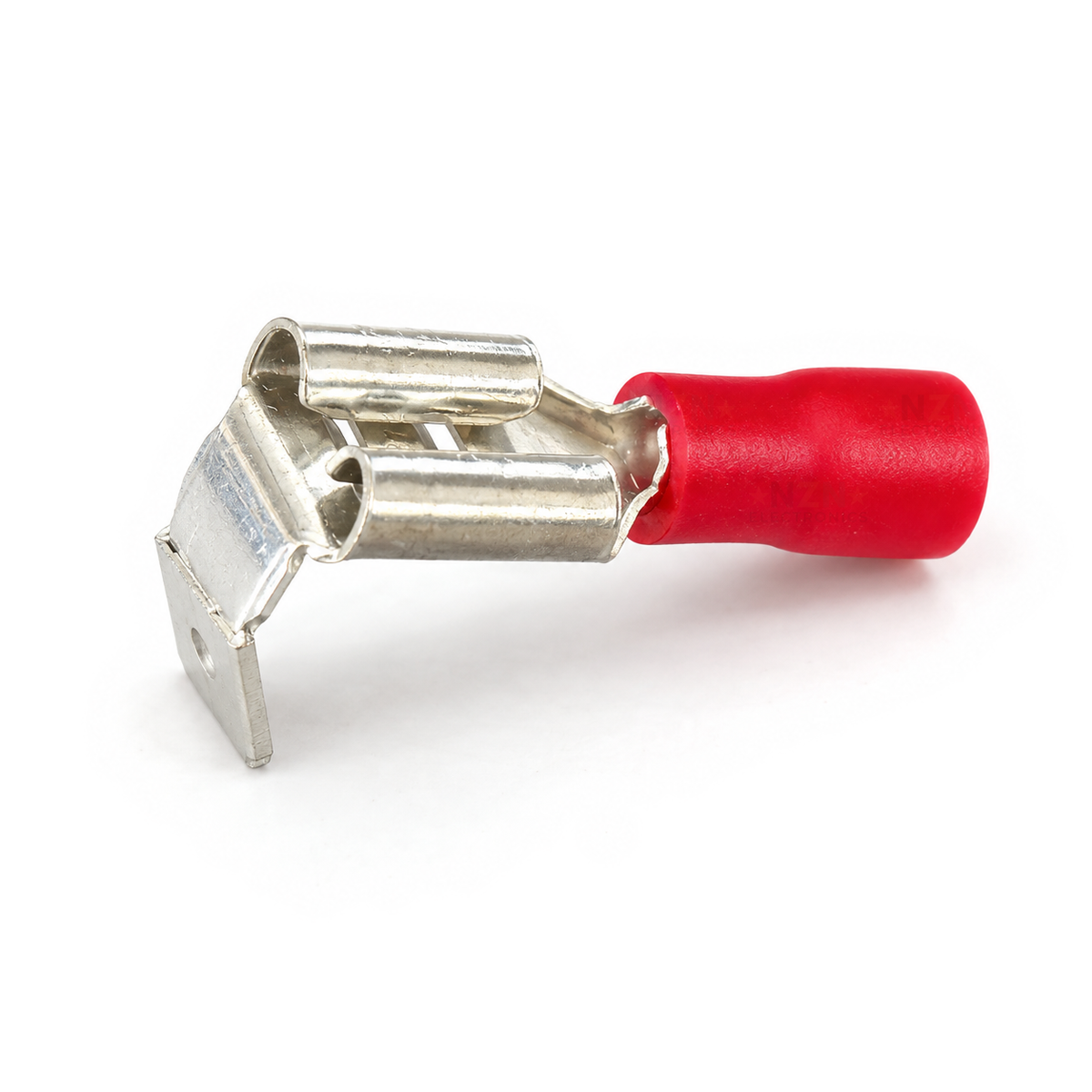

Red PBDD1.25-250 piggyback spade terminal: 6.3 mm female receptacle with an angled male tab for a second connection

PBDD1.25-250 Piggyback Spade Terminals - Red 6.3mm

$0.79 NZD
each Save 15% at 4+
Skip to product information
Red PBDD1.25-250 piggyback spade terminal: 6.3 mm female receptacle with an angled male tab for a second connection
  • Red PBDD1.25-250 piggyback spade terminal: 6.3 mm female receptacle with an angled male tab for a second connection

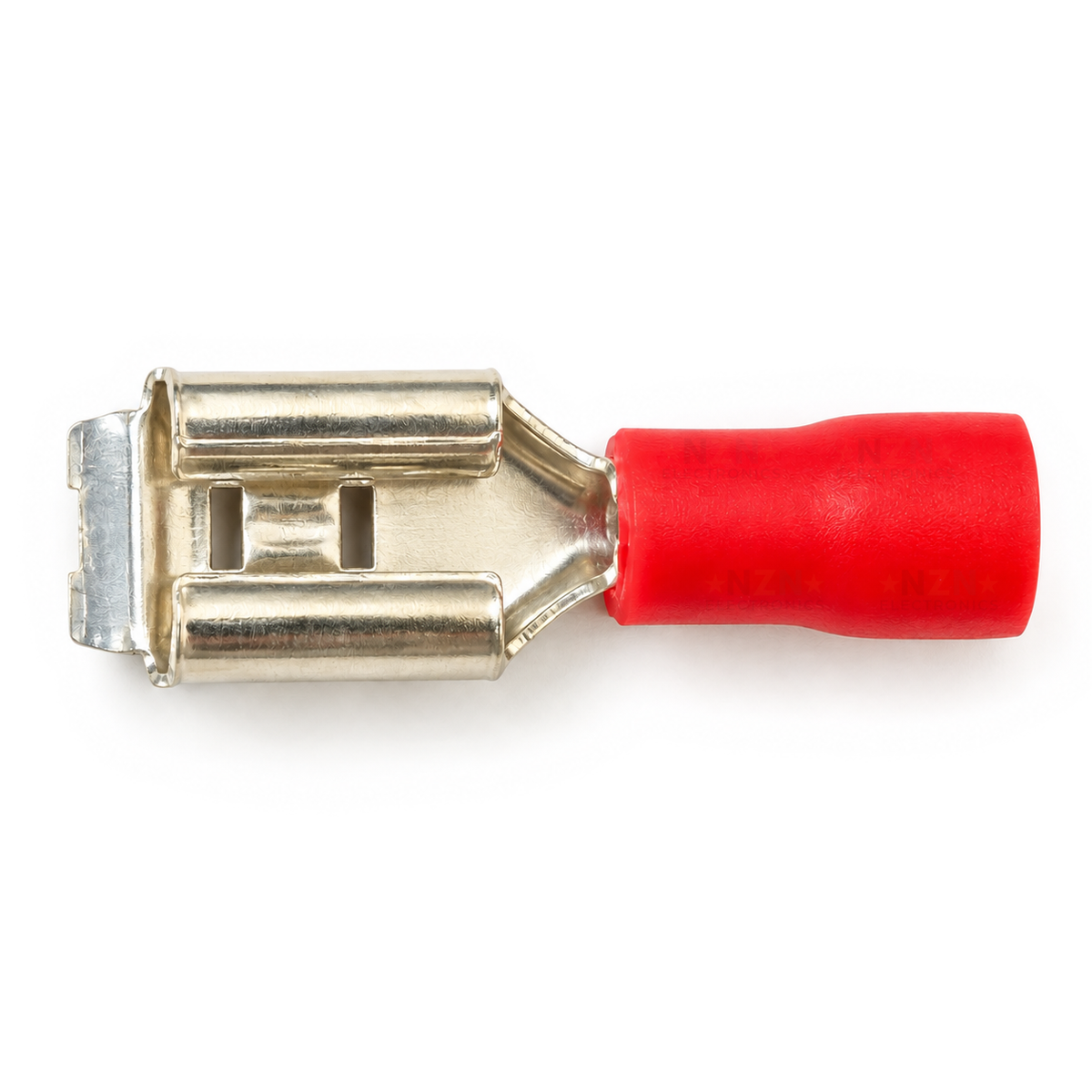

  • Top view of the piggyback spade receptacle showing the two rolled spring rails and red barrel sleeve

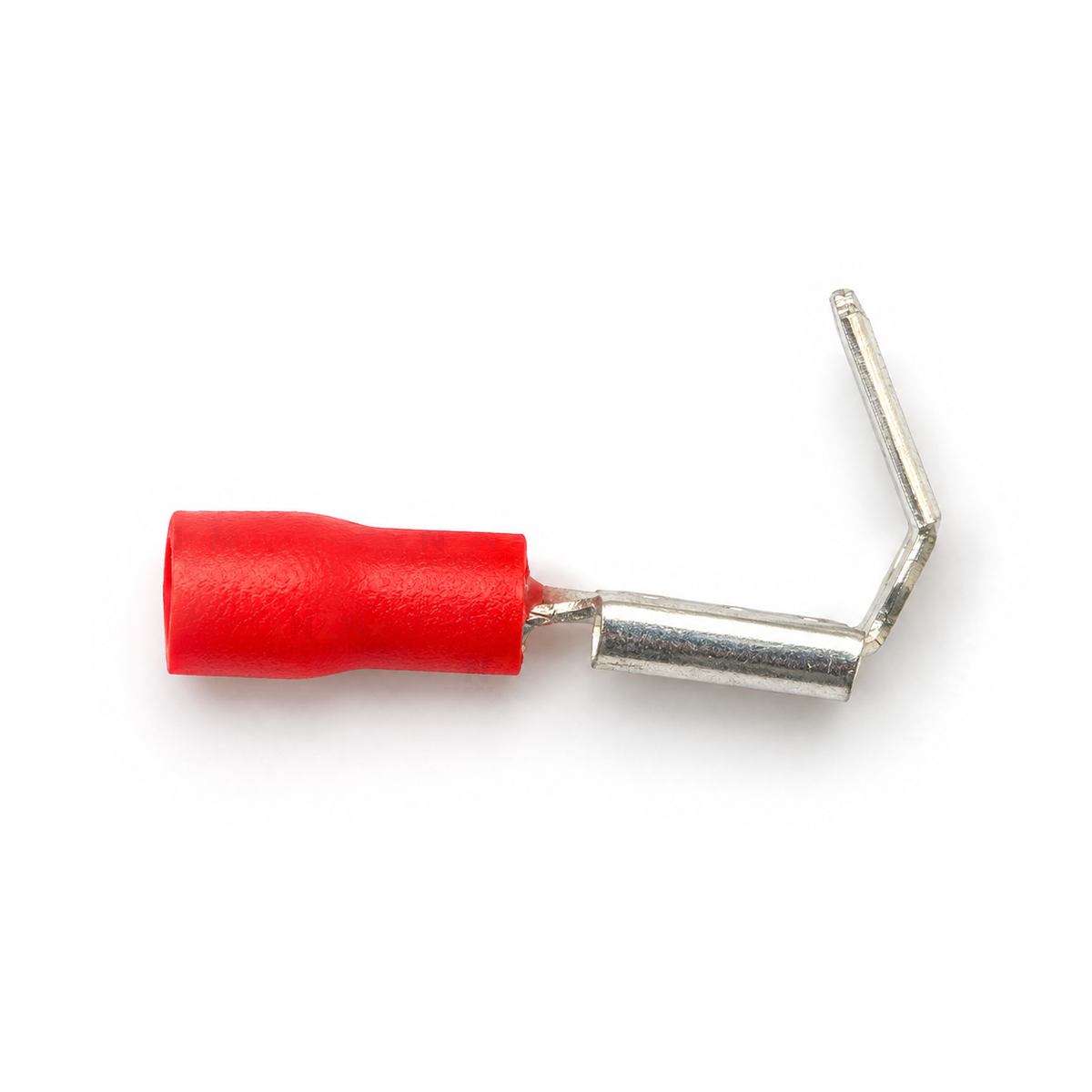

  • Piggyback spade terminal lying on its side, showing the angle of the male piggyback tab

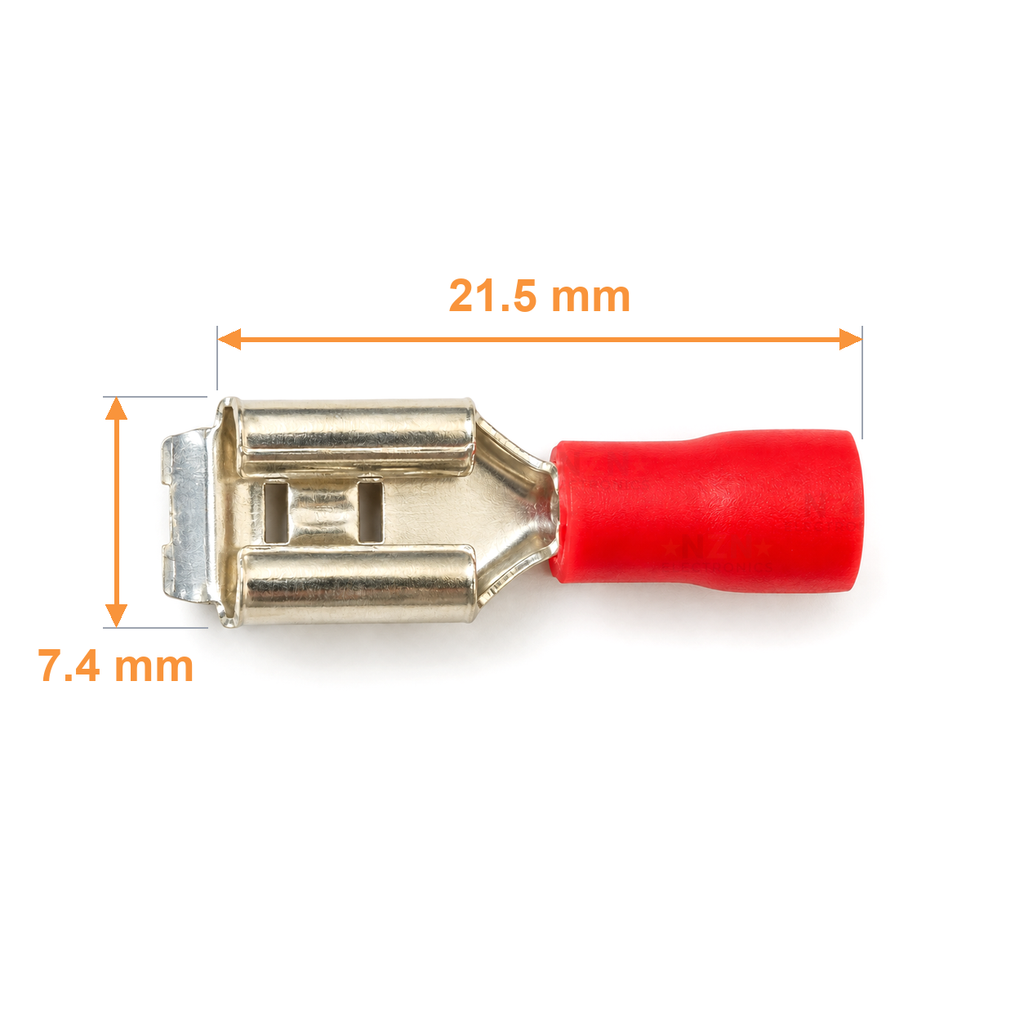

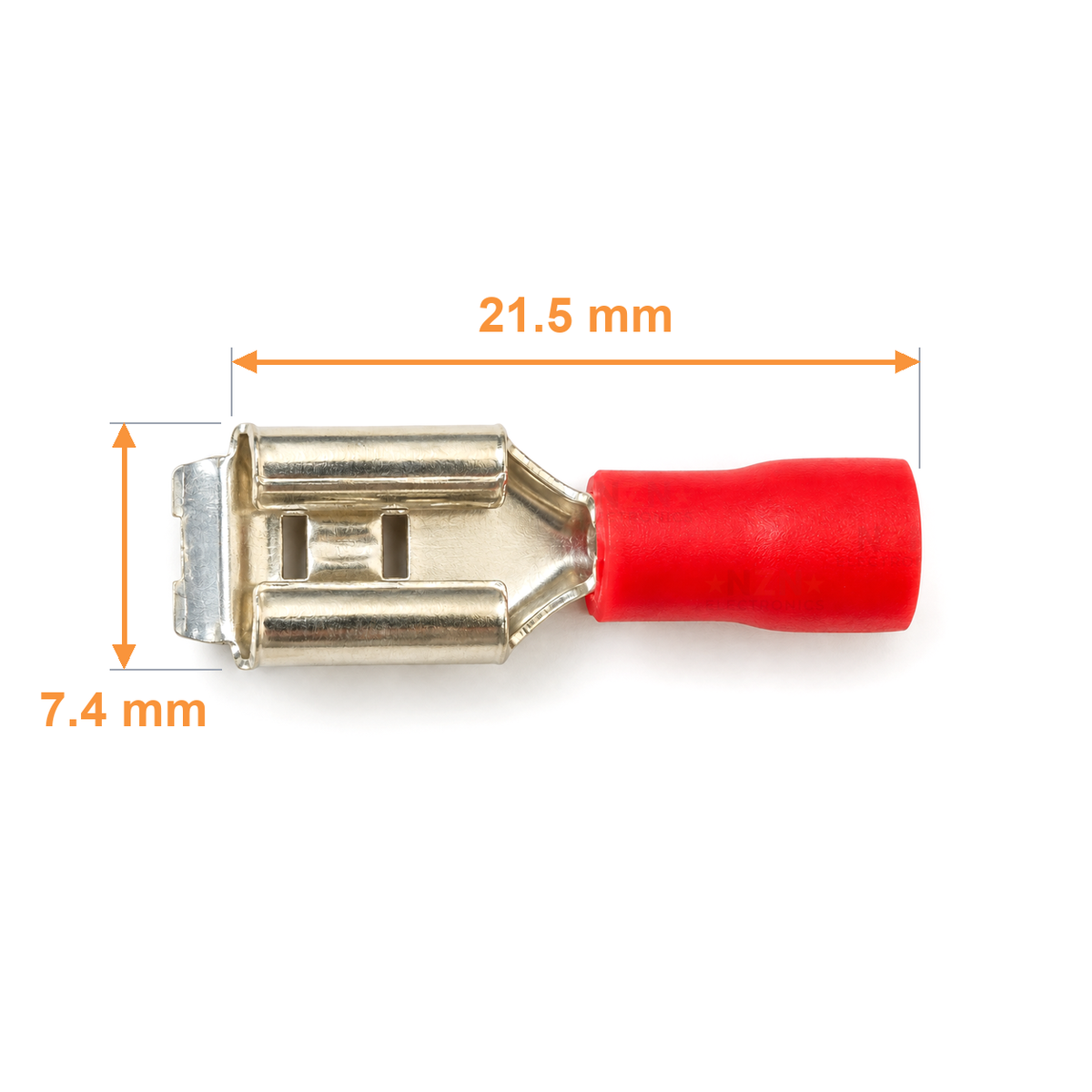

  • PBDD1.25-250 piggyback spade dimensions: length 21.5 mm excluding the angled tab, receptacle width 7.4 mm
PBDD1.25-250 Piggyback Spade Terminals - Red 6.3mm
SKU: SPD-PIG-RED-PBDD

PBDD1.25-250 Piggyback Spade Terminals - Red 6.3mm

$0.79 NZD
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Minimum order quantity: 2

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

The PBDD1.25-250 is a red piggyback spade crimp terminal that lets you connect two wires to one 6.3 mm male tab. Its female receptacle pushes onto the tab, and a second 6.3 mm male tab on its back takes another female spade, such as our FDD1.25-250 female spade terminals. To add a plug-apart joint in a single wire instead, use our MDD1.25-250 male spade terminals with the FDD.

Specifications

ModelPBDD1.25-250
Connection typePiggyback spade quick disconnect, crimp
Receptacle fits6.3 x 0.8 mm male tab, width x thickness
Piggyback tab accepts6.3 mm (250 series) female spade
Piggyback tabAngled away from the receptacle
Conductor cross-section0.5-1.5 mm²
Insulation coverageRed sleeve over the wire barrel, contacts exposed
Sleeve colourRed
Purchase unitOne terminal, minimum 2

Datasheets

Full technical datasheet PDF

What's in the box

1×
PBDD1.25-250 red piggyback spade terminal

Sold individually. Minimum order: 2 terminals. Your selected quantity is supplied together.

Great for

Running a second wire from a switch or relay tab that has only one terminal
Teeing a 12V accessory into an existing spade connection
Adding a feed to a fuse holder or lamp without cutting the old wire

Wiring & getting started

  1. Check the sizes with power off

    The device tab must be 6.3 x 0.8 mm. Use wire with a conductor of 0.5 to 1.5 mm² and check that its insulation fits the red sleeve.

  2. Strip and crimp

    Use a crimping tool and die made for insulated terminals and your wire size. Strip to the length of the wire barrel without cutting strands, push the conductor fully in, then crimp the red barrel. Tug test the wire.

  3. Fit both connections

    Push the receptacle fully onto the device tab, then push the second female spade onto the piggyback tab. Both wires now share the device tab, so make sure that tab and its circuit suit the combined current.

  4. Adjust and cover

    The piggyback tab is angled to give the second terminal room. If it needs to clear a nearby part, bend it gently once, as repeated bending can crack it. The receptacle and tab are bare metal, so cover them if they could touch other conductors or be touched while powered.
Related guide Crimp Terminal Colour Codes: Wire Sizes and How to Crimp ProperlyWhat red, blue and yellow crimp terminals fit, how to match them to your wire, when to use butt, spade, ring or bullet terminals, and how to make a crimp tha...

Frequently Asked Questions

Answers to the questions buyers ask most.

What is a piggyback spade terminal for?
It lets two wires share one 6.3 mm male tab. The receptacle pushes onto the device tab, and the tab on its back takes a second female spade.
What tab size does it fit?
A 6.3 x 0.8 mm male tab, also sold as 6.35 mm, 1/4 inch or 250 series. Check both the width and the thickness on the device.
What plugs into the piggyback tab?
Any 6.3 mm female spade. Our FDD1.25-250 red female spade terminals fit it.
What wire size suits it?
Wire with a conductor of 0.5 to 1.5 mm². Check that the insulation fits inside the red sleeve and that your crimp die suits the wire.
Can I add a second circuit to any tab?
Only if the tab and the circuit behind it can carry both loads together, because both wires feed through the one device tab. If in doubt, run the extra load from its own fused supply instead.
Does a quantity of one mean one terminal?
Yes, one unit is one terminal. The minimum order is 2, with a discount at 4 and 8.
