Pneumatic Bowden Connectors for 3D Printers
PC6-01
$4.49 NZD
Skip to product information
$4.49 NZD
Pneumatic Bowden Connectors for 3D Printers
Availability:
Tax included. Shipping from $5.99 urban / $9.99 rural — free over $66.
30-day returns on faulty items · 12-month warranty
Urban $66
Rural $88

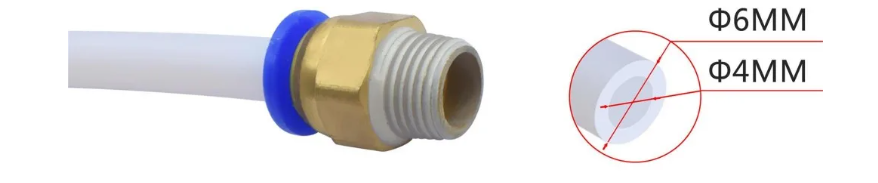

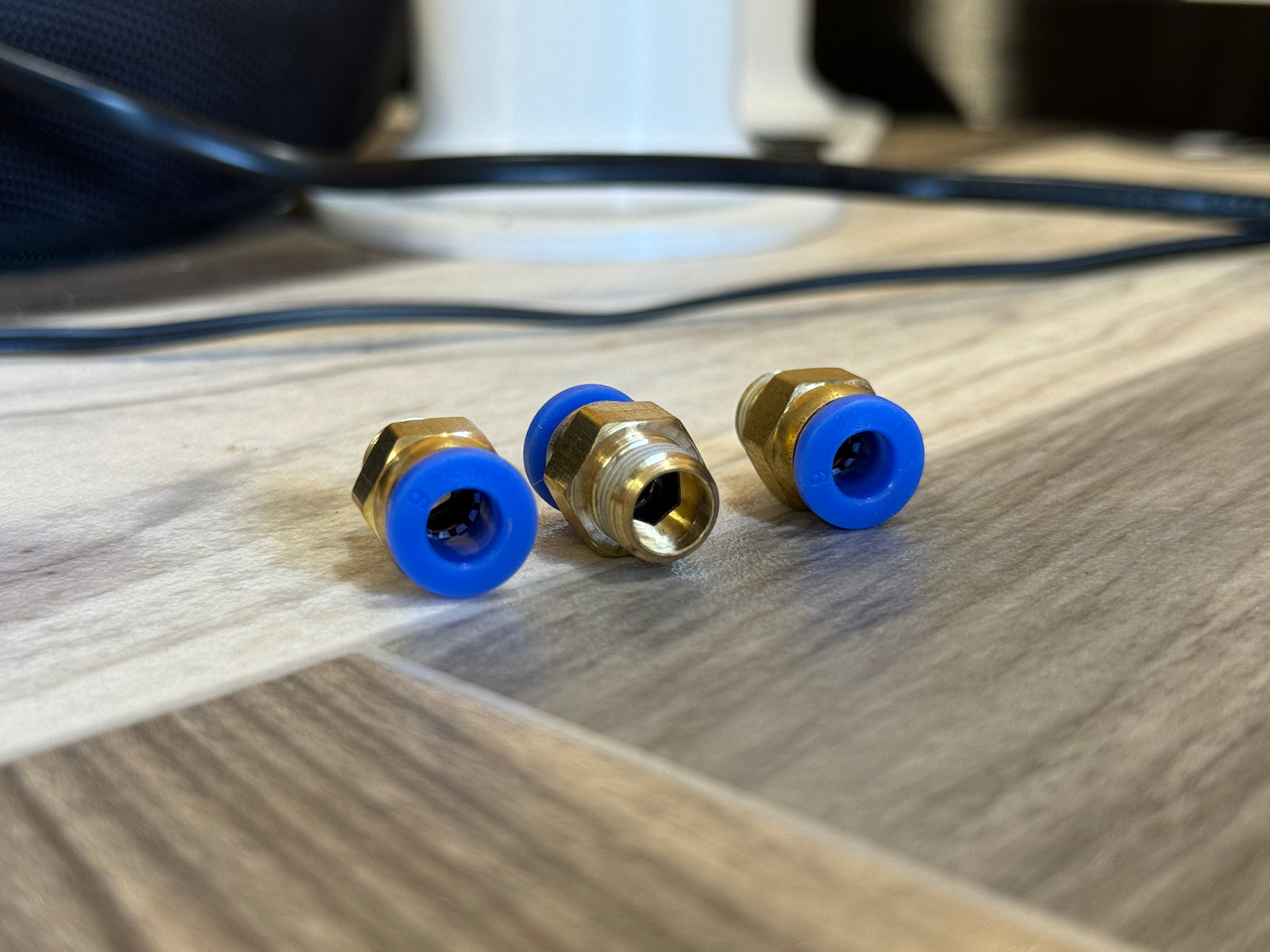

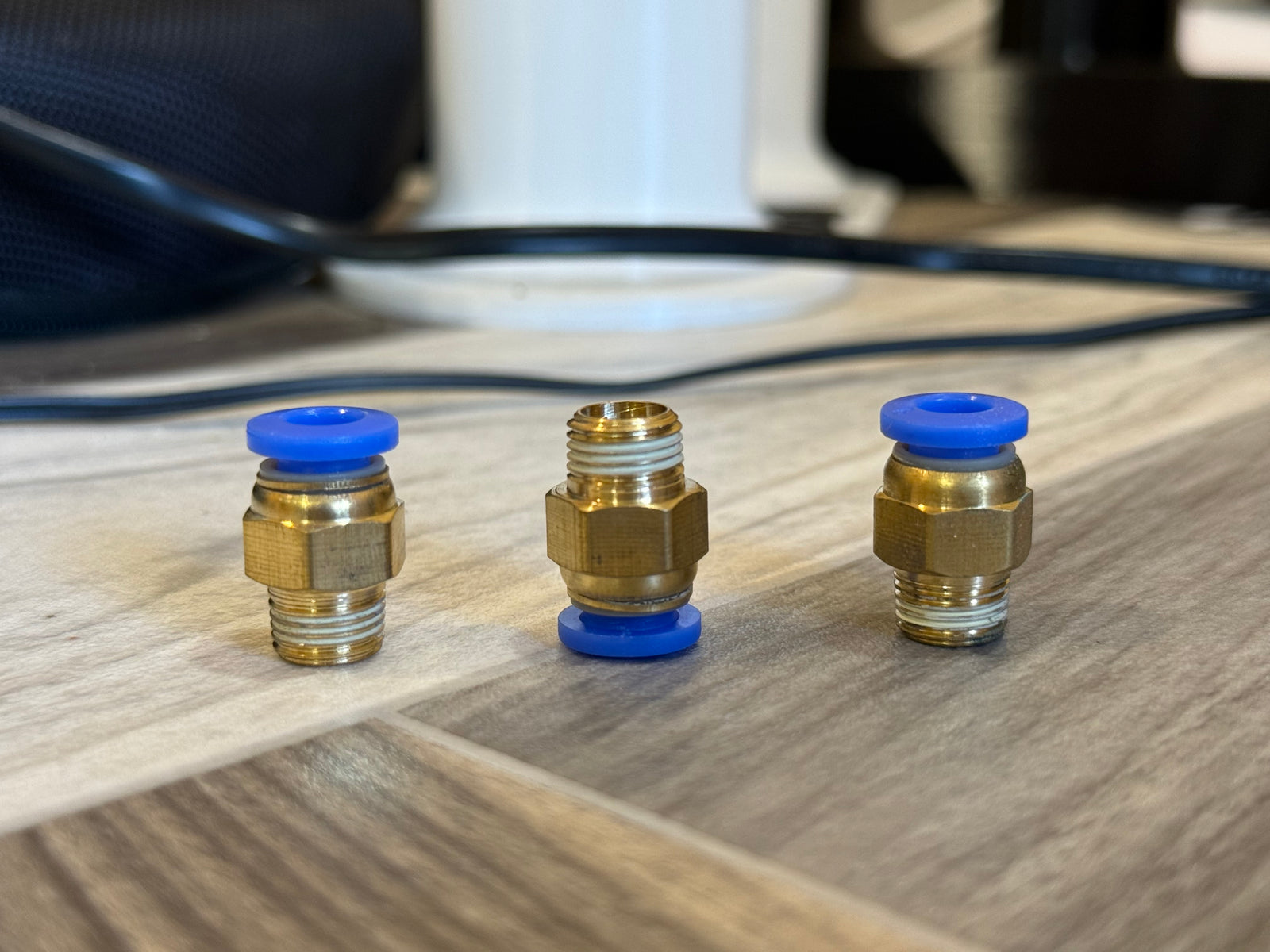

PC6-01 precision-machined pneumatic push-fit connectors for 6mm OD PTFE tube bowden setups. Push the tube in to connect, press the collar to release — no tools required. Copper body with nylon collet for durability through repeated heat cycles. A reliable spare to have on hand for any bowden-style 3D printer build or upgrade.
Specifications
| Model | PC6-01 |
| Thread | M10 |
| Tube OD | 6mm (suits standard 6mm OD PTFE tube) |
| Body Material | Copper |
| Collet Material | Nylon |
| Connection Type | Push-fit with quick-release collar |
| Quantity | 1 piece |
Compatible Printers
Creality Ender 3, Ender 5 & CR-10 series
Prusa MK2 / MK3 bowden extruder setups
Any FDM printer with M10-threaded bowden port
Custom bowden builds using 6mm OD PTFE tube
Common Questions
What's the difference between PC6-01 and PC4-M6?
The PC6-01 uses an M10 thread and accepts 6mm OD PTFE tube — typically used on extruder bodies and some larger bowden setups. The PC4-M6 uses an M6 thread and accepts 4mm OD tube — the more common fitting for hotends and standard bowden printers. Make sure you order the correct thread and tube size for your printer.
How do I install and remove the PTFE tube?
Push the PTFE tube firmly into the collet until fully seated — the nylon collet grips it automatically. To remove, press down on the collar ring while pulling the tube out. No tools needed.
Please note: Fits 6mm OD PTFE tube with M10 thread. Verify your printer's thread size and tube diameter before ordering. PTFE tube sold separately.
