Pre-Wired Water Clear LED - 5mm Flat Top (3-24V DC)

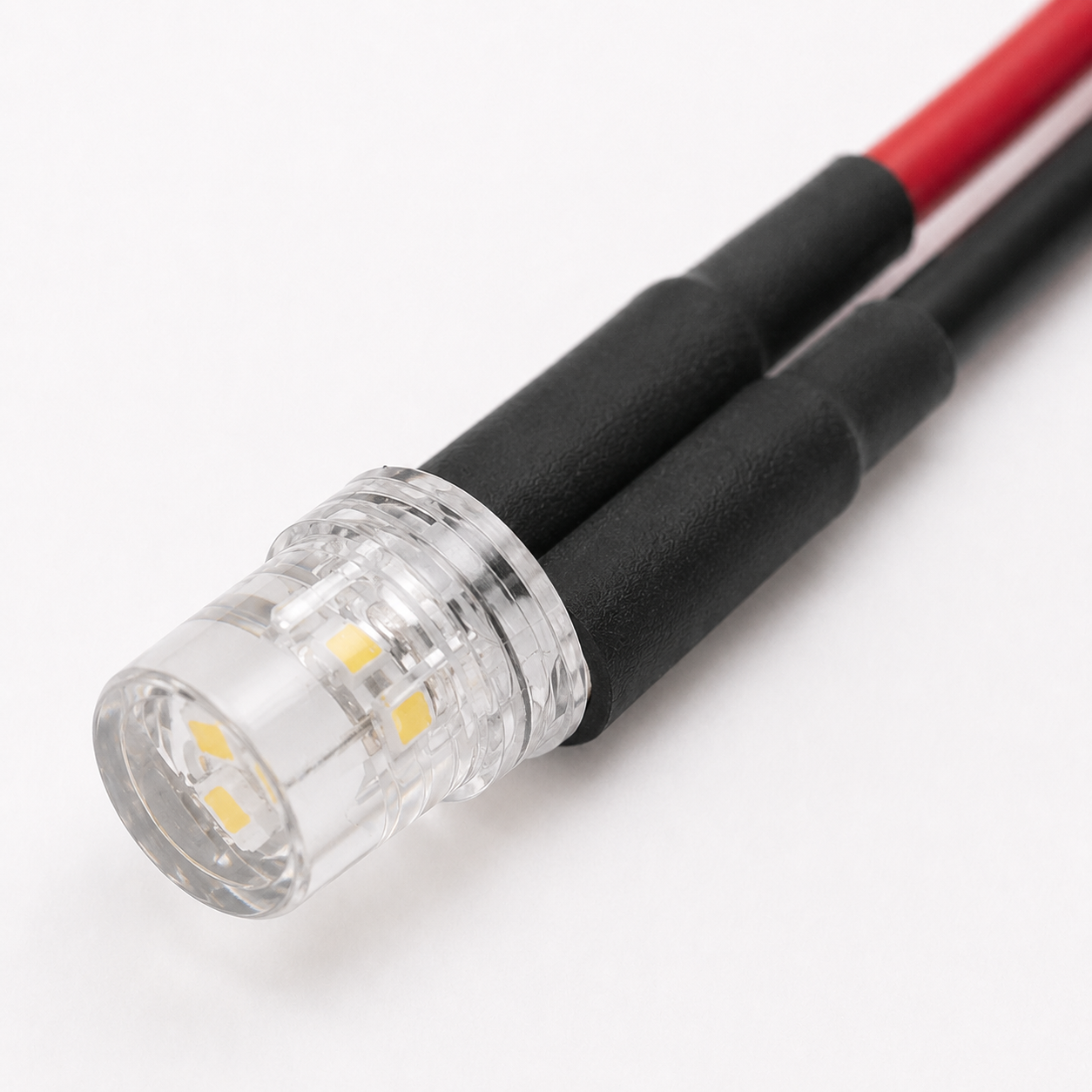

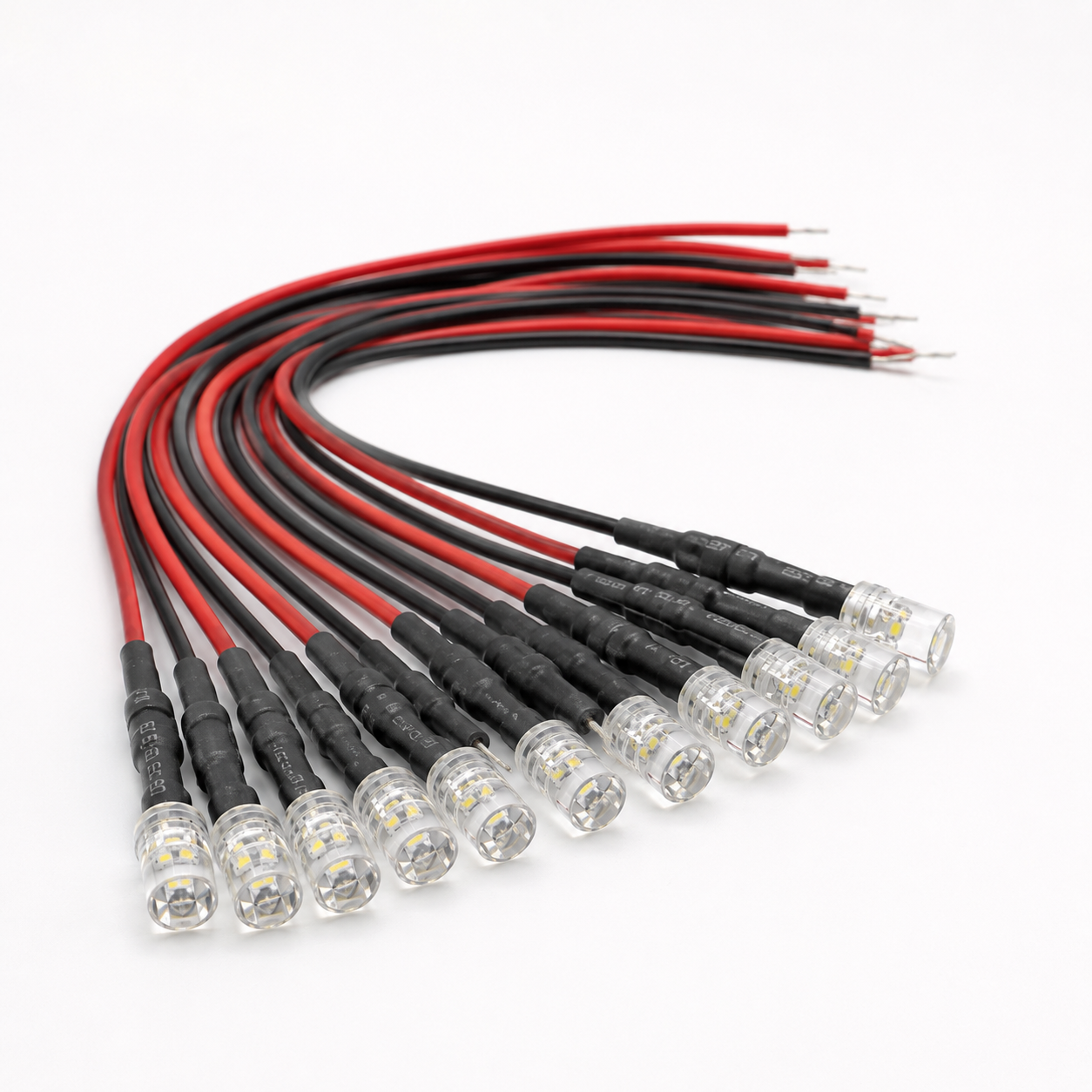

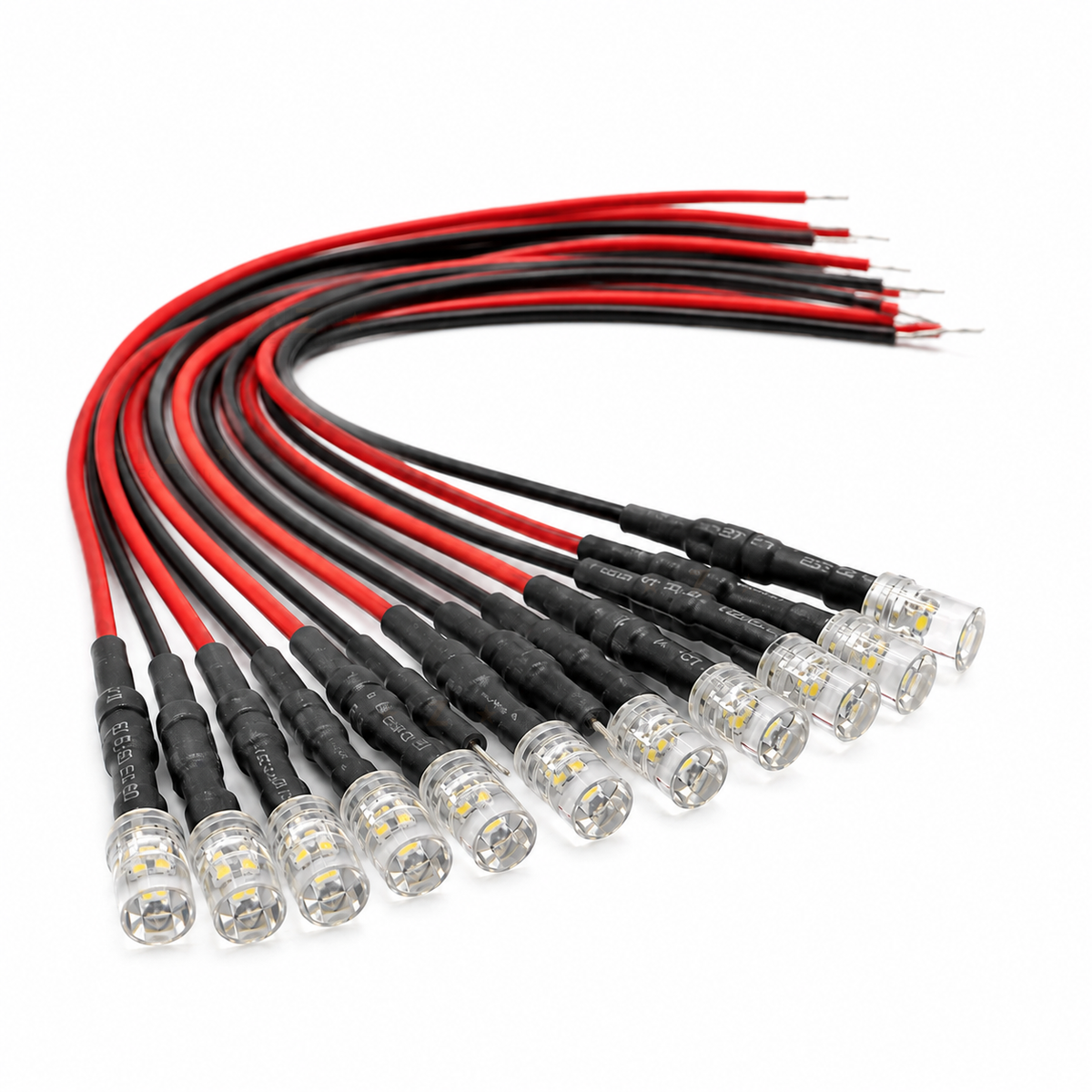

Pre-Wired 5mm Water Clear LED

Ready-to-wire 5mm flat top water clear LEDs with approximately 200mm leads and built-in driver circuitry that runs on any DC supply from 3V to 24V. No maths, no separate resistor, just connect the leads to your supply and go. Perfect for panels, models, props, dashboards, costumes and any project that needs a clean point of light.

Specifications

• LED diameter: 5mm
• Lens: water clear, flat top
• Light output: constant (non-flashing)
• Operating voltage: 3V to 24V DC (driver built into the lead, no resistor needed)

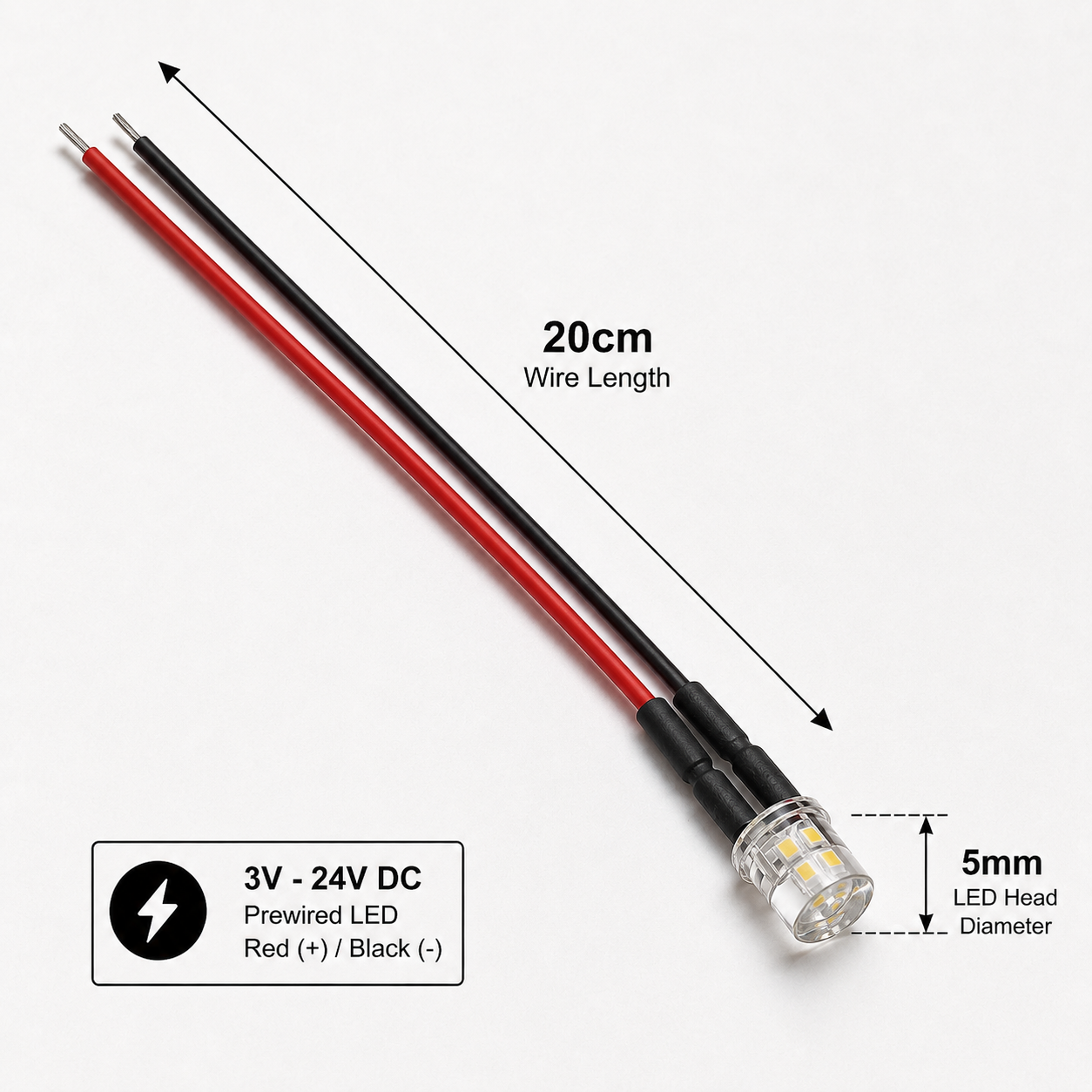

• Lead / cable length: approx. 200mm
• Brightness: approx. 6000-8000 mcd
• Viewing angle: 120-140 degrees
• Rated life: up to 100,000 hours

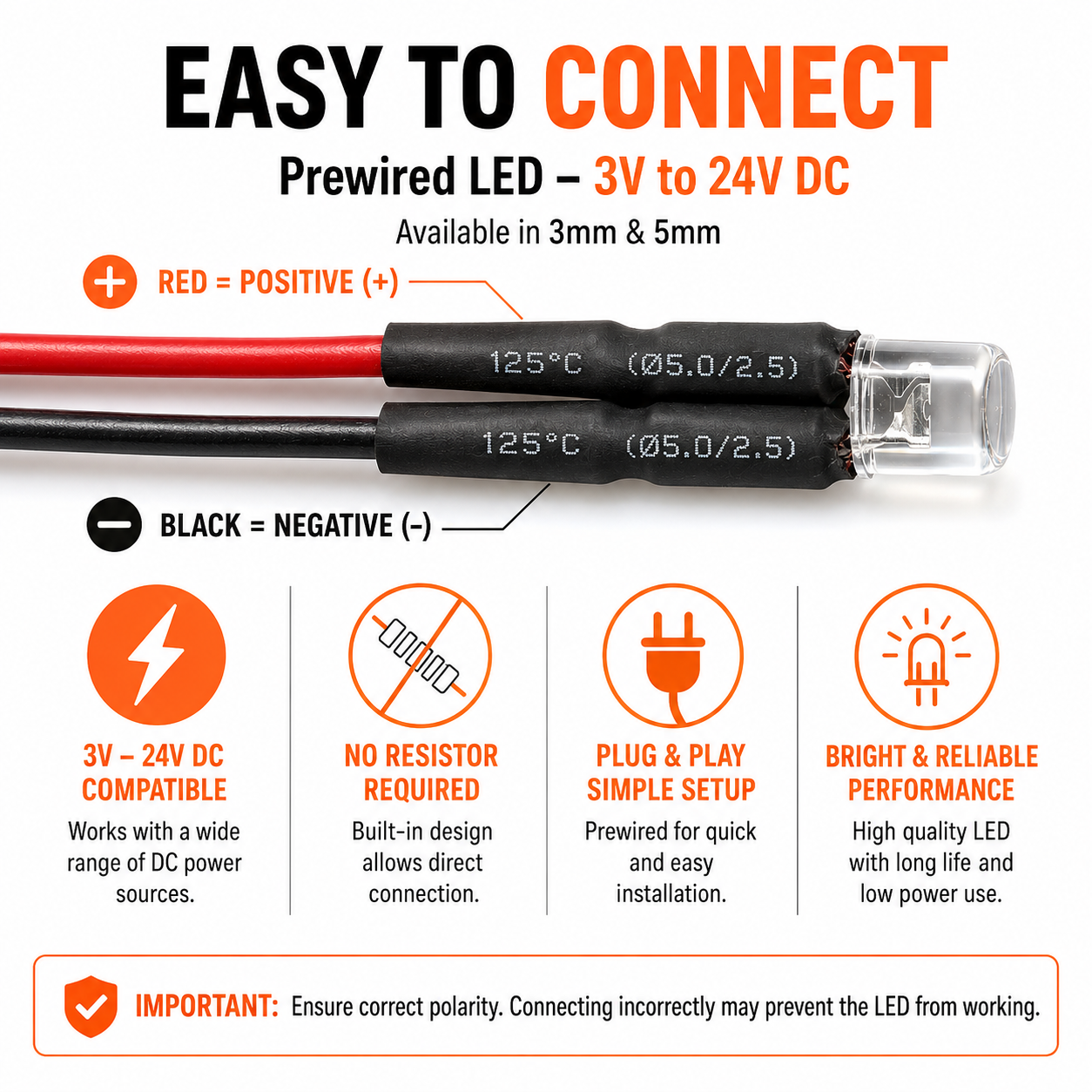

Wiring

Connect the longer lead to the positive (+) side of your supply and the shorter lead to negative (-). The built-in driver handles anything from 3V up to 24V DC, so the same LED works on a coin cell, a 5V USB rail, a 12V battery or a 24V supply.

Colours available

Red, Green, Blue, Yellow, Orange, Pink, Warm White and White. Choose your colour and pack size from the options above.

What's included

Your selected quantity of pre-wired 5mm LEDs, supplied new in foil packaging.

Common uses

Model railways and dioramas, scale models, RC and drones, dashboard and panel indicators, cosplay and props, displays, and general hobby and prototyping work.

FAQs

What voltage do these need? Any DC supply from 3V up to 24V. The driver is built into the lead.
Do I need a resistor? No, it is already built in.
Are these flashing? No, these are constant-on. See our 3mm range for RGB colour-changing options.
