TMC2209 stepper motor driver module with blue heatsink, component side

TMC2209 Silent Stepper Motor Driver Module with Heatsink

$7.99 NZD
Save 5% at 2+
Skip to product information
TMC2209 stepper motor driver module with blue heatsink, component side

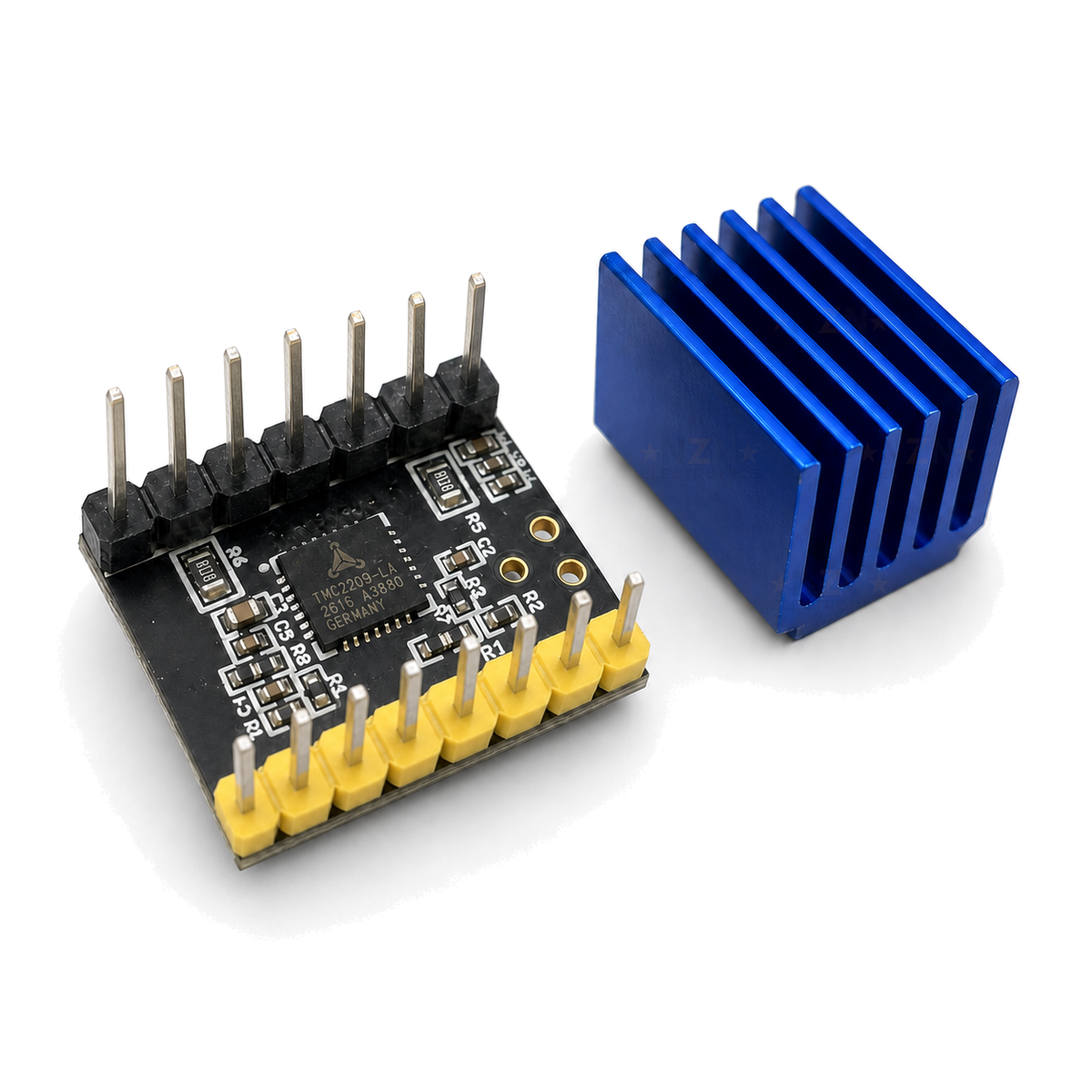

  • TMC2209 stepper motor driver module with blue heatsink, component side

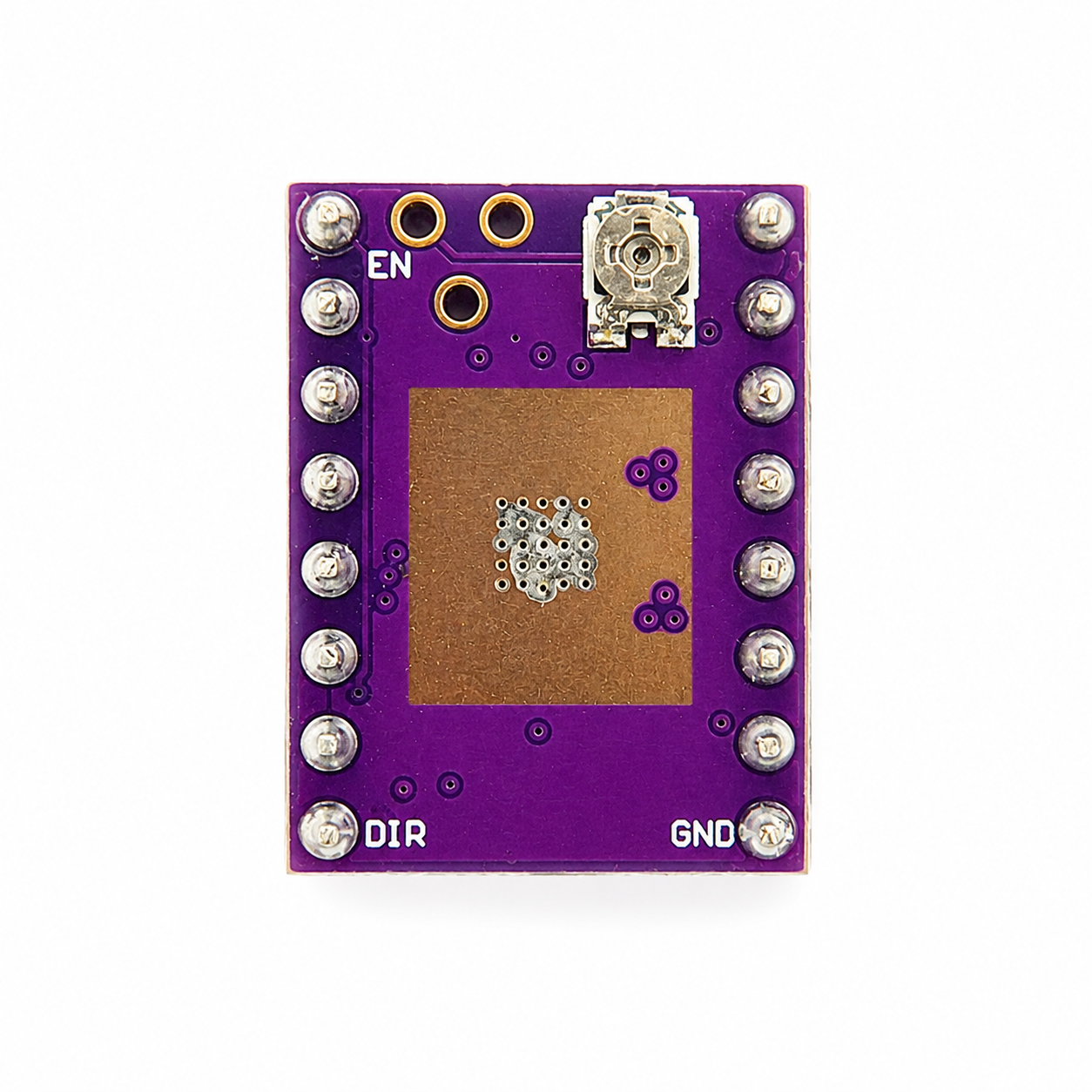

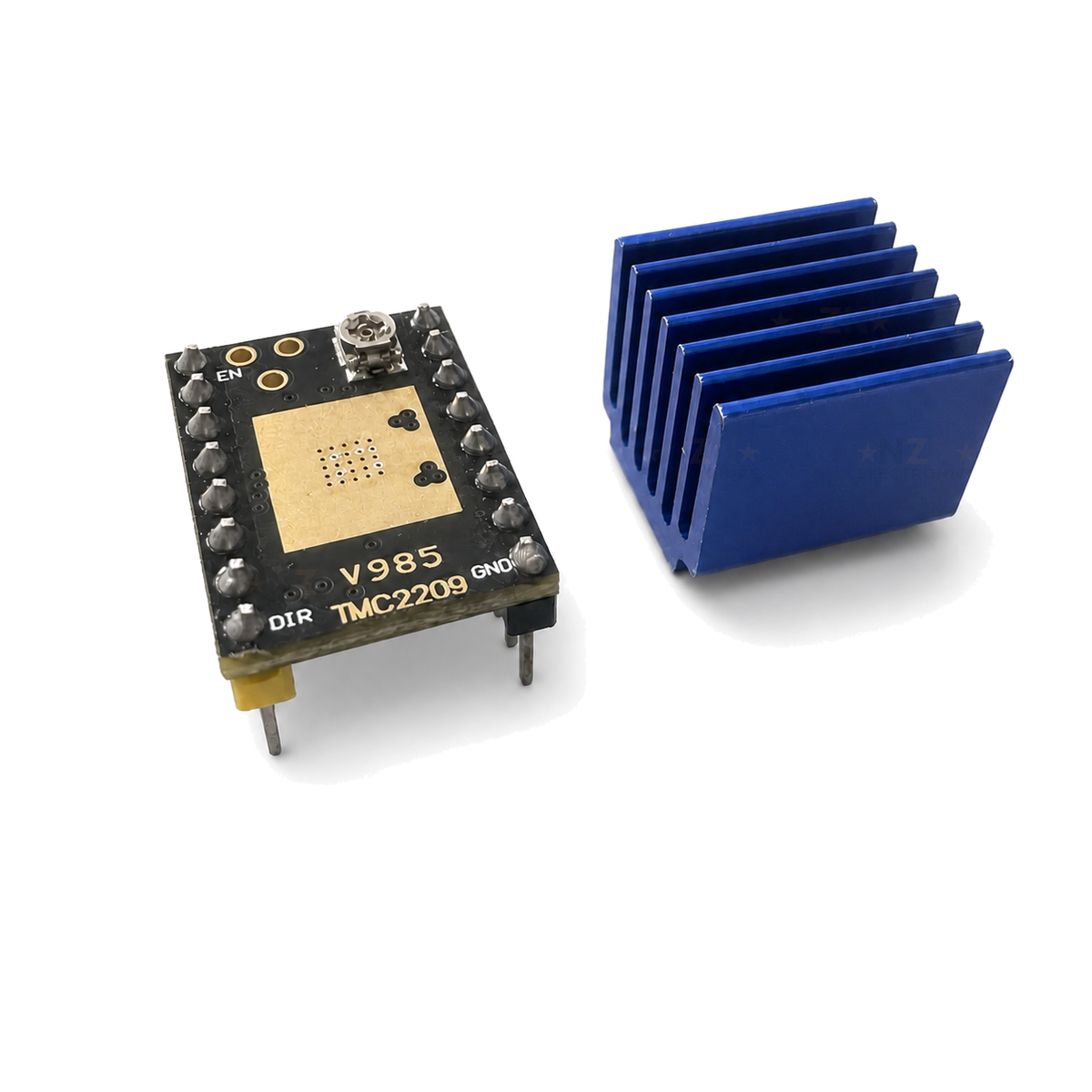

  • TMC2209 driver reverse side showing gold thermal pad area and supplied heatsink

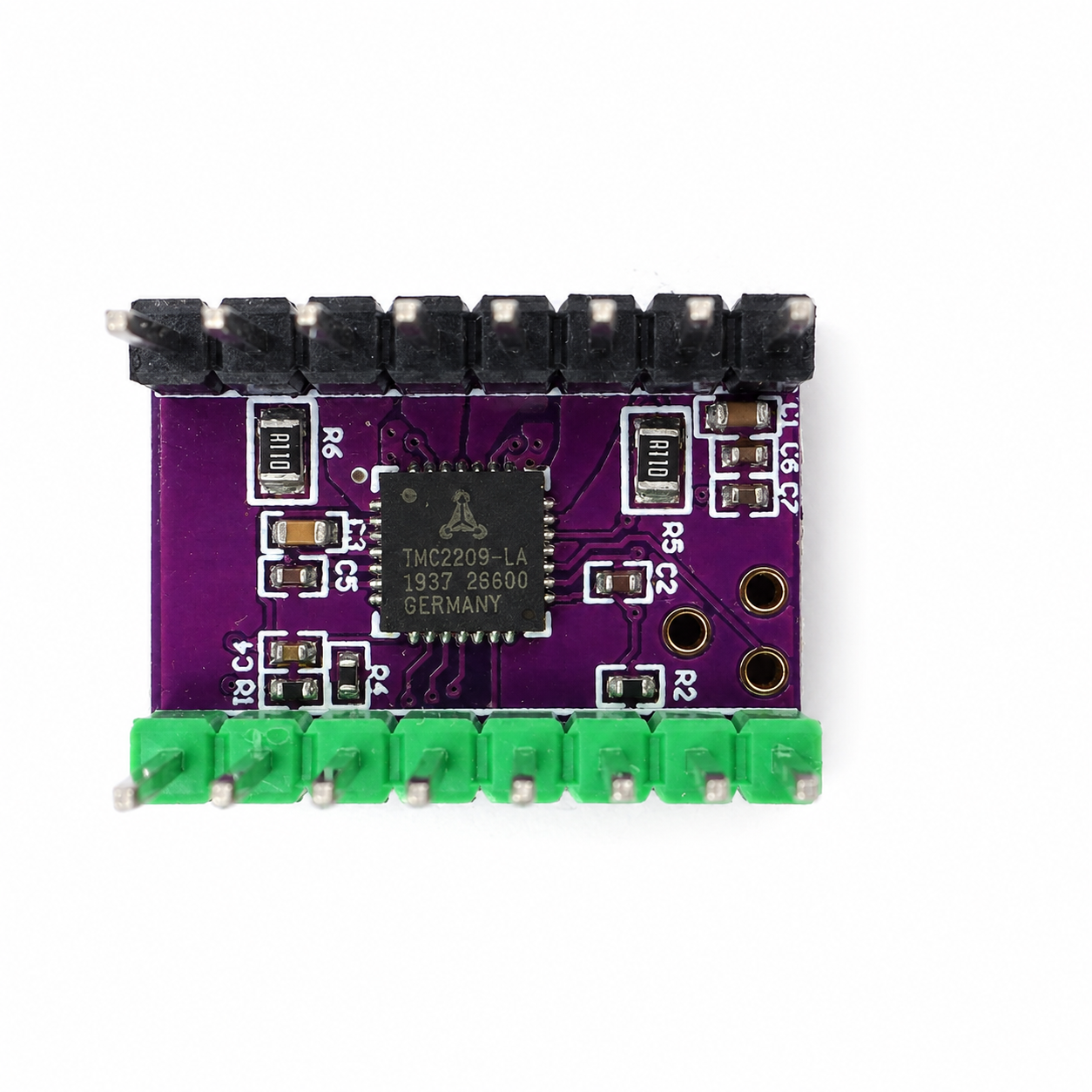

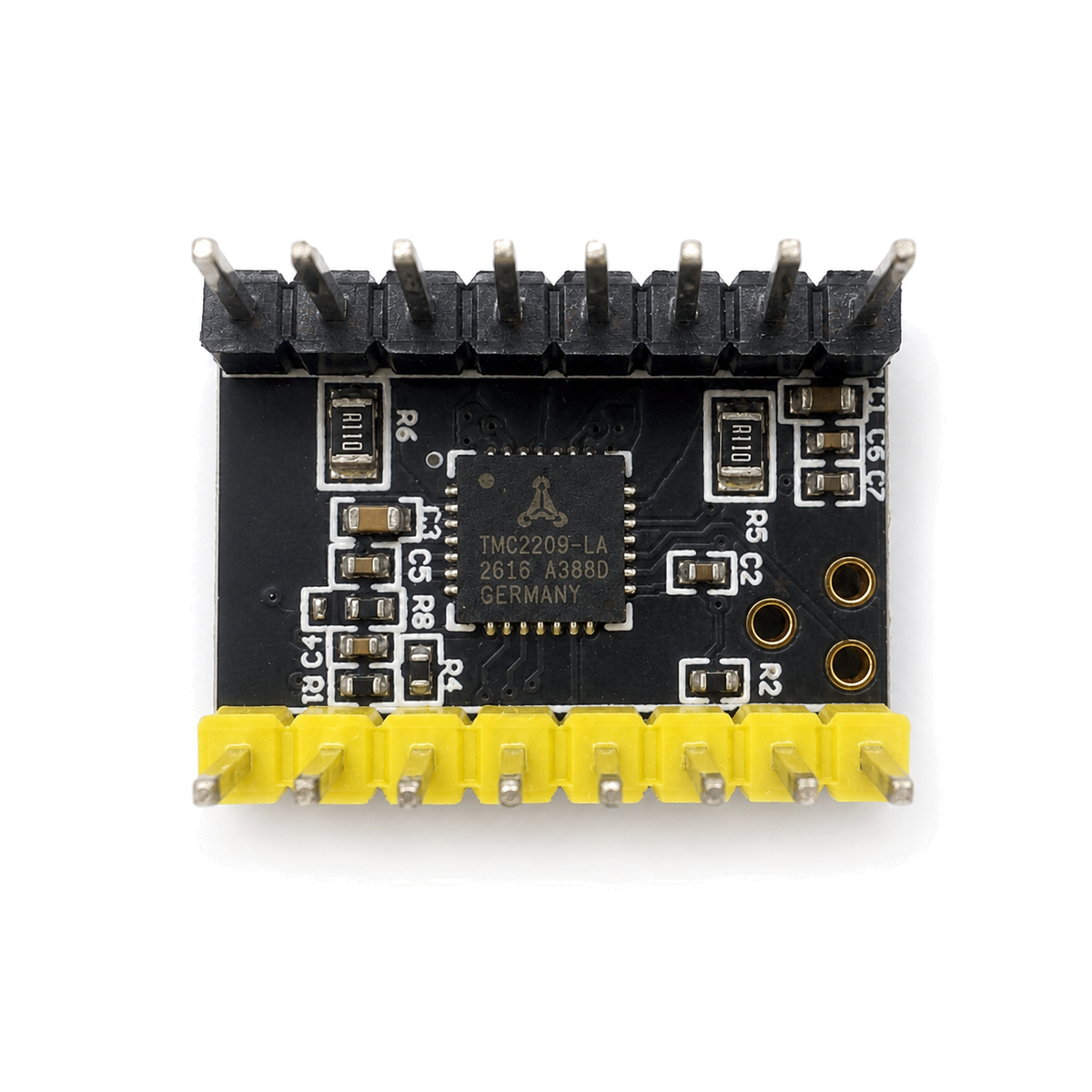

  • TMC2209 stepper driver component side top-down view showing IC and header pins

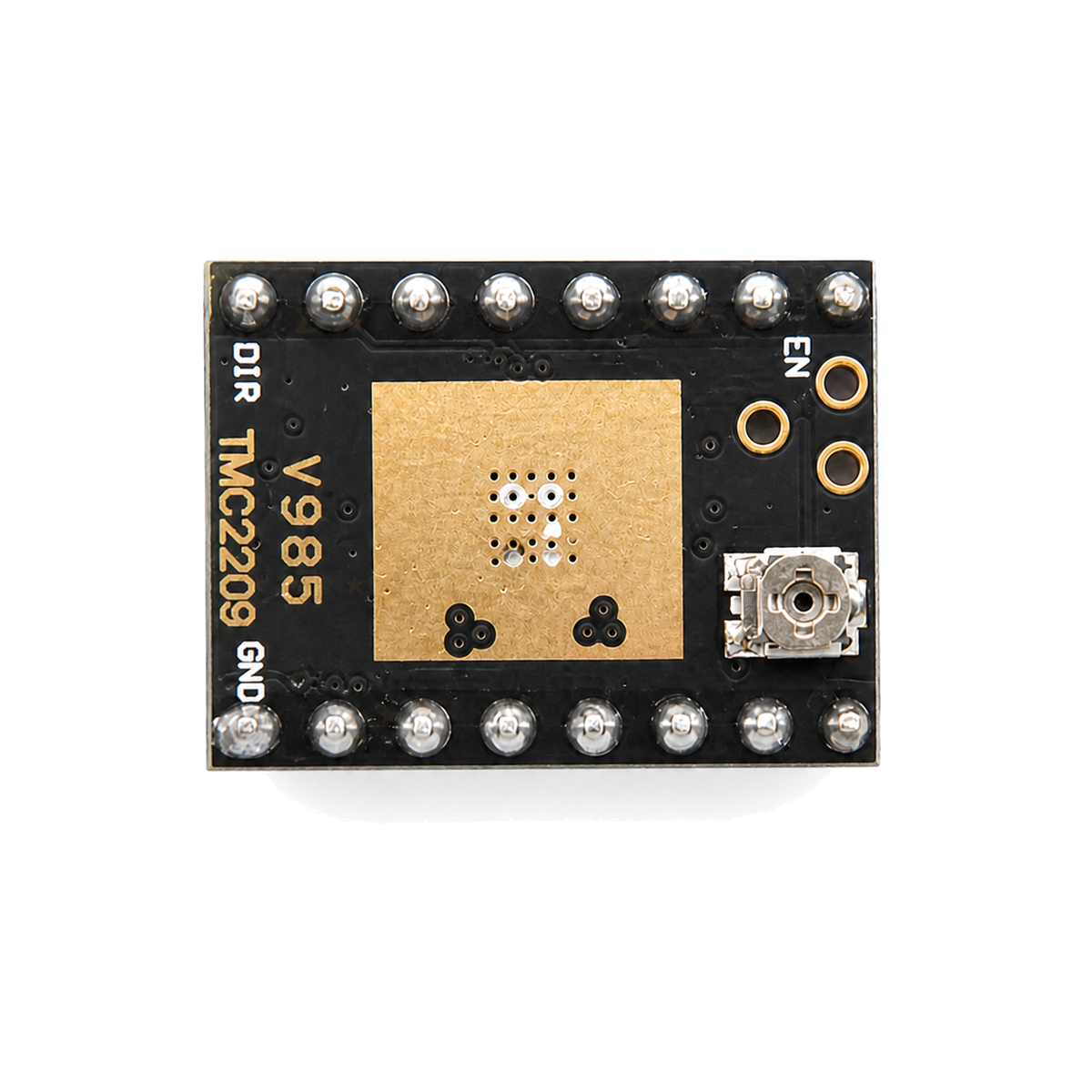

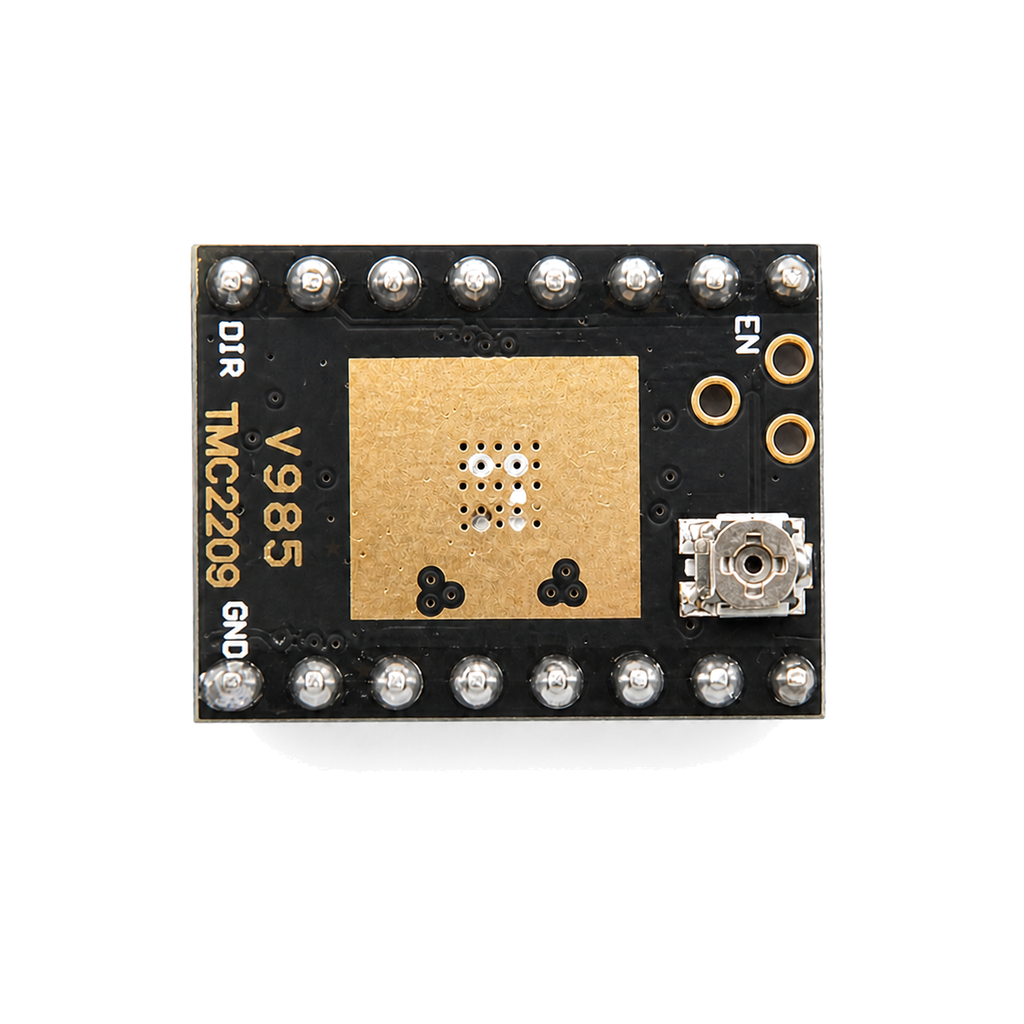

  • TMC2209 module reverse side top-down view with gold heatsink mounting area

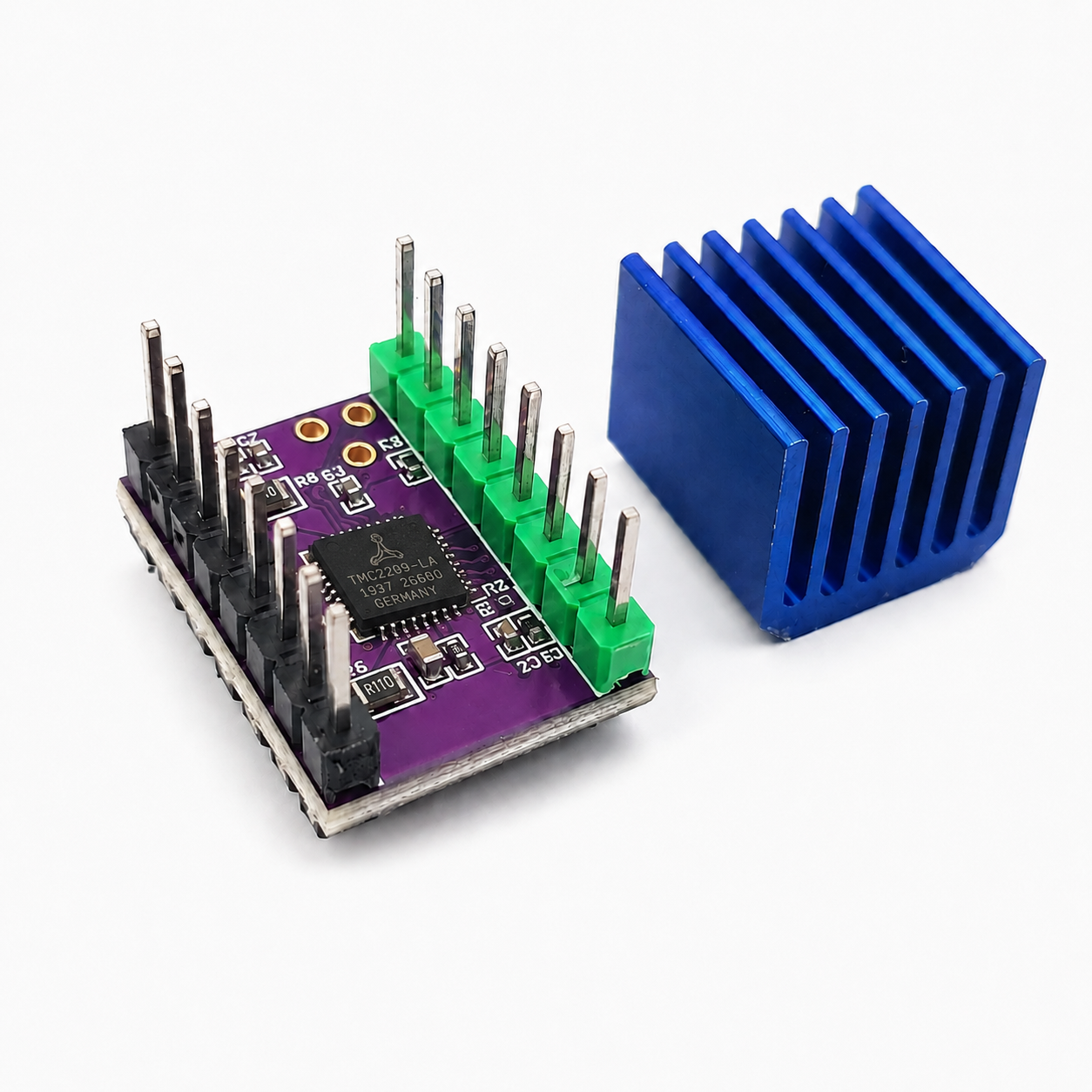

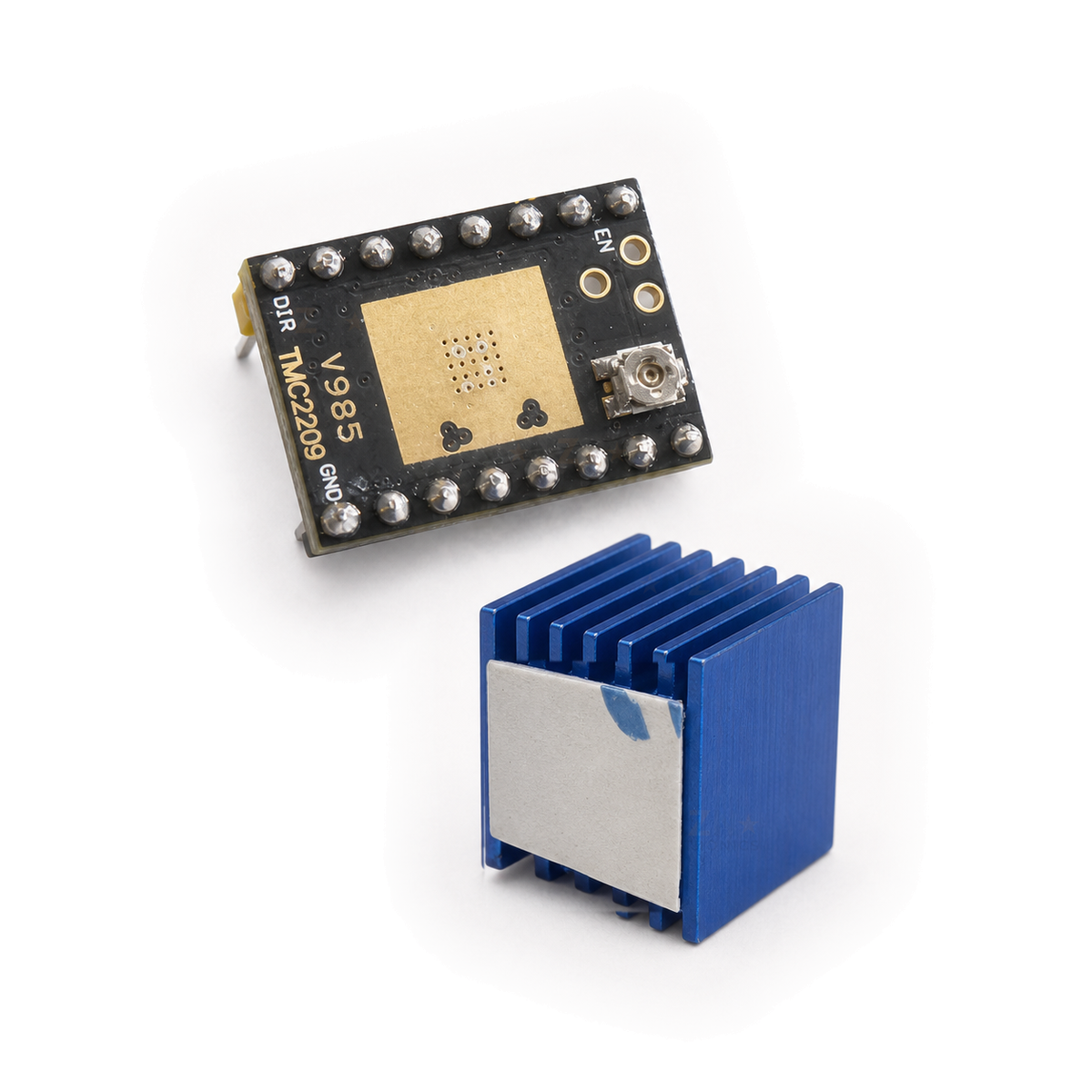

  • TMC2209 module with blue aluminium heatsink and thermal adhesive pad

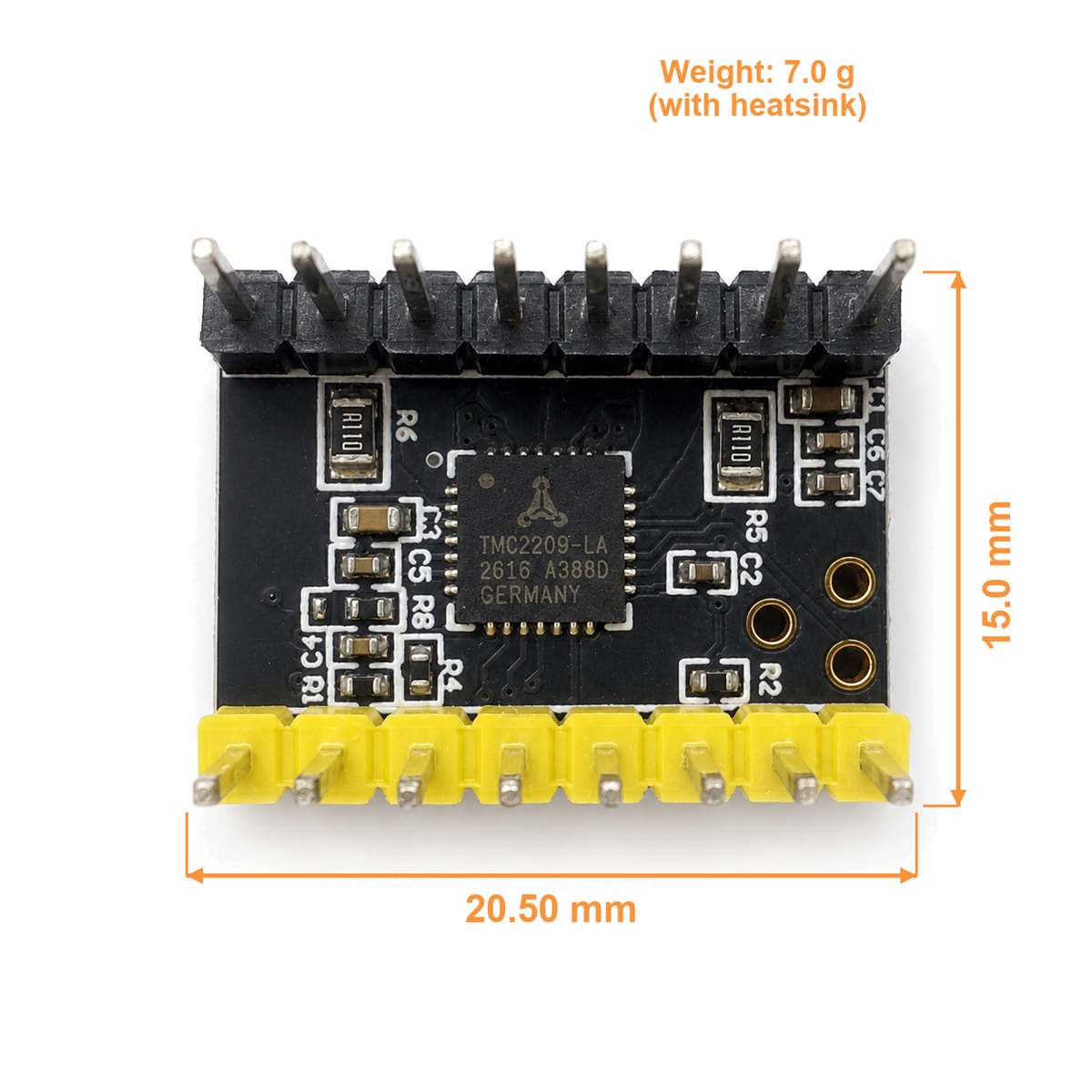

  • TMC2209 module dimensions 20.50 by 15.0 millimetres and 7 gram weight
TMC2209 Silent Stepper Motor Driver Module with Heatsink
SKU: MOD-TMC2209

TMC2209 Silent Stepper Motor Driver Module with Heatsink

$7.99 NZD
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A compact black V985 TMC2209 module for quieter bipolar stepper control in 3D printers, CNC machines and motion projects. It supports conventional STEP/DIR control or UART configuration, works with 3.3 V or 5 V logic, and includes a blue aluminium heatsink for the reverse-side thermal area.

Specifications

ControllerTMC2209-LA
BoardBlack V985 module
Motor supply5.5 V to 38 V
Logic supply3.3 V or 5 V
Control modesSTEP/DIR or UART
Maximum output2 A supplier maximum
Recommended currentUp to 1.7 A with suitable cooling
MicrosteppingUp to 256 subdivisions
Standalone modes1/8, 1/16, 1/32 or 1/64
Header format2 × 8 pins, 2.54 mm pitch
Board size20.50 × 15.0 mm
Weight7.0 g with heatsink

Datasheets

Full technical datasheet PDF Quick Start guide PDF

What's in the box

1×
TMC2209 driver module

Black V985 board with both header rows soldered.

1×
Blue aluminium heatsink

Supplied loose with thermal adhesive for the reverse-side gold area.

Great for

3D printer axis upgrades
CNC and laser motion
Quiet robotics
Linear stages and automation

Wiring & getting started

  1. Switch off every supply

    Disconnect motor power, logic power and USB before inserting the module.

  2. Match every pin label

    Confirm VM, GND, VIO, DIR, STEP and EN against the carrier board. Do not rely on the board outline alone.

  3. Fit the heatsink correctly

    Remove the blue protective film and place the flat adhesive base on the large gold thermal area on the reverse of the board.

  4. Choose the control mode

    Set the carrier-board jumpers and firmware for STEP/DIR or UART operation.

  5. Start conservatively

    Connect one winding to M1A/M1B and the other to M2A/M2B, begin at low current, and test with a short slow move.

Note: Never connect or disconnect motor windings while VM is powered. The 2 A figure is a supplier-stated maximum, not a continuous no-cooling target. Actual current capability depends on heatsink contact, airflow and the assembled machine.

Frequently Asked Questions

Answers to the questions buyers ask most.

Can I replace an A4988 or DRV8825 with this module?
The board uses the common 2 x 8, 2.54 mm plug-in format, but socket orientation and signal routing vary. Match every pin label against the carrier board before applying power.
Do I have to use UART?
No. The module can run from conventional STEP/DIR signals in standalone mode. UART is available when the carrier board and firmware are configured for it.
Where does the heatsink go?
Fit the flat adhesive base to the large gold thermal area on the reverse of the board. Remove the blue protective film first and keep the heatsink clear of pins and the current-adjust trimmer.
How much current can it supply?
The supplier states a 2 A maximum and recommends no more than 1.7 A. Actual usable current depends on heatsink contact, airflow, supply voltage and the assembled machine, so start conservatively and monitor temperature.
Which standalone microstep settings are available?
MS1 LOW and MS2 LOW selects 1/8; HIGH and HIGH selects 1/16; HIGH and LOW selects 1/32; LOW and HIGH selects 1/64. UART configuration can override standalone settings.
Can I connect the motor while the board is powered?
No. Switch off VM and logic power before connecting or disconnecting the motor, inserting the module, or changing carrier-board wiring.
