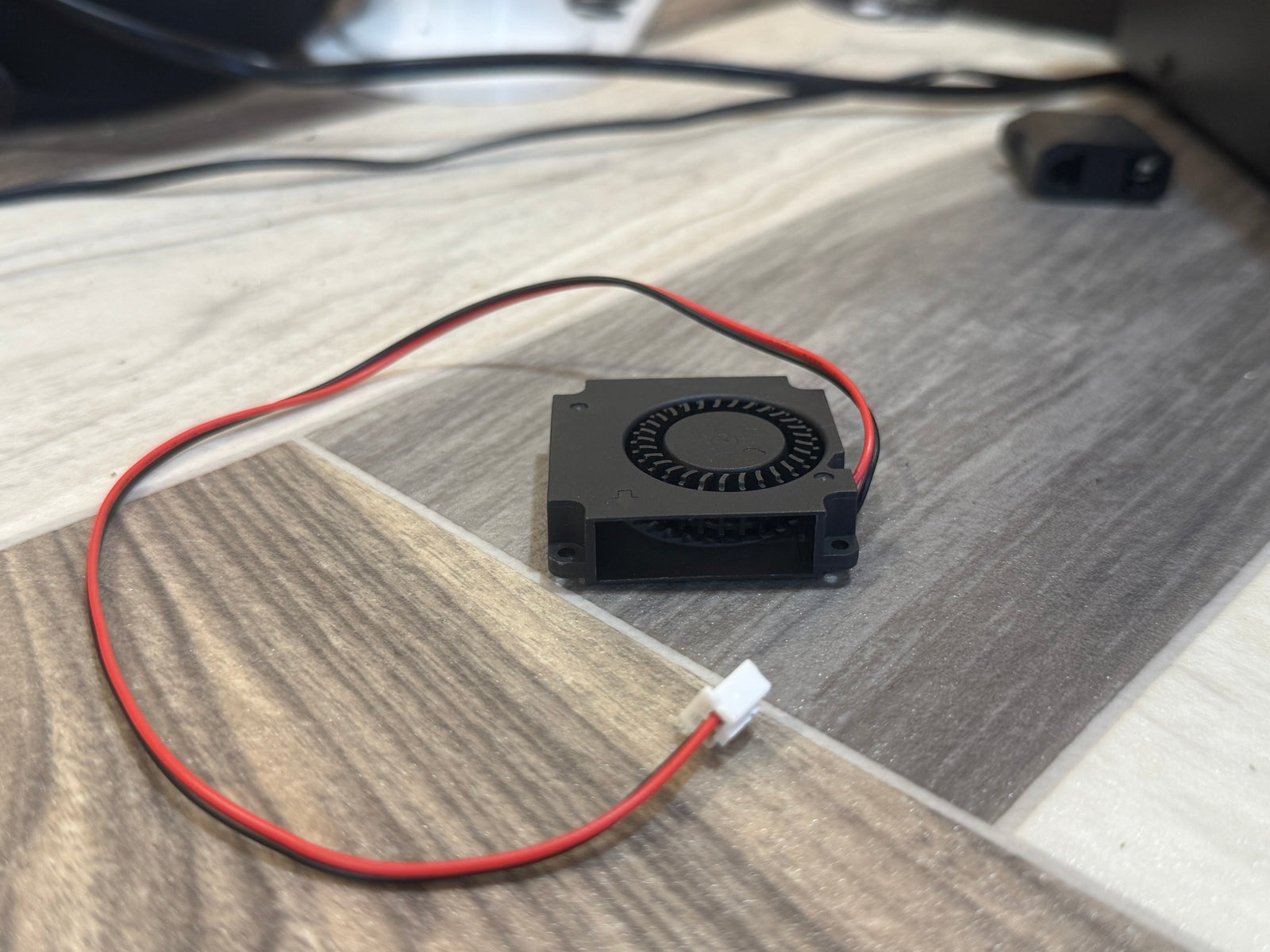

CAIZHU 4010 blower fan, 40 x 40 x 10 mm, intake face up with the side outlet at the front, red and black lead and white 2-pin plug

CAIZHU 4010 Blower Fan 12V Dual Ball Bearing 40x40x10mm

$14.49 NZD
Save 5% at 2+
Skip to product information
CAIZHU 4010 blower fan, 40 x 40 x 10 mm, intake face up with the side outlet at the front, red and black lead and white 2-pin plug
  • CAIZHU 4010 blower fan, 40 x 40 x 10 mm, intake face up with the side outlet at the front, red and black lead and white 2-pin plug

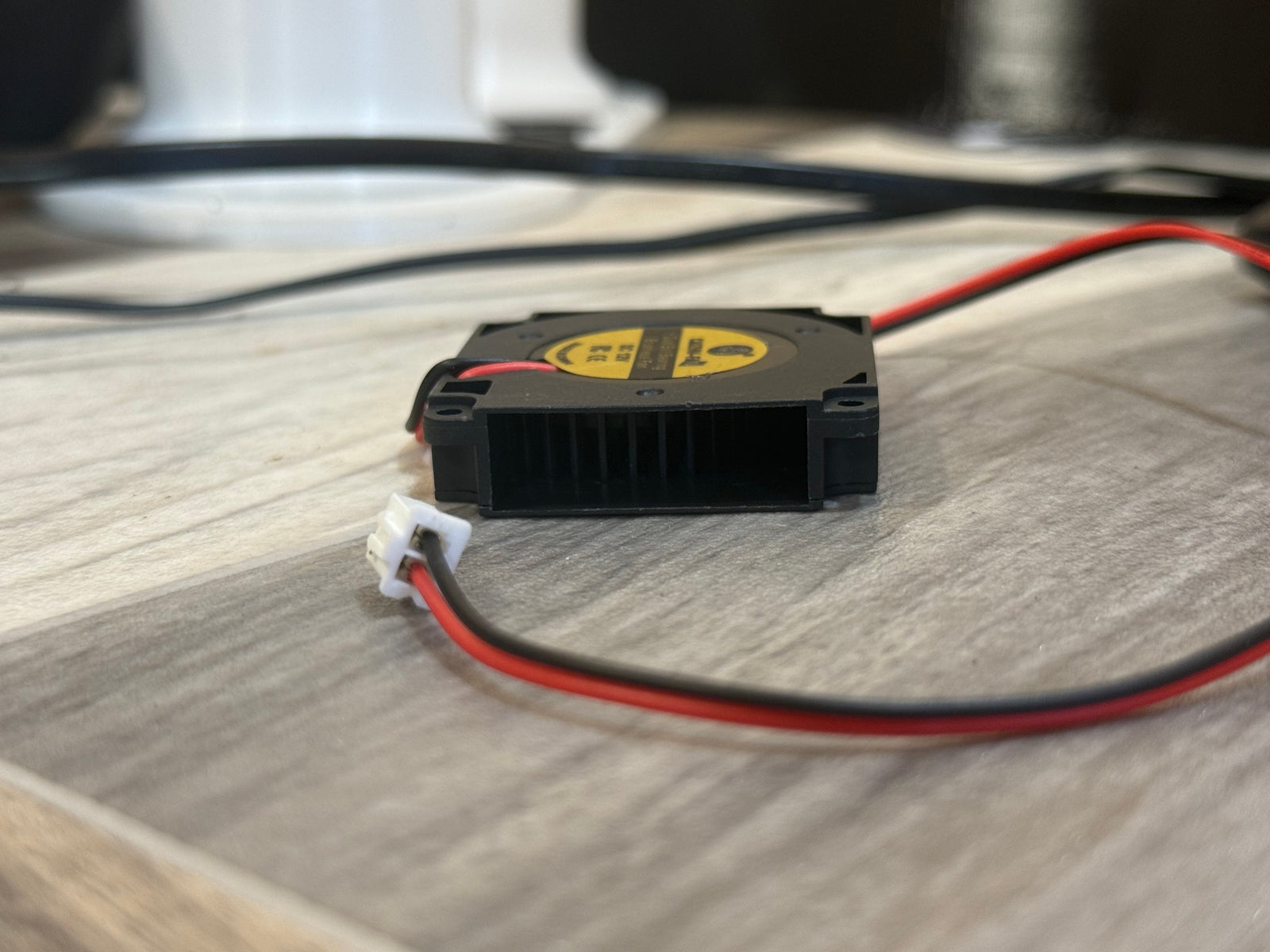

  • Outlet side of the 4010 blower: wide rectangular air outlet with a mounting ear and hole on each side

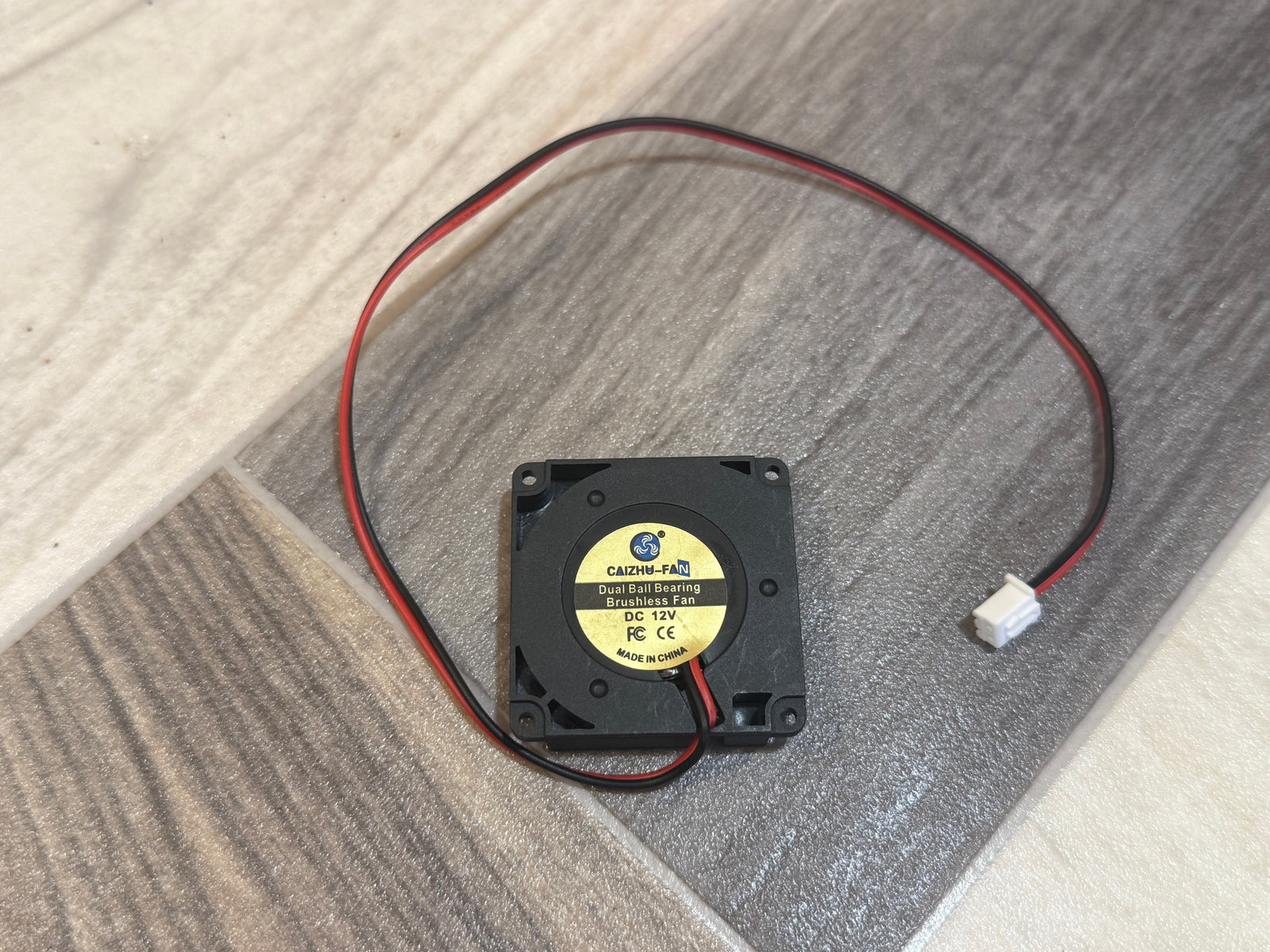

  • Back of the fan with its round label reading CAIZHU-FAN, Dual Ball Bearing Brushless Fan, DC 12V, and four corner mounting holes

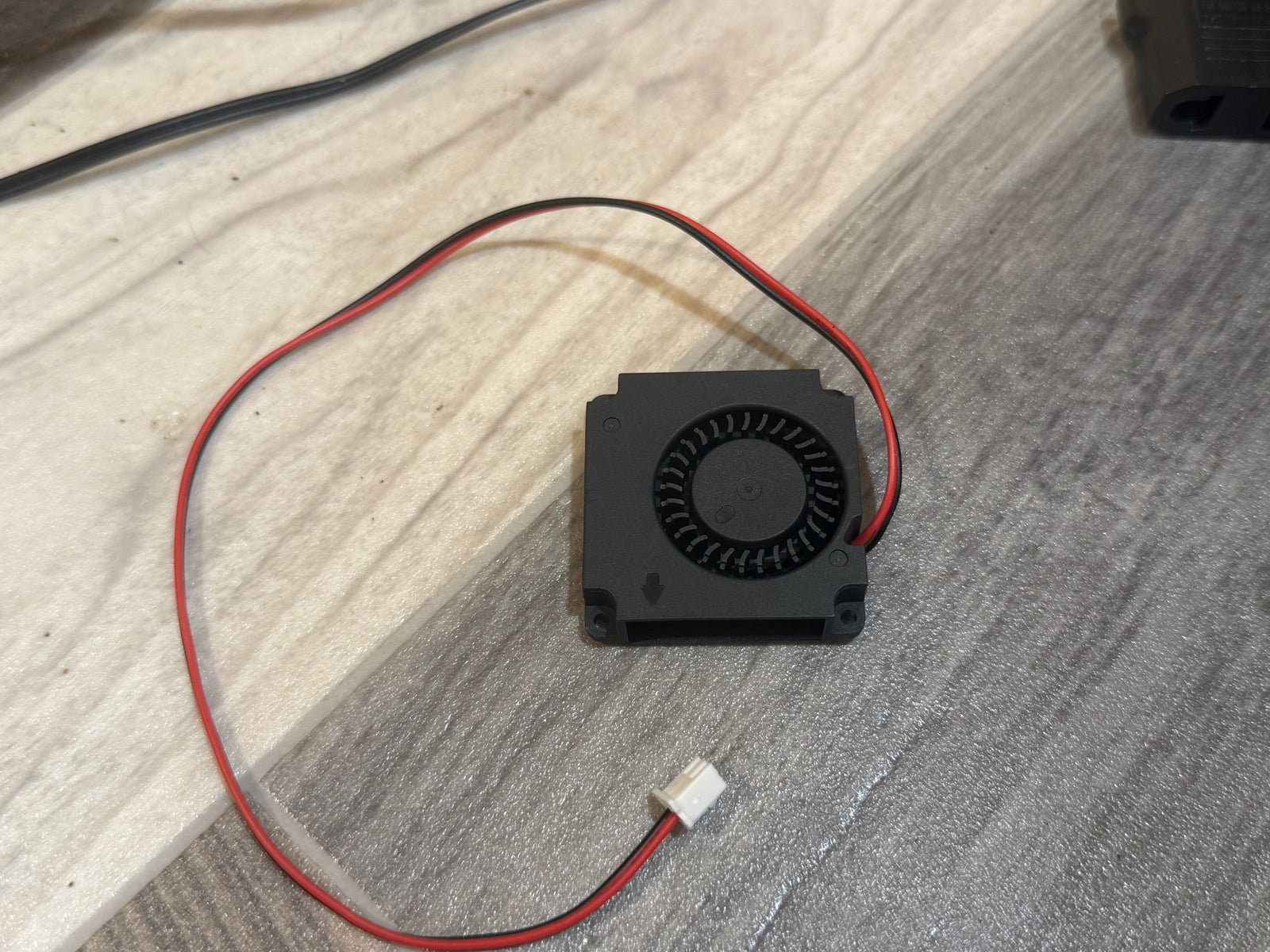

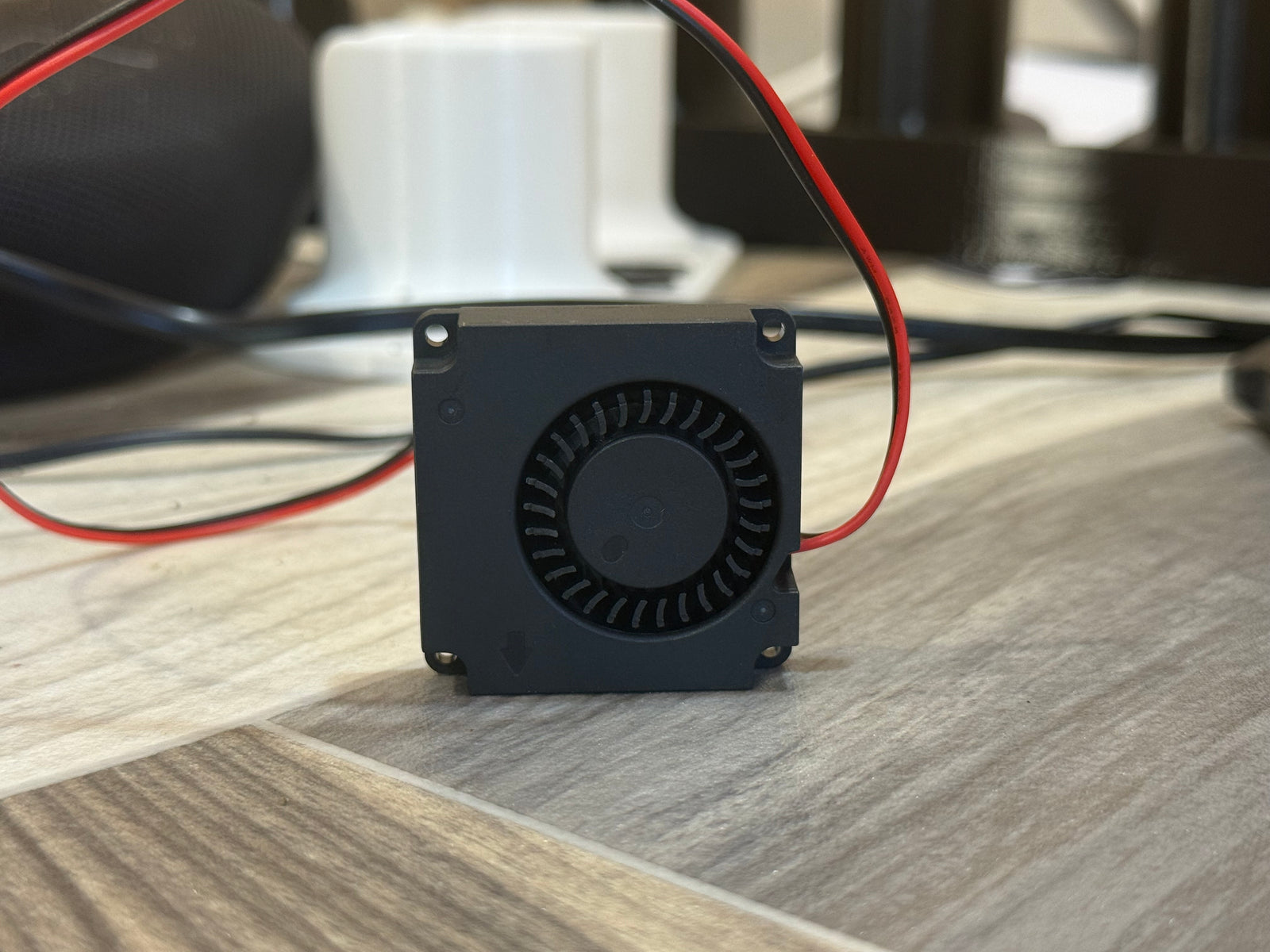

  • Top-down view of the intake face showing the curved impeller blades and the moulded arrow pointing to the outlet
  • 4010 blower dimensions: 40 x 40 mm frame, 10 mm thick, four holes of about 2.4 mm on about 35 mm spacing
CAIZHU 4010 Blower Fan 12V Dual Ball Bearing 40x40x10mm
SKU: FAN-4010-BLW-12V-DBB

CAIZHU 4010 Blower Fan 12V Dual Ball Bearing 40x40x10mm

$14.49 NZD
Order before 7:30am for same-day dispatch Dispatch 7 days a week, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural, or free pick-up in Te Awamutu.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Add $66.00 for Free Urban delivery ($88.00 for Rural)
Urban $66 Rural $88

A CAIZHU 4010 radial blower fan for 12V systems: 40 x 40 mm square, 10 mm thick, with a brushless motor on dual ball bearings. It draws air in through the round intake and pushes a narrow, strong stream out of the side outlet, which is what a 3D printer part cooling duct needs. It comes with a red and black lead of about 30 cm and a white 2-pin 2.54mm plug.

Specifications

Fan typeRadial blower, side outlet
Size40 x 40 x 10 mm
Rated voltage12V DC
MotorBrushless DC
BearingsDual ball bearing
Wires2: red +12V, black 0V
PlugWhite 2-pin, 2.54mm pitch (XH style)
Lead lengthAbout 30 cm
Speed signalNone (2-wire fan)
Mounting holes4, about 2.4 mm, about 35 mm apart
Outlet openingAbout 28 x 8.5 mm
ScrewsM2, or M2.5 self-tapping

Datasheets

Full technical datasheet PDF

What's in the box

1×
4010 blower fan, 12V

With its lead and white 2-pin plug fitted. Mounting screws are not included.

Great for

Cooling printed layers through a part cooling duct on a 12V 3D printer
Replacing a worn or noisy 12V 4010 blower
Blowing air across a heatsink or driver board in a small 12V enclosure
Pushing air through a narrow printed duct in a 12V project

Wiring & getting started

  1. Check the fan voltage

    Make sure the fan port or supply is 12V. Many current printers, such as the Ender 3 series and Voron builds, run their fans at 24V. On a 24V port this fan needs a step-down converter set to 12V.

  2. Fit it to the duct

    Push the rectangular outlet into the duct and fix the fan through the corner holes. The moulded arrow on the intake face points to the outlet, and the label side is the back.

  3. Plug in and test

    Red goes to + and black to 0V. Check which pin of your board's port is + before plugging in. Set the part cooling fan speed in your slicer or with M106; very low percentages may not start the fan.

Frequently Asked Questions

Answers to the questions buyers ask most.

Will it plug into my 3D printer board?
Usually, yes. It ends in a white 2-pin 2.54mm XH-style plug, the plug used on most printer board fan ports. Before plugging in, check that the port supplies 12V and which pin is +. Red is + and black is 0V.
Will it work on a 24V printer?
Not directly. This is a 12V fan, and on a 24V fan port it would run over voltage and fail early. Many current printers, including the Ender 3 series and Voron builds, run their fans at 24V. Use a 24V 4010 blower there, or feed this fan through a step-down converter set to 12V. The voltage is usually printed on the old fan's label.
What is the difference between a blower and an axial 4010 fan?
A blower like this one pulls air in through its round intake and pushes it out sideways through a narrow outlet, with enough pressure to drive air through a duct and nozzle. An axial 4010 fan blows straight through its frame, moving air over a wider area at lower pressure, which suits heatsink cooling. Part cooling ducts are designed for blowers.
Which way does the air go?
In through the round intake on the blade side and out of the rectangular side outlet. The moulded arrow on the intake face points towards the outlet. The side with the round label is the back of the fan.
What screws fit the mounting holes?
The four holes are about 2.4 mm across and about 35 mm apart, about 2.5 mm in from each edge. M2 screws pass through them, and M2.5 self-tapping screws will cut their own thread. Do not force M3 screws. The datasheet has a dimensioned drawing.
Can I control the speed?
Yes. A printer board's PWM fan output sets the speed from your slicer or with M106. Very low percentages may not be enough to start it. It has two wires and no speed signal, so the board cannot read its speed.
