KCD11 10x15mm black mini rocker switch with I and O rocker, rating side and two blade lugs below

KCD11 10x15mm Mini Rocker Switch - ON/OFF, 3A 250VAC

$1.85 NZD
Save 3% at 5+
Skip to product information
KCD11 10x15mm black mini rocker switch with I and O rocker, rating side and two blade lugs below

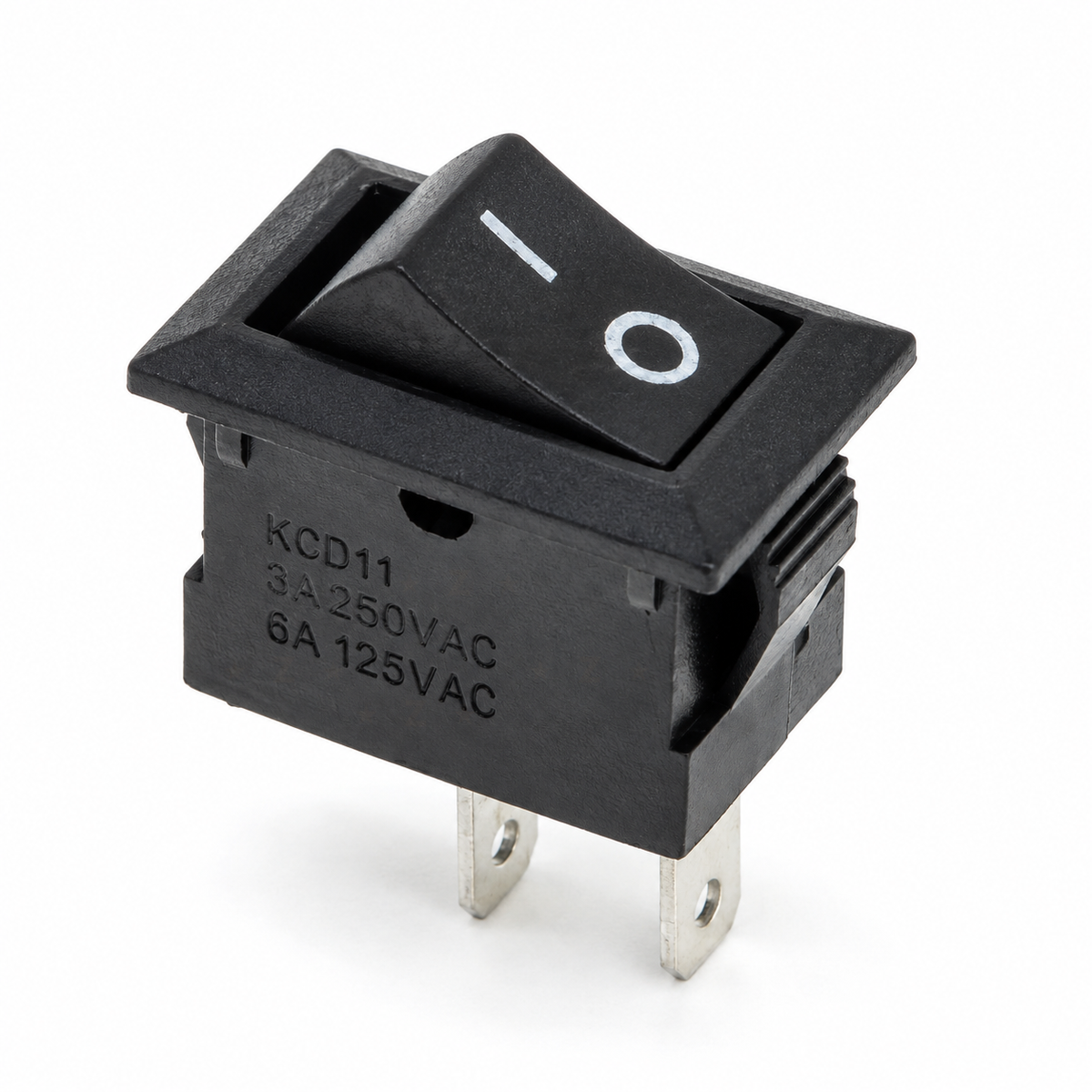

  • KCD11 10x15mm black mini rocker switch with I and O rocker, rating side and two blade lugs below

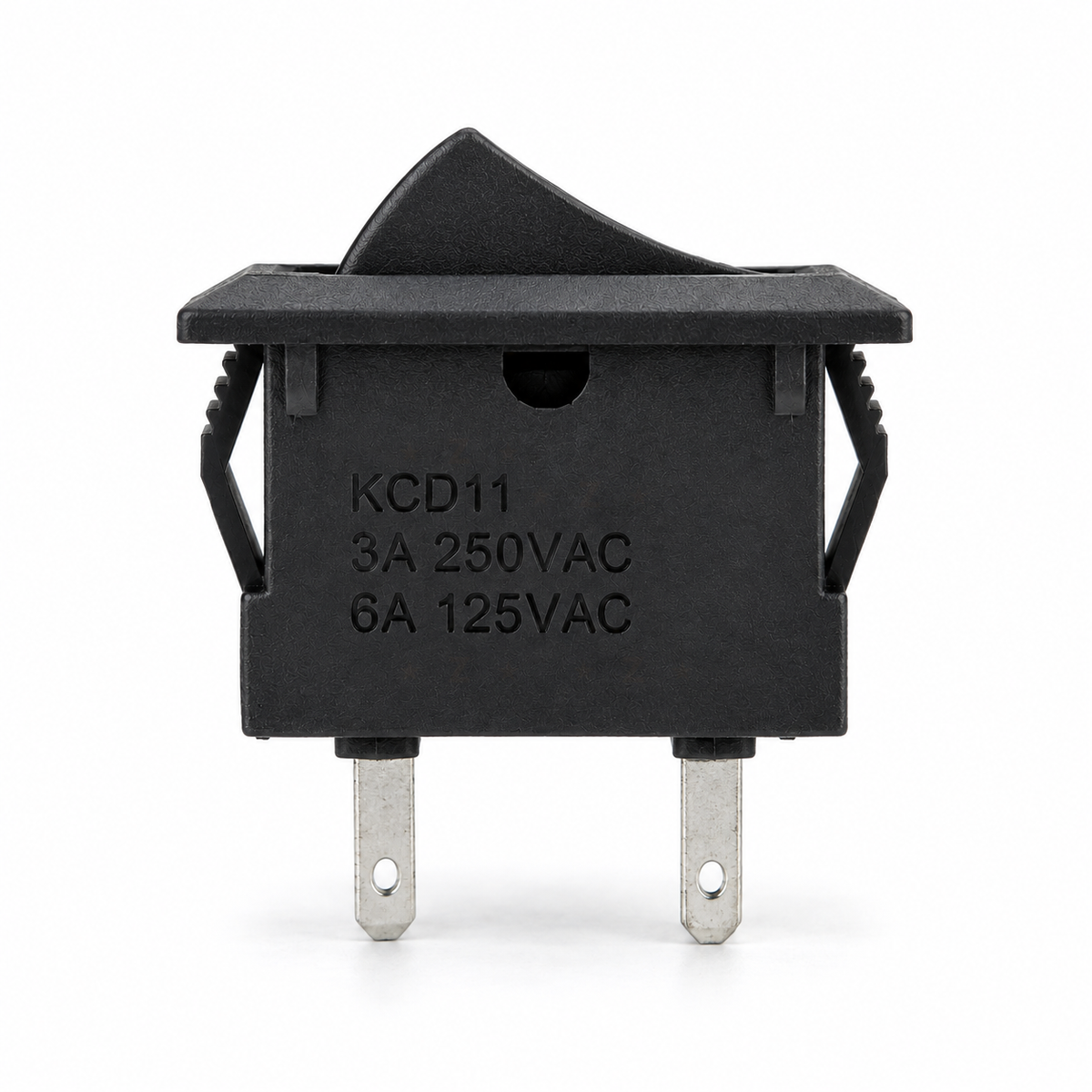

  • Side view of the KCD11 switch showing the KCD11 3A 250VAC 6A 125VAC marking and two lugs from the base

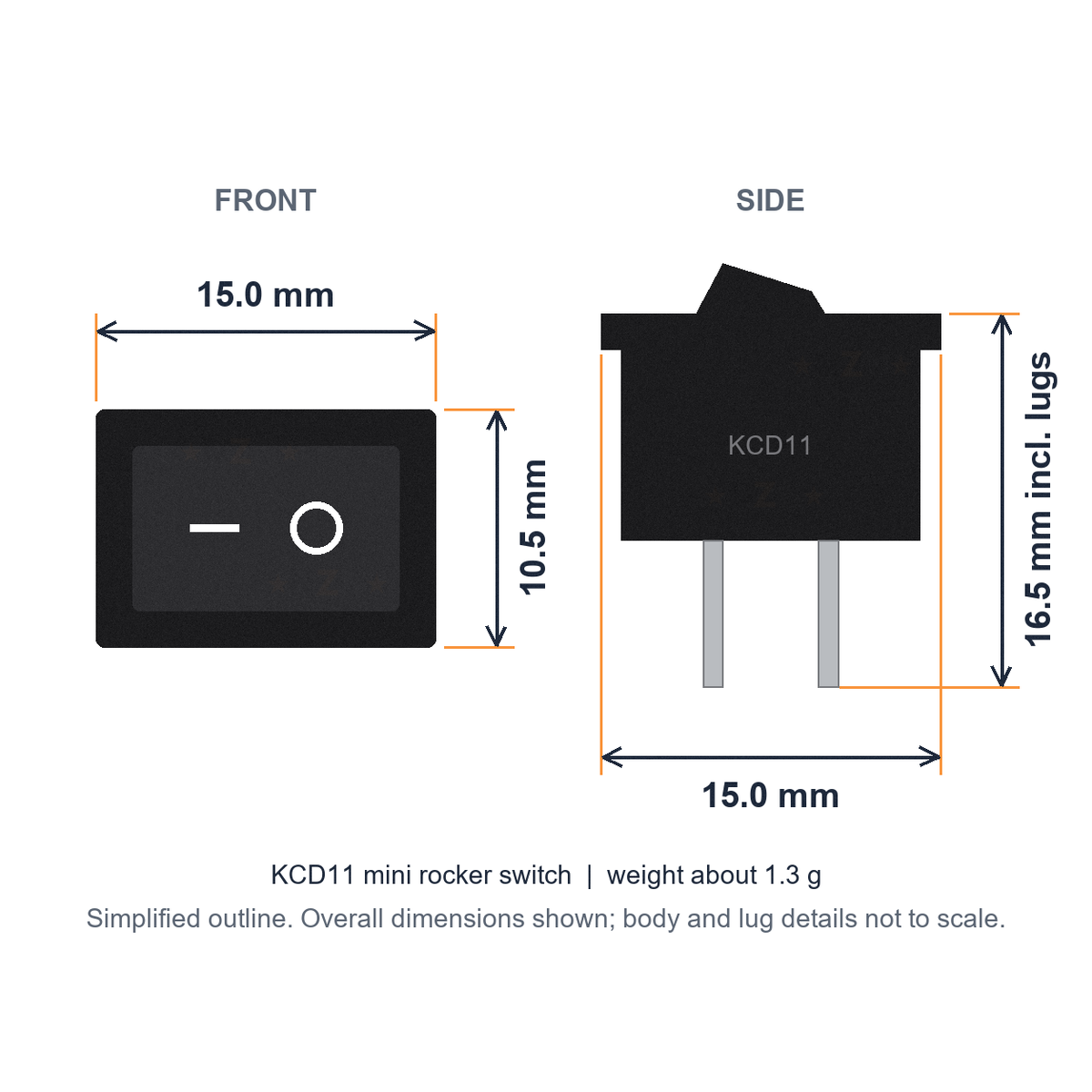

  • KCD11 dimensions: 15.0 x 10.5 mm front face and 16.5 mm overall height including lugs
KCD11 10x15mm Mini Rocker Switch - ON/OFF, 3A 250VAC
SKU: SW-KCD11-10X15-BLK

KCD11 10x15mm Mini Rocker Switch - ON/OFF, 3A 250VAC

$1.85 NZD
Order before 7:30am for same-day dispatch 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Buy more, pay less Prices shown are per unit. Add enough of this item and the lower rate applies on its own at checkout. There is no code to enter and you do not need to buy a pack. Choosing a tier here just sets the quantity for you. Larger quantities go out in the same bag, so packing, handling and postage cost us less per unit. We pass that saving straight on to you, so you can buy more for less.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

A small black KCD11 rocker switch for simple ON/OFF control where panel space is tight. The front face is only 15 x 10.5 mm, it snaps into a panel cut-out, and it has two non-polarised blade lugs. It is marked 3 A at 250 VAC or 6 A at 125 VAC. Need more current or a bigger switch face? Choose our KCD1 21 x 15 mm rocker switch, marked 6 A at 250 VAC.

Specifications

Model markingKCD11
Contact configurationSPST
Switch actionMaintained ON/OFF
Rating marked3 A 250 VAC
Alternate marking6 A 125 VAC
Terminals2 blade / solder lugs
Front face15.0 x 10.5 mm
Overall height16.5 mm including lugs
MountingSnap-in panel clips
IlluminationNone
ColourBlack, I / O marked
WeightAbout 1.3 g

Datasheets

Full technical datasheet PDF

What's in the box

1×
KCD11 10 x 15 mm mini rocker switch

Black, non-illuminated, two-lug SPST version.

Great for

A power switch on a small 3D-printed project box
Turning an LED strip or fan on and off
Replacing a worn mini rocker in a small appliance
Front panels with little spare room

Wiring & getting started

  1. Cut the panel opening

    Cut a rectangle that fits the body under the 15 x 10.5 mm bezel. Start slightly small and file until the switch clicks in and the clips hold it firmly.

  2. Connect the switched wire

    Connect one side of the wire being switched to each lug by soldering it to the lug. The lugs are not polarised.

  3. Check the switch

    Press I to close the contact and O to open it. Isolate power before checking or changing the wiring.

Note: Only AC ratings are marked on this switch. For 230 V mains loads stay within 3 A, switch the active conductor, use insulated connections and an enclosure, and have mains installation done by a suitably qualified person.

Frequently Asked Questions

Answers to the questions buyers ask most.

What can this switch handle?
It is marked 3 A at 250 VAC and 6 A at 125 VAC. On NZ 230 V mains keep the load within 3 A. No DC rating is marked on the switch.
Is this the KCD11 or the larger KCD1?
This is the small KCD11 with a 15 x 10.5 mm face. For a 21 x 15 mm face and a 6 A 250 VAC marking, choose our KCD1 21 x 15 mm rocker switch.
How are the two lugs wired?
Solder one side of the wire being switched to each lug. The lugs are not polarised. Press I to close the contact and O to open it.
What size panel hole does it need?
Cut a rectangle that fits the body under the 15 x 10.5 mm bezel, starting slightly small. File it out until the switch clicks in and the side clips hold it firmly. Trial-fit one switch before cutting several panels.
Does it light up?
No. It is a non-illuminated black rocker with white I and O markings.
