Tower Pro SG90 Micro Servo 9g | Arduino RC Robotics STEM
1 pack - ($4.99ea)
$4.99 NZD
Skip to product information
$4.99 NZD
Tower Pro SG90 Micro Servo 9g | Arduino RC Robotics STEM
Stock amount:
Tax included. Shipping is calculated at checkout.
Urban $40
Rural $60

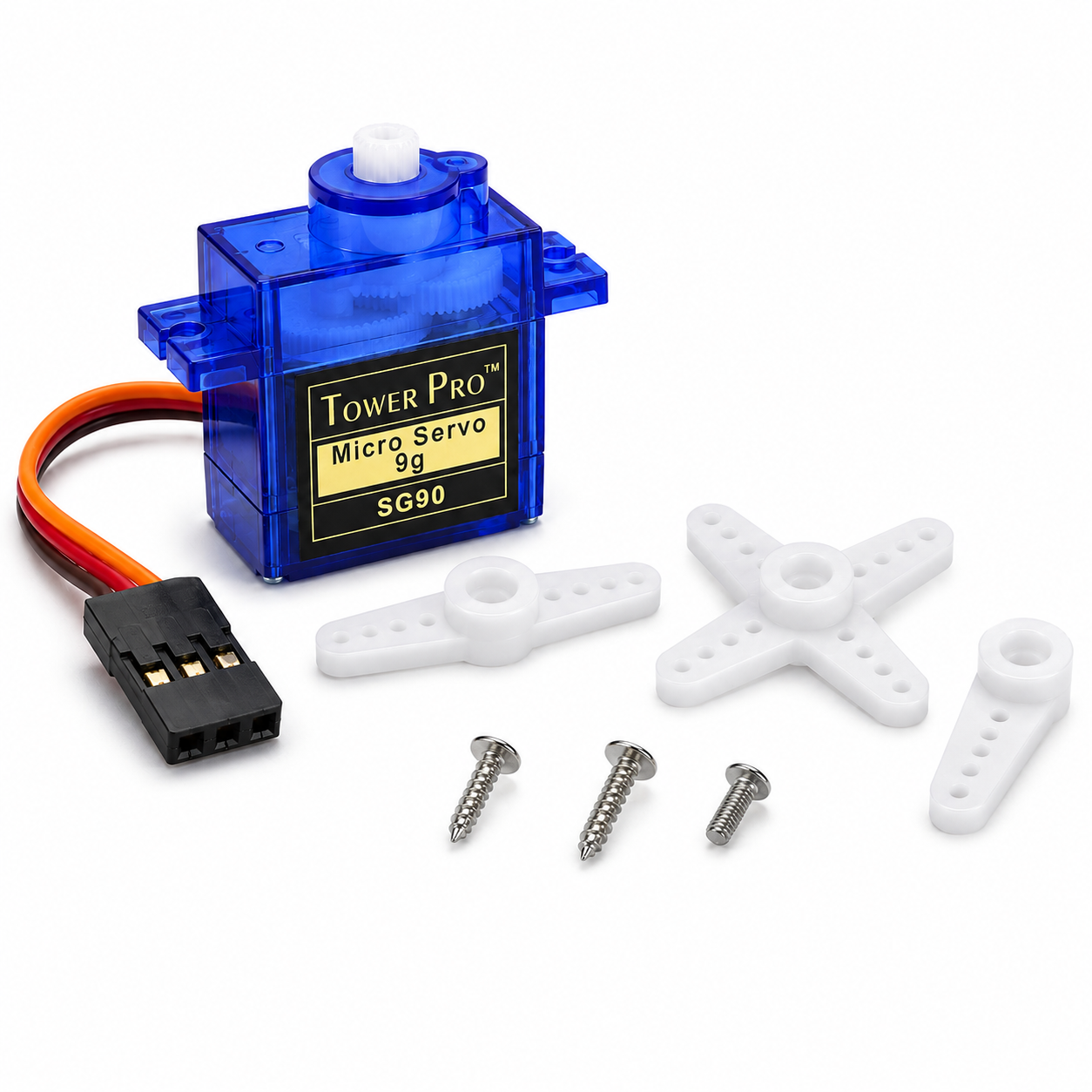

The Tower Pro SG90 is a compact and lightweight 9g micro servo designed for Arduino, Raspberry Pi, robotics, RC vehicles, STEM projects, and motion control applications.
- Lightweight 9g micro servo design

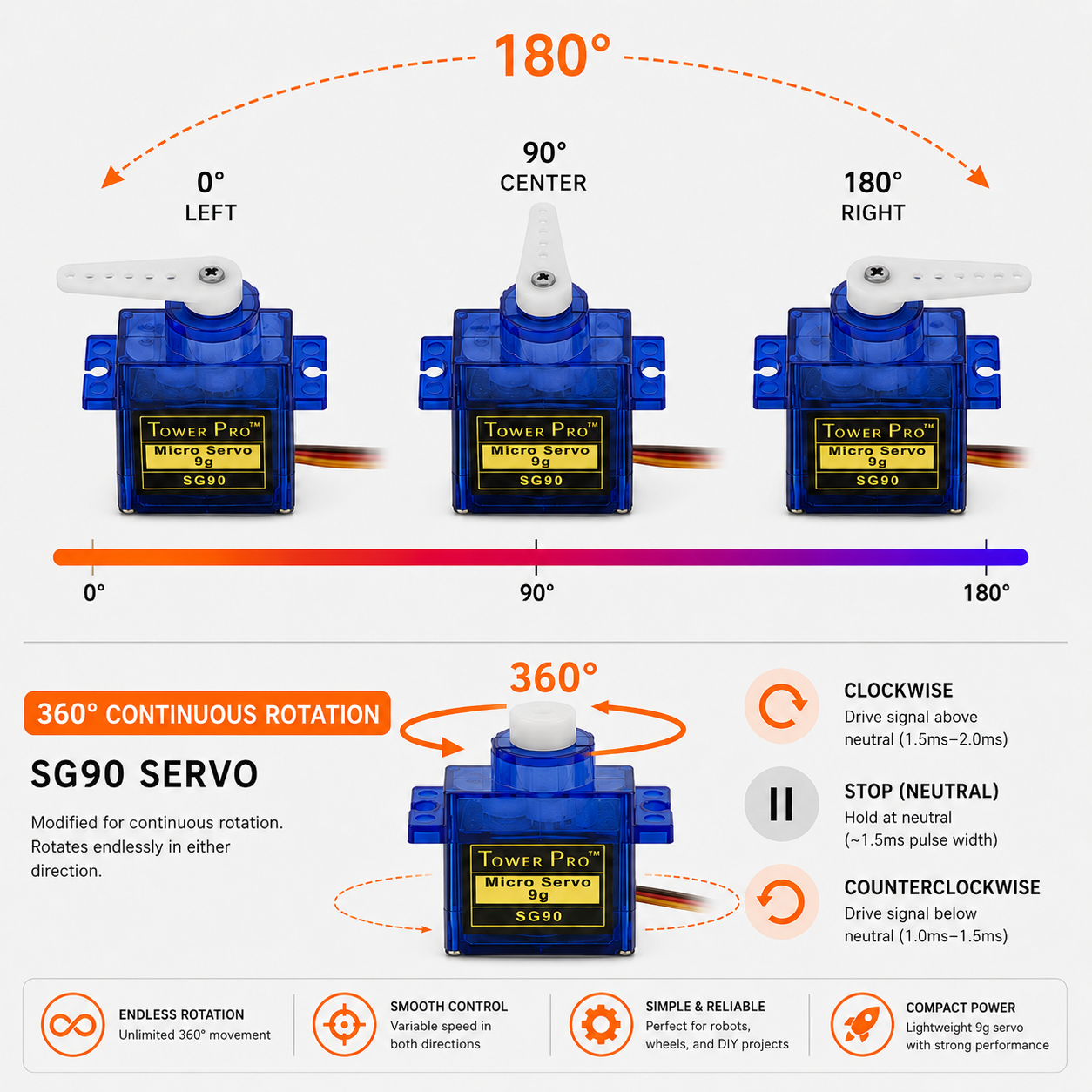

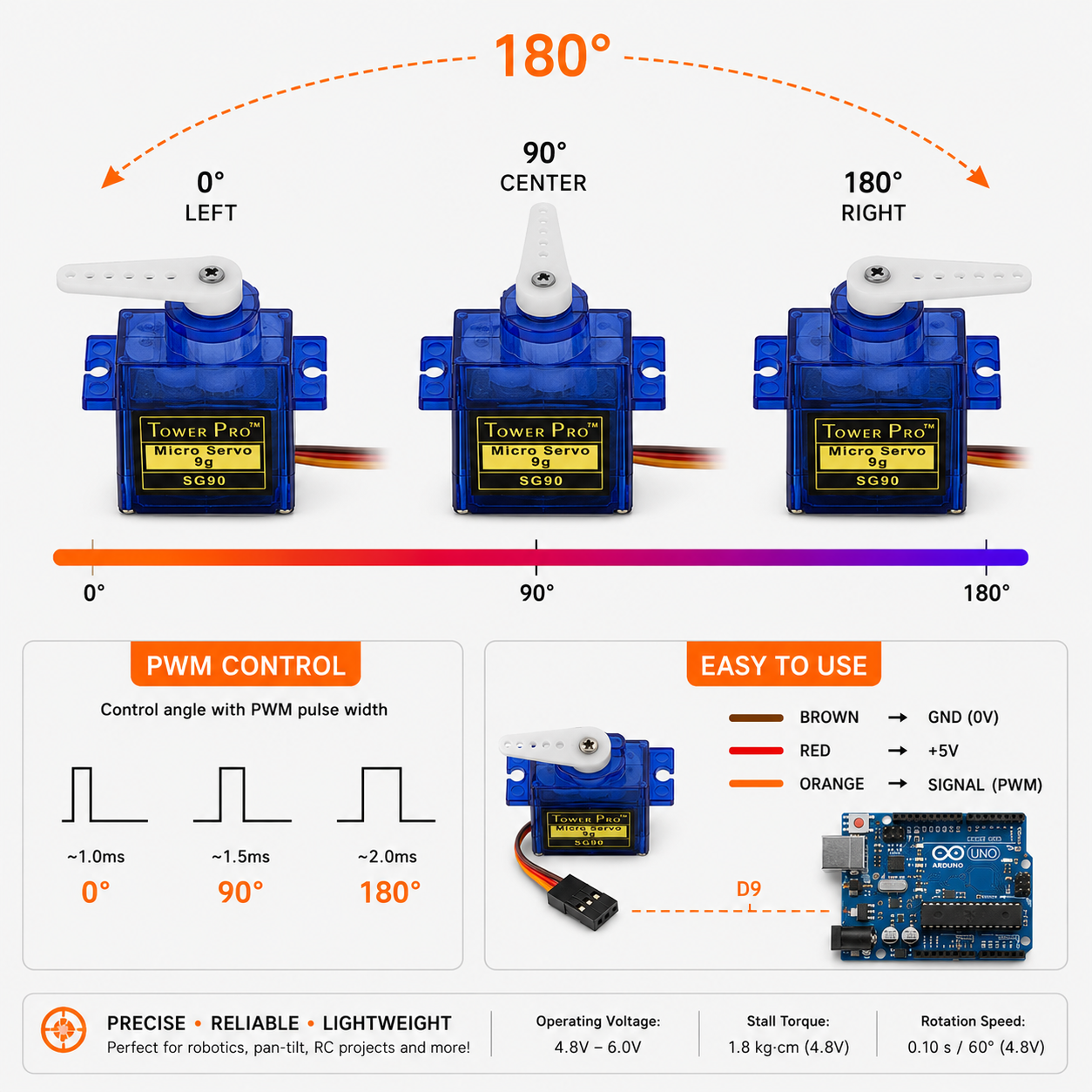

- ~180° positional rotation control
- Compatible with Arduino Servo library
- Standard 3-wire PWM control interface
- Includes multiple servo horn attachments
Quick Start
1
Connect power
Connect red to 5V and brown to GND.
2
Connect signal wire
Connect the orange signal wire to a PWM pin.
3
Install Servo library
Use the built-in Arduino Servo library.
4
Control position
Use servo.write(angle) to move the servo.
Please note: For best reliability, power the SG90 from a dedicated 5V supply rather than directly from the Arduino 5V pin under heavy load.
Every servo is manually tested before dispatch to ensure proper operation. Each unit undergoes two full-range sweeps from 0° to 180°, followed by rapid response testing through both 0° → 90° → 0° and 0° → 180° → 0° movement cycles to verify smooth movement, positioning accuracy, and reliability.
Every servo is manually tested before dispatch to ensure proper operation. Each unit undergoes two full-range sweeps from 0° to 180°, followed by rapid response testing through both 0° → 90° → 0° and 0° → 180° → 0° movement cycles to verify smooth movement, positioning accuracy, and reliability.
Specifications
ModelTower Pro SG90
Servo Type9g Micro Servo

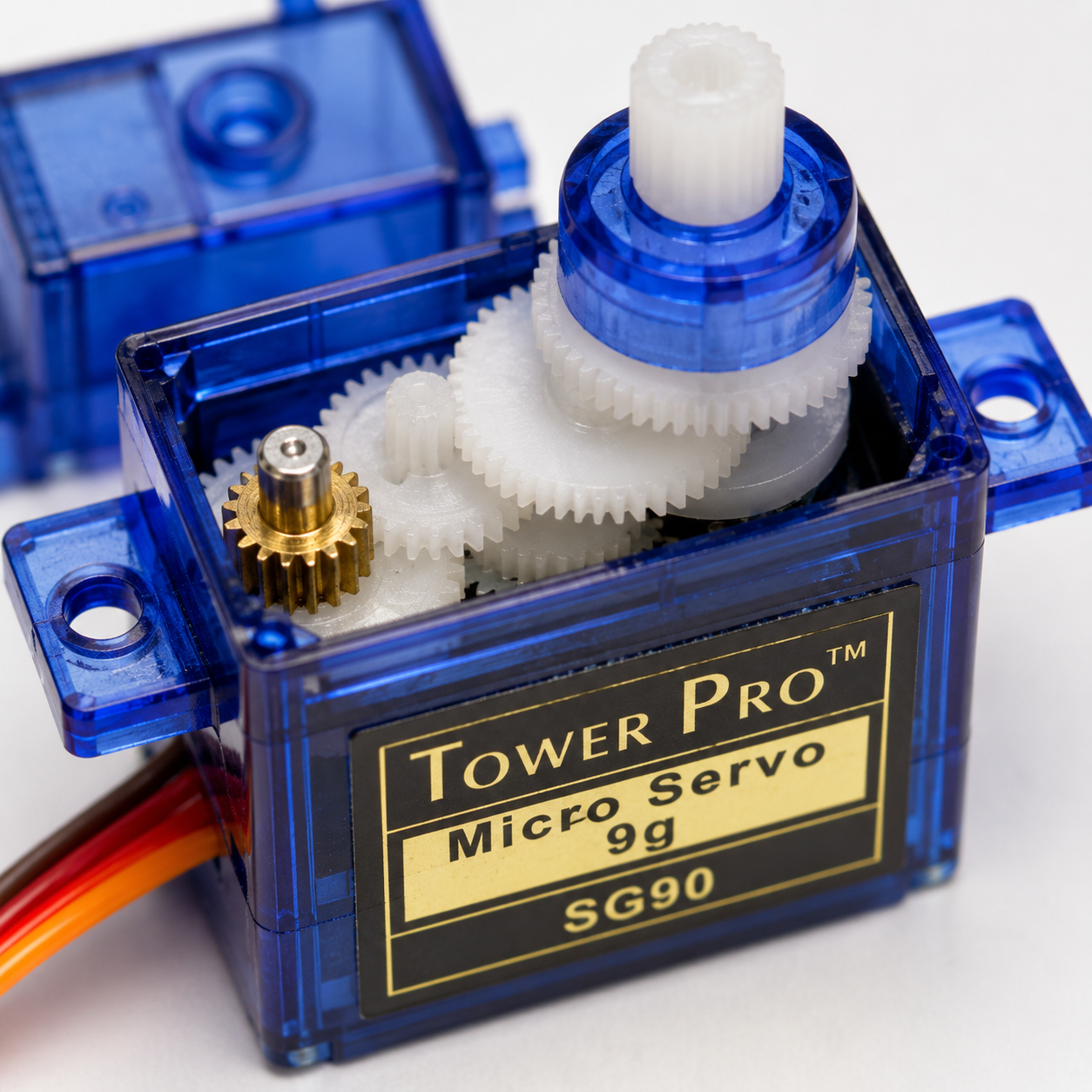

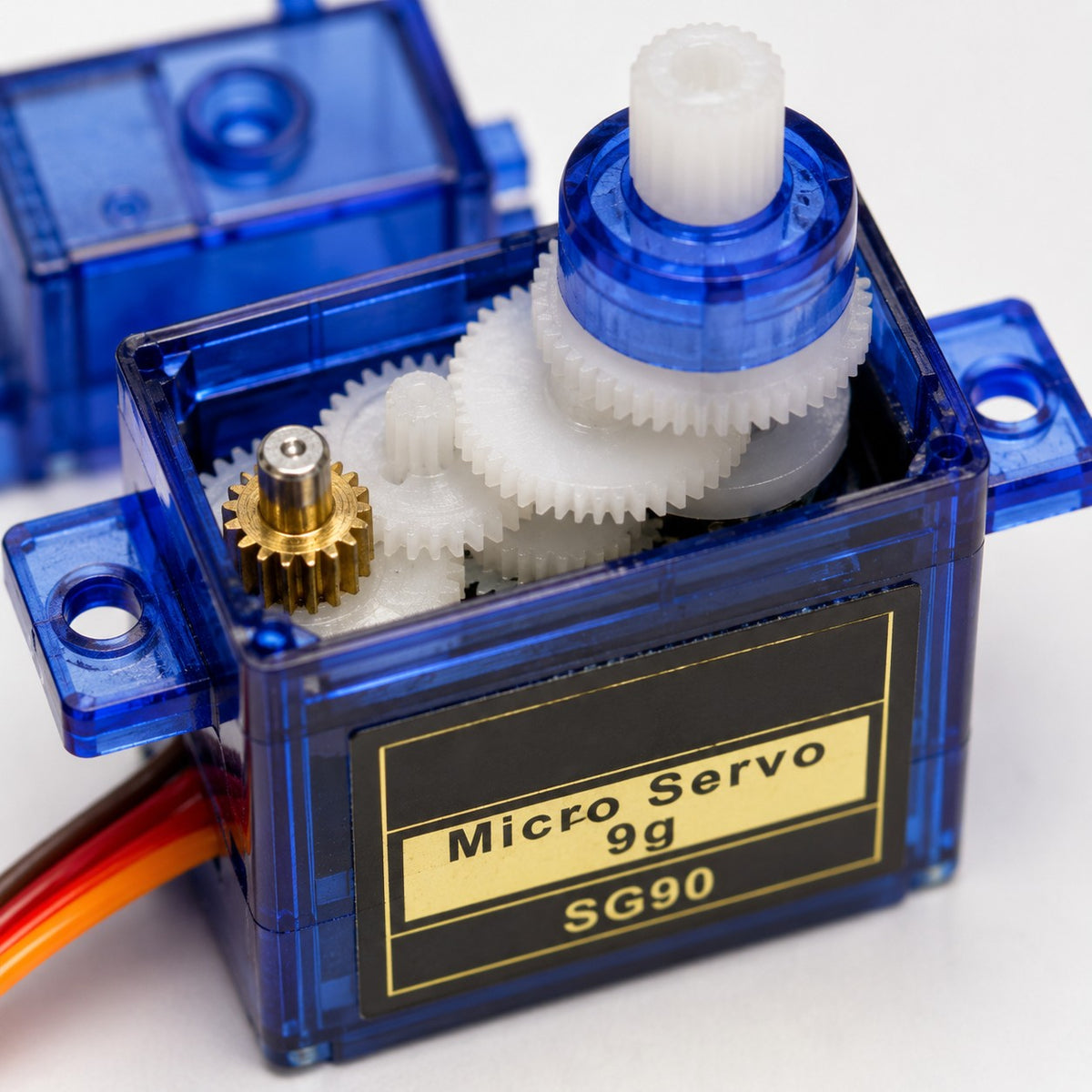

Gear TypePlastic
Operating Voltage4.8V – 6V DC
Control SignalPWM
Rotation Range~180°
Speed0.12 sec/60° @ 4.8V
Torque1.6kg/cm @ 4.8V
Connector3-pin Futaba/JR style
Wire Length~25cm

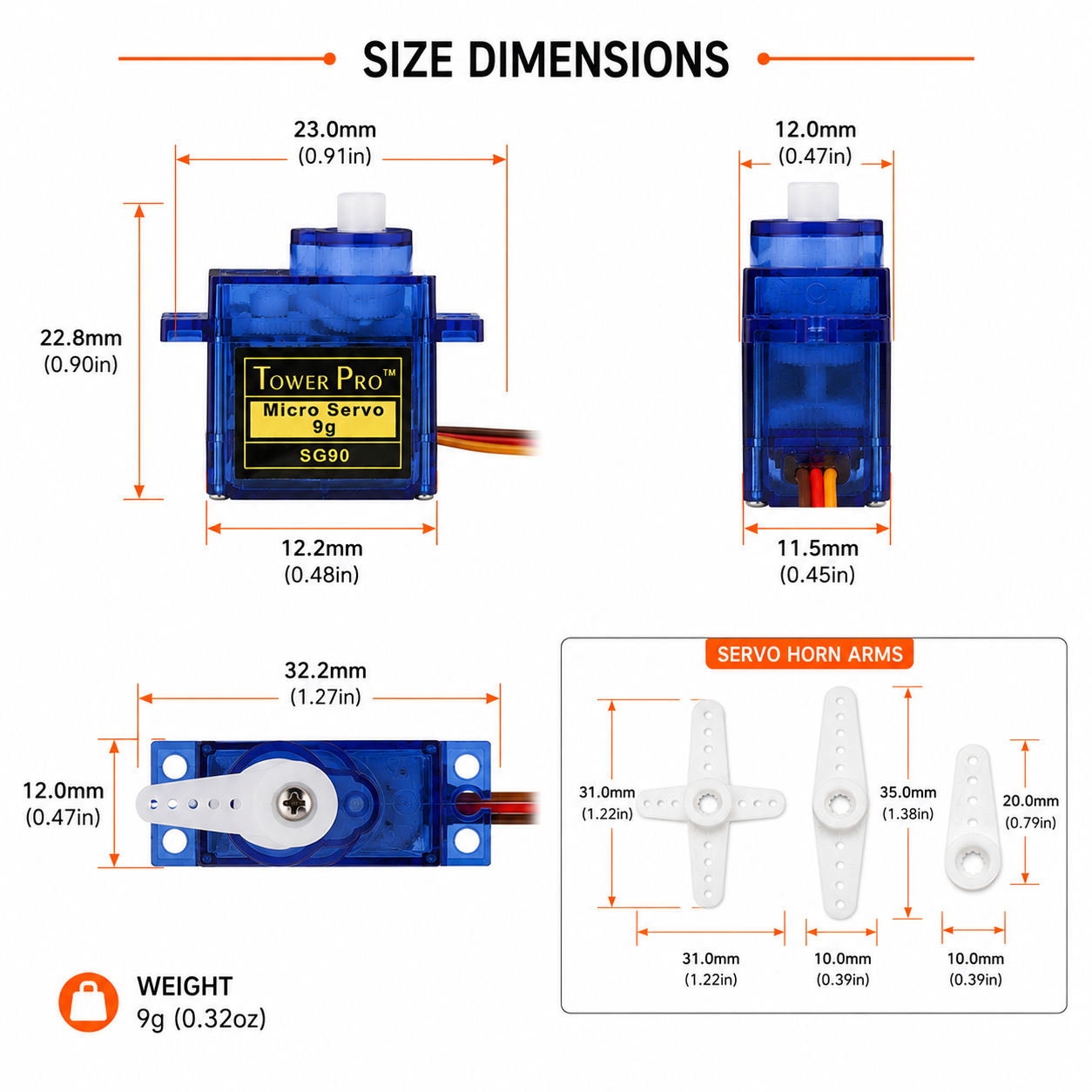

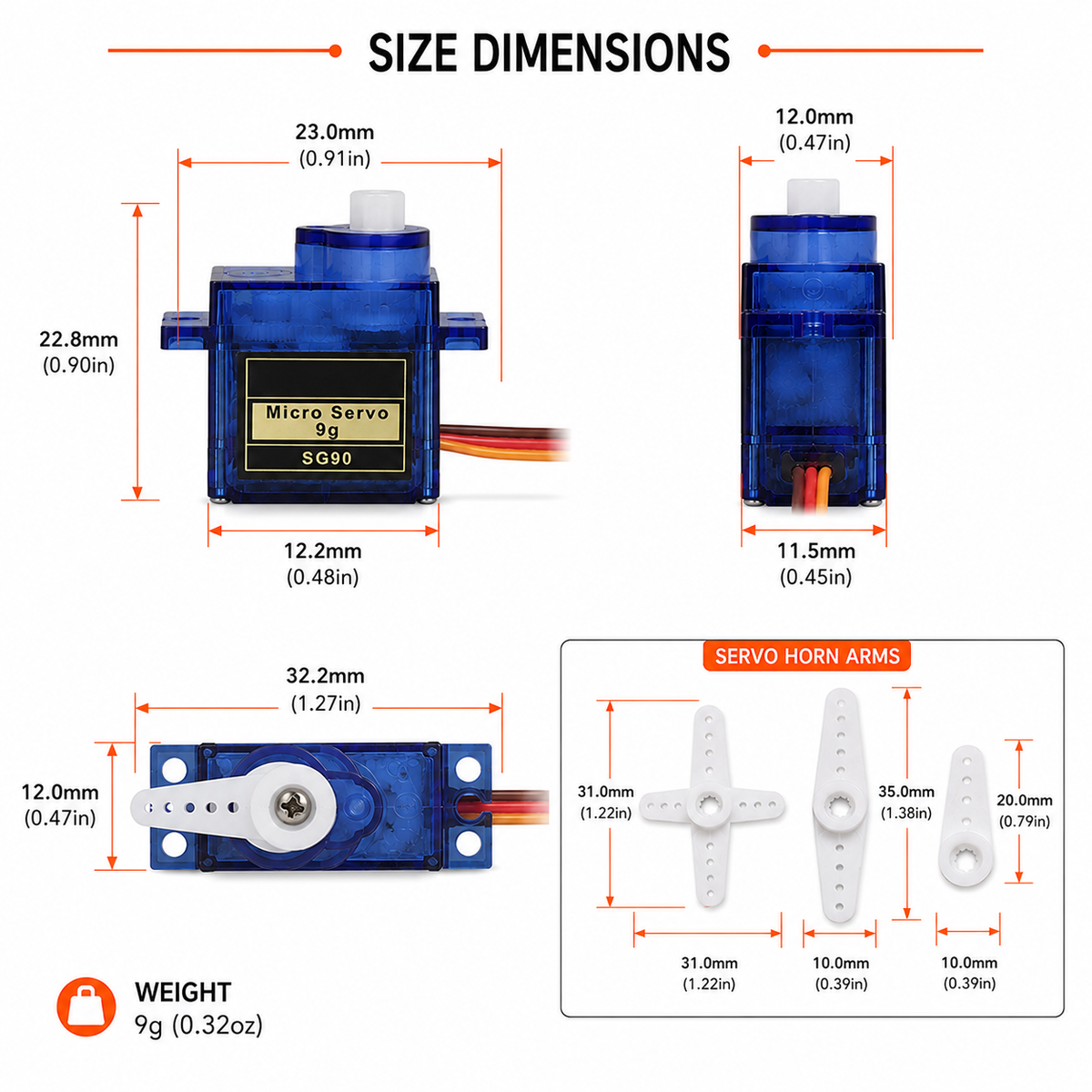

Dimensions22.2 × 11.8 × 31mm
Weight9g
Getting Started
1
Connect the servo

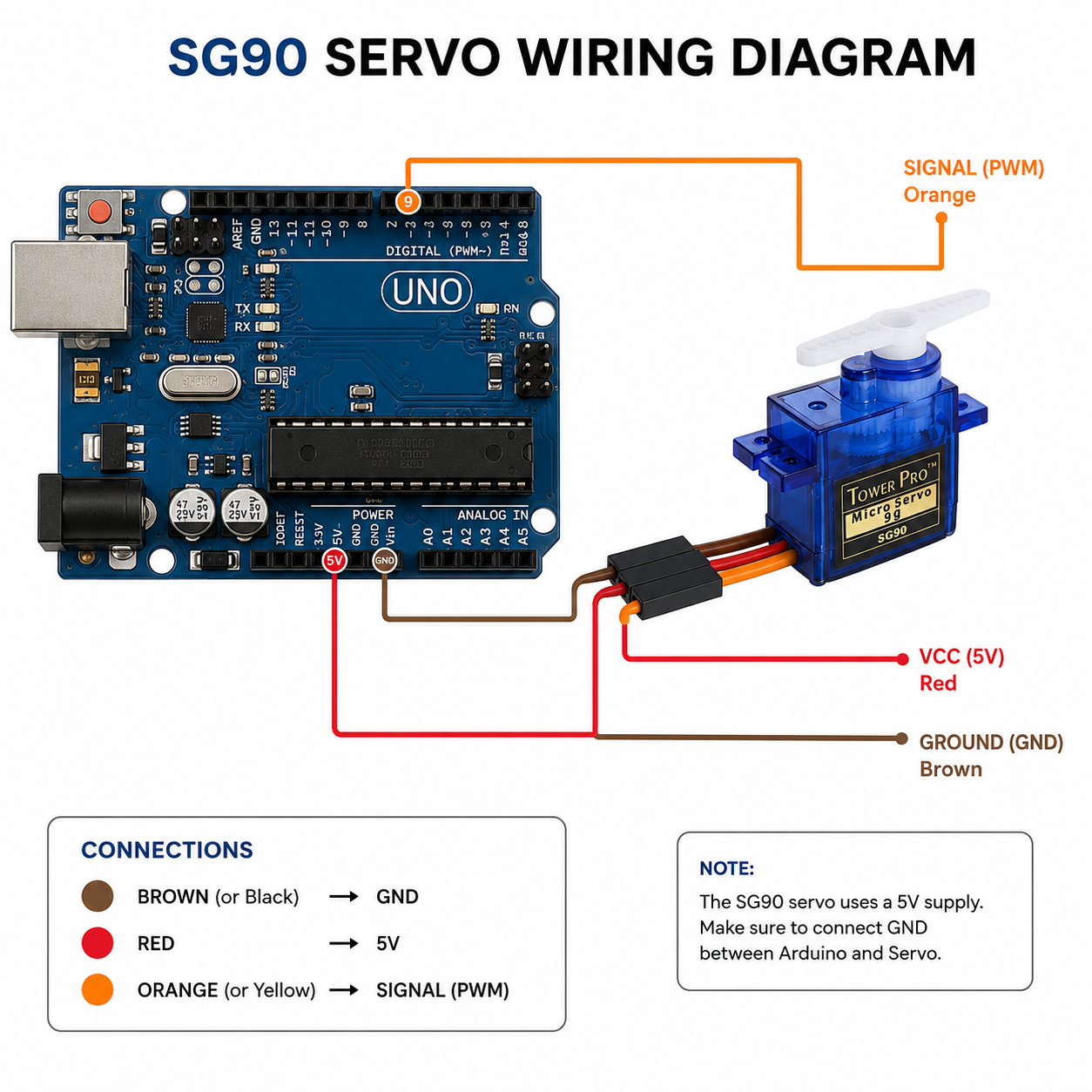

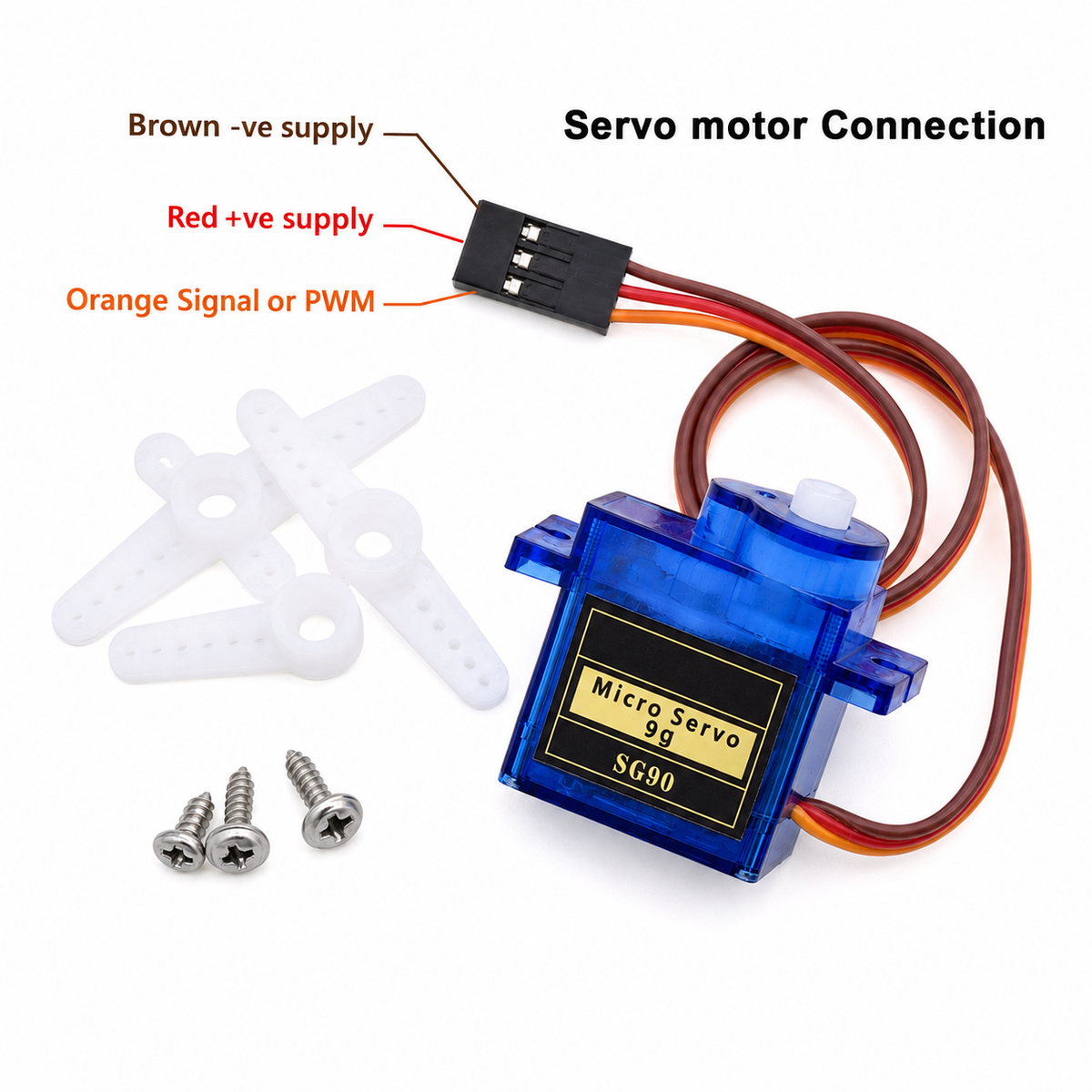

Brown = GND, Red = 5V, Orange = signal/PWM.
2
Choose a PWM pin
Connect the orange signal wire to a PWM-capable pin such as D9.
3
Upload example code
Use the Arduino IDE Servo example.
4
Test movement
The servo should rotate smoothly between positions.

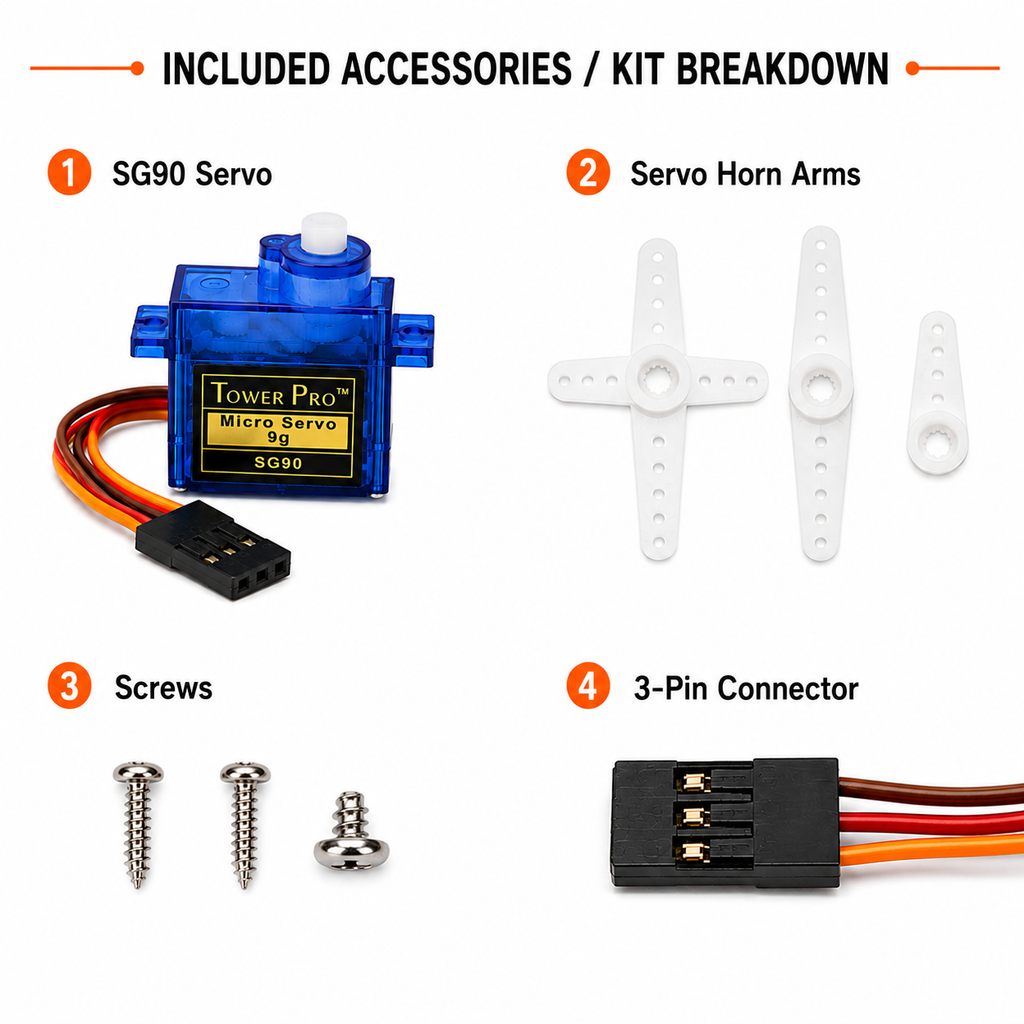

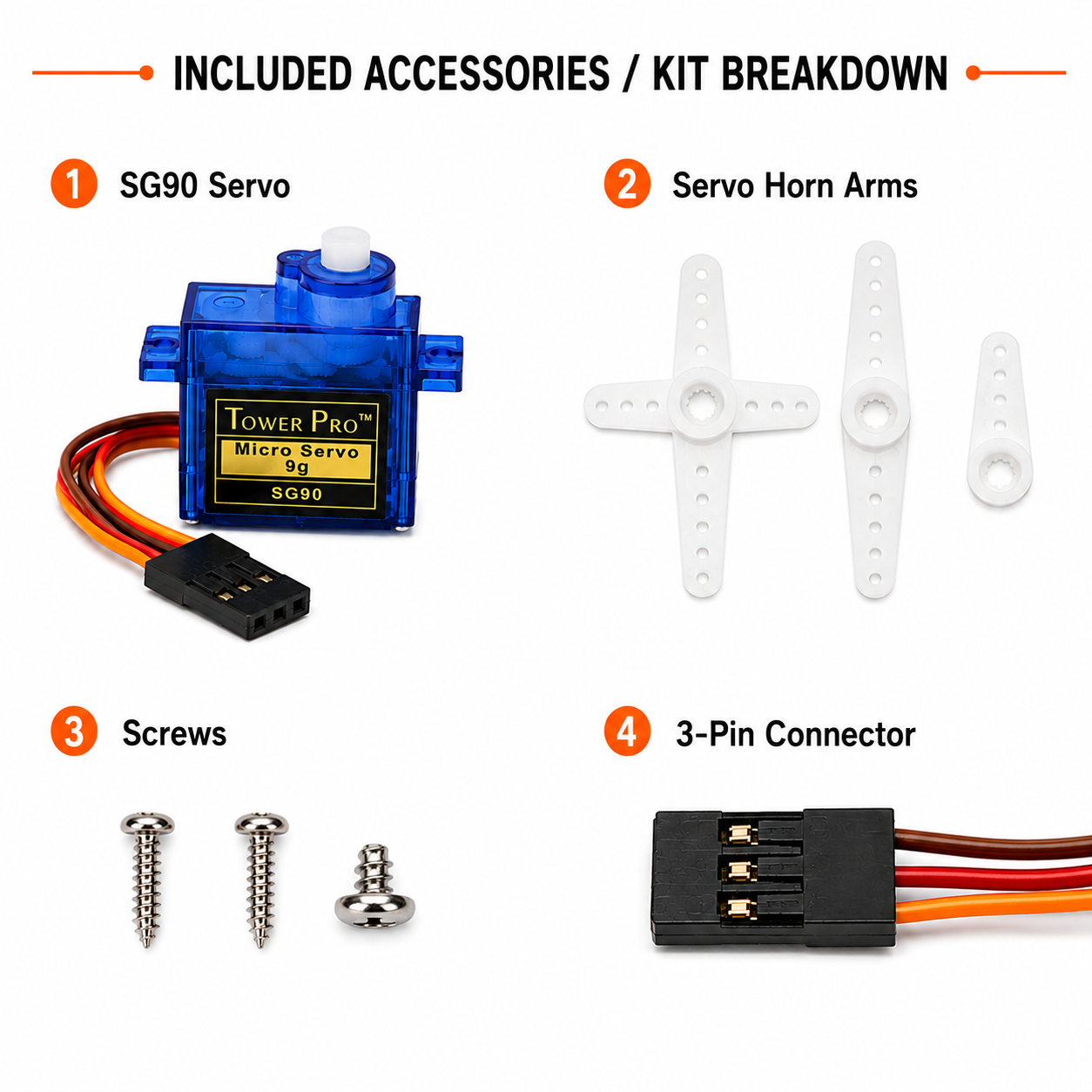

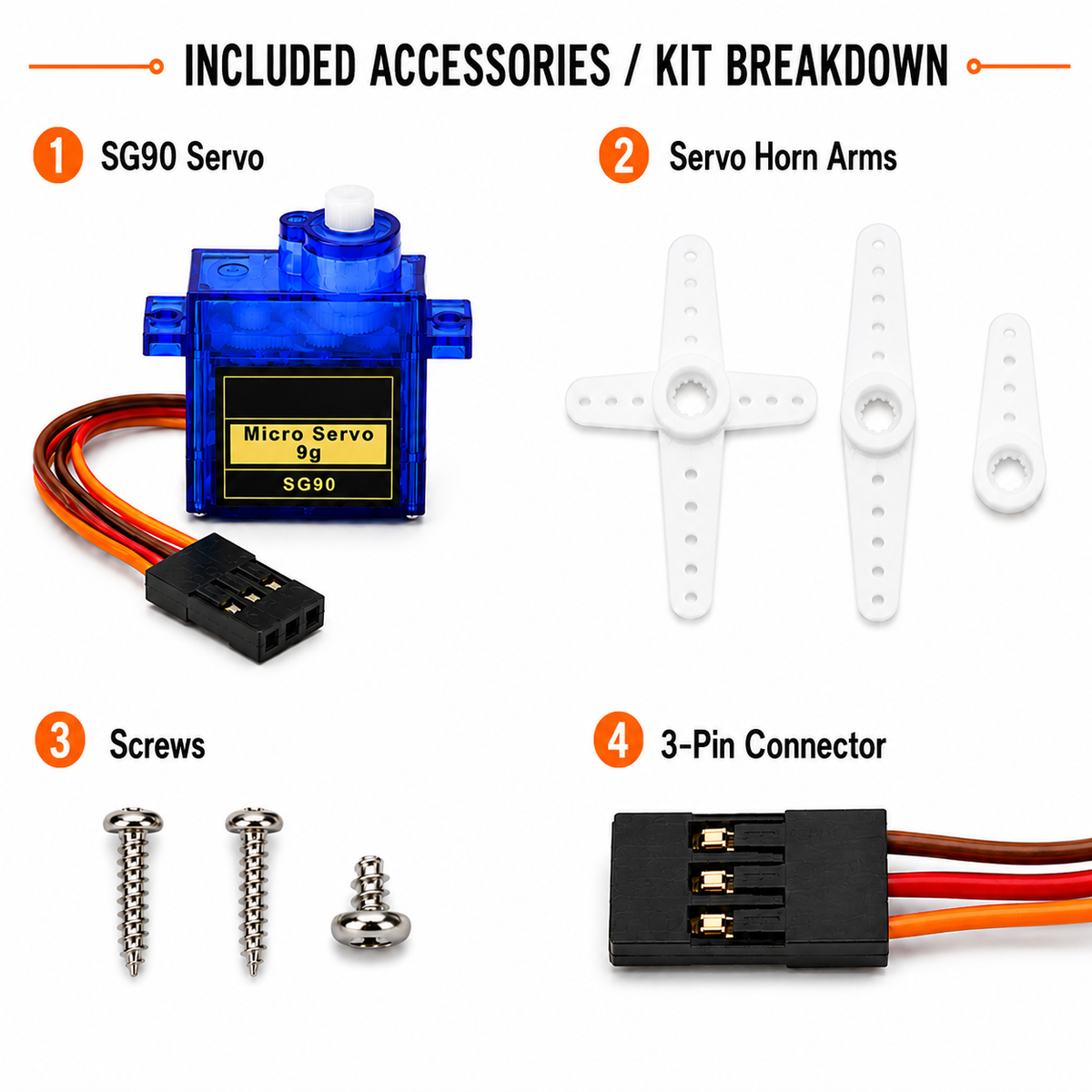

What's Included
1×
SG90 Servo Motor
Main Tower Pro SG90 servo unit.
1×
Servo Horn Set
Multiple horn styles included.

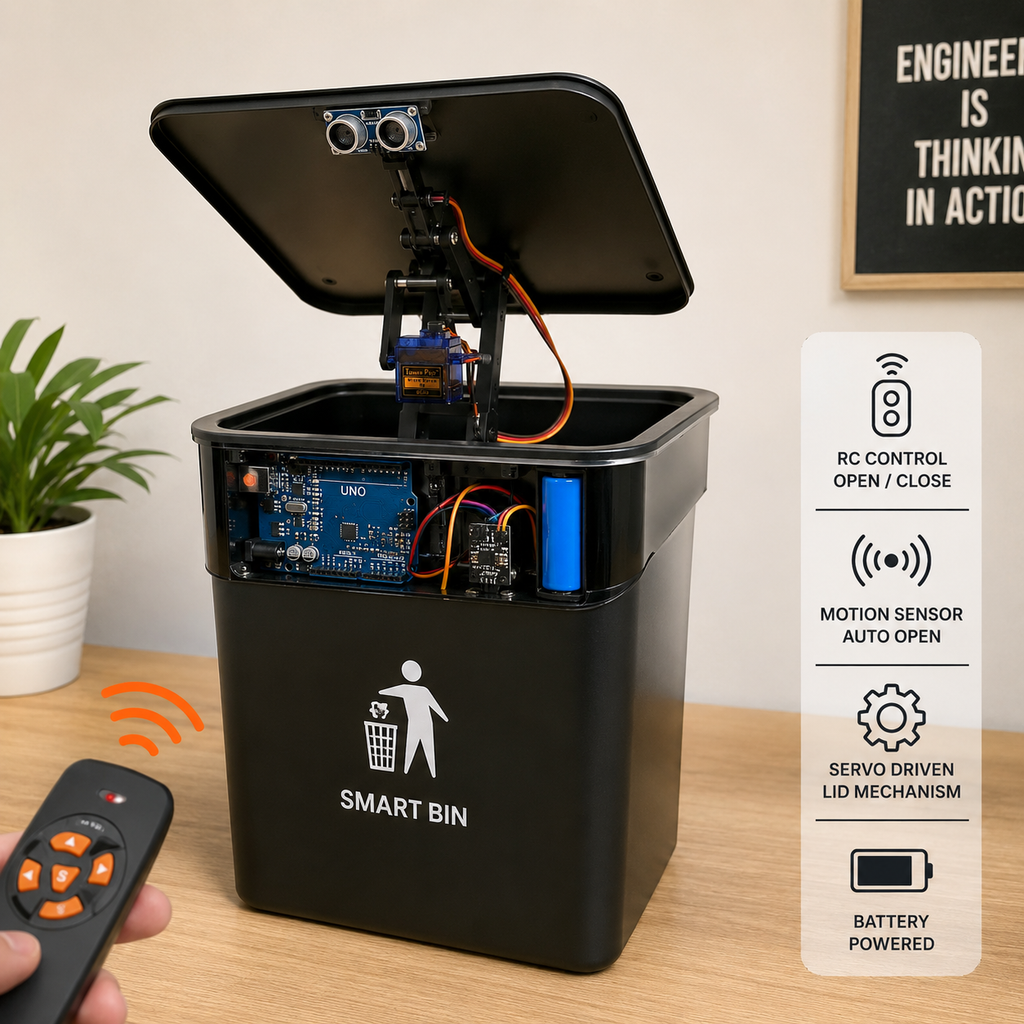

Common Uses
Arduino robotics projects
RC steering systems
Pan/tilt camera systems

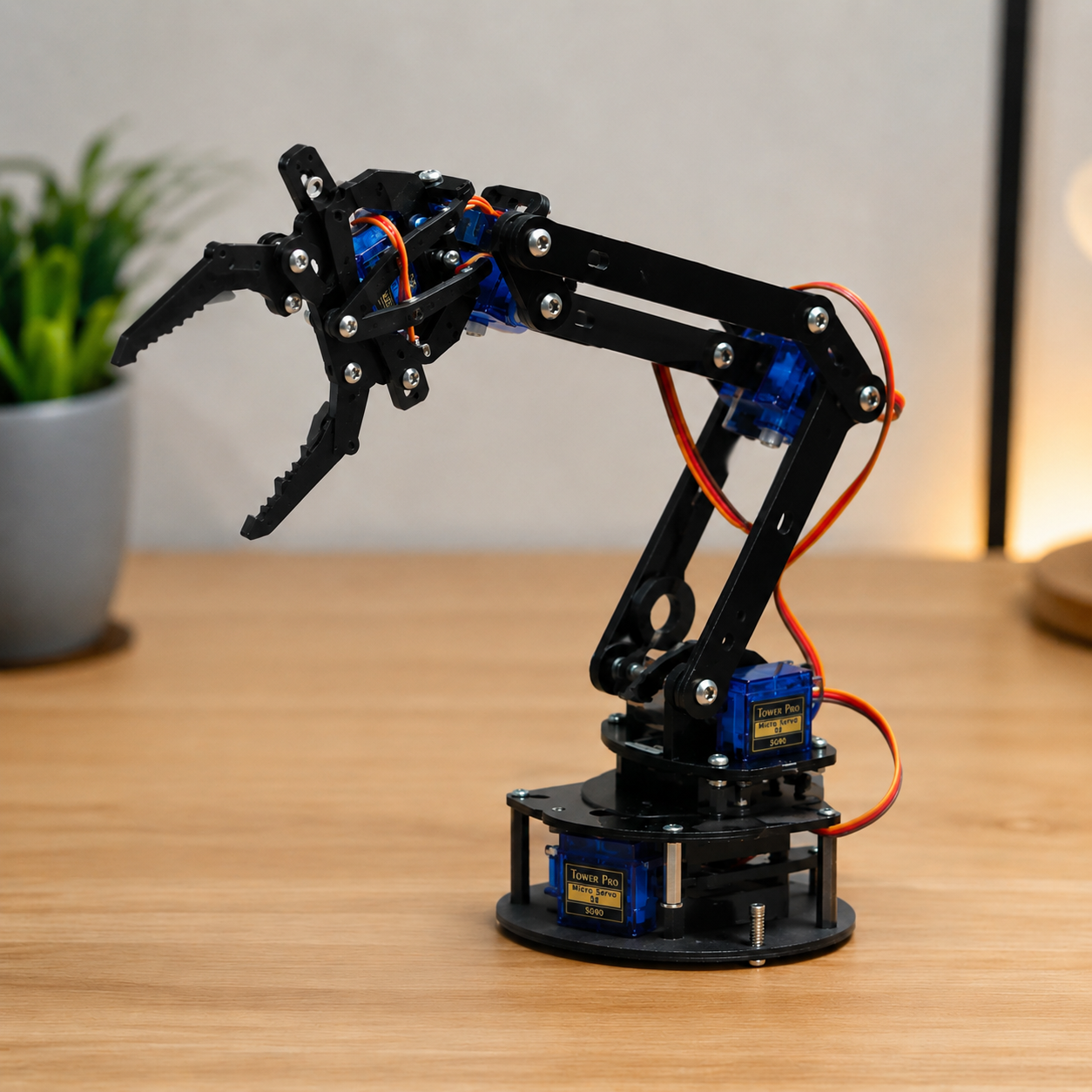

Robot arms and claws

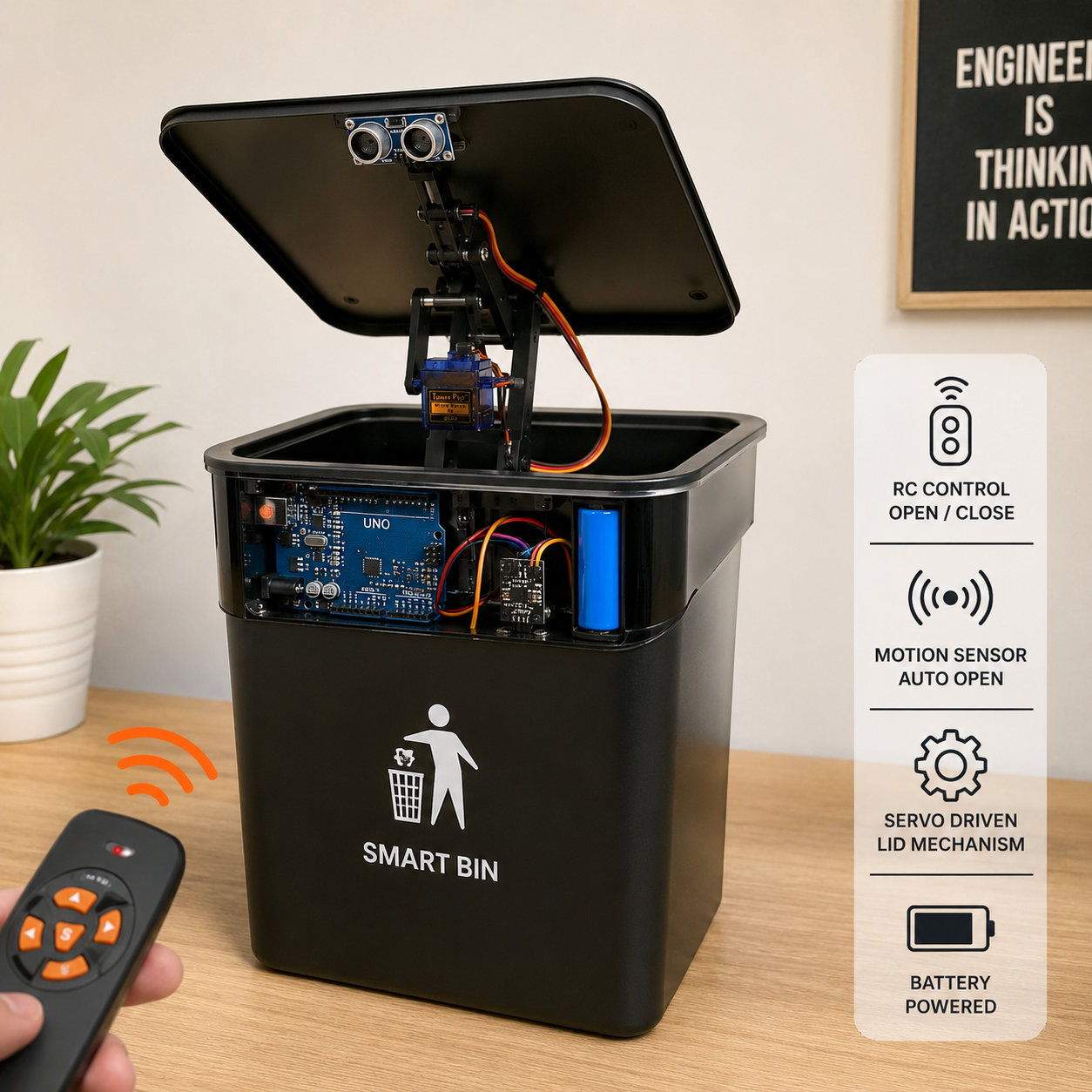

Automation projects
STEM education kits
Common Questions
Can I use this with Arduino?
Yes, the SG90 works perfectly with Arduino using the Servo library.
Does it rotate continuously?
No, this is a positional servo with approximately 180° rotation.
Can I power it directly from Arduino?
Yes for light testing, but a dedicated 5V supply is recommended.
